ATEN CS22DP 2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector
PRODUCT DESCRIPTION
ATEN CS22DP 2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector - 2 Years Local Warranty
Two DisplayPort Computers, One Desk

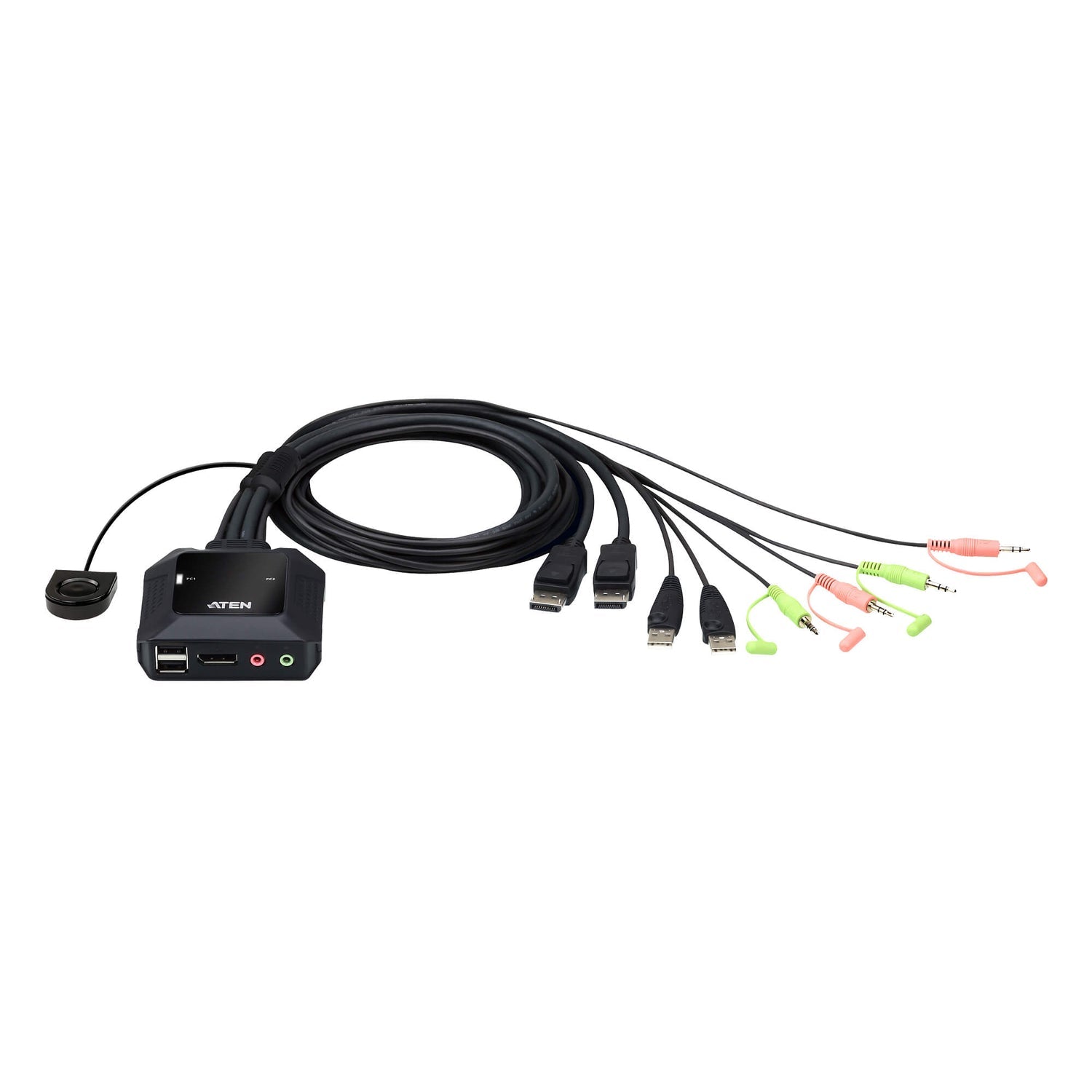

The ATEN CS22DP lets one DisplayPort monitor, USB keyboard and mouse, speakers and microphone control two DisplayPort computers, with 1.2 m KVM cables built in.
4K and High-Refresh Video
Video up to 4096 x 2160 @ 60Hz and 2560 x 1440 @ 144Hz, DisplayPort 1.2 compliant.
Remote Port Selector
Switch computers with the remote port selector on its 1.8 m cable; white LEDs show the online and selected port.
Bus-Powered, Plug and Play
No software needed, USB peripheral sharing, optional Micro USB power input, and support for Windows, Mac and Linux.
Fitting out DisplayPort workstations in volume? Email sales@sourceit.com.sg for pricing and lead time.
ATEN CS22DP Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector |
| Model | CS22DP |
| Order Code | CS22DP-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 2 |

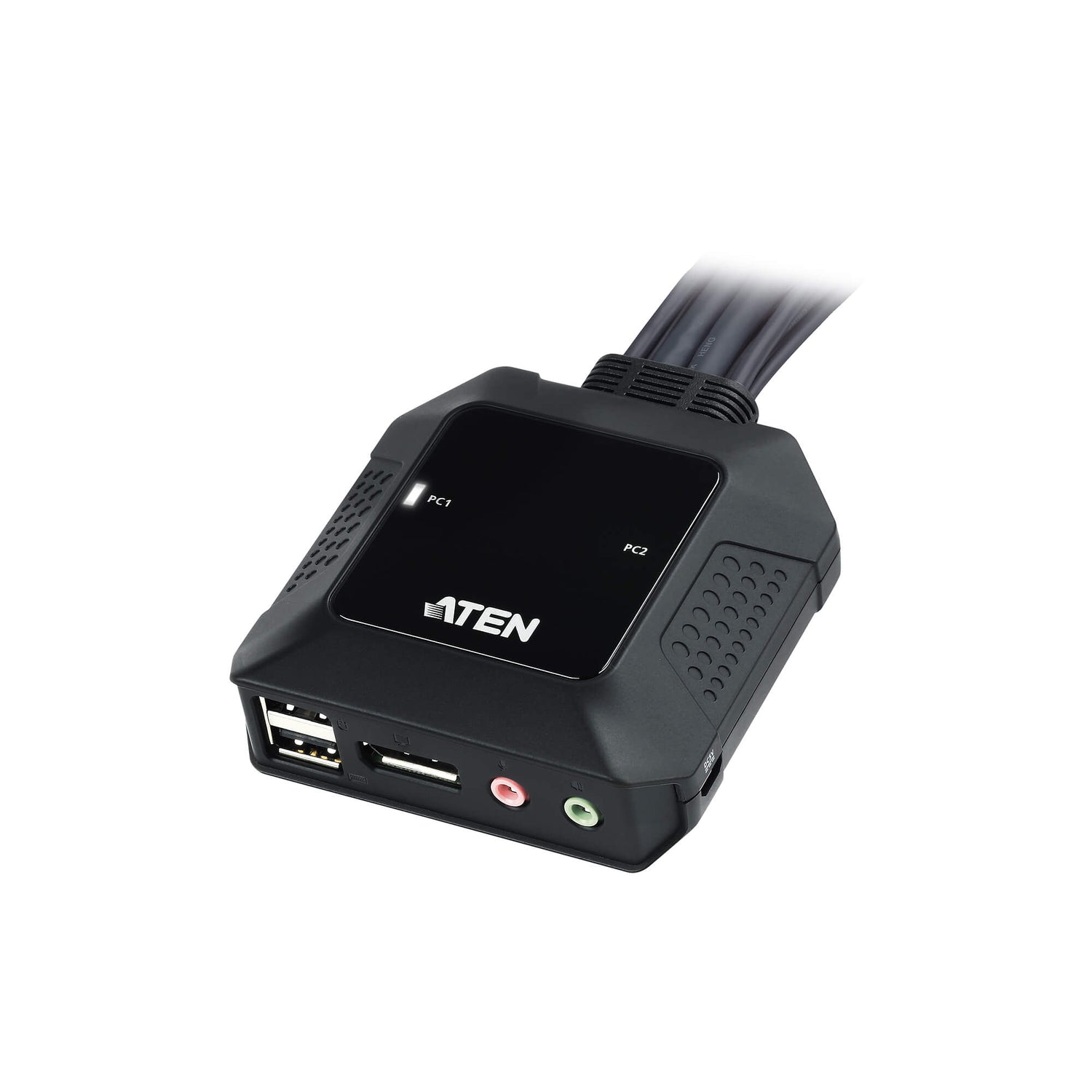

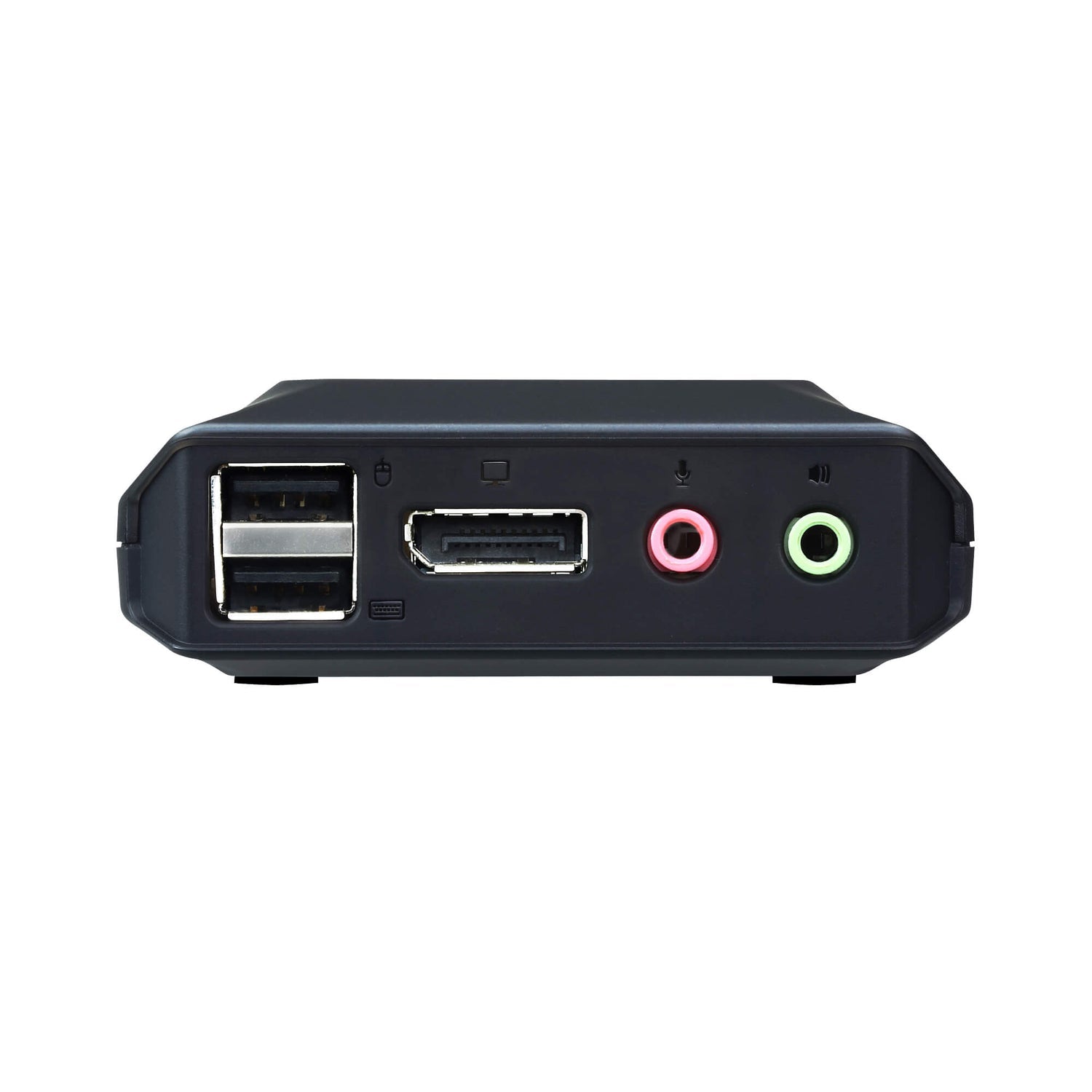

| Console Ports | 1 x DisplayPort Female, 2 x USB Type-A Female, 2 x 3.5 mm audio jacks |

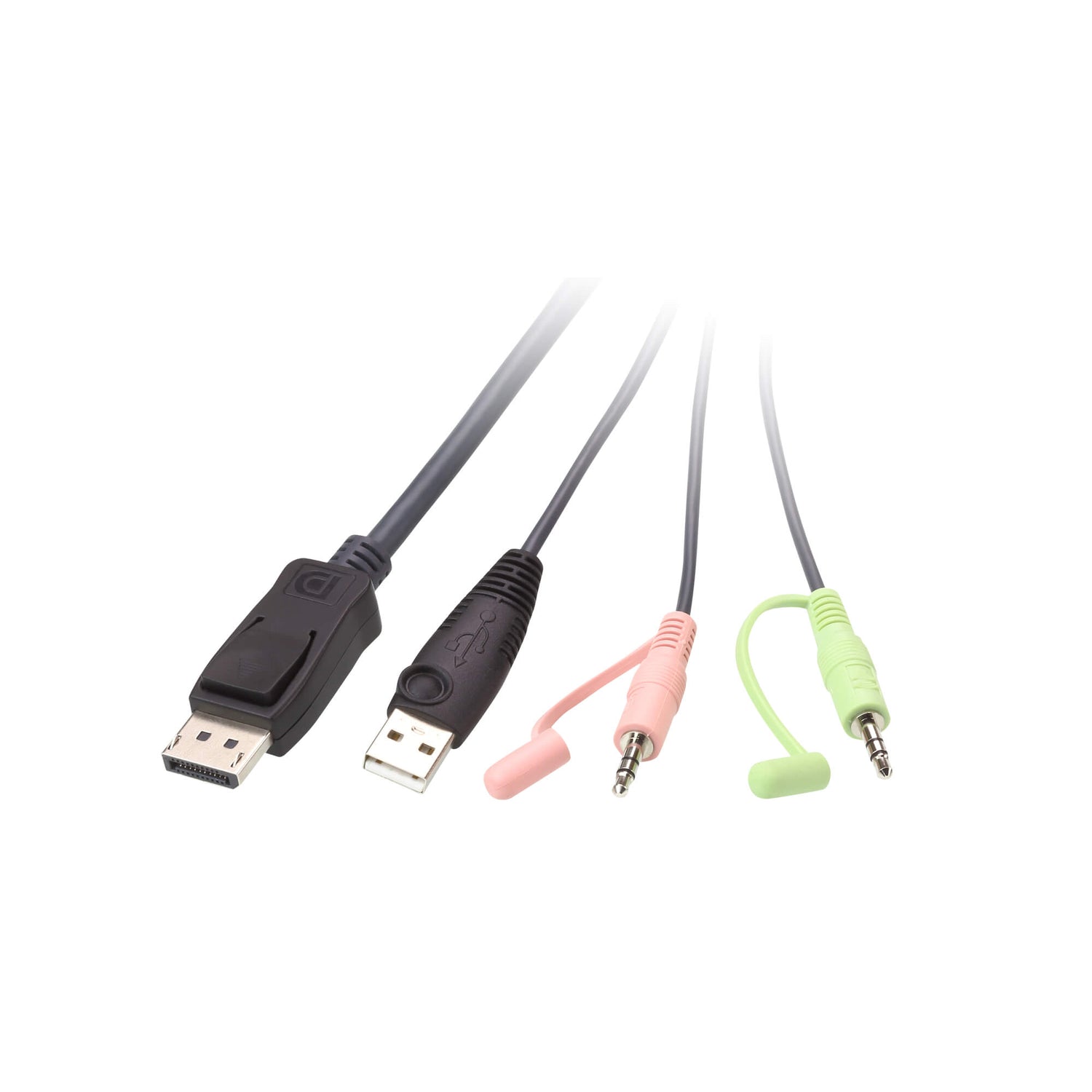

| Computer Ports | 2 x DisplayPort Male, 2 x USB Type-A Male, 4 x 3.5 mm audio plugs (built-in cables) |

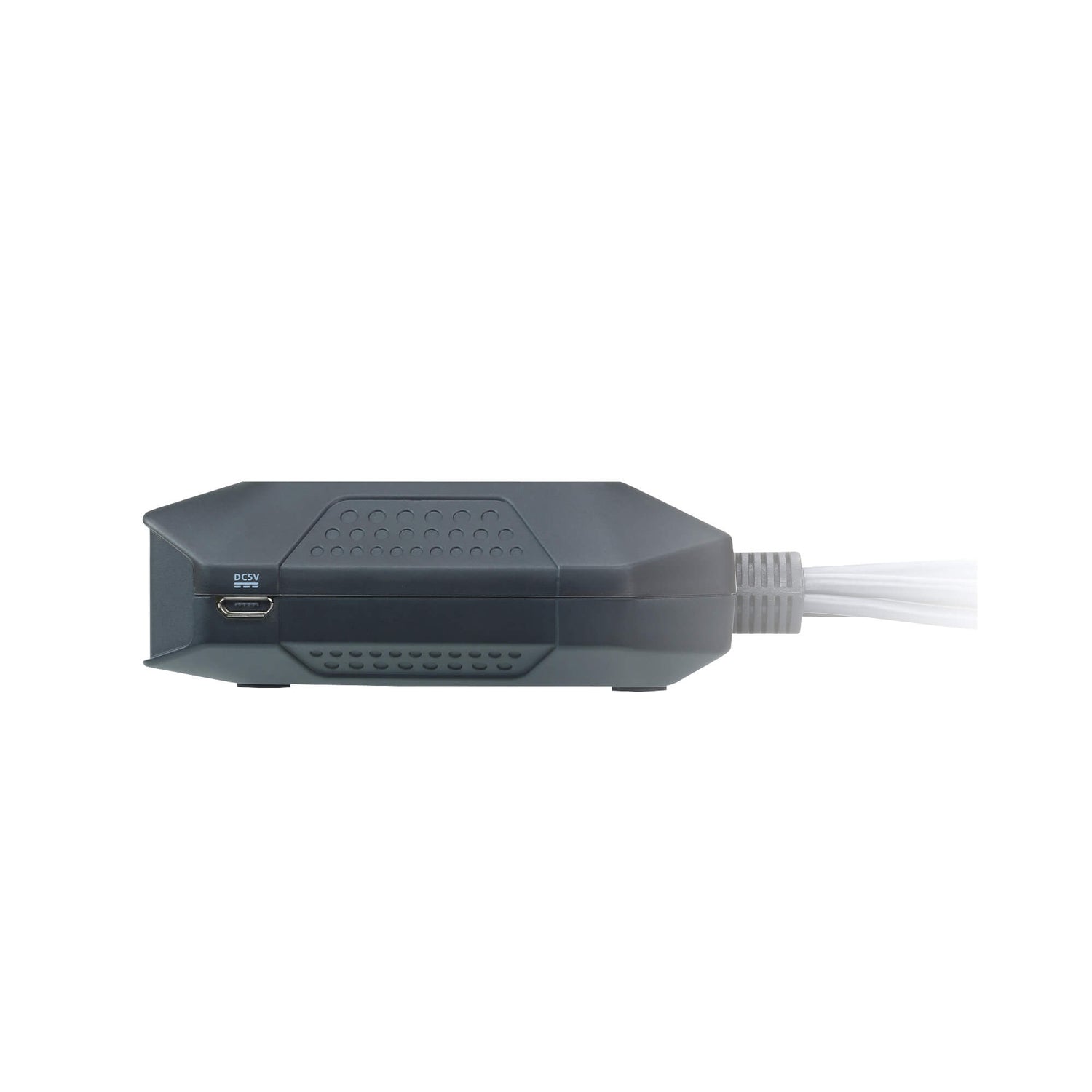

| Power (Optional) | 1 x USB Micro Type-B Female |
Video
| Video Resolution | 4096 x 2160 @ 60Hz; 2560 x 1440 @ 144Hz |
| Compliance | DisplayPort 1.2 |
Control
| Port Selection | Remote port selector |
| LEDs | 2 (white, online/selected) |
Cables
| KVM Cables | 2 x 1.2 m (built-in) |
| Remote Port Selector Cable | 1.8 m |
Power
| Power Mode | Bus-powered; optional Micro USB power |
| Power Consumption | DC 5V, 1.38 W |
Environmental
| Operating Temperature | 0–50 °C |
Physical
| Weight | 0.35 kg |
| Dimensions (L x W x H) | 8.34 x 8.42 x 3.04 cm |
Compatibility
| Operating Systems | Windows, Mac, Linux |
Compatibility & Applications
Typical Computers
Desktops and workstations with full-size DisplayPort output and USB ports, shared on one DisplayPort monitor.
Typical Use
Engineering and design desks, trading desks and home offices running two DisplayPort computers on one screen.
Selection Tip
For HDMI computers choose the CS22H; for USB-C notebooks, the US3312. For four computers on dual displays, see the CS1924M.
Package Contents & ATEN Cable KVM Switch Ordering Information
In the Box
1 x CS22DP 2-Port USB DisplayPort Cable KVM Switch (with built-in cables and remote port selector), 1 x user instructions.
ATEN Cable KVM Switch Models
| Model | Key feature |
| CS22H | 2-port USB 4K HDMI cable KVM, remote port selector |
| CS22HF | 2-port USB FHD HDMI cable KVM switch |
| CS22DP (this listing) | 2-port USB DisplayPort cable KVM, remote port selector |
| CS22U | 2-port USB VGA cable KVM switch |
| CS52DP | 2-port USB-C DisplayPort hybrid cable KVM switch |
| US3312 | 2-port 4K USB-C DisplayPort cable KVM switch |
| CS692 | 2-port USB HDMI/audio cable KVM switch |
| CS62KM | 2-port USB boundless KM switch |
Datasheet & Downloads
| CS22DP datasheet | CS22DP Datasheet (PDF) |
| Quick start guide | CS22DP Quick Start Guide (PDF) |
| ATEN product page | CS22DP on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS22DP-AT.
Frequently Asked Questions — ATEN CS22DP
Are KVM cables included?
Yes. Two 1.2 m cables with DisplayPort, USB and audio are built in.
Does it support audio?
Yes. Microphone and speakers are supported.
Does it need a power adapter?
No. It is bus-powered, with an optional Micro USB power input.
Will it work with Mini DisplayPort computers?
The built-in cables have full-size DisplayPort plugs. Contact us to confirm adapter options for your computer.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
