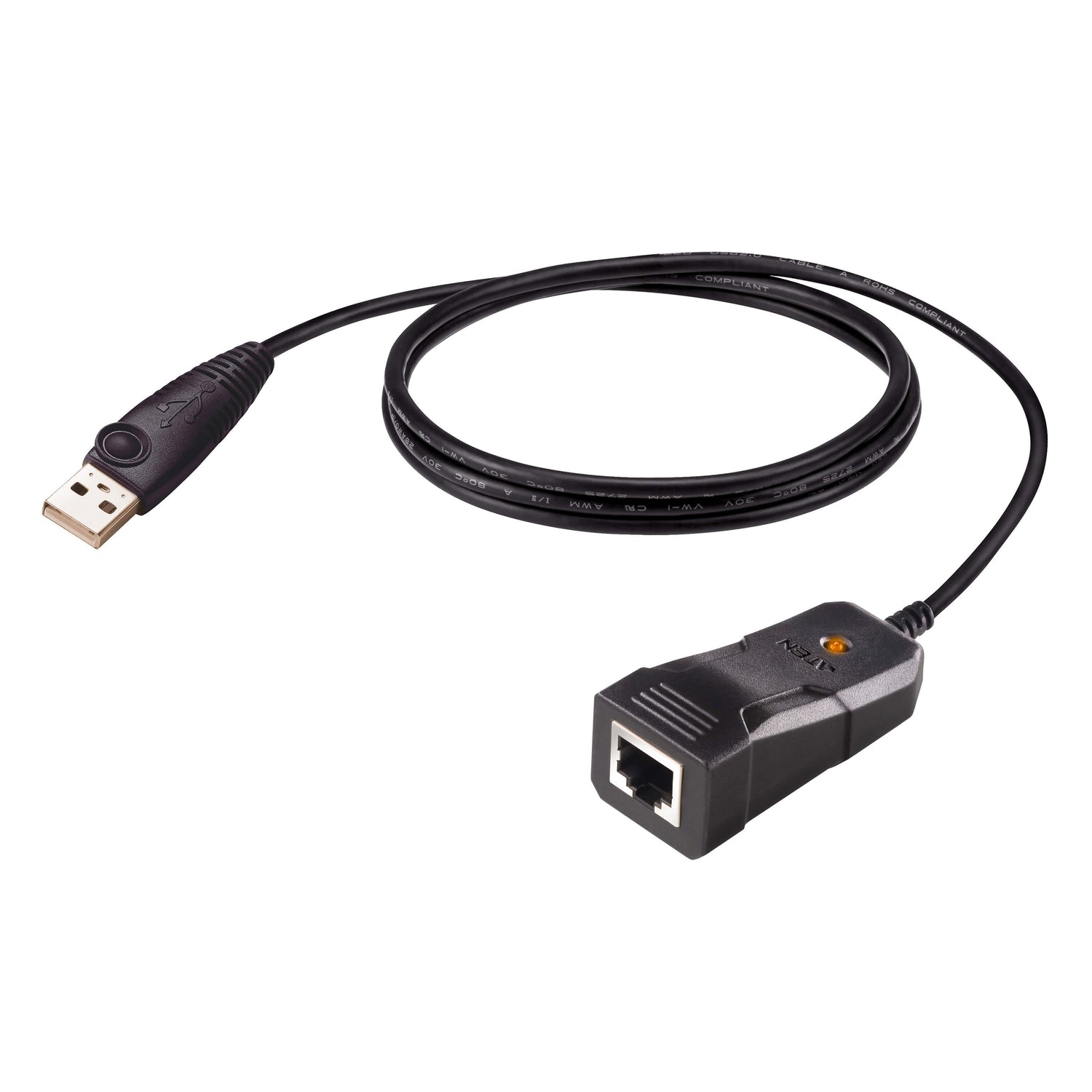

ATEN UC232BF USB to RJ-45 (RS-232) Console Adapter, FTDI, 1.2 m
PRODUCT DESCRIPTION
ATEN UC232BF USB to RJ-45 (RS-232) Console Adapter, FTDI, 1.2 m - 2 Years Local Warranty
USB Console Access for Network Gear
The UC232BF turns a laptop USB port into an RJ-45 RS-232 console port, so network engineers can configure switches, routers, firewalls and other equipment with RJ-45 console ports.
No Rolled Cable Needed
It works with straight RJ-45 cables, so you can use any standard patch cable to reach the console port – no special rolled RJ-45 cable required.
FTDI Chipset, 921.6 Kbps
Built on an FTDI chipset with data rates up to 921.6 Kbps, COM port retention for saved settings, and anti-EMI design for reliable sessions.
Bus-Powered Plug and Play
No external power required. Drivers are available for Windows, macOS and Linux.
Kitting out a network team or field engineers? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN UC232BF Datasheet — Technical Specifications
General
| Product Name | ATEN USB to RJ-45 (RS-232) Console Adapter (FTDI) |
| Model | UC232BF |
| Order Code | UC232BF-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| USB Port | 1 x USB Type-A Male |
| Serial Port | 1 x RJ-45 Female (RS-232 console) |
Performance
| Chipset | FTDI |
| Data Rate | Up to 921.6 Kbps |
| Cable Length | 1.2 m |
| Cabling | Works with straight RJ-45 cables (no rolled cable needed) |
| Power Mode | Bus-powered |
| USB Specification | USB compliant |
| Operating Systems | Windows, macOS, Linux |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.06 kg |
| Dimensions (L x W x H) | 2.56 x 5.84 x 2.23 cm |
Compatibility & Applications
Typical Devices

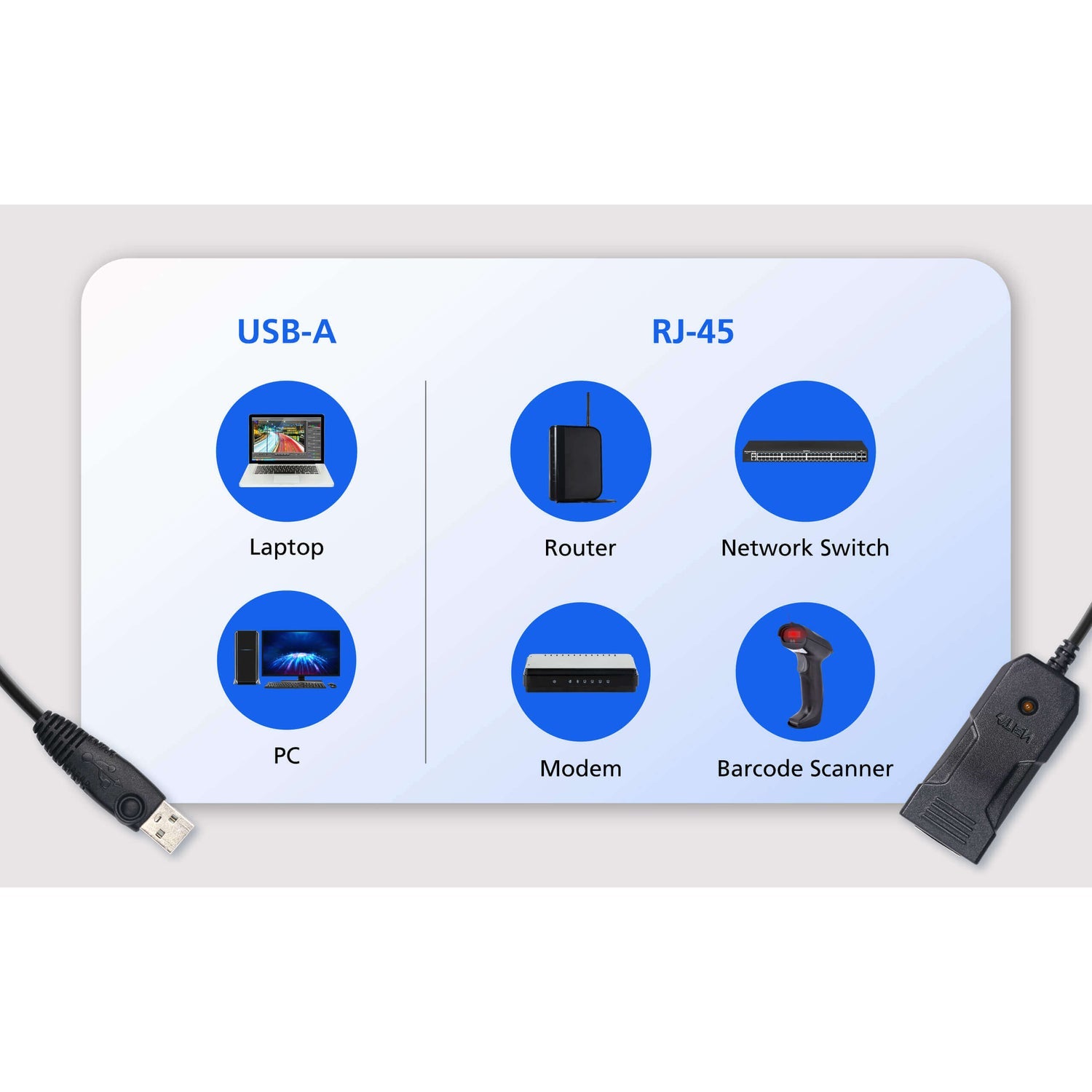

Network switches, routers, firewalls, wireless controllers, UPS and PDU units, and servers with an RJ-45 RS-232 console port.
Typical Use
Initial configuration and out-of-band troubleshooting of network equipment from a laptop, in server rooms and on site.
Selection Tip
For equipment with a DB-9 serial port instead of RJ-45, choose the UC232AF (USB-A) or UC232C (USB-C).
Package Contents & ATEN USB Serial Adapter Ordering Information
In the Box
1 x UC232BF USB to RJ-45 (RS-232) Console Adapter (FTDI), 1 x user instructions.
ATEN USB Serial Adapter Models
| Model | Key feature |
| UC232A | USB to RS-232 adapter |
| UC232A1 | 1 m USB to RS-232 converter |
| UC232AF | USB to RS-232 adapter, FTDI chipset |
| UC232BF (this listing) | USB to RJ-45 (RS-232) console adapter, FTDI, 1.2 m |
| UC232C | USB-C to RS-232 adapter, 45 cm |
| UC2324 | 4-port USB to RS-232 hub |
Datasheet & Downloads
| Datasheet | UC232BF Datasheet (PDF) |
| User manual | UC232B / UC232BF User Manual (PDF) |
| Quick start guide | UC232B / UC232BF Quick Start Guide (PDF) |
| ATEN product page | UC232BF on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting UC232BF-AT.
Frequently Asked Questions — ATEN UC232BF
Do I need a rolled (Cisco-style) console cable?
No. The UC232BF works with straight RJ-45 cables.
Which chipset does it use?
An FTDI chipset.
Which operating systems are supported?
Windows, macOS and Linux.
Does it keep the same COM port number?
Yes. ATEN lists COM port retention so saved settings are kept.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
