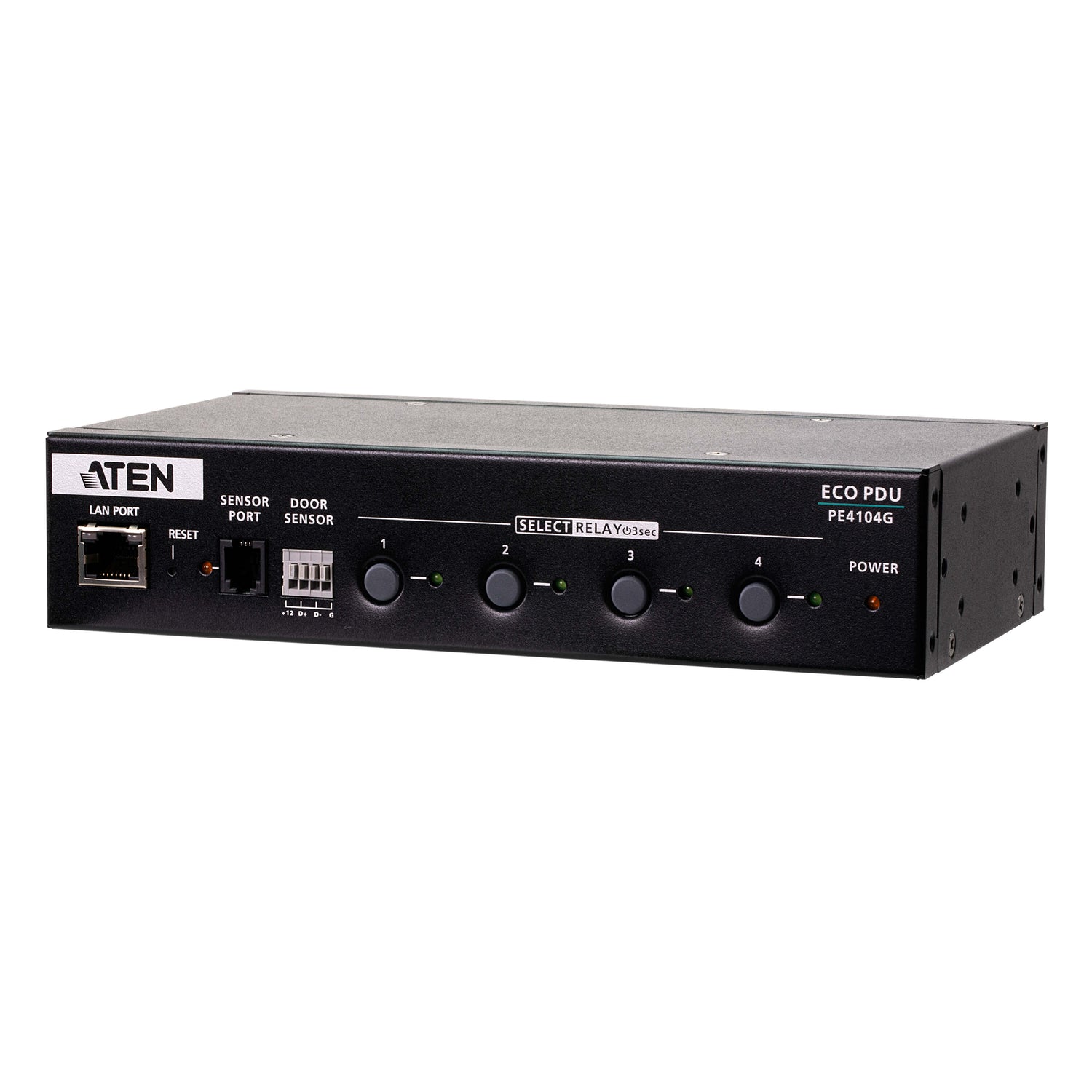

ATEN PE4104G 4-Outlet Eco PDU Power Controller (IEC C13)
PRODUCT DESCRIPTION
ATEN PE4104G 4-Outlet Eco PDU Power Controller (IEC C13) - 2 Years Local Warranty
Remote Power Control for Four Devices
The PE4104G lets you switch, power cycle and sequence four IEC C13 outlets individually, locally or remotely over the network, so a hung router, server or AV device can be rebooted without a site visit.
Power-On Sequencing and Schedules
Set the power-on order and delay time for each outlet to avoid inrush and bring equipment up in the right order, and use schedule control to switch outlets automatically.
Network Managed and Secure
A built-in 10/100 Ethernet port gives web-based control and works with ATEN eco DC software. Two-level password security, TLS 1.2 encryption and RADIUS authentication are supported, with SNMP v1/v2/v3, Modbus TCP and more.
Compact and Rack-Mountable
A compact 100–240 VAC unit with an IEC C14 inlet, UL1077 breaker, outlet lock to prevent accidental button presses, and a standard rack mount kit in the box.
Rolling out remote reboot capability across branch sites or AV rooms? Email sales@sourceit.com.sg for a project quote.
ATEN PE4104G Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Outlet Eco PDU Power Controller (PE4104G) |
| Model | PE4104G |
| Order Code | PE4104G-AT-G |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Input
| Input Voltage | 100–240 VAC |
| Input Frequency | 50–60 Hz |
| Input Connection | IEC C14 |
| Max Input Current | 10 A |
| Max Input Power | 2400 VA |
| Power Cord Length | 3 m |
Output
| Outlets | 4 x IEC 320 C13 |
| Output Voltage | 100–240 VAC |
| Max Output Current | 10 A per outlet; 10 A total |
| Breaker | Yes (UL1077) |
| Outlet Switching | Yes (on, off, power cycle per outlet) |
| Metering | No |
Network & Management
| Network Port | Built-in 10/100 Ethernet |
| Protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, ARP, NTP, DNS, SNMP v1/v2/v3, Ping, Telnet, Modbus (TCP/IP) |
| Security | Two-level password security; TLS 1.2; RADIUS |
| Features | Power-on sequencing with per-outlet delay; schedule control; outlet lock |
| Software | Works with web-based eco DC software |
Power
| Power Consumption | AC 110 V: 3.1 W; AC 220 V: 3.5 W |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Weight | 0.90 kg |
| Dimensions (L x W x H) | 20.00 x 12.81 x 4.40 cm |
Compliance
| EMC | CE-EMC |
| Safety | CE-LVD |
Compatibility & Applications
Typical Devices
Routers, modems, firewalls, network switches, small servers, NVRs, digital signage players and AV equipment with IEC C14 power inlets.
Typical Use
Remote rebooting of equipment at branch offices, retail outlets, kiosks and unmanned sites; sequenced start-up of AV racks; scheduled power-off of non-critical gear.
Selection Tip

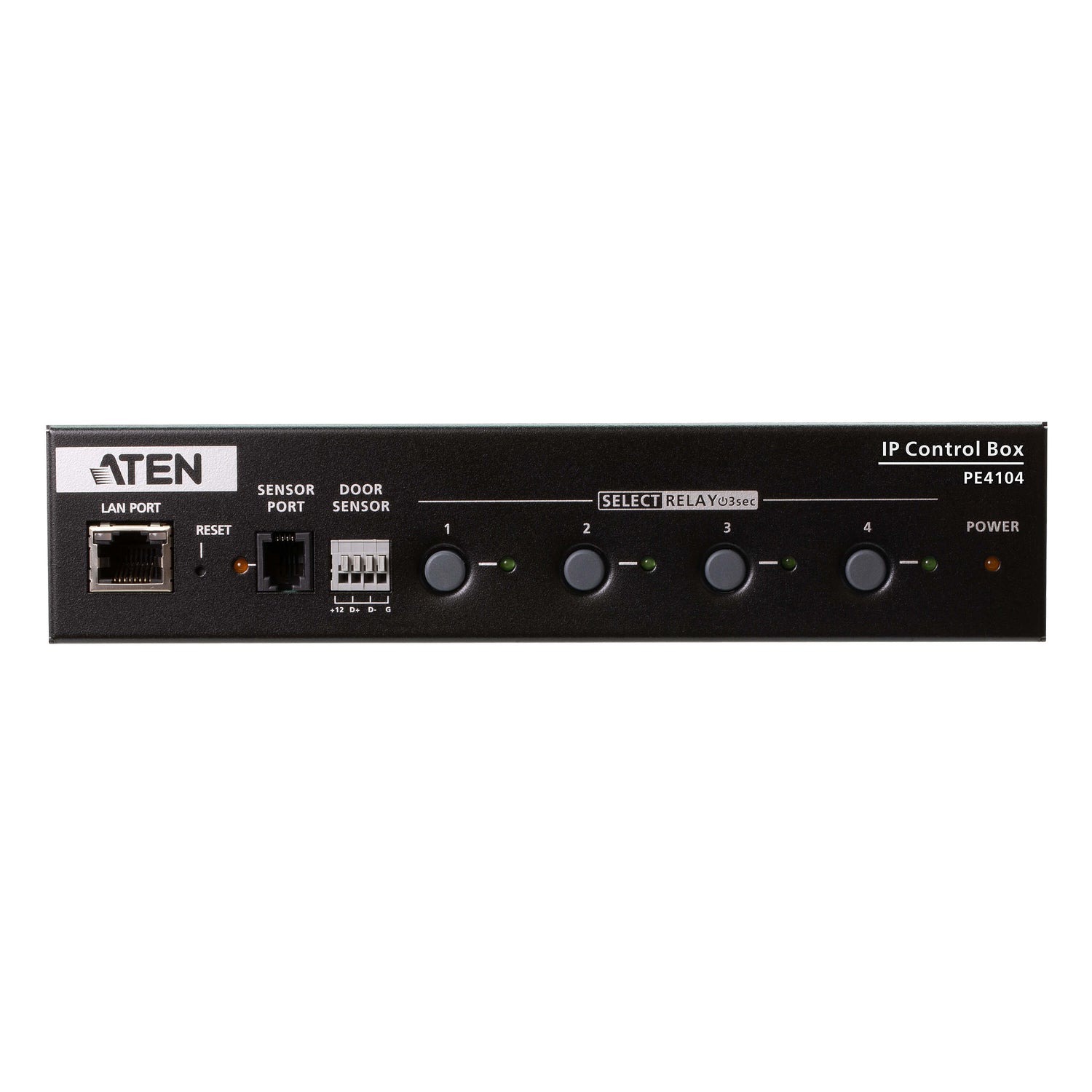

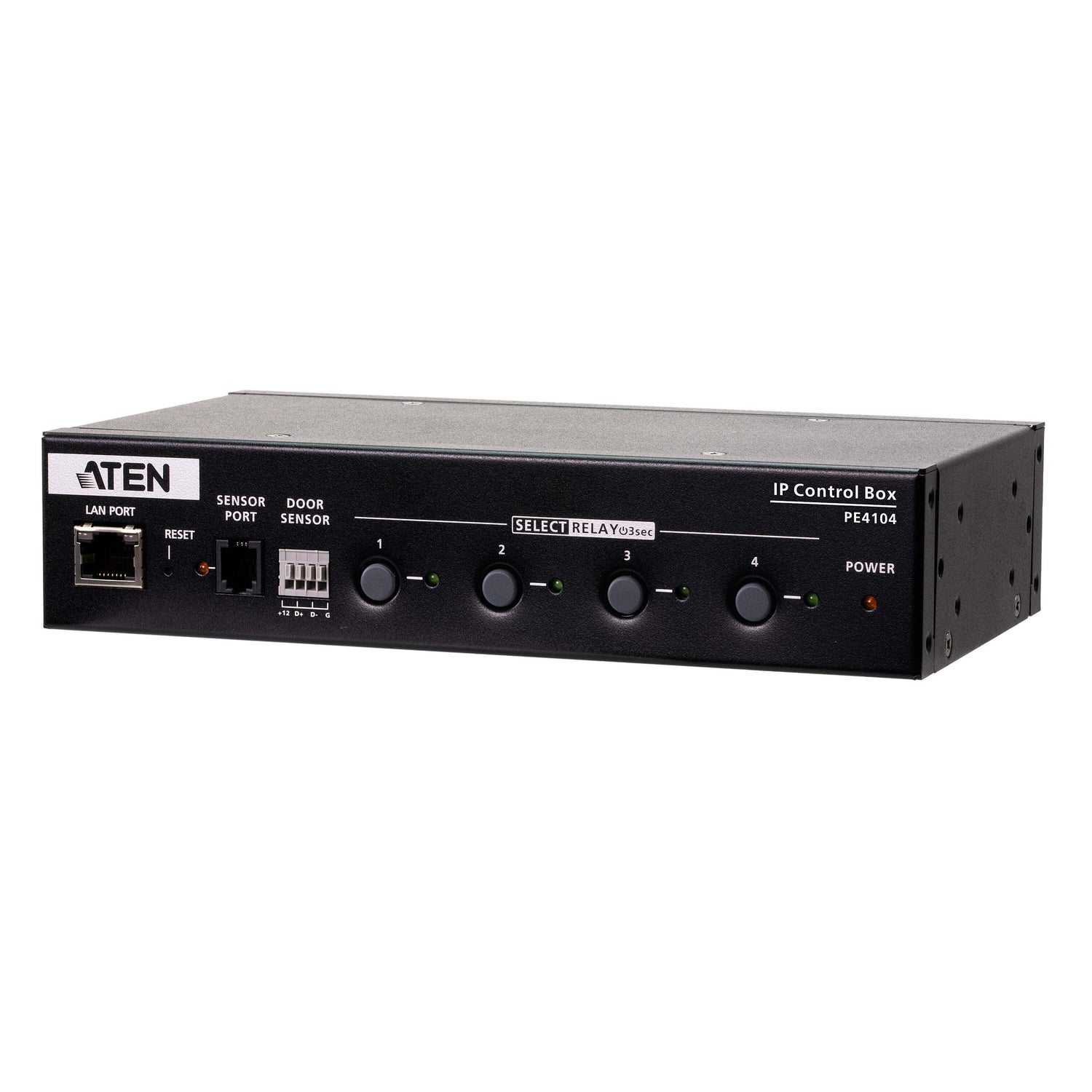

The PE4104G is the IEC version (100–240 VAC, C14 inlet, four C13 outlets) of ATEN's PE4104. Devices with local plugs will need IEC C14 power cords. It switches outlets but does not meter power.
Package Contents & ATEN eco PDU Ordering Information
In the Box
1 x IP Control Box (PE4104G), 1 x standard rack mount kit, 1 x power cord, 1 x user instructions.
ATEN Power and Rack Models
| Model | Key feature |
| PE4104G (this listing) | 4-outlet eco PDU power controller, 4 x IEC C13, 10 A |
| OL1000HV | 1000 VA / 1000 W online UPS, 220–240 V |
| 2K-0006 | Long easy-installation rack mount kit for LCD KVM |
Datasheet & Downloads
| Datasheet | PE4104G Datasheet (PDF) |
| User manual | PE4104A / PE4104AJ / PE4104AJ2 / PE4104G User Manual (PDF) |
| ATEN product page | PE4104 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting PE4104G-AT-G.
Frequently Asked Questions — ATEN PE4104G
What outlets does the PE4104G have?
Four IEC 320 C13 outlets, fed from an IEC C14 inlet at 100–240 VAC, 10 A maximum.
Can I switch each outlet separately?
Yes. Each outlet can be turned on, off or power cycled individually, locally or remotely over the network.
Does it measure power consumption?
No. The PE4104G provides outlet switching but not metering.
Can it integrate with monitoring systems?
Yes. It supports SNMP v1/v2/v3, Modbus TCP, HTTP/HTTPS and Telnet, and works with ATEN eco DC software.
Is it rack-mountable?
Yes. A standard rack mount kit is included.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
