PRODUCT DESCRIPTION
ATEN KL1508Ai 8-Port Cat 5 Dual Rail LCD KVM over IP Switch, 17" / 19" - 2 Years Local Warranty

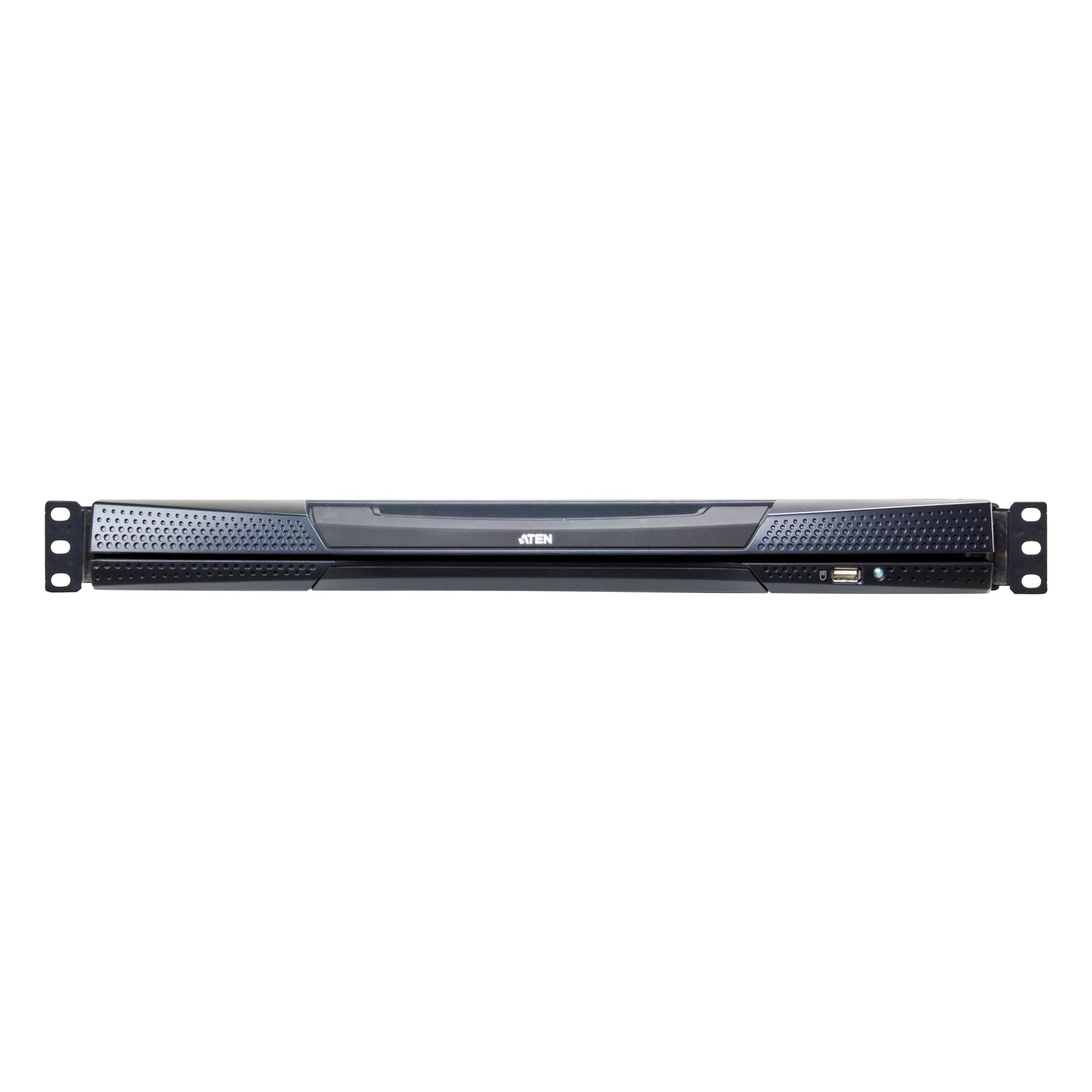

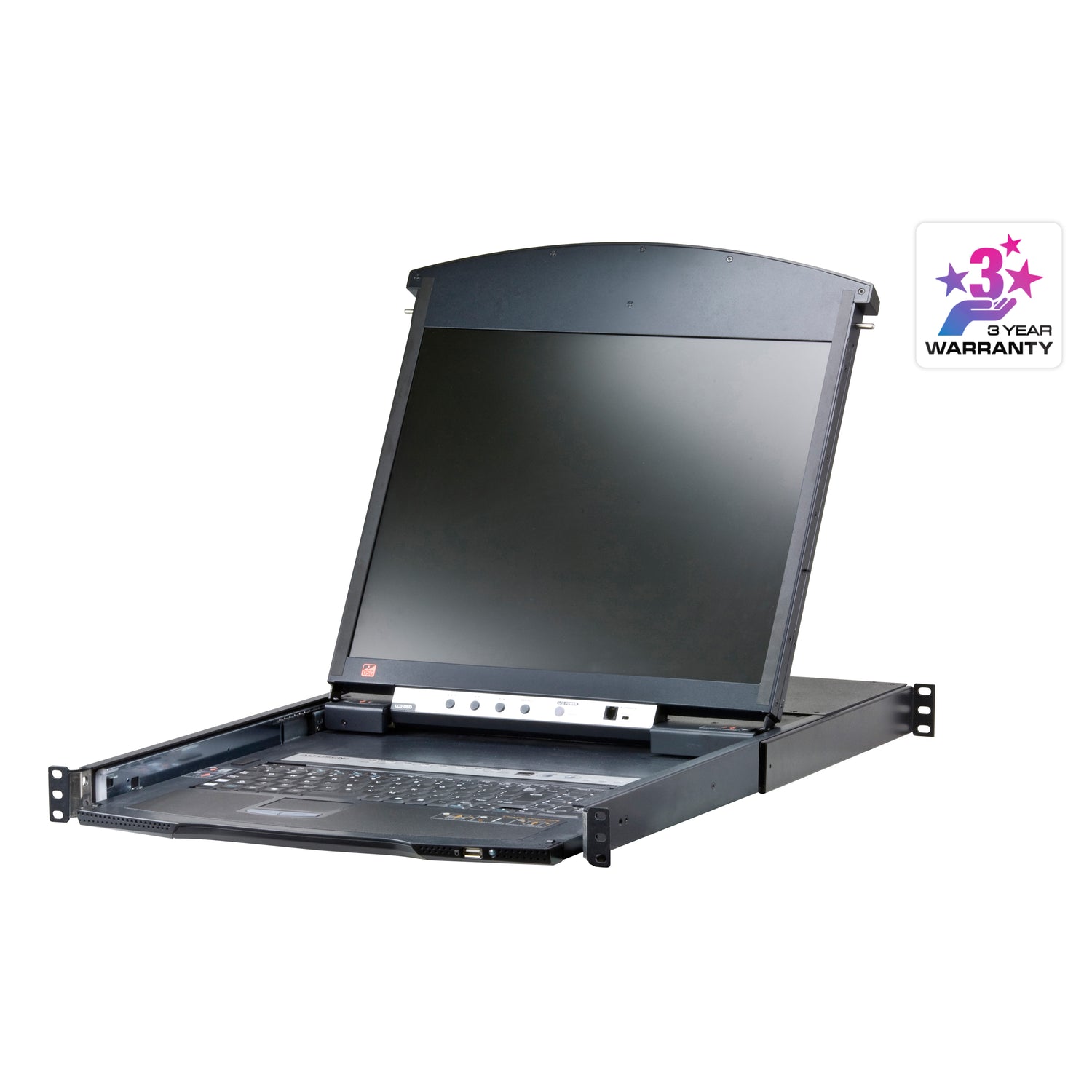

Dual Rail LCD Console with KVM over IP
The KL1508Ai is a 1U dual rail LCD KVM switch with 8 Cat 5 computer ports and built-in KVM over IP. The LCD and keyboard modules slide independently, so you can use an external keyboard or keep the screen open while the keyboard is stowed.
Cat 5 Cabling Keeps the Rack Tidy
Servers connect over standard Cat 5e/6 cable with RJ-45 connectors through ATEN KA7xxx KVM adapters, at up to 30 m for 1920 x 1200, 40 m for 1600 x 1200 or 50 m for 1280 x 1024. Adapters are available for USB, PS/2, VGA, HDMI, DisplayPort, DVI, Sun and serial devices.
Local Plus Remote Access
One local console and one remote user share the bus. Remote access supports up to 64 user accounts and 32 concurrent logins, with TLS 1.2 and RSA 2048-bit certificates and RADIUS, LDAP, LDAPS and Active Directory authentication. Panel Array Mode shows up to 8 servers on screen at once.
Scale to 128 Computers

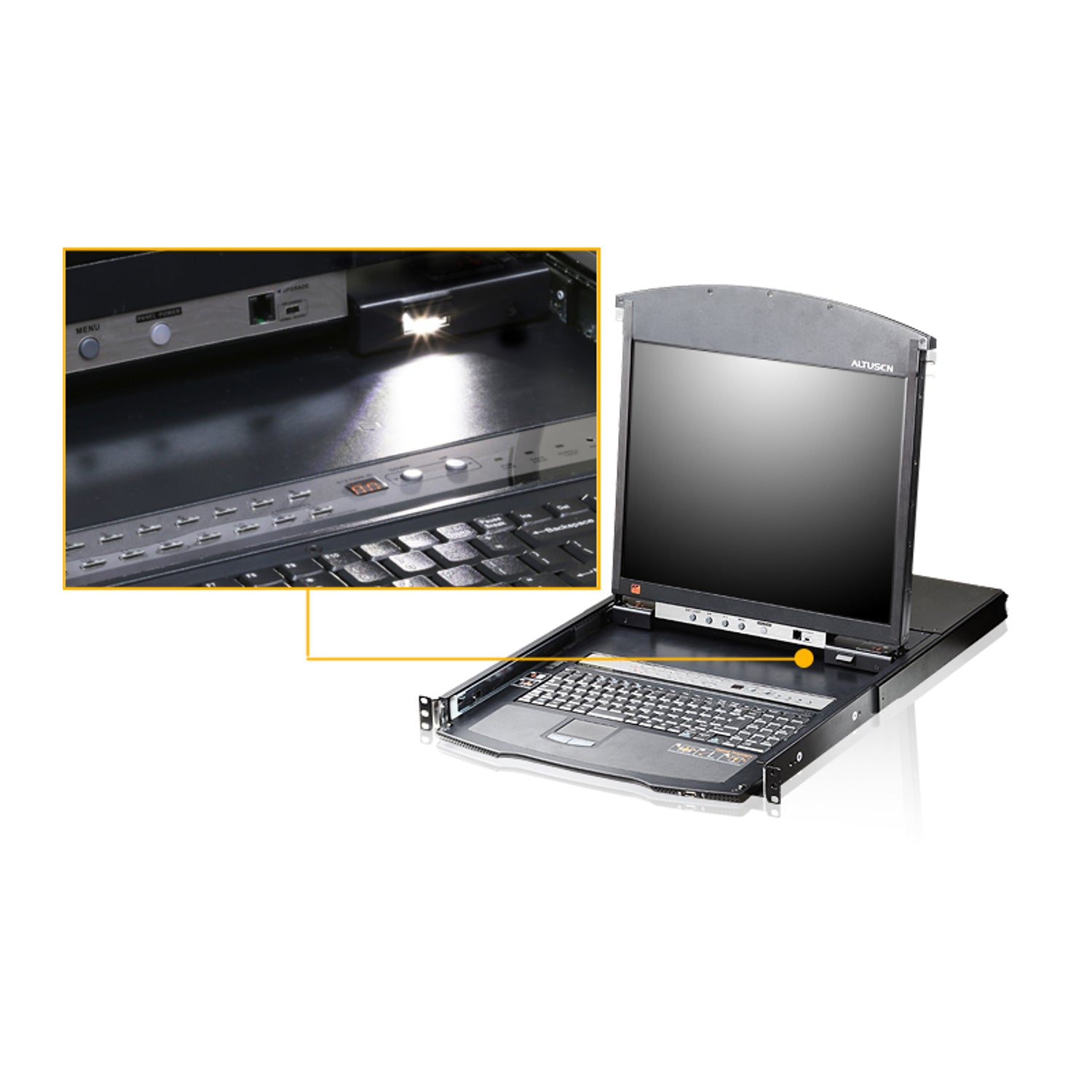

Daisy-chain to control up to 128 computers. Choose the 17" KL1508AiM or 19" KL1508AiN; both panels run at 1280 x 1024 at 75 Hz with ATEN's LED illumination light over the keyboard.
KA7xxx adapters are ordered separately: email sales@sourceit.com.sg with your server mix for a complete project quote.
ATEN KL1508AiM / KL1508AiN Datasheet — Technical Specifications
General
| Product Name | ATEN 1-Local/Remote Shared Access 8-Port Multi-Interface Cat 5 Dual Rail LCD KVM over IP Switch |
| Models | KL1508AiM (17"), KL1508AiN (19") |
| Order Codes | KL1508AIM-AXA-AE, KL1508AIN-AXA-AE |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 8 |
| Maximum | 128 (via daisy-chain) |
| Port Selection | OSD, hotkey, pushbuttons |
| User Access | 1 local console + 1 remote user (shared bus) |
Connectors

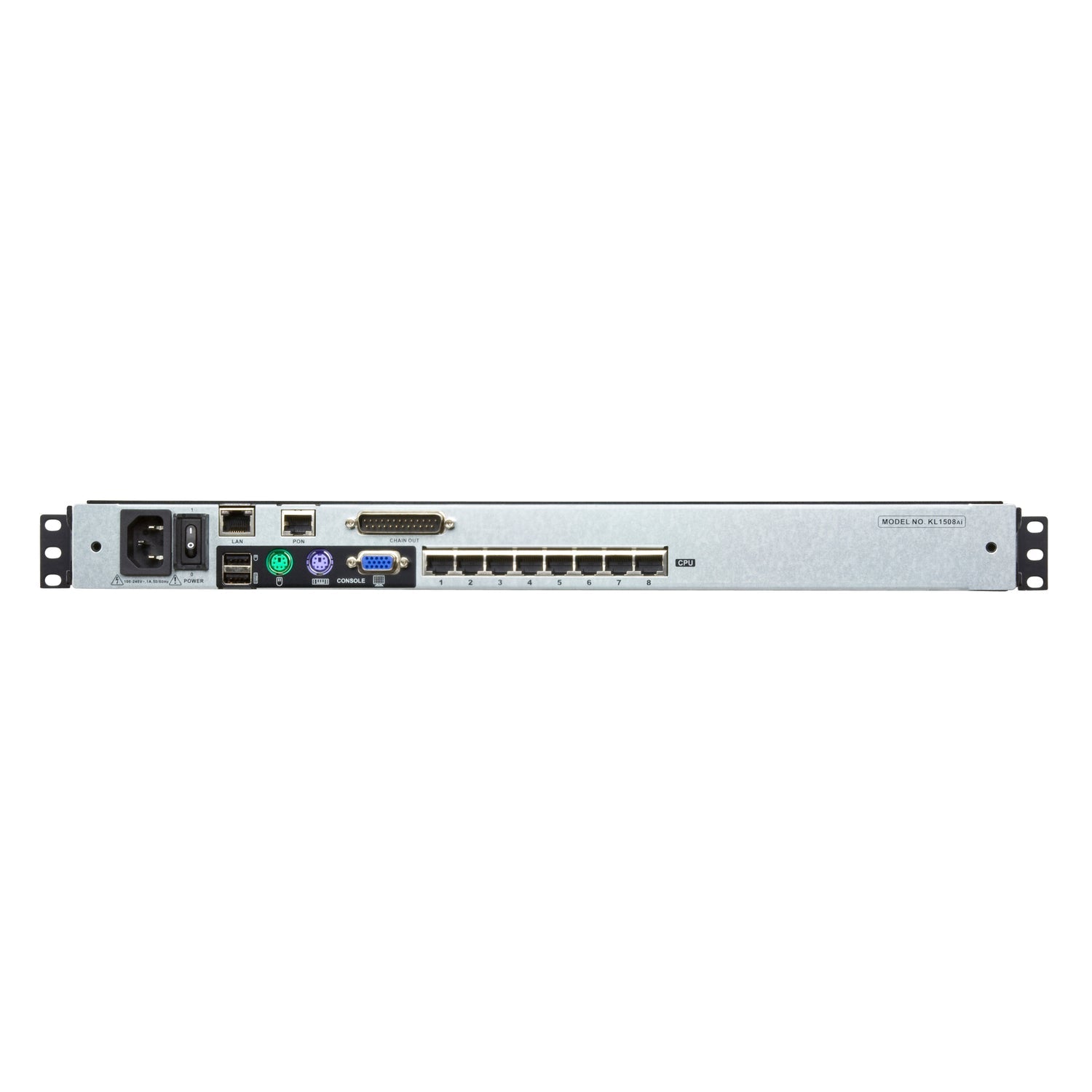

| KVM Ports | 8 x RJ-45 Female (via ATEN KA7xxx KVM adapters) |
| External Console | 2 x USB Type-A, 1 x 6-pin Mini-DIN (purple), 1 x 6-pin Mini-DIN (green), 1 x HDB-15 (blue) |
| External Mouse | 1 x USB Type-A |
| Daisy Chain | 1 x DB-25 |
| PON | 1 x RJ-45 |
| LAN | 1 x RJ-45 |
| Power | 1 x IEC 60320/C14 |
LCD Panel
| Size | KL1508AiM: 17"; KL1508AiN: 19" |
| Resolution | 1280 x 1024 @ 75 Hz |
| Pixel Pitch | 17": 0.264 mm; 19": 0.294 mm |
| Response Time | 5 ms |
| Viewing Angle | 170° (H), 160° (V) |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Colours | 16.7M |
Video, Distance and Remote Access
| Remote Video | Up to 1920 x 1200 @ 60 Hz (FHD version); 1600 x 1200 @ 60 Hz (non-FHD version) |
| Cat 5 Distance | Up to 30 m @ 1920 x 1200; 40 m @ 1600 x 1200; 50 m @ 1280 x 1024 @ 75 Hz |
| User Accounts | Up to 64; up to 32 concurrent logins |
| Security | TLS 1.2 data encryption, RSA 2048-bit certificates |
| Authentication | RADIUS, LDAP, LDAPS, Active Directory |
Power
| Input | 100–240 V AC, 50–60 Hz, 1 A |
| Consumption (KL1508AiM) | 21.1 W @ 110 V; 22.2 W @ 220 V |
| Consumption (KL1508AiN) | 24.3 W @ 110 V; 24.5 W @ 220 V |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Form Factor | 1U dual rail, independent LCD and keyboard modules |
| Weight | KL1508AiM: 15.23 kg; KL1508AiN: 15.39 kg |
| Dimensions (L x W x H) | 48.00 x 70.12 x 4.40 cm |
Compatibility & Applications
Typical Computers
Servers and PCs with VGA, HDMI, DisplayPort or DVI video and USB or PS/2 keyboard/mouse, plus Sun and serial devices, each connected through the matching ATEN KA7xxx Cat 5 KVM adapter.
Typical Use
Data centres and server rooms where servers are spread across racks and Cat 5 cabling is easier to run than bulky KVM cables, with remote out-of-band access for IT staff.
Selection Tip
KA7xxx adapters are not included; you need one per server. ATEN publishes FHD and non-FHD hardware versions with different remote resolutions; email us to confirm the version supplied. The KL1516Ai is the 16-port model.
Package Contents & ATEN Cat 5 LCD KVM over IP Switch Ordering Information
In the Box
1 x KL1508Ai Dual Rail LCD KVM Switch, 1 x power cord, 1 x standard rack mount kit, 1 x firmware upgrade cable (1.83 m), 1 x extension kit, 1 x user instructions.
Available Options
| Option | Order code |
| 17" (KL1508AiM) | KL1508AIM-AXA-AE |
| 19" (KL1508AiN) | KL1508AIN-AXA-AE |
ATEN Cat 5 LCD KVM and Adapter Models
| Model | Key feature |
| KL1508Ai (this listing) | 8-port Cat 5 dual rail LCD KVM over IP, 17"/19" |
| KL1516Ai | 16-port Cat 5 dual rail LCD KVM over IP, 17"/19" |
| KL1108VN | 8-port Cat 5 dual rail LCD KVM over IP |
| CL5708i | 8-port VGA single rail LCD KVM over IP |
| KA7570 | USB VGA KVM adapter (Cat 5) |
| KA7170 | USB VGA KVM adapter (Cat 5) |
| KA7168 | USB HDMI virtual media KVM adapter |
| KA7169 | USB DisplayPort virtual media KVM adapter |
Datasheet & Downloads
| Datasheet | KL1508Ai / KL1516Ai Datasheet (PDF) |
| User manual | KL1508Ai / KL1516Ai User Manual (PDF) |
| User manual (FHD version) | KL1508Ai / KL1516Ai FHD User Manual (PDF) |
| ATEN product page | KL1508Ai on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting KL1508AIM-AXA-AE or KL1508AIN-AXA-AE.
Frequently Asked Questions — ATEN KL1508AiM / KL1508AiN
Are the KVM adapters included?
No. Each server needs an ATEN KA7xxx Cat 5 KVM adapter matching its video and keyboard/mouse interface, ordered separately.
What is the difference between KL1508AiM and KL1508AiN?
Screen size: 17" on the KL1508AiM and 19" on the KL1508AiN. Both use a 1280 x 1024 at 75 Hz panel in the same 48.00 x 70.12 x 4.40 cm chassis.
How far can servers be from the console?
Up to 30 m at 1920 x 1200, 40 m at 1600 x 1200, or 50 m at 1280 x 1024 over Cat 5e/6 cable.
Is remote access Full HD?
Remote video reaches 1920 x 1200 at 60 Hz on ATEN's FHD hardware version and 1600 x 1200 at 60 Hz on the non-FHD version. Email us to confirm the version supplied.
Which keyboard layout is supplied?
The pricebook lists these units with a US keyboard.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
