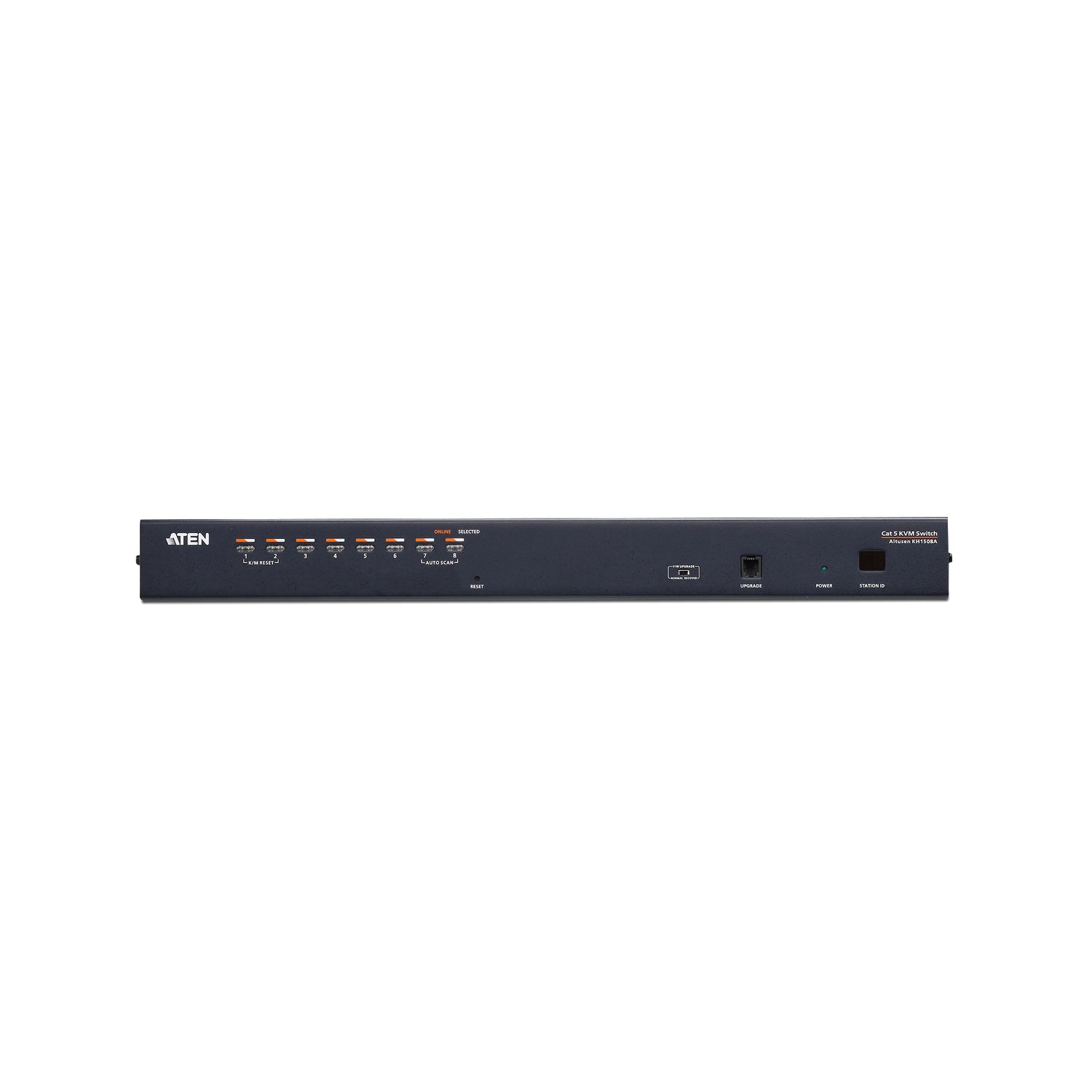

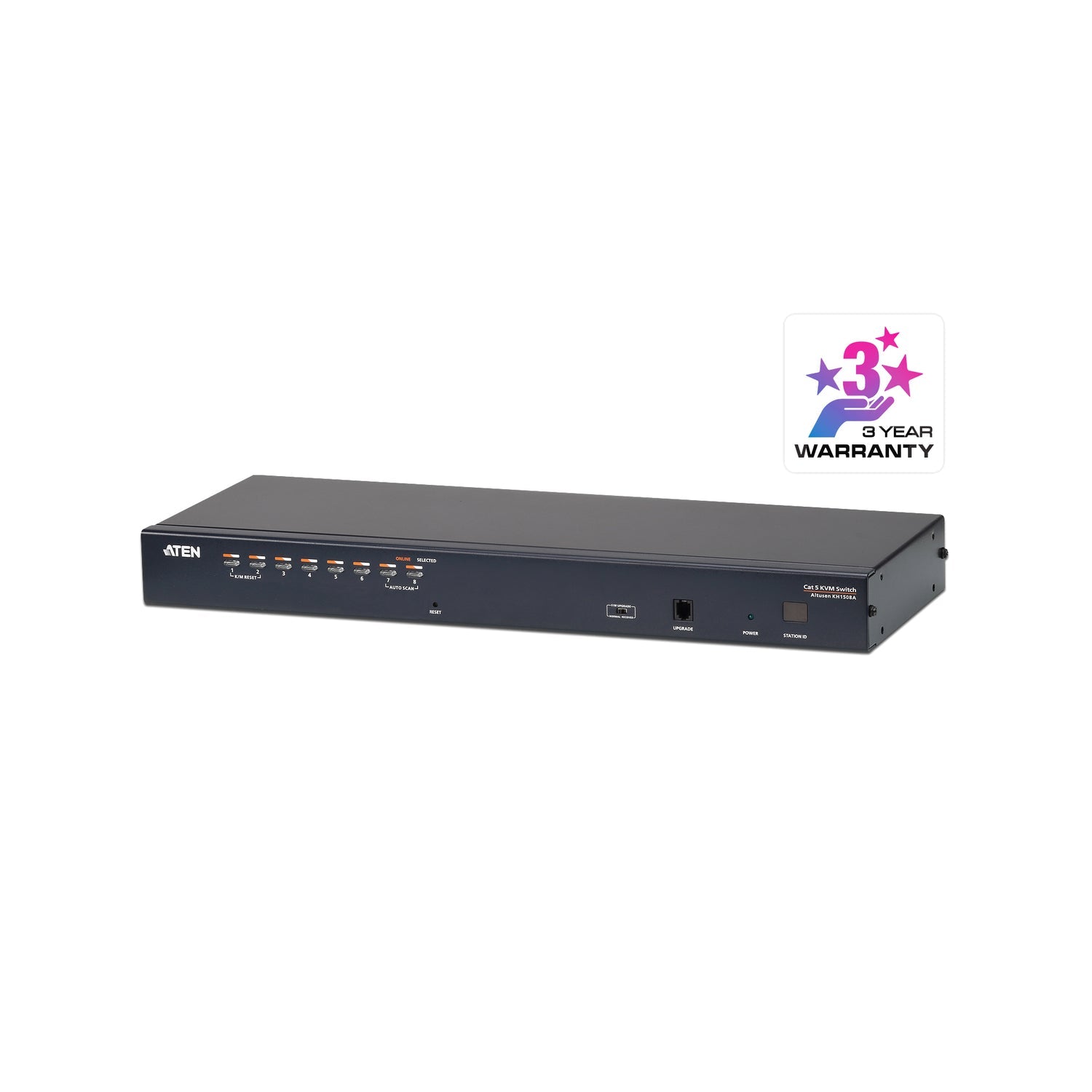

ATEN KH1508A 8-Port Multi-Interface Cat 5 KVM Switch
PRODUCT DESCRIPTION
ATEN KH1508A 8-Port Multi-Interface Cat 5 KVM Switch - 2 Years Local Warranty
Cat 5 Cabling for a Cleaner Rack
The KH1508A connects to each computer over standard Cat 5e/6 cable through an ATEN KVM adapter, instead of bulky KVM cable bundles. One console controls eight computers, or up to 256 by daisy-chaining 31 more switches.
Any Console, Any Computer
With the right ATEN KA7xxx adapter on each computer, PS/2, USB, VGA, DVI, HDMI, DisplayPort, Sun and serial devices can all be mixed. Console conversion lets any type of console control any type of computer. Adapters are not included.
Full HD over Distance
With KA71xx or KA75xx series adapters, video reaches 1920 x 1200 at 60 Hz up to 30 m, 1600 x 1200 at 60 Hz up to 40 m and 1280 x 1024 at 75 Hz up to 50 m from the switch.
Multi-User Security
Up to 10 user and 1 administrator accounts, Broadcast Mode, Adapter ID to retain port configuration, and selection by pushbutton, hotkey or multilingual OSD. Firmware is upgradeable.
Need help choosing KA7xxx adapters for your servers? Email sales@sourceit.com.sg for a configured project quote.
ATEN KH1508A Datasheet — Technical Specifications
General
| Product Name | ATEN 8-Port Multi-Interface (DisplayPort, HDMI, DVI, VGA) Cat 5 KVM Switch |
| Model | KH1508A |
| Order Code | KH1508A-AX-E |
| KVM Adapters | Required per computer, sold separately (ATEN KA71xx / KA75xx series) |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 8 |
| Maximum | 256 (via daisy-chain) |
| Port Selection | OSD, hotkey, pushbutton |

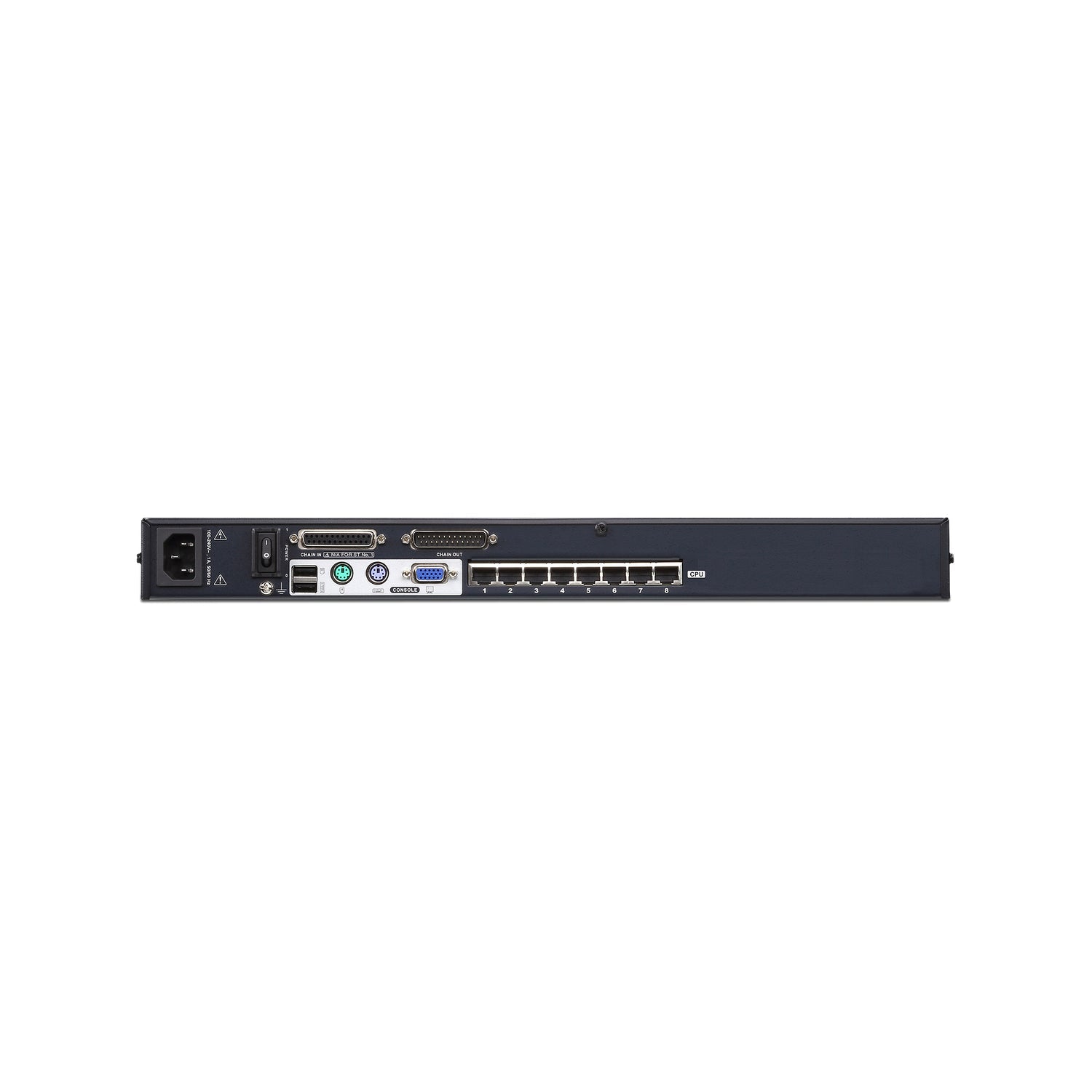

Connectors
| Console Ports | 2 x USB Type A Female; 1 x 6-pin Mini-DIN Female (purple); 1 x 6-pin Mini-DIN Female (green); 1 x HDB-15 Female (blue) |
| KVM Ports | 8 x RJ-45 Female |
| Daisy Chain | 1 x DB-25 Female; 1 x DB-25 Male |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x IEC 60320/C14 |
Video & Distance
| 1920 x 1200 @ 60 Hz | Up to 30 m |
| 1600 x 1200 @ 60 Hz | Up to 40 m |
| 1280 x 1024 @ 75 Hz | Up to 50 m |
| Cable | Cat 5e / 6 |
Operation
| Keyboard / Mouse Emulation | PS/2, USB |
| Scan Interval | 1–255 seconds |
| User Accounts | 10 users + 1 administrator |
| LEDs | 8 online (green); 8 selected (orange); power; 2-digit 7-segment station ID |
Power & Environmental
| Input Power | 100–240 V AC, 50/60 Hz, 1 A |
| Power Consumption | 5.1 W, 32 BTU/h (AC110V / AC220V) |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal, 1U rack |
| Weight | 2.65 kg |
| Dimensions (L x W x H) | 43.72 x 16.36 x 4.40 cm |
Compatibility & Applications
Typical Computers
Servers and PCs with VGA, DVI, HDMI or DisplayPort video and USB or PS/2 keyboard/mouse, each fitted with the matching ATEN KA7xxx KVM adapter.
Typical Use
Server rooms and data centre rows where computers sit up to 50 m from the KVM, and racks where structured Cat 5e/6 cabling is preferred to KVM cable bundles.
Adapter Tip
Order one KVM adapter per computer to match its ports, for example the KA7570 or KA7170 USB VGA KVM adapter. Email sales@sourceit.com.sg to confirm the right adapter for HDMI or DisplayPort servers.
Package Contents & ATEN Cat 5 KVM Switch Ordering Information
In the Box
1 x KH1508A 8-port Cat 5 KVM switch, 1 x firmware upgrade cable, 1 x power cord, 1 x rack mount kit, 1 x foot pad set (4 pcs), 1 x user instructions. KA7xxx KVM adapters and Cat 5e/6 cables are not included.
ATEN Cat 5 KVM Switch and Adapter Models
| Model | Key feature |
| KH1508A (this listing) | 8-port Cat 5 KVM switch, daisy-chain to 256 |
| KA7570 | USB VGA KVM adapter |
| KA7170 | USB VGA KVM adapter |
| KL1108VN | 8-port Cat 5 dual rail LCD KVM over IP switch |
| KL1508AIN | 8-port Cat 5 dual rail LCD KVM over IP switch, 19" |
| CS1708A | 8-port PS/2-USB VGA rack KVM switch |
Datasheet & Downloads
| User manual | KH1508A / KH1516A / KH1532A User Manual (PDF) |
| ATEN product page | KH1508A on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting KH1508A-AX-E.
Frequently Asked Questions — ATEN KH1508A
Are the KVM adapters included?
No. Each computer needs an ATEN KA7xxx KVM adapter (KA71xx or KA75xx series for Full HD), ordered separately, plus a Cat 5e/6 cable.
How far can computers be from the switch?
Up to 30 m at 1920 x 1200, 40 m at 1600 x 1200, or 50 m at 1280 x 1024.
What interfaces does it support?
Through ATEN adapters: PS/2, USB, VGA, DVI, HDMI, DisplayPort, Sun and serial.
How many computers can it control?
Eight directly, or up to 256 by daisy-chaining 31 additional switches.
What console does it use?
A VGA monitor with USB or PS/2 keyboard and mouse at the rear console ports.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
