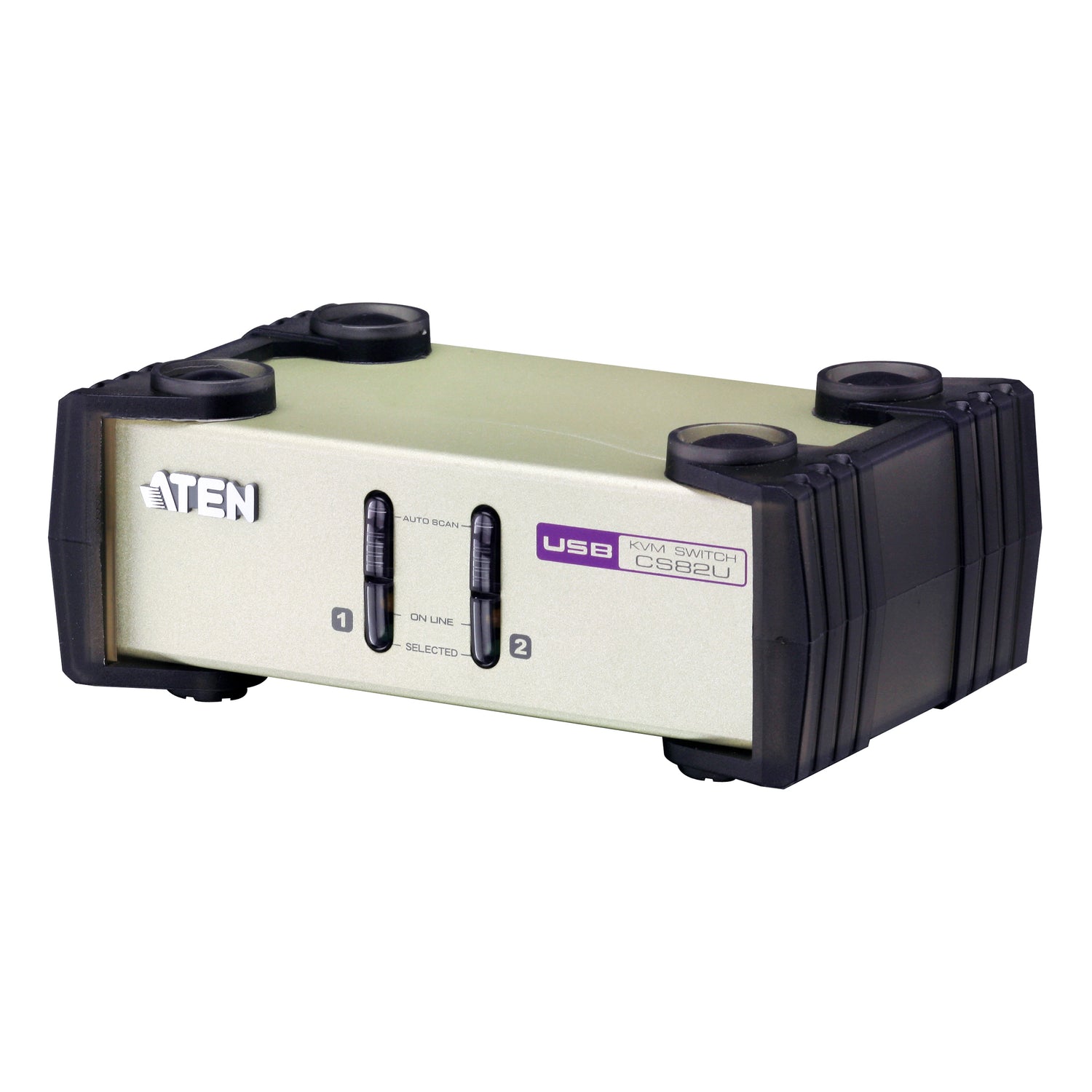

ATEN CS82U 2-Port PS/2-USB VGA KVM Switch
PRODUCT DESCRIPTION
ATEN CS82U 2-Port PS/2-USB VGA KVM Switch - 2 Years Local Warranty
Two Computers, One Console
The CS82U lets one VGA monitor, keyboard and mouse control two computers. It is a tidy way to manage a desktop PC and a server, or two workstations, from one desk.
PS/2 or USB, Your Choice
The dual interface works with computers and consoles using either PS/2 or USB keyboards and mice, so older and newer machines can share the same console.
Easy Switching
Switch with the front-panel pushbuttons, keyboard hotkeys or the USB mouse. Auto Scan cycles through the computers at 3, 5, 10 or 20 second intervals for monitoring.
Reliable Booting and Video
Keyboard emulation keeps computers booting cleanly, and ATEN Video DynaSync stores the monitor's EDID to avoid boot-up display problems. Video up to 2048 x 1536 with DDC2B.
Setting up several desks or a small server room? Email sales@sourceit.com.sg for volume pricing.
ATEN CS82U Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port PS/2-USB VGA KVM Switch |
| Model | CS82U |
| Order Code | CS82U-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |

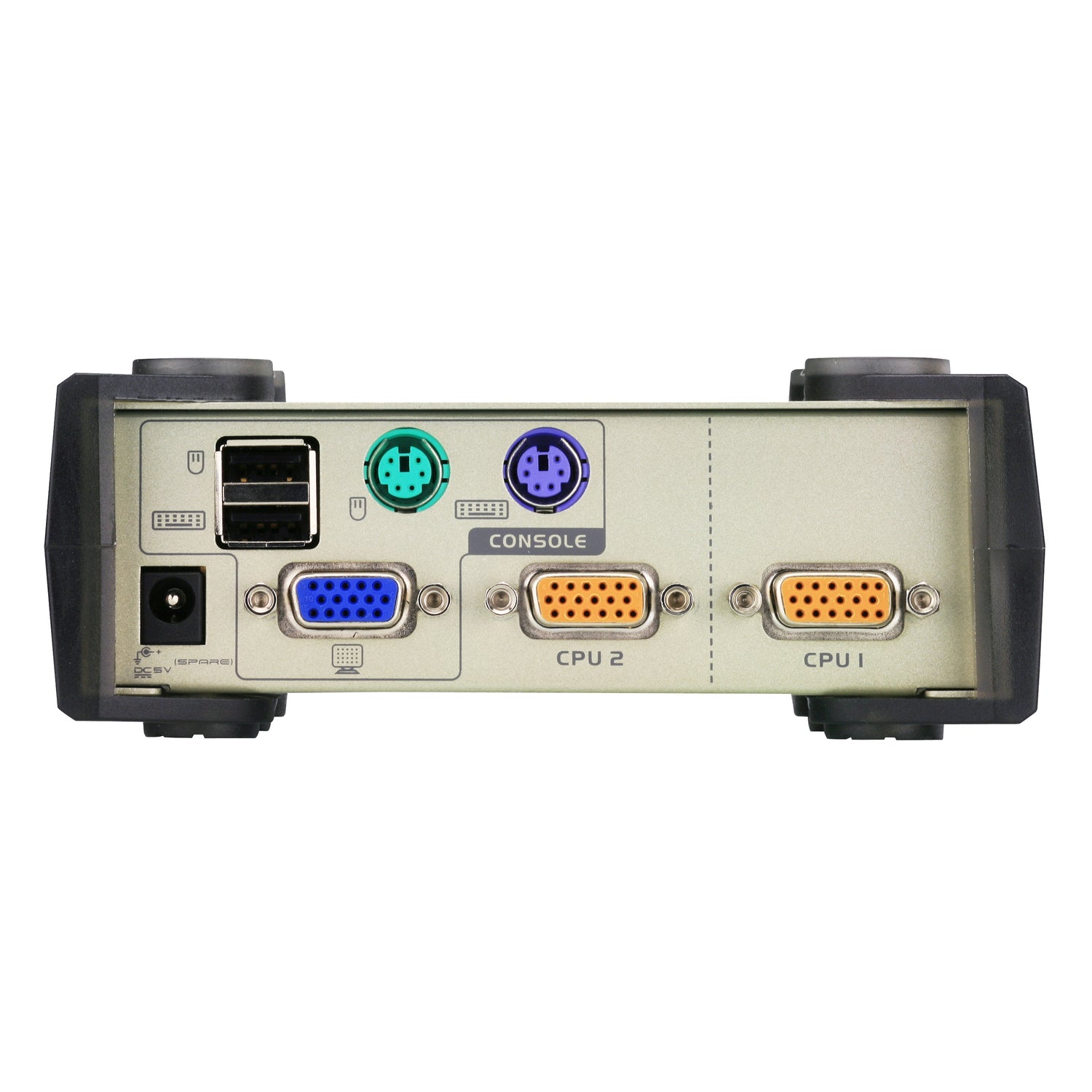

Connectors
| Computer Connections | 2 |
| Console Ports | 1 x HDB-15 Female (blue); 2 x USB Type-A Female; 2 x 6-pin Mini-DIN Female (purple / green) |
| KVM Ports | 2 x SPHD-18 Female (yellow) |
| Power | 1 x DC jack |

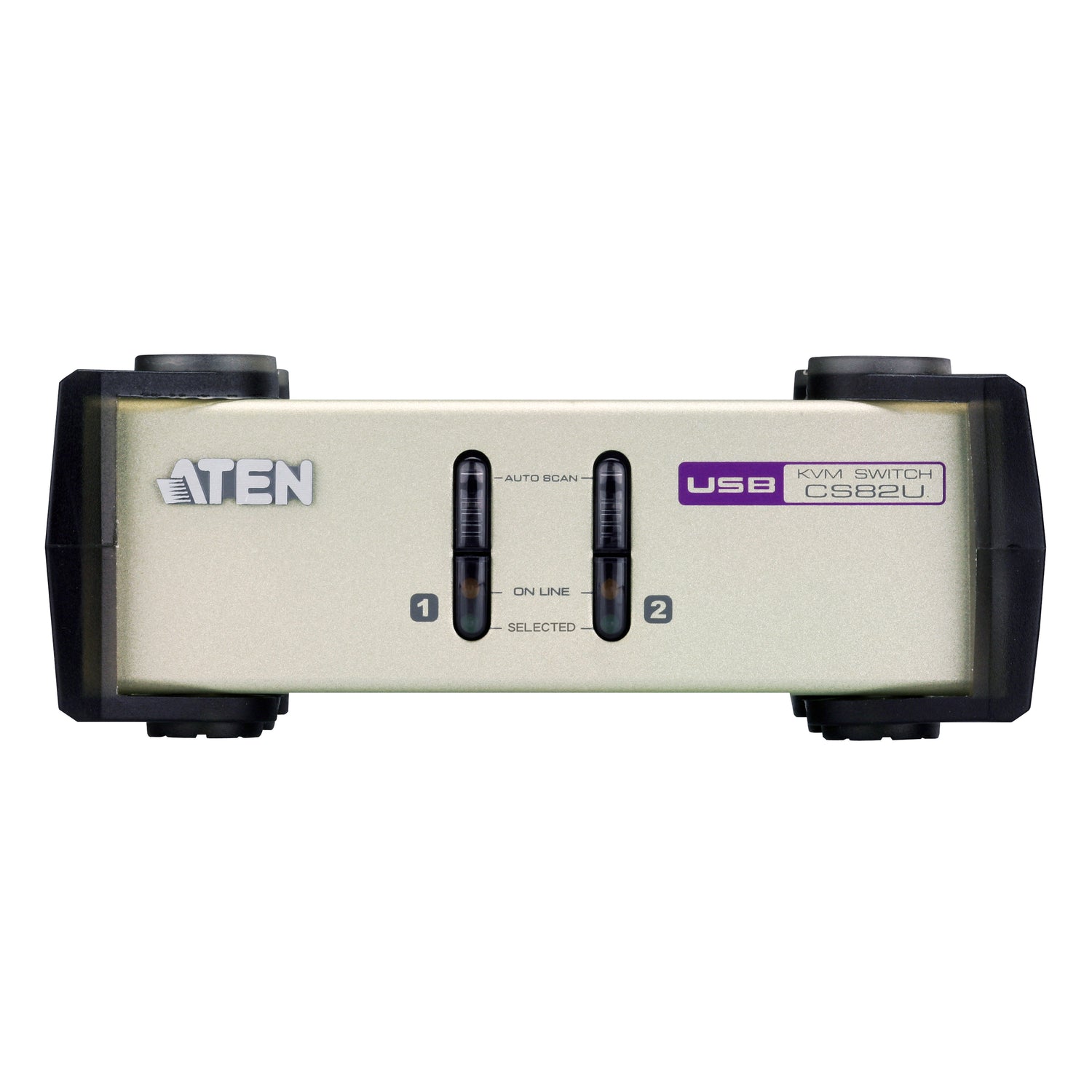

Switching & Indicators
| Port Selection | Hotkey, pushbutton, USB mouse |
| Pushbuttons | 2 |
| LEDs | 2 Online (orange); 2 Selected (green) |
| Scan Interval | 3, 5, 10, 20 seconds (default 5 s) |
Emulation & Video
| Keyboard / Mouse | PS/2, USB |
| Video | 2048 x 1536 @ 60 Hz; DDC2B |
Power
| Power Consumption | DC 5 V, 0.72 W (12 BTU/h) |
| Power Mode | Bus-powered |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.54 kg |
| Dimensions (L x W x H) | 14.00 x 8.80 x 5.55 cm |
Compatibility
| Platforms | Windows, Linux, Mac, Sun |
Compatibility & Applications
Typical Setups
Two PCs or servers with VGA video and PS/2 or USB keyboard/mouse ports, sharing one VGA monitor and keyboard/mouse.
Typical Use
Home offices, SOHO server corners, labs, POS back offices and test benches.
Selection Tip
Need four computers? The CS84U is the 4-port version. For HDMI computers, look at an HDMI KVMP switch such as the CS1792.
Package Contents & ATEN Desktop KVM Switch Ordering Information
In the Box
1 x CS82U PS/2-USB KVM switch, 2 x custom KVM cables (VGA, USB, PS/2; 1.2 m), 1 x user guide.
ATEN VGA KVM Switch Models
| Model | Key feature |
| CS22U | 2-port USB VGA cable KVM switch with remote selector |
| CS72U | 2-port USB VGA/audio KVM switch |
| CS82U (this listing) | 2-port PS/2-USB VGA KVM switch |
| CS84U | 4-port PS/2-USB VGA KVM switch |
| CS1734B | 4-port PS/2-USB VGA/audio KVMP switch with OSD |
| CS1708A | 8-port PS/2-USB VGA KVM switch, daisy-chainable |
Datasheet & Downloads
| Datasheet | CS82U / CS84U Datasheet (PDF) |
| User manual | CS82U / CS84U User Manual (PDF) |
| Quick start guide | CS82U / CS84U Quick Start Guide (PDF) |
| ATEN product page | CS82U on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS82U-AT.
Frequently Asked Questions — ATEN CS82U
Are the KVM cables included?
Yes. Two 1.2 m custom KVM cables (VGA, USB and PS/2) are supplied.
Can I mix PS/2 and USB computers?
Yes. The dual interface supports computers with PS/2 or USB keyboards and mice.
Does it need a power adapter?
It is bus-powered. A DC jack is provided on the unit.
Does it switch audio?
No. The CS82U switches VGA video, keyboard and mouse only.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
