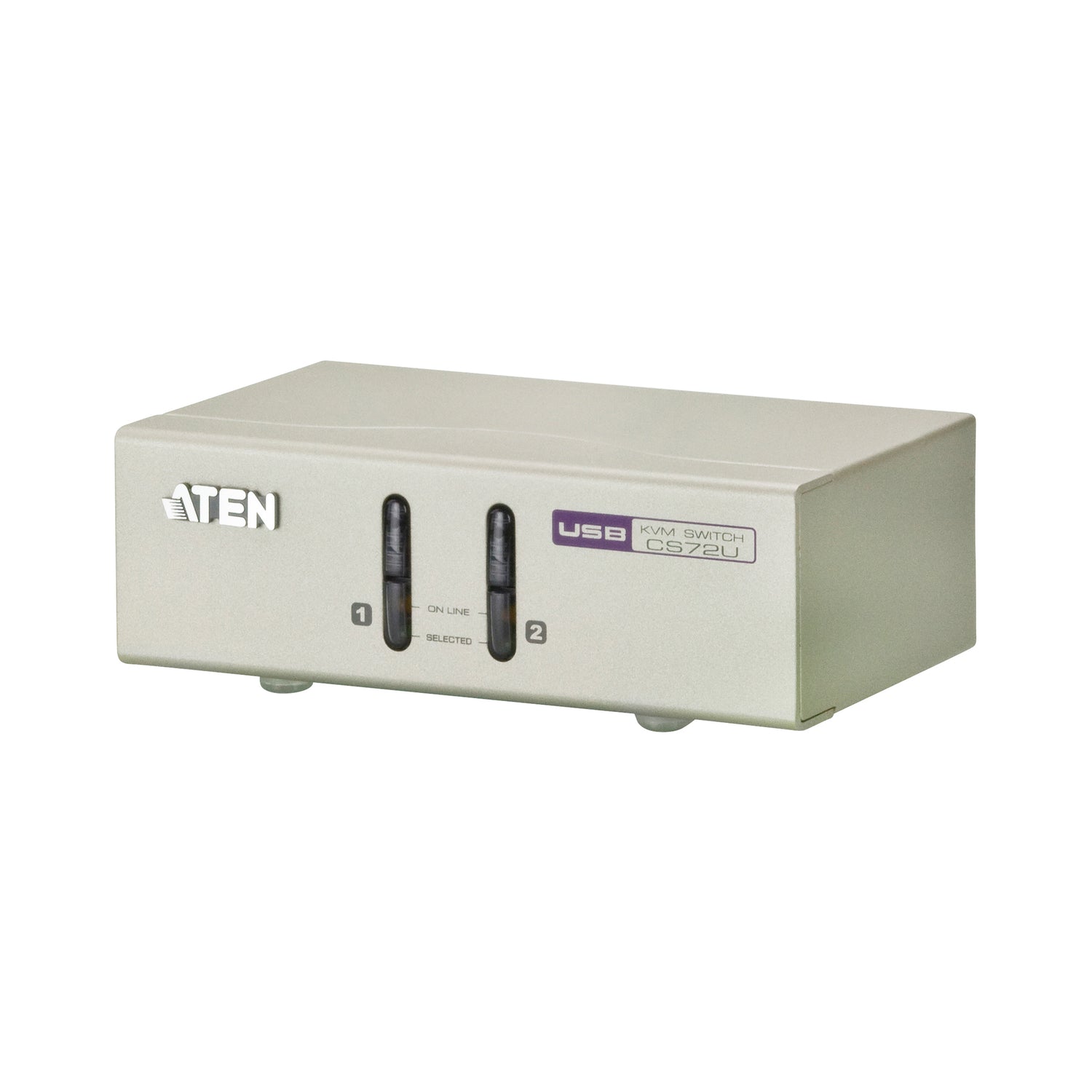

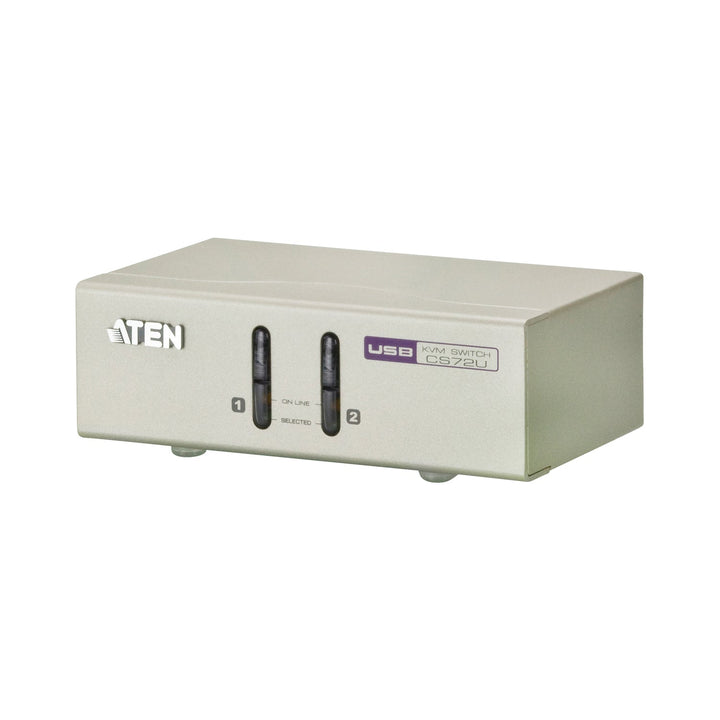

ATEN CS72U 2-Port USB VGA/Audio KVM Switch
PRODUCT DESCRIPTION
ATEN CS72U 2-Port USB VGA/Audio KVM Switch - 2 Years Local Warranty
Two VGA Computers, One Console
The ATEN CS72U lets one VGA monitor, USB keyboard and mouse, speakers and microphone control two computers. Two custom KVM cables (VGA, USB and audio, 1.2 m) are included.
Sharp VGA up to 2048 x 1536
Supports video up to 2048 x 1536 @ 60Hz with DDC2B.

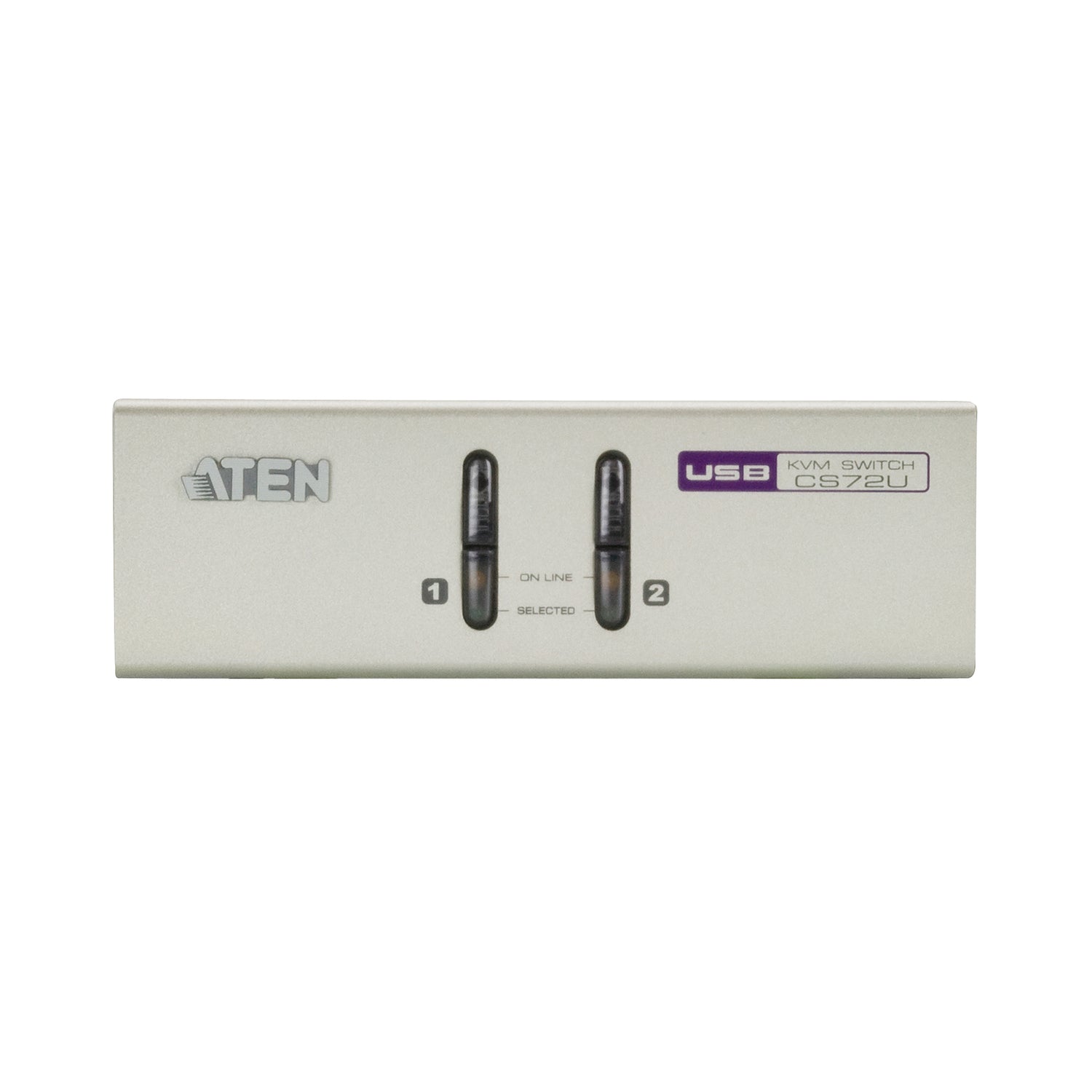

Simple Pushbutton Switching
Select the computer with the front-panel pushbuttons; online and selected LEDs show the status of each port.
Audio-Enabled, Bus-Powered
2.1-channel audio with full bass response, USB hot-plugging and a bus-powered design. Supports Windows, Linux and Mac.
Need KVM switches for several VGA workstations? Email sales@sourceit.com.sg for volume pricing.
ATEN CS72U Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port USB VGA/Audio KVM Switch |
| Model | CS72U |
| Order Code | CS72U-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |

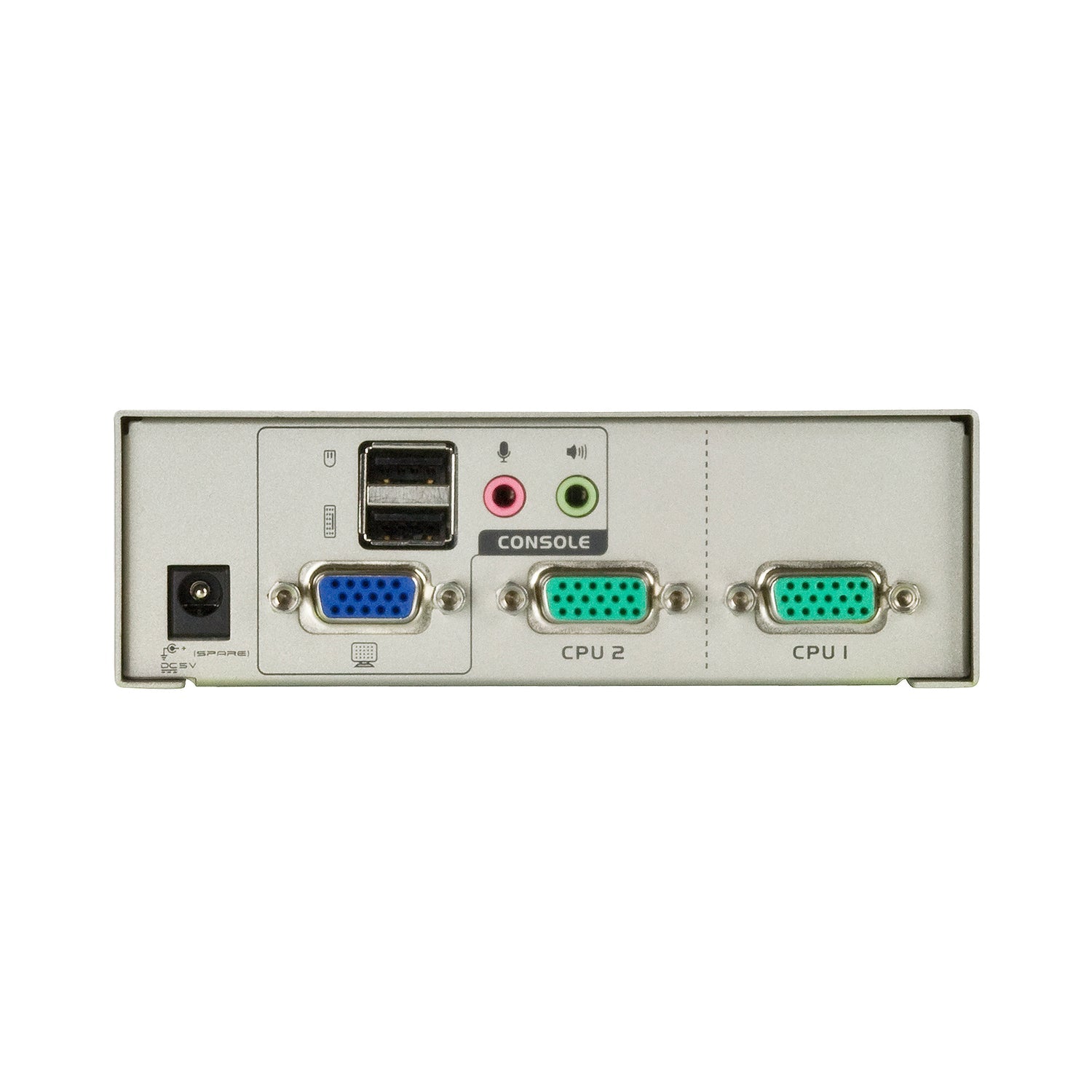

Connectors
| Computer Connections | 2 |
| Console Ports | 2 x USB Type-A Female (Black), 1 x HDB-15 Female (Blue), 1 x mini stereo jack Female (Pink), 1 x mini stereo jack Female (Green) |
| KVM Ports | 2 x SPHD-18 Female (Green) |
| Power | 1 x DC 5V jack |
Video
| Max. Resolution | 2048 x 1536 @ 60Hz; DDC2B |
Control
| Port Selection | Pushbutton |
| Selection Switches | 2 x pushbuttons |
| LEDs | 2 online (orange), 2 selected (green) |
Cables
| KVM Cables | 2 x custom KVM cables (VGA, USB, audio), 1.2 m, included |
Power
| Power Mode | Bus-powered |
| Power Consumption | DC 5V, 0.142 W, 5 BTU/h |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.45 kg |
| Dimensions (L x W x H) | 13.00 x 7.65 x 4.40 cm |
Compatibility
| Operating Systems | Windows, Linux, Mac |
Compatibility & Applications
Typical Computers
Desktop PCs, servers and notebooks with VGA output and USB ports.
Typical Use
Offices, labs and small server setups where two VGA computers share one monitor, keyboard, mouse and speakers.
Selection Tip
For PS/2 keyboards and mice, see the CS82U. For HDMI computers the CS692 or CS22H, and for DisplayPort the CS22DP.
Package Contents & ATEN Desktop KVM Switch Ordering Information
In the Box
1 x CS72U 2-Port USB KVM Switch, 2 x custom KVM cables (VGA, USB, audio; 1.2 m), 1 x user instructions.
ATEN Desktop KVM Switch Models
| Model | Key feature |
| CS72U (this listing) | 2-port USB VGA/audio KVM switch, cables included |
| CS82U | 2-port PS/2-USB VGA KVM switch |
| CS84U | 4-port PS/2-USB VGA KVM switch |
| CS1734B | 4-port PS/2-USB VGA/audio KVMP switch with OSD |
| CS22U | 2-port USB VGA cable KVM switch |
| CS784H | 4-port USB 4K HDMI KVMP switch |
Datasheet & Downloads
| CS72U datasheet | CS72U / CS74U Datasheet (PDF) |
| CS72U user manual | CS72U / CS74U User Manual (PDF) |
| Quick start guide | CS72U / CS74U Quick Start Guide (PDF) |
| ATEN product page | CS72U on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS72U-AT.
Frequently Asked Questions — ATEN CS72U
Are KVM cables included?
Yes. Two custom 1.2 m KVM cables carrying VGA, USB and audio are in the box.
How do I switch computers?
With the front-panel pushbuttons.
Does it carry audio?
Yes. It supports speakers and microphone, with 2.1-channel audio.
Does it need a power adapter?
No. It is bus-powered.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
