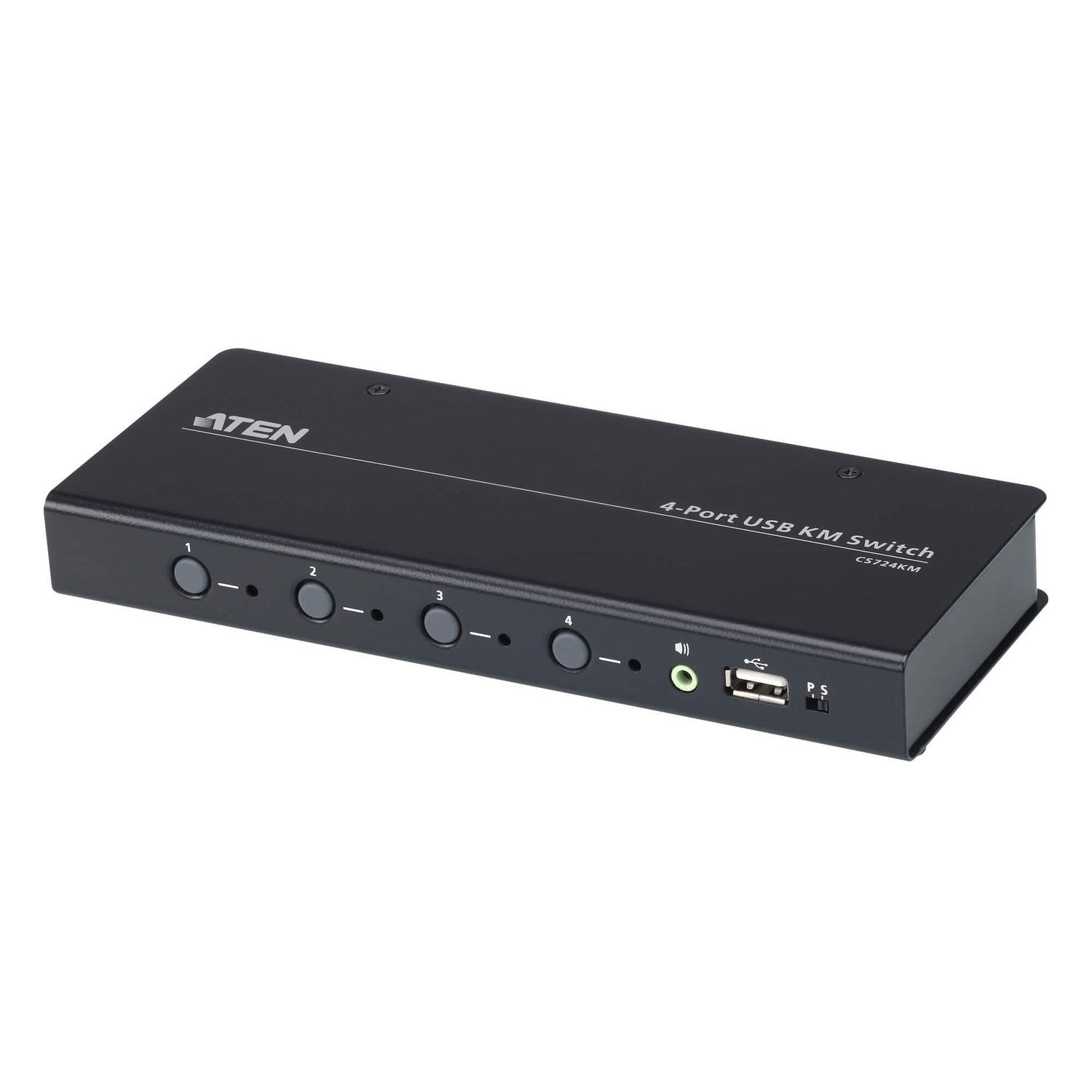

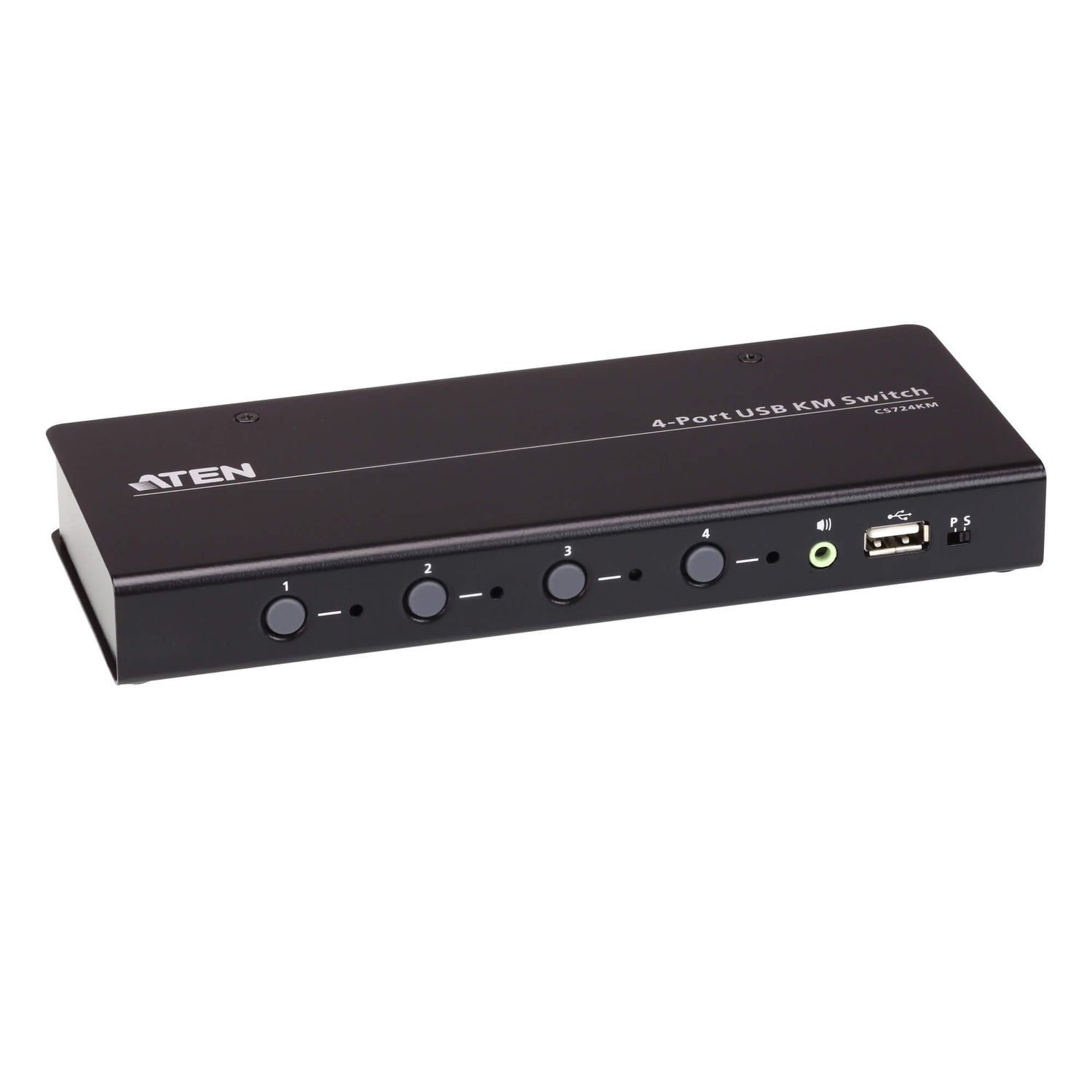

ATEN CS724KM 4-Port USB Boundless KM Switch
PRODUCT DESCRIPTION
ATEN CS724KM 4-Port USB Boundless KM Switch - 2 Years Local Warranty
Move the Mouse, Switch the Computer
The CS724KM lets a single USB keyboard and mouse control up to four computers, each keeping its own monitors. With Boundless Switching you simply move the cursor past the edge of one screen onto the next computer's screen, across up to 16 monitors.
Expand to Eight Computers

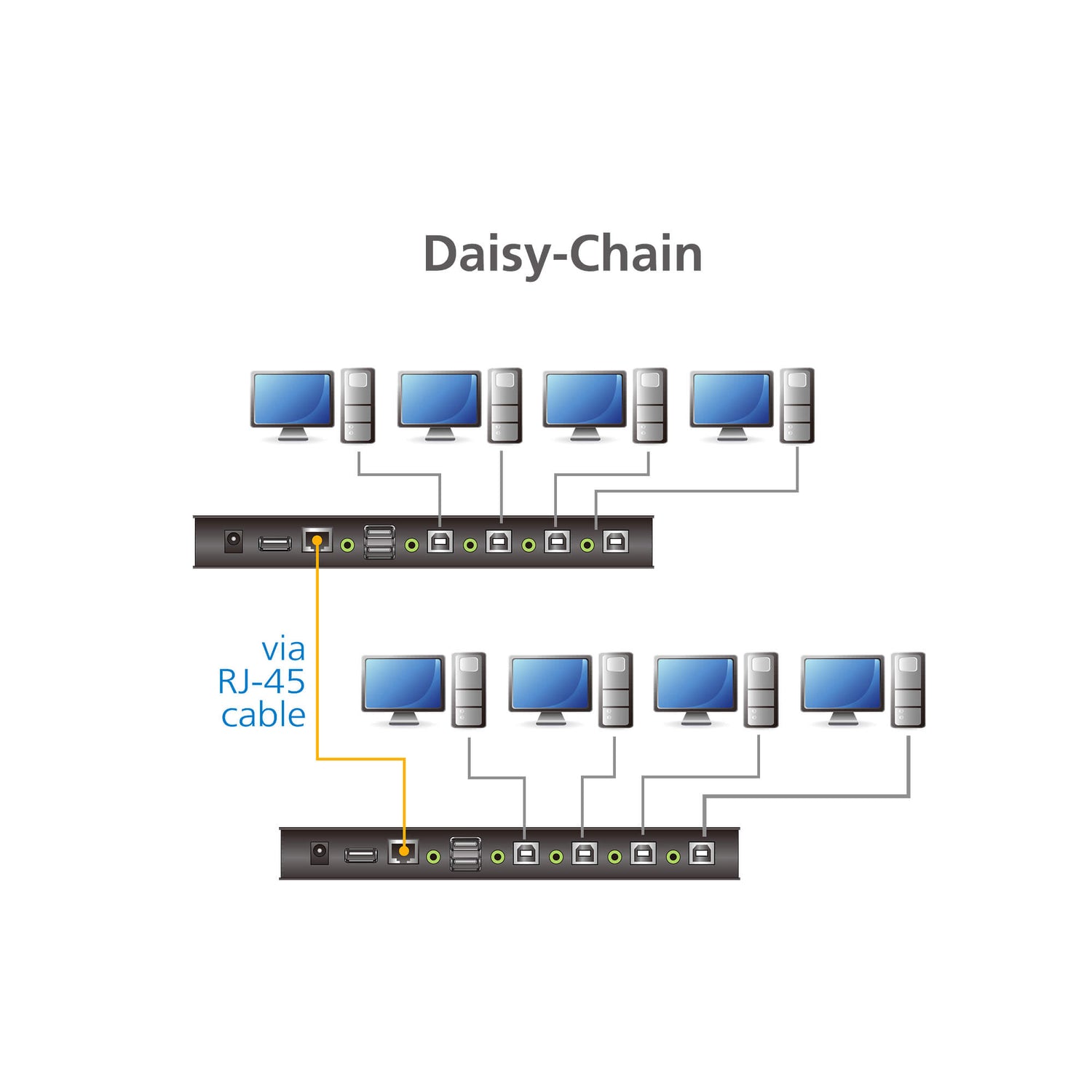

Daisy-chain two CS724KM units to control up to eight computers from one keyboard and mouse.
Independent Focus for KM, USB and Audio
Keyboard/mouse, the USB 2.0 peripheral hub and audio can be switched independently by hotkey, so you can listen to one computer while typing on another.
Plenty of Ways to Switch
Switch by mouse cursor, mouse wheel, pushbutton, hotkey or RS-232 command. USB and audio cables for all four computers are included.
Setting up multi-PC trading, control or engineering desks? Email sales@sourceit.com.sg for volume pricing and configuration advice.
ATEN CS724KM Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port USB Boundless KM Switch (Cables included) |
| Model | CS724KM |
| Order Code | CS724KM-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |

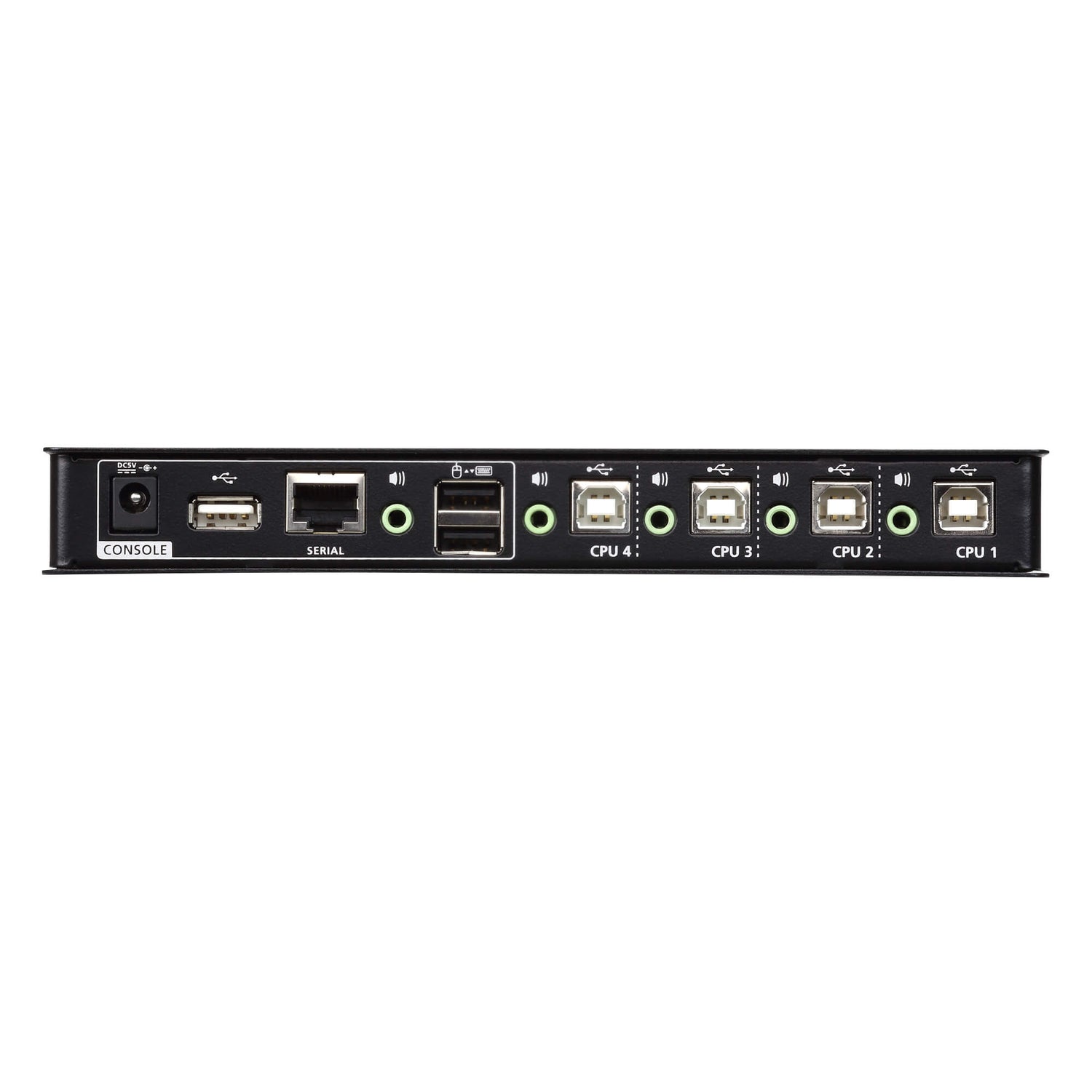

Connectors
| Computer Connections | 4 |
| Console Ports | 2 x USB Type-A Female; 2 x 3.5 mm audio jack Female; 1 x RJ-45 (daisy chain) |
| KVM Ports | 4 x USB Type-B Female; 4 x 3.5 mm audio jack Female |
| USB Hub | 2 x USB 2.0 Type-A Female |
| Power | 1 x DC jack |
Switching & Indicators

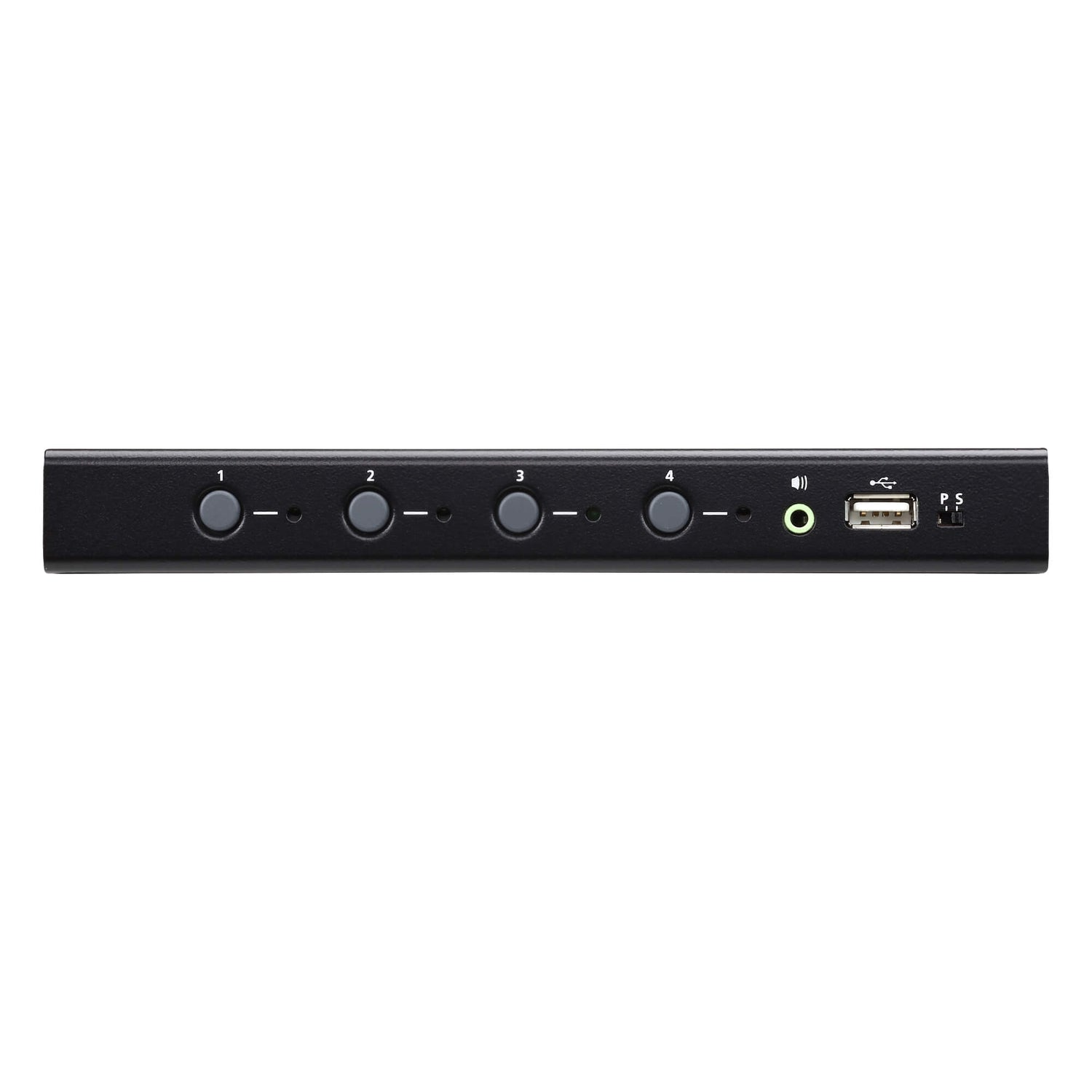

| Port Selection | Hotkey, pushbutton, mouse wheel, mouse cursor (Boundless Switching), RS-232 commands |
| Pushbuttons | 4 |
| Station Selection | 1 x slide switch |
| LEDs | 4 Selected (green) |
| Scan Interval | 1–99 seconds (default 5 s) |
Boundless Switching
| Monitors | Extended desktops across up to 16 monitors |
| Daisy Chain | Two units for up to 8 computers |
| Independent Switching | Keyboard/mouse, USB peripheral and audio focus via hotkeys |
Emulation
| Keyboard / Mouse | USB |
Power
| Power Consumption | DC 5 V, 1.69 W |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal, plastic |
| Weight | 0.50 kg |
| Dimensions (L x W x H) | 20.00 x 8.06 x 2.50 cm |
Compatibility
| Operating Systems | Windows and Linux |
Compatibility & Applications
Typical Setups
Up to four computers, each with its own monitor or monitors, controlled from one USB keyboard and mouse, with shared speakers or headset and two USB peripherals.
Typical Use
Trading desks, control rooms, broadcast and engineering workstations, and power users running several PCs side by side.
Selection Tip
A KM switch does not switch video: each computer keeps its own display. If you need to share one monitor between computers, choose a KVM switch instead. For two computers, see the CS62KM.
Package Contents & ATEN Boundless KM Switch Ordering Information

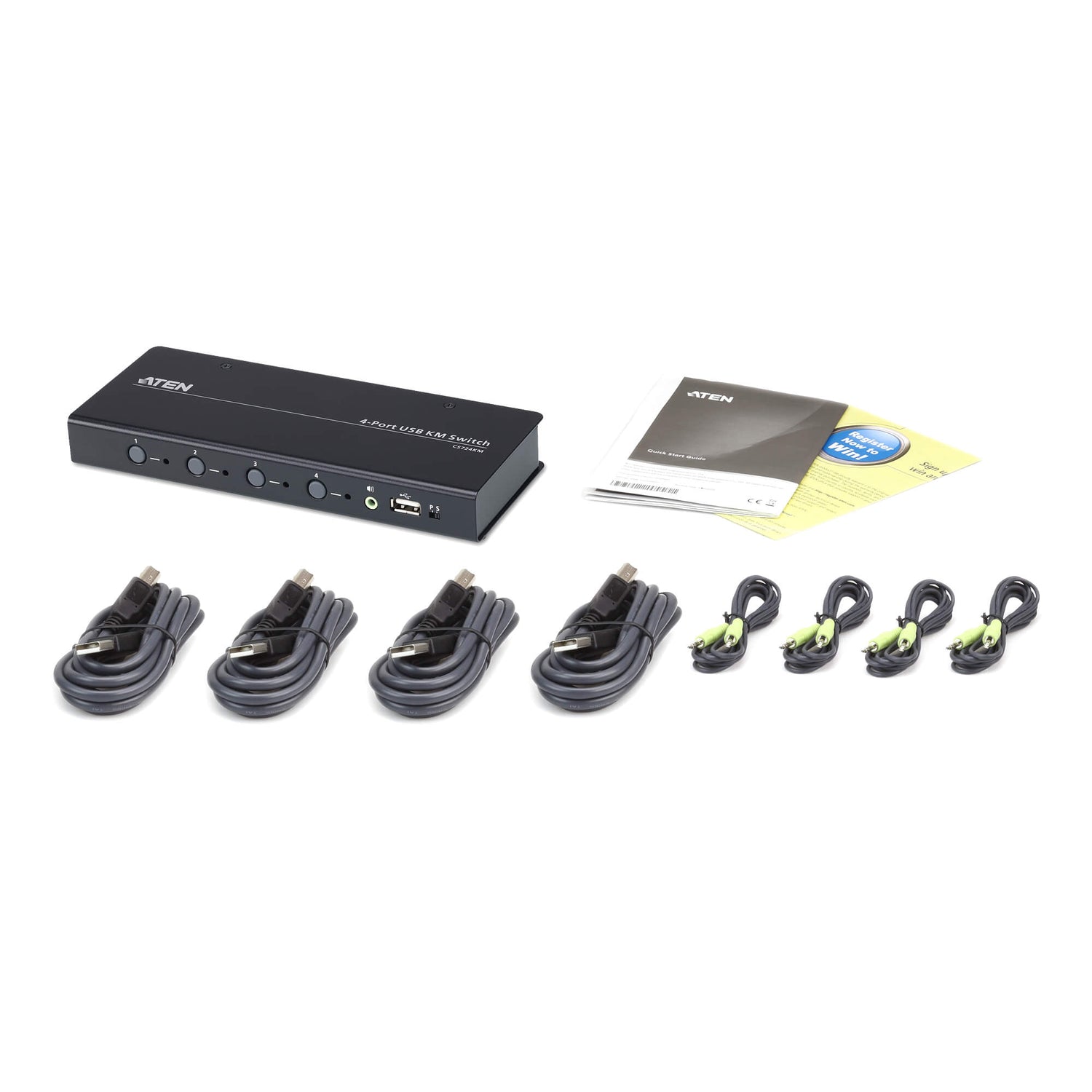

In the Box
1 x CS724KM, 4 x USB 2.0 cables (Type-A to Type-B, 1.8 m), 4 x audio cables (1.8 m), 1 x user instructions.
ATEN KM and Sharing Switch Models
| Model | Key feature |
| CS62KM | 2-port USB Boundless cable KM switch |
| CS724KM (this listing) | 4-port USB Boundless KM switch, daisy-chain to 8 computers |
| US224 | 2 x 4 USB 2.0 peripheral sharing switch |
| US424 | 4 x 4 USB 2.0 peripheral sharing switch |
| US4324 | 2 x 4 USB 3.2 Gen 1 sharing switch |
Datasheet & Downloads
| Datasheet | CS724KM Datasheet (PDF) |
| User manual | CS724KM User Manual (PDF) |
| Quick start guide | CS724KM Quick Start Guide (PDF) |
| ATEN product page | CS724KM on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS724KM-AT.
Frequently Asked Questions — ATEN CS724KM
Does it switch video?
No. It is a KM switch: keyboard, mouse, USB peripherals and audio are shared, while each computer keeps its own monitors.
What is Boundless Switching?
Moving the mouse cursor past the edge of one computer's screen switches control to the next computer, across up to 16 monitors.
Can I control more than four computers?
Yes. Daisy-chain two CS724KM units for up to eight computers.
Are cables included?
Yes. Four USB 2.0 cables and four audio cables, each 1.8 m.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
