ATEN CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector
PRODUCT DESCRIPTION
ATEN CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector - 2 Years Local Warranty
Two HDMI Computers, One Desk Setup
The ATEN CS692 lets one HDMI monitor, USB keyboard and mouse, speakers and microphone control two computers, with all-in-one KVM cables (2 x 1.2 m) built in.
Switch Your Way
Choose the active computer with the remote port selector, keyboard hotkeys or the USB mouse. KVM and audio focus can be switched independently, so you can work on one computer while listening to the other.
Full HD Video with DynaSync
Video up to 1920 x 1200 and 1080p, HDMI and HDCP compatible. Video DynaSync stores the monitor's EDID for clean booting and resolution display when switching.
Bus-Powered and Multiplatform
No power adapter is needed. The CS692 supports gaming and multimedia keyboards, power-on detection with auto-switching, and Windows, Mac and Linux.
Fitting out several dual-computer desks? Email sales@sourceit.com.sg for volume pricing.
ATEN CS692 Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector |
| Model | CS692 |
| Order Code | CS692-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 2 |

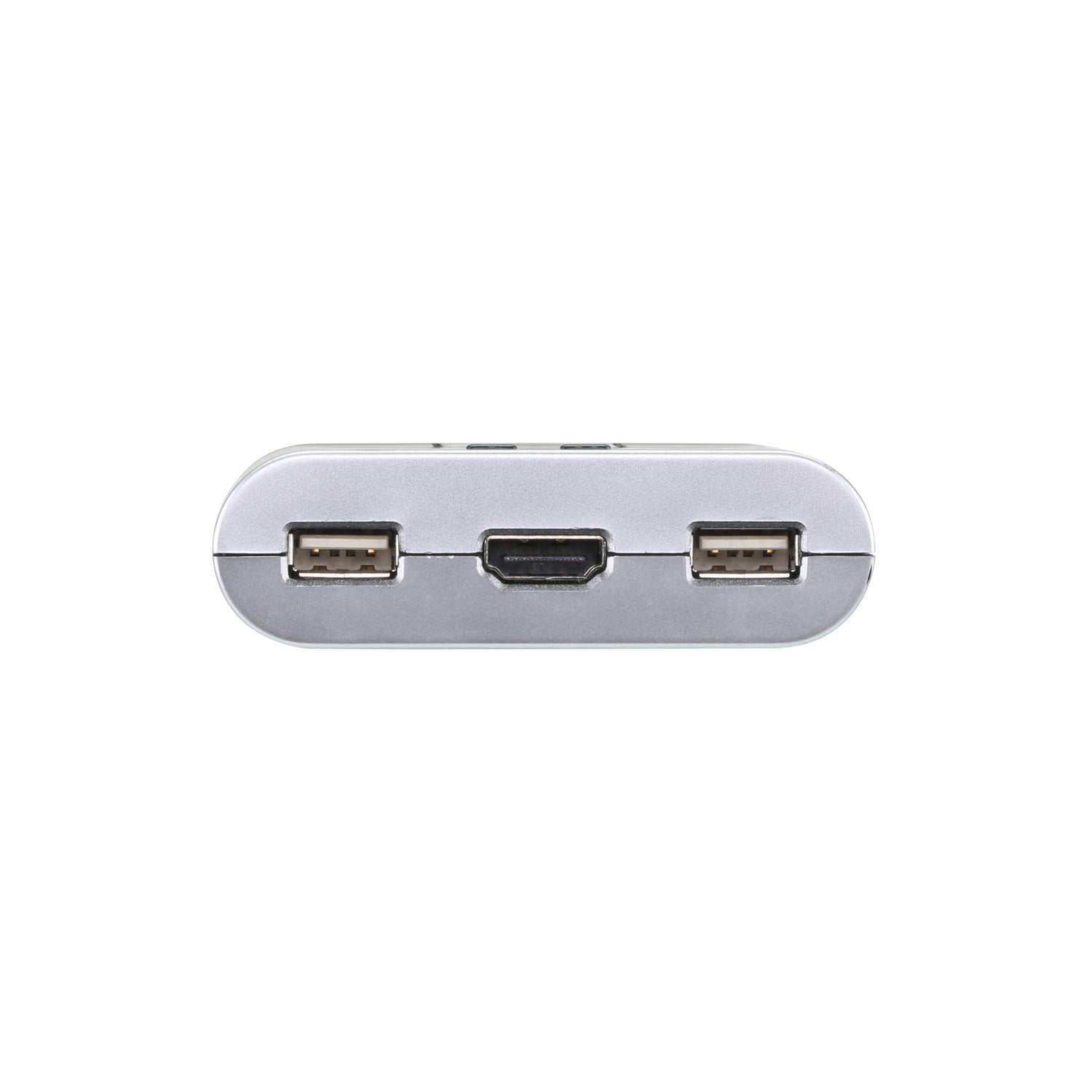

| Console Ports | 1 x HDMI Female, 2 x USB Type-A Female, 2 x 3.5 mm audio jacks |
| KVM Ports | 2 x HDMI Male, 4 x USB Type-A Male, 4 x 3.5 mm audio jacks (built-in cables) |
Video
| Video Resolution | 1920 x 1080 @ 60Hz; 1920 x 1200 @ 60Hz |
| Compliance | HDMI, HDCP compatible |
Control
| Port Selection | Hotkey, remote port selector, mouse |
| LEDs | 2 (green, KVM) |
| Auto Scan Interval | 3, 5, 10, 20 seconds (default 5) |
Cables
| KVM Cables | 2 x 1.2 m (built-in) |
| Remote Port Selector Cable | 1.8 m |
Power
| Power Mode | Bus-powered |
| Power Consumption | DC 5V, 0.72 W |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.48 kg |
| Dimensions (L x W x H) | 8.24 x 6.65 x 2.52 cm |
Compatibility
| Operating Systems | Windows, Mac, Linux |
Compatibility & Applications
Typical Sources
Desktop PCs, notebooks and mini PCs with HDMI output and USB ports, shared onto one HDMI monitor.
Typical Use
Home offices and corporate desks running a work and a personal computer, and support benches that switch between two systems.
Selection Tip
For 4K displays choose the CS22H; for DisplayPort computers the CS22DP; for USB-C notebooks the US3312. For four computers see the CS784H.
Package Contents & ATEN Cable KVM Switch Ordering Information
In the Box

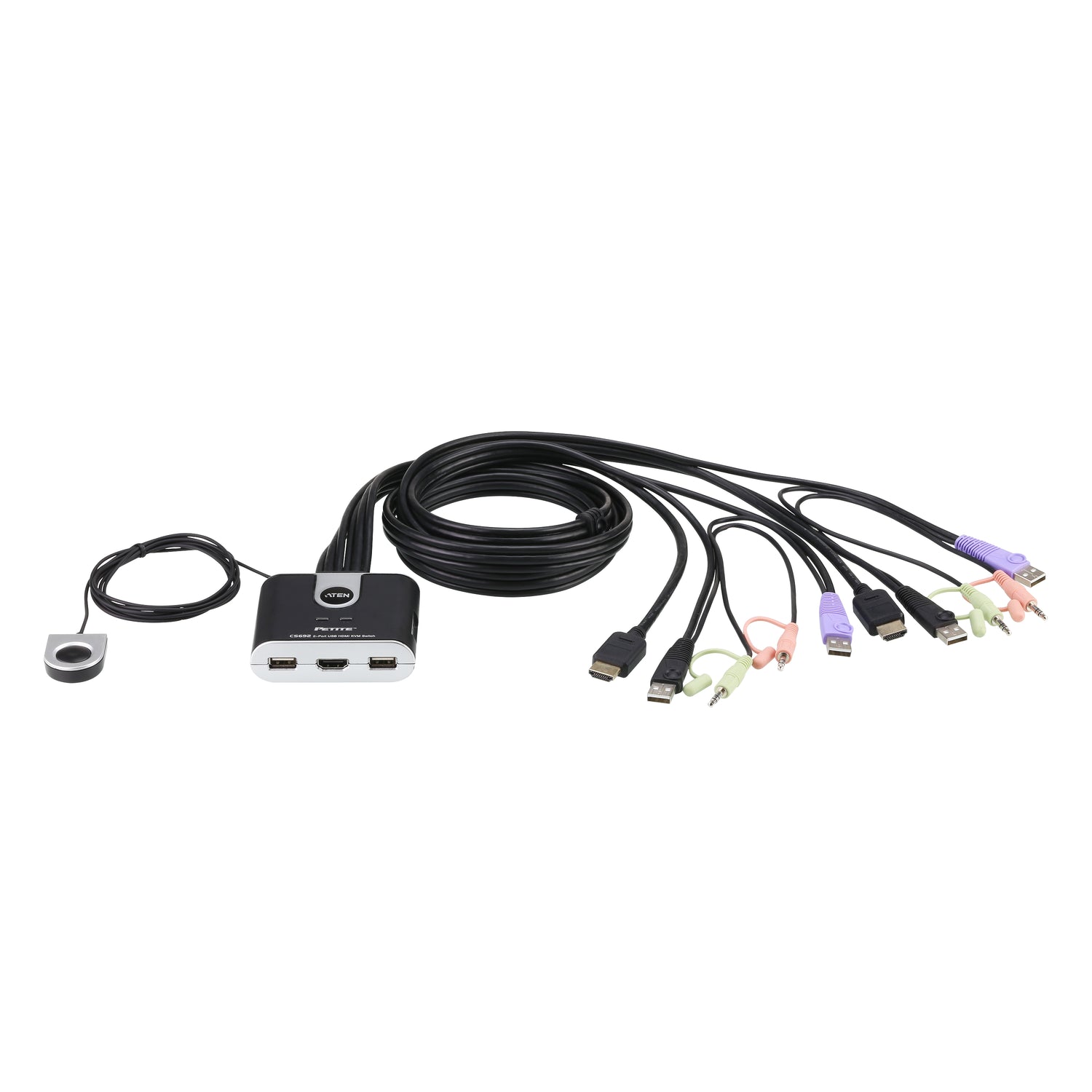

1 x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector (built-in cables), 1 x user instructions.
ATEN Cable KVM Switch Models
| Model | Key feature |
| CS692 (this listing) | 2-port USB HDMI/audio, 1920 x 1200 |
| CS22H | 2-port USB 4K HDMI cable KVM switch |
| CS22HF | 2-port USB FHD HDMI cable KVM switch |
| CS22DP | 2-port USB DisplayPort cable KVM switch |
| CS22U | 2-port USB VGA cable KVM switch |
| US3312 | 2-port 4K USB-C DisplayPort cable KVM switch |
| CS62KM | 2-port USB boundless KM switch |
Datasheet & Downloads
| CS692 datasheet | CS692 Datasheet (PDF) |
| CS692 user manual | CS692 User Manual (PDF) |
| Quick start guide | CS692 Quick Start Guide (PDF) |
| ATEN product page | CS692 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS692-AT.
Frequently Asked Questions — ATEN CS692
Does the CS692 support 4K?
No. Maximum resolution is 1920 x 1200 / 1080p at 60Hz. For 4K choose the ATEN CS22H.
Are KVM cables included?
Yes. Two 1.2 m all-in-one cables (HDMI, USB and audio) are built in.
Can I switch audio separately?
Yes. KVM and audio focus can be switched independently.
Does it need a power adapter?
No. It is bus-powered.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
