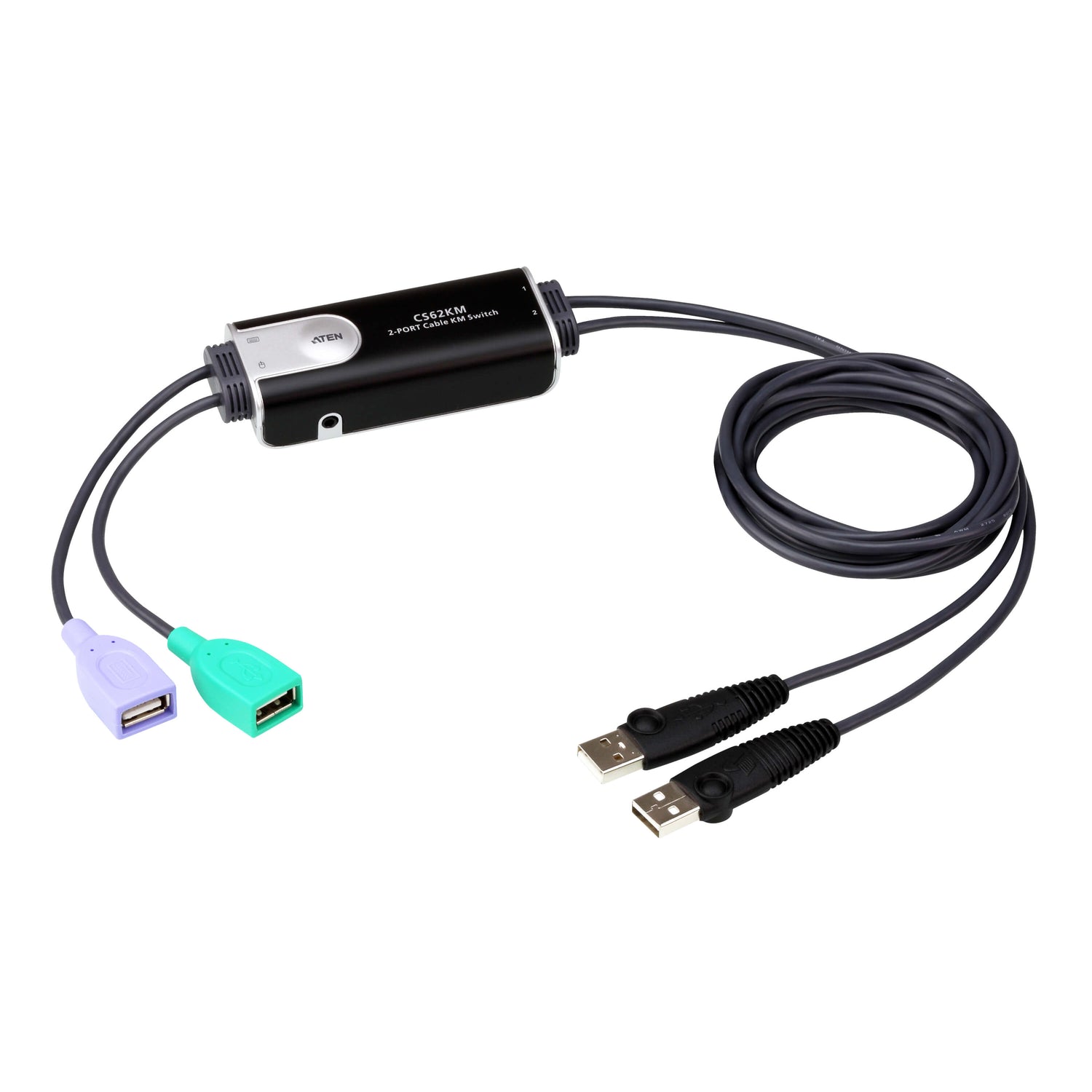

ATEN CS62KM 2-Port USB Boundless Cable KM Switch
PRODUCT DESCRIPTION
ATEN CS62KM 2-Port USB Boundless Cable KM Switch - 2 Years Local Warranty
One Keyboard and Mouse for Two Computers
The ATEN CS62KM lets a single USB keyboard and mouse control two computers that each keep their own monitor, ideal for a desk with a notebook and a desktop side by side.
Boundless Switching
Simply move the mouse cursor past the edge of one screen and onto the next to change computers. You can also switch with the mouse wheel, keyboard hotkeys or the included remote port selector.
Compact, Cabled and Bus-Powered
Cables are built in (0.15 m console, 1.2 m computer), and the switch draws its power from USB, so there is no adapter to find space for.
No Software Required
Boundless switching works without installing software. The CS62KM is firmware upgradable, supports USB hot-plugging and works with Windows, macOS, Linux, iOS and Android devices.
Equipping traders, analysts or support staff with dual-computer desks? Email sales@sourceit.com.sg for volume pricing.
ATEN CS62KM Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port USB Boundless Cable KM Switch |
| Model | CS62KM |
| Order Code | CS62KM-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 2 (keyboard and mouse only, no video) |
| Console Ports | 2 x USB Type-A Female |
| Computer Ports | 2 x USB Type-A Male |
| Remote Port Selector | 1 x 2.5 mm jack Female |
Control
| Port Selection | Hotkey, mouse wheel, mouse cursor (boundless), remote port selector |
| LEDs | 2 (green, selected) |
| Keyboard / Mouse Emulation | USB |
Cables
| Console Cable Length | 0.15 m |
| Computer Cable Length | 1.2 m |
| Remote Port Selector Cable | 1.8 m |
Power
| Power Mode | Bus-powered |
| Power Consumption | DC 5V, 0.74 W, 7.7 BTU/h |
Environmental
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.12 kg |
| Dimensions (L x W x H) | 8.45 x 3.40 x 2.21 cm |
Compatibility
| Operating Systems | Windows, macOS, Linux, iOS, Android |
Compatibility & Applications
Typical Setup

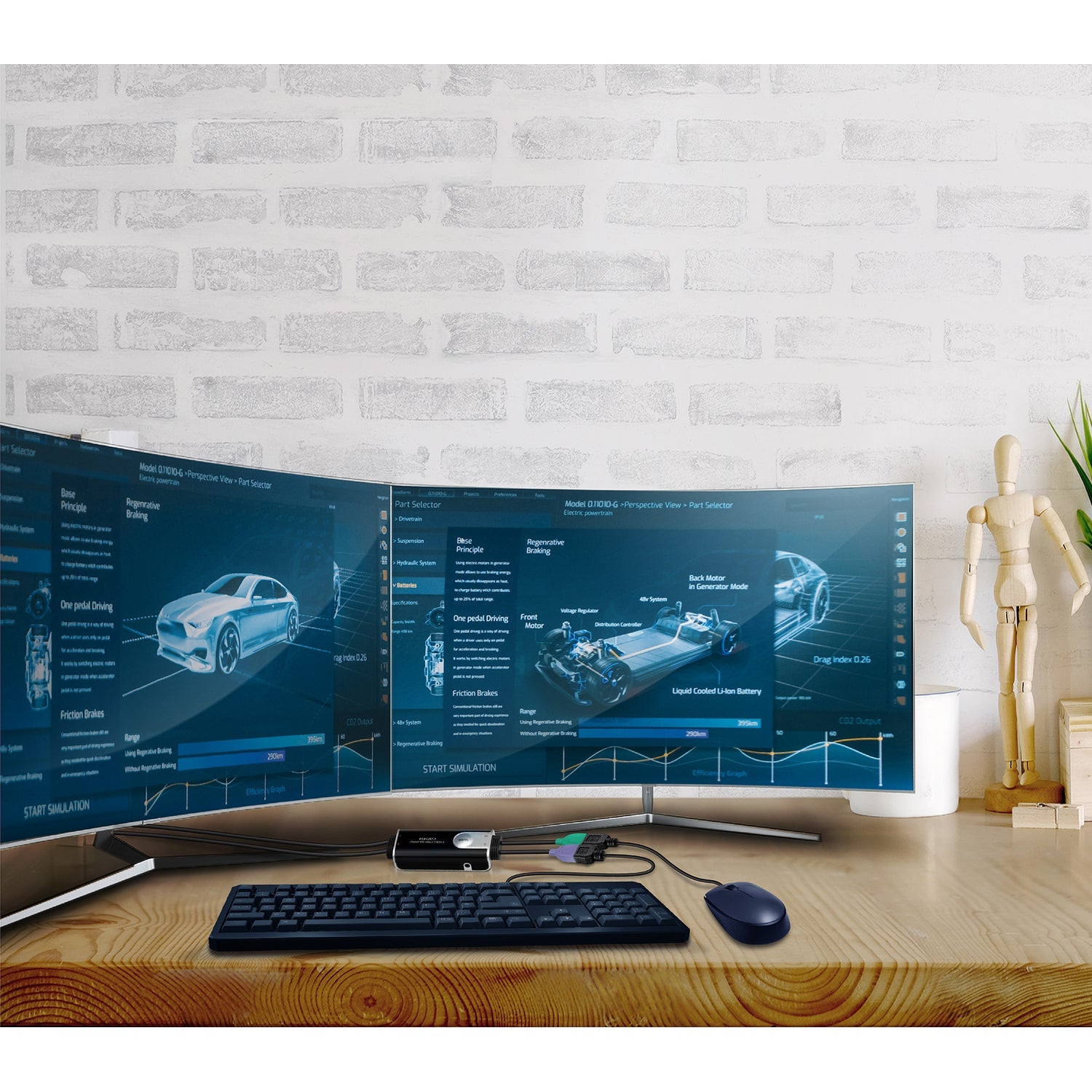

Two computers, each with its own monitor, sharing one USB keyboard and mouse: for example a corporate notebook plus a desktop, or a PC and a Mac.
Typical Use
Finance and trading desks, developers and designers running two systems, and IT support benches.
Selection Tip
The CS62KM switches keyboard and mouse only. For up to four computers choose the CS724KM. If both computers share one monitor, choose a KVM switch such as the CS22H instead.
Package Contents & ATEN KM Switch Ordering Information
In the Box
1 x CS62KM 2-Port USB Boundless Cable KM Switch, 1 x remote port selector, 1 x user instructions.
ATEN Cable KVM / KM Switch Models
| Model | Key feature |
| CS62KM (this listing) | 2-port USB boundless KM switch |
| CS724KM | 4-port USB boundless KM switch |
| CS22H | 2-port USB 4K HDMI cable KVM switch |
| CS22DP | 2-port USB DisplayPort cable KVM switch |
| CS22U | 2-port USB VGA cable KVM switch |
| US3312 | 2-port 4K USB-C DisplayPort cable KVM switch |
| CS692 | 2-port USB HDMI/audio cable KVM switch |
Datasheet & Downloads
| CS62KM datasheet | CS62KM Datasheet (PDF) |
| CS62KM user manual | CS62KM User Manual (PDF) |
| Quick start guide | CS62KM Quick Start Guide (PDF) |
| ATEN product page | CS62KM on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS62KM-AT.
Frequently Asked Questions — ATEN CS62KM
Does the CS62KM switch video?
No. It is a KM switch: keyboard and mouse only. Each computer keeps its own monitor.
What is boundless switching?
You switch computers by moving the mouse cursor across the edge of one screen onto the other, as if both were one desktop.
Do I need to install software?
No. Switching works without software.
Does it need a power adapter?
No. It is bus-powered from USB.
Which systems are supported?
ATEN lists Windows, macOS, Linux, iOS and Android.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
