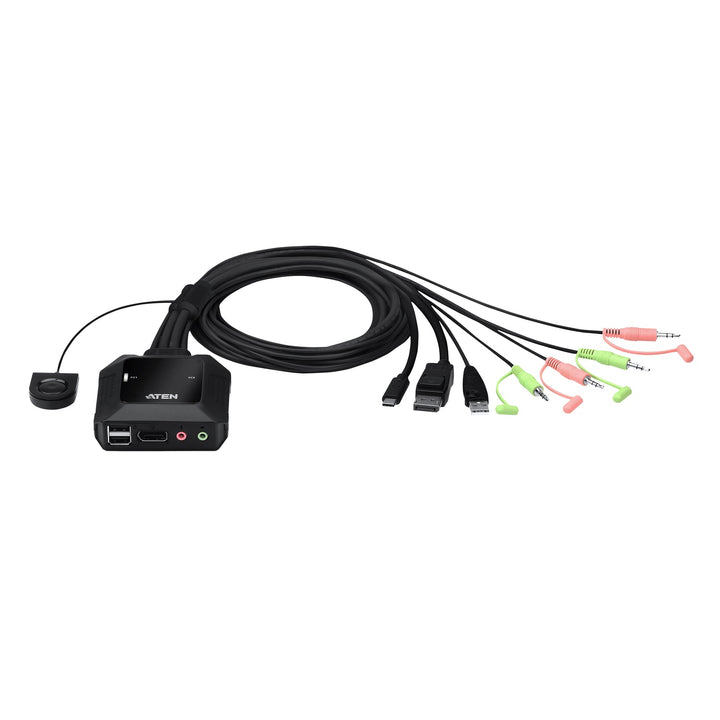

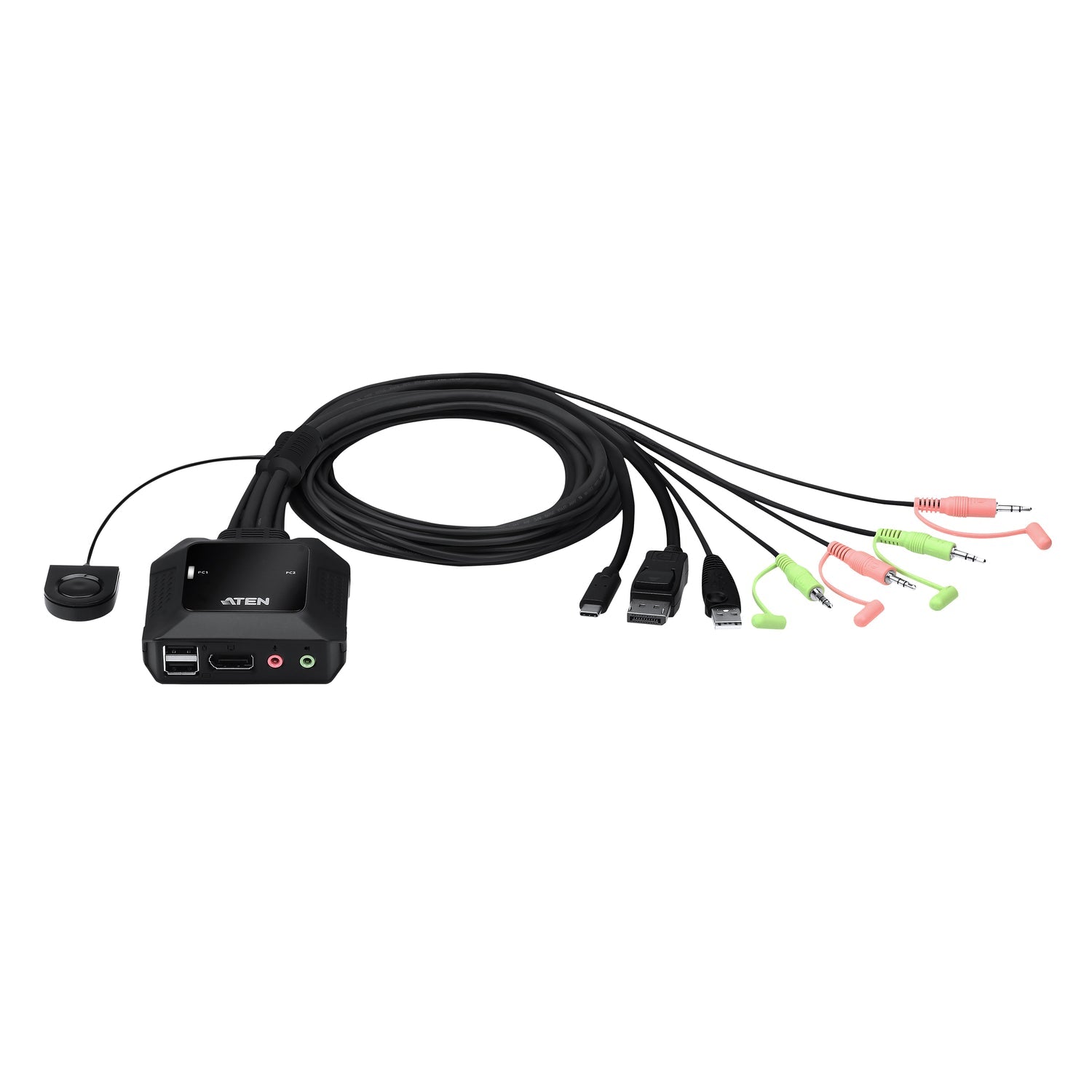

ATEN CS52DP 2-Port USB-C DisplayPort Hybrid Cable KVM Switch
PRODUCT DESCRIPTION
ATEN CS52DP 2-Port USB-C DisplayPort Hybrid Cable KVM Switch - 2 Years Local Warranty
A Desktop and a USB-C Laptop on One Console
The CS52DP connects one DisplayPort computer and one USB-C device to a single DisplayPort monitor, USB keyboard and mouse, and speakers and microphone – the ideal bridge between an office desktop and a modern laptop.
4K@60Hz or 1440p@144Hz
Video resolution goes up to 4096 x 2160 @ 60Hz, or 2560 x 1440 @ 144Hz for smooth high-refresh work. DisplayPort 1.2 and HDCP compliant.
Built-in Hybrid Cables
CPU1 connects with built-in DisplayPort, USB-A and audio leads; CPU2 connects with a single built-in USB-C lead plus audio. Both computer cables are 1.2 m.
Remote Port Selector, Bus-Powered

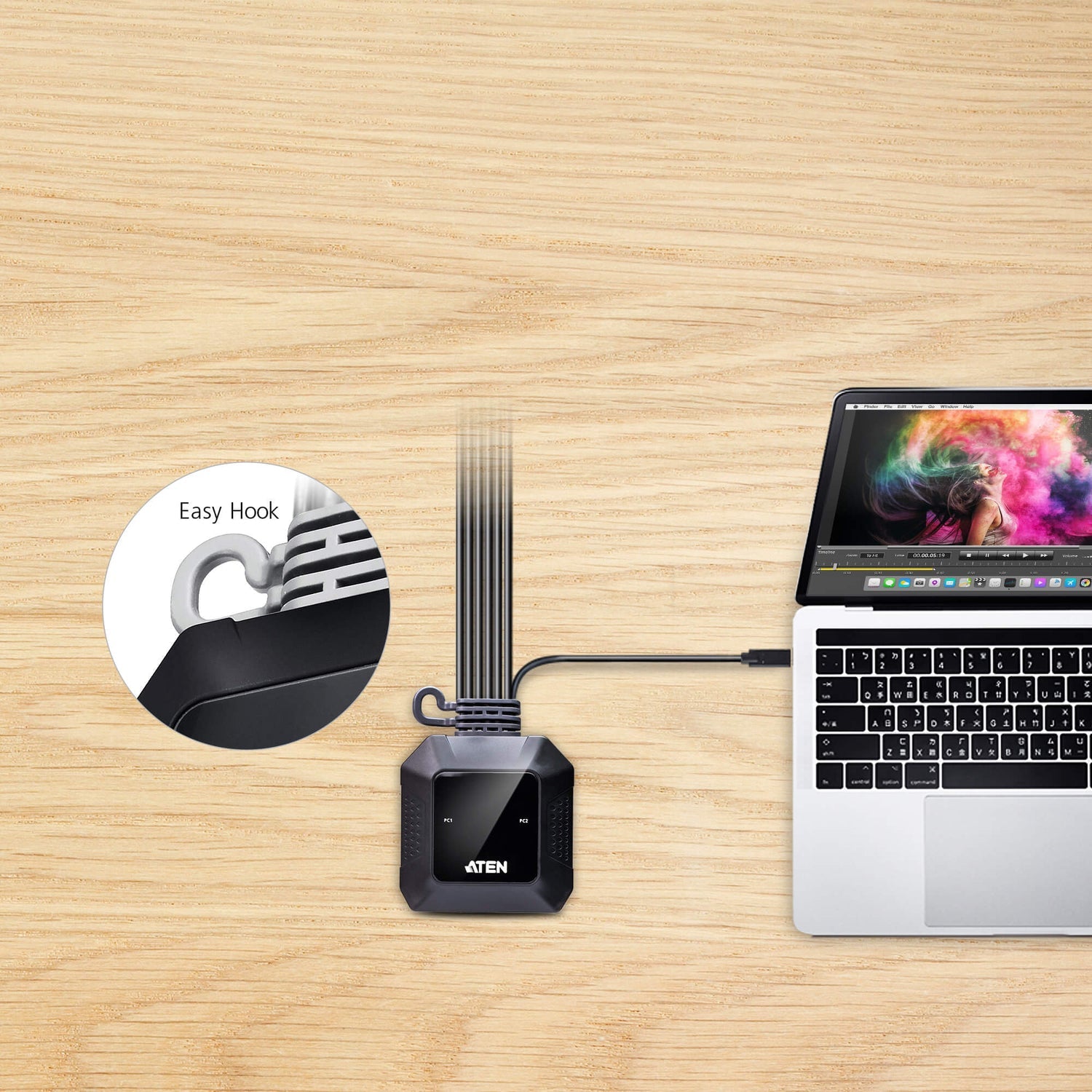

Switch with the 1.8 m remote port selector. The CS52DP is bus-powered, with an optional USB micro-B power input, and a hook design keeps it tidy on the desk.
Standardising hybrid desks with desktops and USB-C laptops? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN CS52DP Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port USB-C DisplayPort Hybrid Cable KVM Switch |
| Model | CS52DP |
| Order Code | CS52DP-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 2 |

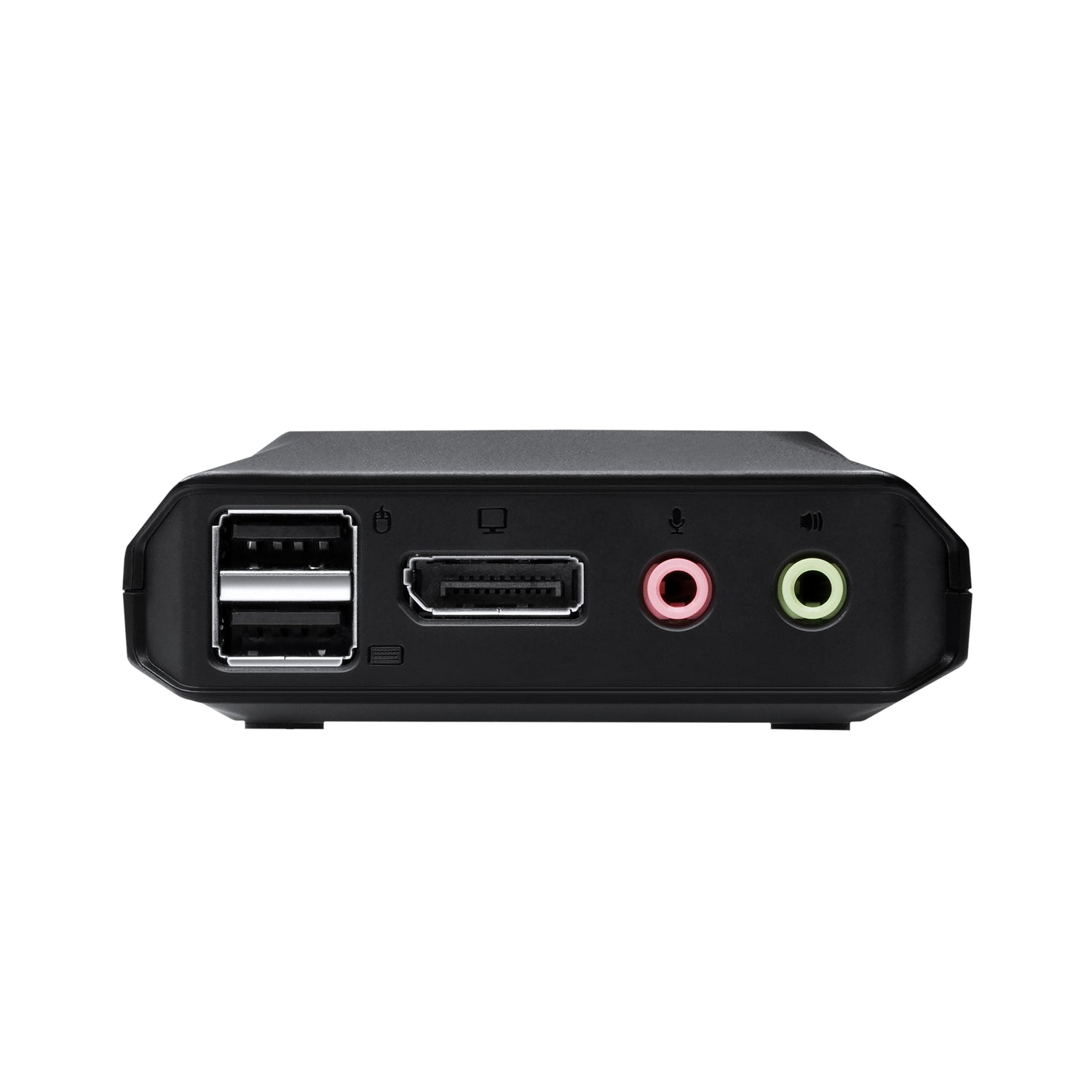

| Console Ports | 1 x DisplayPort Female; 2 x USB Type-A Female; 2 x 3.5 mm audio jacks (green / pink) |

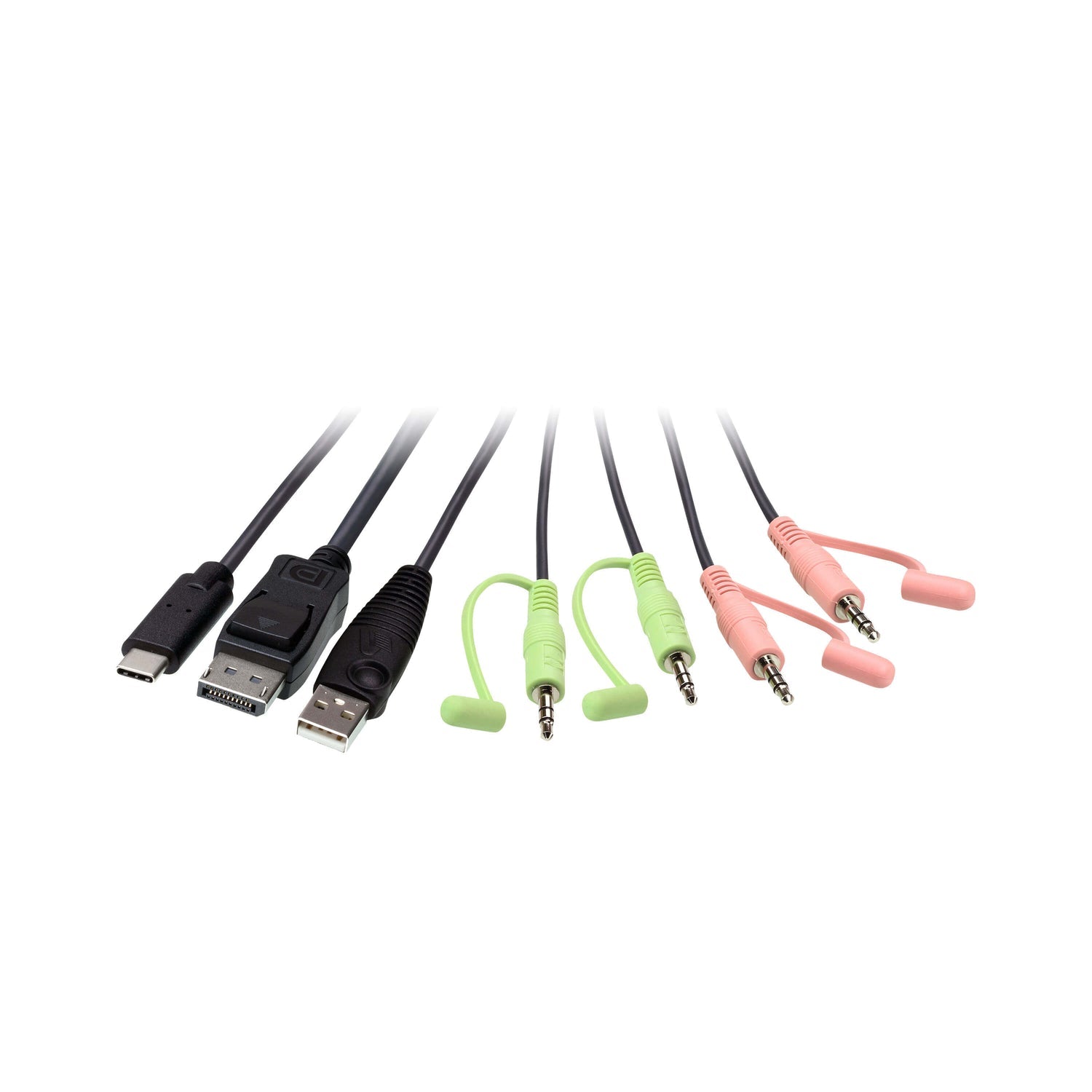

| CPU1 (built-in cable) | 1 x DisplayPort Male; 1 x USB Type-A Male; 2 x 3.5 mm audio jacks |
| CPU2 (built-in cable) | 1 x USB-C Male; 2 x 3.5 mm audio jacks |

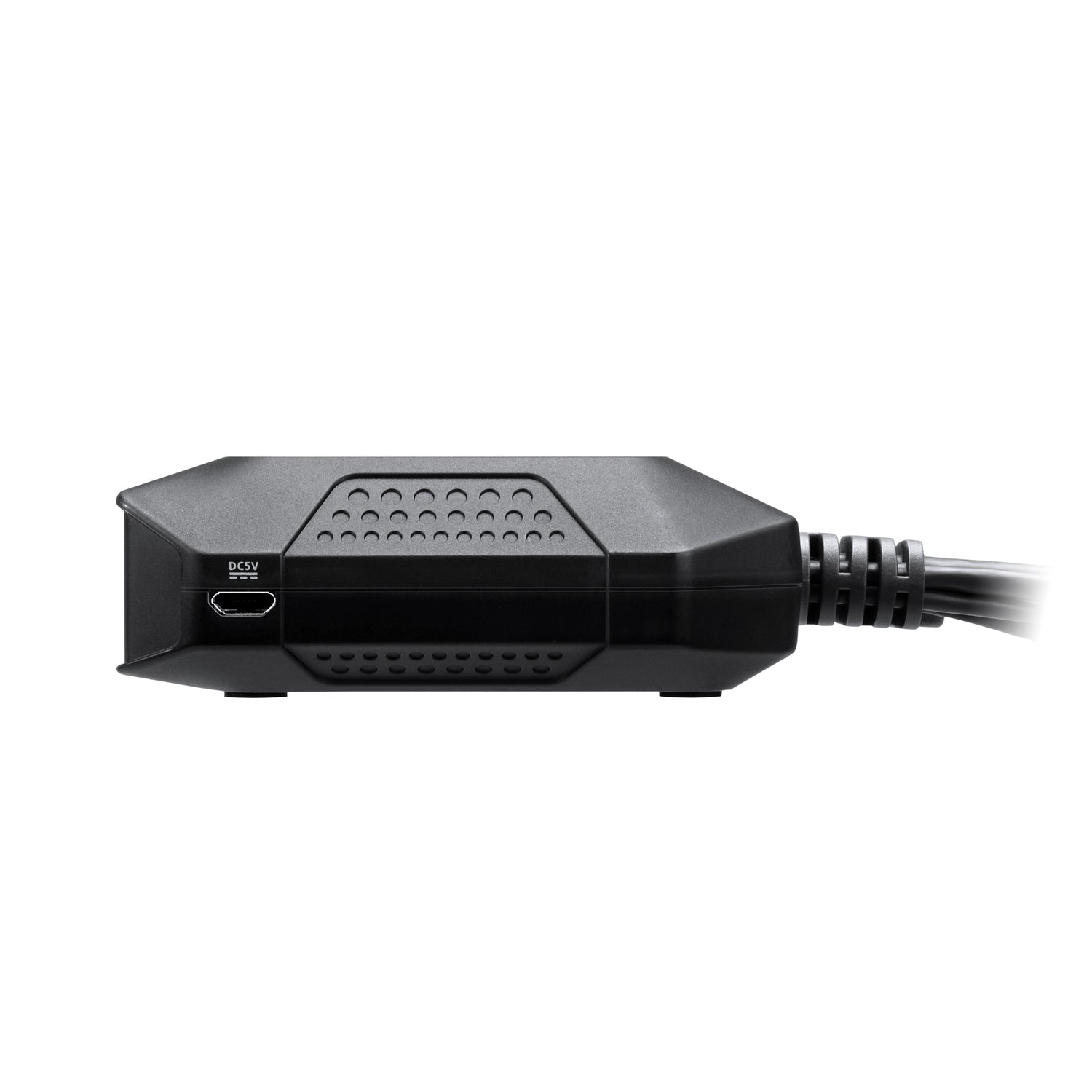

| Power (optional) | 1 x USB Micro-B Female |
Operation
| Port Selection | Remote port selector |
| LEDs | 2 (White) – KVM port online / selected |
| KVM Cable Length | 2 x 1.2 m |
| Remote Port Selector Cable | 1.8 m |
Video
| Resolution | Up to 4096 x 2160 @ 60Hz; 2560 x 1440 @ 144Hz |
| Compliance | DisplayPort 1.2, HDCP compliant |
Power
| Power | Bus-powered |
| Power Consumption | DC5V: 0.74 W |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Weight | 0.30 kg |
| Dimensions (L x W x H) | 8.34 x 8.42 x 3.04 cm |
Compatibility & Applications
Typical Computers
CPU1: a desktop or workstation with DisplayPort and USB-A. CPU2: a laptop, tablet or phone with a USB-C port supporting DisplayPort Alt Mode. ATEN lists Windows, Mac, Linux, Android and iOS support.
Typical Use
Hybrid workers who bring a USB-C laptop to a desk with a company desktop, designers using a high-refresh monitor, and home offices sharing one monitor between two computers.
Selection Tip
Confirm the laptop's USB-C port carries video (DP Alt Mode). If both computers use DisplayPort, the CS22DP is the matching model; for two USB-C computers, see the US3312.
Package Contents & ATEN Cable KVM Switch Ordering Information
In the Box
1 x CS52DP 2-Port USB-C DisplayPort Hybrid Cable KVM Switch, 1 x user instructions.
ATEN Cable KVM Switch Models
| Model | Key feature |
| CS22U | 2-port USB VGA cable KVM switch, remote port selector |
| CS22HF | 2-port USB FHD HDMI cable KVM switch |
| CS22H | 2-port USB 4K HDMI cable KVM switch |
| CS22DP | 2-port USB DisplayPort cable KVM switch |
| CS52DP (this listing) | 2-port USB-C / DisplayPort hybrid cable KVM switch |
| CS692 | 2-port USB HDMI / audio cable KVM switch |
| US3312 | 2-port 4K USB-C DisplayPort cable KVM switch |
| CS62KM | 2-port USB Boundless cable KM switch |
Datasheet & Downloads
| Datasheet | CS52DP Datasheet (PDF) |
| Quick start guide | CS52DP Quick Start Guide (PDF) |
| ATEN product page | CS52DP on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS52DP-AT.
Frequently Asked Questions — ATEN CS52DP
Which computers can I connect?
One computer with DisplayPort and USB-A outputs (CPU1) and one USB-C device with DisplayPort Alt Mode (CPU2).
Does it support high refresh rates?
Yes. Up to 2560 x 1440 @ 144Hz, or up to 4096 x 2160 @ 60Hz.
Does it charge my laptop?
ATEN does not list power delivery for the CS52DP; keep the laptop on its own charger.
Does it switch audio?
Yes. Speaker and microphone jacks on the console are switched with the computer.
Do I need software?
No. It is bus-powered, needs no software and supports USB hot-plugging.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
