ATEN CS22U 2-Port USB VGA Cable KVM Switch with Remote Port Selector
PRODUCT DESCRIPTION
ATEN CS22U 2-Port USB VGA Cable KVM Switch with Remote Port Selector - 2 Years Local Warranty
One Keyboard, Mouse and Monitor for Two PCs
The CS22U lets you control two computers with VGA video and USB from a single keyboard, mouse and VGA monitor – freeing desk space and cutting duplicate peripherals.

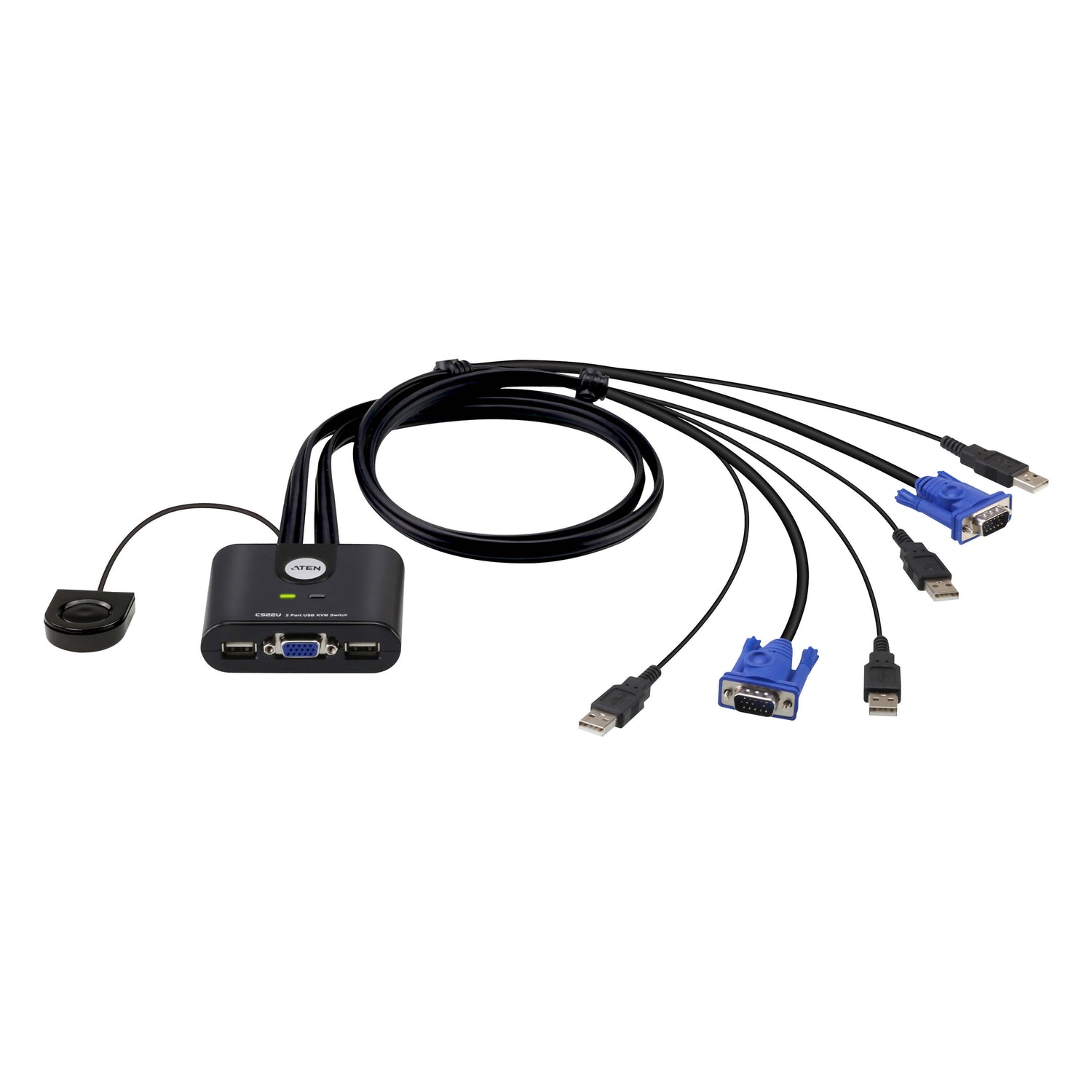

Built-in Cables
The KVM cables to both computers are built in, so installation is simply plugging in the VGA and USB connectors at each computer.
Remote Port Selector
Switch computers with the remote port selector on a 1.8 m lead, placed wherever it is easiest to reach. LEDs show the selected port.
Sharp VGA, Bus-Powered
Video resolution up to 2048 x 1536 with DDC2B. The CS22U is bus-powered, so there is no power adapter, and supports Windows, Mac, Linux and Sun.
Consolidating legacy VGA workstations or server benches? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ATEN CS22U Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port USB VGA Cable KVM Switch with Remote Port Selector |
| Model | CS22U |
| Order Code | CS22U-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 2 |

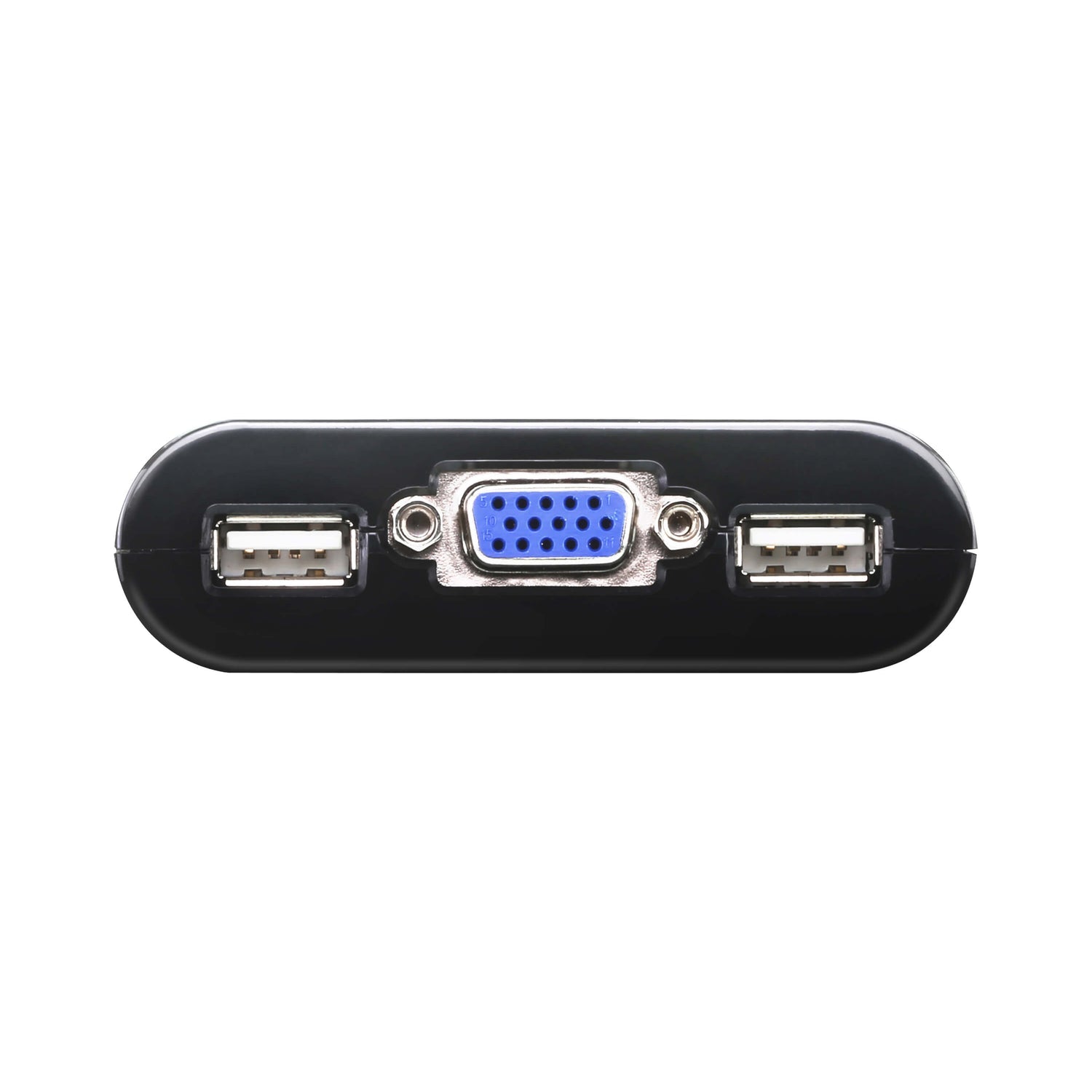

| Console Ports | 1 x HDB-15 Female; 2 x USB Type-A Female |
| KVM Ports | 2 x HDB-15 Male; 4 x USB Type-A Male (built-in cables) |
Operation
| Port Selection | Remote port selector |
| LEDs | 2 (Selected) |
| Computer Cable Length | 2 x 0.9 m |
| Remote Port Selector Cable | 1.8 m |
Video
| Resolution | Up to 2048 x 1536; DDC2B |
Power
| Power | Bus-powered |
| Power Consumption | DC5V: 0.14 W |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Plastic |
| Weight | 0.30 kg |
| Dimensions (L x W x H) | 8.24 x 7.01 x 2.46 cm |
Compatibility & Applications
Typical Computers
Desktops, servers and laptops with a VGA video output and USB ports, running Windows, Mac, Linux or Sun.
Typical Use
Controlling two PCs at one desk, test benches, control rooms with legacy VGA equipment, and small server corners.
Selection Tip
Choose the CS22U for VGA computers. For HDMI computers, see the CS22HF (Full HD) or CS22H (4K); for DisplayPort, the CS22DP.
Package Contents & ATEN Cable KVM Switch Ordering Information
In the Box
1 x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector, 1 x user guide.
ATEN Cable KVM Switch Models
| Model | Key feature |
| CS22U (this listing) | 2-port USB VGA cable KVM switch, remote port selector |
| CS22HF | 2-port USB FHD HDMI cable KVM switch |
| CS22H | 2-port USB 4K HDMI cable KVM switch |
| CS22DP | 2-port USB DisplayPort cable KVM switch |
| CS52DP | 2-port USB-C / DisplayPort hybrid cable KVM switch |
| CS692 | 2-port USB HDMI / audio cable KVM switch |
| US3312 | 2-port 4K USB-C DisplayPort cable KVM switch |
| CS62KM | 2-port USB Boundless cable KM switch |
Datasheet & Downloads
| Datasheet | CS22U Datasheet (PDF) |
| User guide | CS22U User Guide (PDF) |
| Quick start guide | CS22U Quick Start Guide (PDF) |
| ATEN product page | CS22U on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS22U-AT.
Frequently Asked Questions — ATEN CS22U
Do I need extra KVM cables?
No. The cables to both computers are built in.
How do I switch computers?
Use the remote port selector supplied on a 1.8 m cable.
What resolution does it support?
Up to 2048 x 1536 over VGA, with DDC2B.
Does it need a power adapter?
No. It is bus-powered from the computers' USB ports.
Does it switch audio?
No. The CS22U switches VGA video and USB keyboard and mouse only.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
