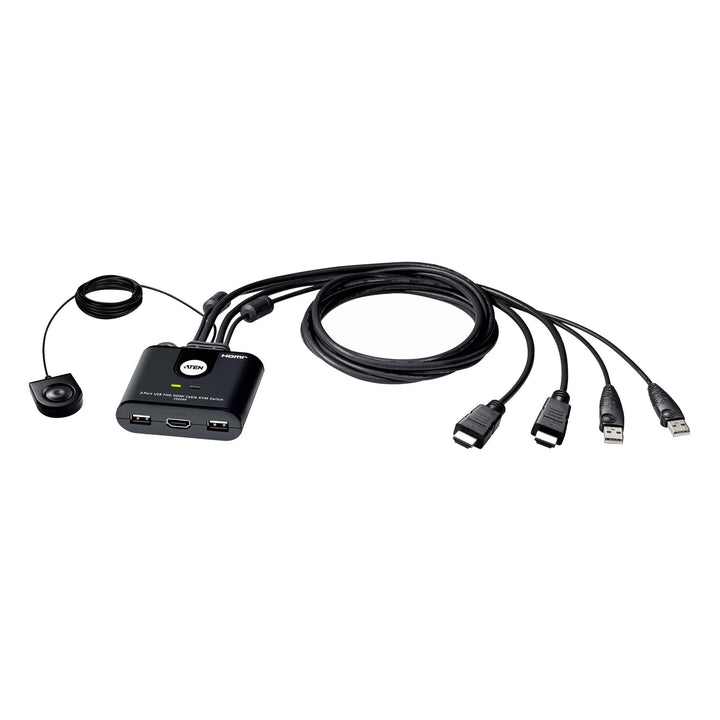

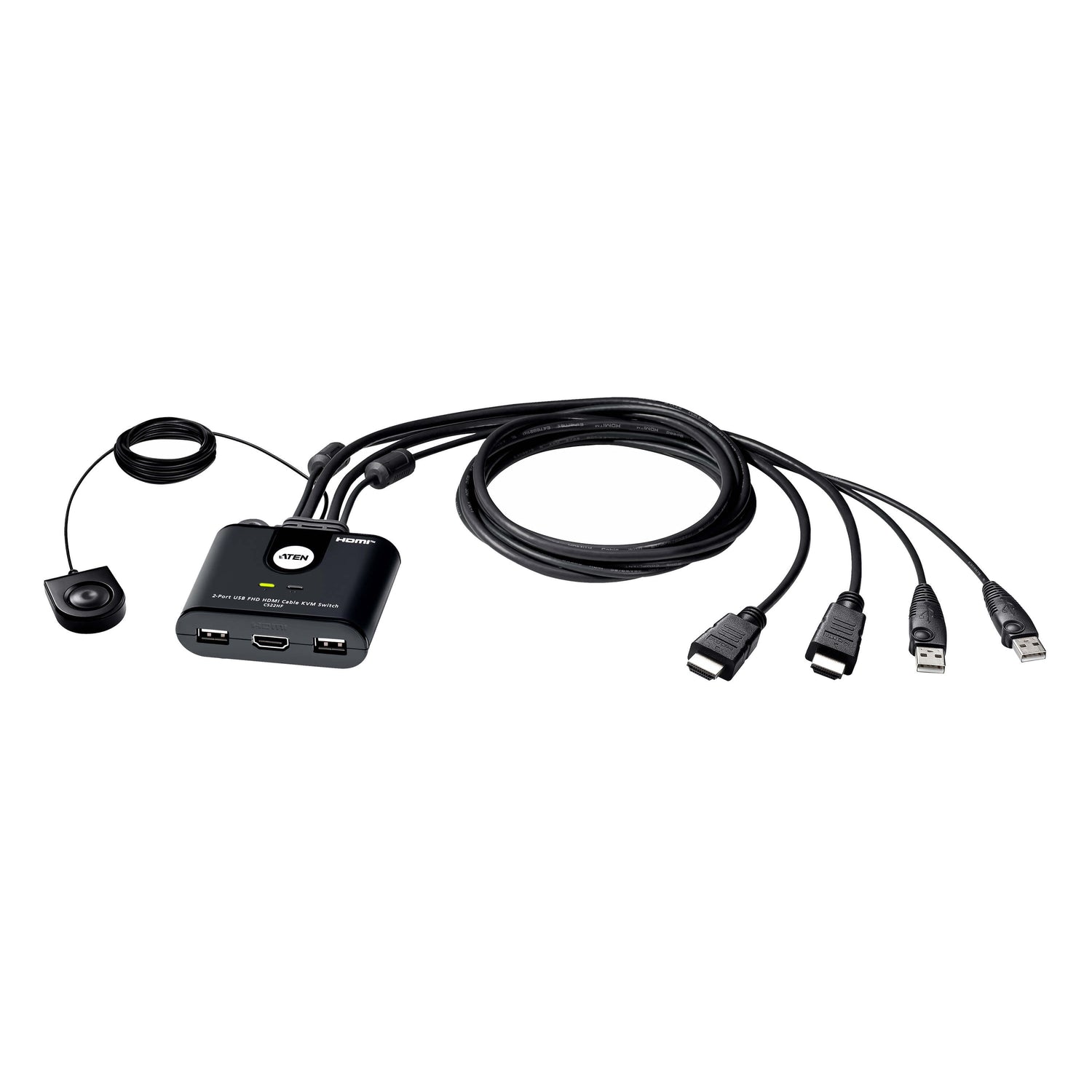

ATEN CS22HF 2-Port USB FHD HDMI Cable KVM Switch
PRODUCT DESCRIPTION
ATEN CS22HF 2-Port USB FHD HDMI Cable KVM Switch - 2 Years Local Warranty

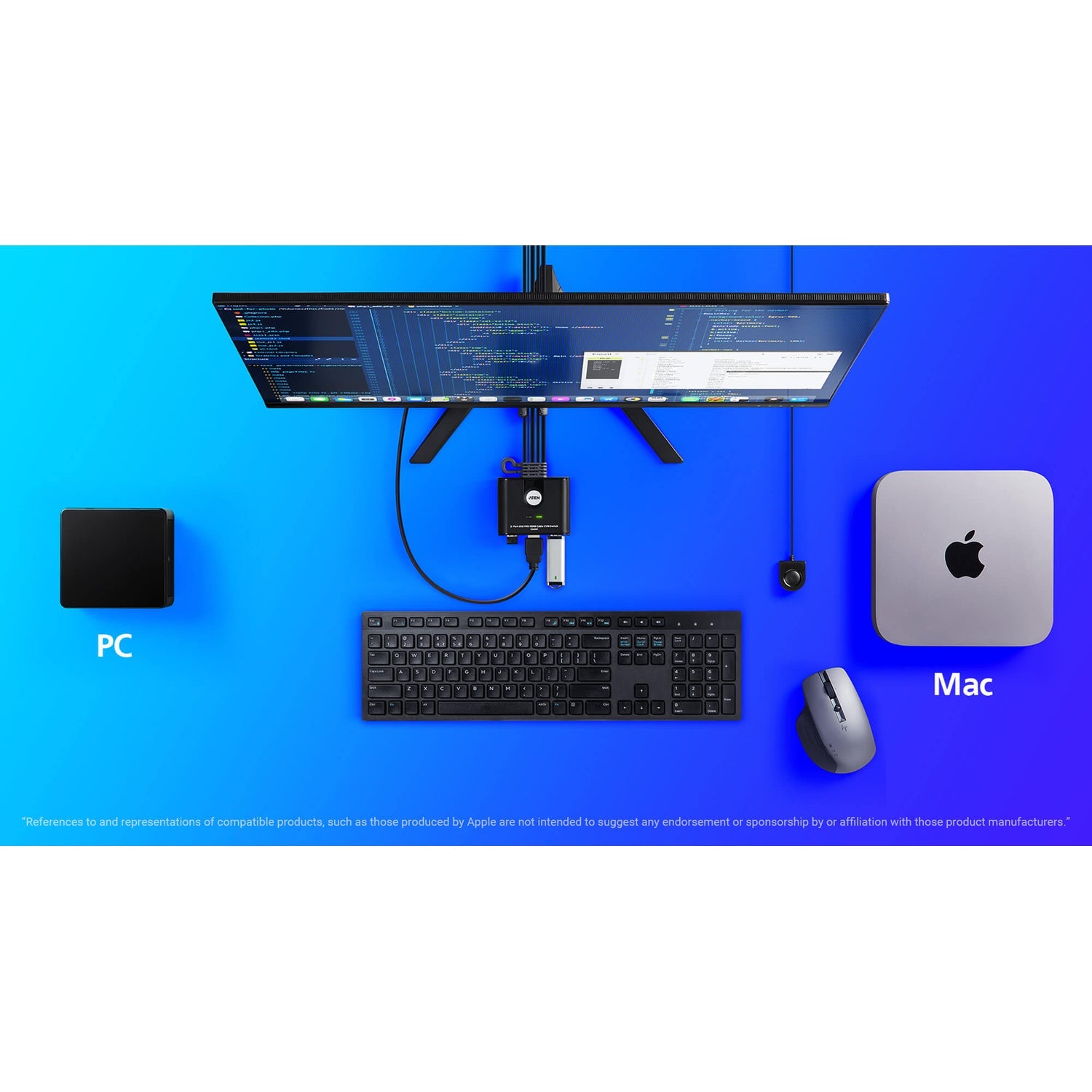

Two Computers, One Monitor, Keyboard and Mouse
The CS22HF lets you control two computers from one HDMI monitor, USB keyboard and USB mouse. Built-in HDMI and USB cables mean no extra cables to buy and a tidy desk.
Full HD Picture
Supports video up to 1920 x 1080 and 1920 x 1200 at 60 Hz, HDMI and HDCP 1.4 compliant.

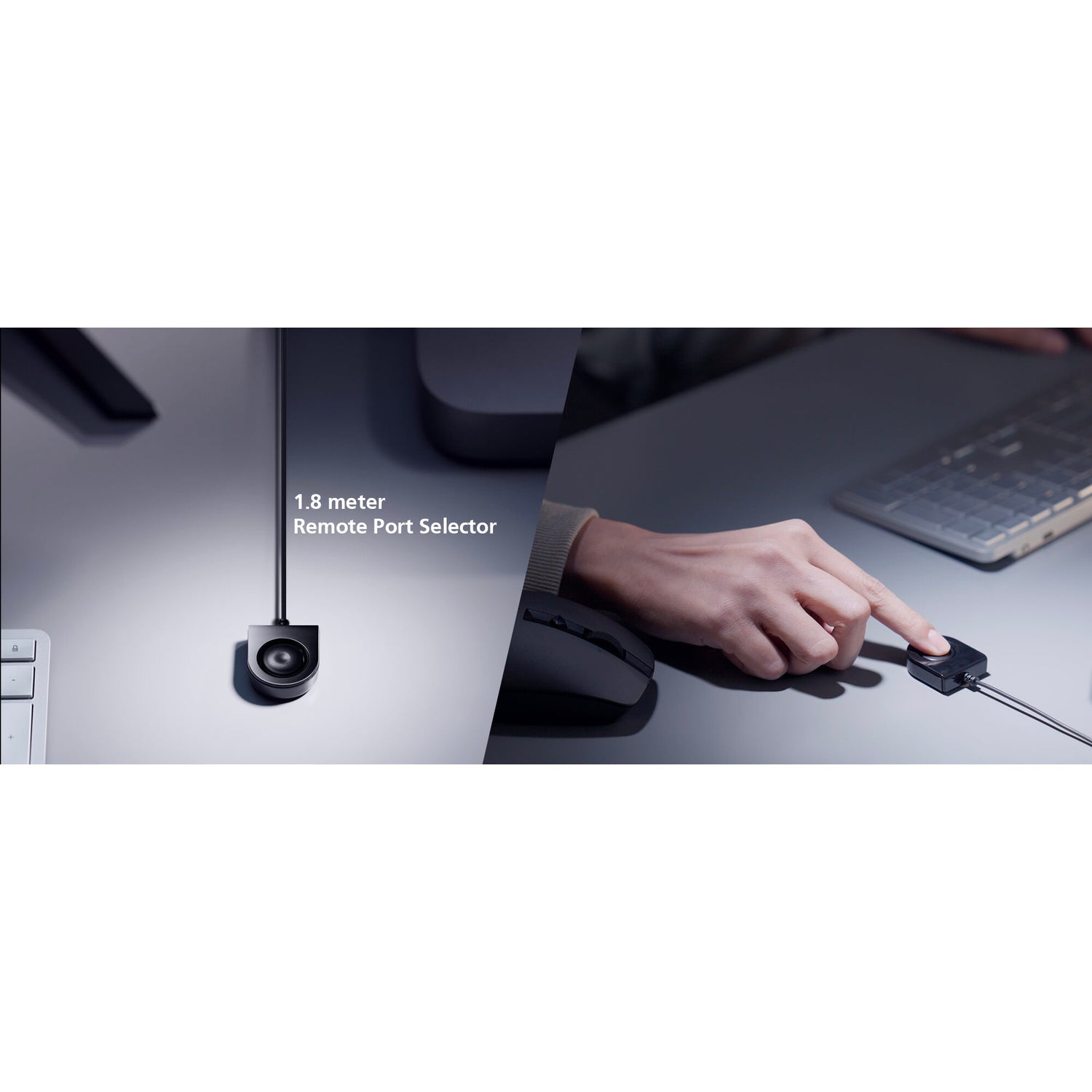

Switch with the Remote Port Selector
A desktop remote port selector on a 1.8 m cable lets you switch between computers with one press, keeping the switch itself out of sight.
Bus-Powered, Works Across Platforms
Draws power from the computers, so no adapter is needed. Works with Windows, Mac and Linux and supports USB hot-plugging.
Setting up dual-PC desks for a team? Email sales@sourceit.com.sg for volume pricing.
ATEN CS22HF Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port USB FHD HDMI Cable KVM Switch |
| Model | CS22HF |
| Order Code | CS22HF-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Computers | 2 |
| Port Selection | Remote port selector |

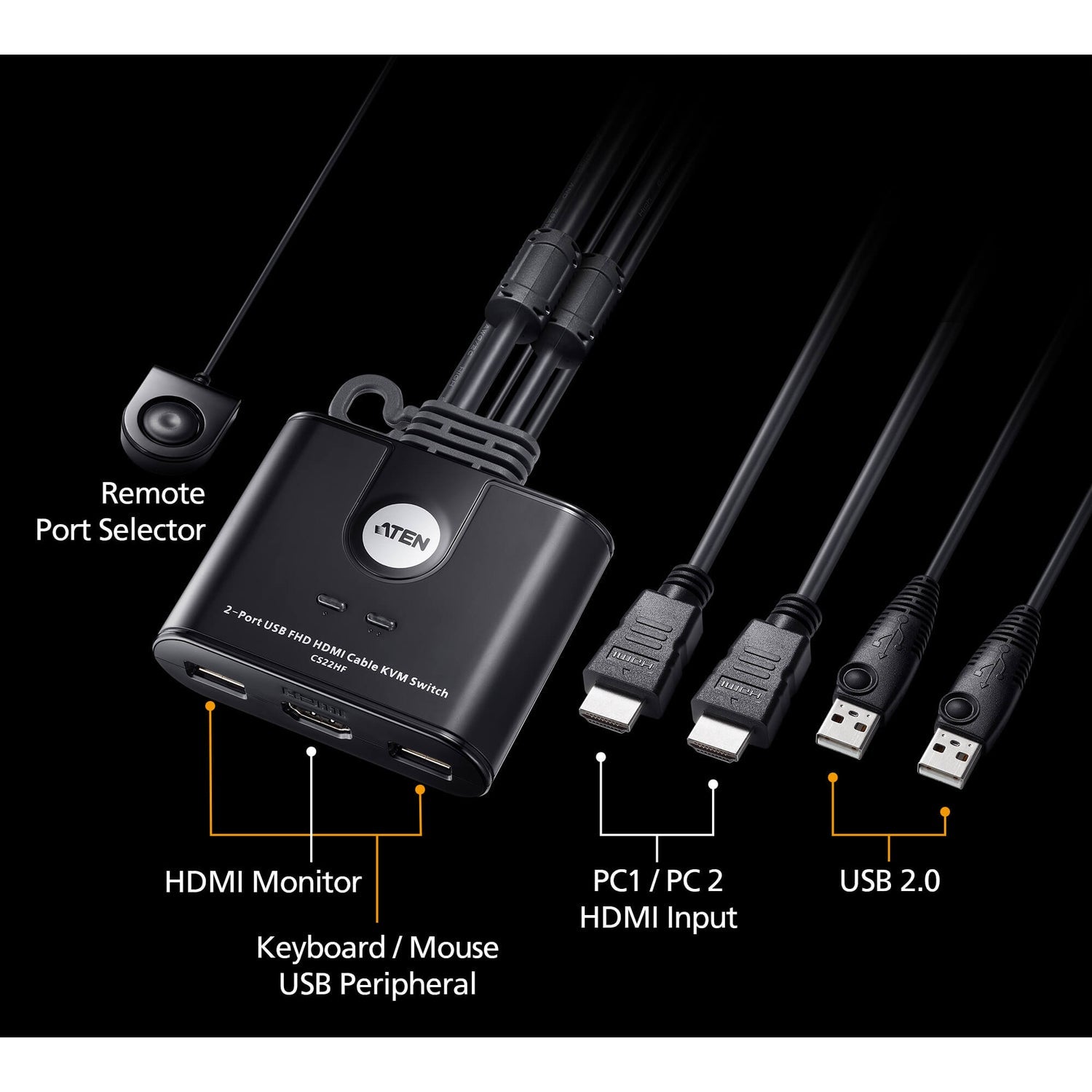

Connectors
| Console Ports | 1 x HDMI Female; 2 x USB Type-A Female |
| KVM Ports (built-in cables) | 2 x HDMI Male; 2 x USB Type-A Male |
Cables
| Computer Cables | 2 x 1.2 m (built-in) |
| Remote Port Selector Cable | 1.8 m |
Video
| Max. Resolution | 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz |
| Compliance | HDMI; HDCP 1.4 |
Power
| Power | Bus-powered |
| Power Consumption | 1.518 W |
Physical
| Housing | Plastic |
| Weight | 0.26 kg |
| Dimensions | 8.24 x 6.65 x 2.52 cm |
Compatibility
| Operating Systems | Windows, Mac, Linux |
| Hot-Plugging | USB hot-plugging supported |
Compatibility & Applications
Typical Devices

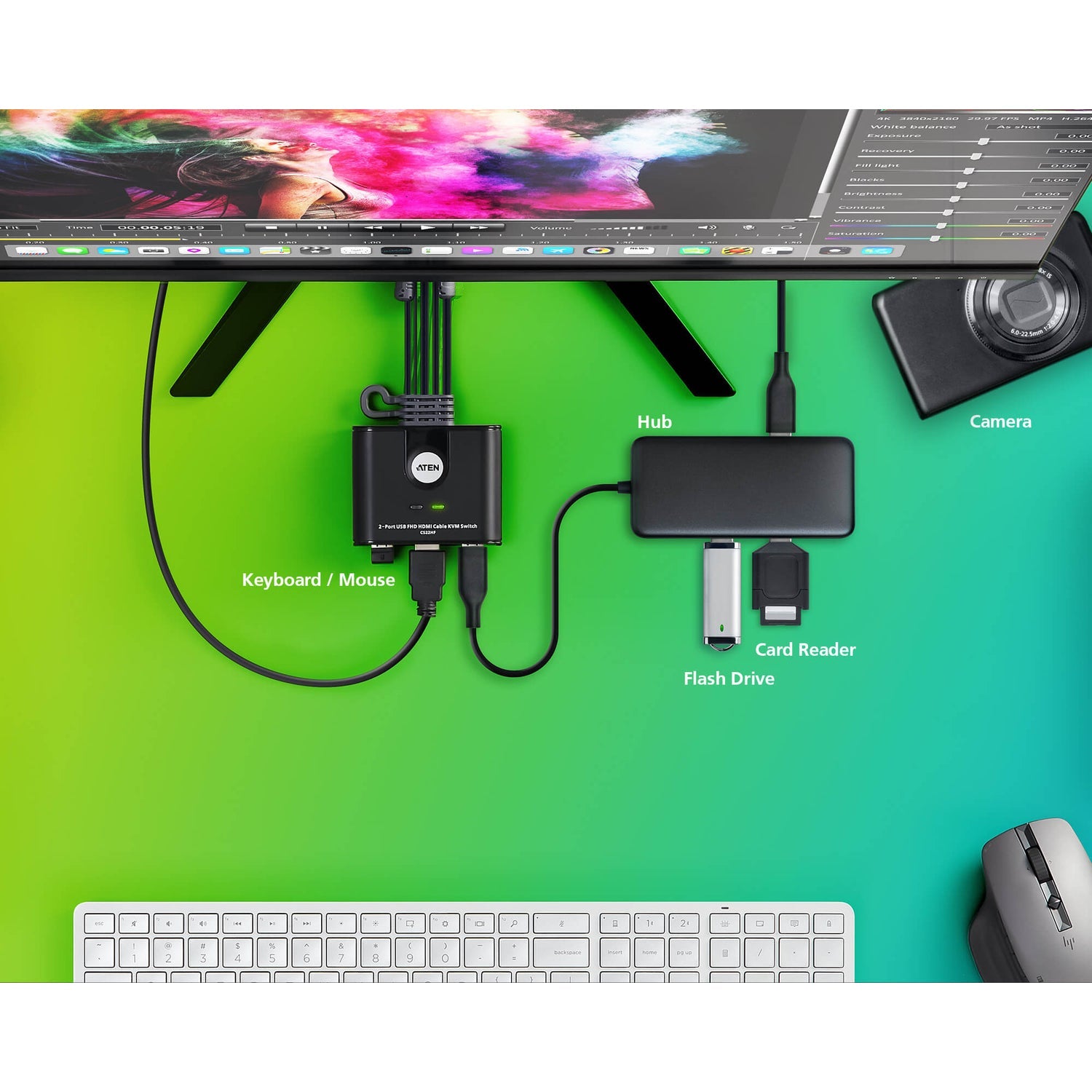

Desktop PCs, laptops and mini PCs with HDMI output and USB ports, sharing one HDMI monitor and a USB keyboard and mouse.
Typical Use

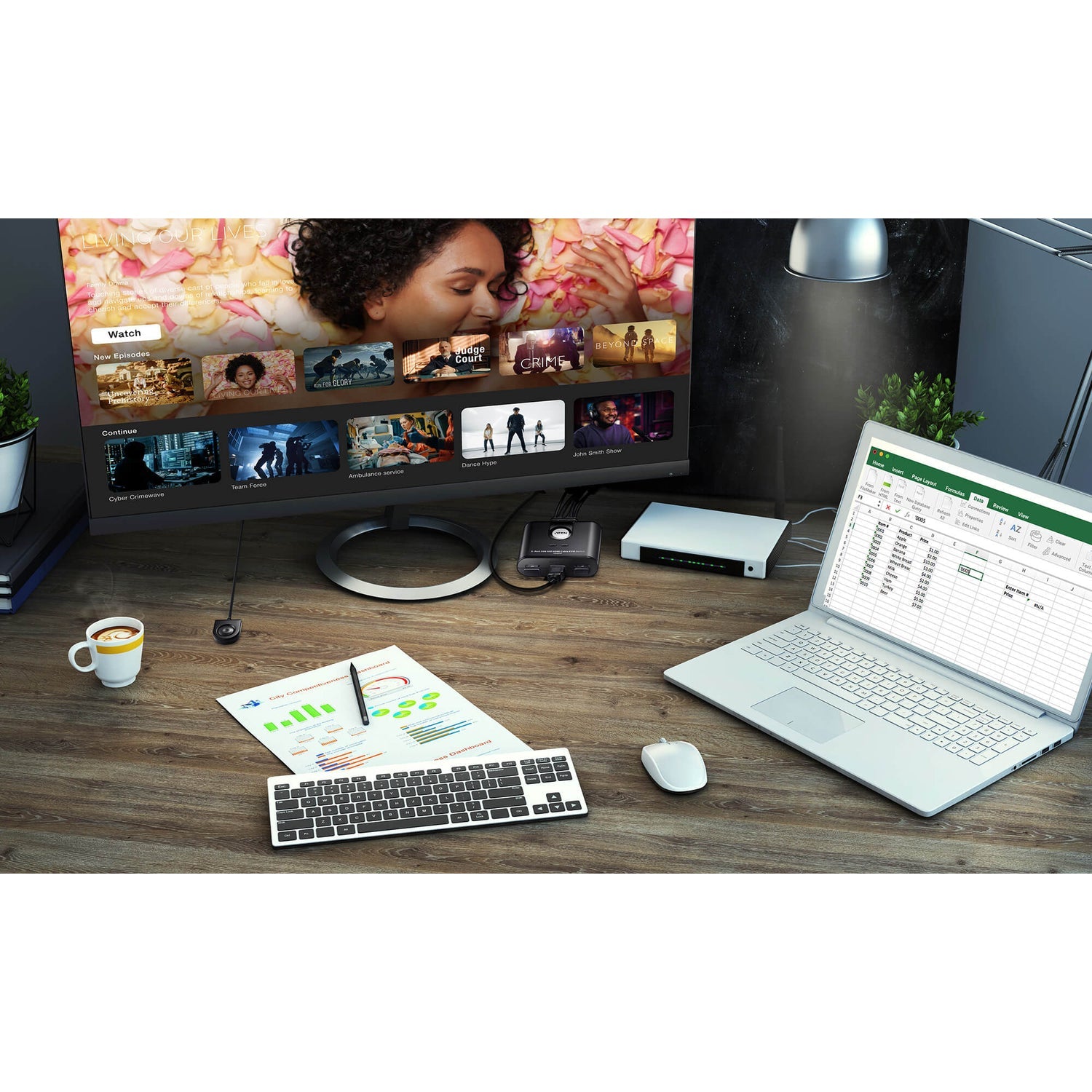

Home offices with a work and personal computer, reception desks and small offices switching between two systems.
Selection Tip
Built-in cables are 1.2 m, so place both computers within reach. For 4K monitors, choose the CS22H; for two monitors per computer, the CS742H.
Package Contents & ATEN Cable KVM Switch Ordering Information
In the Box
1 x CS22HF 2-Port USB FHD HDMI Cable KVM Switch, 1 x user instructions.
ATEN 2-Port KVM Switch Models
| Model | Key feature |
| CS22HF (this listing) | 2-port USB FHD HDMI cable KVM switch |
| CS22H | 2-port USB 4K HDMI cable KVM switch |
| CS22DP | 2-port USB DisplayPort cable KVM switch |
| CS52DP | 2-port USB-C DisplayPort hybrid cable KVM switch |
| CS692 | 2-port USB HDMI/audio cable KVM switch |
| CS742H | 2-port USB 4K HDMI dual-display KVMP switch |
| CS1792 | 2-port USB HDMI KVMP switch |
Datasheet & Downloads
| Datasheet | CS22HF Datasheet (PDF) |
| Quick start guide | CS22HF Quick Start Guide (PDF) |
| ATEN product page | CS22HF on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS22HF-AT.
Frequently Asked Questions — ATEN CS22HF
Are cables included?
Yes. HDMI and USB cables (1.2 m) to both computers are built in.
How do I switch between computers?
Press the remote port selector, which sits on your desk on a 1.8 m cable.
Does it support 4K?
No. The CS22HF supports up to 1920 x 1200 at 60 Hz. For 4K, see the CS22H.
Does it need a power adapter?
No. It is bus-powered from the computers.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
