ATEN CS22H 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
PRODUCT DESCRIPTION
ATEN CS22H 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector - 2 Years Local Warranty
Two HDMI Computers, One 4K Desk

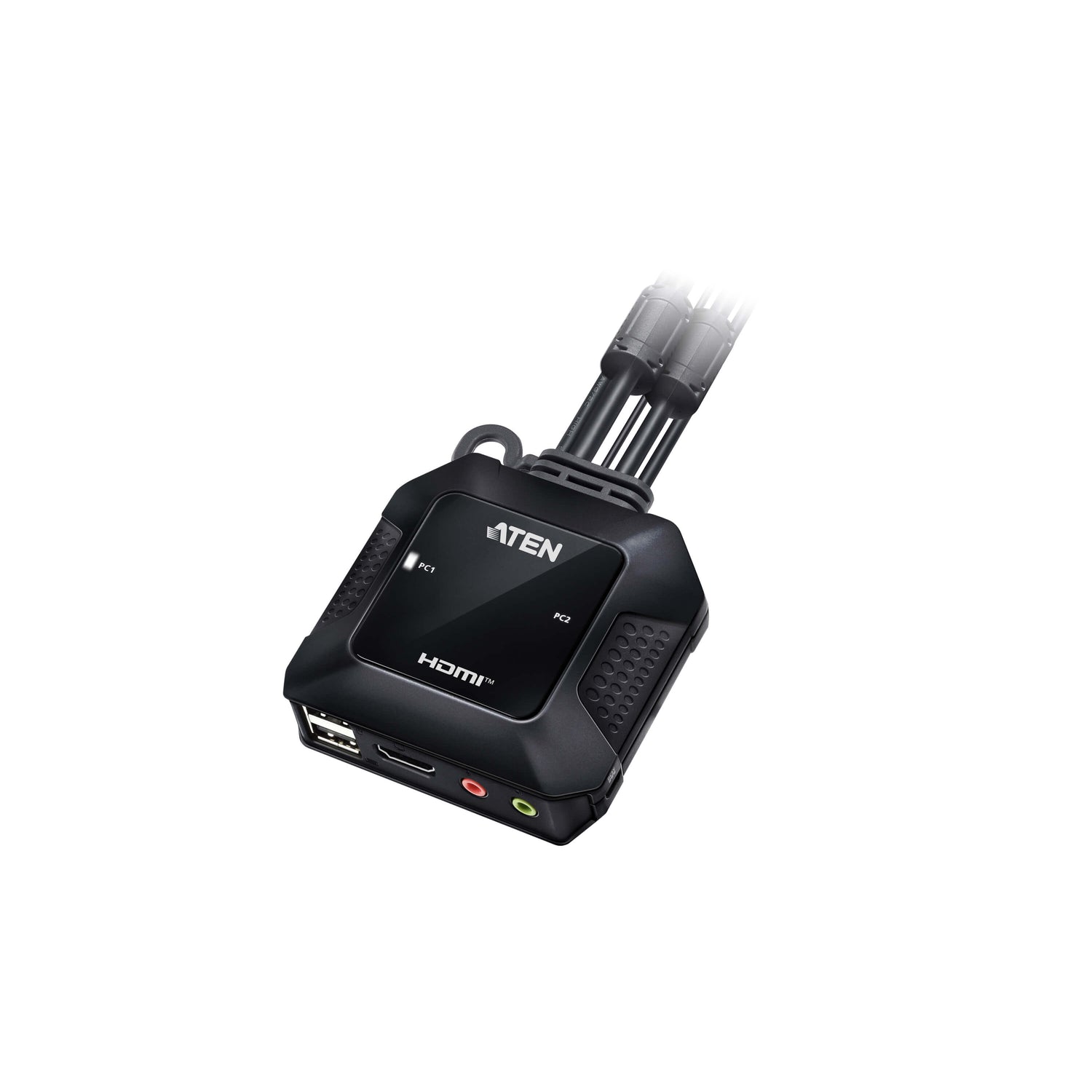

The ATEN CS22H lets one HDMI monitor, USB keyboard and mouse, and speakers/microphone control two HDMI computers, with the KVM cables (2 x 1.2 m) built in.
4K at 60Hz or 144Hz Gaming Refresh
Video up to 4096 x 2160 @ 60Hz (4K DCI), or 2560 x 1440 @ 144Hz for high-refresh monitors.
Remote Port Selector
Switch computers with the remote port selector on its 1.8 m cable; white LEDs show which computer is online and selected.
Bus-Powered, Plug and Play

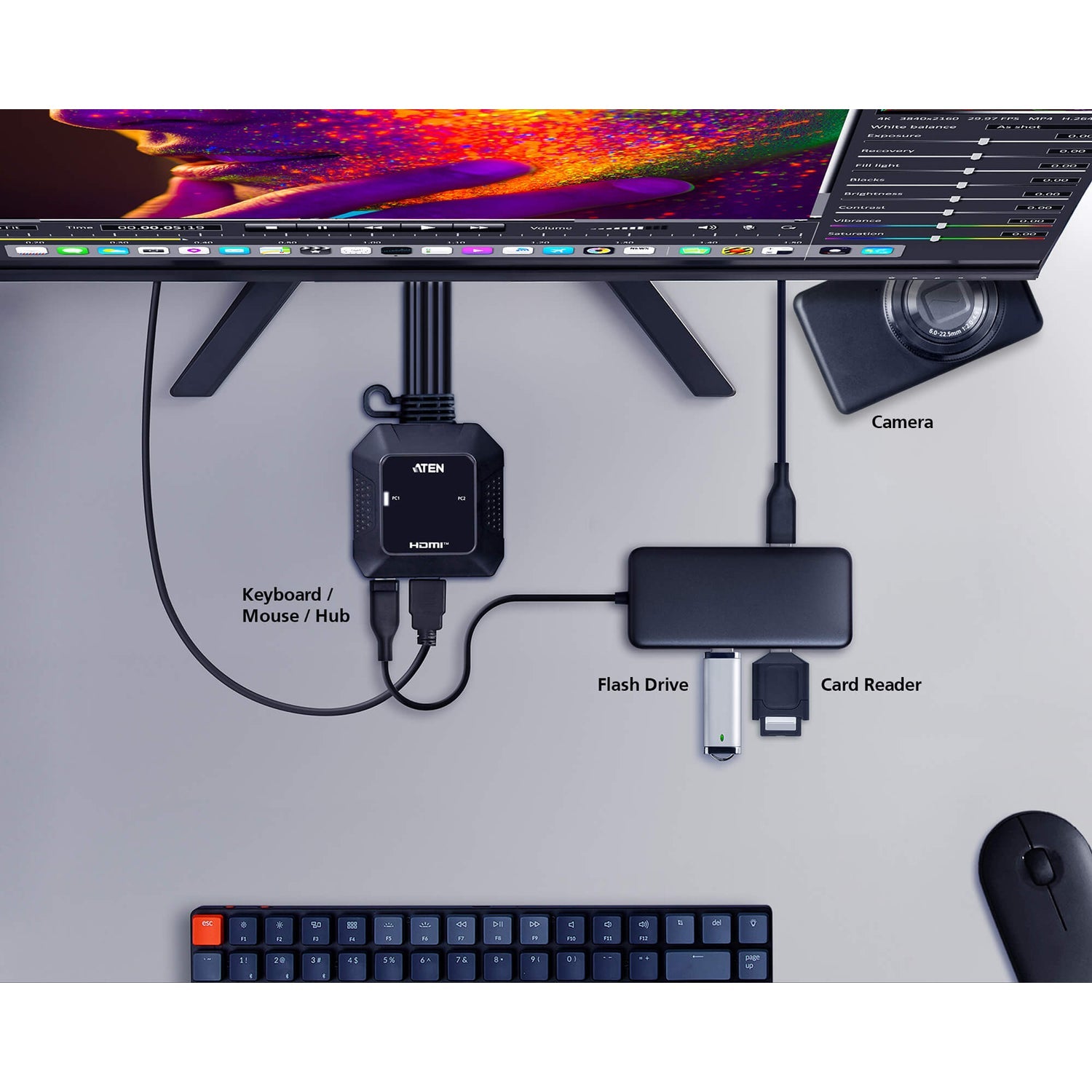

Runs from USB with an optional Micro USB power input, shares USB peripherals, and works with Windows, Mac and Linux. The hook design keeps it tidy behind the monitor.
Equipping dual-computer desks in volume? Email sales@sourceit.com.sg for pricing and lead time.
ATEN CS22H Datasheet — Technical Specifications
General
| Product Name | ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector |
| Model | CS22H |
| Order Code | CS22H-AT |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer Connections | 2 |

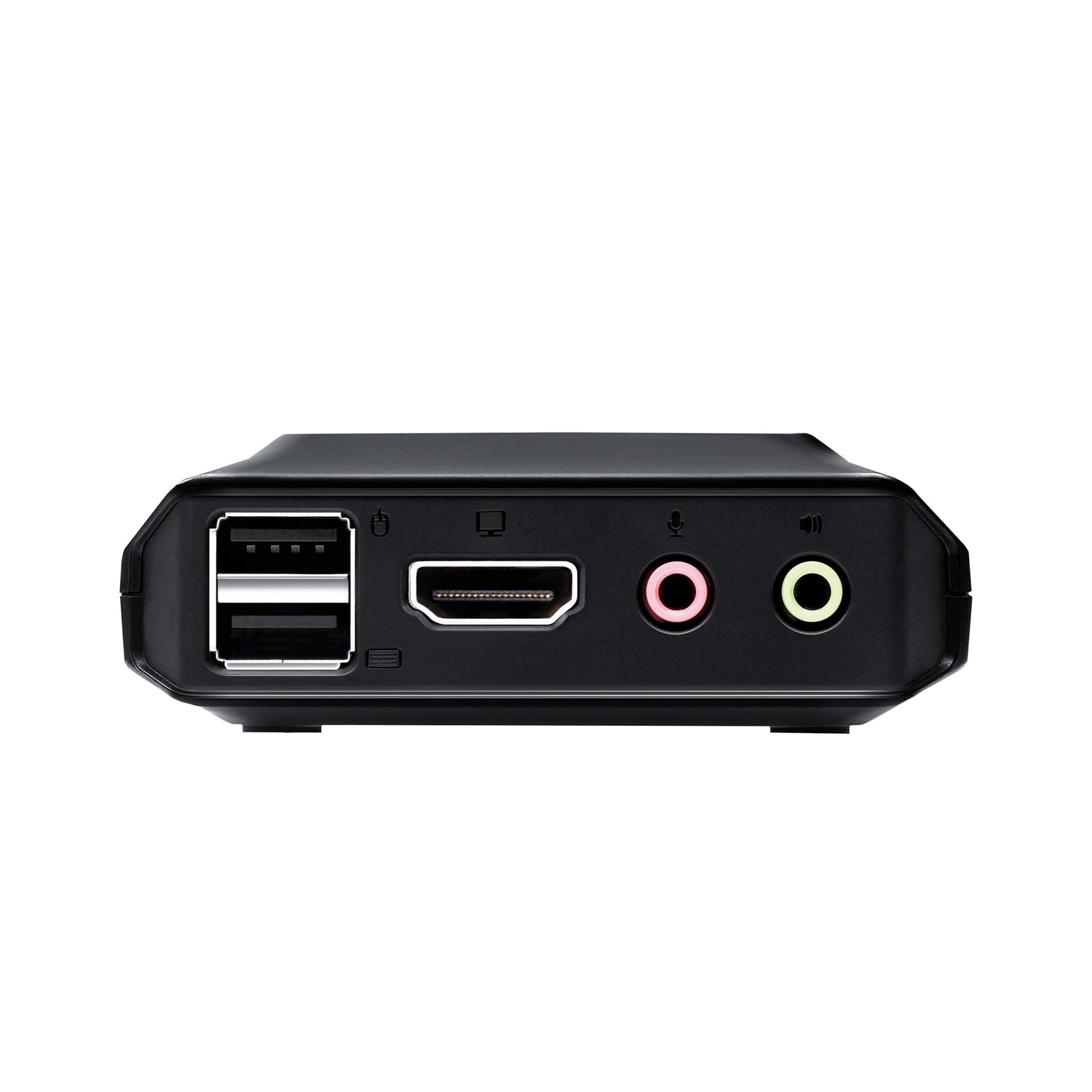

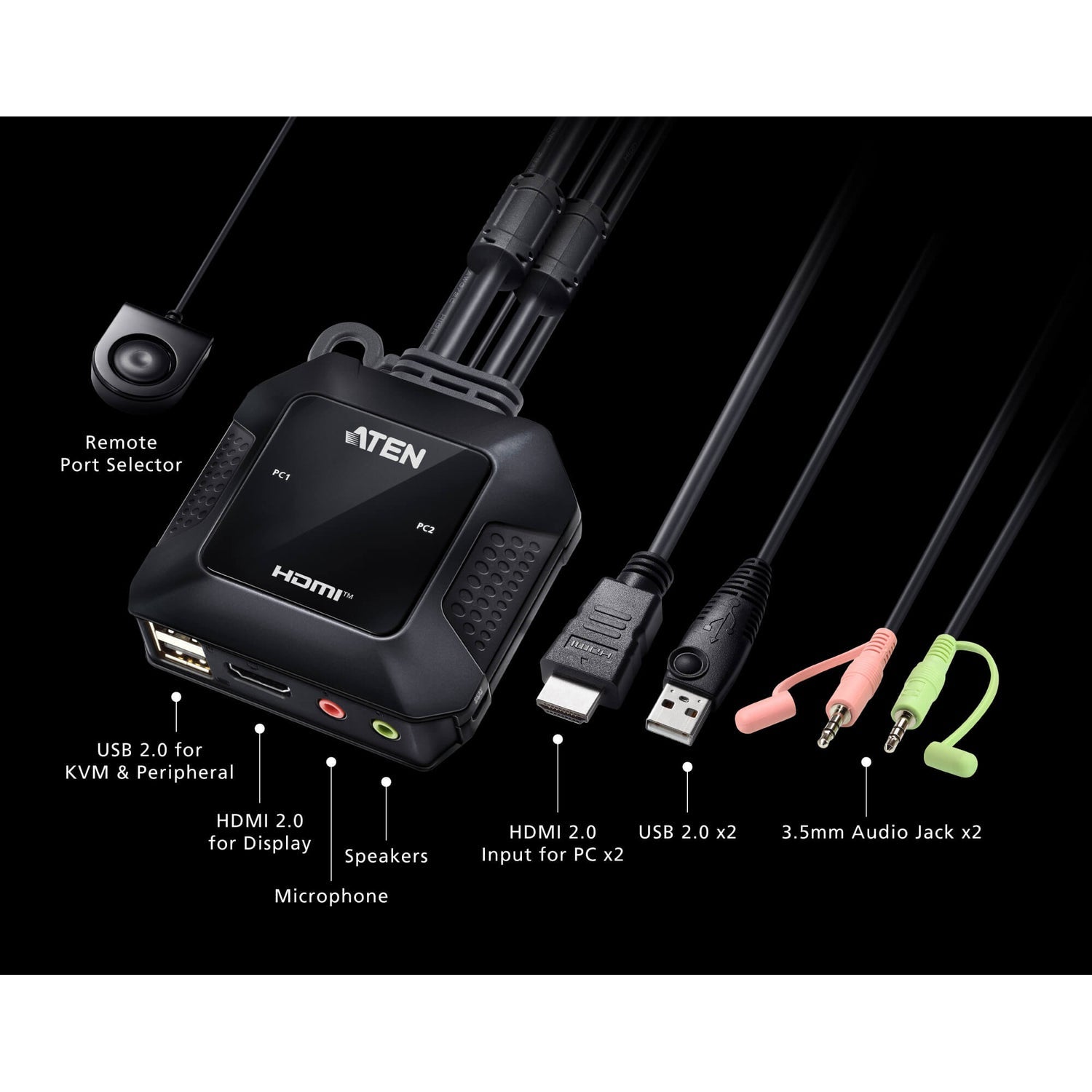

| Console Ports | 1 x HDMI Female, 2 x USB Type-A Female, 2 x 3.5 mm audio jack Female |
| KVM Ports | 2 x HDMI Male, 2 x USB Type-A Male, 2 x 3.5 mm audio jack Male (built-in cables) |
| Power (Optional) | 1 x USB Micro Type-B Female |
Video
| Video Resolution | Up to 4096 x 2160 @ 60Hz; 2560 x 1440 @ 144Hz |
Control
| Port Selection | Remote port selector |
| LEDs | 2 (white, KVM port online/selected) |
Cables
| KVM Cables | 2 x 1.2 m (built-in) |
| Remote Port Selector Cable | 1.8 m |
Power
| Power Mode | Bus-powered; optional Micro USB power |
| Power Consumption | DC 5V, 1.4 W |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Weight | 0.34 kg |
| Dimensions (L x W x H) | 8.34 x 8.42 x 3.04 cm |
Compatibility
| Operating Systems | Windows, Mac, Linux |
Compatibility & Applications
Typical Computers
Desktops, mini PCs and notebooks with HDMI output and USB ports, shared on one 4K or high-refresh HDMI monitor.
Typical Use

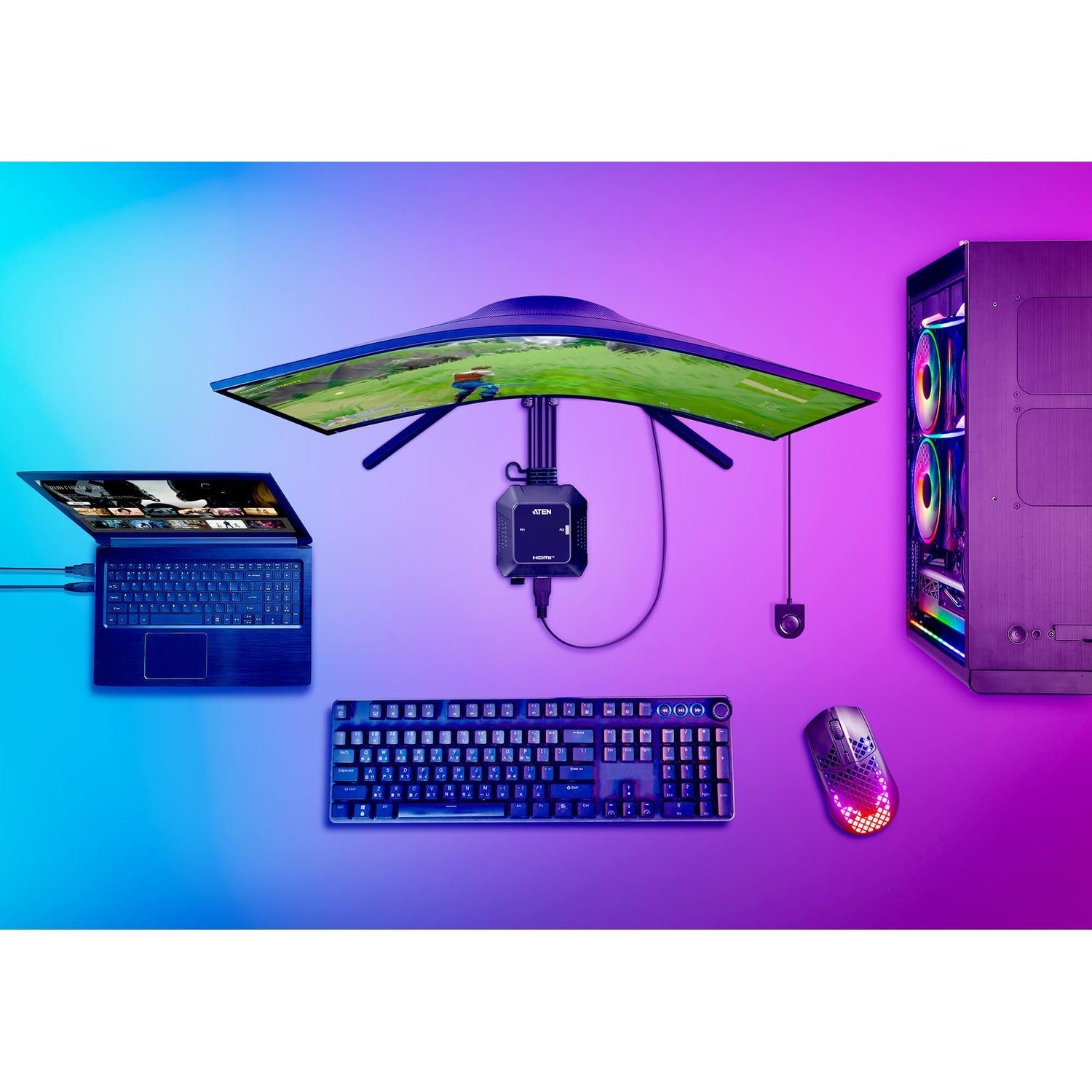

Home offices and corporate desks running a work and a personal computer, gamers switching between a PC and a second system, and support benches.
Selection Tip
For Full HD displays the CS22HF or CS692 are alternatives. For DisplayPort computers choose the CS22DP; for USB-C notebooks the US3312. For four computers, see the CS784H.
Package Contents & ATEN Cable KVM Switch Ordering Information
In the Box

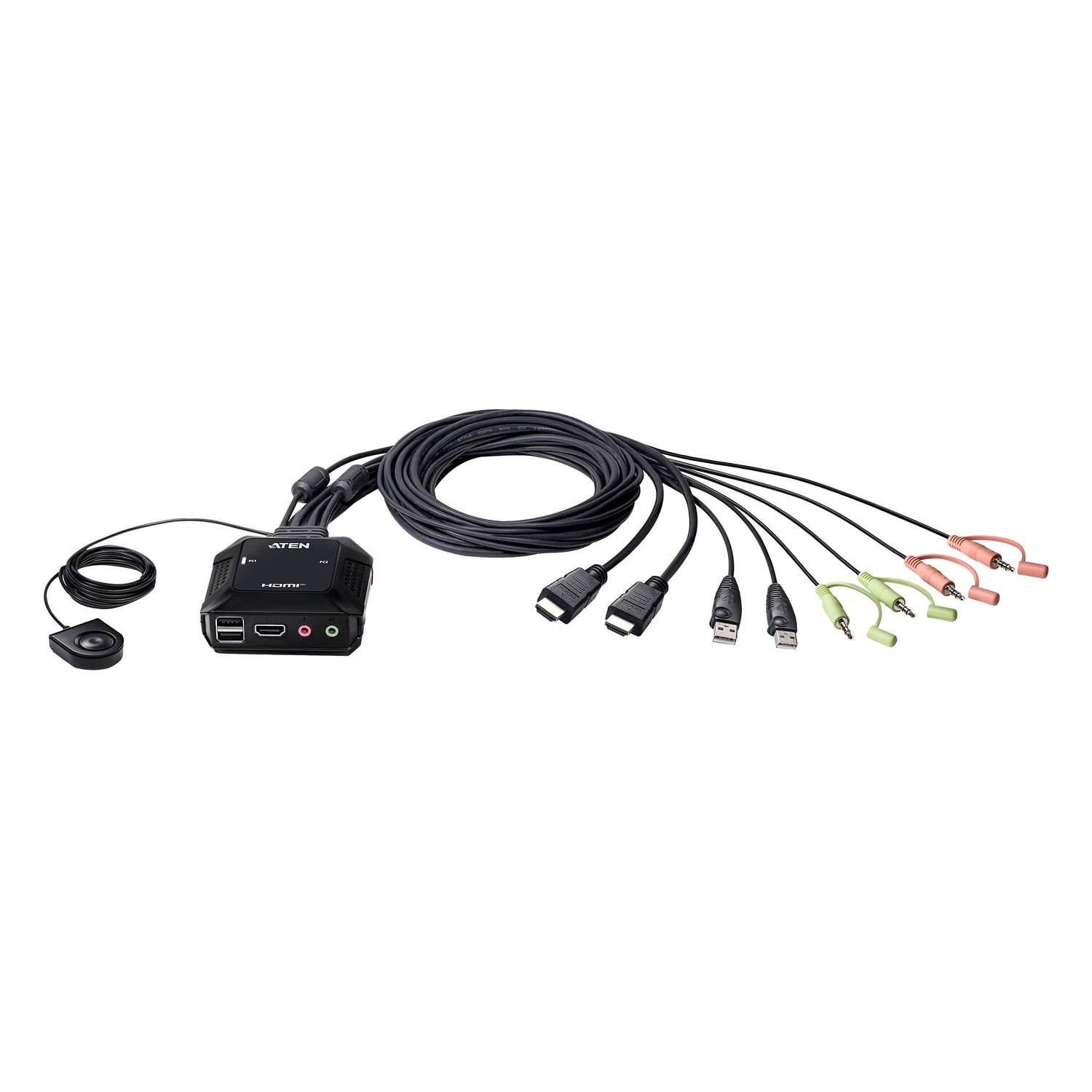

1 x CS22H 2-Port USB 4K HDMI Cable KVM Switch (with built-in cables and remote port selector), 1 x user instructions.
ATEN Cable KVM Switch Models
| Model | Key feature |
| CS22H (this listing) | 2-port USB 4K HDMI cable KVM, remote port selector |
| CS22HF | 2-port USB FHD HDMI cable KVM switch |
| CS22DP | 2-port USB DisplayPort cable KVM, remote port selector |
| CS22U | 2-port USB VGA cable KVM switch |
| CS52DP | 2-port USB-C DisplayPort hybrid cable KVM switch |
| US3312 | 2-port 4K USB-C DisplayPort cable KVM switch |
| CS692 | 2-port USB HDMI/audio cable KVM switch |
| CS62KM | 2-port USB boundless KM switch |
Datasheet & Downloads
| CS22H datasheet | CS22H Datasheet (PDF) |
| Quick start guide | CS22H Quick Start Guide (PDF) |
| ATEN product page | CS22H on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS22H-AT.
Frequently Asked Questions — ATEN CS22H
Does the CS22H support 4K at 60Hz?
Yes, up to 4096 x 2160 @ 60Hz. It also supports 2560 x 1440 @ 144Hz.
Are the KVM cables included?
Yes. Two 1.2 m cables with HDMI, USB and audio are built in.
Does it need a power adapter?
No. It is bus-powered, with an optional Micro USB power input.
How do I switch computers?
With the remote port selector on its 1.8 m cable.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
