ATEN CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP Switch
PRODUCT DESCRIPTION
ATEN CS1924M 4-Port USB 3.0 4K DisplayPort MST KVMP Switch - 2 Years Local Warranty
Two Displays from One DisplayPort Cable
The CS1924M has a built-in DisplayPort Multi-Stream Transport (MST) hub, so a single DisplayPort connection from each computer drives two monitors at the console, one on DisplayPort and one on HDMI. Four computers share one keyboard, mouse, dual-monitor setup, speakers and microphone.
Sharp 4K and High Refresh
Video reaches 4K UHD (3840 x 2160) and 4K DCI (4096 x 2160) at 60 Hz, or 2560 x 1440 at 144 Hz. DisplayPort Dual-Mode (DP++) also passes HDMI and DVI signals via adapter.
USB 3.1 Gen 1 Hub
A 2-port USB 3.1 Gen 1 hub shares drives, printers and other peripherals at up to 5 Gbps. KVM, USB hub and audio focus can be switched independently.
Four Ways to Switch, Cables Included

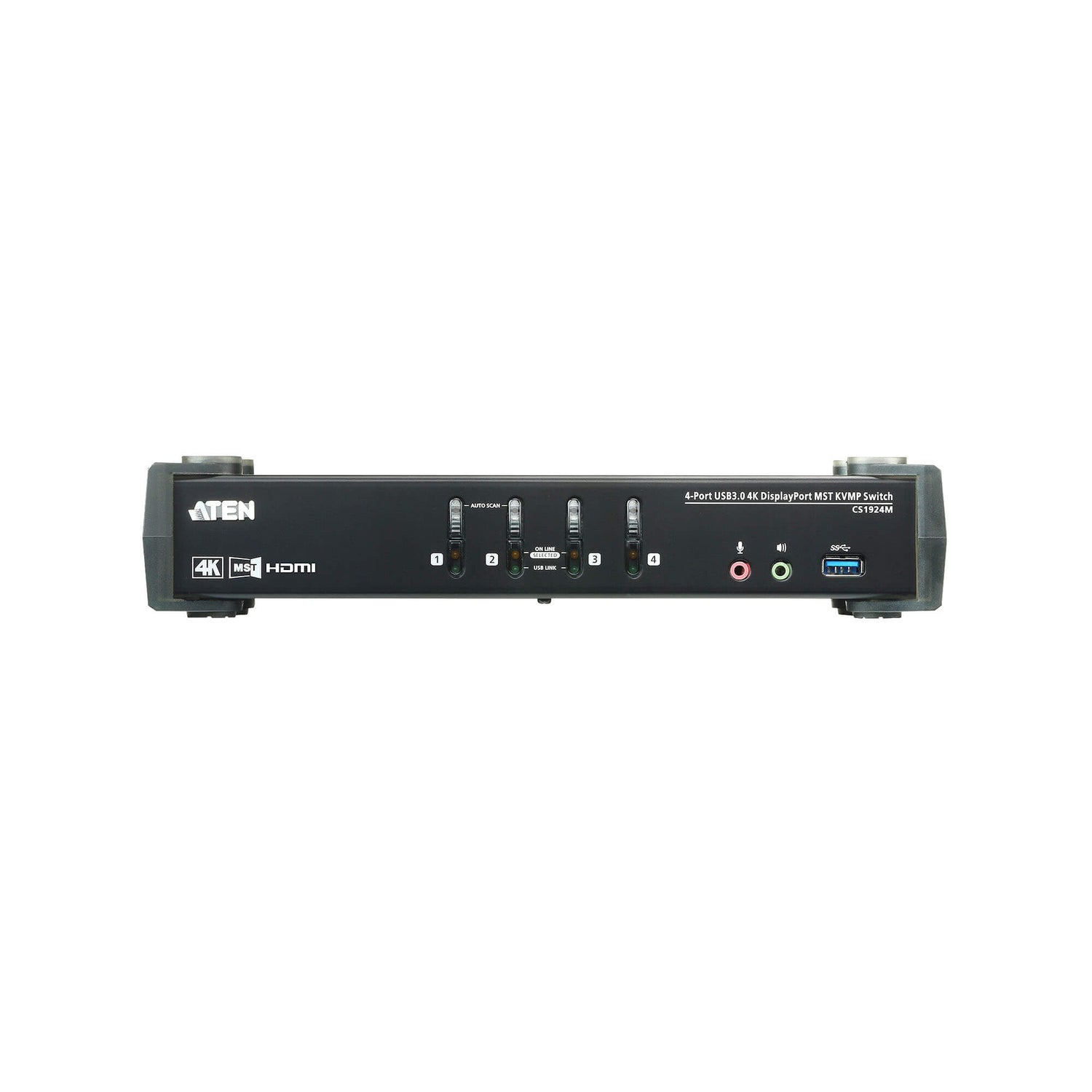

Change computers with front-panel pushbuttons, hotkeys, the USB mouse or RS-232 commands. Power On Detection automatically moves to the next powered computer, and all KVM cables are included.
Equipping trading desks or engineering workstations? Email sales@sourceit.com.sg for volume pricing and lead time.
ATEN CS1924M Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port USB 3.0 4K DisplayPort MST KVMP Switch |
| Model | CS1924M |
| Order Code | CS1924M-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Computers | 4 |
| Port Selection | Hotkey, pushbutton, mouse, RS-232 commands |
Connectors

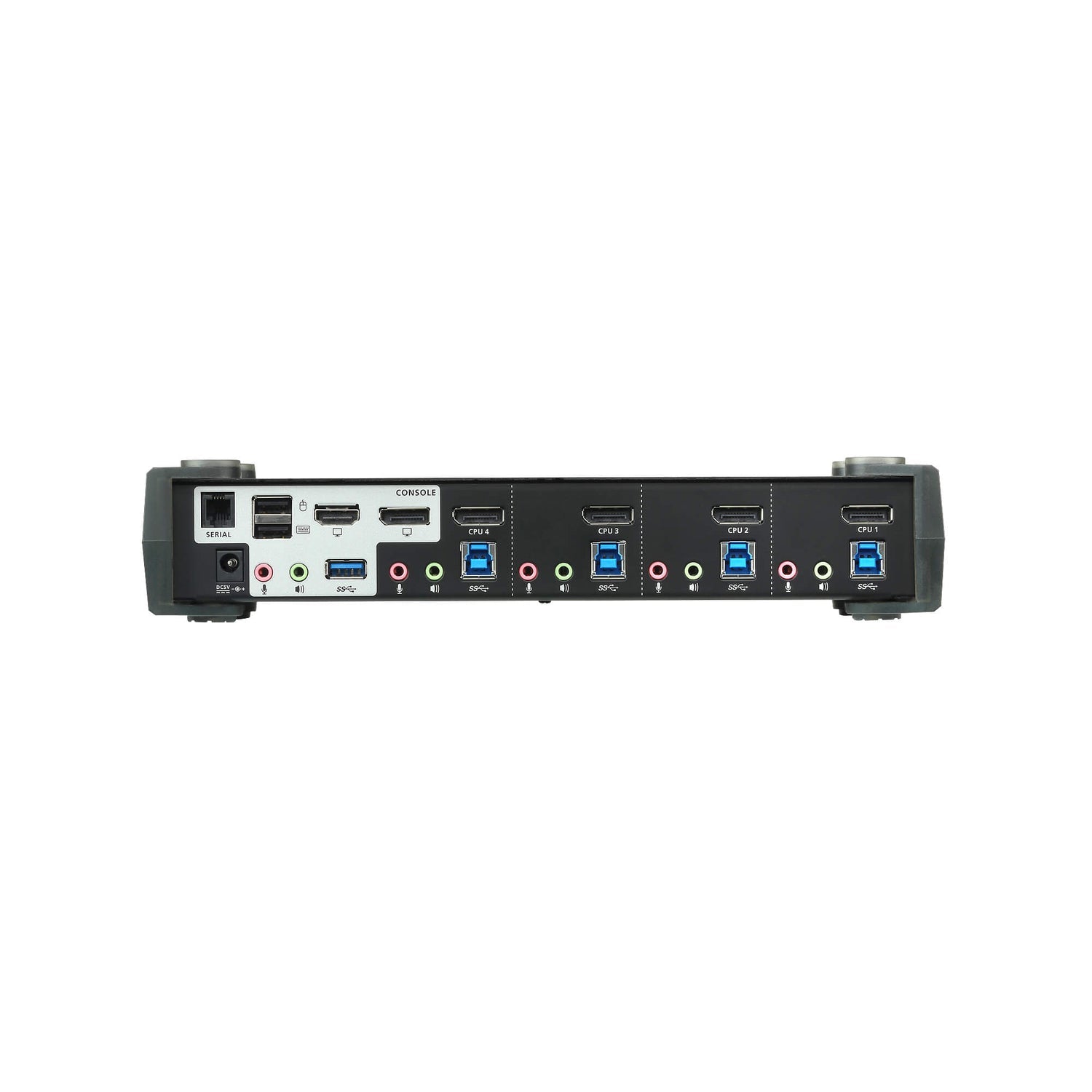

| Console Ports | 2 x USB Type A Female; 1 x DisplayPort Female; 1 x HDMI Female; 2 x 3.5 mm audio jack (green, front and rear); 2 x 3.5 mm audio jack (pink, front and rear); 1 x RJ-11 Female |
| KVM (Computer) Ports | 4 x USB 3.1 Gen 1 Type B Female; 4 x DisplayPort Female; 4 x 3.5 mm audio jack (green); 4 x 3.5 mm audio jack (pink) |
| USB Hub | 2 x USB 3.1 Gen 1 Type A Female (1 front, 1 rear), 5 Gbps |
| Power | 1 x DC jack |
Video
| Max. Resolution | Up to 4096 x 2160 @ 60 Hz; 2560 x 1440 @ 144 Hz |
| MST | Built-in DisplayPort MST hub (dual display: DisplayPort + HDMI) |
| Compliance | DisplayPort 1.2; HDCP 1.3 |
Operation
| Keyboard / Mouse Emulation | USB |
| Scan Interval | 1–99 seconds (default 5 s) |
| LEDs | 4 x online/selected (orange); 4 x USB link (green) |
| Operating Systems | Windows, Mac, Linux |
Power & Environmental
| Power Consumption | DC 5 V, 4.89 W, 66 BTU/h |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal, plastic |
| Weight | 0.92 kg |
| Dimensions (L x W x H) | 27.00 x 8.80 x 5.55 cm |
Compatibility & Applications
Typical Computers
Desktops, workstations and laptops with a DisplayPort output and USB, running Windows, macOS or Linux.
Typical Use
Finance and trading desks, CAD and engineering stations, broadcast and control rooms where one operator uses dual monitors across several machines.
Selection Tip
Choose the CS1924M when your computers have only one DisplayPort output each but you want two console monitors. If your computers have two HDMI outputs, the CS1844 is the HDMI alternative.
Package Contents & ATEN Desktop KVMP Switch Ordering Information
In the Box
1 x CS1924M 4-port USB 3.0 4K DisplayPort MST KVMP switch, 4 x DisplayPort 1.2 cables (1.5 m), 4 x USB 3.0 Type-A to Type-B cables (1.8 m), 8 x audio cables (1.8 m), 1 x power adapter, 1 x user instructions.
ATEN Desktop KVMP Switch Models
| Model | Key feature |
| CS1924M (this listing) | 4-port USB 3.0 4K DisplayPort MST KVMP, dual display from one DP source |
| CS1924ATC | 4-port USB 3.0 4K DisplayPort KVMP for air traffic control, redundant power |
| CS1844 | 4-port USB 3.0 4K HDMI dual display KVMP |
| CS1822 | 2-port USB 3.0 4K HDMI KVMP |
| CS1794 | 4-port USB HDMI / audio KVMP, 1080p |
| CS1792 | 2-port USB HDMI / audio KVMP, 1080p |
| CS784H | 4-port USB 4K HDMI KVMP |
| CS742H | 2-port USB 4K HDMI dual display KVMP |
Datasheet & Downloads
| Datasheet | CS1922M / CS1924M Datasheet (PDF) |
| User manual | CS1922M / CS1924M User Manual (PDF) |
| ATEN product page | CS1924M on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS1924M-AT-E.
Frequently Asked Questions — ATEN CS1924M
How does it give me two monitors from one cable?
The built-in DisplayPort MST hub splits one DisplayPort stream from each computer into two console outputs, one DisplayPort and one HDMI.
What resolutions are supported?
Up to 4096 x 2160 at 60 Hz, or 2560 x 1440 at 144 Hz.
Are cables included?
Yes. Four DisplayPort 1.2 cables, four USB 3.0 cables and eight audio cables are in the box.
Does it work with Mac?
Yes. ATEN lists Windows, Mac and Linux support.
Can I switch the USB hub separately?
Yes. KVM, USB hub and audio focus can be switched independently.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
