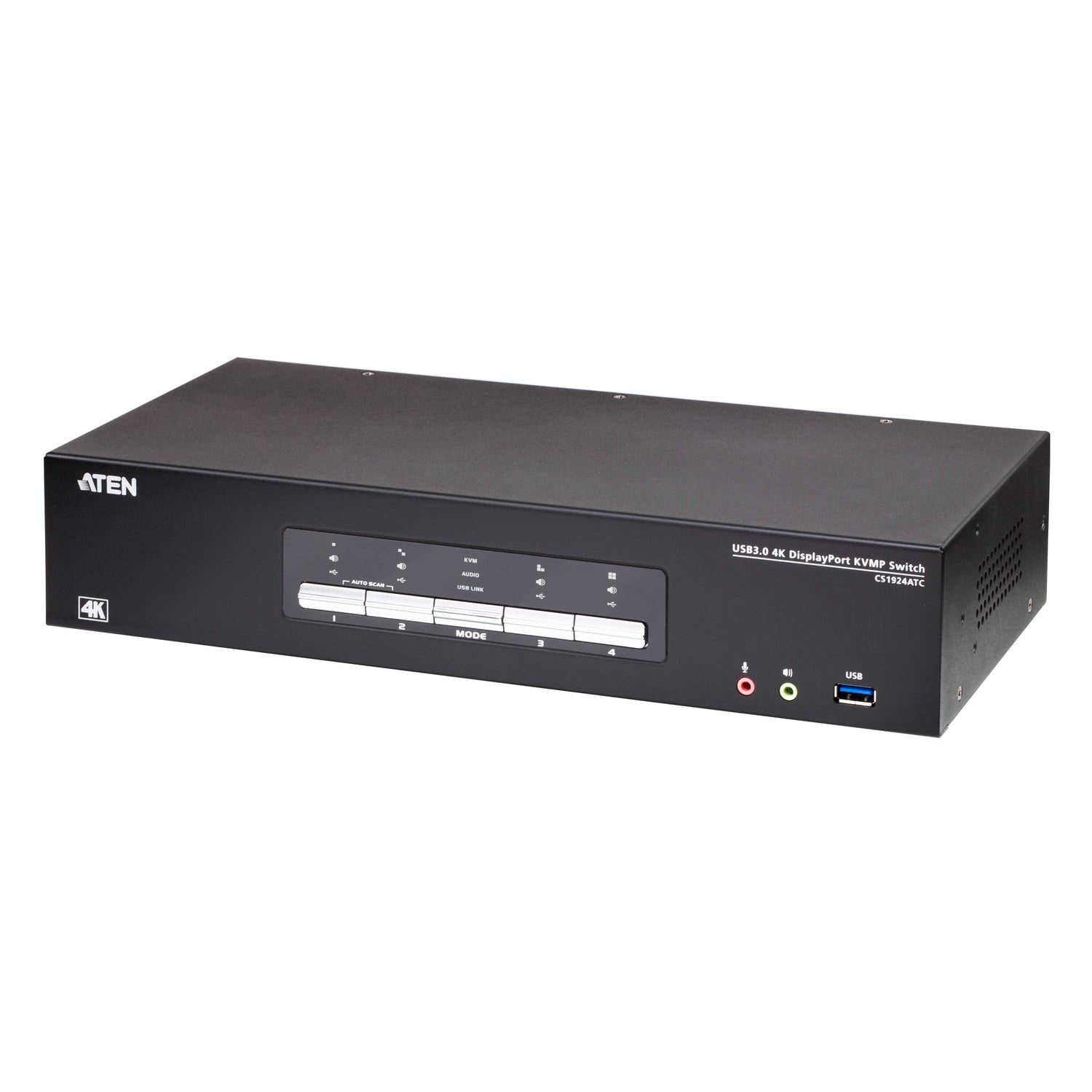

ATEN CS1924ATC 4-Port USB 3.0 4K DisplayPort KVMP Switch for ATC
PRODUCT DESCRIPTION
ATEN CS1924ATC 4-Port USB 3.0 4K DisplayPort KVMP Switch for ATC - 2 Years Local Warranty
Built for Air Traffic Control and Control Rooms
The CS1924ATC lets one USB / DisplayPort console control four DisplayPort computers and share two USB peripherals. It is designed for mission-critical desks such as air traffic control, utilities and security operations.
Radar Resolution and Zero-Second Switching
It supports 2048 x 2048 at 60 Hz for square radar displays and up to 4096 x 2160 at 60 Hz. Zero-Second Switch keeps a continuous video stream for real-time switching without waiting for the display to resync.
Redundant Power and Serial Switching
Two lockable DC jacks with two supplied power adapters provide power failover. Four DB-9 computer ports and a DB-9 console port also switch legacy RS-232 serial devices with the KVM.

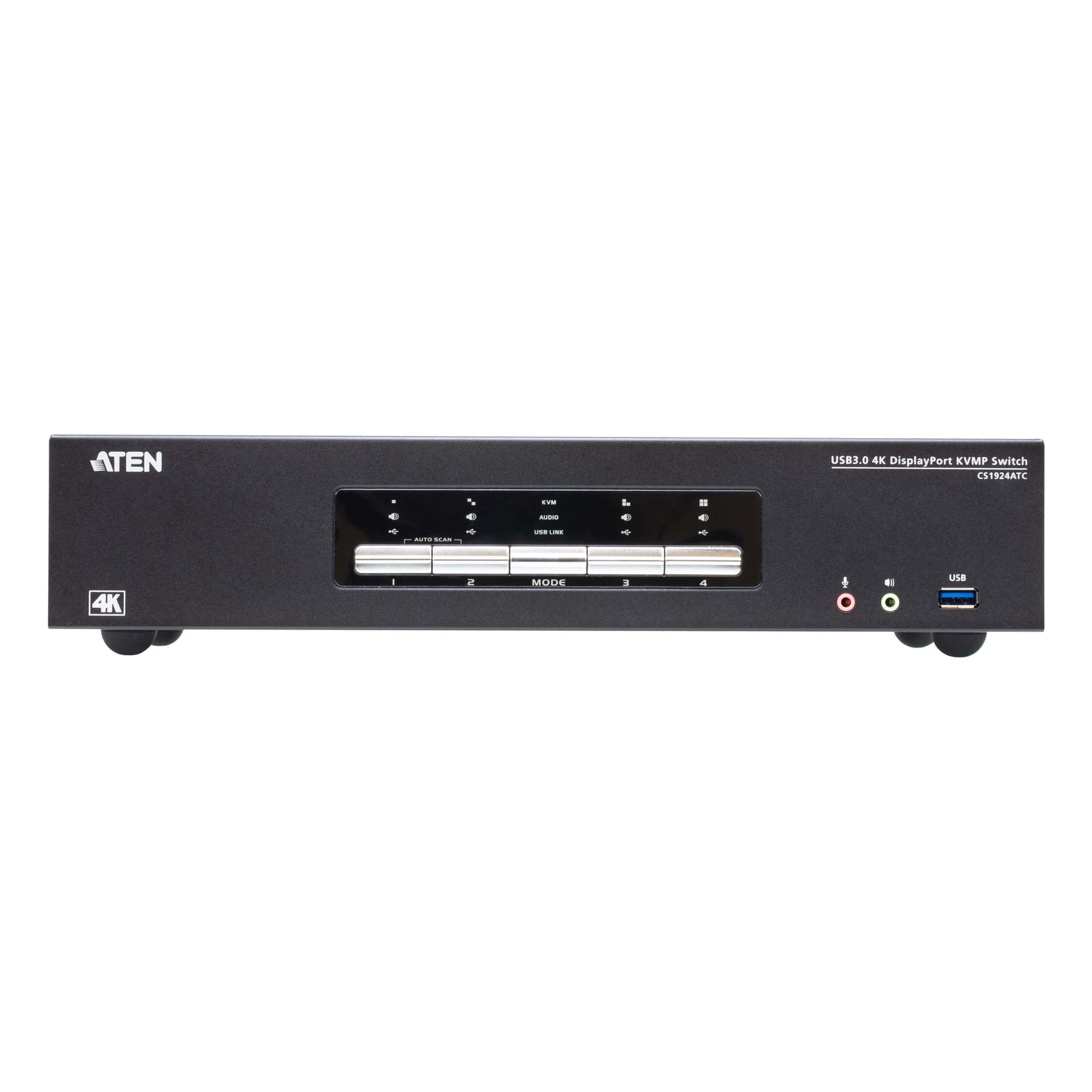

Flexible Selection
Switch with front-panel buttons, hotkeys, mouse, RS-232 commands or a remote port selector. Video DynaSync and EDID Expert keep displays at the right resolution, and a 2-port USB 3.1 Gen 1 hub runs at 5 Gbps.
Specifying an operations or control-room console? Email sales@sourceit.com.sg for a project quote and lead time.
ATEN CS1924ATC Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port USB 3.0 4K DisplayPort KVMP Switch for ATC |
| Model | CS1924ATC |
| Order Code | CS1924ATC-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Computers | 4 |
| Port Selection | Hotkeys, pushbutton, mouse, RS-232 commands, remote port selector |

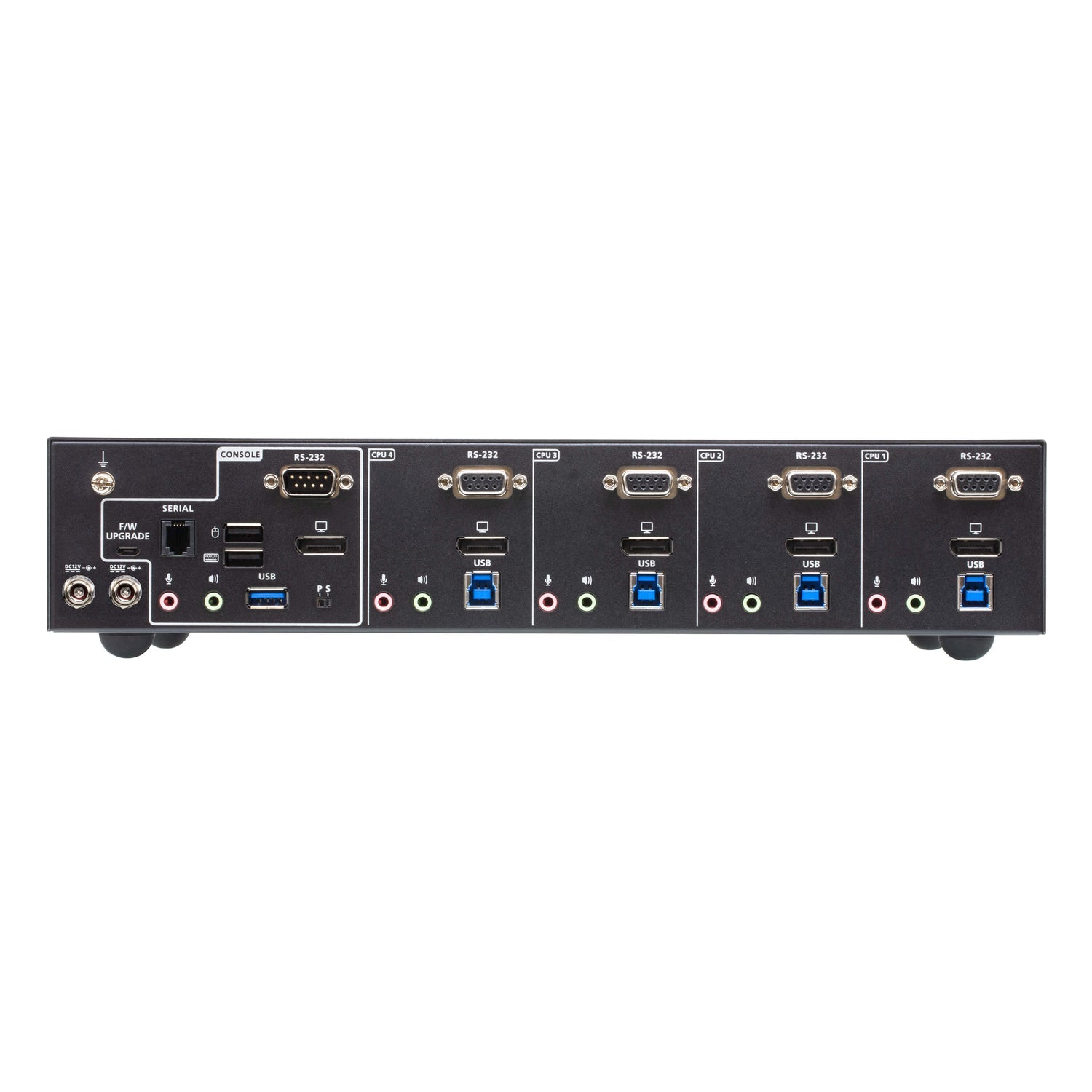

Connectors
| Console Ports | 2 x USB Type A Female; 1 x DisplayPort Female; 2 x 3.5 mm stereo jack (green, front and rear); 2 x 3.5 mm stereo jack (pink, front and rear); 1 x DB-9 Male |
| KVM (Computer) Ports | 4 x USB 3.1 Gen 1 Type B Female; 4 x DisplayPort Female; 4 x 3.5 mm audio jack (green); 4 x 3.5 mm audio jack (pink); 4 x DB-9 Female |
| USB Hub | 2 x USB 3.1 Gen 1 Type A Female (1 front, 1 rear) |
| Remote Port Selector | 1 x RJ-11 Female |
| Firmware Upgrade | 1 x micro USB Female |
| Power | 2 x lockable DC jack |
Video
| Max. Resolution | Up to 4096 x 2160 @ 60 Hz |
| Radar Resolution | 2048 x 2048 @ 60 Hz |
| Compliance | DisplayPort 1.2; HDCP compliant; audio via DisplayPort |
| Switching | Zero-Second Switch; Video DynaSync; EDID Expert |
Operation
| Keyboard / Mouse Emulation | USB |
| Selected Switches | 5 x pushbutton |
| LEDs | 4 x USB link (green); 4 x audio (green); 4 x KVM (orange) |
Power & Environmental
| Power Consumption | DC 12 V, 16.84 W, 137 BTU/h |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 1.87 kg |
| Dimensions (L x W x H) | 33.50 x 16.10 x 6.55 cm |
Compatibility & Applications
Typical Computers
Workstations and servers with DisplayPort outputs and USB, optionally with RS-232 serial devices that need to switch with the KVM.
Typical Use
Air traffic control and radar positions, utility and transport control rooms, security operations centres and other 24/7 desks where uninterrupted video and power matter.
Selection Tip
Choose the CS1924ATC over the CS1924M when you need square radar resolutions, zero-second switching, serial switching or redundant power. For general office dual-display use the CS1924M or CS1844 is simpler.
Package Contents & ATEN Desktop KVMP Switch Ordering Information

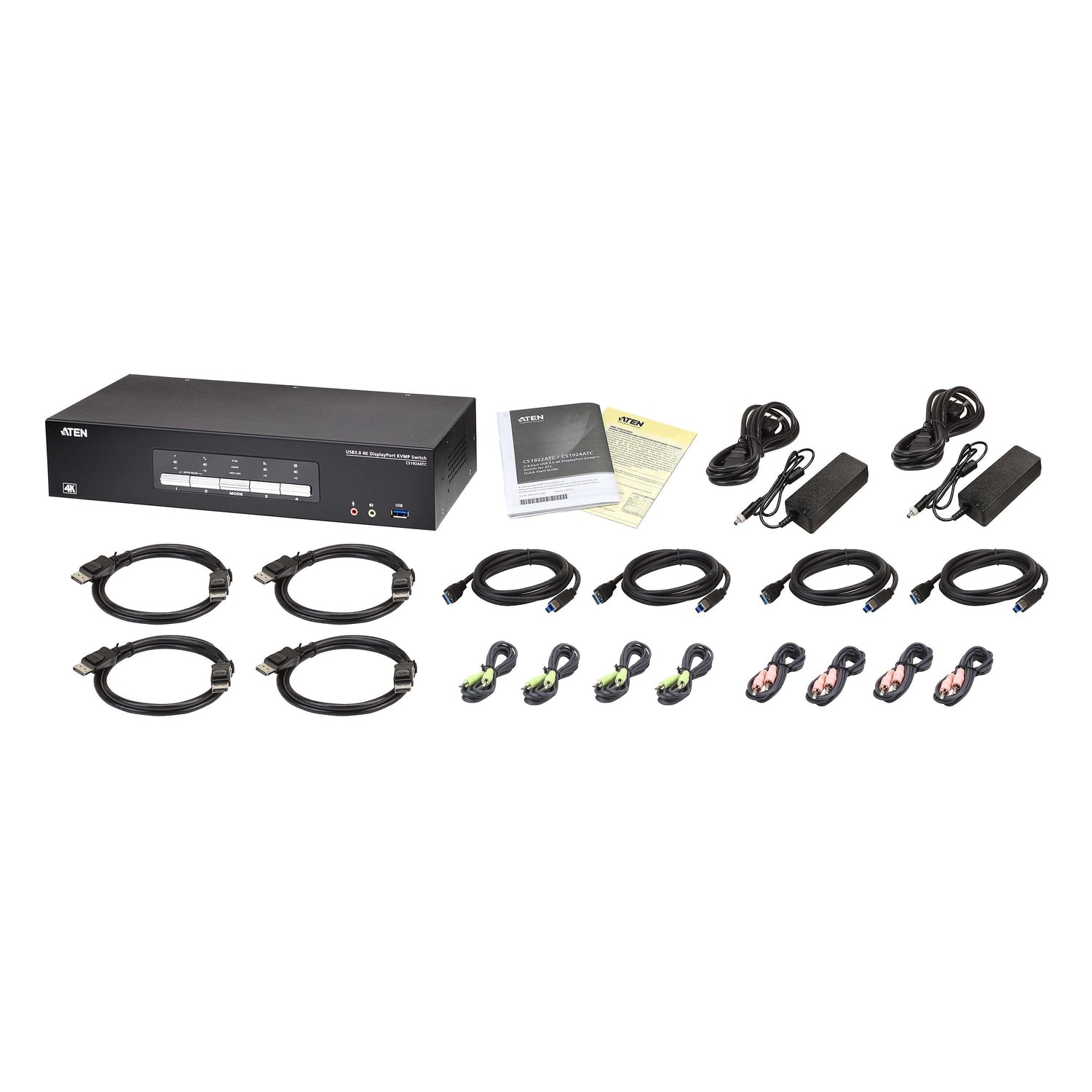

In the Box
1 x CS1924ATC 4-port USB 3.0 4K DisplayPort KVMP switch for ATC, 4 x DisplayPort 1.2 cables (1.5 m), 4 x USB 3.1 Type-A to Type-B cables (1.8 m), 4 x microphone cables, 4 x speaker cables (1.8 m), 2 x power adapters with power cords, 1 x user instructions.
ATEN Desktop KVMP Switch Models
| Model | Key feature |
| CS1924M | 4-port USB 3.0 4K DisplayPort MST KVMP, dual display from one DP source |
| CS1924ATC (this listing) | 4-port USB 3.0 4K DisplayPort KVMP for air traffic control, redundant power |
| CS1844 | 4-port USB 3.0 4K HDMI dual display KVMP |
| CS1822 | 2-port USB 3.0 4K HDMI KVMP |
| CS1794 | 4-port USB HDMI / audio KVMP, 1080p |
| CS1792 | 2-port USB HDMI / audio KVMP, 1080p |
| CS784H | 4-port USB 4K HDMI KVMP |
| CS742H | 2-port USB 4K HDMI dual display KVMP |
Datasheet & Downloads
| Datasheet | CS1922ATC / CS1924ATC Datasheet (PDF) |
| User manual | CS1922ATC / CS1924ATC User Manual (PDF) |
| Quick start guide | CS1922ATC / CS1924ATC Quick Start Guide (PDF) |
| ATEN product page | CS1924ATC on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS1924ATC-AT-E.
Frequently Asked Questions — ATEN CS1924ATC
What does ATC mean?
Air traffic control. The switch is designed for mission-critical consoles, with radar resolution support, zero-second switching and redundant power.
Does it support square radar monitors?
Yes. It supports 2048 x 2048 at 60 Hz, and up to 4096 x 2160 at 60 Hz.
What happens if one power adapter fails?
It has two lockable DC jacks and ships with two power adapters for power failover.
Can it switch serial devices?
Yes. Each computer port has a DB-9 connector and the console has a DB-9, so RS-232 devices switch with the KVM.
Is it a single-display switch?
Yes. It has one DisplayPort console output.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
