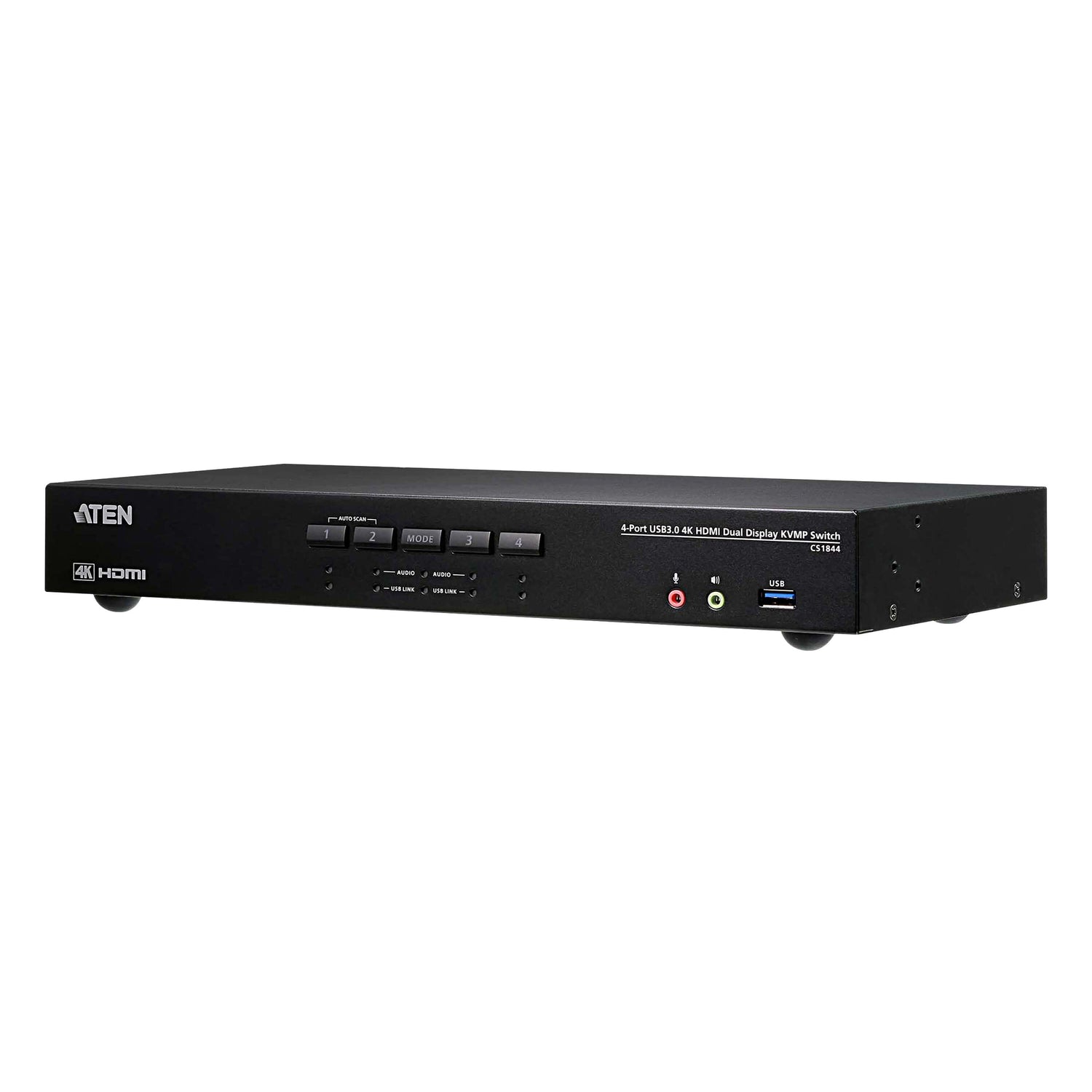

ATEN CS1844 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch
PRODUCT DESCRIPTION
ATEN CS1844 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch - 2 Years Local Warranty
Four Dual-Monitor PCs, One Desk
The CS1844 lets one keyboard, mouse and pair of HDMI monitors control four computers that each have two HDMI outputs. Speakers, microphone and two USB peripherals are shared too.
4K at 60 Hz or 144 Hz QHD
Each display runs at up to 4096 x 2160 or 3840 x 2160 at 60 Hz, or 2560 x 1440 at 144 Hz. The switch is HDMI 2.0 and HDCP compliant, and Video DynaSync keeps resolutions correct when switching.
USB 3.1 Gen 1 and Independent Switching
A 2-port USB 3.1 Gen 1 hub runs at 5 Gbps. KVM, USB peripherals and audio can be switched independently, so a print job or audio stream can stay on one computer while you work on another.
Five Ways to Switch, Quad-Display Ready

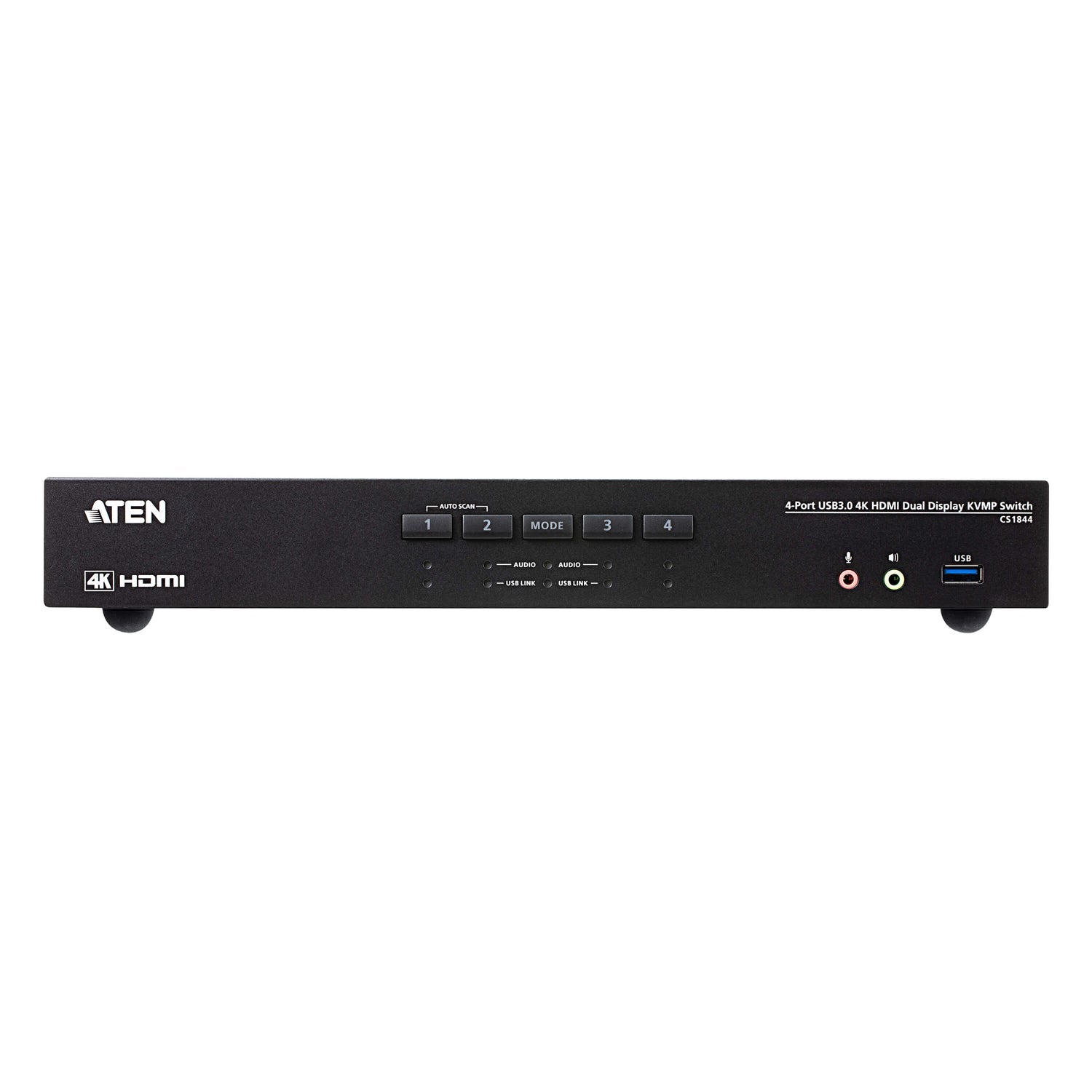

Use pushbuttons, hotkeys, the mouse, RS-232 commands or the supplied remote port selector. Two units can be daisy-chained for a quad-display setup.
Rolling out dual-monitor KVM desks? Email sales@sourceit.com.sg for volume pricing and lead time.
ATEN CS1844 Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch |
| Model | CS1844 |
| Order Code | CS1844-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Computers | 4 (dual display) |
| Port Selection | Hotkey, pushbutton, mouse, RS-232 commands, remote port selector |
Connectors
| Console Ports | 2 x USB Type A Female; 2 x HDMI Female; 2 x 3.5 mm audio jack (green, front and rear); 2 x 3.5 mm audio jack (pink, front and rear) |

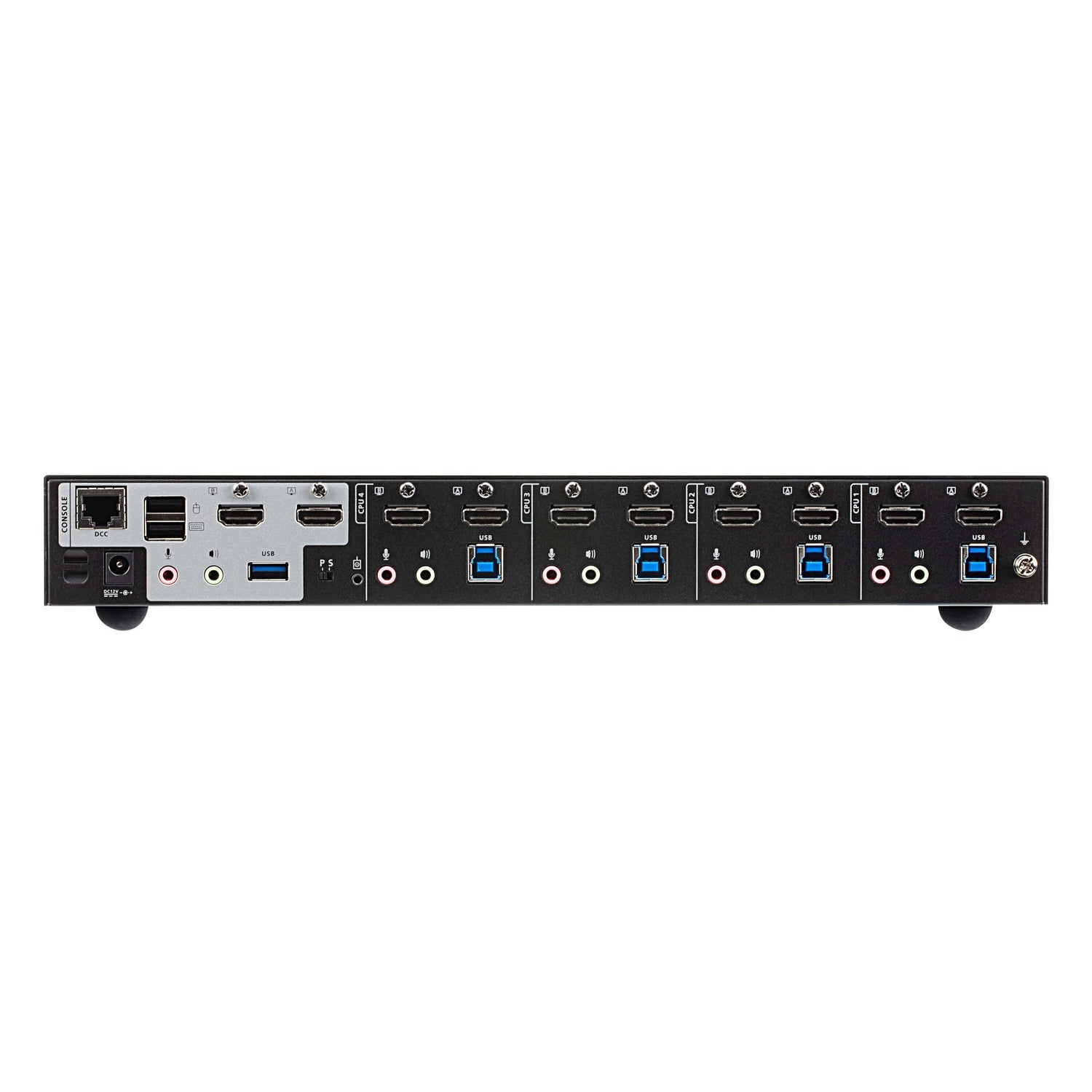

| KVM (Computer) Ports | 4 x USB 3.1 Gen 1 Type B Female; 8 x HDMI Female; 4 x 3.5 mm audio jack (green); 4 x 3.5 mm audio jack (pink) |
| USB Hub | 2 x USB 3.1 Gen 1 Type A Female (1 front, 1 rear), 5 Gbps |
| Daisy Chain | 1 x RJ-45 Female |
| Remote Port Selector | 1 x 2.5 mm audio jack female |
| Power | 1 x DC jack |
Video
| Max. Resolution | Up to 4096 x 2160 @ 60 Hz; 3840 x 2160 @ 60 Hz; 2560 x 1440 @ 144 Hz |
| Compliance | HDMI 2.0; HDCP compliant |
| Video DynaSync | Yes |
Operation
| Keyboard / Mouse Emulation | USB |
| Scan Interval | 1–99 seconds (default 5 s) |
| Keyboard Languages | English, French, Japanese, German |
Power & Environmental
| Power Consumption | DC 12 V, 4.42 W; 63 BTU/h (fully loaded) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 1.57 kg |
| Dimensions (L x W x H) | 33.50 x 16.05 x 4.40 cm |
Compatibility & Applications
Typical Computers
Desktops and workstations with two HDMI outputs and USB, such as office PCs, CAD workstations and media machines.
Typical Use
Finance, engineering and design desks, broadcast suites and IT admin stations where one person works across several dual-monitor computers.
Selection Tip
Each computer needs two HDMI outputs (adapters can be used where outputs differ). If your computers have only one DisplayPort output, consider the CS1924M with its built-in MST hub.
Package Contents & ATEN Desktop KVMP Switch Ordering Information
In the Box
1 x CS1844 4-port USB 3.0 4K HDMI dual display KVMP switch, 8 x HDMI 2.0 cables, 4 x USB 3.0 cables, 4 x speaker cables, 4 x microphone cables, 1 x power adapter, 1 x remote port selector, 1 x user instructions.
ATEN Desktop KVMP Switch Models
| Model | Key feature |
| CS1924M | 4-port USB 3.0 4K DisplayPort MST KVMP, dual display from one DP source |
| CS1924ATC | 4-port USB 3.0 4K DisplayPort KVMP for air traffic control, redundant power |
| CS1844 (this listing) | 4-port USB 3.0 4K HDMI dual display KVMP |
| CS1822 | 2-port USB 3.0 4K HDMI KVMP |
| CS1794 | 4-port USB HDMI / audio KVMP, 1080p |
| CS1792 | 2-port USB HDMI / audio KVMP, 1080p |
| CS784H | 4-port USB 4K HDMI KVMP |
| CS742H | 2-port USB 4K HDMI dual display KVMP |
Datasheet & Downloads
| Datasheet | CS1842 / CS1844 Datasheet (PDF) |
| User manual | CS1842 / CS1844 User Manual (PDF) |
| Quick start guide | CS1842 / CS1844 Quick Start Guide (PDF) |
| ATEN product page | CS1844 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS1844-AT-E.
Frequently Asked Questions — ATEN CS1844
Does each computer need two HDMI outputs?
Yes. The CS1844 is a dual-display switch with eight HDMI computer ports, two per computer.
Can it do 144 Hz?
Yes, at 2560 x 1440. 4K resolutions are supported at 60 Hz.
Can I run four monitors?
ATEN supports a quad-display setup by daisy-chaining two CS1844 units.
Are cables included?
Yes. Eight HDMI 2.0 cables, four USB 3.0 cables and the audio cables are included, plus a remote port selector.
Can I switch audio separately?
Yes. KVM, USB peripherals and audio can be switched independently.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
