ATEN CS1794 4-Port USB HDMI/Audio KVMP Switch
PRODUCT DESCRIPTION
ATEN CS1794 4-Port USB HDMI/Audio KVMP Switch - 2 Years Local Warranty
One Desk, Four HDMI Computers
The CS1794 lets a single USB keyboard, mouse and HDMI monitor control four HDMI computers, and share speakers, a microphone and two USB devices through its built-in 2-port USB 2.0 hub.
Full HD Video with HD Audio
HDTV resolutions from 480i to 1080p and PC resolutions up to 1920 x 1200 are supported, with Dolby TrueHD and DTS-HD Master Audio. Video DynaSync stores the monitor's EDID for clean boot-up and switching.
Simple Switching

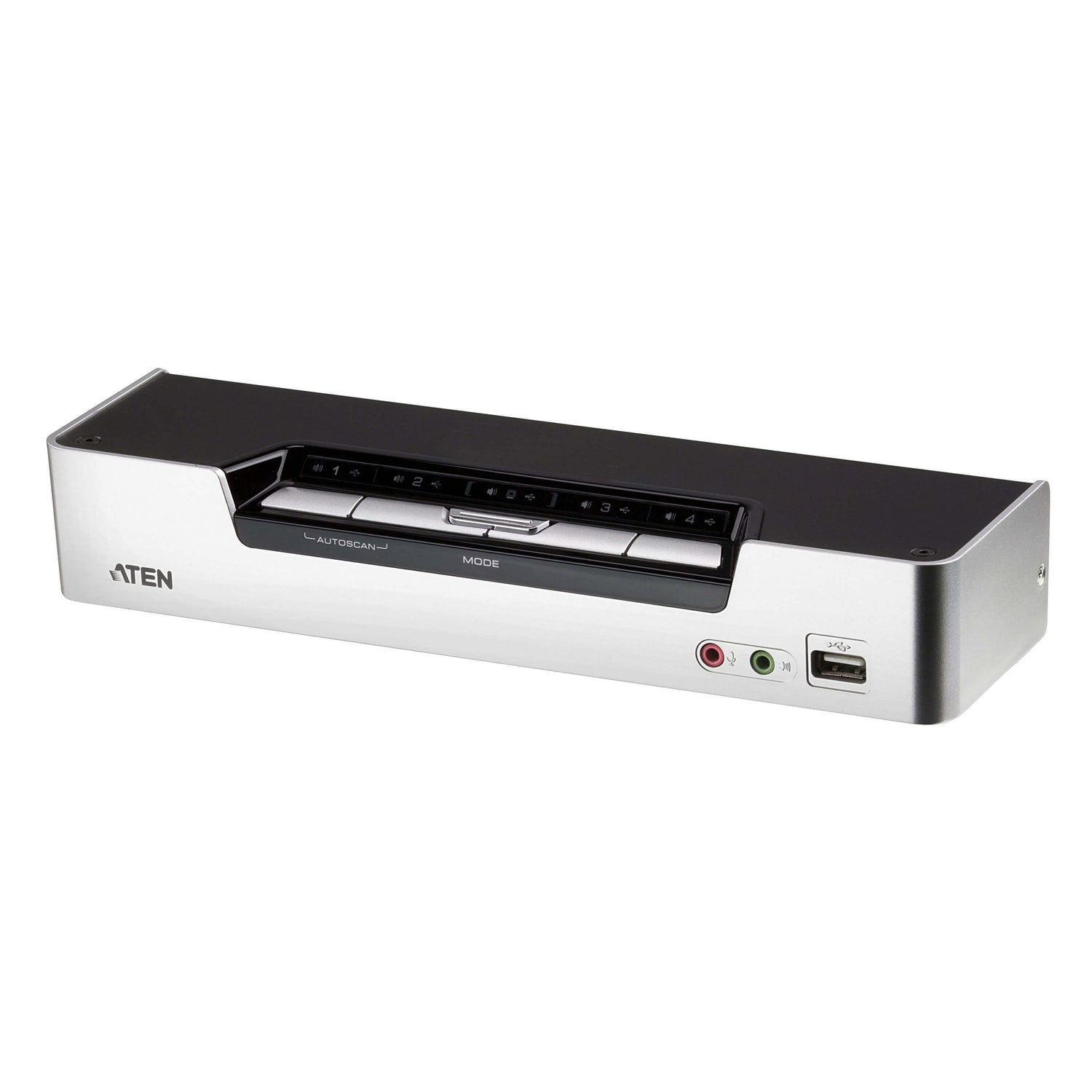

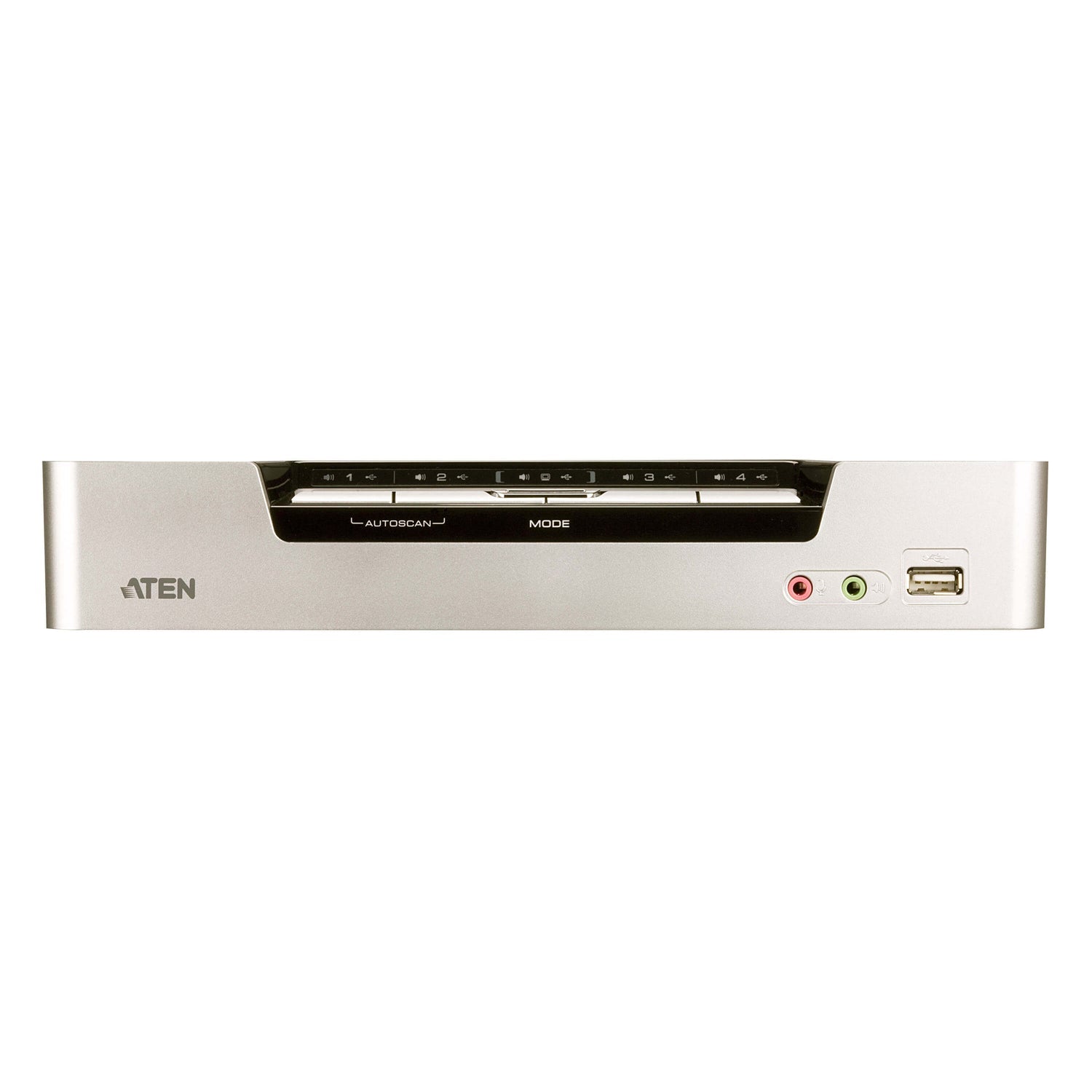

Switch computers with the front-panel pushbuttons or keyboard hotkeys. Auto Scan cycles through computers at an interval from 1 to 99 seconds.
Cables in the Box
Four 1.8 m KVM cable sets (HDMI, USB and audio) are included, so the switch is ready to install out of the box.
Setting up several multi-PC desks? Email sales@sourceit.com.sg for volume pricing.
ATEN CS1794 Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port USB HDMI/Audio KVMP Switch |
| Model | CS1794 |
| Order Code | CS1794-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Computers | 4 |
| Port Selection | Hotkey, pushbutton |
Connectors

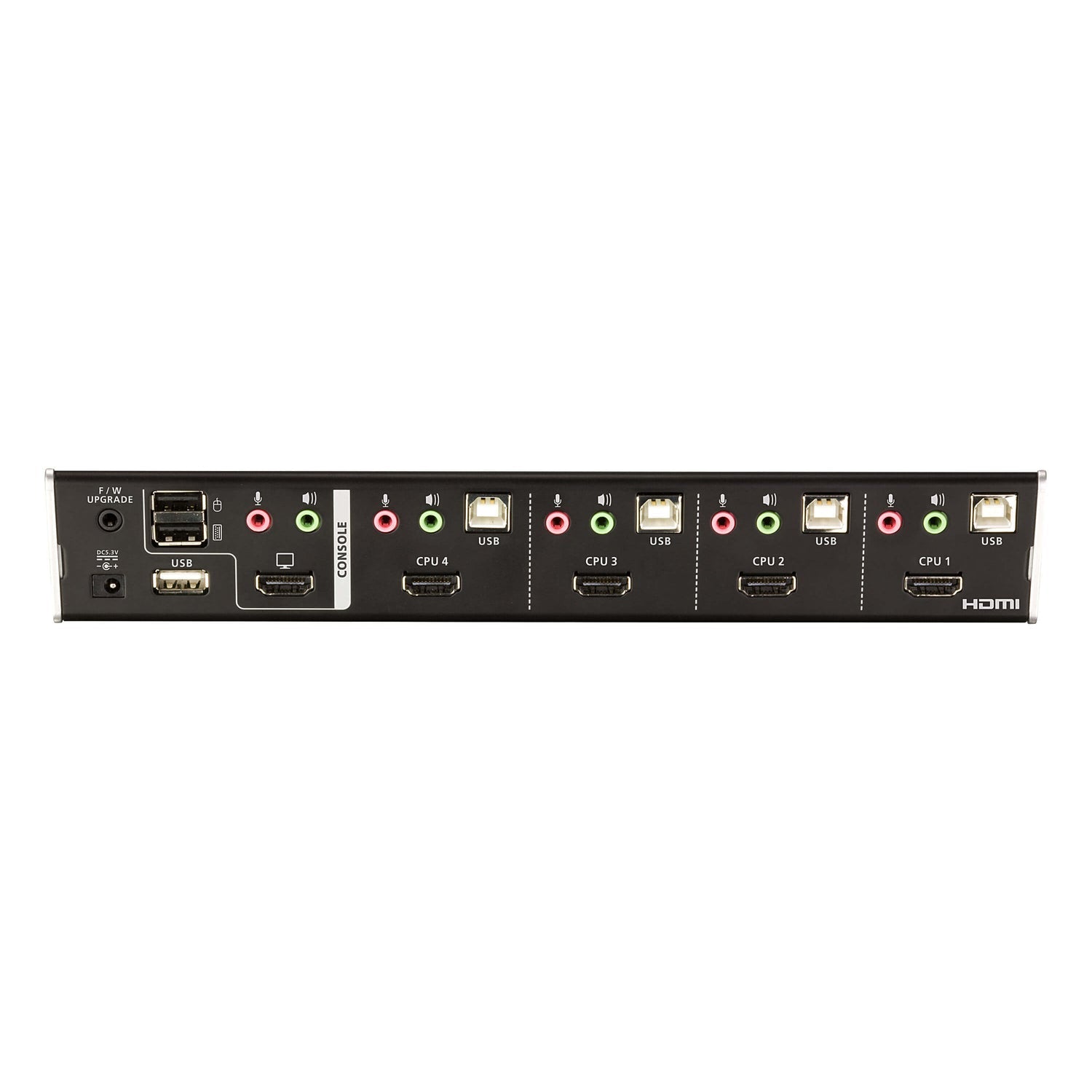

| Console Ports | 2 x USB Type-A Female (rear); 1 x HDMI Female; 2 x 3.5 mm audio jack (green, front and rear); 2 x 3.5 mm audio jack (pink, front and rear) |
| KVM Ports | 4 x USB Type-B Female; 4 x HDMI Female; 4 x 3.5 mm audio jack (green); 4 x 3.5 mm audio jack (pink) |
| USB Hub | 2 x USB Type-A Female (1 front, 1 rear), USB 2.0 |
| Firmware Upgrade | 1 x 3.5 mm jack |
| Power | 1 x DC jack |
Video & Audio
| Video | 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz; HDTV 480i, 480p, 720p, 1080i, 1080p |
| Audio | Dolby TrueHD, DTS-HD Master Audio |
| Video DynaSync | Yes |
Operation
| Pushbuttons | 5 |
| LEDs | 5 audio (green); 5 KVM (orange); 5 USB (green) |
| Scan Interval | 1–99 seconds (default 5 s) |
Power & Environmental
| Power Consumption | DC 5.3 V, 3.62 W, 43 BTU |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal |
| Weight | 0.53 kg |
| Dimensions (L x W x H) | 26.23 x 7.24 x 4.40 cm |
Compatibility & Applications
Typical Computers
Desktops, mini PCs, laptops and media players with HDMI output and USB keyboard/mouse support.
Typical Use
Office and home-office desks, reception and admin counters, labs and studios where one user works on several Full HD computers.
Selection Tip
The CS1794 is a 1080p switch. For 4K HDMI computers choose the CS784H, and for dual monitors the CS1844.
Package Contents & ATEN Desktop KVMP Switch Ordering Information
In the Box
1 x CS1794 4-port USB 2.0 HDMI KVMP switch, 4 x KVM cables (HDMI, USB, audio; 1.8 m), 1 x firmware upgrade cable, 1 x power adapter, 1 x user instructions.
ATEN Desktop KVMP Switch Models
| Model | Key feature |
| CS1924M | 4-port USB 3.0 4K DisplayPort MST KVMP, dual display from one DP source |
| CS1924ATC | 4-port USB 3.0 4K DisplayPort KVMP for air traffic control, redundant power |
| CS1844 | 4-port USB 3.0 4K HDMI dual display KVMP |
| CS1822 | 2-port USB 3.0 4K HDMI KVMP |
| CS1794 (this listing) | 4-port USB HDMI / audio KVMP, 1080p |
| CS1792 | 2-port USB HDMI / audio KVMP, 1080p |
| CS784H | 4-port USB 4K HDMI KVMP |
| CS742H | 2-port USB 4K HDMI dual display KVMP |
Datasheet & Downloads
| Datasheet | CS1792 / CS1794 Datasheet (PDF) |
| User manual | CS1792 / CS1794 User Manual (PDF) |
| Quick start guide | CS1792 / CS1794 Quick Start Guide (PDF) |
| ATEN product page | CS1794 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS1794-AT-E.
Frequently Asked Questions — ATEN CS1794
Does the CS1794 support 4K?
No. It supports up to 1920 x 1200 (PC) and 1080p (HDTV). For 4K, see the CS784H.
Are KVM cables included?
Yes. Four 1.8 m KVM cable sets with HDMI, USB and audio are included.
How do I switch between computers?
Use the front-panel pushbuttons or keyboard hotkeys. Auto Scan is also available.
Can I share a USB printer or drive?
Yes. The built-in 2-port USB 2.0 hub shares USB peripherals with the selected computer.
Does it pass HD audio?
Yes. It supports Dolby TrueHD and DTS-HD Master Audio, plus separate speaker and microphone jacks.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
