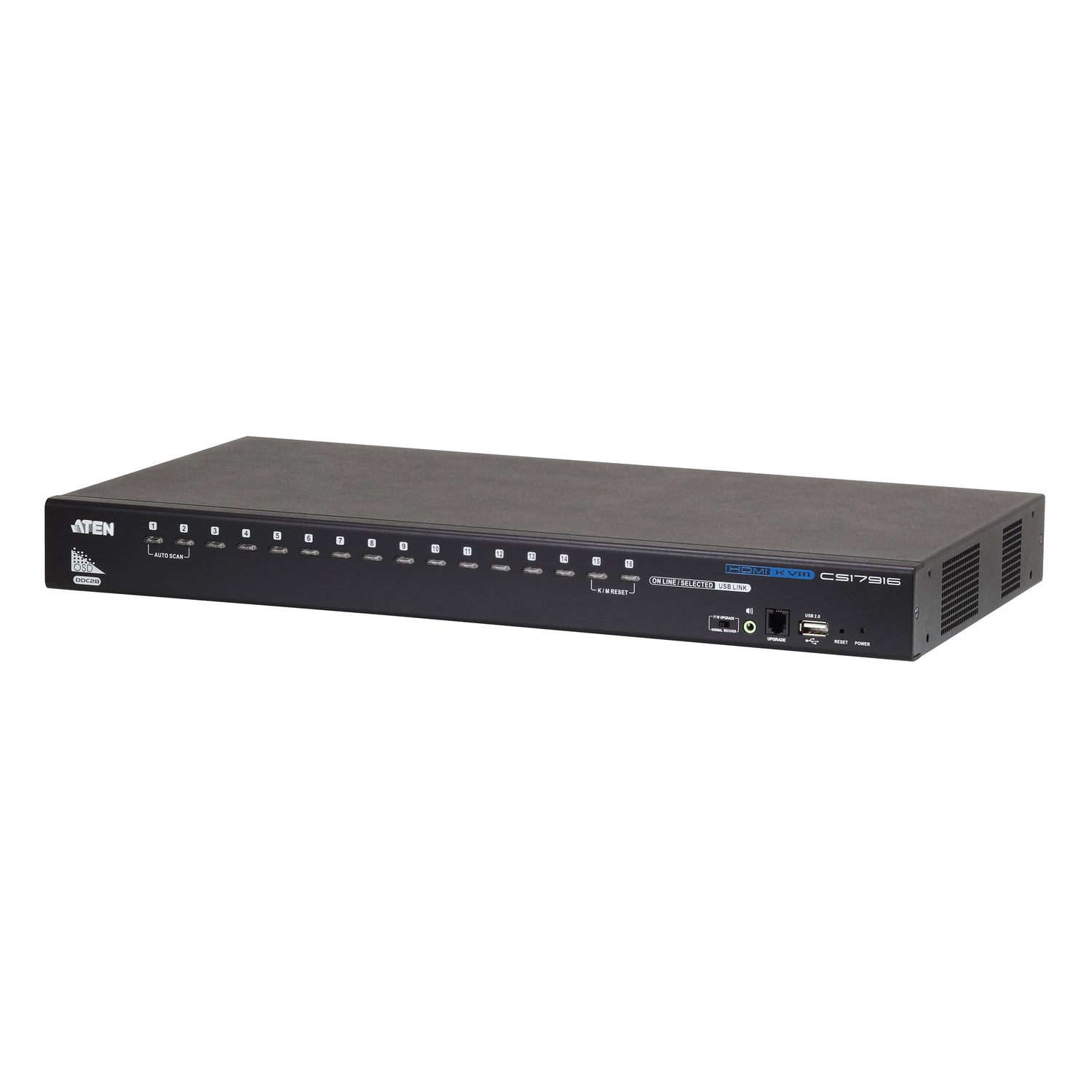

ATEN CS17916 16-Port USB HDMI/Audio KVM Switch
PRODUCT DESCRIPTION
ATEN CS17916 16-Port USB HDMI/Audio KVM Switch - 2 Years Local Warranty
Sixteen HDMI Computers from One Console
The CS17916 lets one USB keyboard, mouse, HDMI monitor and speakers control up to 16 HDMI computers from a 1U rack unit. Cascade to two levels to control up to 256 computers.
Full HD with Audio
Video runs at 1920 x 1080 or 1920 x 1200 at 60 Hz, with audio switched alongside. Video DynaSync stores the monitor's EDID, avoiding boot-up display problems and keeping the resolution right.
Multi-Display by Stacking
Stack up to eight units for dual, triple or quad display setups where each computer has several HDMI outputs.
Rack Management Made Easy
Select computers by pushbutton, hotkey or OSD, with backup/restore of OSD settings, Broadcast Mode and a 2-port USB hub for shared peripherals. Firmware is upgradeable.
Building out an HDMI server or lab rack? Email sales@sourceit.com.sg for a project quote including KVM cables.
ATEN CS17916 Datasheet — Technical Specifications
General
| Product Name | ATEN 16-Port USB HDMI/Audio KVM Switch |
| Model | CS17916 |
| Order Code | CS17916-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Computer Connections
| Direct | 16 |
| Maximum | 256 (via cascade) |
| Port Selection | OSD, hotkey, pushbutton |

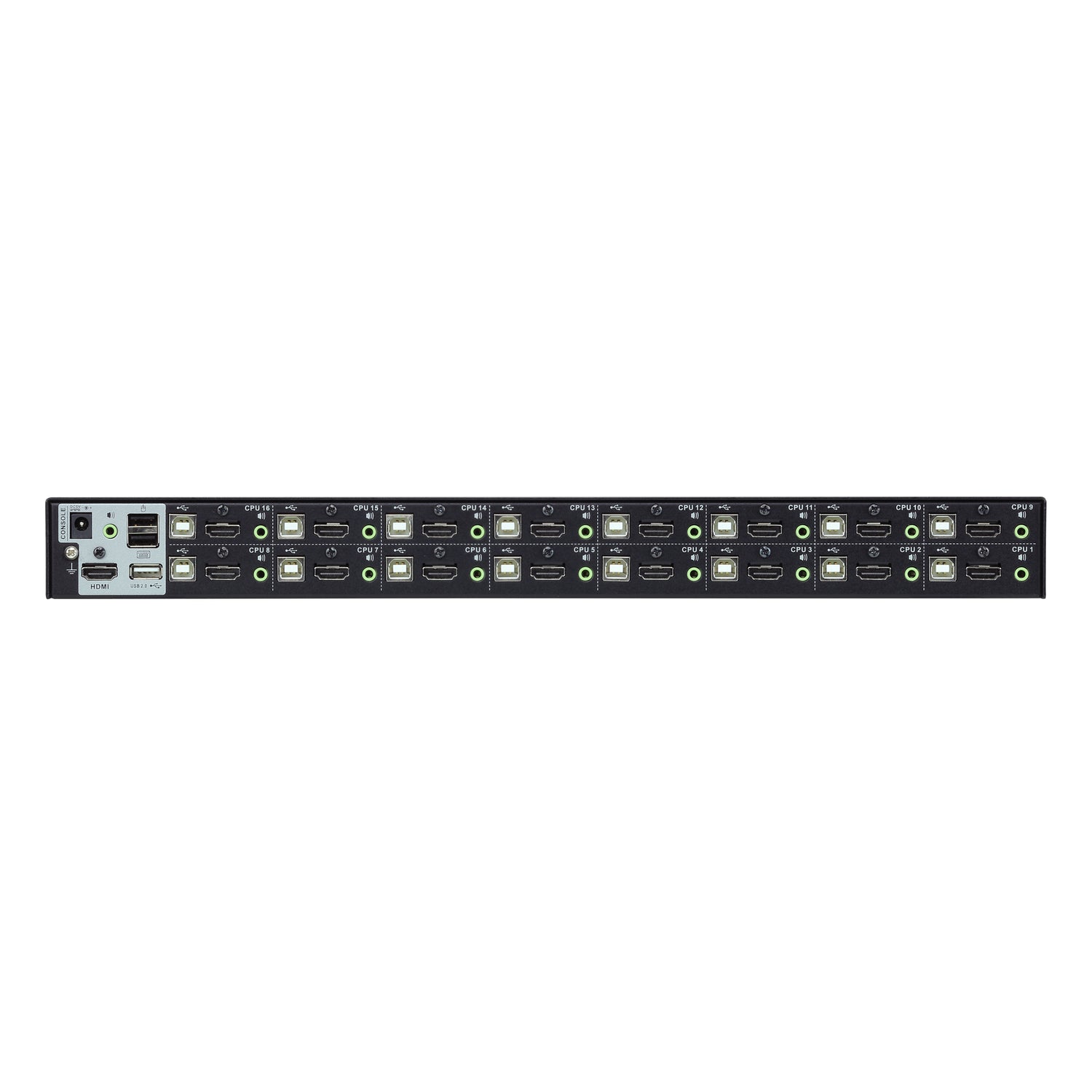

Connectors
| Console Ports | 1 x HDMI Female; 2 x USB Type A Female; 2 x 3.5 mm audio jack Female |
| KVM Ports | 16 x HDMI Female; 16 x USB Type B Female; 16 x 3.5 mm audio jack Female |
| USB Hub | 2 x USB Type A Female |
| Firmware Upgrade | 1 x RJ-11 Female |
| Power | 1 x DC jack |
Operation
| Keyboard / Mouse Emulation | USB |
| Video | 1920 x 1080 @ 60 Hz; 1920 x 1200 @ 60 Hz |
| Scan Interval | 1–255 seconds (default 5 s) |

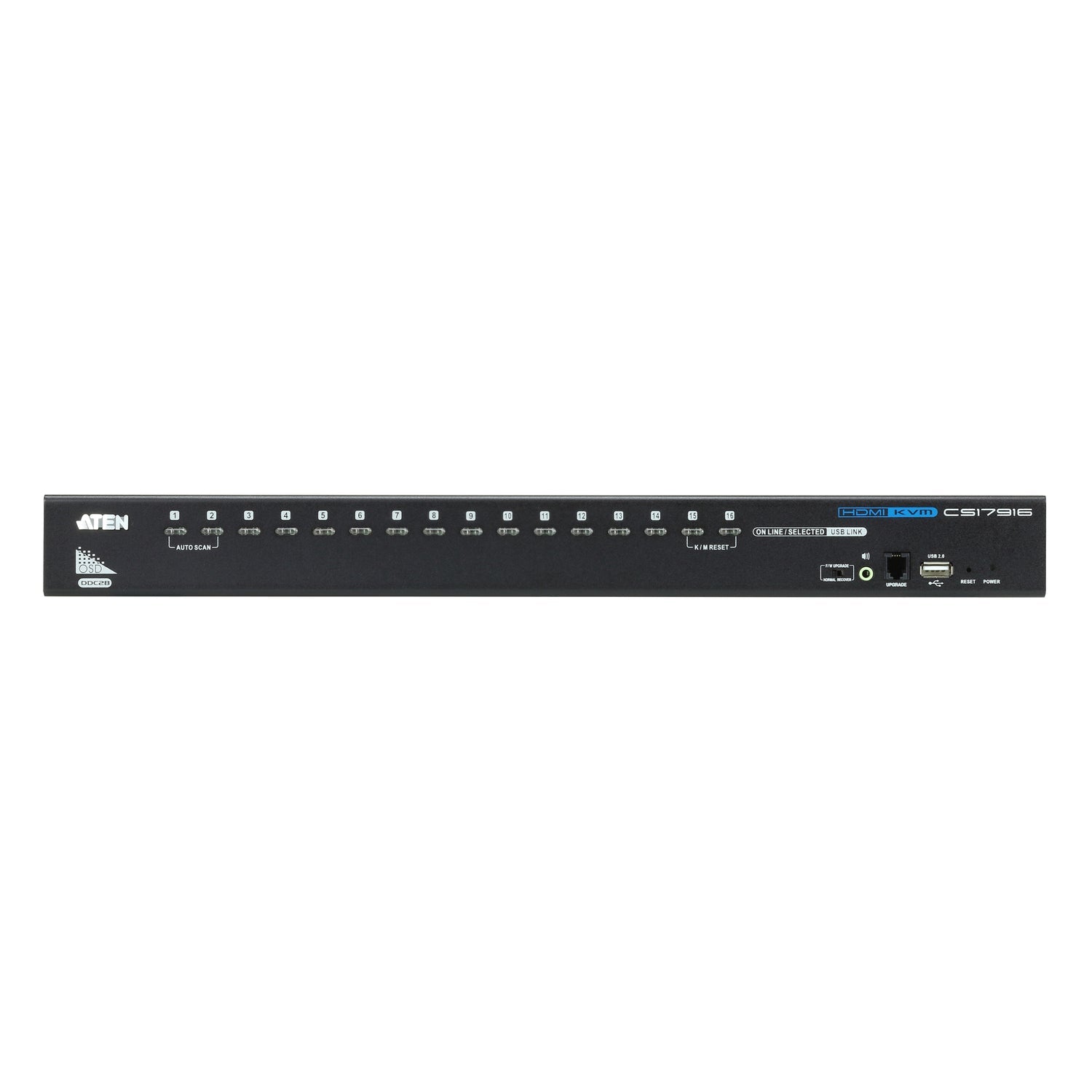

| LEDs | 16 USB link (green); 16 online/selected (orange); power |
Power & Environmental
| Power Consumption | DC 5 V, 9.18 W, 69 BTU/h |
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH, non-condensing |
Physical
| Housing | Metal, 1U rack mountable |
| Weight | 3.86 kg |
| Dimensions (L x W x H) | 43.24 x 25.72 x 4.40 cm |
Compatibility & Applications
Typical Computers
Servers, desktops, mini PCs and media players with HDMI video and USB keyboard/mouse support.
Typical Use
Server and lab racks, test and QA benches, digital signage head-ends and broadcast racks with many HDMI machines.
Cabling Tip
Two KVM cable sets are included. Order additional ATEN USB HDMI KVM cables for the remaining ports; email sales@sourceit.com.sg and we will match the right cable.
Package Contents & ATEN Rack KVM Switch Ordering Information
In the Box
1 x CS17916 16-port USB HDMI KVM switch with rack mounting kit, 2 x KVM cables (HDMI, USB, audio; 1.8 m), 1 x firmware upgrade cable, 1 x power adapter, 1 x foot pad set (4 pcs), 1 x user instructions.
ATEN Rack KVM Switch Models
| Model | Key feature |
| CS1708A | 8-port PS/2-USB VGA rack KVM, daisy-chain to 256 |
| CS17916 (this listing) | 16-port USB HDMI / audio rack KVM, cascade to 256 |
| CS18208 | 8-port USB 3.0 4K HDMI rack KVM, cascade to 512 |
| CS19208 | 8-port USB 3.0 4K DisplayPort rack KVM, cascade to 128 |
| CS1716i | 16-port PS/2-USB VGA KVM over IP switch |
| KH1508A | 8-port Cat 5 KVM switch, daisy-chain to 256 |
Datasheet & Downloads
| Datasheet | CS1798 / CS17916 Datasheet (PDF) |
| User manual | CS1798 / CS17916 User Manual (PDF) |
| Quick start guide | CS1798 / CS17916 Quick Start Guide (PDF) |
| ATEN product page | CS17916 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS17916-AT-E.
Frequently Asked Questions — ATEN CS17916
Does it support 4K?
No. Video is up to 1920 x 1200 at 60 Hz. For 4K HDMI choose the CS18208.
How many KVM cables come with it?
Two HDMI/USB/audio KVM cable sets. Additional cables are needed for the other ports.
Can I control more than 16 computers?
Yes. Cascade to two levels for up to 256 computers.
Does it switch audio?
Yes. Each port has a 3.5 mm audio jack and audio follows the selected computer.
Is it rack mountable?
Yes. It is 1U and includes a rack mounting kit.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
