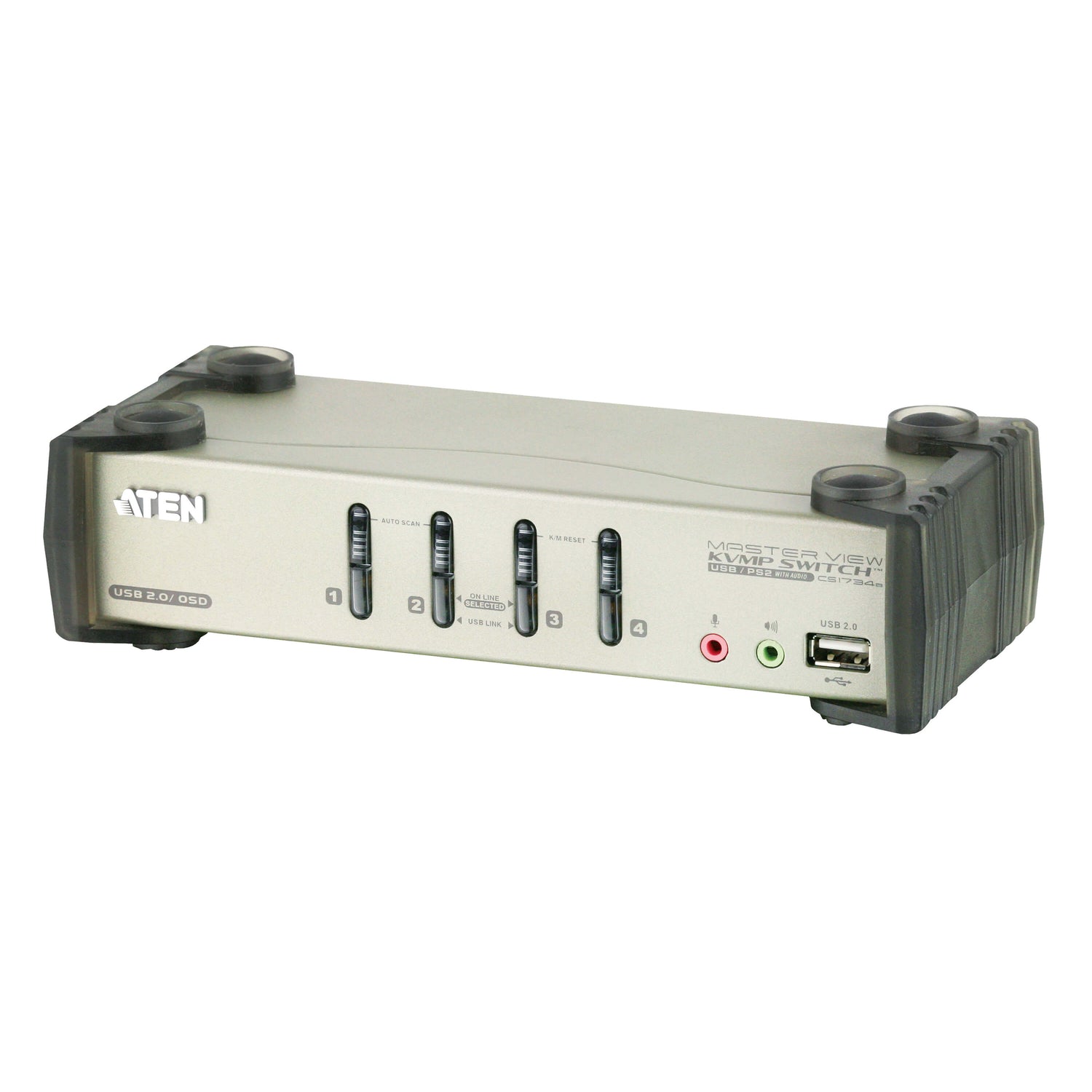

ATEN CS1734B 4-Port PS/2-USB VGA/Audio KVMP Switch with OSD
PRODUCT DESCRIPTION
ATEN CS1734B 4-Port PS/2-USB VGA/Audio KVMP Switch with OSD - 2 Years Local Warranty
Four Computers, Shared Peripherals
The CS1734B lets one VGA monitor, keyboard, mouse, speakers and microphone control four computers, and its built-in 2-port USB 2.0 hub shares a printer, scanner or drive between them.
2.1 Channel Audio Switching
Speaker and microphone connections switch with the computer, with support for 2.1 channel surround sound.
Many Ways to Switch

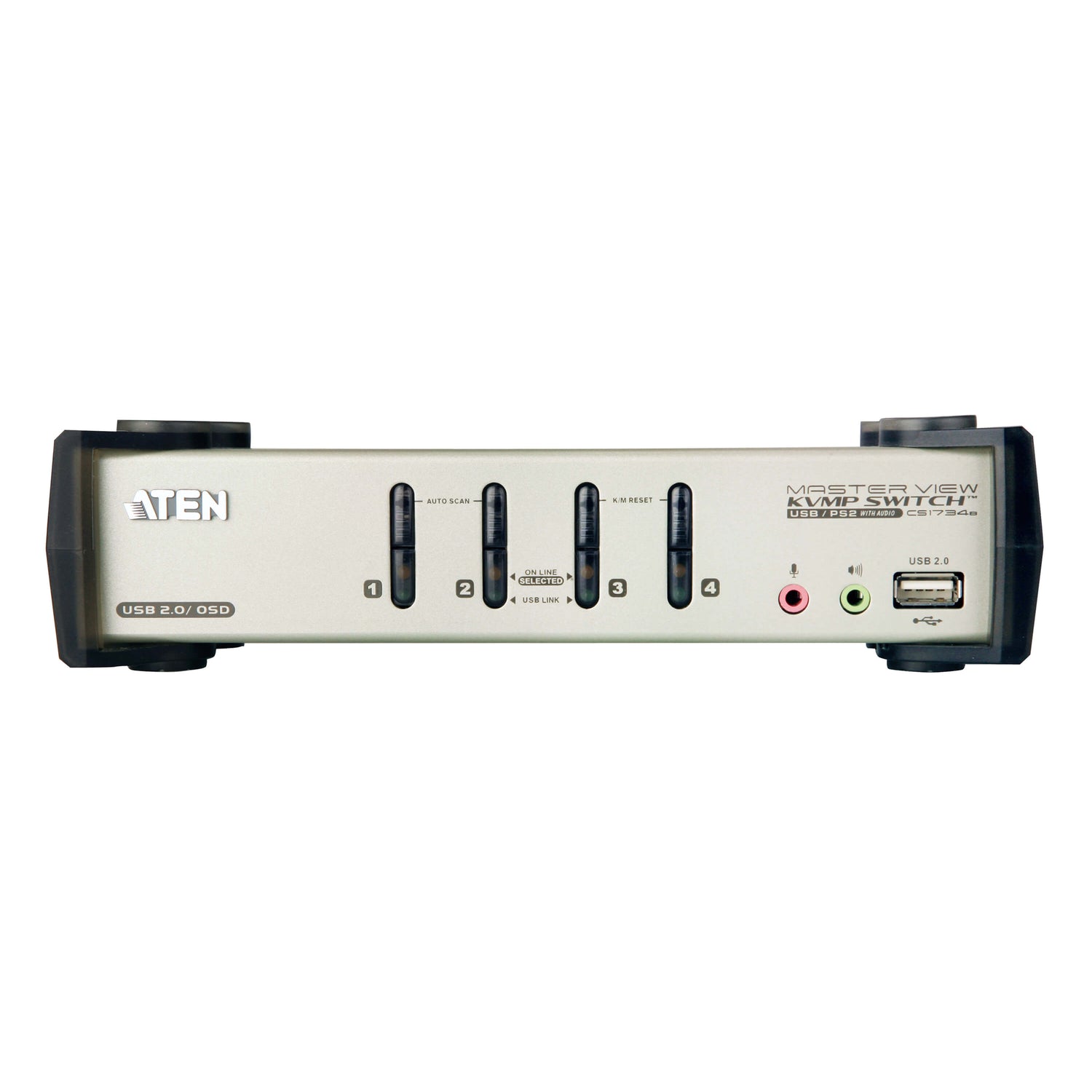

Change computers with front-panel pushbuttons, keyboard hotkeys, the on-screen display (OSD) menu or the mouse. Auto Scan steps through computers at an adjustable 1 to 255 second interval.
PS/2 or USB Computers
Supports computers with PS/2 or USB keyboards and mice and works across Windows, Mac and Linux. Video up to 2048 x 1536 with DDC2B, in a metal housing.
Setting up several multi-computer desks? Email sales@sourceit.com.sg for volume pricing.
ATEN CS1734B Datasheet — Technical Specifications
General
| Product Name | ATEN 4-Port PS/2-USB VGA/Audio KVMP Switch with OSD |
| Model | CS1734B |
| Order Code | CS1734B-AT-E |
| Local Warranty (Singapore) | 2 years carry-in warranty |

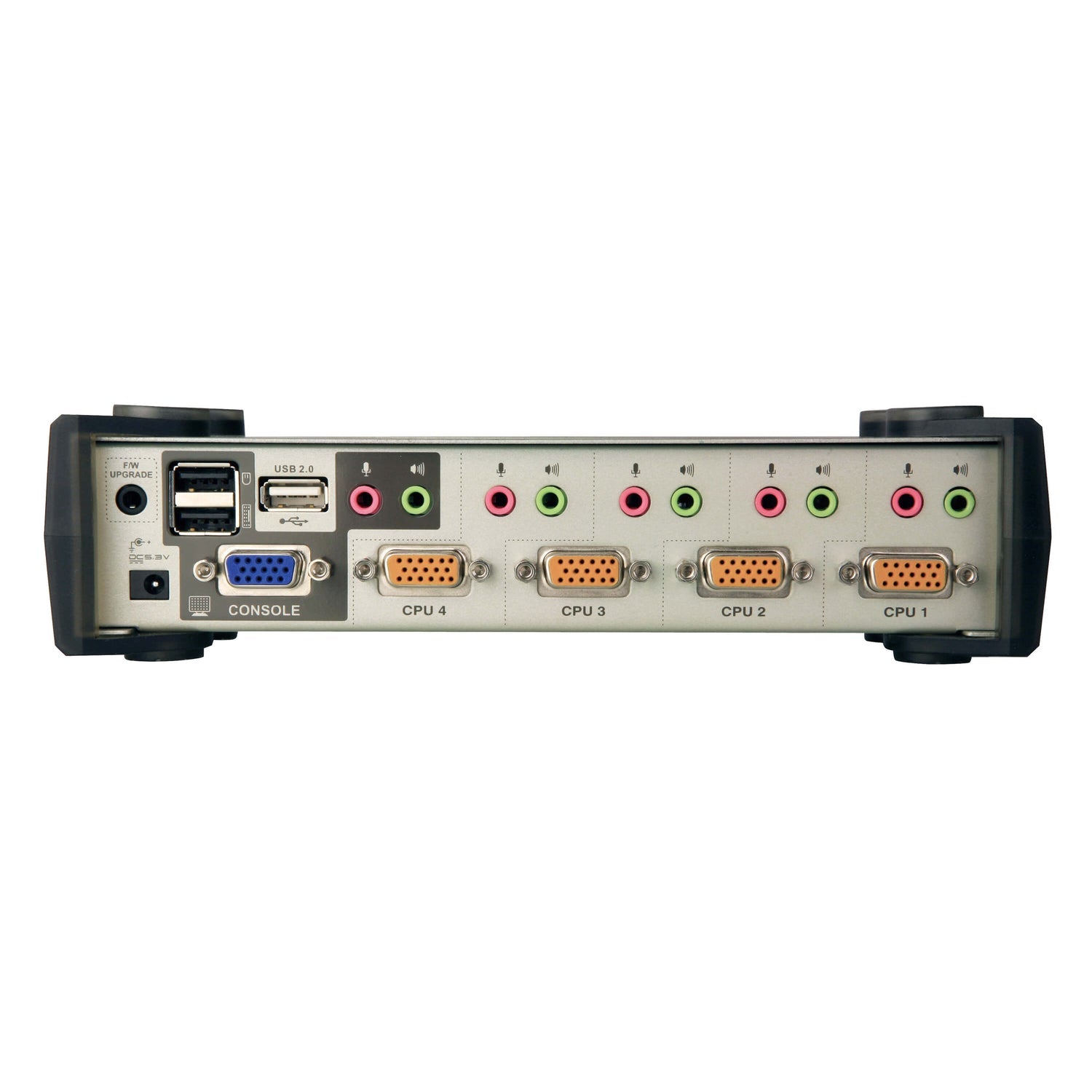

Connectors
| Computer Connections | 4 |
| Console Ports | 1 x USB keyboard, 1 x USB mouse, 1 x HDB-15 video, 2 x speaker jacks, 2 x microphone jacks |
| KVM Ports | 4 x SPHD-15 (keyboard/video/mouse), 4 x speaker jacks, 4 x microphone jacks |
| USB Hub | 2 x USB Type-A (USB 2.0) |
| Firmware Upgrade | 1 x upgrade jack |
| Power | 1 x DC jack |
Switching & Indicators
| Port Selection | OSD, hotkey, pushbutton, mouse |
| Pushbuttons | 4 |
| LEDs | 4 status (orange); 4 USB link (green) |
| Scan Interval | 1–255 seconds (default 5 s) |
Emulation, Video & Audio
| Keyboard / Mouse | PS/2, USB |
| Video | 2048 x 1536 @ 60 Hz; DDC2B |
| Audio | 2.1 channel surround sound |
Power
| Power Consumption | DC 5.3 V, 3.4 W |
| Power Adapter | Included |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
| Humidity | 0–80% RH |
Physical
| Housing | Metal |
| Weight | 0.78 kg |
| Dimensions (L x W x H) | 21.00 x 8.80 x 5.55 cm |
Compatibility
| Operating Systems | Windows, Mac, Linux |
Compatibility & Applications
Typical Setups
Up to four PCs or servers with VGA video, sharing one VGA monitor, keyboard, mouse, speakers, microphone and two USB peripherals.
Typical Use
Offices and IT desks, trading and control desks, labs and SOHO setups where several computers share one workstation.
Selection Tip
Don't need audio or a USB hub? The CS84U is a simpler 4-port VGA KVM. For HDMI computers, consider an HDMI KVMP switch such as the CS1794.
Package Contents & ATEN Desktop KVMP Switch Ordering Information
In the Box
2 x custom KVM cables (VGA, USB, audio; 1.2 m), 2 x custom KVM cables (1.8 m), 1 x firmware upgrade cable, 1 x power adapter, 1 x user instructions.
ATEN VGA KVM Switch Models
| Model | Key feature |
| CS22U | 2-port USB VGA cable KVM switch with remote selector |
| CS72U | 2-port USB VGA/audio KVM switch |
| CS82U | 2-port PS/2-USB VGA KVM switch |
| CS84U | 4-port PS/2-USB VGA KVM switch |
| CS1734B (this listing) | 4-port PS/2-USB VGA/audio KVMP switch with OSD |
| CS1708A | 8-port PS/2-USB VGA KVM switch, daisy-chainable |
Datasheet & Downloads
| Datasheet | CS1732B / CS1734B Datasheet (PDF) |
| User manual | CS1732B / CS1734B User Manual (PDF) |
| ATEN product page | CS1734B on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CS1734B-AT-E.
Frequently Asked Questions — ATEN CS1734B
What does KVMP mean?
Keyboard, Video, Mouse and Peripheral: besides KVM switching, the CS1734B shares USB peripherals through its built-in 2-port USB 2.0 hub.
Does it switch audio?
Yes. Speakers and microphone switch with the computer, with 2.1 channel surround sound support.
Are KVM cables included?
Yes. Four custom KVM cables are included: two 1.2 m and two 1.8 m.
Can I mix PS/2 and USB computers?
Yes. Both PS/2 and USB keyboard/mouse computers are supported.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
