ATEN USB KVM Cable with 3-in-1 SPHD, 1.8 m / 3 m / 5 m (2L-5202U / 2L-5203U / 2L-5205U)
PRODUCT DESCRIPTION
ATEN USB KVM Cable with 3-in-1 SPHD, 1.8 m / 3 m / 5 m (2L-5202U / 2L-5203U / 2L-5205U) - 2 Years Local Warranty
One Connector to the KVM, VGA and USB to the Computer

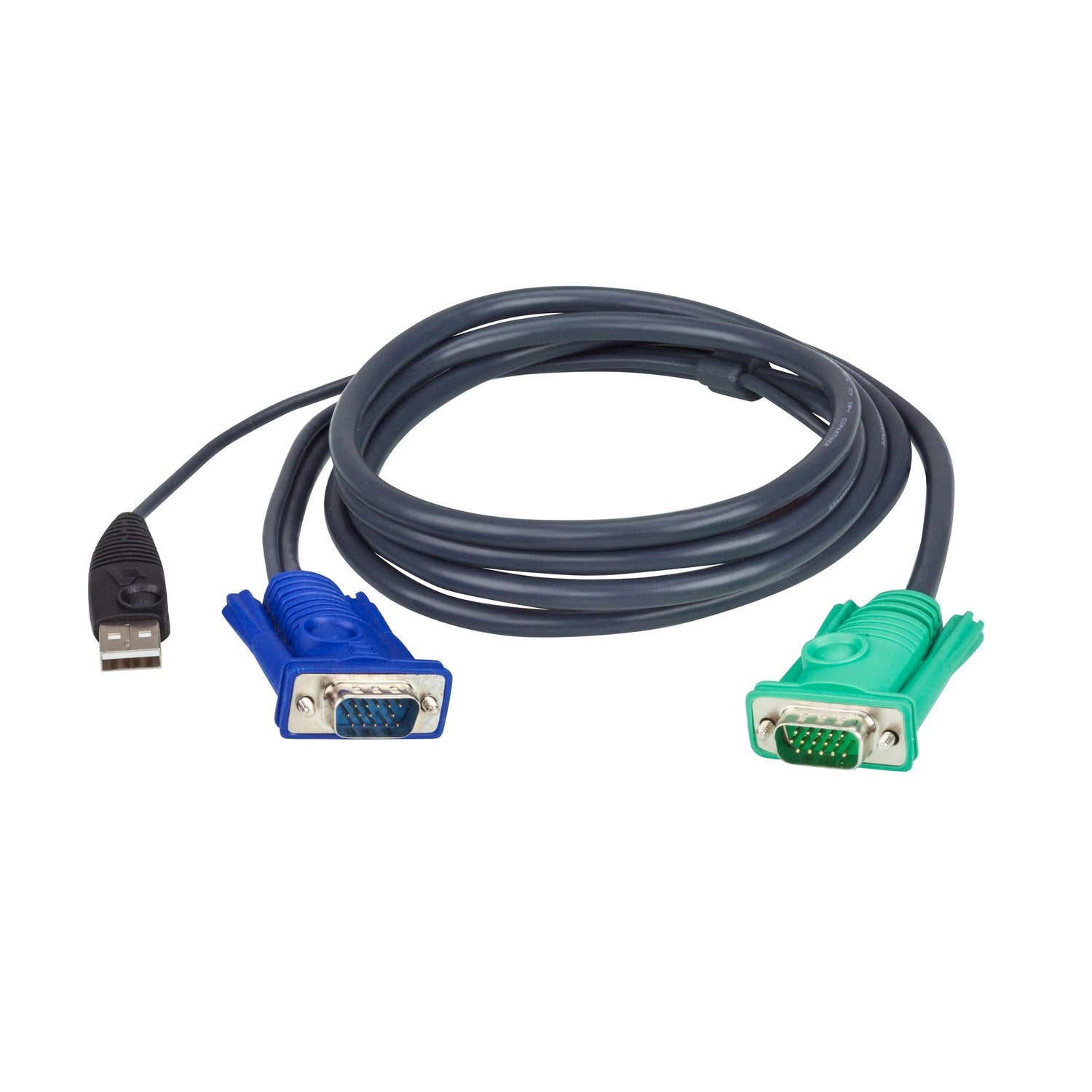

ATEN's 2L-52xxU KVM cables combine keyboard, mouse and video in a single 3-in-1 SPHD connector at the KVM switch end, splitting out to a VGA (HDB-15) male and a USB Type-A male at the computer. One neat cable per server instead of three.
Matched to ATEN SPHD KVM Ports
Designed for ATEN KVM switches, KVM over IP switches, LCD KVM consoles and extenders that use SPHD computer ports, such as the CS1708A / CS1716A, CS1308 / CS1316, CL5708 / CL5716 and CL3108 / CL3116.
Three Lengths for Rack and Desk
1.8 m for servers in the same rack, 3 m for adjacent racks or under-desk PCs, and 5 m for longer runs across a cabinet row.
USB Keyboard and Mouse Support
The USB connection carries keyboard and mouse signals from computers without PS/2 ports, making the cable suitable for modern servers and PCs.
Cabling a full KVM rack? Email sales@sourceit.com.sg for volume pricing on KVM cables and switches.
ATEN 2L-5202U / 2L-5203U / 2L-5205U Datasheet — Technical Specifications
General
| Product Name | ATEN USB KVM Cable with 3-in-1 SPHD |
| Models | 2L-5202U (1.8 m), 2L-5203U (3 m), 2L-5205U (5 m) |
| Order Codes | 2L-5202U, 2L-5203U, 2L-5205U |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Computer End | 1 x HDB-15 (VGA) Male, 1 x USB Type-A Male |
| KVM End | 1 x 3-in-1 SPHD Male (keyboard / mouse / video) |
Lengths
| 2L-5202U | 1.8 m |
| 2L-5203U | 3 m (10 ft) |
| 2L-5205U | 5 m (16 ft) |
Compatibility (examples listed by ATEN)
| Desktop KVM Switches | CS72U, CS74U, CS82U, CS84U, CS1742 |
| Rack Mount KVM Switches | CS1308, CS1316, CS1708A, CS1716A |
| LCD KVM Switches | CL5708, CL5716, CL3108, CL3116 |
| KVM over IP | KN1000A, CN8000A, CS1708i, CS1716i |
| KVM Extenders | CE700A |
Compatibility & Applications
Typical Devices
Servers and PCs with VGA video and USB keyboard/mouse, connected to ATEN KVM switches, LCD KVM consoles and KVM over IP switches that use SPHD ports.
Typical Use
Server rooms, data centre racks, control rooms and labs where several computers are managed from one console.
Selection Tip
Check that your ATEN switch uses SPHD computer ports and see ATEN's KVM Cables Table for your model. For PS/2-only computers or PS/2 switches, ATEN offers PS/2 and hybrid cable versions.
Package Contents & ATEN KVM Cable Ordering Information
In the Box
Contents as supplied by ATEN; email sales@sourceit.com.sg to confirm package contents.
Available Options
| Option | Order code |
| 1.8 m | 2L-5202U |
| 3 m | 2L-5203U |
| 5 m | 2L-5205U |
ATEN KVM Cable Models
| Model | Key feature |
| 2L-5202U (this listing) | 1.8 m USB VGA SPHD KVM cable |
| 2L-5203U (this listing) | 3 m USB VGA SPHD KVM cable |
| 2L-5205U (this listing) | 5 m USB VGA SPHD KVM cable |
| 2L-5302UP | 1.8 m PS/2-USB hybrid KVM cable |
| 2L-5206UP | 6 m USB KVM cable with built-in PS/2-to-USB converter |
| 2L-5206P | 6 m PS/2 VGA KVM cable |
| 2L-7D02UH | 1.8 m USB HDMI KVM cable |
Datasheet & Downloads
| ATEN product page | 2L-5202U on aten.com |
| ATEN product page | 2L-5203U on aten.com |
| ATEN product page | 2L-5205U on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 2L-5202U, 2L-5203U or 2L-5205U.
Frequently Asked Questions — ATEN 2L-5202U / 2L-5203U / 2L-5205U
Which ATEN switches does this cable work with?
ATEN KVM products with SPHD computer ports, for example CS1708A / CS1716A, CS1308 / CS1316, CL5708 / CL5716, CL3108 / CL3116, CS1708i / CS1716i and CS82U / CS84U. Check ATEN's KVM Cables Table for your exact model.
What connects to the computer?
A VGA (HDB-15) male connector for video and a USB Type-A male connector for keyboard and mouse.
Does it carry audio?
No. The cable carries keyboard, mouse and VGA video only.
Can I use it with a PS/2-only computer?
No, it uses USB for keyboard and mouse. ATEN offers PS/2 and hybrid versions for PS/2 systems.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
