APC External Battery Pack for 1500VA UPS
PRODUCT DESCRIPTION
APC External Battery Pack for 1500VA UPS (BR24BPG) - Local Warranty

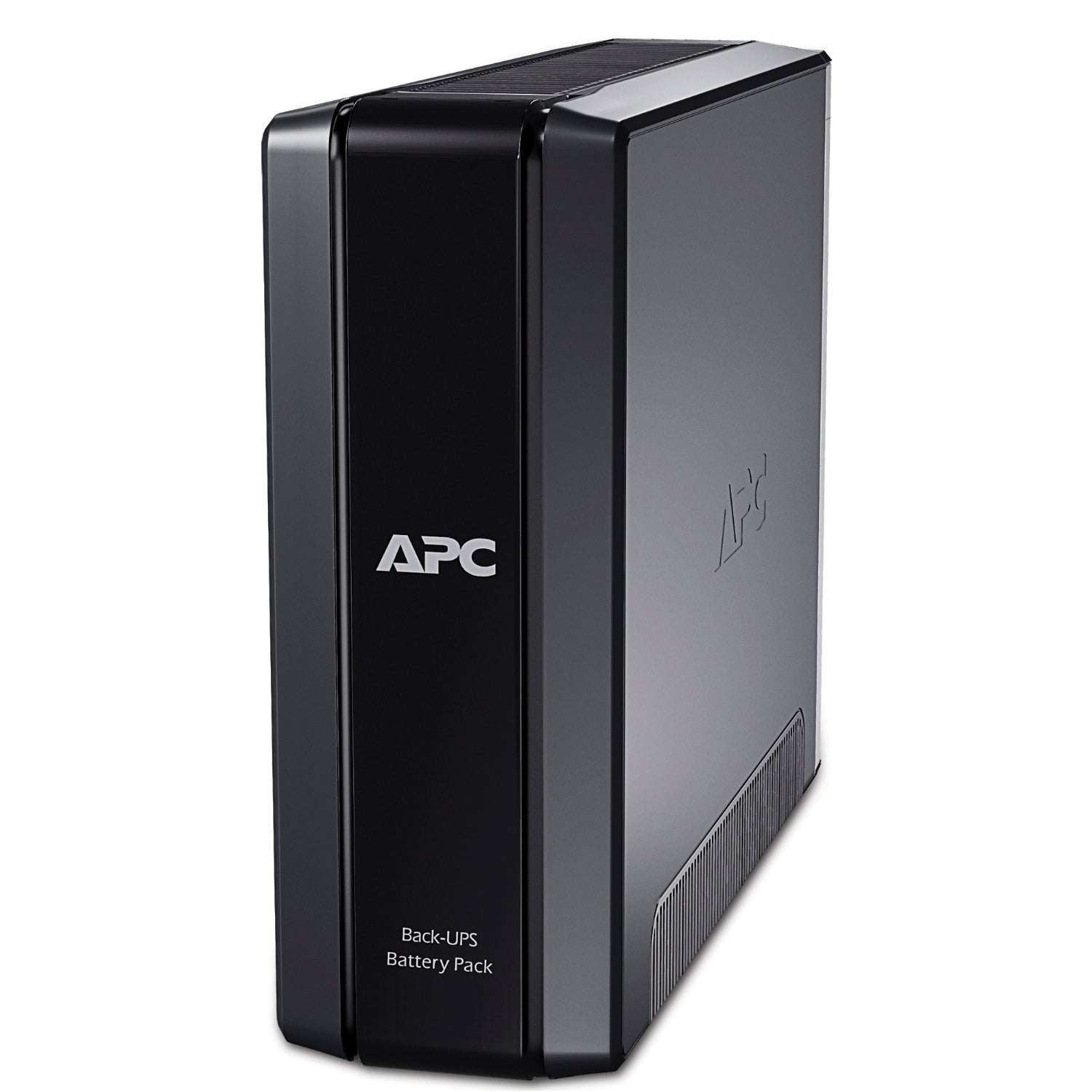

APC BR24BPG External Battery Pack — More Runtime for a 1500VA Back-UPS Pro
The APC BR24BPG is a 24 V DC, 372 VAh external battery pack that extends how long a compatible 1500 VA Back-UPS Pro can carry your load through an outage. In Singapore that usually means one of two things: riding out a longer PUB interruption instead of just a storm-time dip, or buying enough time for a clean, unattended shutdown of a workstation or small server when nobody is in the office.
What It Fits
APC specifies the BR24BPG for 1500 VA Back-UPS Pro models. In the SourceIT catalogue that is the APC Back-UPS Pro BR1500GI, whose own data sheet names the BR24BP / BR24BPG as its extended-runtime option. It is not compatible with the BR650MI, BR900MI, BR1300MI, BR1600MI, BR1200SI, BR1600SI or BR500CI-AS — none of those models has an external battery connector. Check the part number on your UPS before ordering.
Sealed Lead-Acid, Stackable, No Rack Space
The pack holds sealed lead-acid batteries in a matching tower enclosure at 301 mm (H) x 112 mm (W) x 382 mm (D) and 13.4 kg, designed to sit alongside the UPS rather than in a rack. APC quotes 4 to 6 years for the cells. In a warm, humid comms cupboard expect the lower end of that range — heat, not cycles, is what kills VRLA batteries in this climate.
Local Supply, GST Invoice
SourceIT supplies the BR24BPG as local Singapore stock with a GST invoice and local warranty support. Batteries are a consumable, so if you are buying a pack to refresh an ageing installation, ask us about the matching replacement cartridge for the UPS itself at the same time — replacing one and not the other leaves you with a mismatched bank.
APC BR24BPG Datasheet — Technical Specifications
Every figure below is taken from the Schneider Electric BR24BPG product page and the APC BR24BPG product data sheet. Values Schneider does not publish for this part number are left out rather than estimated.
General
| Part Number (SKU) | BR24BPG |
| Official Product Name | APC Back-UPS Pro External Battery Pack |
| Product Type | External battery pack for APC Back-UPS Pro |
| Form Factor | Tower, stackable — not rack mountable |
| Compatible UPS | 1500 VA APC Back-UPS Pro models (BR1500GI in the SourceIT range) |
| Manufacturer Warranty (APC by Schneider Electric) | 3 years repair or replace (stated in the APC product data sheet; this figure appears in a single official source, so confirm the term at order) |
| Local Warranty (Singapore) | Supported locally by SourceIT with a GST invoice |
Battery Specifications
| Battery Type | Sealed lead-acid (VRLA), mercury-free |
| Nominal Voltage | 24 V DC |
| Capacity | 18 Ah |
| Energy Rating | 372 VAh |
| Expected Service Life | 4 to 6 years |
| User Replaceable | Yes — the pack contains replaceable battery modules |
| Runtime Added | Depends on the connected load; Schneider publishes no runtime table for this pack — contact SourceIT with your load in watts |
Physical
| Dimensions (H x W x D) | 301 mm (H) x 112 mm (W) x 382 mm (D) |
| Net Weight | 13.4 kg |
| Package Contents | 2 battery modules, 1 connection cable and the user manual |
| Certifications | TUV; RoHS compliant; mercury-free |
| Rack Mountable | No |
Compatibility & Runtime
Which UPS models the BR24BPG fits
APC lists the BR24BPG for 1500 VA Back-UPS Pro units. The model SourceIT stocks that accepts it is the BR1500GI (1500 VA / 865 W, 10 x IEC C13). The BR1500GI data sheet names the BR24BP and BR24BPG as its external battery pack options, which is the confirmation that matters.
It does not fit the rest of the Back-UPS Pro BR range sold here — BR650MI, BR900MI, BR1300MI, BR1600MI, BR1200SI, BR1600SI and BR500CI-AS have no external battery connector. If you need longer runtime on one of those, the answer is a larger UPS, not a pack.
How much extra runtime
The pack is rated 372 VAh at 24 V DC. How many extra minutes that buys depends entirely on the load: at a light load it can more than double the runtime of the internal battery, and at a heavy load the gain is proportionally smaller. Schneider publishes no runtime-versus-load table for this pack, so we do not print one. Tell SourceIT your load in watts and we will calculate it.
Installation and rack space
The pack is a tower enclosure designed to stand beside or beneath the UPS — it takes no rack U and needs no rail kit. It connects to the UPS with the supplied cable. APC does not describe this pack as hot-connectable, so shut the UPS down before attaching it. Recharge time for the combined bank is longer than for the UPS alone; allow the unit to charge fully before you rely on the extra runtime.
Package Contents & Back-UPS Pro BR Ordering Information
In the box
2 battery modules, 1 connection cable and the user manual.
The UPS this pack is for
| BR1500GI | APC Back-UPS Pro 1500VA / 865W, 10 x IEC C13, AVR, LCD — view the BR1500GI |
| APCRBC124 | Replacement battery cartridge for the BR1500GI — view this cartridge |
APC Back-UPS and Back-UPS Pro BR range at SourceIT
| BR500CI-AS | Back-UPS, 500VA / 300W tower, 3x C13 |
| BR650MI | Back-UPS Pro, 650VA / 390W tower, 6x C13 |
| BR900MI | Back-UPS Pro, 900VA / 540W tower, 6x C13 |
| BR1200SI | Back-UPS Pro, 1200VA / 720W tower, 8x C13, sine wave, USB A+C |
| BR1300MI | Back-UPS Pro, 1300VA / 780W tower, 8x C13 |
| BR1500GI | Back-UPS Pro, 1500VA / 865W tower, 10x C13, external pack capable |
| BR1600MI | Back-UPS Pro, 1600VA / 960W tower, 8x C13 |
| BR1600SI | Back-UPS Pro, 1600VA / 960W tower, 8x C13, sine wave, USB A+C |
| BR24BPG (this listing) | Back-UPS Pro external battery pack, 24 V / 372 VAh (for BR1500GI) |
Rail kits and network management cards do not apply — this is a tower pack for a tower UPS, and the Back-UPS Pro BR range has no SmartSlot.
Datasheet & Downloads
Links open on Schneider Electric's own site. Each one was checked before publication.
- Schneider Electric product page for the APC BR24BPG — official product name, characteristics and the full document list (United States site)
Schneider's direct datasheet PDF link for this part sits behind a path that blocks automated retrieval, so we link the product page rather than publish a URL we cannot verify. Ask SourceIT if you need the datasheet emailed as a file for a tender submission.
Frequently Asked Questions — APC BR24BPG
Which UPS models does the BR24BPG work with?
1500 VA APC Back-UPS Pro units. In the SourceIT range that is the BR1500GI. It does not fit the BR650MI, BR900MI, BR1300MI, BR1600MI, BR1200SI, BR1600SI or BR500CI-AS.
How much runtime does it add?
That depends on your load. The pack adds 372 VAh at 24 V DC on top of the UPS's internal battery. Schneider publishes no runtime table for it, so rather than quote a number that would not apply to your equipment, send us your load in watts and we will work it out.
What does the "G" in BR24BPG mean?
It denotes the pack generation. APC has shipped BR24BP and BR24BPG variants of the 24 V Back-UPS Pro pack; the BR1500GI data sheet names both as valid options for that UPS. Order by the exact part number on your quotation.
Can I fit the batteries myself?
Yes — the pack contains user-replaceable battery modules. APC does not describe the pack as hot-connectable, so power the UPS down before connecting or servicing it.
Does it take rack space?
No. It is a tower enclosure that stands beside or beneath the UPS. There is no rack-mount option and no rail kit for it.
How long do the batteries last?
APC quotes four to six years of typical service life. Singapore's heat and humidity push that toward the lower end, particularly in an unconditioned comms cupboard. Budget for replacement inside that window rather than at the end of it.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every APC BR24BPG sold by SourceIT comes with local Singapore warranty and a GST invoice. APC's own data sheet for this pack states a three-year repair-or-replace manufacturer warranty; that figure appears in a single official source, so we state it here rather than in the product heading and we will confirm the current term with the distributor on request.
