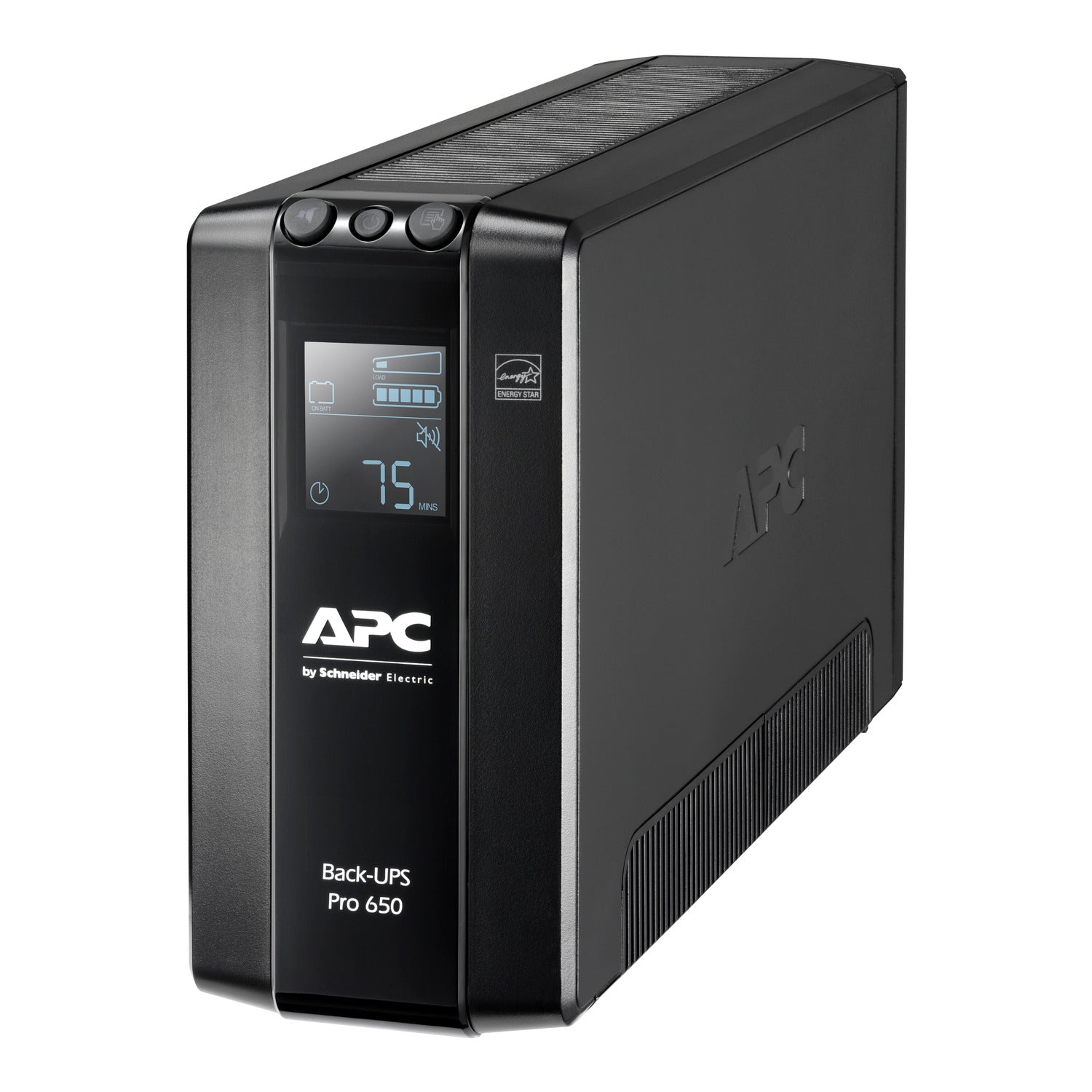

APC Back UPS Pro BR 650VA, 6 Outlets, AVR, LCD Interface

Every figure below is taken from the Schneider Electric product page (Singapore) and the APC BR650MI product data sheet, corroborated by the official Back-UPS Pro 230V brochure. Where Schneider does not publish a value for this exact part number, the row is left out rather than filled in from a similar model.

General

Output

Input

Batteries & Runtime

Communications & Management

Physical & Environmental

What you can plug in

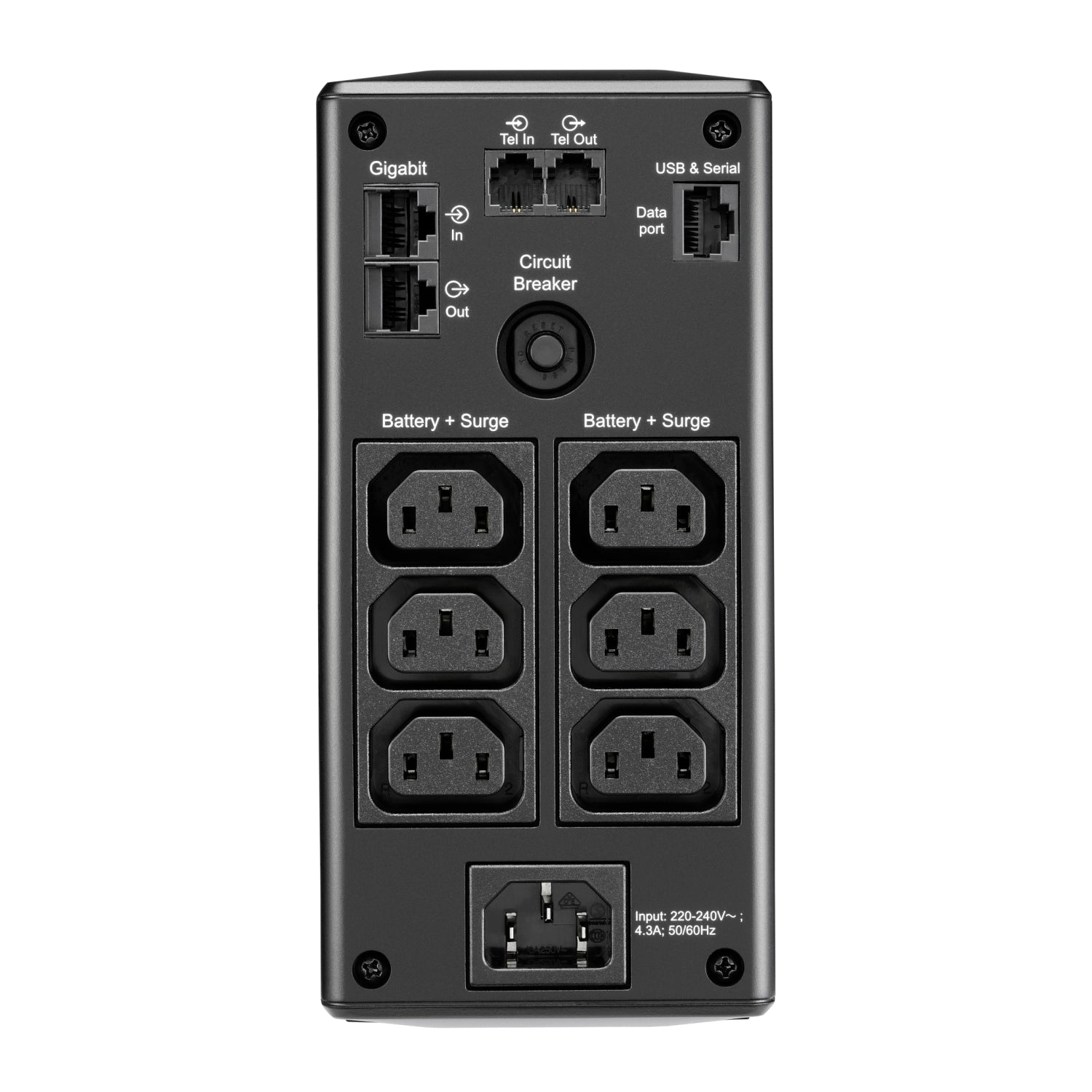

The BR650MI presents 6 x C13, all battery-backed. All outlets are IEC 60320 C13, so a standard C13 kettle lead connects a PC, monitor, switch, router or NAS directly. Every outlet on this model is battery-backed and surge protected. The unit takes its own supply through an IEC 60320 C14 inlet on a normal 13 A Singapore wall socket — no dedicated circuit and no electrician needed.

Sizing it: VA, watts and how much you can actually load

The BR650MI is rated 650 VA apparent power and 390 W real power. Size against the watts, not the VA — the watt figure is the one that runs out first on modern IT loads. As a working rule, keep the connected load under about 70% of 390 W so you have headroom for inrush and for the battery ageing. Schneider publishes no runtime table for this model, so any minutes figure you see quoted elsewhere is someone's estimate, not a manufacturer specification. Send us your equipment list and we will work out the real number.

Battery and replacement cartridge

The battery is a sealed maintenance-free lead-acid (VRLA) cartridge, 12 V 7.0 Ah. Typical recharge time is 12 h. The APC replacement cartridge for this model is APCRBC110 — APCRBC110 is stocked by SourceIT. The cartridge is user-replaceable from the front of the unit; APC does not describe this model's battery as swappable while running, so plan a short shutdown for the change.

Rack space and management software

This is a tower unit and is not rack mountable, so it consumes no rack U and needs no rail kit. This model has no SmartSlot, so an AP9640 or AP9641 Network Management Card cannot be fitted — if you need SNMP monitoring or an Ethernet-managed UPS, step up to the APC Smart-UPS range and we will quote it. Bundled shutdown software is not documented for this model in the Schneider material we can verify, so we do not claim it; ask us and we will confirm what ships in the current carton.

In the box

Schneider does not itemise the carton contents for this model in the documentation we can verify, so we will not invent a list. What we can tell you is that the unit ships as a complete tower UPS with its battery installed. If the exact carton contents matter for your tender or your install, ask us before you order and we will open a unit and tell you what is actually in it.

APC Back-UPS and Back-UPS Pro BR range at SourceIT

Matching replacement battery cartridge

Rail kits and network management cards do not apply to this range: every Back-UPS Pro BR model is a tower with no SmartSlot. For rack-mount or network-managed power protection, ask us about the APC Smart-UPS SMT, SMC and SMX ranges.

Links open on Schneider Electric's own site. Each one was checked before publication.

• Schneider Electric product page for the APC BR650MI — official product name, characteristics and the full document list (Singapore site)
• APC Back-UPS Pro BR650/900/1300/1600MI User Manual (Schneider document library)

Schneider's direct datasheet PDF links sit behind a path that blocks automated retrieval, so we link the product page and the document library entry instead — every link above resolves and carries the current document. If you need the datasheet or manual emailed to you as a file for a tender submission, ask us and we will send it.

What is the difference between the 650 VA and the 390 W rating?

650 VA is apparent power and 390 W is real power. Your equipment consumes real power, so the 390 W figure is the one that limits what you can connect. Add up the wattage on the nameplates of everything you intend to back up and keep the total comfortably below 390 W.

How long will the BR650MI run my equipment?

It depends entirely on load, and Schneider publishes no runtime table for this model — which is why you will not find minutes quoted on this page. A lightly loaded unit runs for many minutes; one near 390 W runs for a few. Send SourceIT your load in watts and we will calculate it against the 75 VAh battery rating rather than guess.

What does the "MI" in BR650MI mean?

It identifies the build variant. MI is the 230 V IEC-outlet build sold across Asia, the Middle East and Europe, with a stepped-approximation output waveform and no USB charging ports. These suffixes are not interchangeable — outlet counts, waveform and battery cartridge all change with them, so order by the exact part number.

Is the output a pure sine wave, and will it drive an active-PFC power supply?

No. The BR650MI produces a stepped approximation to a sinewave, as stated in its data sheet. That is fine for most desktops, routers, switches, NVRs and POS gear, but some active-PFC ATX power supplies will alarm or drop out on it. If your load has an active-PFC supply, choose the BR1200SI or BR1600SI instead — both are sine wave.

Which replacement battery does it take, and can I fit it myself?

The APC replacement battery cartridge for the BR650MI is APCRBC110, stocked here: APCRBC110. It is user-replaceable — no tools beyond a screwdriver and no service call. APC does not describe this model's battery as swappable while running, so shut the unit down for the swap. Expect three to five years of service in an air-conditioned office, and less in a hot, humid comms cupboard.

Can I rack mount it or add a network management card?

No on both counts. The BR650MI is a tower unit with no rack ears or rail kit option, and the Back-UPS Pro BR range has no SmartSlot, so an AP9640 or AP9641 card cannot be fitted. If you need a 19-inch rack UPS or SNMP monitoring, ask SourceIT about the APC Smart-UPS SMT, SMC and SMX ranges.

How does the BR650MI compare with the BR900MI?

The BR900MI steps up from 650 VA / 390 W to 900 VA / 540 W on the same 190 x 91 x 310 mm chassis for very little extra footprint. Both are stocked by SourceIT in Singapore — tell us the load and the budget and we will tell you which one is the right buy.

Does it come with a Singapore warranty and a GST invoice?

Yes. Every APC BR650MI sold by SourceIT comes with local Singapore warranty and a GST invoice; APC backs the BR650MI with a 2-year manufacturer warranty. Note that Schneider states three years inside the European Community and two years elsewhere — Singapore takes the two-year term, and any listing quoting three years for this market has copied the European figure.
