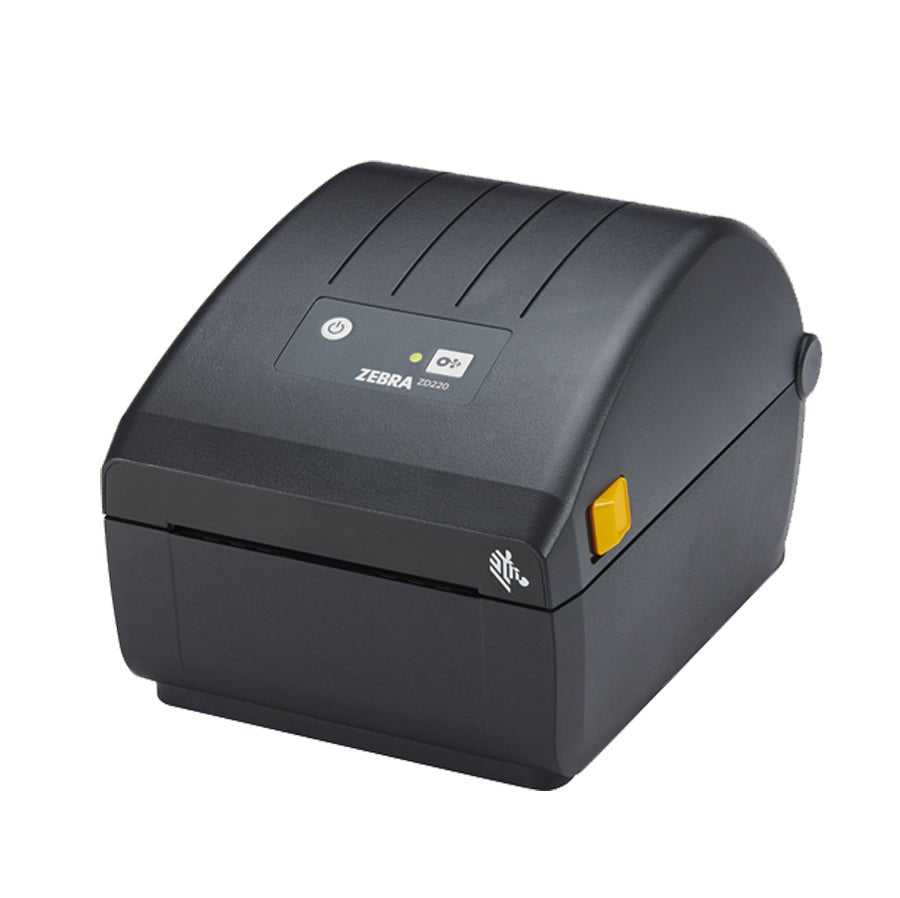

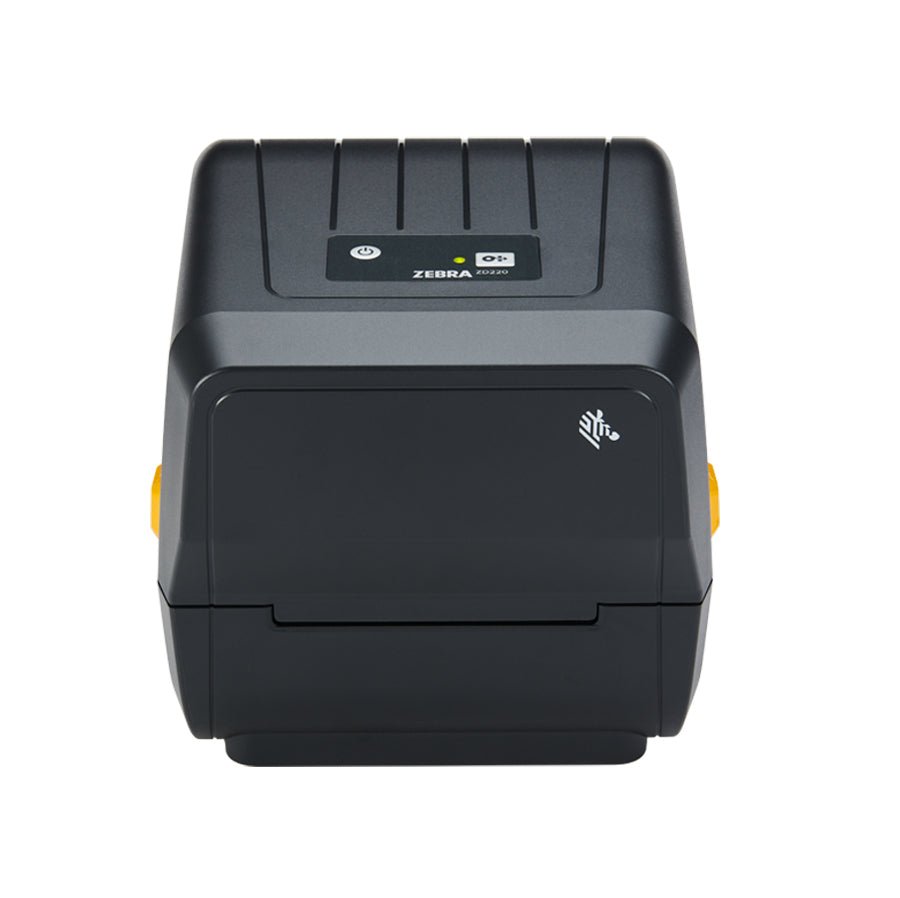

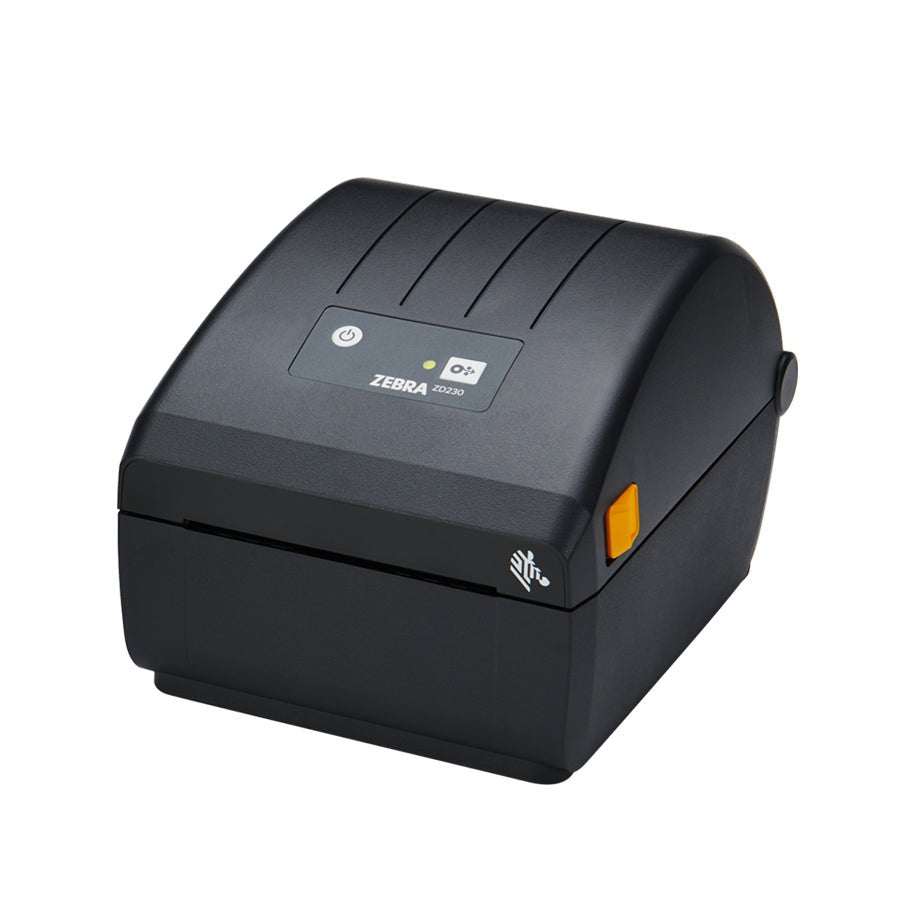

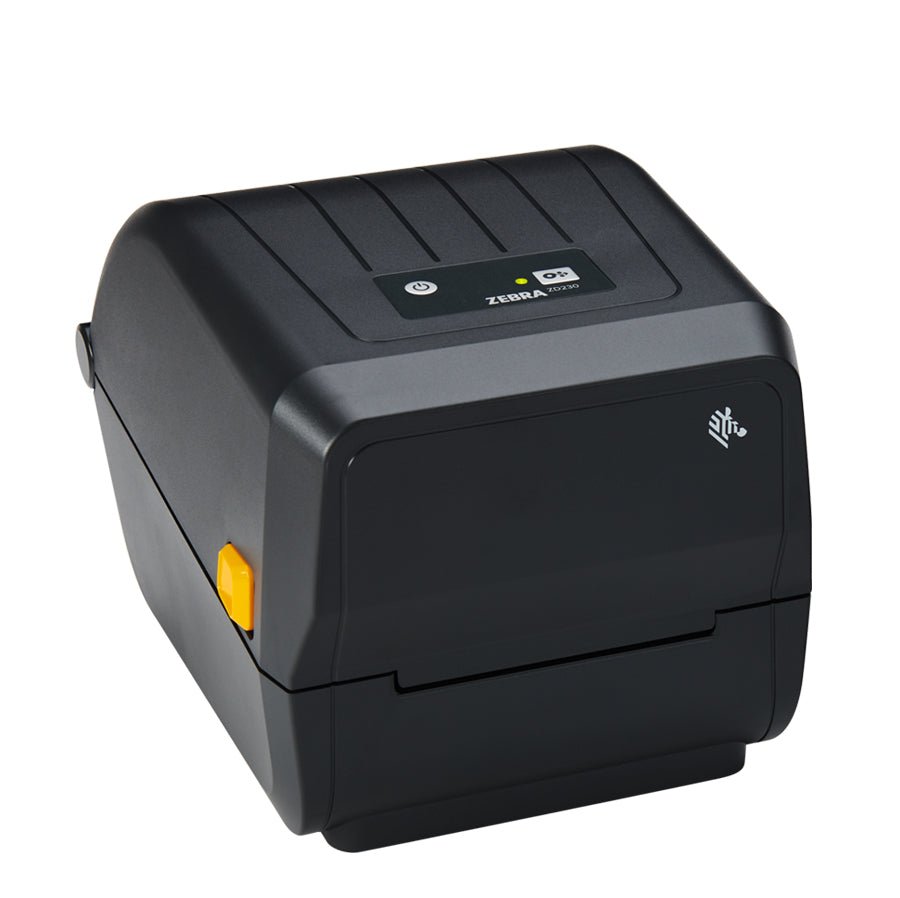

Zebra ZD230 Thermal Transfer Desktop Printer

Zebra ZD230 Thermal Transfer Desktop Printer (ZD23042-30PG00EZ) - 1 Year Local Warranty

Reliable Desktop Label Printing for Business Operations

The Zebra ZD230 Thermal Transfer Desktop Printer (ZD23042-30PG00EZ) is a cost-effective and dependable label printing solution designed for small businesses, retail stores, healthcare facilities, logistics operations, and office environments. Combining Zebra's trusted printing technology with ease of use, the ZD230 helps organizations streamline labeling tasks while maintaining professional print quality.

Thermal Transfer Technology for Long-Lasting Labels

Featuring thermal transfer printing technology, the Zebra ZD230 produces durable labels that resist fading, moisture, and environmental exposure. This makes it suitable for barcode labels, asset tags, product labels, shelf labels, inventory management, and identification applications where long-term readability is essential.

Compact Design for Space-Conscious Workspaces

The Zebra ZD230 is designed with a compact desktop footprint, making it easy to deploy in offices, retail counters, clinics, warehouses, and workstations with limited space. Its user-friendly operation and straightforward media loading process help reduce training requirements and improve productivity for everyday label printing tasks.

Versatile Labeling for Multiple Industries

Ideal for a wide range of applications, the Zebra ZD230 supports barcode printing, shipping labels, inventory tracking, product identification, healthcare labeling, and asset management. Businesses can improve operational efficiency, reduce labeling errors, and maintain accurate tracking throughout their workflows.

Technical Specifications

General
Model: ZD230
Part Number: ZD23042-30PG00EZ
Product Name: Zebra ZD230 Thermal Transfer Desktop Printer
Manufacturer: Zebra Technologies
Product Type: Desktop Barcode Label Printer
Printer Technology: Thermal Transfer Printing
Series: Zebra ZD200 Series
Deployment: Retail, Healthcare, Warehousing, Logistics, Manufacturing, Office Environments
Warranty: 2 Years Standard Manufacturer Warranty
Print Width: 4 Inches
Cutter: None
Connectivity: USB and Ethernet

Print Specifications
Print Technology: Thermal Transfer
Print Resolution: 203 dpi (8 dots/mm)
Maximum Print Width: 4.09 Inches (104 mm)
Maximum Print Speed: Up to 6 ips (152 mm/sec)
Maximum Print Length: 39 Inches (991 mm)
Print Method: Direct Thermal and Thermal Transfer Compatible
Barcode Printing: Supported
Text Printing: Supported
Graphic Printing: Supported

Media Specifications
Media Type:
• Roll-Fed Labels
• Fan-Fold Labels
• Continuous Labels
• Die-Cut Labels
• Tags
• Black Mark Media

Maximum Media Width: 4.4 Inches (112 mm)
Minimum Media Width: 0.59 Inches (15 mm)
Maximum Media Roll Diameter: 5 Inches (127 mm)
Media Core Diameter: 1 Inch and 1.5 Inch
Media Thickness: 0.003 Inch to 0.0075 Inch
Media Sensors: Fixed Reflective Sensor and Transmissive Sensor

Ribbon Specifications
Ribbon Type: Wax, Wax/Resin and Resin
Maximum Ribbon Length: 300 Meters
Ribbon Core Diameter: 0.5 Inch
Maximum Ribbon Width: 4.33 Inches (110 mm)
Ribbon Monitoring: Supported

Processor & Memory
Processor Type: 32-Bit RISC Processor
Standard Memory: 128 MB SDRAM
Flash Memory: 256 MB Flash
Performance Optimization: Fast Label Processing and Printing

Connectivity
USB 2.0 Port
10/100 Ethernet Port
Network Printing Support
Local Printing Support
Host Connectivity: PC and Workstation Compatible

Supported Printer Languages
ZPL II
EPL 2
XML Support
Line Mode Support

Barcode Symbologies

1D Barcodes:
• Code 11
• Code 39
• Code 93
• Code 128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• GS1 DataBar
• Industrial 2 of 5
• Interleaved 2 of 5
• Codabar

2D Barcodes:
• QR Code
• Data Matrix
• PDF417
• MaxiCode
• Aztec
• MicroPDF417

Media Handling
Tear-Off Mode
Continuous Mode
Black Mark Detection
Gap Detection
Label Calibration Support
Easy Media Loading Design

Operating Environment
Operating Temperature: 4.4°C to 41°C
Storage Temperature: -40°C to 60°C
Operating Humidity: 10% to 90% Non-Condensing
Storage Humidity: 5% to 95% Non-Condensing

Power Specifications
Power Supply Type: External Auto-Switching Power Adapter
Input Voltage: 100 – 240 VAC
Input Frequency: 50 – 60 Hz
ENERGY STAR Qualified: Supported
Power Efficiency: Optimized for Business Operations

Management & Software
Zebra Setup Utilities
ZebraDesigner Essentials
Printer Configuration Support
Firmware Update Support
Network Printer Management Support
Enterprise Deployment Ready

Design & Construction
Construction Type: Dual-Wall Frame Design
Color: Black
Form Factor: Desktop Label Printer
Media Loading: OpenACCESS™ Clamshell Design
Printhead Replacement: Tool-Free
Compact Footprint: Supported
Business-Class Durability: Supported

Physical Specifications
Height: 191 mm
Width: 197 mm
Depth: 267 mm
Weight: 2.5 kg
Form Factor: Desktop Thermal Transfer Printer

Package Contents
Zebra ZD230 Thermal Transfer Desktop Printer
Power Adapter and Power Cord
USB Interface Cable
Quick Start Guide
Documentation

Key Features
4-Inch Desktop Barcode Printer
203 dpi Print Resolution
Thermal Transfer Printing Technology
USB and Ethernet Connectivity
Up to 6 ips Print Speed
Supports 300-Meter Ribbons
128 MB SDRAM and 256 MB Flash Memory
ZPL and EPL Printer Language Support
Compact Desktop Design
Easy Media Loading Mechanism
Enterprise-Ready Deployment
Supports 1D and 2D Barcode Printing
Reliable Daily Label Printing Performance

Performance & Features
Designed for Light to Medium Duty Label Printing
Reliable Thermal Transfer Printing Output
Suitable for Shipping and Inventory Labels
Supports Asset Tracking Applications
Network-Ready for Shared Printing Environments
Cost-Effective Business Label Printing Solution
Easy Integration into Existing Zebra Environments
Optimized for Retail, Warehouse and Logistics Operations

Typical Use Cases
Shipping Label Printing
Inventory Management
Warehouse Operations
Retail Price Label Printing
Asset Tracking
Healthcare Patient Identification
Office Barcode Printing
Manufacturing Labels
Logistics and Distribution Centers
Product Identification Applications
Compliance Label Printing
General Business Labeling Requirements
