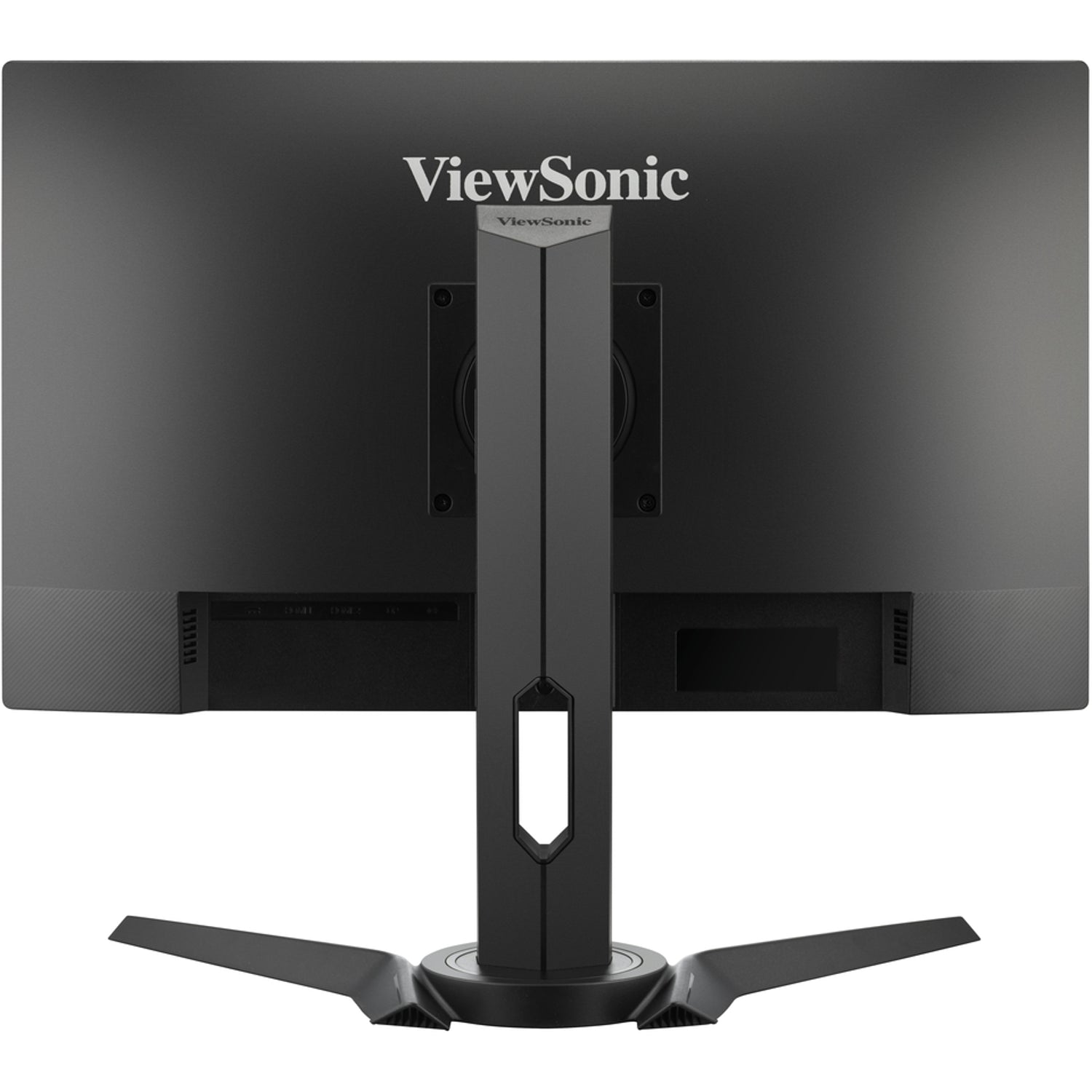

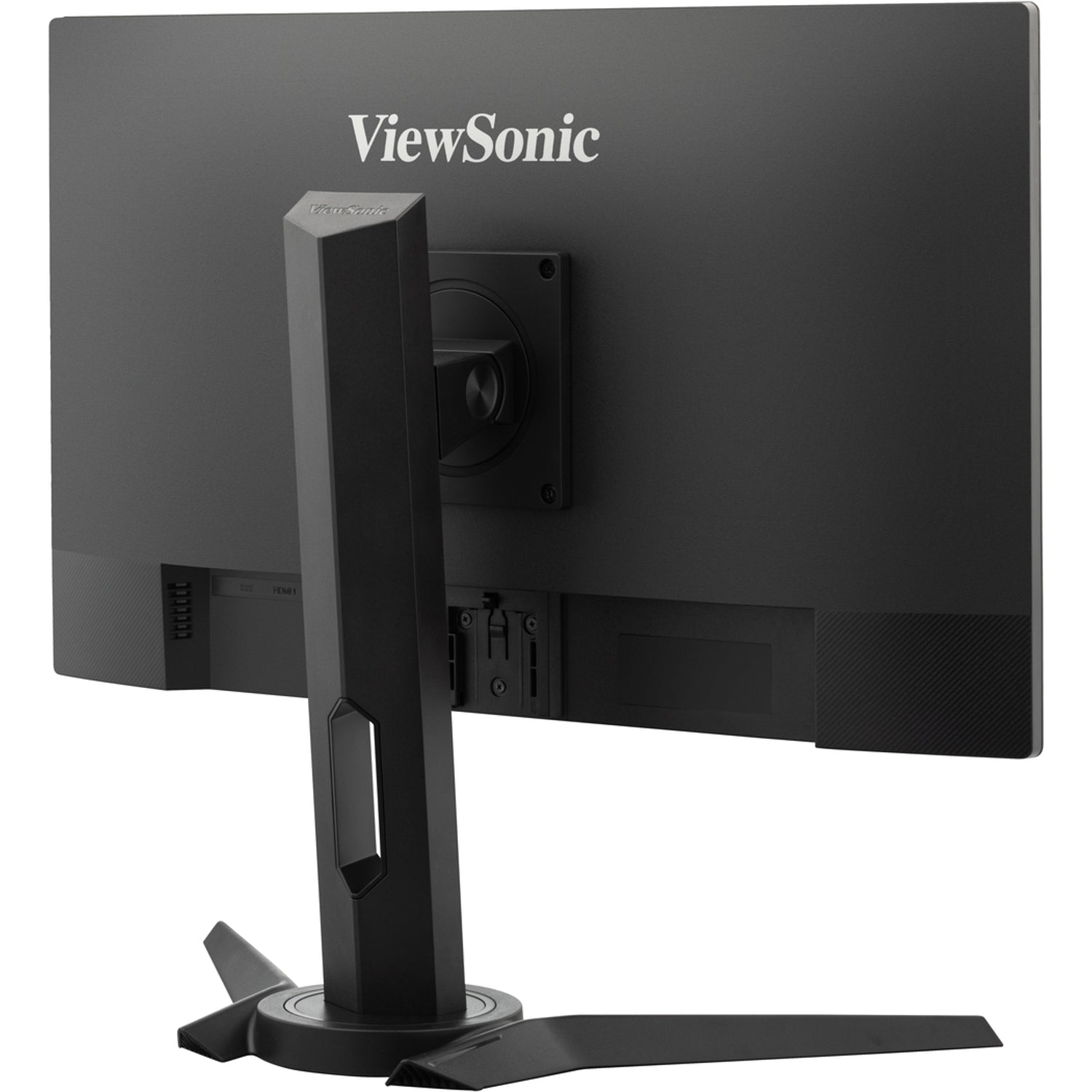

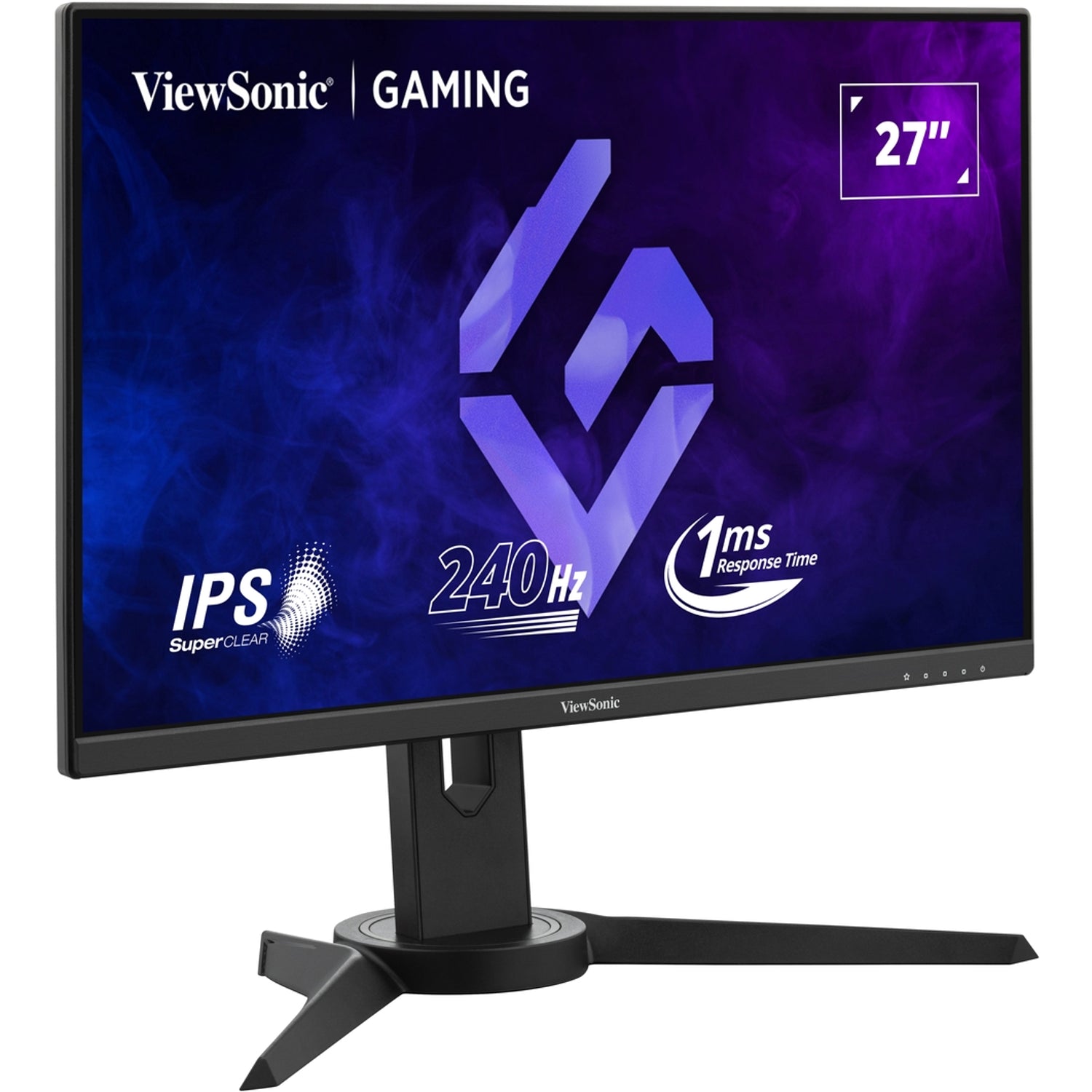

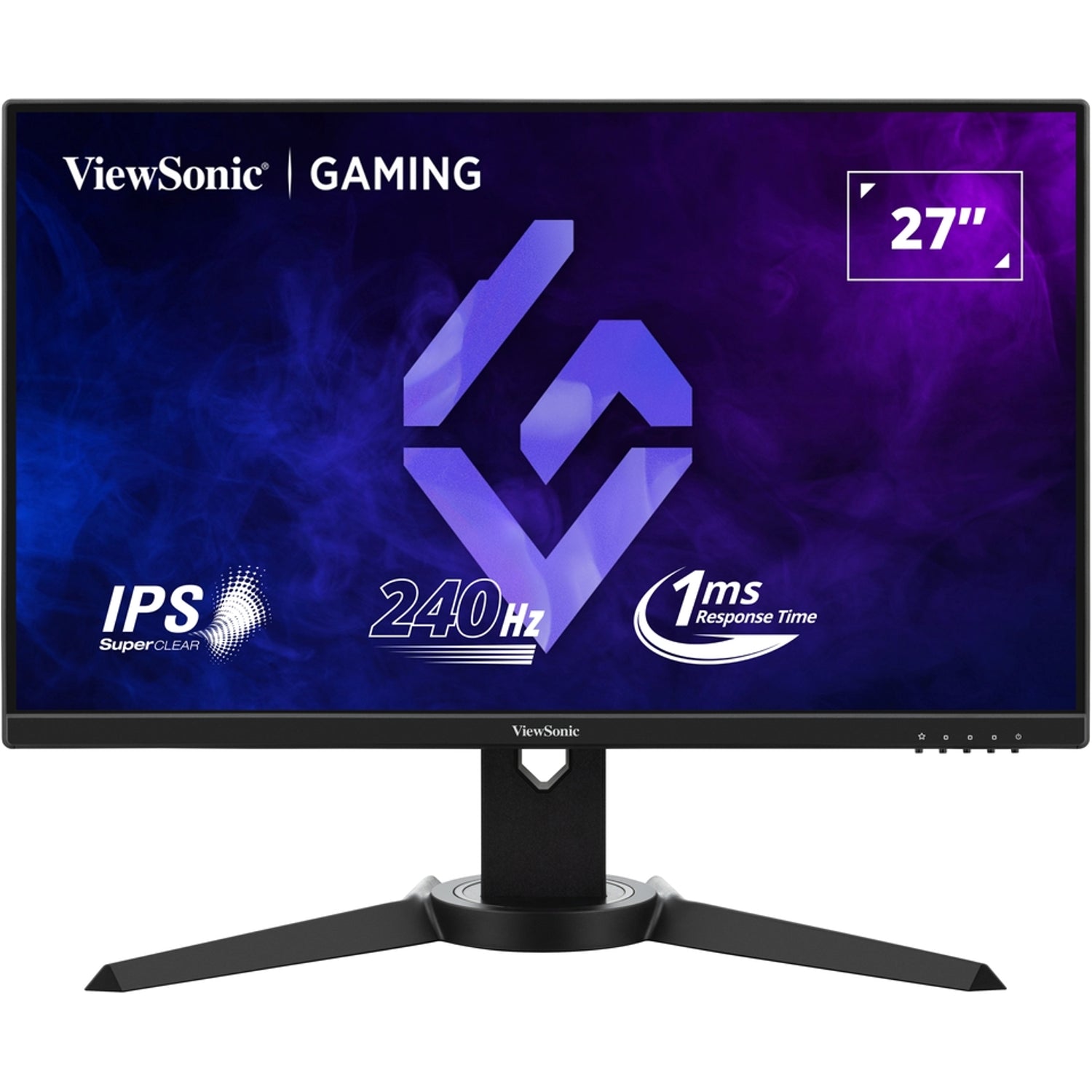

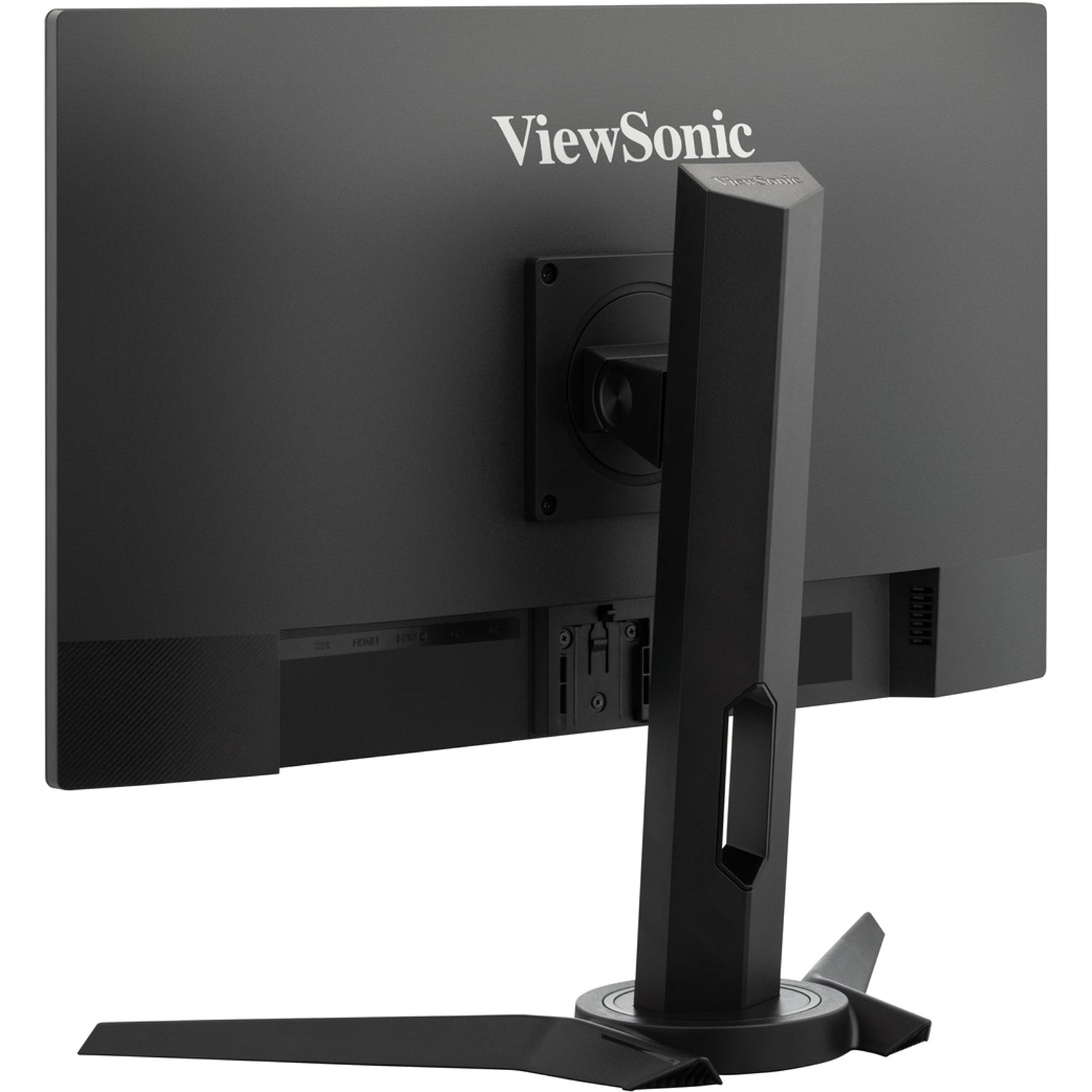

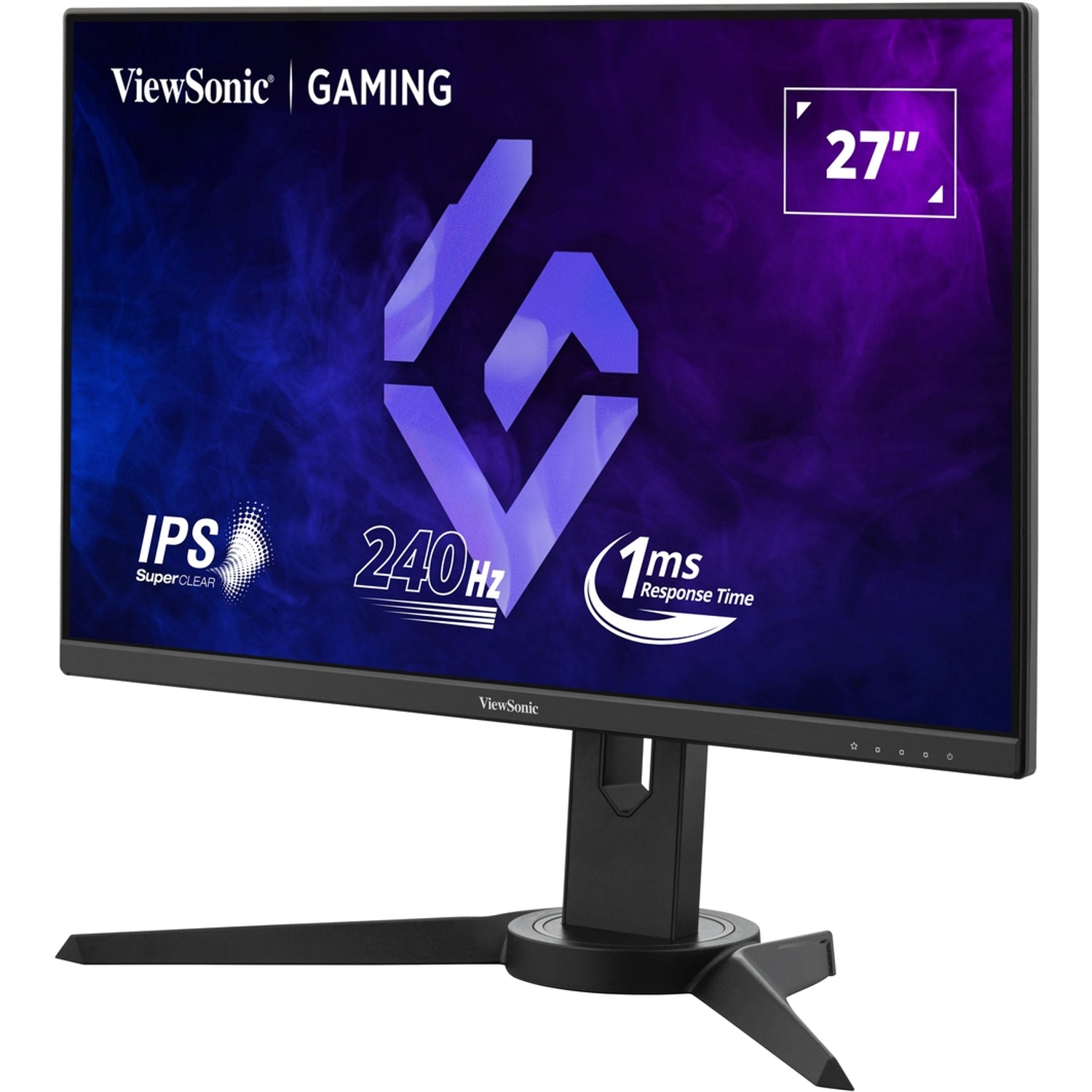

ViewSonic XG2709A 27" Full HD 240Hz IPS Gaming Monitor
PRODUCT DESCRIPTION
ViewSonic XG2709A 27" 240Hz Gaming Monitor - 3 Years Local Warranty
SuperClear IPS, Full HD
27" 1920 x 1080 IPS panel with 178° viewing angles and HDR10 support.
240 Hz, 1 ms MPRT
A 240 Hz refresh rate and 1 ms MPRT response time for fluid, sharp fast-paced gameplay.
AMD FreeSync & G-Sync Compatible
Variable refresh rate cuts screen tearing and stutter.
Fully Ergonomic, Eye ProTech
Height, tilt, swivel and pivot adjustment with flicker-free backlight and blue light filter.
Kitting out a gaming lounge, esports room or LAN centre? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic XG2709A Datasheet — Technical Specifications
General
| Product Name | ViewSonic XG2709A 27" 240Hz Gaming Monitor |
| Model | XG2709A |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Display Size | 27" |
| Panel Type | IPS |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 240 Hz |
| Response Time | 1 ms (MPRT) |
| Variable Refresh Rate | AMD FreeSync, G-Sync compatible |
| HDR | HDR10 |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | 1,000:1 (static); 80M:1 (dynamic) |
| Colours | 16.7 million (8-bit, 6-bit + FRC) |
| Colour Gamut | NTSC 72% size; sRGB 104% size (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.311 x 0.311 mm |
| Surface Treatment | Anti-glare, 3H hard coating |
| Backlight Life | 30,000 hours (min) |
| Eye Care | Flicker-free; software low blue light |
Connectivity
| HDMI | 2 x HDMI 1.4 |
| DisplayPort | 1 x DisplayPort 1.4 |
| Audio Out | 1 x 3.5 mm |
| Power In | DC socket (external adapter) |
Power
| Voltage | AC 100–240 V |
| Consumption | 30 W (typical); 34 W (max); 0.5 W standby |
| Eco Mode | 24 W (Conserve); 28 W (Optimized) |
Ergonomics & Physical
| Height Adjustment | 130 mm |
| Tilt | -5° / 22° |
| Swivel | 90° |
| Pivot | 90° / 90° |
| VESA Mount | 100 x 100 mm |
| Kensington Lock Slot | 1 |
| Dimensions with Stand (W x H x D) | 615 x 398.3–528.3 x 228.3 mm |
| Dimensions without Stand | 615 x 363.8 x 46 mm |
| Net Weight | 5.6 kg (3.7 kg without stand) |
| Gross Weight | 7.4 kg |
| Packaging | 677 x 494 x 168 mm |
| Operating Temperature | 0–40 °C |
Compatibility & Software Support
Computers
Windows 10/11 certified and macOS tested, up to 1920 x 1080.
Consoles
ViewSonic lists compatibility with PlayStation 5 and Xbox Series X|S over HDMI.
Graphics Cards
AMD FreeSync and NVIDIA G-Sync compatible variable refresh rate; a DisplayPort cable is supplied.
Mounting
100 x 100 mm VESA pattern for monitor arms and wall mounts.
Package Contents & ViewSonic XG Gaming Monitors Ordering Information
In the Box
XG2709A monitor, power cord, AC/DC adapter, DisplayPort cable (v1.2), quick start guide.
ViewSonic XG Gaming Monitors
| Model | Key feature |
| XG2409A | 24" FHD IPS 240 Hz, HDR10 |
| XG2709A (this listing) | 27" FHD IPS 240 Hz, HDR10 |
| XG271QG | 27" QHD IPS 240 Hz, NVIDIA G-Sync |
| XG2738-2K-OLED | 27" QHD QD-OLED 240 Hz, 0.03 ms |
| XG320Q | 32" QHD Quantum Dot IPS 175 Hz, HDR600 |
Datasheet & Downloads
| ViewSonic datasheet | XG2709A Datasheet |
| User guide | XG2709A User Guide (PDF, English) |
| Quick start guide | XG2709A Quick Start Guide (PDF) |
| ViewSonic product page | XG2709A on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XG2709A.
Frequently Asked Questions — ViewSonic XG2709A
What refresh rate and response time does it have?
240 Hz with a 1 ms MPRT response time.
Does it support FreeSync and G-Sync?
Yes. It supports AMD FreeSync and is G-Sync compatible.
Does it have built-in speakers?
No. It has a 3.5 mm audio output for headphones or external speakers.
Can I rotate it to portrait?
Yes. The stand offers 130 mm height, tilt, 90° swivel and 90° pivot adjustment.
What warranty do I get?
3 years on-site limited warranty on parts and labour. Supplied by SourceIT with a GST invoice.
