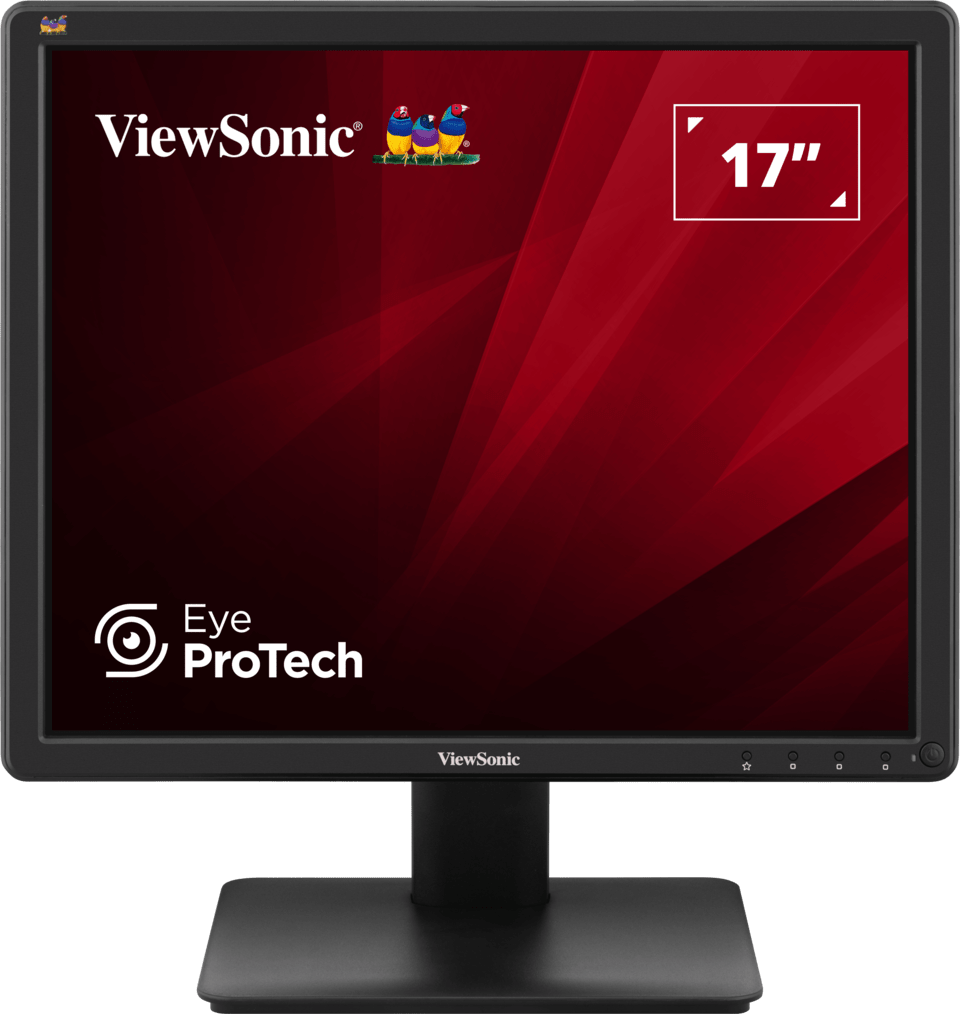

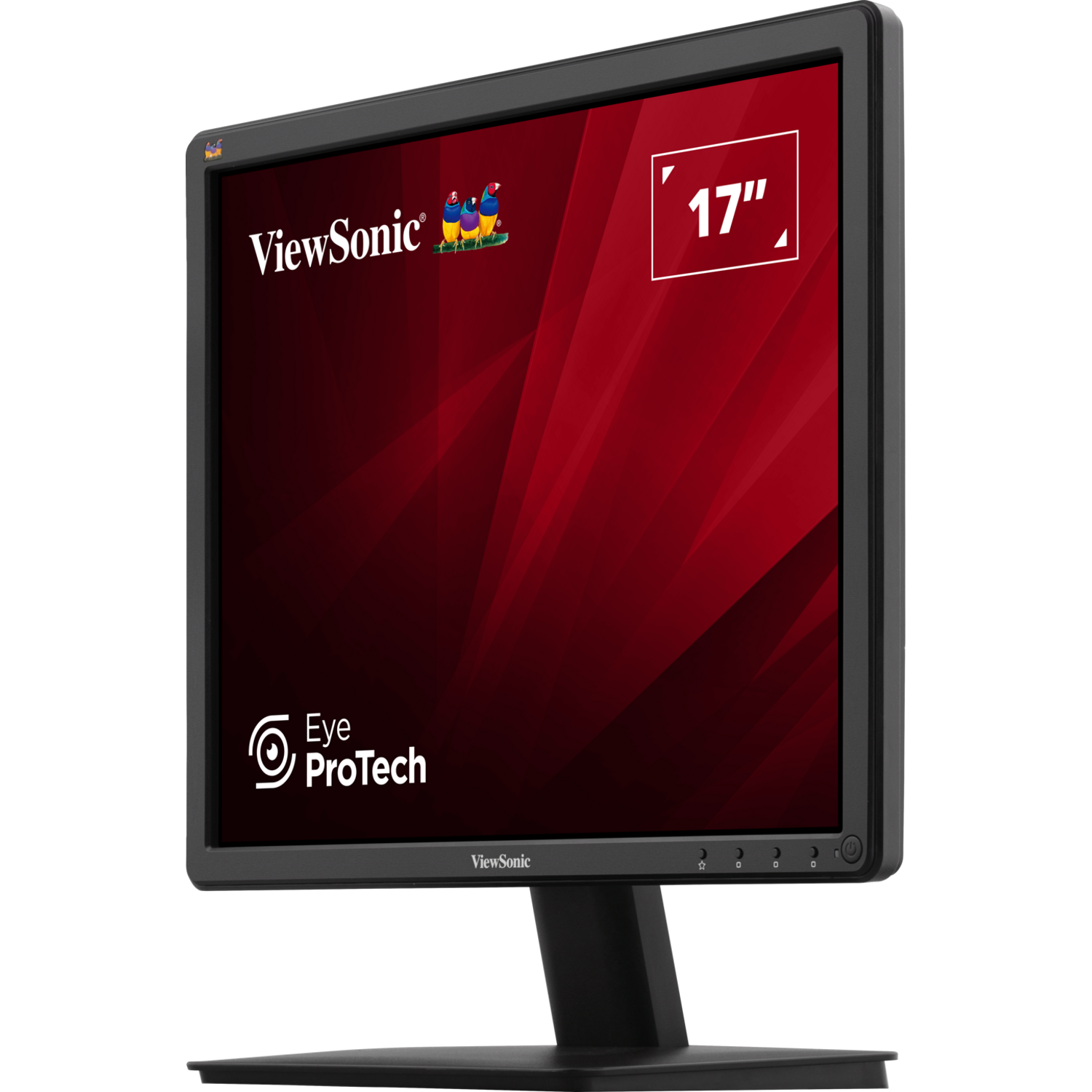

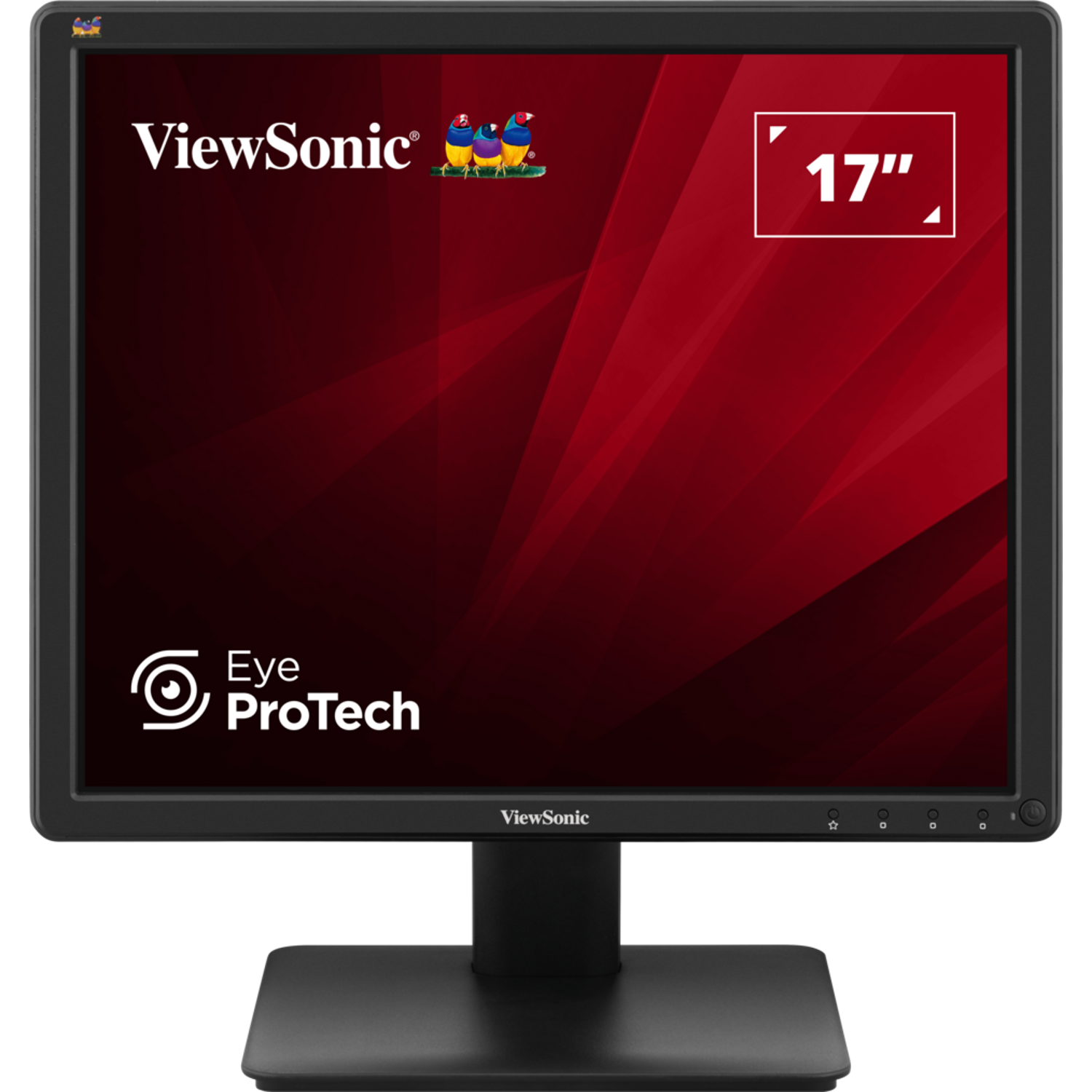

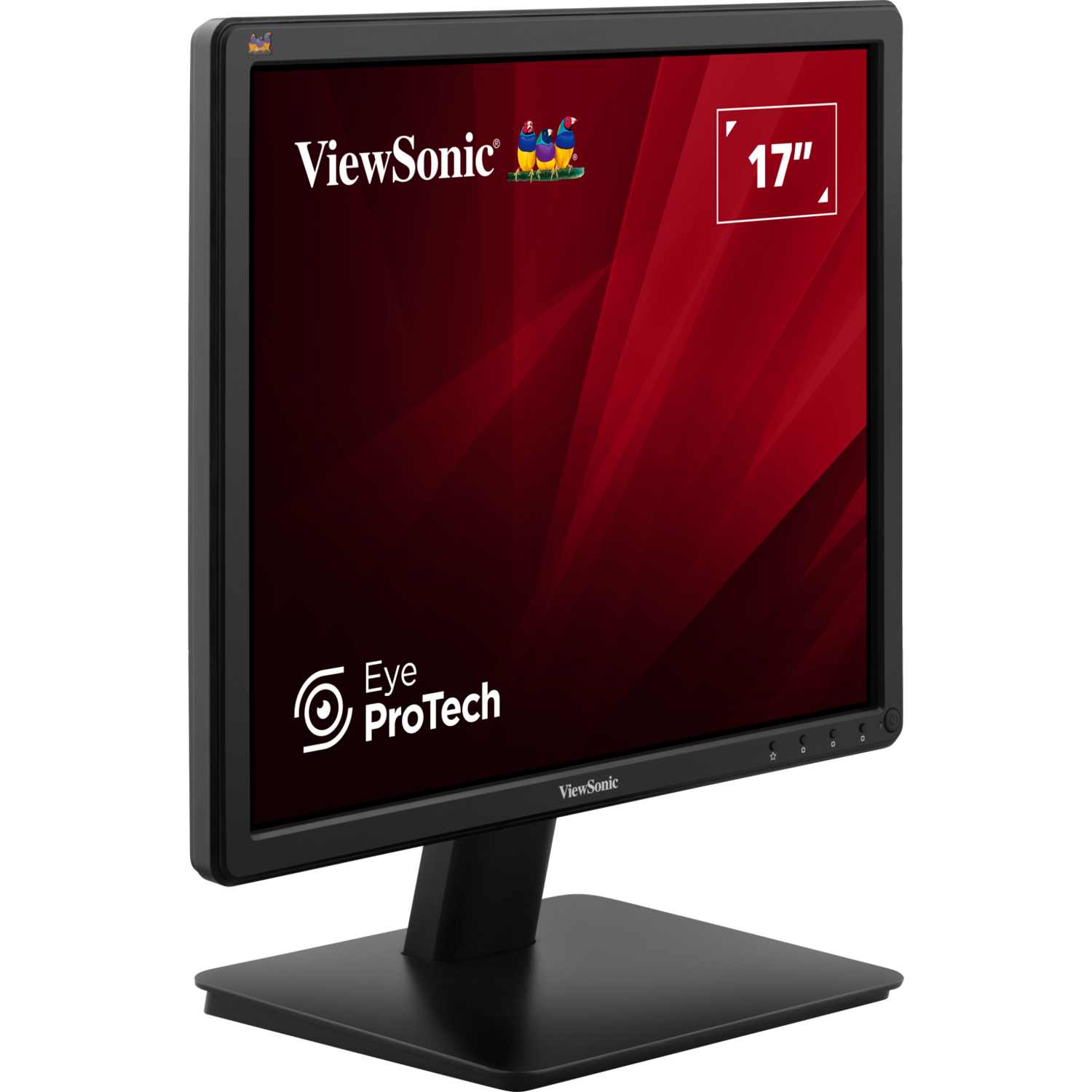

ViewSonic VA709 17" 5:4 SXGA Monitor with VGA & DVI
PRODUCT DESCRIPTION
ViewSonic VA709 17" 5:4 SXGA Home and Office Monitor - 3 Years Local Warranty
Made for Legacy and Business Applications
The ViewSonic VA709 keeps the classic 17" 5:4 format at 1280 x 1024 (SXGA), ideal for software, POS and industrial systems designed around square-ish screens.
VGA and DVI-D Inputs
Connect older PCs, thin clients and control systems through VGA or DVI-D without adapters.
Smooth 75 Hz with 5 ms Response
A 75 Hz refresh rate and 5 ms response time keep scrolling clear and fluid.
Compact, Tidy and Efficient

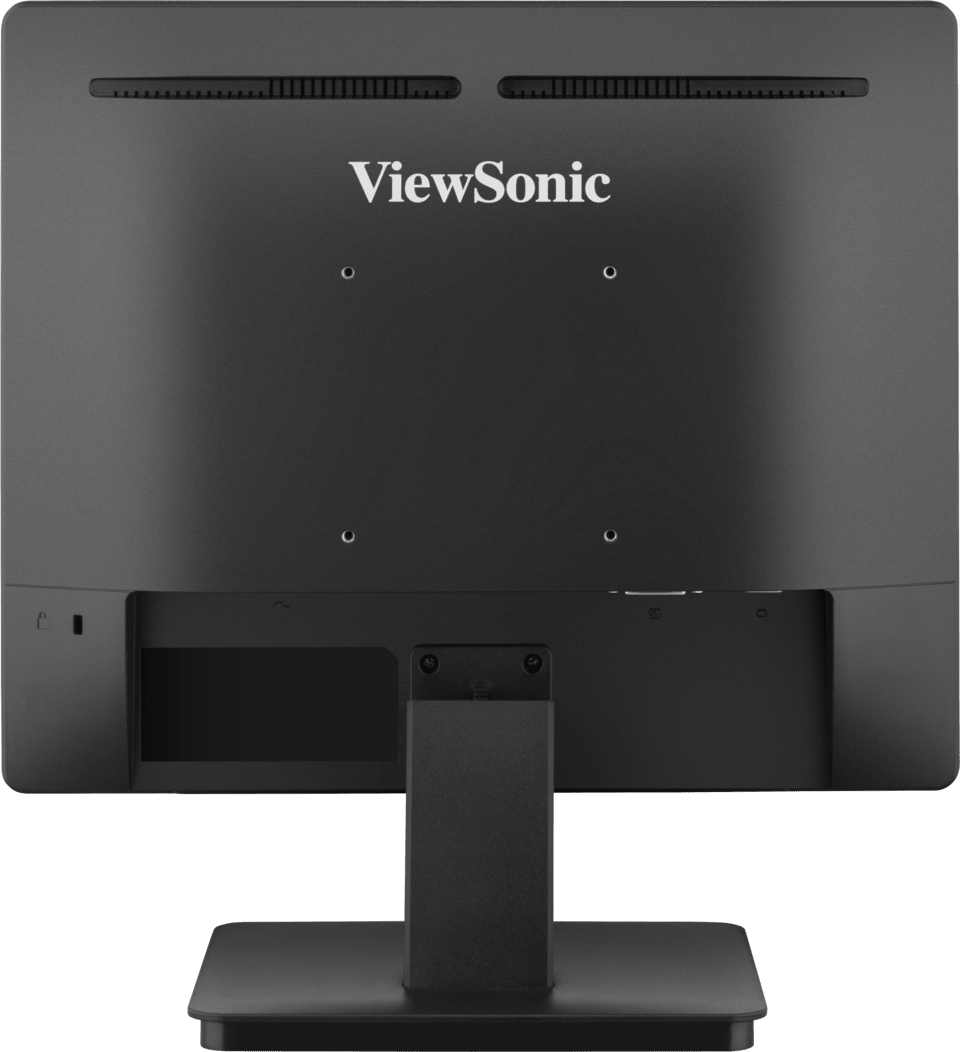

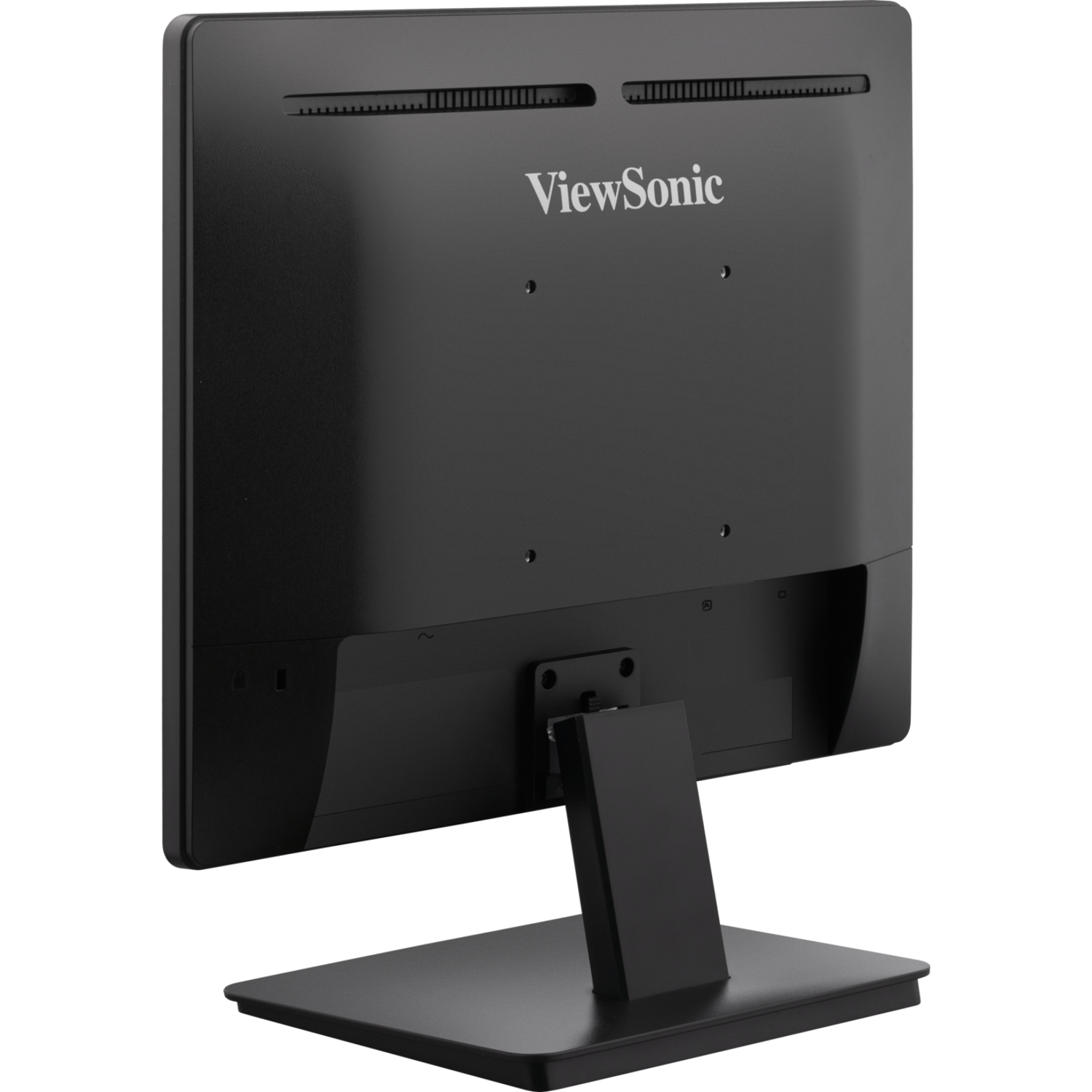

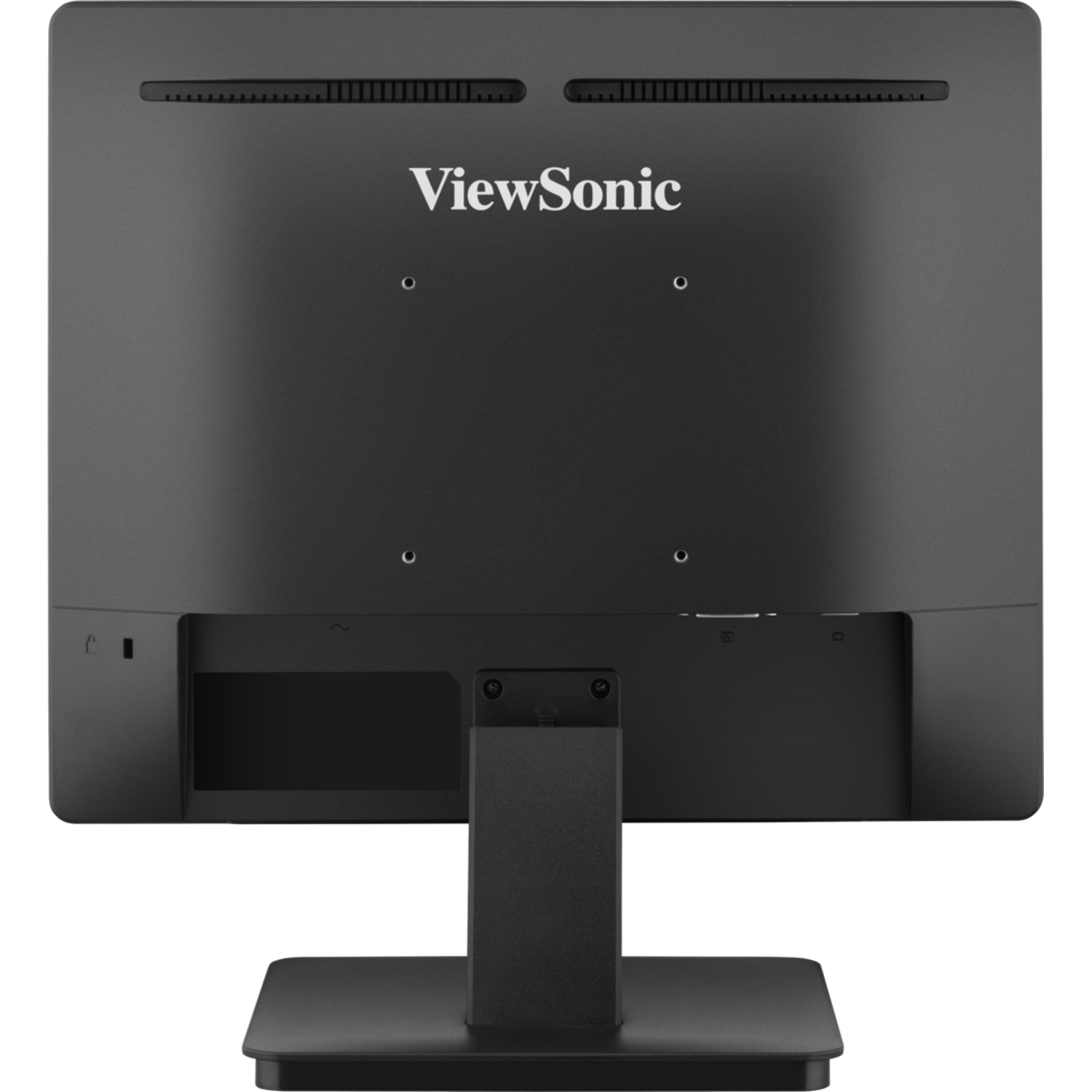

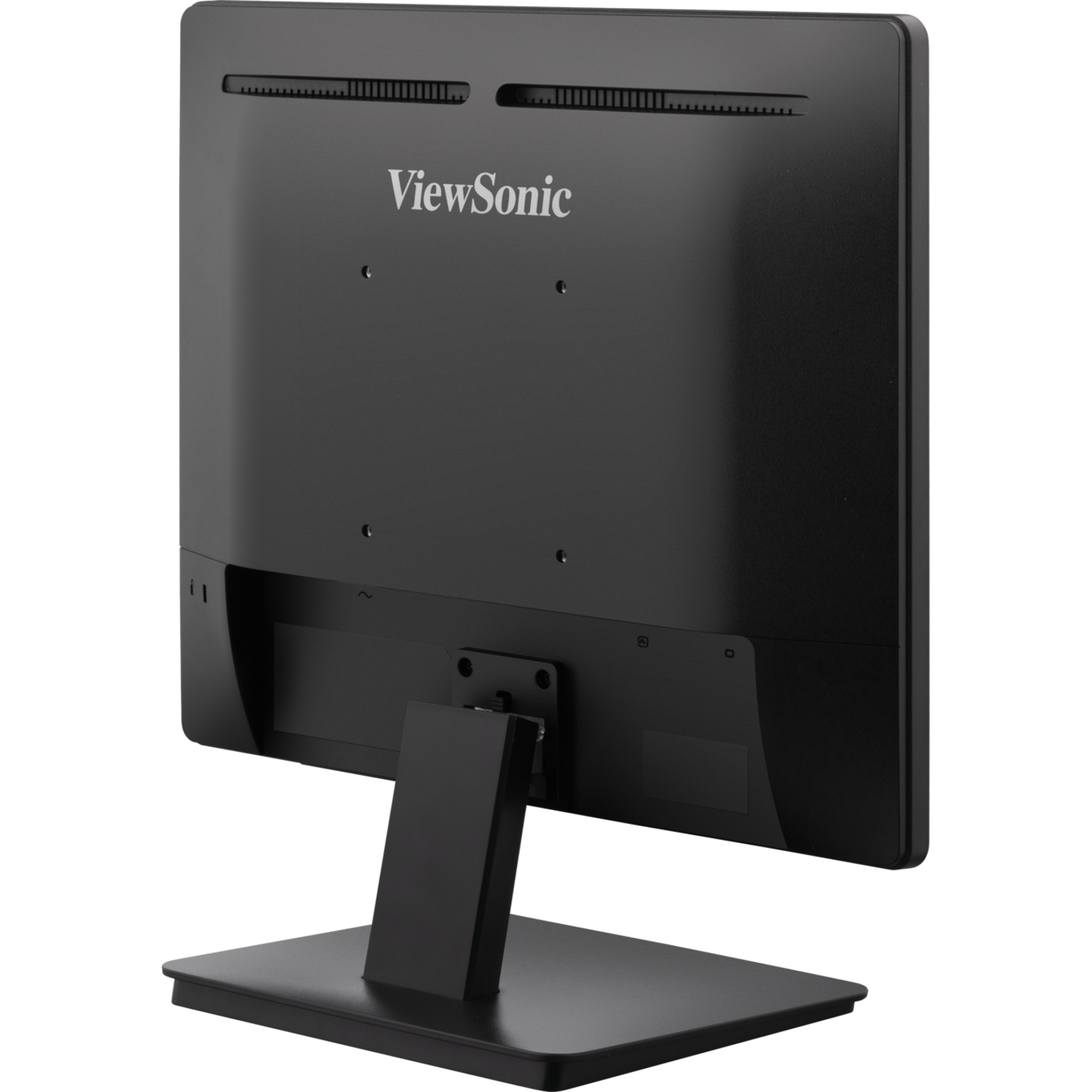

Internal power supply, VESA 100 mm mount, flicker-free backlight, blue light filter and Eco Mode.
Need monitors for a whole office, classroom or call centre? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic VA709 Datasheet — Technical Specifications
General
| Product Name | ViewSonic VA709 17" 5:4 SXGA Home and Office Monitor |
| Model | VA709 |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Screen Size | 17" |
| Panel Type | TN |
| Resolution | 1280 x 1024 (SXGA), 5:4 |
| Refresh Rate | 75 Hz |
| Response Time | 5 ms (typical Tr+Tf) |
| Brightness | 250 cd/m² (typ) |
| Contrast Ratio | 1,000:1 static (typ); 50M:1 dynamic |
| Colours | 16.7M, 8-bit (6-bit + Hi-FRC) |
| Colour Gamut | NTSC 72%, sRGB 103% (typ) |
| Viewing Angles | 170° H / 160° V |
| Pixel Size | 0.264 x 0.264 mm |
| Surface | Anti-glare, 3H hard coating |
| Flicker-Free / Low Blue Light | Yes / software solution |
| Backlight Life | 30,000 hours (min) |

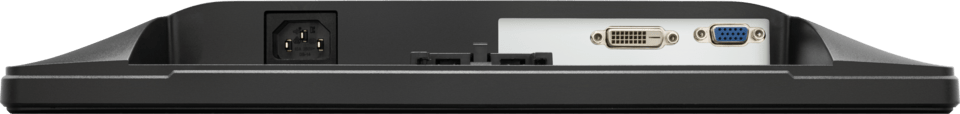

Connectivity
| VGA | 1 |
| DVI-D | 1 |
| Power In | 3-pin socket (IEC C14) |
| Kensington Lock Slot | 1 |
Power
| Voltage | AC 100–240 V |
| Consumption | 14 W typical; 16 W max; 0.5 W standby |
| Eco Mode | 10 W (conserve) / 12 W (optimised) |
| Power Supply | Internal |
Operating Conditions
| Temperature | 0–40 °C |
| Humidity (non-condensing) | 20%–90% |
Physical
| Dimensions with Stand (W x H x D) | 373.8 x 385.7 x 184.8 mm |
| Dimensions without Stand | 373.8 x 307.1 x 47 mm |
| Net Weight | 2.5 kg (2.1 kg without stand) |
| Packaging (W x H x D) | 446 x 382 x 138 mm |
| Gross Weight | 3.5 kg |
| Tilt | -5° / 20° |
| VESA | 100 x 100 mm |
Compatibility & Software Support
Devices
Works with Windows 10/11 (certified) and macOS (tested) desktops and laptops. Designed for PCs, thin clients, POS terminals and industrial controllers with VGA or DVI output. There is no HDMI input; use an HDMI-to-DVI cable for HDMI sources.
Typical Use
Point-of-sale, factory and warehouse terminals, security and control-room consoles, lab equipment and legacy business software that expects a 5:4 display.
Package Contents & ViewSonic VA Series Ordering Information
In the Box
VA709 monitor, 3-pin power cable (IEC C13), VGA cable, quick start guide.
ViewSonic VA Series Monitors
| Model | Key feature |
| VA1650 | 16" FHD IPS portable, USB-C |
| VA2025-H | 19.5" HD+ 1600 x 900 |
| VA220A-H | 22" FHD VA, 120 Hz |
| VA240A-H | 24" FHD IPS, 120 Hz |
| VA2432-MH | 24" FHD IPS, 100 Hz, speakers |
| VA24G1-H | 24" FHD IPS, 144 Hz |
| VA2708-2K-MHD | 27" QHD IPS, 100 Hz, speakers |
| VA2708-4K-MHD | 27" 4K UHD IPS, HDR10, speakers |
| VA270A-H | 27" FHD IPS, 120 Hz |
| VA2715-H | 27" FHD VA, 100 Hz |
| VA2932-MHD | 29" 21:9 WFHD IPS, HDR10, speakers |
| VA3208-4K-MHD | 32" 4K UHD VA, HDR10, speakers |
| VA3209-MH | 32" FHD IPS, 75 Hz, speakers |
| VA709 (this listing) | 17" 5:4 SXGA, VGA/DVI |
Datasheet & Downloads
| ViewSonic datasheet | VA709 Datasheet |
| User guide | VA709 User Guide (PDF, English) |
| ViewSonic product page | VA709 on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VA709.
Frequently Asked Questions — ViewSonic VA709
Does it have HDMI?
No. Inputs are VGA and DVI-D; HDMI sources can connect with an HDMI-to-DVI cable.
Why 5:4?
Many POS, industrial and legacy business applications are designed for 1280 x 1024; the VA709 shows them without stretching.
Does it need an external adapter?
No, the power supply is built in.
What warranty do I get?
3 years on-site limited warranty on parts and labour in Singapore. Supplied by SourceIT with a GST invoice.
