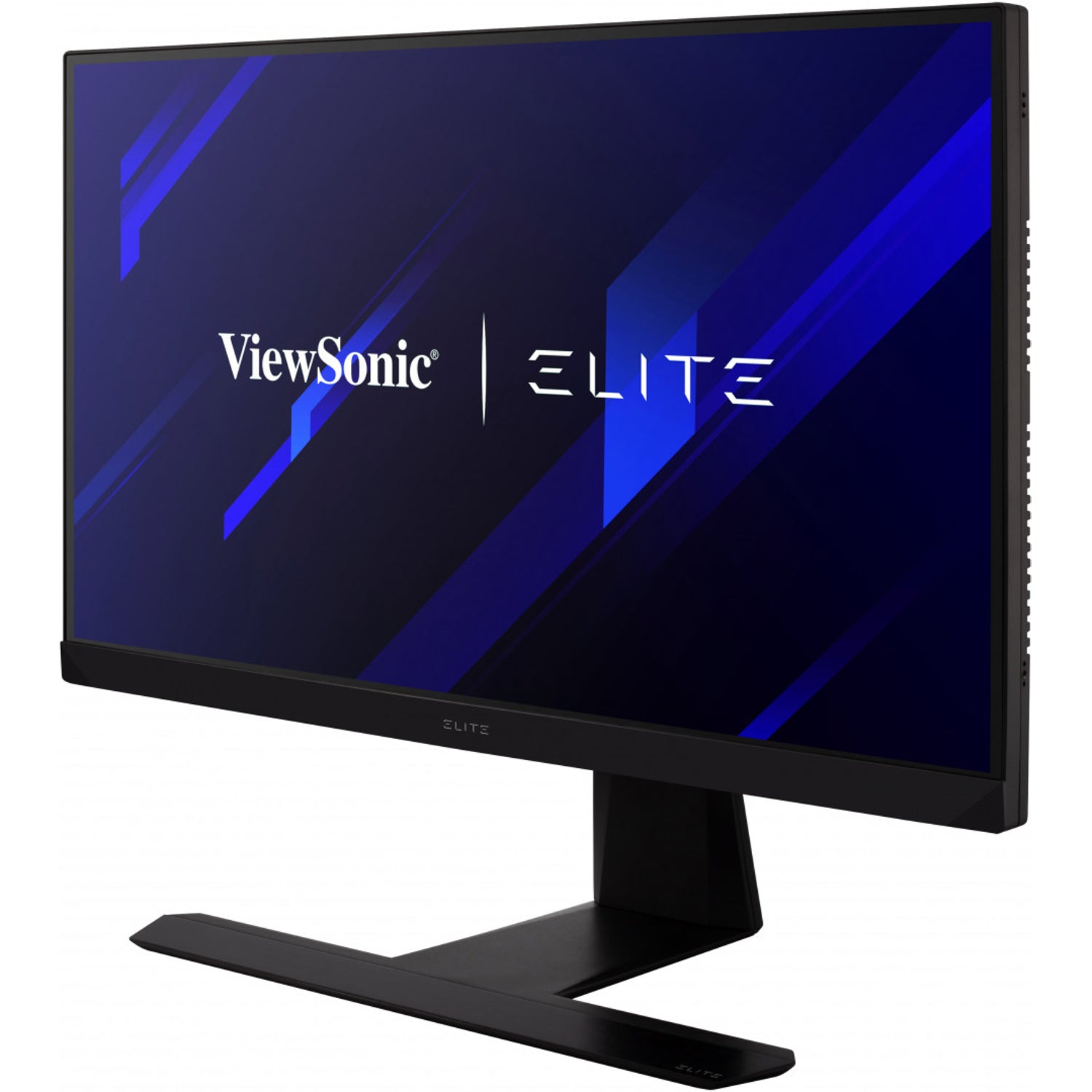

ViewSonic ELITE XG320Q 32" QHD 175Hz Quantum Dot Gaming Monitor
PRODUCT DESCRIPTION
ViewSonic ELITE XG320Q 32" 175Hz Quantum Dot QHD Gaming Monitor - 3 Years Local Warranty
32" Quantum Dot IPS, QHD
2560 x 1440 IPS with quantum dot colour: 99% Adobe RGB and 99% sRGB coverage.
175 Hz Overclock, 0.5 ms MPRT
165 Hz by default, overclockable to 175 Hz, with PureXP motion blur reduction.
VESA DisplayHDR 600
400 nits typical brightness with HDR600 highlights; NVIDIA G-Sync compatible.
ELITE Design

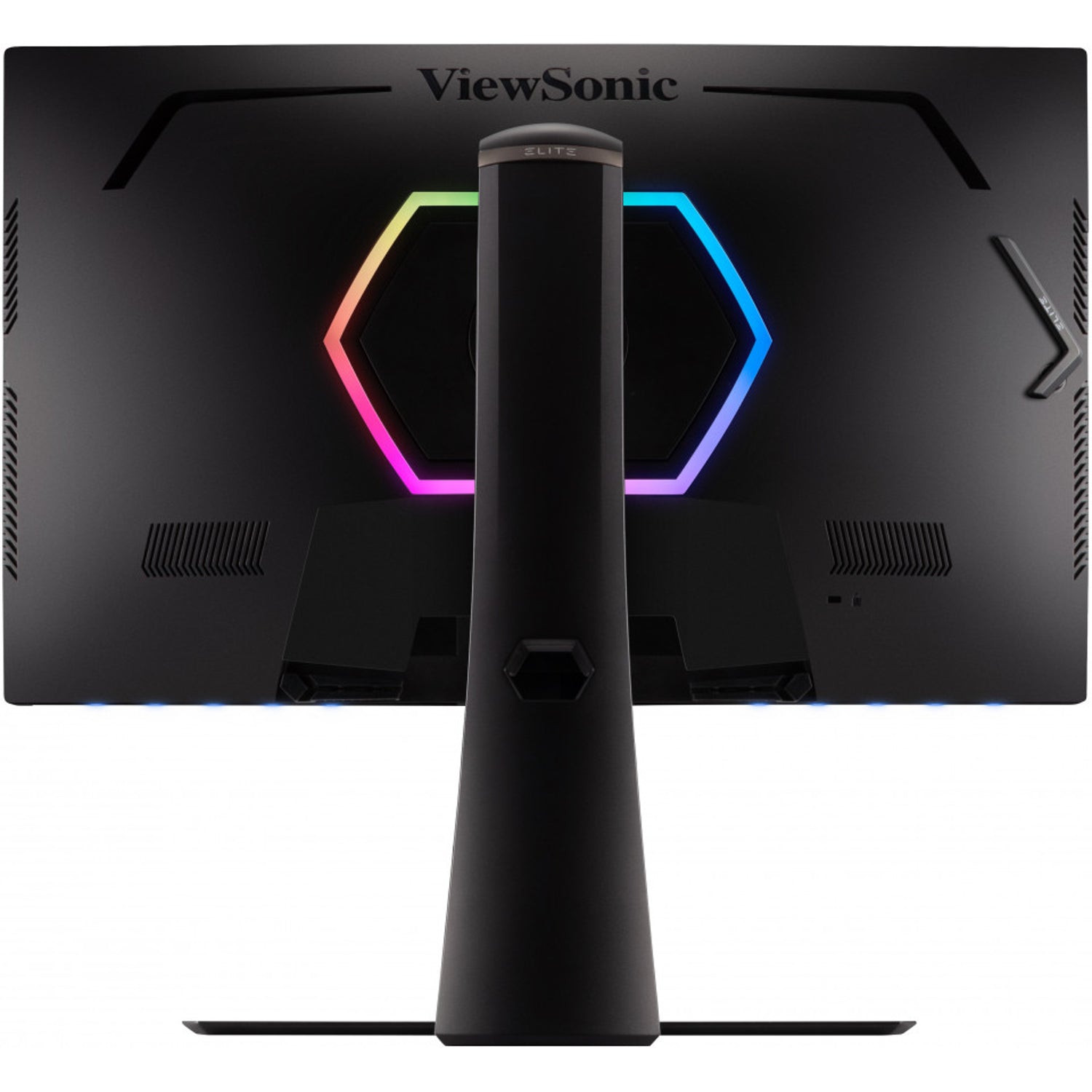

Ambient RGB lighting, metal base, mouse anchor, headphone hook, USB 3.2 hub and 2 x 5 W speakers.
Kitting out a gaming lounge, esports room or LAN centre? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic XG320Q Datasheet — Technical Specifications
General
| Product Name | ViewSonic ELITE XG320Q 32" 175Hz Quantum Dot QHD Gaming Monitor |
| Model | XG320Q |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour |
Display
| Display Size | 32" |
| Panel Type | IPS (quantum dot) |
| Resolution | 2560 x 1440 (QHD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 175 Hz overclocked (165 Hz default) via DisplayPort; up to 144 Hz via HDMI |
| Response Time | 0.5 ms (MPRT) |
| Variable Refresh Rate | G-Sync compatible |
| HDR | VESA DisplayHDR 600 |
| Brightness | 400 cd/m² (typ) |
| Contrast Ratio | 1,000:1 (static); 120M:1 (dynamic) |
| Colours | 16.7 million (8-bit true) |
| Colour Gamut | Adobe RGB 99% coverage; NTSC 112% size; sRGB 158% size / 99% coverage (typ) |
| Viewing Angles | 178° H / 178° V |
| Pixel Size | 0.277 x 0.277 mm |
| Surface Treatment | Anti-glare, 3H hard coating |
| Backlight Life | 30,000 hours (min) |
| Eye Care | Flicker-free; software low blue light |
Connectivity
| HDMI | 2 x HDMI 2.0 (HDCP 2.2) |
| DisplayPort | 1 x DisplayPort 1.4 |
| USB | 3 x USB 3.2 Type-A downstream; 1 x USB 3.2 Type-B upstream; 1 x Micro USB |
| Audio Out | 1 x 3.5 mm |
| Speakers | 2 x 5 W |
| Power In | 3-pin IEC C14 socket (internal power supply) |
Power
| Voltage | AC 100–240 V |
| Consumption | 43.8 W (typical); 67.2 W (max); 0.5 W standby |
| Eco Mode | 38.3 W (Conserve); 40.7 W (Optimized) |
Ergonomics & Physical
| Height Adjustment | 120 mm |
| Tilt | -5° / 20° |
| Swivel | 50° |
| VESA Mount | 100 x 100 mm |
| Kensington Lock Slot | 1 |
| Dimensions with Stand (W x H x D) | 726 x 482.3–602.3 x 265 mm |
| Dimensions without Stand | 726 x 432 x 87 mm |
| Net Weight | 10.1 kg (7.1 kg without stand) |
| Gross Weight | 14.6 kg |
| Packaging | 850 x 527 x 327 mm |
| Operating Temperature | 0–40 °C |
Compatibility & Software Support
Computers
Windows 10/11 certified and macOS tested, up to 2560 x 1440.
Graphics Cards
NVIDIA G-Sync compatible; use DisplayPort 1.4 for 165/175 Hz (HDMI 2.0 runs up to 144 Hz).
Software
ViewSonic Elite Display Controller (Windows) for RGB lighting and display settings, downloadable from viewsonicglobal.com.
Mounting
100 x 100 mm VESA pattern for monitor arms and wall mounts.
Package Contents & ViewSonic XG Gaming Monitors Ordering Information
In the Box
XG320Q monitor, power cord, DisplayPort cable (v1.4), USB A/B cable (v3.2), quick start guide.
ViewSonic XG Gaming Monitors
| Model | Key feature |
| XG2409A | 24" FHD IPS 240 Hz, HDR10 |
| XG2709A | 27" FHD IPS 240 Hz, HDR10 |
| XG271QG | 27" QHD IPS 240 Hz, NVIDIA G-Sync |
| XG2738-2K-OLED | 27" QHD QD-OLED 240 Hz, 0.03 ms |
| XG320Q (this listing) | 32" QHD Quantum Dot IPS 175 Hz, HDR600 |
Datasheet & Downloads
| ViewSonic datasheet | XG320Q Datasheet |
| User guide | XG320Q User Guide (PDF, English) |
| Quick start guide | XG320Q Quick Start Guide (PDF) |
| ViewSonic product page | XG320Q on viewsonic.com |
| Software | ViewSonic Elite Display Controller (Windows) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting XG320Q.
Frequently Asked Questions — ViewSonic XG320Q
Is 175 Hz the default?
No. It runs at 165 Hz by default and can be overclocked to 175 Hz over DisplayPort.
Does it support HDR?
Yes. It is VESA DisplayHDR 600 certified.
Does it have speakers and USB ports?
Yes. Two 5 W speakers and a three-port USB 3.2 hub.
Does the stand pivot to portrait?
ViewSonic lists height, tilt and swivel adjustment only; for portrait use a 100 x 100 mm VESA arm.
What warranty do I get?
3 years on-site limited warranty on parts and labour. Supplied by SourceIT with a GST invoice.
