Vertiv Liebert GXE3 10kVA/10kW 230V Online Double-Conversion 5U Rack/Tower UPS with LCD
PRODUCT DESCRIPTION
Vertiv Liebert GXE3 10000 VA / 10000 W 230V Online UPS (GXE3-10KIRT5UXL, 01203156) - 2 Years Local Warranty
Online Double Conversion at Unity Power Factor

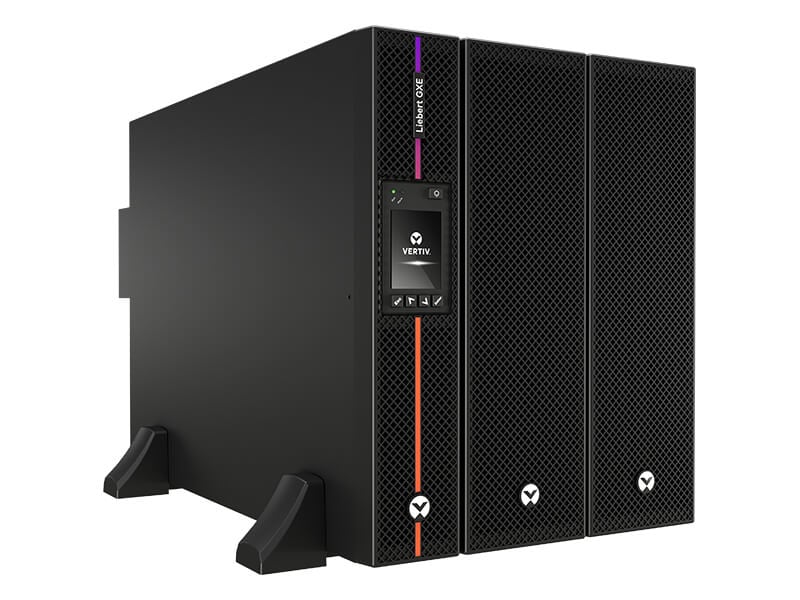

The Vertiv™ Liebert® GXE GXE3-10KIRT5UXL is a 10000 VA / 10000 W online double-conversion UPS in a 5U rack/tower chassis. With an output power factor of 1.0 the watt rating equals the VA rating, so the full 10kW is available to your load. The inverter delivers a regulated pure sine wave at all times, with no transfer break on mains failure.
Vertiv rates efficiency at up to 94% in online mode and up to 98% in ECO mode, and the UPS accepts a wide 40–70 Hz input frequency without power derating — useful behind generators.
Built for the Edge and Small Server Rooms

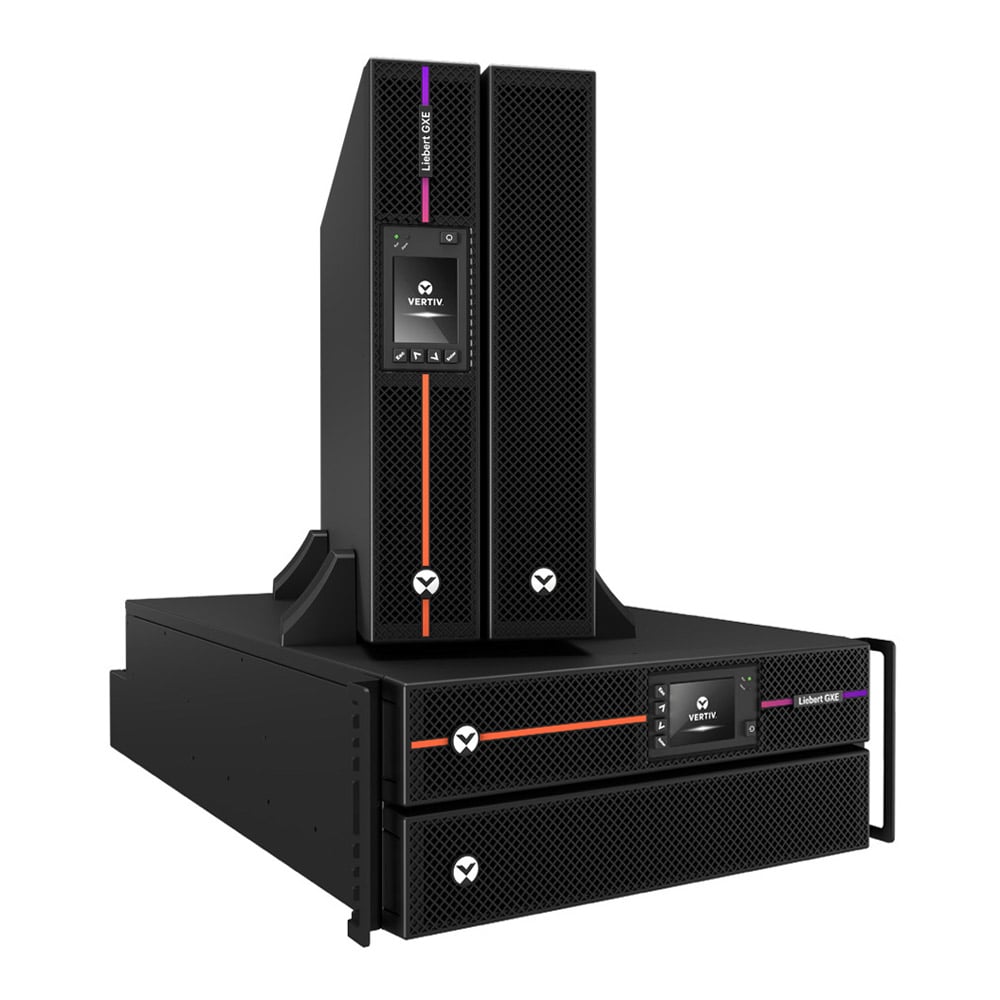

Vertiv designed the GXE 6–10 kVA as an essential online UPS for edge computing, server rooms and branch IT. It installs as a tower or in a 19-inch rack (an adjustable 4-post rack mounting kit is included), and the full-colour graphic LCD uses gravity sensing to rotate its display to match the orientation.
Input and output are hardwired to L-N-G terminals, so installation is done by an electrician; the unit has a 70 A input circuit breaker and a maintenance port on the rear panel.
Runtime You Can Extend
Vertiv publishes 3.5 min at full load and 9 min at half load on the internal VRLA batteries. One GXE3-EBC240VRT3U external battery cabinet extends that to 10 min and 26 min, and up to four cabinets can be connected. Internal batteries recharge to 90% in about 3 hours and are hot-swappable and user-replaceable.
Remote Management
USB is standard, with RS232 and remote EPO ports on the rear panel and an IntelliSlot bay for optional Vertiv IS-UNITY network management cards for web/SNMP monitoring and BMS integration.
Supplied in Singapore by SourceIT
SourceIT supplies the GXE3-10KIRT5UXL with a GST invoice and local support, and can arrange installation by a licensed electrician for the hardwired connections. Vertiv’s standard warranty for the Liebert GXE in South-East Asia is 2 years on electronics and batteries, and the Singapore distributor price book lists it as 2 Years Next Business Day. Email sales@sourceit.com.sg with your load and runtime target.
Vertiv Liebert GXE3-10KIRT5UXL Datasheet — Technical Specifications
General
| Model | GXE3-10KIRT5UXL |
| Vertiv Part Number | 01203156 |
| Series | Vertiv Liebert GXE (GXE3) 6–10 kVA, 230 V |
| Topology | Online double conversion |
| Form Factor | 5U rack/tower convertible; adjustable 4-post rack mounting kit included |
| Display | Full-colour graphic LCD with gravity-sensing orientation |
| Manufacturer Warranty | 2 years, electronics and batteries (Vertiv SEAP standard warranty; distributor: 2 Years Next Business Day) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, with GST invoice |
Input
| Voltage Range | 100–288 VAC (with derating); 176–288 VAC at 100% load |
| Frequency Range | 40–70 Hz, auto-sensing, without power derating |
| Input Connection | Hardwired terminals (L-N-G) |
| Input Circuit Breaker | 70 A |
Output
| Rating | 10000 VA / 10000 W (output power factor 1.0) |
| Output Voltage | 220 / 230 (default) / 240 VAC |
| Waveform | Pure sine wave |
| Output Connection | Hardwired terminals (L-N-G) |
| Efficiency | Up to 94% online mode; up to 98% ECO mode |
| Overload (AC mode) | 105–125% for 5 min; 125–150% for 1 min; >150% for 200 ms |
Battery & Runtime (Vertiv published)
| Battery Type | Valve-regulated, non-spillable, lead acid; hot-swappable, user-replaceable |
| Internal Battery, 100% Load | 3.5 min |
| Internal Battery, 50% Load | 9 min |
| With 1 External Battery Cabinet, 100% Load | 10 min |
| With 1 External Battery Cabinet, 50% Load | 26 min |
| Recharge Time | 3 hours to 90% (internal batteries) |
| External Battery Cabinet | GXE3-EBC240VRT3U (up to 4); 430 x 645 x 130 mm, 66.9 kg each |
Communications
| Ports | USB, RS232, remote EPO, maintenance port |
| Network Card | IntelliSlot bay for optional IS-UNITY-SNMP / IS-UNITY-DP |
Physical & Environmental
| Unit Dimensions (W x D x H) | 430 x 700 x 217 mm (5U) |
| Unit Weight | 80 kg |
| Shipping Dimensions | 600 x 800 x 530 mm |
| Shipping Weight | 102 kg |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20 to 70 °C (without batteries) |
| Relative Humidity | 5–95%, non-condensing |
| Operating Altitude | Up to 2,000 m without derating |
| Audible Noise | <58 dBA (line mode) |
| Airflow Clearance | 100 mm front and rear |
Compliance
| Agency | CE, CB Report, EAC, UKCA, Morocco, RCM |
| Safety | IEC/EN 62040-1 |
Compatibility & Software Support
What It Is Suited To
Server racks, storage arrays, network cores and edge computing cabinets drawing up to 10kW. Leave headroom for growth and inrush when sizing.
Electrical Installation
Input and output are hardwired (L-N-G terminals) with a 70 A input breaker, so the UPS needs a dedicated supply circuit and an output distribution (for example a rack PDU) installed by a licensed electrician. SourceIT can quote Vertiv Geist rack PDUs and installation.
Monitoring and Shutdown
USB and RS232 support local shutdown software. For web/SNMP monitoring add an IS-UNITY-SNMP card, or IS-UNITY-DP (03020728) for Modbus/BACnet and environmental sensors.
Package Contents & GXE3 Ordering Information
In the Box
GXE3 UPS with internal batteries, adjustable 4-post rack mounting kit (the distributor price book lists this model as “Rail Kit Bundled”), USB cable and user documentation.
Vertiv Liebert GXE3 230 V — Ordering Information
| Model | Rating | Form factor / output | Vertiv part |
| GXE3-1000IRT2UXL | 1000 VA / 900 W | 2U rack/tower; 8 x IEC C13 | 01203734 |
| GXE3-1500IRT2UXL | 1500 VA / 1350 W | 2U rack/tower; 8 x IEC C13 | not stocked online — ask us |
| GXE3-2000IRT2UXL | 2000 VA / 1800 W | 2U rack/tower; 8 x IEC C13 | 01203736 |
| GXE3-3000IRT2UXL | 3000 VA / 2700 W | 2U rack/tower; 8 x IEC C13 + 1 x IEC C19 | 01203737 |
| GXE3-6000IRT4UXL | 6000 VA / 6000 W | 4U rack/tower; Hardwired terminals (L-N-G) | 01203155 |
| GXE3-10KIRT5UXL (this listing) | 10000 VA / 10000 W | 5U rack/tower; Hardwired terminals (L-N-G) | 01203156 |
Matching GXE3 external battery cabinets (quoted on request, not listed online): GXE3-EBC24VRT2U (1 kVA), GXE3-EBC36VRT2U (1.5 kVA), GXE3-EBC48VRT2U (2 kVA), GXE3-EBC72VRT2U (3 kVA), GXE3-EBC192VRT2U (6 kVA), GXE3-EBC240VRT3U (10 kVA). Up to 4 cabinets per UPS.
Matching Accessories
| External battery cabinet | GXE3-EBC240VRT3U |
| Network card | IS-UNITY-SNMP or IS-UNITY-DP (03020728) |
Datasheet & Downloads
| Vertiv brochure (Asia) | Liebert GXE 6–10 kVA Brochure — Asia (PDF) |
| Vertiv submittal drawing | GXE3-10KIRT5UXL Submittal / Outline Drawing (PDF) |
| Vertiv warranty | Vertiv 2-Year Limited Standard Warranty — 600 VA–10 kVA, SEAP (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GXE3-10KIRT5UXL.
Frequently Asked Questions — Vertiv Liebert GXE3-10KIRT5UXL
Is this a true online UPS?
Yes. It is online double conversion with unity output power factor, so you get the full 10000 W and zero transfer time to battery.
Does it have sockets on the back?
No. Input and output are hardwired to terminal blocks. Plan for an electrician and an output PDU; we can quote both.
How long will it run on battery?
Vertiv publishes 3.5 min at full load and 9 min at half load internally, or 10 min and 26 min with one GXE3-EBC240VRT3U cabinet. Up to four cabinets can be added.
Can it go in a rack?
Yes. It is 5U rack/tower convertible and Vertiv includes an adjustable 4-post rack mounting kit. Note the 80 kg weight — mount it low in the rack.
Does it support SNMP?
Yes, with an optional IS-UNITY card in the IntelliSlot bay.
What warranty do I get?
2 years from Vertiv on electronics and batteries under its South-East Asia standard warranty, supplied by SourceIT with a GST invoice. Extended warranty and on-site service can be quoted.
