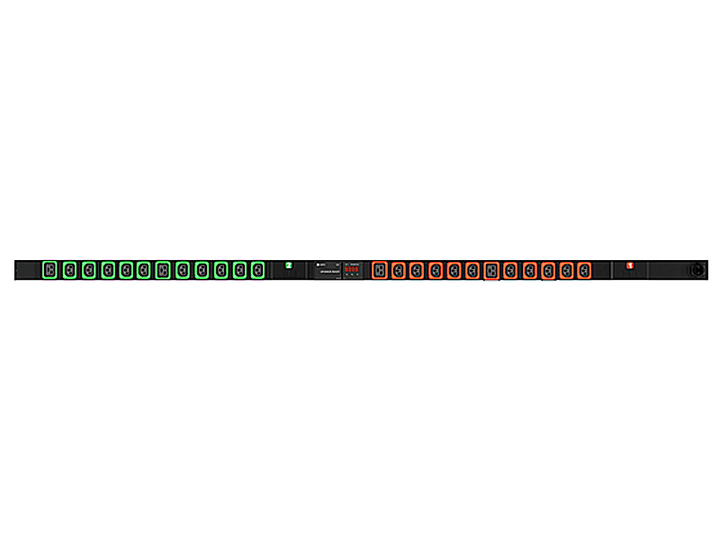

Vertiv Geist Monitored Upgradeable Rack PDU 32A 230V 7.3kW Vertical 0U, 20x Locking C13 + 4x Locking C19
PRODUCT DESCRIPTION
Vertiv Geist Monitored Rack PDU 32A 230V 7.3kW Vertical 0U, 20x Locking C13 + 4x Locking C19 (CI30000L, 14240241) - 3 Years Local Warranty
Remote Power Visibility for Every Rack
The Vertiv™ Geist™ CI30000L (14240241) is a Monitored (unit level) rack PDU rated 32A at 230V (7.3kW). Vertiv’s Monitored rPDUs “provide power usage remotely with access to the rPDU current, voltage, real power, apparent power, power factor and kilowatt hours”, with breaker-level current monitoring so you can see how close each circuit is to its limit.
Its hot-swappable monitoring device can be upgraded in the field to leverage new technologies without replacing the PDU.
Locking Outlets That Keep Cords Where They Belong
Outlets: 20 x locking C13 + 4 x locking C19. The U-Lock locking receptacles accept standard IEC C14 and C20 power cords and hold them in place, protecting against accidental disconnection when cables are moved during rack work. Circuits are colour-coded orange/green by breaker, so load can be balanced visibly across the two 16A branches.
Space-Saving 0U Vertical Installation
The vertical 0U chassis mounts in the rear channel of the rack, leaving every U free for IT equipment. Vertiv specifies toolless mounting on 1560 mm and 1645 mm centres. The 3 m input cord ends in an IEC 60309 32A 2P+E (IP44) plug for a dedicated 32A single-phase commando socket, the common rack feed in Singapore data centres.
Network Management and Environmental Sensing
Dual 10/100 Mbps Ethernet ports support fault-tolerant daisy chaining with RSTP, which Vertiv says ensures data is still reported when a break occurs in the chain. The PDU speaks SNMP v1/v2c/v3, HTTPS, SSH, LDAP, RADIUS and TACACS+, exports CSV/JSON datalogs and offers a JSON API. One RJ sensor jack supports up to 16 optional Vertiv temperature, humidity, airflow and leak sensors.
Supplied in Singapore by SourceIT
SourceIT supplies the Vertiv Geist CI30000L (14240241) with a GST invoice and local support. Vertiv’s rack PDU warranty is 3 years, extended to 5 years when the unit is registered with Vertiv within 120 days of purchase — we can help you register. Need a quote for a full row or help matching plugs to your building supply? Email sales@sourceit.com.sg.
Vertiv Geist CI30000L Datasheet — Technical Specifications
General
| Model | CI30000L |
| Vertiv Part Number | 14240241 |
| Category | Monitored, Unit Level EC |
| Vertiv Description | CI30000L – rPDU, Monitored Unit Level EC, 32A, 230V, 7.3kW, vertical, (20) locking IEC C13, (4) locking IEC C19, 3m power cord with 2P+E (IP44), black powder coat |
| Upgradeable | Hot-swappable monitoring device, upgradeable in the field |
| Form Factor | 0U, vertical |
| Chassis | Black powder coat |
| Manufacturer Warranty | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years (Vertiv) |
| Local Warranty (Singapore) | 3 years standard; 5 years if the PDU is registered with Vertiv within 120 days of purchase. Supplied by SourceIT with GST invoice |
Input
| Rating | 32A, 230V, 7.3kW, 50/60Hz |
| Plug | IEC 60309 2P+E, 32A, 250V, splash-proof IP44 |
| Power Cord | 3 m, 4 mm², bottom-front entry |
| Over-Current Protection | (2) 16A single-pole magnetic breakers |
Outlets
| Locking (U-Lock) IEC C13 | 20 — 10 per breaker, orange/green circuits, 10A max per outlet |
| Locking (U-Lock) IEC C19 | 4 — 2 per breaker, orange/green circuits, 16A max per outlet |
| Total | 24 |
Monitoring & Network
| Monitoring | Input power monitoring with breaker-level current monitoring |
| Accuracy | ANSI C12.1 and IEC 62053-21, 1% accuracy class; circuit/breaker monitoring independently verified at 2% |
| Display | Scrolling / rotatable digital display |
| Network | Dual 10/100 Mbps Ethernet |
| Protocols | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+ |
| Data Access Formats | CSV datalog, JSON API, JSON datalog |
| Serial / USB | RS232 via RJ45; USB supported |
| Remote Sensors | 1 RJ connection jack, supports up to 16 optional Vertiv sensors |
Physical & Environmental
| Dimensions (H x W x D) | 1683 x 51 x 51 mm |
| Mounting | Toolless, 1560 mm and 1645 mm centre-to-centre |
| Maximum Operating Temperature | 60 °C / 140 °F |
| Certifications | CE, EN55032 & EN55024, IEC60950-1, RoHS, China RoHS |
Compatibility & Software Support
Power Supply
Needs a 32A single-phase 230V supply terminated in an IEC 60309 2P+E (blue) socket. Ask your facility or electrician to confirm the circuit breaker upstream is rated for 32A continuous. Load across all outlets must not exceed 7.3kW.
Equipment Cords
C13 outlets take equipment cords with a C14 plug end; C19 outlets take C20 plug ends. Devices with a standard Singapore BS 1363 plug need an IEC C14-terminated cord instead. The U-Lock outlets work with standard IEC cords — no special locking cords required.
Software & DCIM
Monitor from a web browser (HTTP/HTTPS) or any SNMP v1/v2c/v3 NMS; authenticate against LDAP, RADIUS or TACACS+; pull data via JSON API or CSV/JSON datalogs; send alerts via SMTP and Syslog. Daisy chaining over RSTP keeps the chain reporting through a single break.
Sensors
One RJ sensor jack supports up to 16 optional Vertiv environmental sensors (temperature, humidity/dew point, airflow, water leak and similar), ordered separately.
Package Contents & Vertiv Geist rPDU Ordering Information
In the Box
Vertiv Geist rack PDU with 3 m attached input cord and vertical mounting hardware. Confirm accessories with us before ordering if they matter to your installation.
Vertiv Geist 230V Single-Phase Rack PDU Range at SourceIT
| Model / Part | Type | Rating | Outlets |
| F0126849 | Basic (1U horizontal) | 16A 230V 3.6kW | 8 x IEC C13 + 2 x IEC C19 |
| F0126851 | Basic, locking outlets (vertical 0U) | 16A 230V 3.6kW | 20 x locking C13 + 4 x locking C19 |
| C1650L (14240246) | Basic, breakered, locking outlets (vertical 0U) | 32A 230V 7.3kW | 20 x locking C13 + 4 x locking C19 |
| F0127977 | Basic, breakered (vertical 0U) | 32A 230V 7.3kW | 20 x C13 + 6 x C19 |
| CI10038L (14240231) | Metered, upgradeable (vertical 0U) | 32A 230V 7.3kW | 20 x locking C13 + 4 x locking C19 |
| CI30000L (14240241) — this listing | Monitored unit level, upgradeable (vertical 0U) | 32A 230V 7.3kW | 20 x locking C13 + 4 x locking C19 |
| CP8853 (14240242) | Monitored unit level, 42 outlets (vertical 0U) | 32A 230V 7.3kW | 36 x C13 + 6 x C19 |
| CP8953 (14240342) | Switched, per-outlet control (vertical 0U) | 32A 230V 7.3kW | 20 x locking C13 + 4 x locking C19 |
Datasheet & Downloads
| Vertiv product summary | Vertiv Geist rPDU CI30000L (14240241) Product Summary (PDF) |
| Vertiv brochure | Vertiv Geist Rack PDU Brochure — Asia (PDF) |
| Vertiv installer/user guide | Vertiv Geist Upgradeable rPDU Installer/User Guide (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 14240241.
Frequently Asked Questions — Vertiv Geist CI30000L
What warranty does it carry?
Vertiv’s rack PDU warranty is 3 years, or 5 years if you register the PDU with Vertiv within 120 days of purchase. SourceIT supplies it with a GST invoice and supports your warranty claim with Vertiv.
What socket do I need?
A 32A single-phase IEC 60309 2P+E socket (blue commando). The PDU delivers up to 7.3kW, split across two 16A breakered circuits.
Can I switch outlets off remotely?
No — Monitored PDUs report power data but do not switch outlets. For remote on/off/reboot per outlet choose the CP8953 Switched model.
Does it support SNMP?
Yes: SNMP v1, v2c and v3, plus HTTPS web access, SSH, and a JSON API.
Do I need special locking cords?
No. The U-Lock outlets grip standard IEC C14 and C20 plug ends.
