TP-Link Deco X50-5G 5G AX3000 Whole Home Mesh WiFi 6 Gateway (1-Pack)
PRODUCT DESCRIPTION
TP-Link 5G AX3000 Whole Home Mesh WiFi 6 Gateway, 1-Pack (Deco X50-5G) - 3 Years Local Warranty

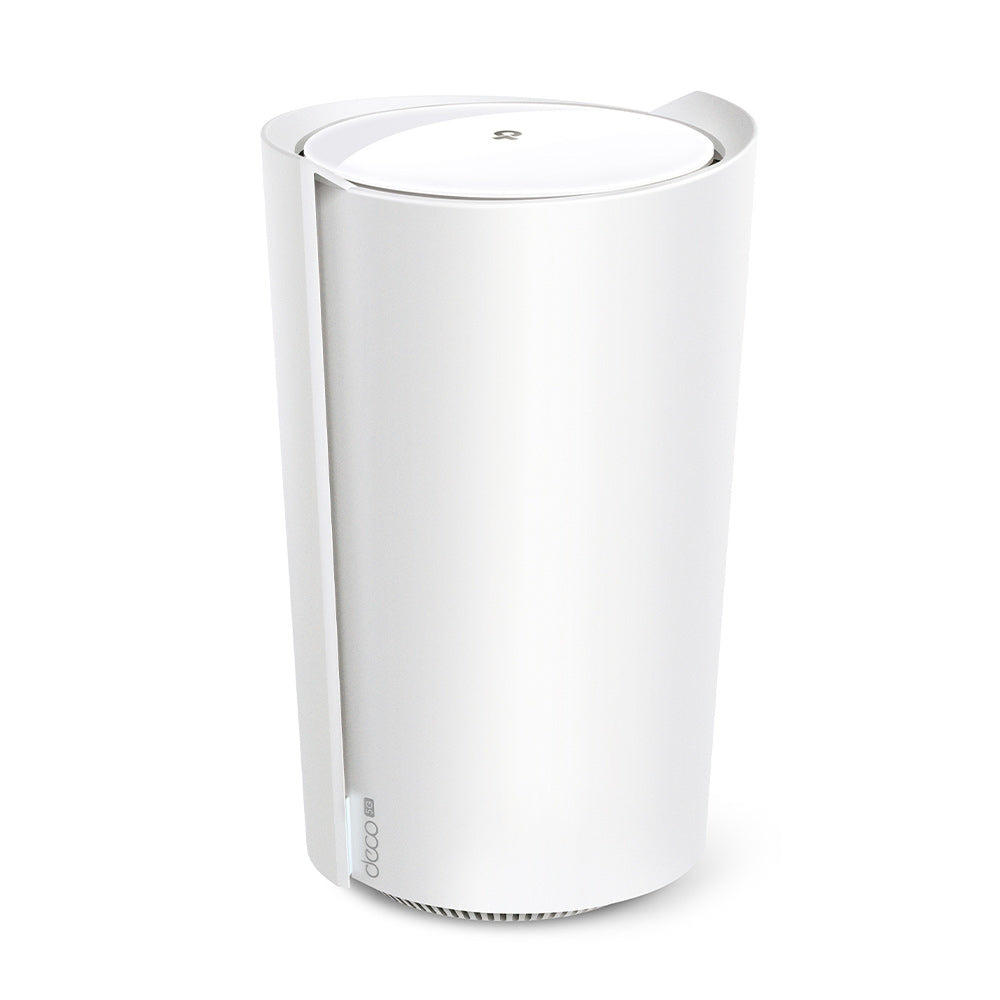

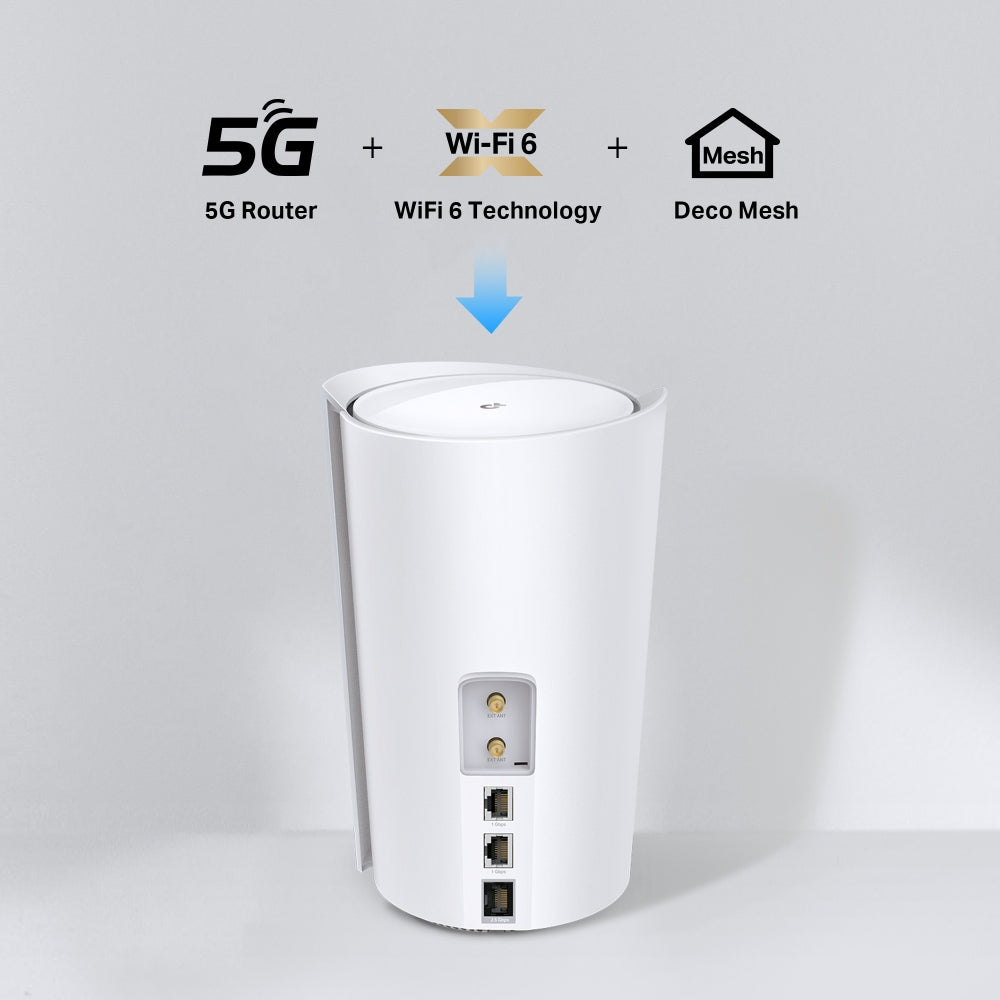

A 5G gateway and a Deco mesh node in one box. Drop in a nano-SIM and it serves AX3000 dual-band Wi-Fi 6 across the home with no fixed line at all, or sits behind one as a backup. Three Ethernet ports including one at 2.5 Gbps, four internal 5G/LTE antennas and two external antenna interfaces for a fixed installation where signal is marginal.
5G and 4G Bands, Nano-SIM
TP-Link publishes 5G bands N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78, 4G FDD-LTE B1/B3/B5/B7/B8/B20/B28, 4G TDD-LTE B38/B40/B41/B42/B43 and 3G B1/B5/B8, on a nano-SIM. The N78 and N41 bands are the ones that matter most for Singapore 5G coverage - check the bands your operator uses on the plan you intend to buy, and we will confirm before you order.
One 2.5 Gbps Port and Two Gigabit Ports

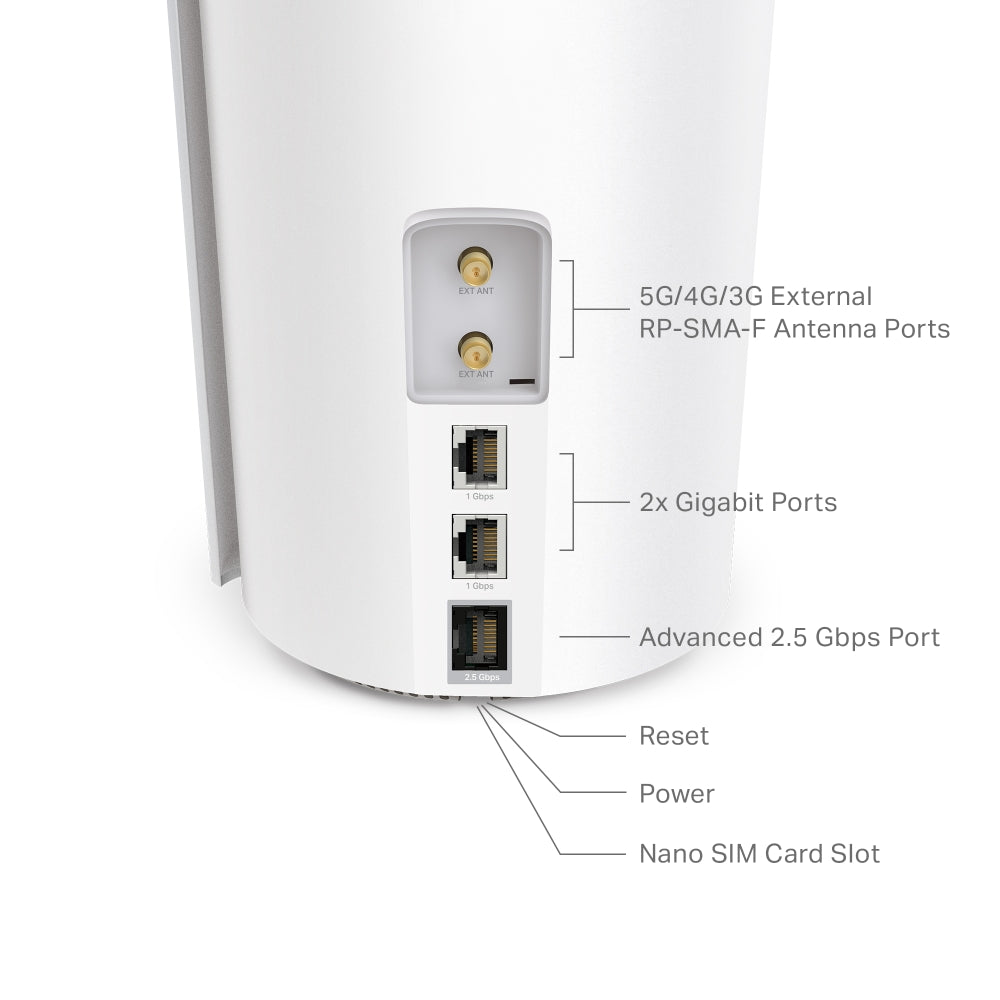

The WAN side is not limited to the SIM. Three Ethernet ports, one at 2.5 Gbps and two at gigabit, all WAN/LAN auto-sensing, let the unit run on fixed fibre with the SIM as failover, or on 5G with wired clients hanging off it. TP-Link notes that only one port can serve as WAN at a time.
Two External Antenna Interfaces

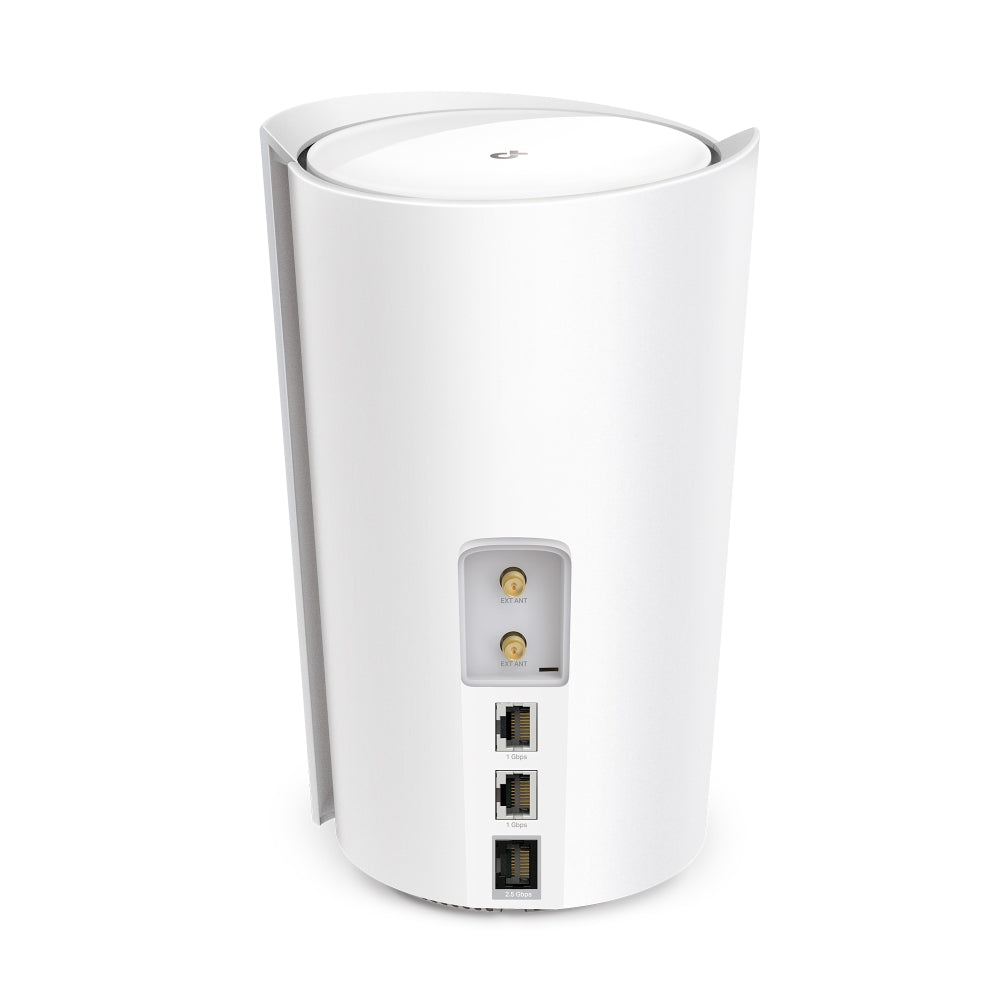

Four 5G/LTE and two Wi-Fi antennas are internal, and there are two external RP-SMA-F antenna interfaces as well. Where the unit has to sit in a room with poor cellular signal, external antennas on those interfaces are the usual fix. None are supplied in the box, so budget for them separately if you expect to need them.
AX3000 Dual-Band Wi-Fi 6 Mesh

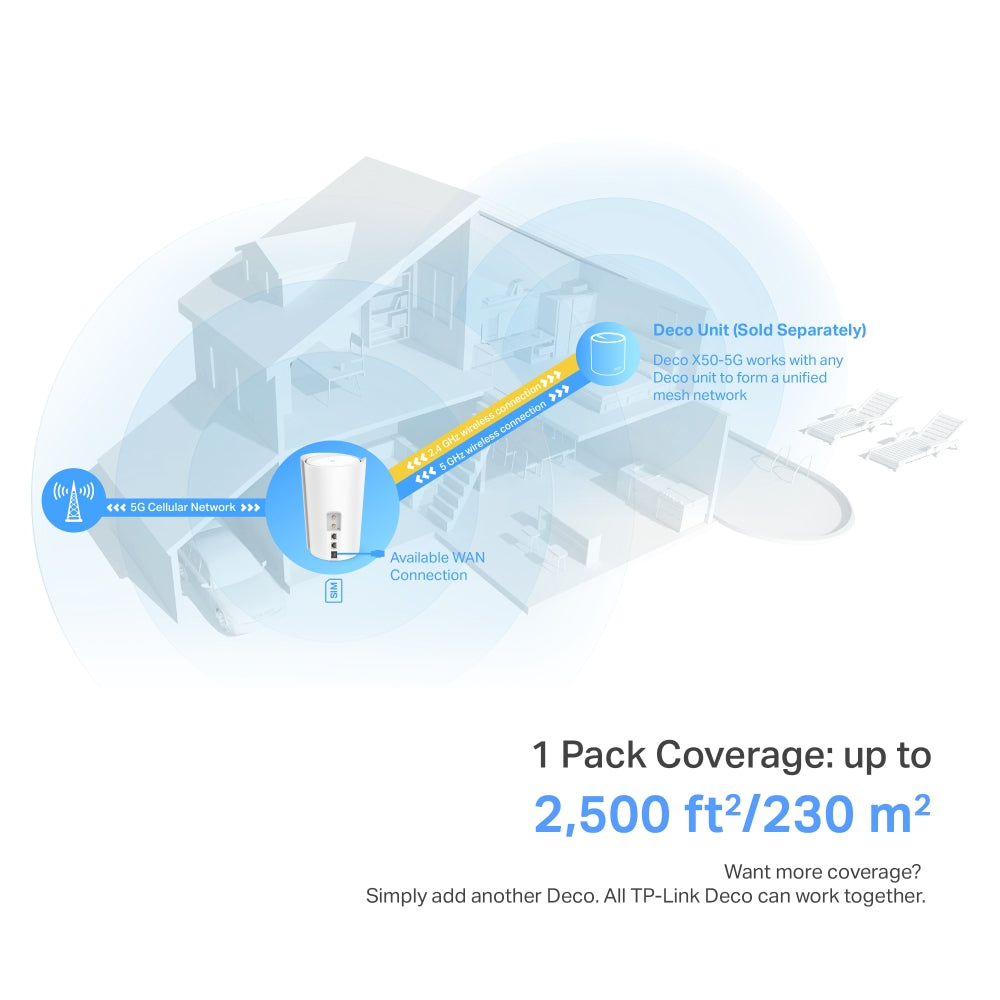

5 GHz at 2402 Mbps and 2.4 GHz at 574 Mbps on 802.11ax, four streams with MU-MIMO and OFDMA. TP-Link publishes coverage of 2,500 sq ft for the single unit and describes it as suiting 1-3 bedroom houses at that pack size; it also runs as a Deco mesh node, so further units extend it.
Three Working Modes
TP-Link publishes 5G/4G Router, Router and Access Point modes. That is the flexibility that justifies the product: the same box is a standalone cellular gateway in a rental or a showroom, a fixed-line router in a flat, or an access point on a network that already has a router.
Ideal For
Singapore homes and offices without a fixed line, temporary or rental premises, showrooms and event sites, and as a 5G failover path behind a fibre service. Supplied by SourceIT with local Singapore warranty and GST invoice.
Deco X50-5G Datasheet - Technical Specifications
Cellular
| 5G Bands | N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 |
| 4G FDD-LTE Bands | B1/B3/B5/B7/B8/B20/B28 |
| 4G TDD-LTE Bands | B38/B40/B41/B42/B43 |
| 3G Bands | B1/B5/B8 |
| SIM Card Format | Nano-SIM |
| 5G / LTE Category | Not published by TP-Link for this model |
| SMS and Voice Features | Not published by TP-Link for this model |
Wireless
| Wi-Fi Standards | IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz |
| Wi-Fi Speeds | AX3000 - 5 GHz: 2402 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax) |
| Bands | Dual-band (5 GHz / 2.4 GHz) |
| Streams | 4 streams |
| MU-MIMO | Supported |
| OFDMA | Supported |
| Transmit Power (CE) | ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz) |
| Wi-Fi Encryption | WPA-Personal, WPA2-Personal, WPA3-Personal |
| Coverage | 2,500 sq ft / 230 m² (1-pack) |
| Wi-Fi Range | 1-3 bedroom houses (1-pack) |
| Beamforming | Not published by TP-Link for this model |
Hardware
| Ethernet Ports | 1x 2.5 Gbps port + 2x gigabit ports, WAN/LAN auto-sensing |
| Antennas | 4x internal LTE/5G antennas, 2x internal Wi-Fi antennas, 2x external RP-SMA-F antenna interfaces |
| Dimensions (W x D x H) | 210.5 x 130 x 123 mm (8.3 x 5.1 x 4.8 in) |
| Buttons | Not published by TP-Link for this model |
| Power Adapter Rating | Not published by TP-Link for this model |
| Processor / Memory | Not published by TP-Link for this model |
| Weight | Not published by TP-Link for this model |
Software
| Working Modes | 5G/4G Router, Router, Access Point |
| Protocols | IPv4, IPv6 |
| WAN Types | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| VPN Server / Client | Not published by TP-Link for this model |
| Guest Network | 1x 5 GHz, 1x 2.4 GHz |
| QoS | HomeShield QoS - QoS by device |
| IPTV | IGMP proxy, IGMP snooping, bridge, tag VLAN |
| NAT Forwarding | Port forwarding, UPnP |
| DHCP | Address Reservation, DHCP Client List, Server |
| Network Security | SPI firewall, access control, HomeShield Security (real-time IoT protection, malicious site blocker, intrusion prevention, DDoS attack prevention, home network scanner) |
| Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
| Management | Deco app |
Environment and Compliance
| Certification | RoHS, CE, RCM |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 90% RH |
| System Requirements | Not published by TP-Link for this model |
Specifications are TP-Link's published Singapore figures for the Deco X50-5G. TP-Link publishes no 5G or LTE category number for this model, no SMS or voice-call feature row, no VPN row, no beamforming row, no buttons row, no power-adapter rating, and no processor, memory, weight or system-requirements figure. Only CE transmit power is published; TP-Link lists no FCC figure and no FCC mark for this model. Package contents are published for the 1-pack only. TP-Link does not tie its device-count figure to a pack size, so none is quoted here.
Compatibility & Software Support
Set up and managed through the Deco app; TP-Link publishes no minimum Android or iOS version for this model. HomeShield is included on the free Basic plan, with a paid Pro tier.
Three working modes are published - 5G/4G Router, Router and Access Point - with IPv4 and IPv6, and Dynamic IP, Static IP, PPPoE, L2TP or PPTP on the wired WAN. IPTV covers IGMP proxy, IGMP snooping, bridge and tag VLAN. No VPN server or client row is published for this model.
SIM and network: a nano-SIM is required and is not supplied. Band support is listed in the Technical Specifications accordion above; send us your operator and plan and we will check the bands before you order rather than assume compatibility. TP-Link's own footnote applies: “Actual 5G downlink speeds vary between households. Factors affecting 5G speeds include the internet service level, real-time network capacity, equipment and client limitations, and environmental factors.”
TP-Link publishes the network services enabled by default: web server on TCP 80/443, DNS on TCP and UDP 53, DHCP server on UDP 67, and app management on TCP 22, 20001 and 30001 and UDP 20002.
Package Contents & Ordering Information
Package Contents
| In the Box | 1 Deco X50-5G unit, 1 RJ45 Ethernet cable, 1 power adapter, Quick Installation Guide |
Ordering Information
| Model | Deco X50-5G (1-Pack) |
| SourceIT SKU | Deco X50-5G(1-pack) |
| Warranty | 3 Years Local Warranty (Singapore) |
| Requires | An active 5G or 4G data SIM in nano-SIM format, not included |
Quoted from TP-Link's published package-contents row; contents are published for the 1-pack only. No SIM card is included, and no external antennas are supplied despite the two external antenna interfaces.
Datasheet & Downloads
TP-Link Singapore support and downloads - Deco X50-5G
Official product page - Deco X50-5G
TP-Link Singapore replacement warranty policy
Firmware, user guides and the Deco app are published by TP-Link on the support page above. SourceIT does not host copies, so the links always resolve to the current release.
Frequently Asked Questions - Deco X50-5G (1-Pack)
Will it work on my Singapore mobile operator?
Send us the operator and plan. The published 5G and 4G bands are listed in the specifications above, and we will check them against your operator's bands before you order rather than assume.
What SIM size does it take?
Nano-SIM. No SIM card is included.
Can I use it on fibre instead of 5G?
Yes. It publishes Router mode as well as 5G/4G Router mode, and carries one 2.5 Gbps and two gigabit ports, so it can run on a fixed line with the SIM as a backup path.
Do external antennas come with it?
No. TP-Link publishes two external RP-SMA-F antenna interfaces, but the box contains no external antennas. We can quote them if the unit has to sit where cellular signal is weak.
What warranty applies in Singapore?
3 years local replacement warranty. 5G gateways appear in no exception row in TP-Link Singapore's warranty policy and take the published 3-year default.
