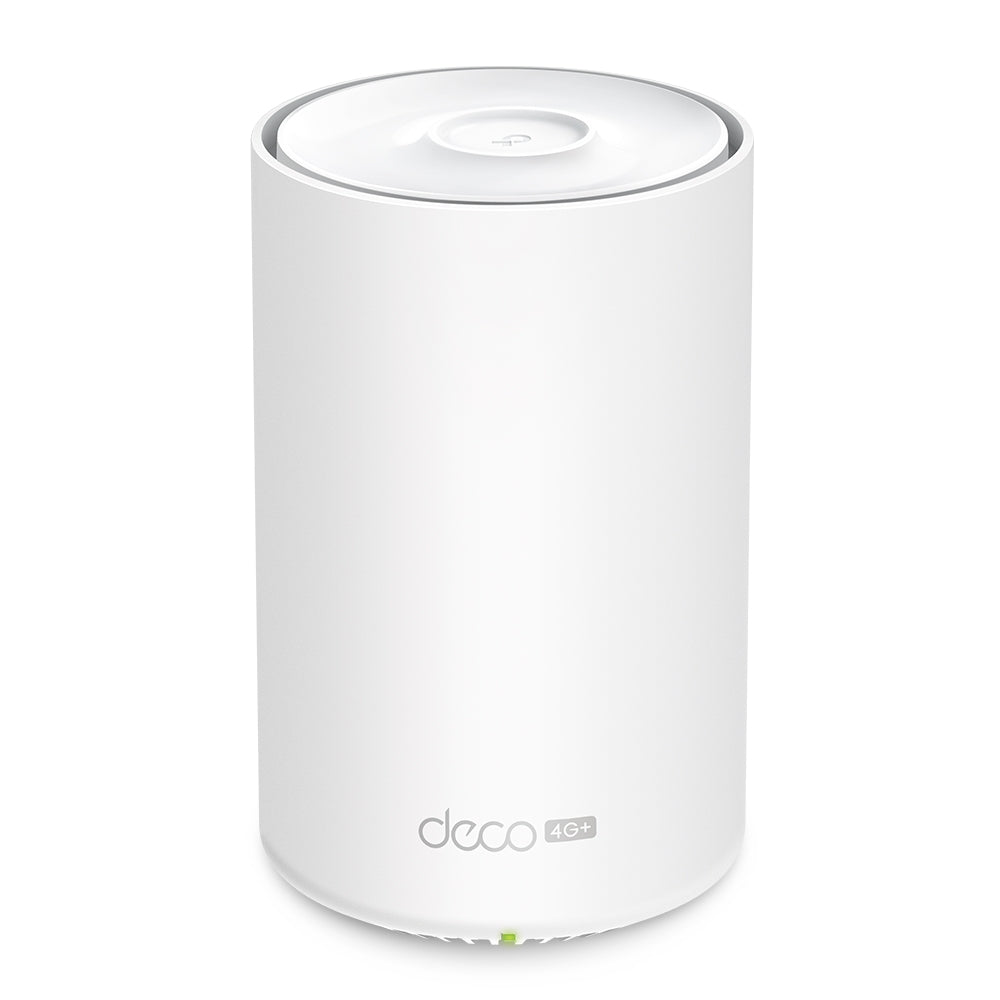

TP-Link Deco X20-4G 4G+ AX1800 Whole Home Mesh Wi-Fi 6 Gateway (1-Pack)
PRODUCT DESCRIPTION
TP-Link 4G+ AX1800 Whole Home Mesh WiFi 6 Gateway, 1-Pack (Deco X20-4G) - 3 Years Local Warranty
An LTE gateway and an AX1800 Deco mesh node in one tower. Slot in a standard Nano SIM and it serves dual-band Wi-Fi 6 across a home with no fixed line, or runs on fibre with the SIM as a backup path. Three gigabit WAN/LAN ports, two external 3G/4G antenna ports, HomeShield security, and the Deco app for setup and day-to-day management.
Cat6 LTE With Downlink Up To 300 Mbps
TP-Link states that "The Deco X20-4G gateway supports Cat6 with internet downlink speeds up to 300 Mbps, shared by super-fast WiFi 6 with speeds up to 1.8 Gbps"*, and describes the unit as providing "WiFi 6 Mesh coverage through 4G+ CAT6 access". Supported bands are 4G FDD-LTE B1/B3/B5/B7/B8/B20/B28, TDD-LTE B38/B40/B41 and 3G DC-HSPA+/HSPA/UMTS B1/B5/B8. Send us your operator and plan and we will check them against those bands before you order.
Nano SIM In, Network Up
Setup is deliberately short: "Plug a standard Nano SIM card in and plug in the Deco X20-4G unit." A data SIM is required and is not supplied. Two external 3G/4G antenna ports let you fit higher-gain antennas where the unit has to sit somewhere with poor cellular reception - a ground-floor utility room, say, or a unit facing away from the nearest cell. The box includes two SMB-to-SMA adapters for that purpose; the antennas themselves are not supplied.
AX1800 Wi-Fi 6 Mesh Across Up To 200 m2
5 GHz at 1201 Mbps and 2.4 GHz at 574 Mbps on 802.11ax, four streams with MU-MIMO and OFDMA. △ TP-Link publishes seamless coverage up to 200 m2: "With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20-4G boosts broader whole home WiFi coverage up to 200m2." † Capacity is rated High, and "Deco X20-4G is tested to connect over 150 devices without dragging down performance" †. It runs as a Deco mesh node as well as a gateway, so a further Deco unit extends the same network rather than replacing this one.

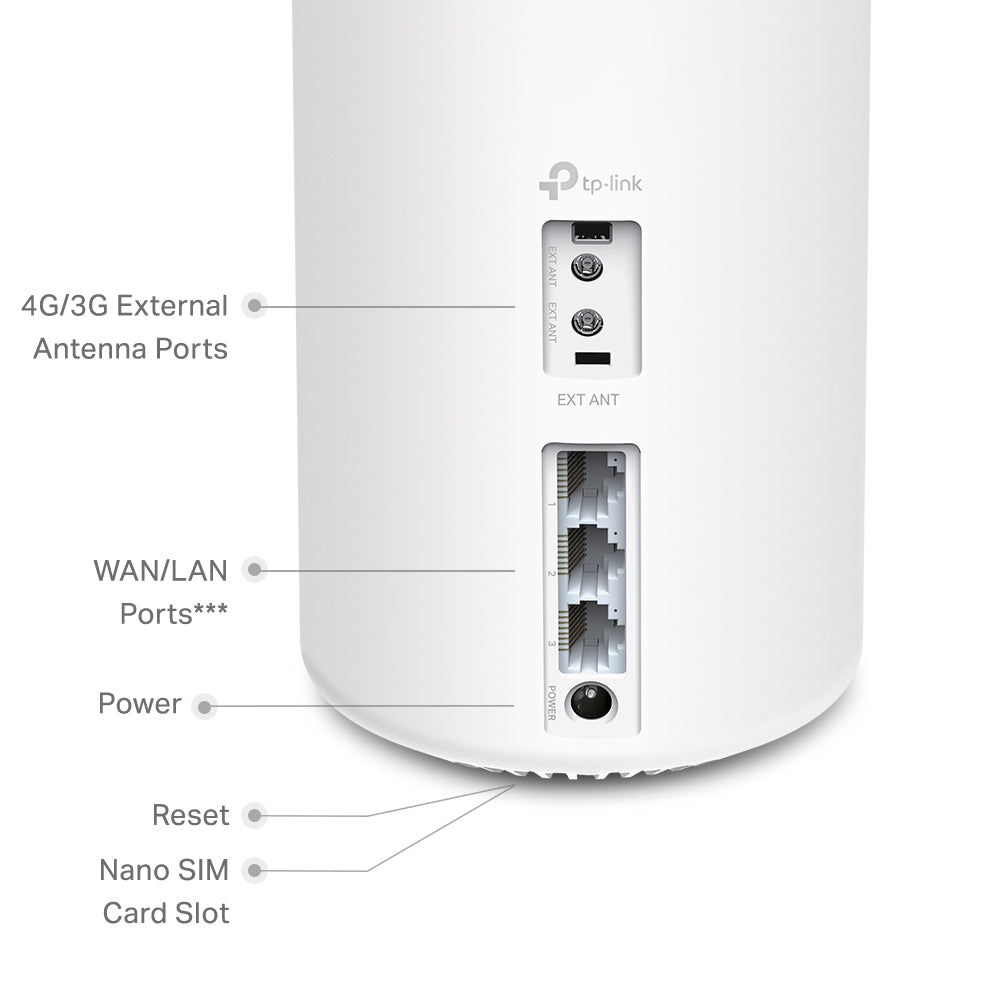

Three Gigabit Ports and Three Working Modes
Three gigabit WAN/LAN auto-sensing ports, and published modes of 3G/4G, Router and Access Point. The same box therefore works as a standalone LTE gateway, as a fixed-line router, or as an access point behind an existing router, with 3G/4G failover from Ethernet to cellular to prevent data loss. All ports operate as either WAN or LAN ports, and only one port can serve as a WAN port at a time.**
HomeShield Security and Parental Controls
SPI firewall, access control, and HomeShield Security covering real-time IoT protection, malicious site blocking, an intrusion prevention system and DDoS attack prevention. § Parental Controls run to User Profiles, Filter Levels, Time Limits, Insights and Suspend Connectivity, so each family member gets a profile, a filter level and a time budget, and you can pause the internet for one person without touching anyone else. QoS is HomeShield QoS by device, and WPA3-Personal encryption is supported.
Ideal For
Rental flats, temporary premises, small offices, showflats and event sites in Singapore that need a network without waiting for a fixed line, and homes wanting an LTE failover path behind fibre. Supplied by SourceIT with local Singapore warranty and GST invoice.
Deco X20-4G Datasheet - Technical Specifications
Cellular
| LTE Category | Cat6 - "The Deco X20-4G gateway supports Cat6 with internet downlink speeds up to 300 Mbps, shared by super-fast WiFi 6 with speeds up to 1.8 Gbps"* |
| SIM Card Format | Standard Nano SIM |
| 4G FDD-LTE Bands | B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) |
| 4G TDD-LTE Bands | B38/B40/B41 (2600/2300/2500 MHz) |
| 3G Bands | DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz) |
| External Antenna Ports | 2x 3G/4G external antenna ports |
| SMS and Voice Features | Not published by TP-Link for this model |
Wireless
| Standards and Protocols | IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | 5 GHz: 1201 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 1-3 Bedroom Houses (1-pack) - TP-Link Mesh Technology: Optional Ethernet backhaul work together to link Deco units to provide seamless coverage; 2 LTE antennas, 2 Wi-Fi antennas (Internal): Multiple antennas form a signal-boosting array to cover more directions and large areas; Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | High - Dual-Band: Distribute devices to different bands for optimal performance; MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients; OFDMA: Simultaneously communicates with multiple WiFi 6 clients; 4 Streams: More than enough bandwidth for connected devices |
| WiFi Encryption | WPA-Personal, WPA2-Personal, WPA3-Personal |
| WiFi Transmission Power | CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz) |
| Working Modes | 3G/4G, Router, Access Point |
Hardware
| Ethernet Ports | 3x Gigabit Ports (WAN/LAN auto-sensing)** |
| USB Support | 12 V DC, 1.5 A |
| Buttons | RESET Button |
| Dimensions (W x D x H) | 4.13 x 4.13 x 6.57 in (105 x 105 x 167 mm) |
| Box Dimensions (W x D x H) | 4.13 x 4.13 x 6.57 in (105 x 105 x 167 mm) |
| Processor | Not published by TP-Link for this model |
| Memory | Not published by TP-Link for this model |
| Weight | Not published by TP-Link for this model |
Software
| Protocols | IPv4, IPv6 |
| Service Kit | HomeShield |
| WAN Types | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Guest Network | 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network |
| Quality of Service | HomeShield QoS (QoS by Device) |
| Parental Controls | User Profiles, Filter Levels, Time Limits, Insights, Suspend Connectivity |
| Network Security | SPI Firewall, Access Control, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention) |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| NAT Forwarding | Port Forwarding, UPnP |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link |
| Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
| Management Features | Deco App |
| VPN Server / Client | Not published by TP-Link for this model |
| System Requirements | Not published by TP-Link for this model |
Other
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) - Port: 80/443 Protocol: TCP; DNS DNS - Port: 53 Protocol: TCP & UDP; DHCP Server IP address assignment (DHCP) - Port: 67 Protocol: UDP; App management Manage and configure device through app - Port: 22 Protocol: TCP, Port: 20001 Protocol: TCP, Port: 30001 Protocol: TCP, Port: 20002 Protocol: UDP |
| Certification | CE, RoHS |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 60 °C |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 90% RH |
Footnotes
△Use of Wi-Fi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, and BSS Color require clients to also support the corresponding features.
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client's device.
§HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link/homeshield for more information.
*Acutual 4G downlink speeds vary between households. Factors affecting 4G speeds include the internet service level, real-time network capacity, equipment and client limitations, environmental factors.
**All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
Specifications and footnotes above are TP-Link's own for the Deco X20-4G on its Singapore site, drawn from both its specification table and its product copy. TP-Link prints the 12 V DC, 1.5 A input under a row headed USB Support, and prints the same figures for Dimensions and Box Dimensions; both are shown here as printed. The rows marked "Not published by TP-Link for this model" are not published there in any form.
TP-Link publishes no processor, memory, weight, system requirements, VPN server or client, or SMS and voice figures for this gateway, and lists CE and RoHS certification only.
Compatibility & Software Support
Set up and managed through the Deco app. HomeShield is included on the free Basic Plan, with fees for the Pro Plan. §
Three working modes are published - 3G/4G, Router and Access Point - with IPv4 and IPv6, and Dynamic IP, Static IP, PPPoE, L2TP or PPTP on the wired WAN. IPTV covers IGMP proxy, IGMP snooping, bridge and tag VLAN.
SIM and network: the gateway takes a standard Nano SIM, which is not supplied. Published bands are in the Technical Specifications above; send us your operator and plan and we will check them against those bands.
Mesh: this gateway runs as a Deco node, so a further Deco unit joins it on one Wi-Fi name and the cellular connection stays with this unit.
Wi-Fi 6 features including OFDMA, MU-MIMO, 1024-QAM and BSS Color need client support as well. △ Seamless roaming needs clients that support 802.11k/v/r. ‡
Feature support above is TP-Link's published Singapore specification for this model; the SIM sourcing note and the band-check offer are SourceIT's.
Package Contents & Ordering Information
Package Contents
| In the Box | 1 Deco X20-4G unit, 1 RJ45 Ethernet Cable, 1 Power Adapter, 1 Quick Installation Guide, 2 SMB to SMA Adapters |
Ordering Information
| Model | Deco X20-4G, 1-Pack |
| SourceIT SKU | Deco X20-4G(1-pack) |
| Warranty | 3 Years Local Warranty (Singapore) |
| Requires | An active 4G LTE data SIM in standard Nano SIM format, not included |
The In the Box row is TP-Link's published 1-pack package content; the SourceIT SKU, the Singapore warranty term and the SIM requirement line are SourceIT's. No SIM card and no external antennas are included - the two SMB-to-SMA adapters are for fitting antennas you supply.
Datasheet & Downloads
TP-Link Singapore support and downloads - Deco X20-4G
Official product page - Deco X20-4G
TP-Link Singapore replacement warranty policy
Firmware, user guides and the Deco app are published by TP-Link on the support page above, so these links always resolve to the current release.
Frequently Asked Questions - Deco X20-4G (1-Pack)
What SIM size does it take?
A standard Nano SIM. TP-Link's own setup instruction is "Plug a standard Nano SIM card in and plug in the Deco X20-4G unit." The SIM itself is not included.
How fast is the LTE connection?
TP-Link rates the gateway at Cat6, "with internet downlink speeds up to 300 Mbps, shared by super-fast WiFi 6 with speeds up to 1.8 Gbps"*. Real speeds depend on your operator, the plan, network load and signal.
How many devices will it handle, and how far will it reach?
TP-Link rates WiFi Capacity as High and states the unit "is tested to connect over 150 devices without dragging down performance" †, with seamless coverage up to 200 m2 for a single unit †. The WiFi Range row for the 1-pack is 1-3 bedroom houses.
Do I get external antennas?
No. The published package contents are the unit, an RJ45 Ethernet cable, a power adapter, a Quick Installation Guide and two SMB to SMA adapters - the adapters fit the two external antenna ports, but no antennas are supplied. We can quote them if reception at the intended position is weak.
Can I add more Deco units to it?
Yes. It runs as a Deco mesh node, so a further Deco unit extends the same network and the cellular link stays with this gateway.
What warranty applies in Singapore?
3 years local replacement warranty. 4G gateways appear in no exception row in TP-Link Singapore's warranty policy and take the published 3-year default.
