TP-Link Deco BE85 BE22000 Tri-Band Whole Home Mesh WiFi 7 System (3-Pack)
PRODUCT DESCRIPTION
TP-Link BE22000 Tri-Band Whole Home Mesh WiFi 7 System, 3-Pack (Deco BE85) - 3 Years Local Warranty

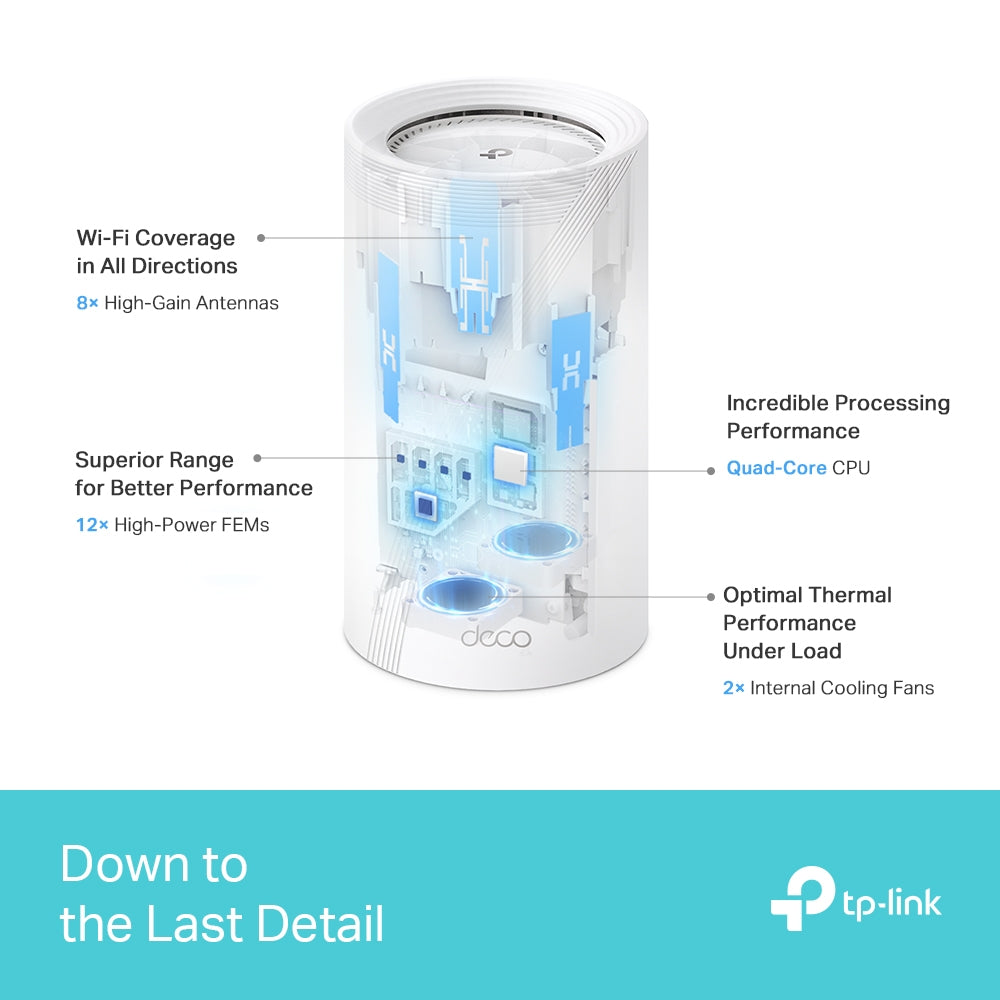

Three Deco BE85 units on one Wi-Fi 7 network - the configuration for a large or multi-storey property. Each node is tri-band with 6 GHz at 11530 Mbps, eight high-gain internal antennas and four multi-gigabit ports, so a third hop can be placed where a single router simply will not reach.
Wi-Fi 7 With MLO, 320 MHz Channels and 4K-QAM
Each unit runs IEEE 802.11be/ax on 6 GHz, 802.11be/ax/ac/n/a on 5 GHz and 802.11be/ax/n/b/g on 2.4 GHz, with 4x4 MU-MIMO, OFDMA and 12 Streams, and TP-Link rates the WiFi capacity Very High. Multi-Link Operation lets a capable client hold more than one band at once, 4K-QAM raises the data carried per symbol, and TP-Link states that the doubled channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh. All of these depend on the client device supporting the same features, and 320 MHz is available on the 6 GHz band only.
Twelve Multi-Gigabit Ports Across the Property
Every unit carries one 10 Gbps port, one 10 Gbps SFP+/RJ45 combo port and two 2.5 Gbps ports, all WAN/LAN auto-sensing, plus a USB 3.0 port that TP-Link publishes with FTP Server, Media Server and Samba Server roles. Across three units that is twelve multi-gigabit ports distributed where the nodes sit - study, living room, upper floor - so a NAS, a workstation or a wired access point can connect at speed without a long cable run. The SFP+ combo slot accepts fibre directly. TP-Link's Singapore Deco BE85 product page describes the processing hardware as a Quad-Core CPU in its feature highlights; no processor model or clock speed is published for this model.
Mix Wired and Wireless Backhaul as the Building Allows
Because the ports are WAN/LAN auto-sensing, some hops can be wired and others wireless in the same system - practical in a house where one cable run exists between floors but not to the far end. TP-Link publishes TP-Link Mesh Technology, AI-Driven Mesh and optional Ethernet backhaul for this model under WiFi Range. Router Mode and Access Point Mode are both published, so the system can also sit behind an ISP gateway that cannot be replaced.
Published Software and Security
HomeShield covers network security, parental controls and QoS, with SPI Firewall, Access Control and a published security set of Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention and Home Network Scanner. WiFi encryption is published as WPA-Personal, WPA2-Personal and WPA3-Personal. VPN server and client roles are published for OpenVPN, PPTP and L2TP/IPSec. Guest networks run on all three bands with Effective Time and Bandwidth Control, and all three nodes are managed as one network from the Deco app.
Ideal For
Large landed homes, three-storey properties and multi-room offices in Singapore on multi-gigabit or 10 Gbps fibre, where several nodes are needed. Supplied by SourceIT with local Singapore warranty and GST invoice.
Deco BE85 Datasheet - Technical Specifications
General
| Model | Deco BE85 (3-Pack) |
| Official Product Name | Deco BE85 - BE22000 Tri-Band Whole Home Mesh WiFi 7 System |
| Brand | TP-Link Deco |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless (per unit)
| Standards & Protocols | Wi-Fi 7 - IEEE 802.11be/ax 6 GHz; IEEE 802.11be/ax/ac/n/a 5 GHz; IEEE 802.11be/ax/n/b/g 2.4 GHz |

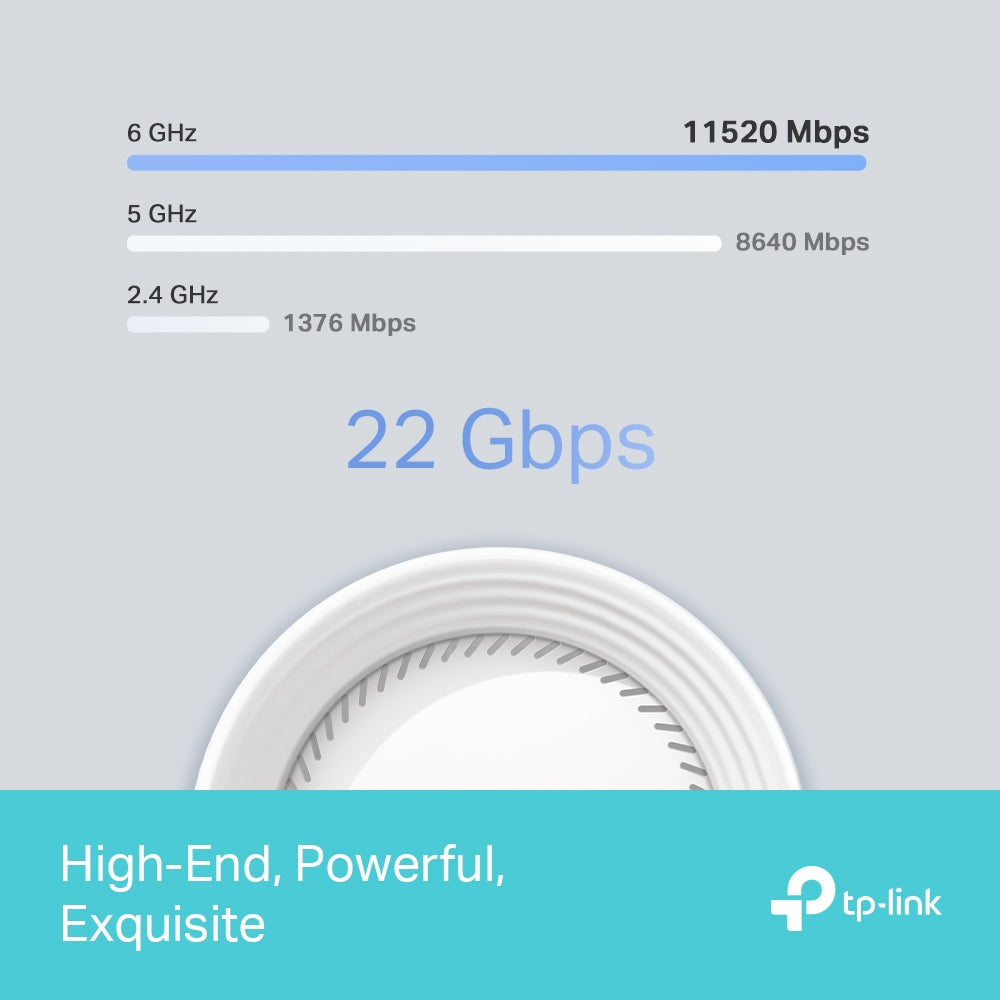

| WiFi Speeds (BE22000) | 6 GHz: 11530 Mbps (802.11be); 5 GHz: 8647 Mbps (802.11be); 2.4 GHz: 1376 Mbps (802.11be) |
| WiFi Range | Broader Whole Home Coverage - TP-Link Mesh Technology; Optional Ethernet backhaul; AI-Driven Mesh; 8x High-Gain Antennas (Internal); Tri-Band |
| WiFi Capacity | Very High - Tri-Band; 4x4 MU-MIMO; OFDMA; 12 Streams |
| Working Modes | Router Mode; Access Point Mode |
| Advanced Features | Multi-Link Operation (MLO); 320 MHz Channel; 4K-QAM; Multi-RUs; Works with Alexa and Google Assistant |
Hardware and Interfaces (per unit)

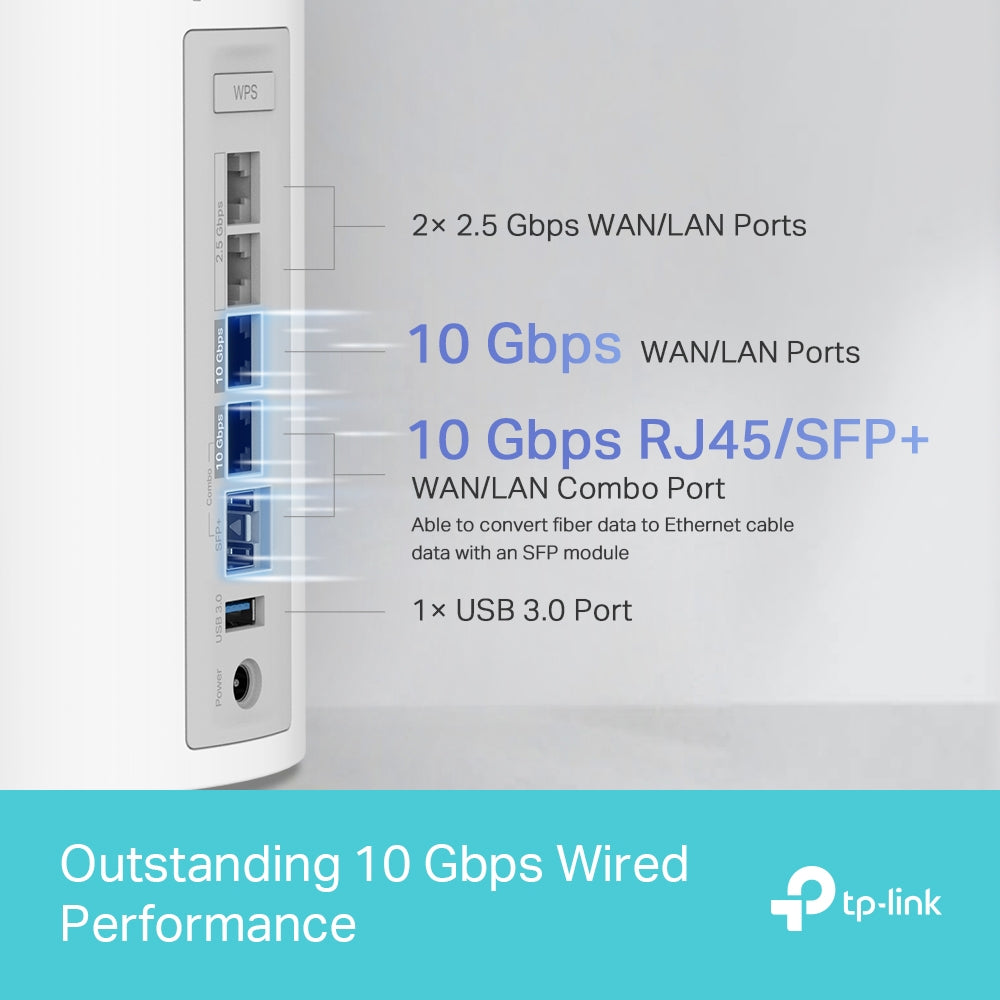

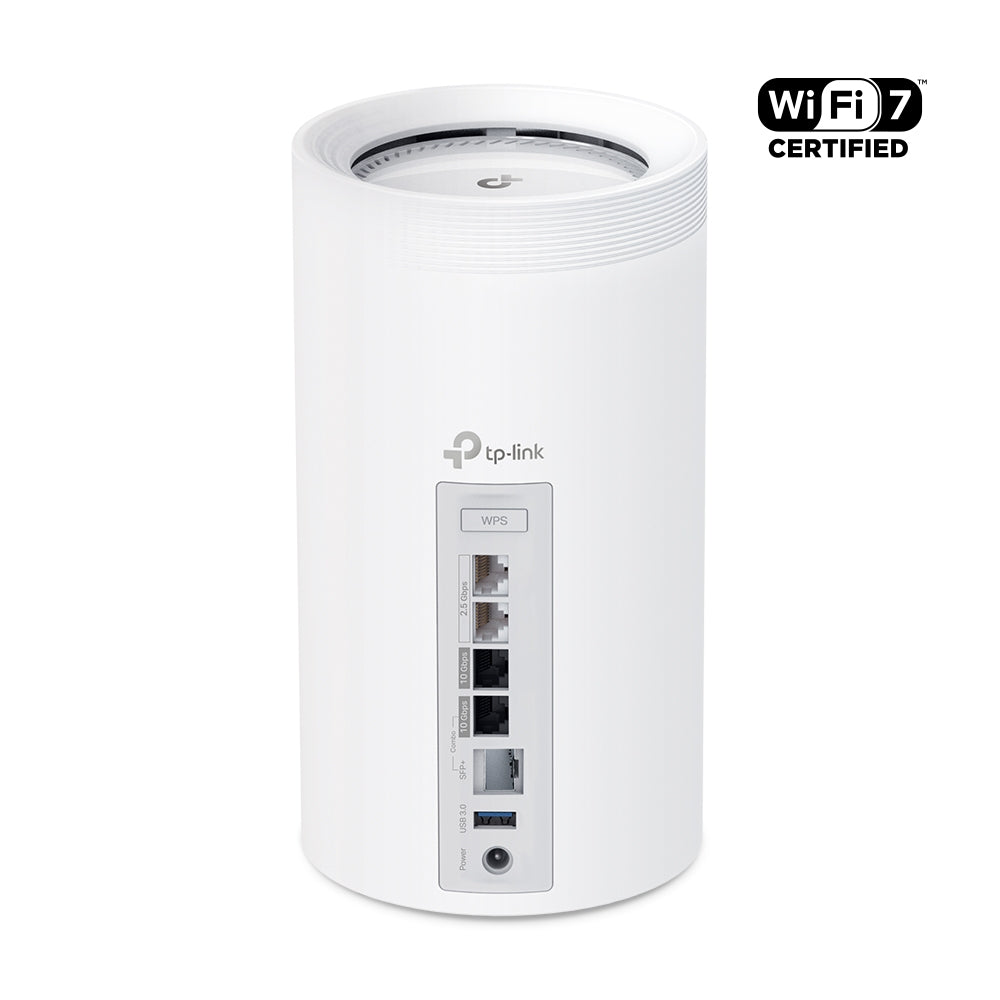

| Ethernet Ports | 1x 10 Gbps; 1x 10 Gbps SFP+/RJ45 Combo; 2x 2.5 Gbps - per Deco unit, supports WAN/LAN auto-sensing |
| USB Support | 1x USB 3.0 Port - FTP Server, Media Server, Samba Server |
| Buttons | 1x Reset Button; 1x WPS |
| Dimensions (WxDxH) | 128 x 128 x 236 mm (5.04 x 5.04 x 9.29 in) |
Security
| Network Security | SPI Firewall; Access Control; HomeShield Security - Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner |
| Guest Network | 1x 6 GHz Guest Network; 1x 5 GHz Guest Network; 1x 2.4 GHz Guest Network - Effective Time, Bandwidth Control |
| WiFi Encryption | WPA-Personal; WPA2-Personal; WPA3-Personal |
| VPN Server | OpenVPN Server; PPTP VPN Server; L2TP/IPSec VPN Server |
| VPN Client | OpenVPN Client; PPTP VPN Client; L2TP/IPSec VPN Client |
Software
| Advanced Features | Reboot Schedule; Tapo/Kasa Onboarding; IoT network & Device Isolation; Static Route Function; Node/Band Connection Preference |
| Protocols | IPv4; IPv6 |
| Service Kits | HomeShield |
| Parental Controls | HomeShield Parental Controls - Youtube Restriction, SafeSearch, Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Types | Dynamic IP; Static IP; PPPoE; PPTP; L2TP |
| Quality of Service | HomeShield QoS - QoS by Device |
| Cloud Service | OTA Firmware Upgrade; TP-Link ID; DDNS |
| NAT Forwarding | Port Forwarding; UPnP |
| IPTV | IGMP Proxy; IGMP Snooping; Bridge; Tag VLAN |
| DHCP | Address Reservation; DHCP Client List; Server |
| DDNS | TP-Link |
| Management Features | Deco App |
Network Services Enabled by Default
| Web Server | Manage and configure device through web (HTTP/HTTPS), Port: 80/443 Protocol: TCP |
| DNS | DNS, Port: 53 Protocol: TCP & UDP |
| DHCP Server | IP address assignment (DHCP), Port: 67 Protocol: UDP |
| App management | Manage and configure device through app, Port: 22 Protocol: TCP, Port: 20001 Protocol: TCP, Port: 30001 Protocol: TCP, Port: 20002 Protocol: UDP |
Environment and Certification
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~60°C (-40°F~140°F) |
| Operating Humidity | 10%~90% RH |
| Storage Humidity | 5%~90% RH |
Device Count and Coverage, as Published
TP-Link headlines the Deco BE85 as "Connect Over 200 Devices", qualified by the footnote quoted below. The 4,600 sq. ft. figure TP-Link shows for this model is a test condition, not a coverage rating, and it is not stated per pack size - the full test description is quoted below. TP-Link does not publish a coverage area for any Deco BE85 pack size, so none is stated here. Send us the floor area, number of storeys and wall construction and we will advise on pack size.
Per TP-Link's Singapore Deco BE85 product page: "Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location."

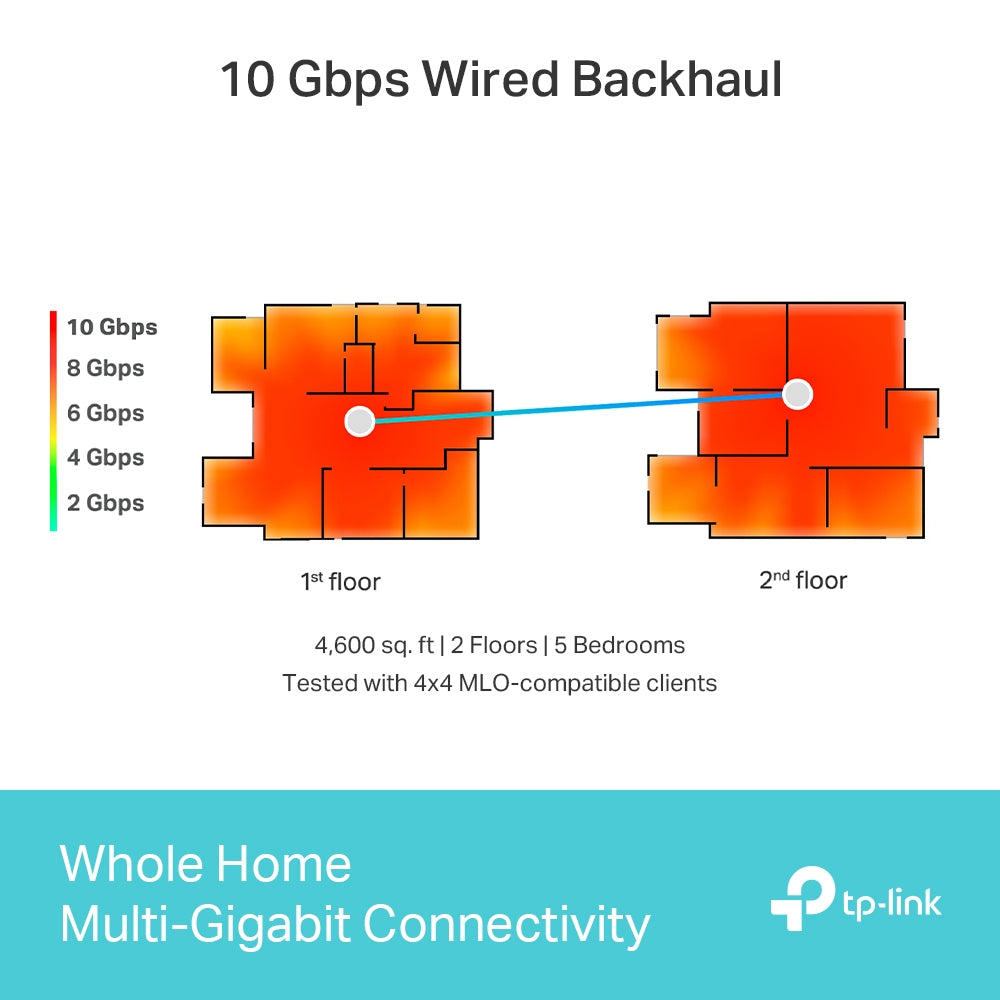

Per TP-Link's Singapore Deco BE85 product page: "The test was conducted in a 4,600 sq. ft. two-story villa with 5 bedrooms with an interior made up of drywall. The Deco BE85 was tested with 4x4 MLO-compatible clients. Home networking performance may vary, depending on the network's speeds, fiber or Ethernet access, WiFi interference, obstacles, walls, areas, and clients."
Per TP-Link's Singapore Deco BE85 product page: "Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh."
Per TP-Link's Singapore Deco BE85 product page: "10 Gbps and 2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time."
Per TP-Link's Singapore Deco BE85 product page: "Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device."
TP-Link does not publish a net weight, a power-supply rating, a transmit power or a processor specification row for the Deco BE85 on its Singapore page, so none is stated here. Ask us and we will confirm against the carton.
The specification figures in this section are taken from TP-Link's Singapore Deco BE85 product page; the warranty term comes from TP-Link's Singapore replacement-warranty policy, and the Brand and Model rows are SourceIT's own.
Compatibility & Software Support
| Mesh Expansion | TP-Link publishes TP-Link Mesh Technology and AI-Driven Mesh for this model, but no list of compatible Deco models on this page. Tell us which Deco models you run and we will confirm against TP-Link's own pages |
| Backhaul | Wireless, or optional Ethernet backhaul over the WAN/LAN auto-sensing ports |
| Working Modes | Router Mode and Access Point Mode, so the system can sit behind an existing gateway |
| Voice Assistants | Works with Alexa and Google Assistant |
| Smart Home | Tapo/Kasa Onboarding; IoT network & Device Isolation |
| Storage Sharing | 1x USB 3.0 Port per unit - FTP Server, Media Server, Samba Server |
| Fibre | The 10 Gbps SFP+/RJ45 combo port accepts a fibre module directly; modules are not included |
| Management | Deco App |
HomeShield Plans
Per TP-Link's Singapore Deco BE85 product page: "HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. Some features are under development and will be supported with subsequent software updates."
The feature names in this section are taken from TP-Link's Singapore Deco BE85 product page; the fibre-module note and the offer to check your existing Deco models are SourceIT's own.
Package Contents & Ordering Information
Package Contents
| In the Box | 3 Deco BE85 units, 1 RJ45 Ethernet cable, 3 Power adapters, Quick Installation Guide |
Note that the published 3-pack contents list three power adapters but only one Ethernet cable. Ask us if you need additional cables supplied with the order.
Package contents are quoted from TP-Link's Singapore Deco BE85 product page.
Ordering Information
| Model | Deco BE85 (3-Pack) |
| SourceIT SKU | Deco BE85(3-pack) |
| Warranty | 3 Years Local Warranty (Singapore) |
| Also Available | 1-pack and 2-pack |
Datasheet & Downloads
Frequently Asked Questions - Deco BE85 (3-Pack)
Do I need three units?
Three nodes suit large landed homes, three-storey properties and layouts with heavy internal walls. TP-Link publishes no coverage area for this model in any pack size, so we cannot quote one. Send us the floor area, number of storeys and construction and we will advise whether the 2-pack would do.
How many devices can it carry?
TP-Link headlines "Connect Over 200 Devices" for the Deco BE85, based on laboratory test data across the 6 GHz, 5 GHz and 2.4 GHz bands simultaneously. The full qualifying footnote is quoted in the Technical Specifications section above.
How does the BE85 differ from the BE95?
The BE95 is quad-band with two separate 6 GHz radios and twelve internal antennas; the BE85 is tri-band with one 6 GHz radio and eight antennas. Both publish the same port set and the same 5 GHz and 6 GHz speeds. The BE95 figures are taken from TP-Link's Singapore Deco BE95 product page and the BE85 figures from TP-Link's Singapore Deco BE85 product page.
Can some links be wired and others wireless?
Yes. Every port is WAN/LAN auto-sensing and TP-Link publishes optional Ethernet backhaul for this model, so one hop can run over a cable while another runs over the air.
Do I need a 10 Gbps internet plan?
No. The system works on any service; the 10 Gbps and 2.5 Gbps ports simply mean the hardware will not be the limit if you upgrade later. TP-Link notes that 10 Gbps and 2.5 Gbps internet speeds require compatible service plans and equipment.
Are all the HomeShield features free?
No. TP-Link states that HomeShield includes the Free Basic Plan and that fees apply for the Pro Plan. The full footnote is quoted in the Compatibility & Software Support section above.
What warranty does SourceIT provide?
Three years local Singapore warranty, per TP-Link's published replacement warranty policy, with a GST invoice on every unit.
