TP-Link Deco BE22 BE3600 Whole Home Mesh Wi-Fi 7 System (3-Pack)
PRODUCT DESCRIPTION
TP-Link BE3600 Whole Home Mesh WiFi 7 System, 3-Pack (Deco BE22) - 3 Years Local Warranty
The Deco BE22 is TP-Link's 4-stream dual-band BE3600 Wi-Fi 7 mesh system: 2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, with MLO, 160 MHz channels and 4K-QAM, four internal antennas and two 1 Gbps auto-sensing ports per unit. TP-Link rates the 3-pack for whole home coverage of up to 6,500 sq ft.

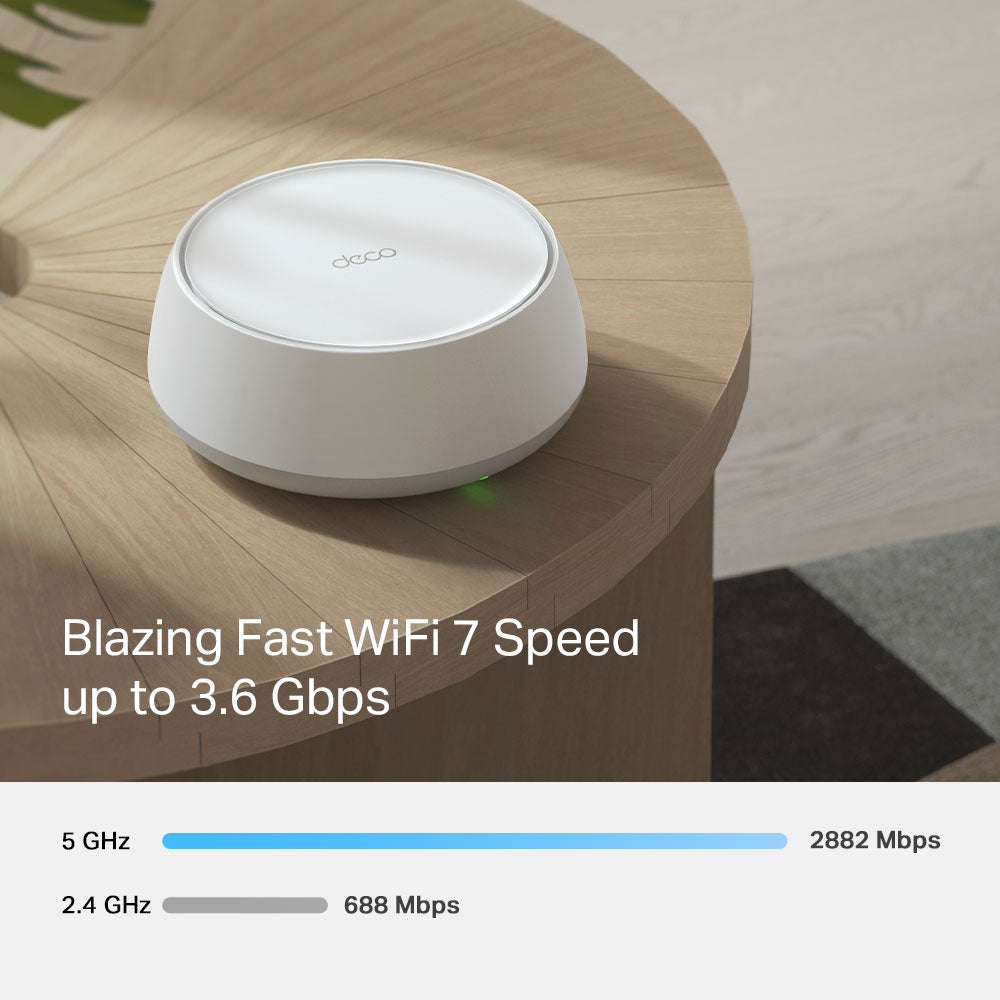

Wi-Fi 7 Speeds up to 3.6 Gbps
4K-QAM lifts Wi-Fi speeds up to 3.6 Gbps for bandwidth-intensive tasks such as cloud gaming and 8K video, while Multi-Link Operation and Multi-RUs deliver the lower latency, stronger anti-jamming and higher efficiency of Wi-Fi 7.

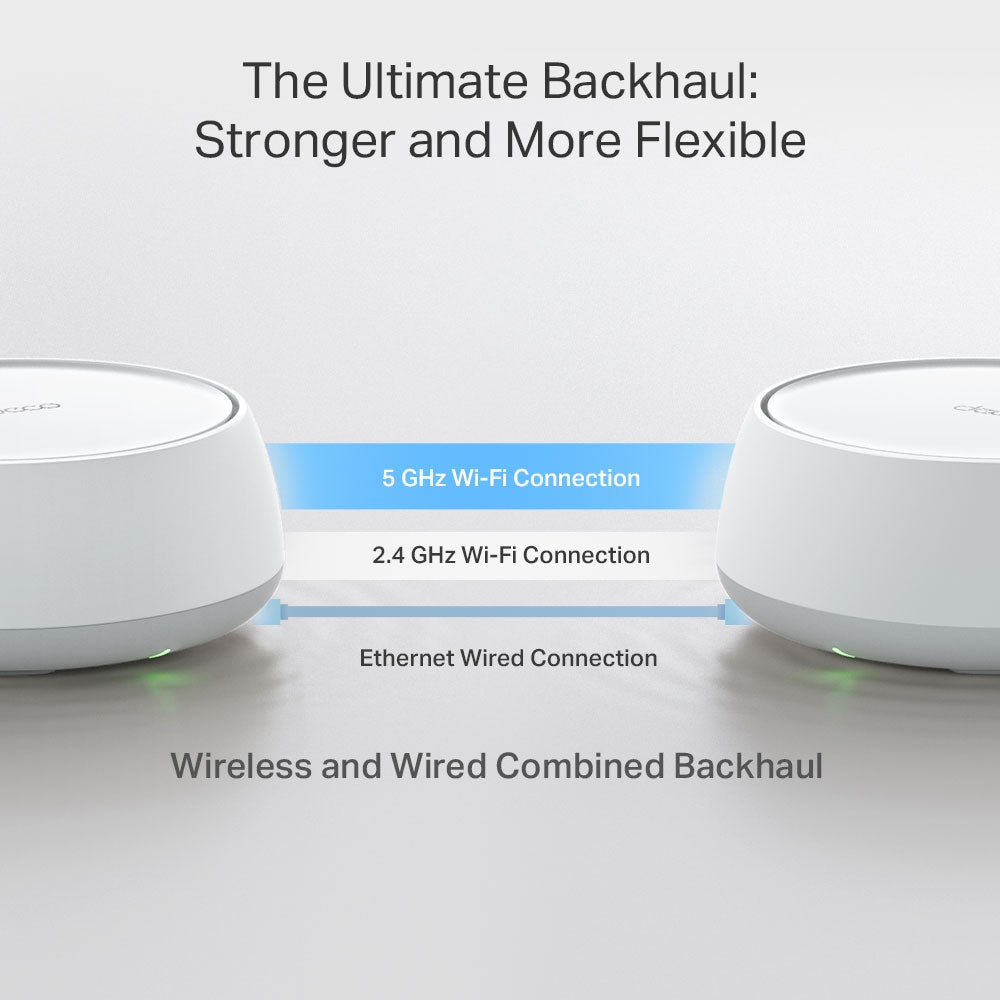

Stronger, More Flexible Backhaul
Wireless and wired backhaul can be combined, with Wi-Fi 7 MLO increasing the aggregate flow rate between Deco units. Each unit's two 1 Gbps ports auto-sense WAN or LAN, so an Ethernet run between rooms can serve as backhaul.
Seamless AI-Driven Mesh
Deco Mesh forms one unified network with a single network name. AI-Roaming and TP-Link Mesh Technology move devices to the best Deco as you walk around, with adaptive path selection and self-healing rerouting if one unit has a problem. The Deco BE22 is compatible with every other Deco model, so coverage can be expanded at any time.
HomeShield, VPN and a Private IoT Network
HomeShield provides network protection, parental controls and protection away from home. VPN client and server are supported (OpenVPN, PPTP, L2TP/IPSec), and a separate IoT Wi-Fi network with WPA3 keeps smart-home devices apart from your computers and phones. Setup and management run from the Deco app, with Alexa and Google Assistant support.
Ideal For
Larger Singapore homes such as maisonettes, condominiums and landed houses, and small offices that need Wi-Fi 7 in every room from a single network name. Supplied by SourceIT with local Singapore warranty and GST invoice.
Deco BE22 Datasheet — Technical Specifications
General
| Model | Deco BE22 |
| Official Product Name | BE3600 Whole Home Mesh WiFi 7 System |
| Pack Size | 3-Pack |
| Brand | TP-Link |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Standards and Protocols | Wi-Fi 7 — IEEE 802.11be/ax/ac/n/a 5 GHz; IEEE 802.11be/ax/n/b/g 2.4 GHz |
| Wi-Fi Speeds | BE3600 — 5 GHz: 2882 Mbps (802.11be); 2.4 GHz: 688 Mbps (802.11be) |
| Wi-Fi Range | Broader Whole Home Coverage — TP-Link Mesh Technology with optional Ethernet backhaul, AI-Driven Mesh, 4x High-Performance Internal Antennas |
| Coverage (3-Pack) | Whole Home Coverage up to 6,500 sq ft (as rated by TP-Link for the 3-pack) |
| Wi-Fi Capacity | Very High — Dual-Band device distribution, OFDMA, 4 Streams |
| Working Modes | Router Mode, Access Point Mode |
| Advanced Features | Multi-Link Operation (MLO), 160 MHz Channel, 4K-QAM, Multi-RUs, Alexa and Google Assistant compatible |
Hardware

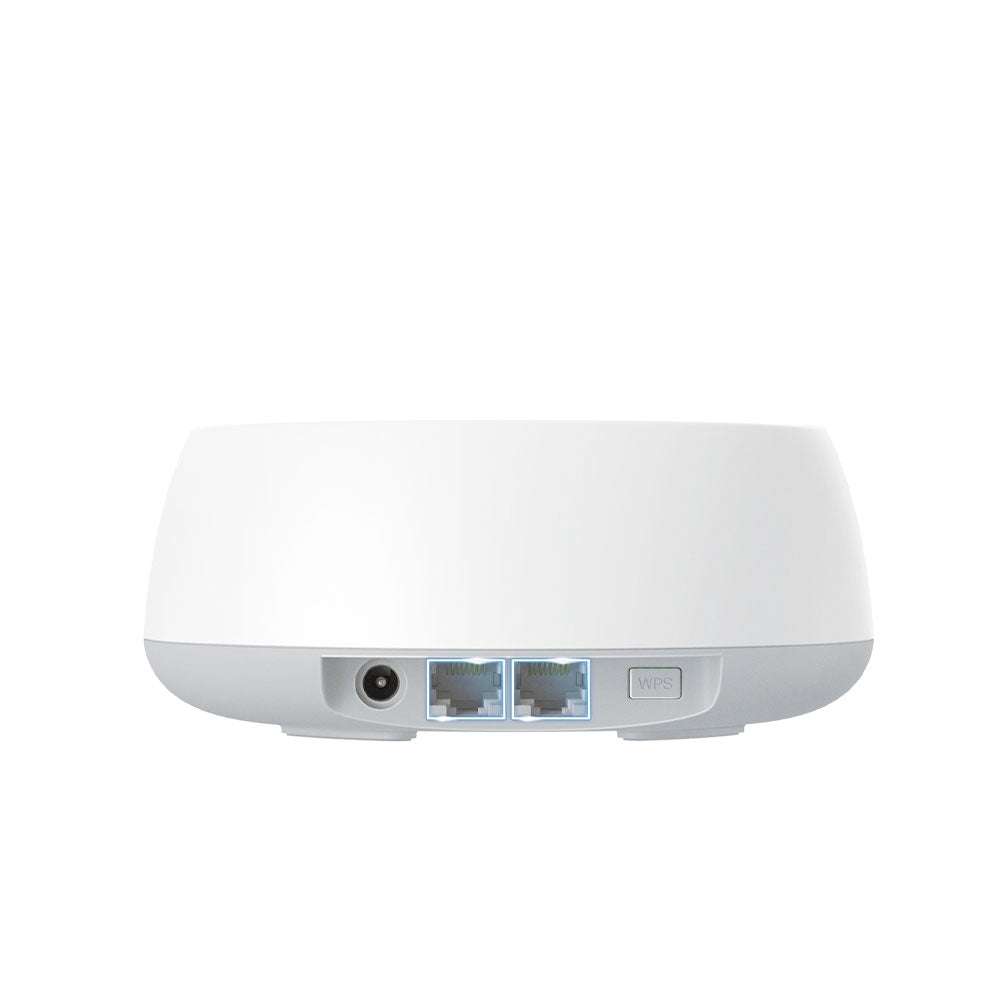

| Ethernet Ports | 2x 1.0 Gbps per Deco unit, WAN/LAN auto-sensing |
| Buttons | 1x Reset Button, 1x WPS |
| Dimensions (W x D x H) | 150 x 150 x 62 mm (5.91 x 5.91 x 2.44 in) |
Security
| Network Security | SPI Firewall, Access Control, HomeShield Security (Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner) |
| Guest Network | 1x 5 GHz Guest Network, 1x 2.4 GHz Guest Network, with Effective Time and Bandwidth Control |
| VPN Server | OpenVPN, PPTP, L2TP/IPSec |
| VPN Client | OpenVPN, PPTP, L2TP/IPSec |
| Wi-Fi Encryption | WPA-Personal, WPA2-Personal, WPA3-Personal |
Software
| Advanced Features | Reboot Schedule, Tapo/Kasa Onboarding, IoT Network and Device Isolation, Static Routing, Node/Band Connection Preference |
| Protocols | IPv4, IPv6 |
| Service Kits | HomeShield |
| Parental Controls | HomeShield Parental Controls — YouTube Restriction, SafeSearch, Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | HomeShield QoS — QoS by Device |
| Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link |
| Management | Deco App |
Environment and Certification
| Certifications | CE, FCC |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
| Operating Humidity | 10% to 90% RH |
| Storage Humidity | 5% to 90% RH |
| Network Services Enabled by Default | Web Server (TCP 80/443); DNS (TCP & UDP 53); DHCP Server (UDP 67); App management (TCP 22, 20001, 30001; UDP 20002) |
TP-Link's Singapore page for the Deco BE22 publishes no weight, no power-adapter rating, no processor specification and no USB port. Those gaps are stated rather than filled in from another model.
Compatibility & Software Support
| Management App | TP-Link Deco app (iOS and Android) |
| Mesh Ecosystem | Compatible with every other Deco model to form one mesh network |
| Smart Home | Tapo/Kasa onboarding; works with Alexa and Google Assistant |
| Wi-Fi 7 Client Requirement | Wi-Fi 7, Wi-Fi 6, MLO, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color require clients that also support those features |
| Internet Service | TP-Link notes that users may require an extra modem device compatible with their internet service provider |
TP-Link notes that this Deco may not support all mandatory features of the IEEE 802.11be specification and that further software upgrades may be required. HomeShield advanced features require a paid subscription, and some features will follow in software updates.
Package Contents & Ordering Information
Package Contents
| In the Box (3-Pack) | 3x Deco BE22 units, 1x RJ45 Ethernet cable, 3x power adapters, Quick Installation Guide |
Ordering Information
| Model | Deco BE22 |
| SKU | Deco BE22(3-pack) |
| Warranty | 3 Years Local Warranty (Singapore) |
Datasheet & Downloads
Official TP-Link Deco BE22 product page (Singapore)
Deco BE22 downloads — firmware and quick installation guide
TP-Link replacement warranty policy (Singapore)
TP-Link's Singapore download page does not link a datasheet PDF for the Deco BE22.
Frequently Asked Questions — Deco BE22
What ports does each Deco BE22 unit have?
Two 1.0 Gbps Ethernet ports per unit, both WAN/LAN auto-sensing. TP-Link lists no 2.5 Gbps port and no USB port.
How much area does the 3-pack cover?
TP-Link rates the Deco BE22 3-pack for whole home coverage of up to 6,500 sq ft. Actual coverage varies with walls, layout and interference.
Can I add more Deco units later?
Yes. TP-Link states the Deco BE22 is compatible with every other Deco model to form one mesh network.
What warranty does SourceIT provide?
Three years local Singapore warranty, under TP-Link's published replacement warranty terms, with a GST invoice.
Can SourceIT quote this for an office or a project?
Yes. Send us the quantity and we will quote with local warranty, delivery and support.
