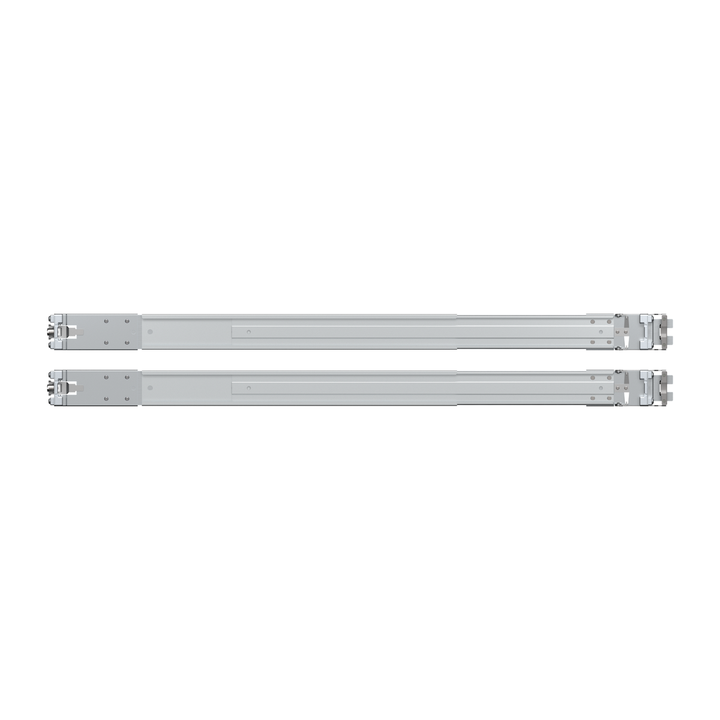

Synology RKS-02 Sliding Rail Kit for RackStation
PRODUCT DESCRIPTION
Synology RKS-02 Sliding Rail Kit RKS-02 - 1 Year Warranty
Slide-Out Servicing
The RKS-02 sliding rails let you pull your Synology rackmount unit out of the rack for drive and component service without removing it.
Fits Standard Racks
Designed for 4-post 19" racks with a depth of 610–890 mm, with square or round mounting holes.
Made for Synology
Synology lists the RKS-02 for its RackStation, RX expansion units and other rackmount models, including the RS822RP+.
Synology RKS-02 Datasheet — Technical Specifications
General
| Product Name | Synology Rail Kit Sliding |
| Model | RKS-02 |
| Type | Sliding rack rails |
| UPC / EAN | 846504004508 / 4711174724505 |
| Warranty | 1 year (Synology) |
Rack Requirements
| Rack Type | 4-post 19" rack |
| Rack Depth | 610–890 mm |
| Post / Panel Width | Post width ≥ 450 mm, panel width ≥ 480 mm |
| Mounting Holes | Square ≥ 9.5 x 9.5 mm or round ≥ 7.1 mm |
Compatibility & Applications
Compatible Models (selection)
RS822RP+, RS822+, RS422+, RS2423RP+ / RS2423+, RS2825RP+, RS1226RP+ / RS1226+, RS826RP+ / RS826+, RX1222sas, RX1223RP, RX1225RP, RX426 and many earlier RackStation / RX models — check Synology's list for your model.
Typical Use
Mounting Synology rackmount NAS and expansion units in server or network racks.
Package Contents & Synology Ordering Information
In the Box
1 pair of sliding rails with mounting hardware. See the installation guide for the full parts list.
Datasheet & Downloads
| Specifications | RKS-02 specifications and compatible models on synology.com |
Frequently Asked Questions — Synology RKS-02
Does it fit the RS822RP+?
Yes. Synology lists the RKS-02 for the RS822RP+.
What rack depth does it need?
610–890 mm, 4-post 19" rack.
What warranty do I get?
1 year Synology warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
