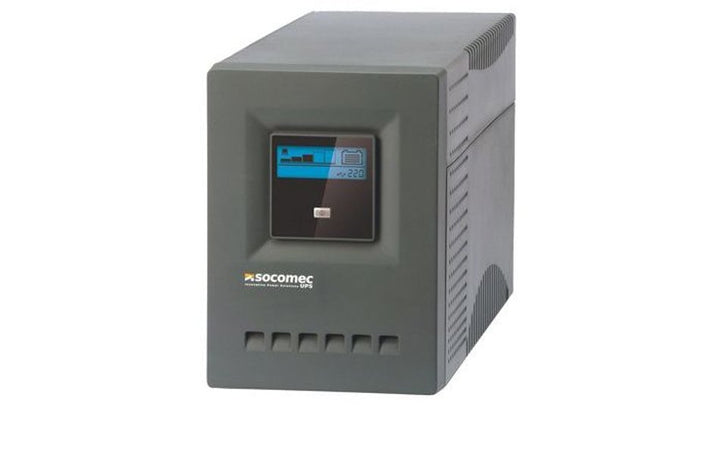

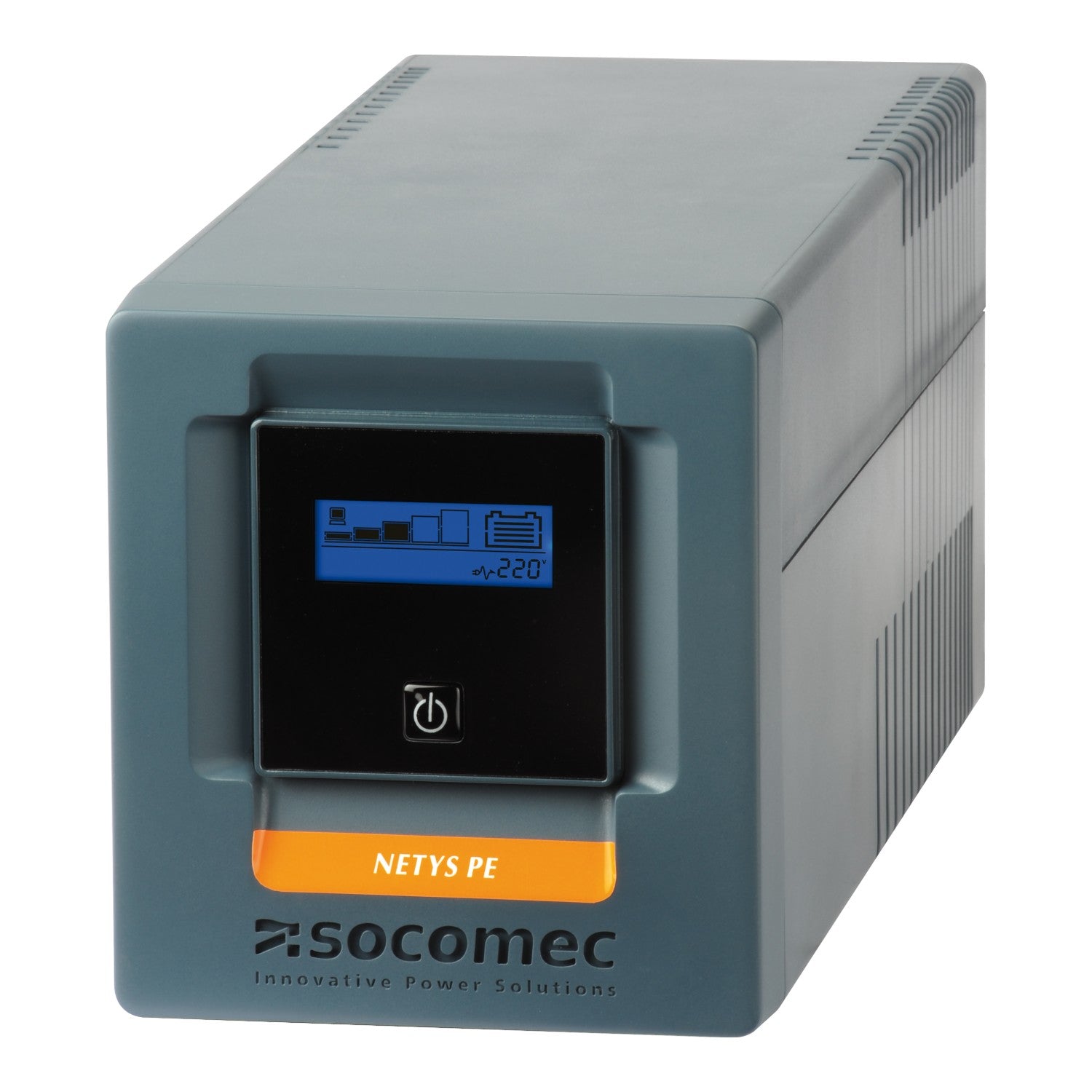

Socomec NETYS PE 1000VA USB, LCD Display (NPE-1000-LCD)
Socomec NETYS PE 1000VA USB, LCD Display (NPE-1000-LCD) - 2 Years Local Singapore Warranty
Ideal and cost-effective protection for SOHO or POS applications
• Adapted to protect IT applications in home, office and retail environments.

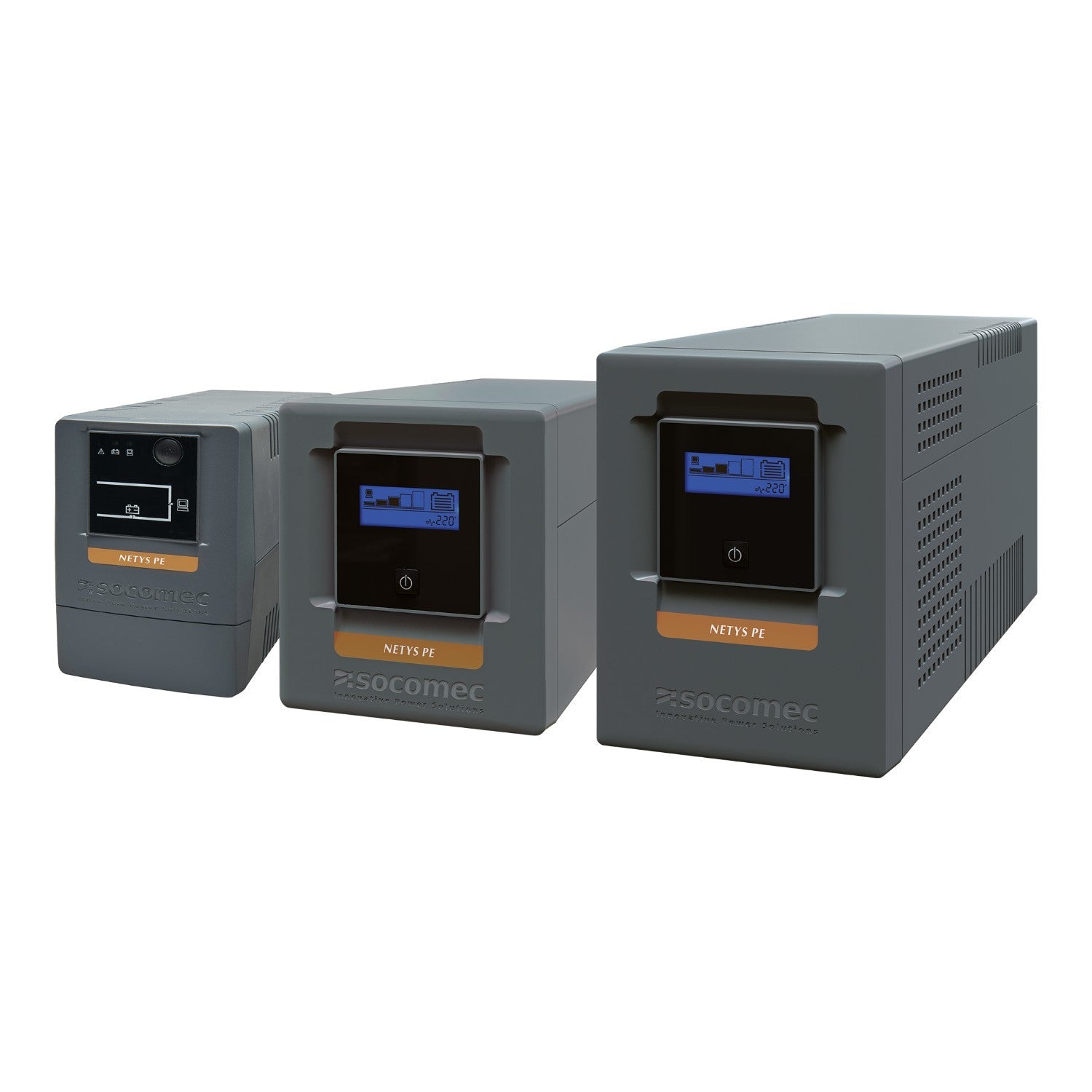

• A complete range of six models to adapt the power to the equipment’s consumption or to required back-up time. Easy to use
• Control panel with graphical icons LCD/LEDs allowing the operating mode to be easily monitored. A solution for network power cuts and voltage fluctuations
• The integrated AVR function (Automatic Voltage Regulation) stabilizes the output voltage and avoids the switching to Battery Mode operation, therefore saving the battery to support critical power cut events. Simplified connection
• Several IEC 320 sockets (IT standard) simplify the connectivity to computer and IT peripherals. Protection for your data line
• Integrated NTP protection for LAN/ADSL connection against the risk of data line overvoltage.
Connections:
1. USB serial port
2. NTP data line suppressor
3. UPS output sockets
4. Input socket and fuse
5. Fan / air vents
Control Panel:
1. Alarm
2. Operation with battery
3. Normal operation
4. On / Off
5. Load present
6. Load level (5 steps)
7. General Alarm
8. Battery fault / Replace the battery
9. Overload
10. Battery capacity
11. Normal mode / Battery mode (flashing)
12. Automatic Voltage / Regulation active
Outlook:
Technical Data:
Rated Voltage |
230V |
Voltage Tolerance | 170 V - 280 V |
Rated frequency | 50 / 60 Hz with automatic selection |
Mains connection | IEC320 socket |
Automatic Voltage Regulation (AVR) | Yes |
Rated voltage | 230 V ±10% |
Rated frequency | 50/60 Hz ±1% |
Wave form | Step wave |
Protection | Overload, significant discharge and short circuit |
Connections |
650 VA - 1000 VA = 4 x IEC 320 (C13) 1500 VA - 2000 VA = 6 x IEC 320 (C13) |
SN/PN |
650 VA (360W) 850 VA (480W) 1000 VA (600W) 1500 VA (900W) 2000 VA (1200W) |
UPS Input / Output | 1/1 |
Battery Type | Sealed lead-acid maintenance free - expected life 3/5 years |
Back-up time (PC + 17” LCD monitor) |
650 VA (15 min) 850 VA (20 min) 1000 VA (45 min) 1500 VA (55 min) 2000 VA (60 min) |
Communication Interface |
USB |
Local Comunication Software | Local View |
Telephone Protection | NTP data line suppressor |
Safety Standards | IEC/EN 62040-1, AS 62040.1.1, AS 62040.1.2 |
EMC Standards | IEC/EN 62040-2, AS 62040.2 |
Product Declaration Standards | CE, RCM (E2376) |
UPS Cabinet (Dimensions W x D x H) |
650 VA - 850 VA (100 x 300 x 145 mm) 1000 VA (145 x 345 x 165 mm) 1500 VA - 2000 VA (145 x 390 x 205 mm) |
Weight |
650 VA (5.2 kg) 850 VA (6.0 kg) 1000 VA (9.7 kg) 1500 VA (11.2 kg) 2000 VA (12 kg) |
Manufacturer's Warranty: | 2 Years Local Singapore Carry-In |
