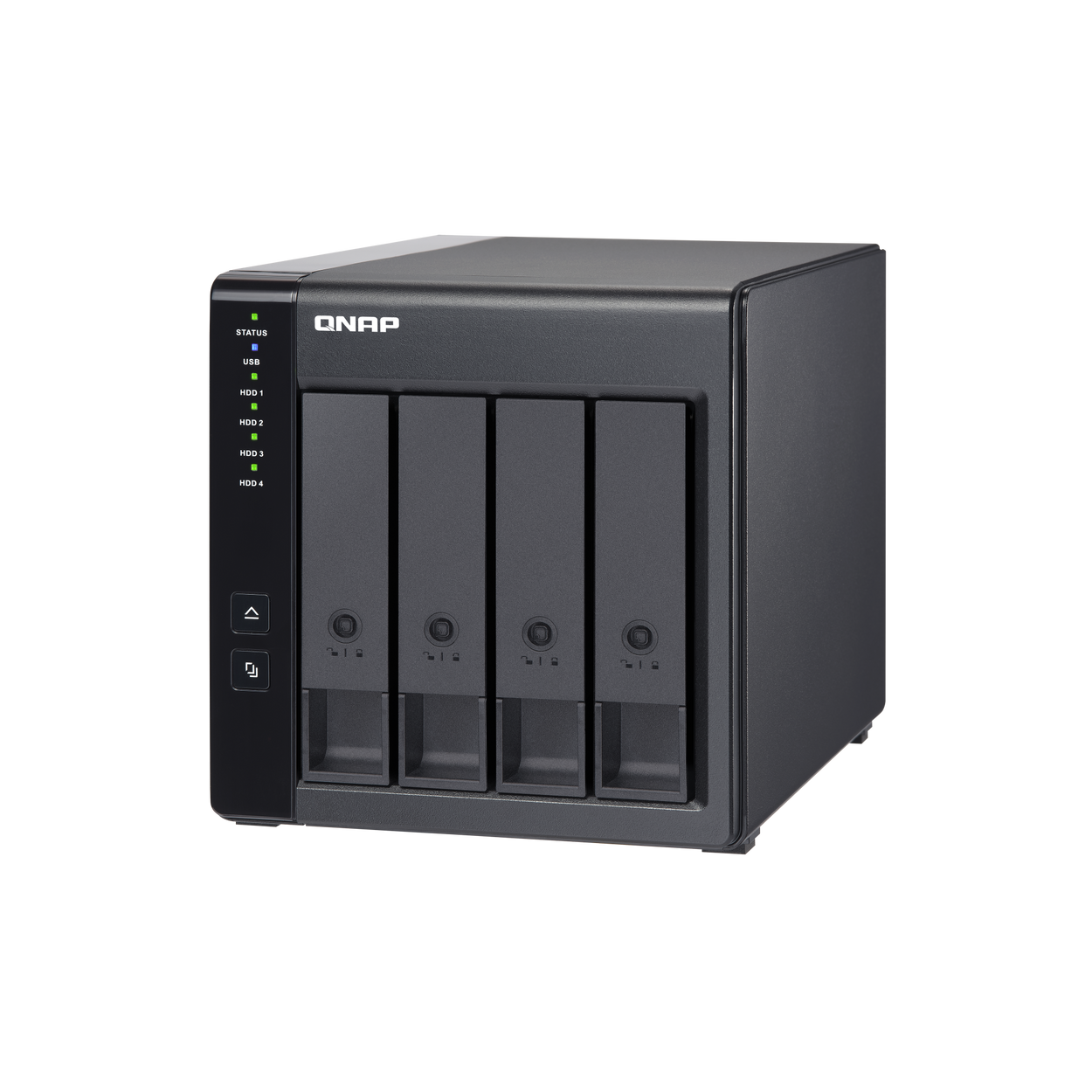

QNAP TR-004 4-Bay USB-C RAID Enclosure (USB 3.2 Gen 1)
PRODUCT DESCRIPTION
QNAP TR-004 4-Bay USB 3.2 Gen 1 RAID Enclosure TR-004 - 2 Years Warranty
4-Bay Hardware RAID
The TR-004 is a 4-bay hardware RAID enclosure supporting RAID 0, 1, 5, 10 and RAID 5 with hot spare, connected over USB 3.2 Gen 1 Type-C.
DAS or NAS Expansion
Use it as direct-attached storage for a PC or Mac, or expand a QNAP NAS with extra storage pools that support snapshots.
Flexible Management

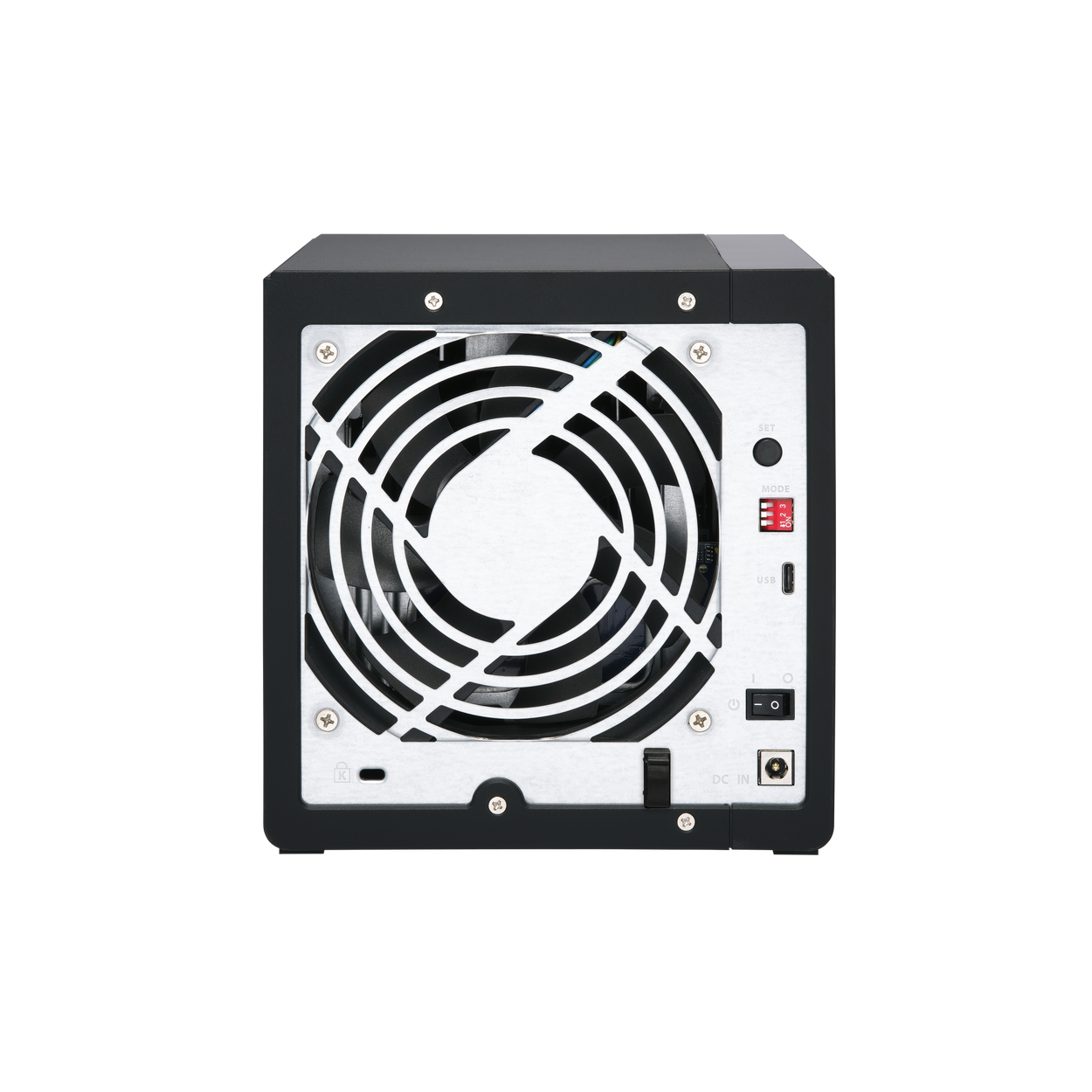

Set RAID with the DIP switches, or manage it in software with QNAP External RAID Manager or from the NAS.
QNAP TR-004 Datasheet — Technical Specifications
General
| Product Name | QNAP TR-004 |
| Model | TR-004 |
| Type | 4-bay RAID enclosure (DAS / NAS expansion) |
| UPC | 885022016358 |
| Warranty | 2 years (QNAP) |
Storage

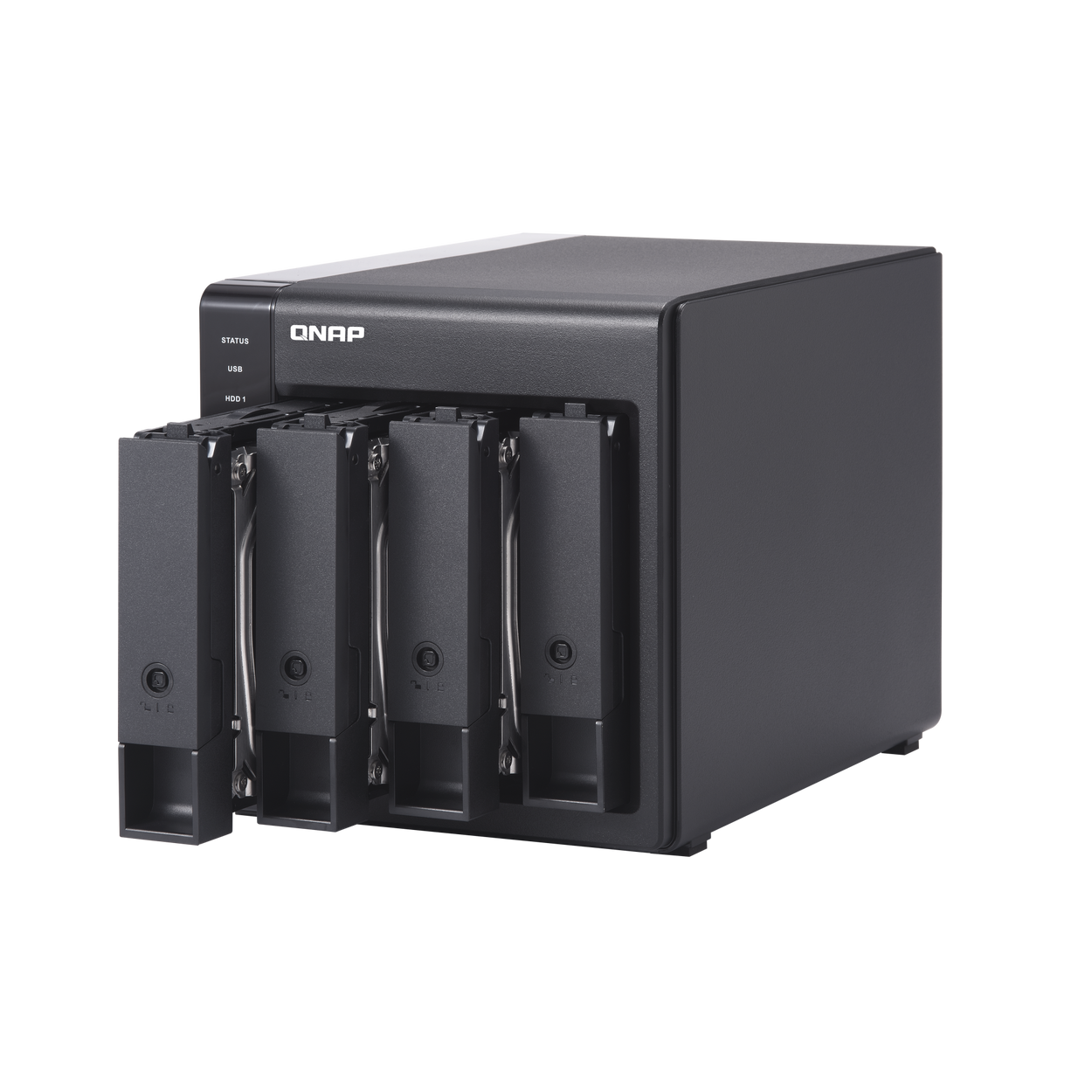

| Drive Bays | 4 x 3.5" SATA 3Gb/s (3.5" / 2.5" drives), lockable trays |
| RAID | RAID 0, 1, 5, 10, RAID 5 + hot spare, JBOD, Individual, Single Disk |
| Control | Hardware (DIP switches) or software control |
Interface
| Host Port | 1 x USB 3.2 Gen 1 Type-C |
| Supported Hosts | QTS, QuTS hero, Windows, macOS, Ubuntu |
Power & Physical
| Power Adapter | 60 W |
| Power Consumption | 18.21 W (operating), 4.17 W (sleep) |
| Fan | 1 x 120 mm |
| Operating Temperature | 0–40 °C |
| Dimensions (H x W x D) | 168.5 x 160.2 x 219 mm |
| Weight | 3.18 kg |
Compatibility & Applications
Typical Use
RAID-protected external storage for workstations, or affordable capacity expansion and backup target for a QNAP NAS.
Notes
The bays run at SATA 3Gb/s. Not supported on TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U or NAS that cannot run QTS 4.3.6 or later.
Selection Tip
Need only two bays with a faster 10Gbps USB link? Choose the TR-002.
Package Contents & QNAP Ordering Information
In the Box

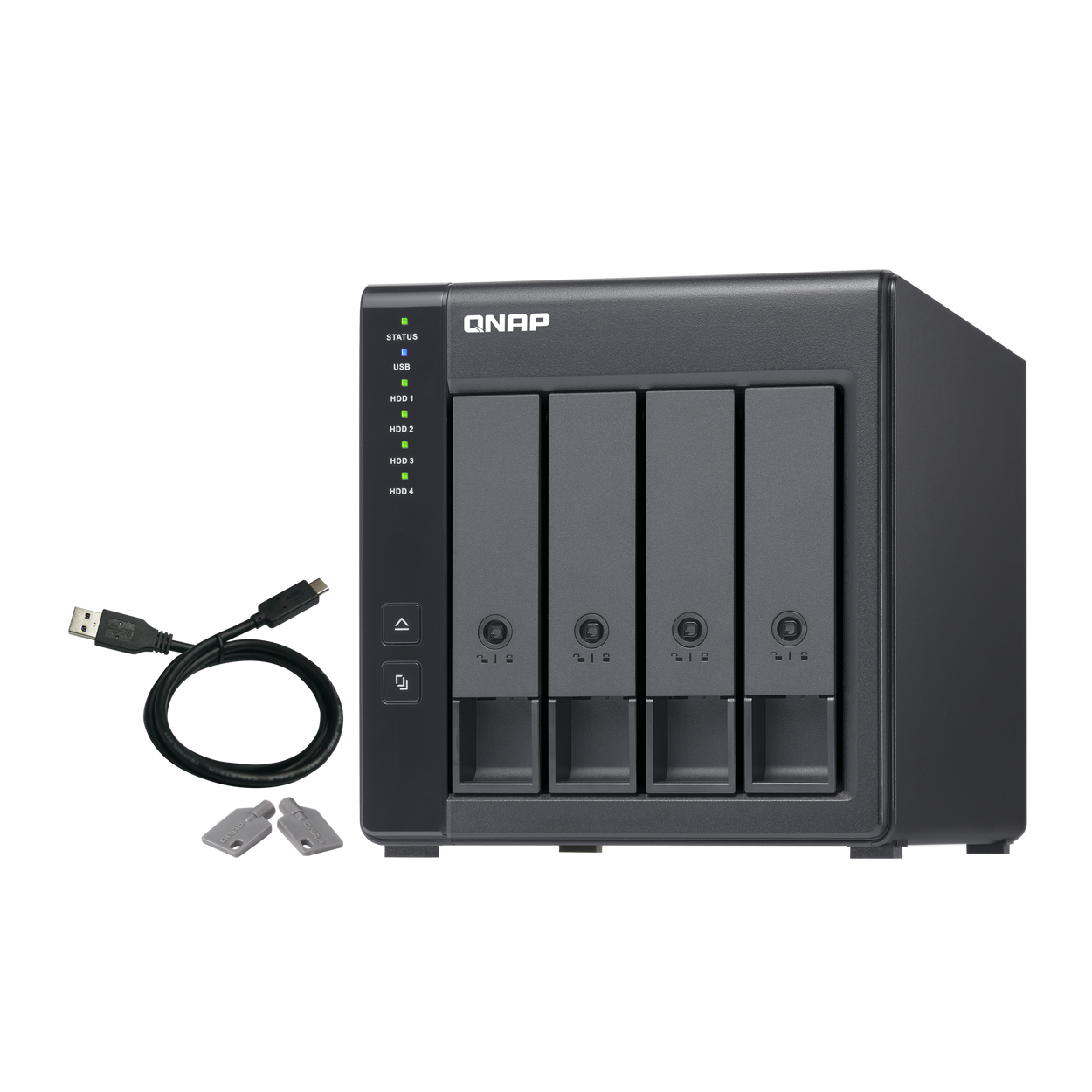

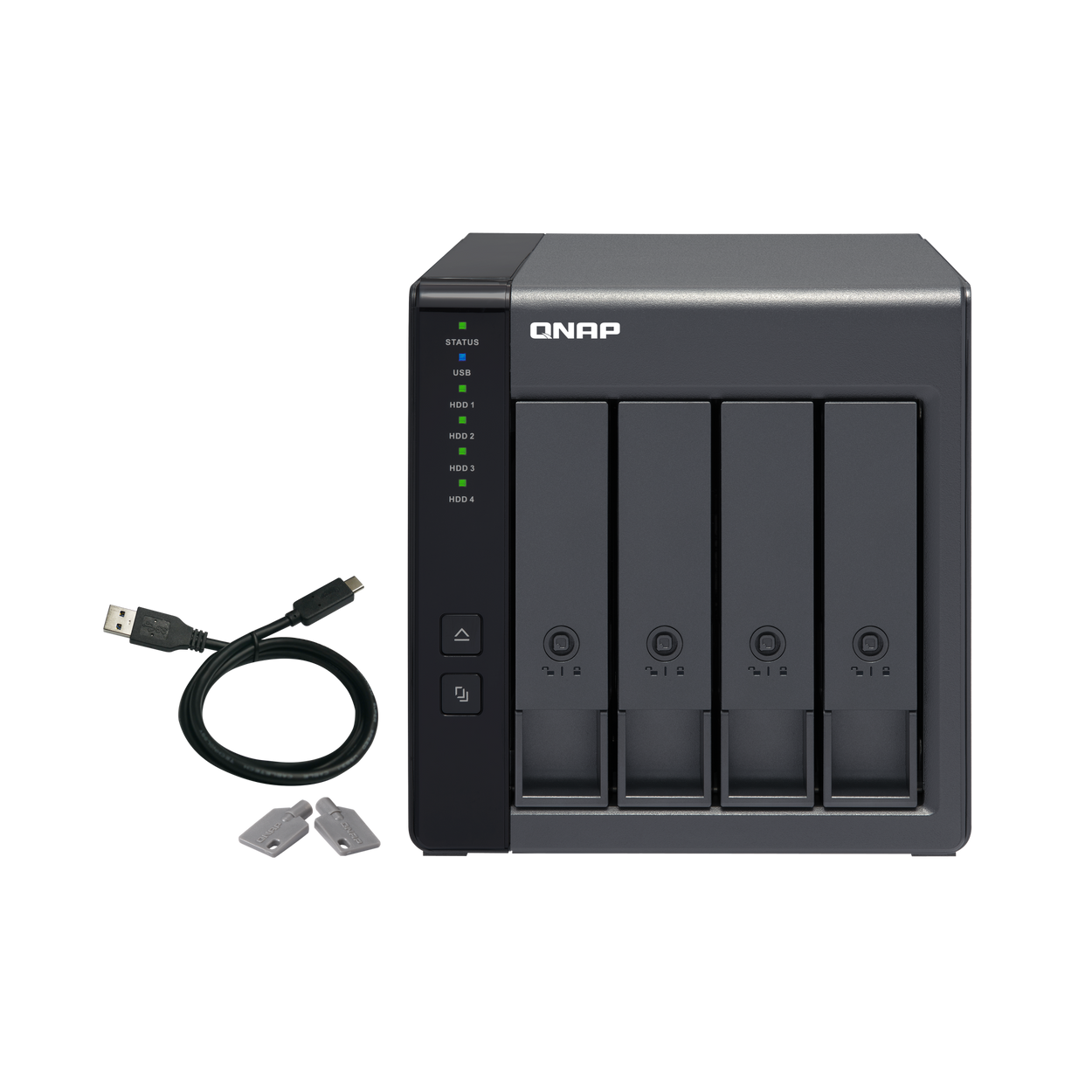

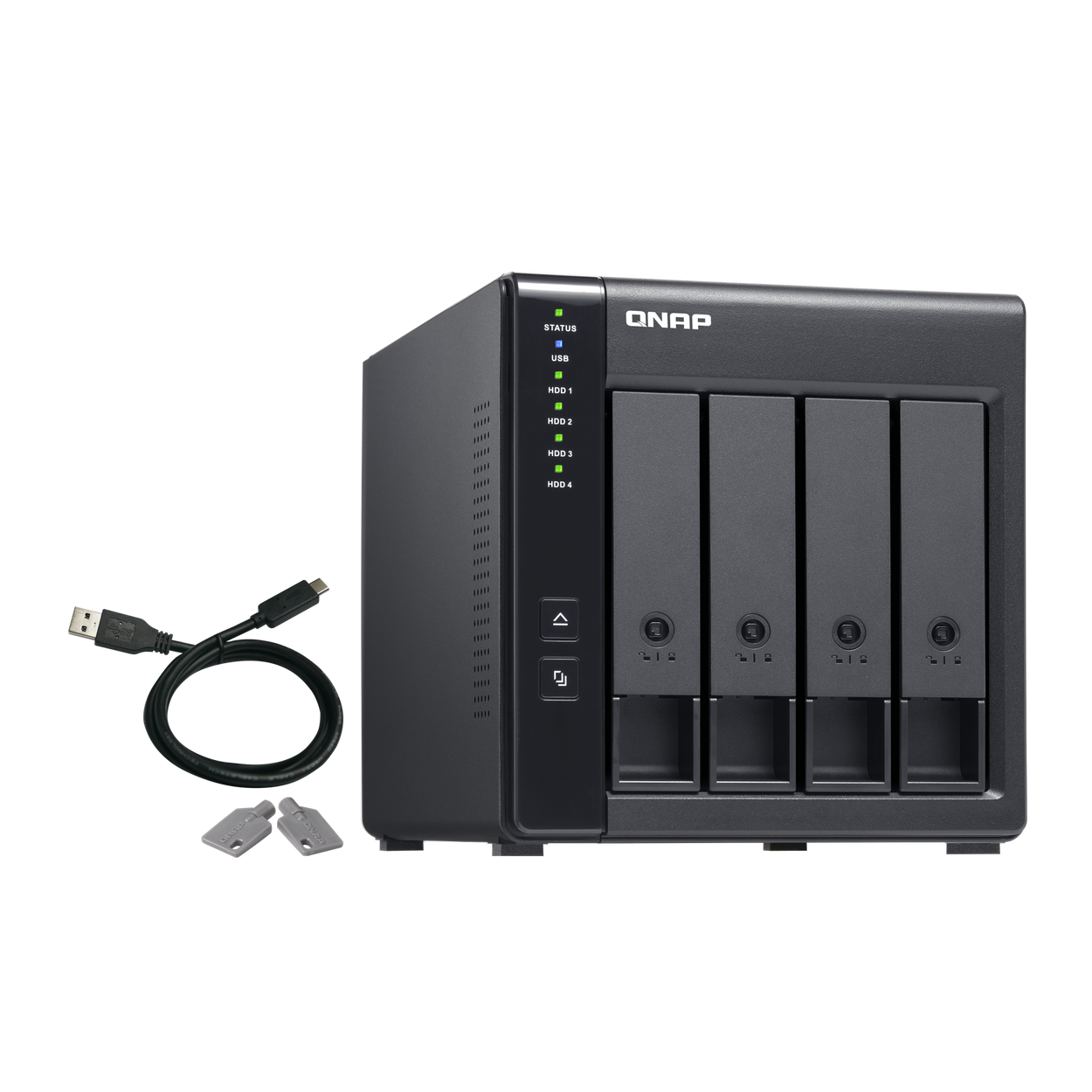

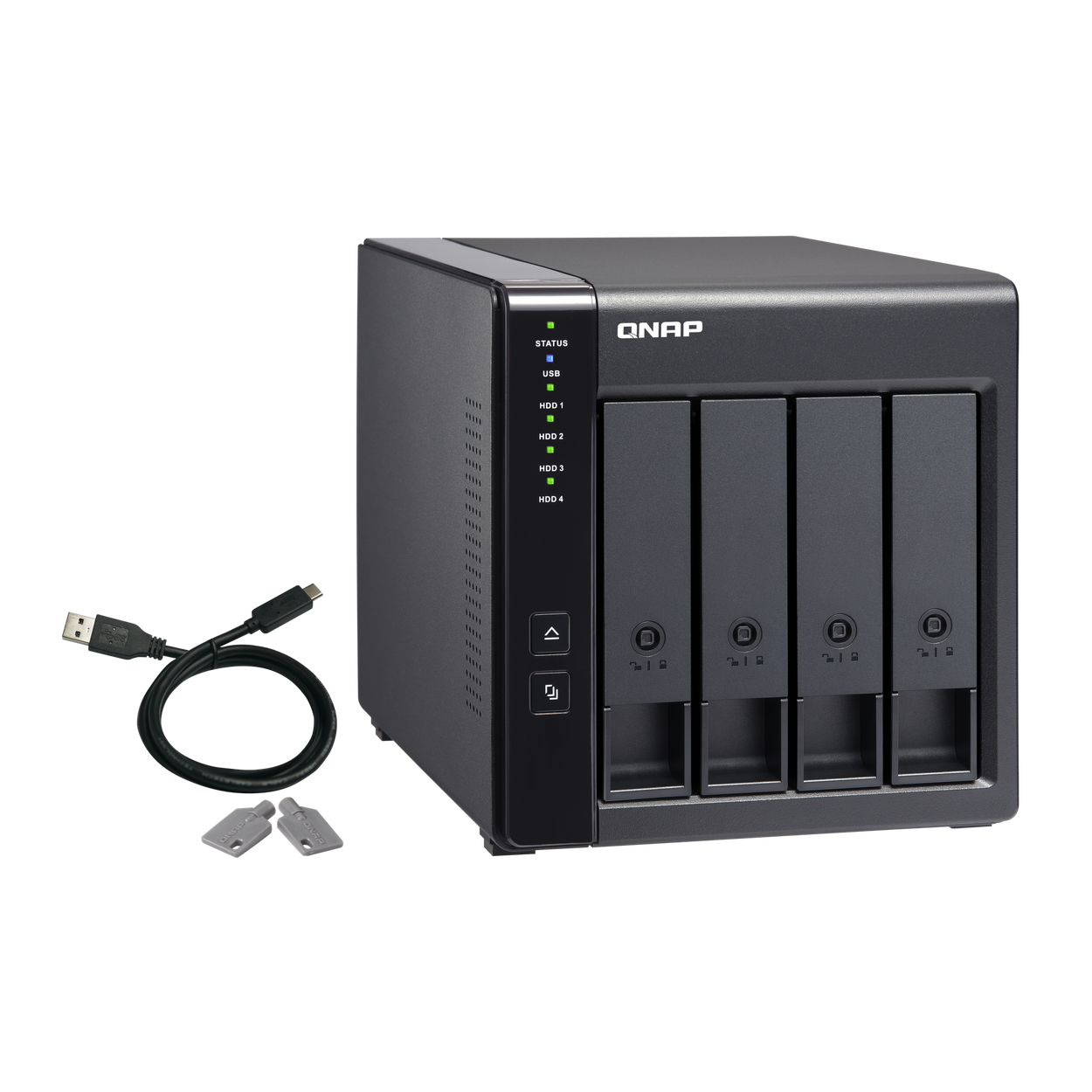

1 x QNAP TR-004 unit with power supply / cord and accessory kit (see QNAP's hardware specifications for the full package list). Drives not included.
QNAP Models at SourceIT
| Model | Key feature |
| TS-233 | 2-bay, ARM Cortex-A55 4-core 2.0 GHz with NPU, 2 GB, 1GbE |
| TS-216G | 2-bay, ARM Cortex-A55 4-core 2.0 GHz with NPU, 4 GB, 2.5GbE + 1GbE |
| TS-264-8G | 2-bay, Intel Celeron N5095, 8 GB (max 16 GB), 2 x 2.5GbE, 2 x M.2, PCIe, HDMI |
| TS-464-8G | 4-bay, Intel Celeron N5095, 8 GB (max 16 GB), 2 x 2.5GbE, 2 x M.2, PCIe, HDMI |
| TS-473A-8G | 4-bay, AMD Ryzen V1500B, 8 GB (max 64 GB, ECC), 2 x 2.5GbE, 2 x M.2, 2 x PCIe |
| TS-673A-8G | 6-bay, AMD Ryzen V1500B, 8 GB (max 64 GB, ECC), 2 x 2.5GbE, 2 x M.2, 2 x PCIe |
| TS-873A-8G | 8-bay, AMD Ryzen V1500B, 8 GB (max 64 GB, ECC), 2 x 2.5GbE, 2 x M.2, 2 x PCIe |
| TR-002 | 2-bay USB 3.2 Gen 2 Type-C hardware RAID enclosure (DAS / NAS expansion) |
| TR-004 (this listing) | 4-bay USB 3.2 Gen 1 Type-C hardware RAID enclosure (DAS / NAS expansion) |
Official QNAP Videos
TR-004 Tray Installation Guide (official QNAP channel)
How Do TR-002 and TR-004 RAID Enclosures Enter Standby Mode? (official QNAP channel)
Datasheet & Downloads
| Datasheet | TR-004 Datasheet (PDF) |
| Hardware specifications | TR-004 specifications on qnap.com |
| Product page | TR-004 on qnap.com |
Frequently Asked Questions — QNAP TR-004
Can I use it without a NAS?
Yes, as direct-attached storage for Windows, macOS and Linux.
Does it support RAID 5?
Yes, plus RAID 0, 1, 10 and RAID 5 with a hot spare.
Can I take snapshots?
Yes, when it is used as a QNAP NAS expansion storage pool.
What warranty do I get?
2 years QNAP warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
