QNAP TR-002 2-Bay USB-C RAID Enclosure (USB 3.2 Gen 2)
PRODUCT DESCRIPTION
QNAP TR-002 2-Bay USB 3.2 Gen 2 RAID Enclosure TR-002 - 2 Years Warranty
Fast External RAID Storage

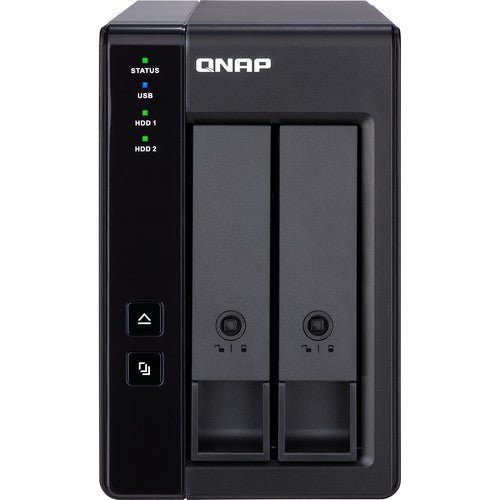

The TR-002 is a 2-bay hardware RAID enclosure with a 10Gbps USB 3.2 Gen 2 Type-C connection for PCs, Macs and QNAP NAS.
Two Ways to Use It
Use it as direct-attached storage for a computer, or attach it to a QNAP NAS as expansion or external storage.
Hardware or Software RAID Control

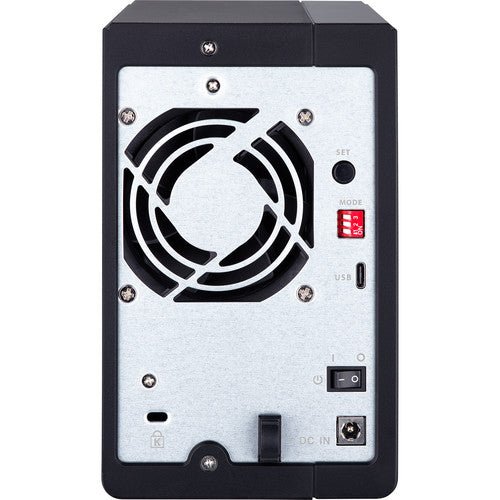

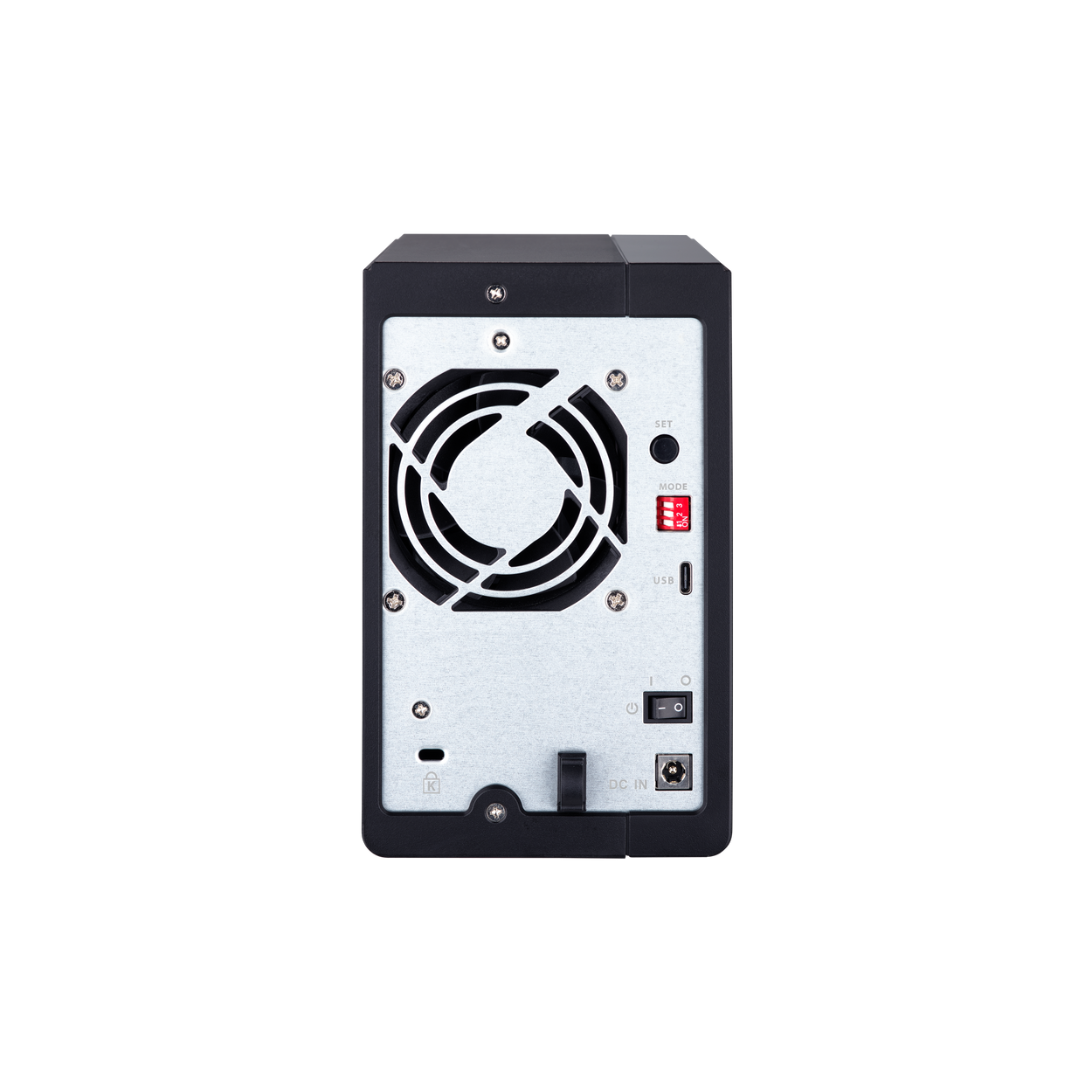

A DIP switch selects hardware RAID (RAID 0, RAID 1, JBOD, Individual) or software control from the host.
QNAP TR-002 Datasheet — Technical Specifications
General
| Product Name | QNAP TR-002 |
| Model | TR-002 |
| Type | 2-bay RAID enclosure (DAS / NAS expansion) |
| UPC | 885022017249 |
| Warranty | 2 years (QNAP) |
Storage

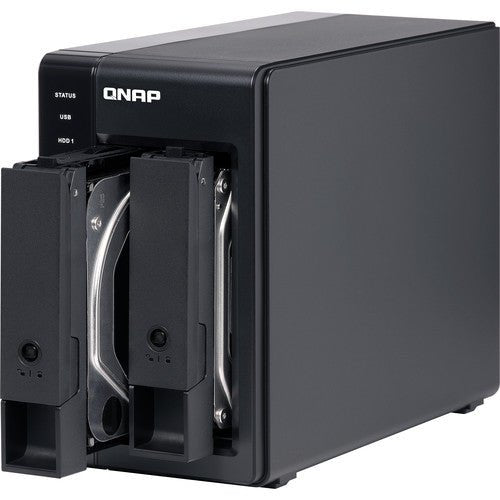

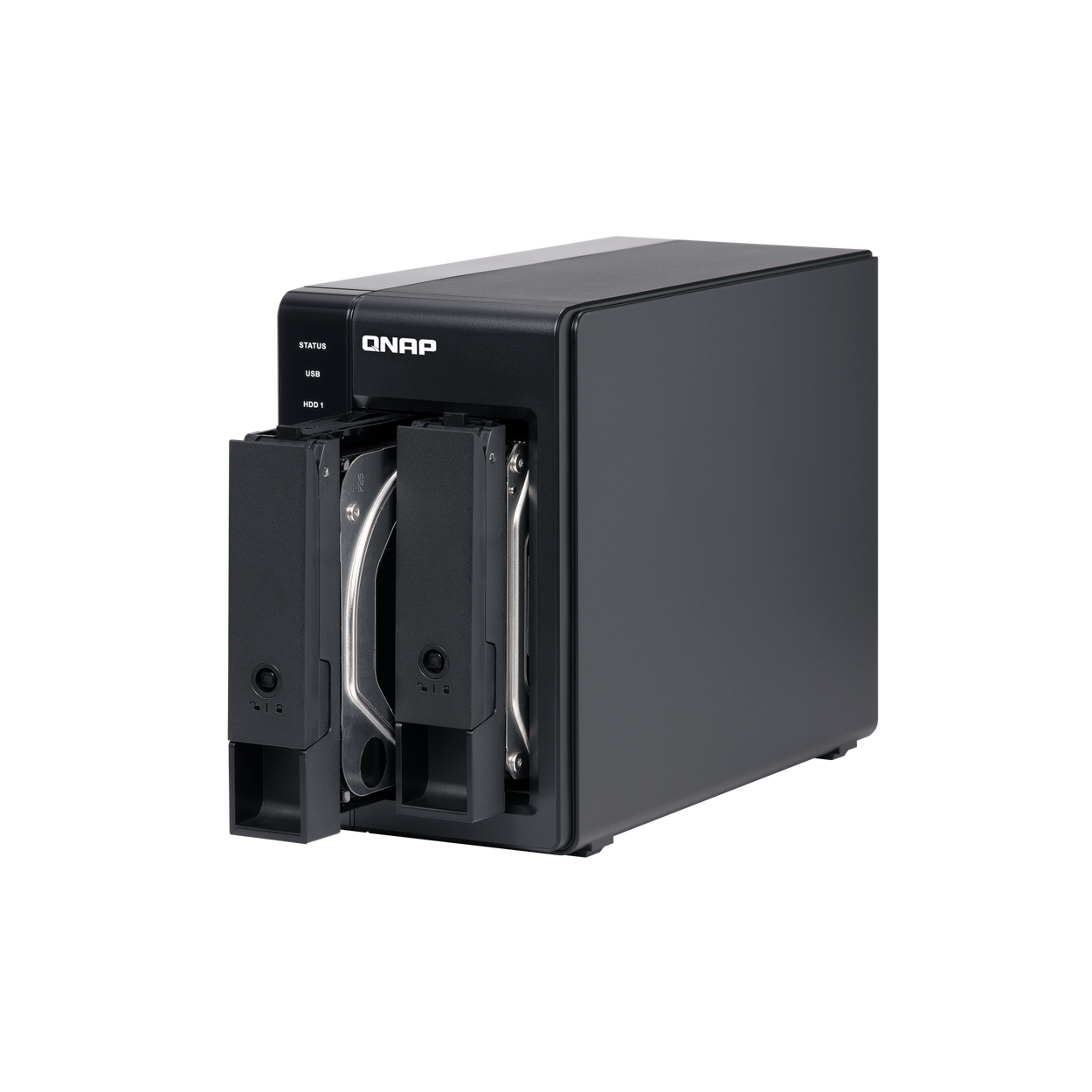

| Drive Bays | 2 x 3.5" SATA (3.5" HDD / 2.5" HDD or SSD) |
| RAID | RAID 0, RAID 1, JBOD, Individual, Single Disk |
| Control | Hardware (DIP switch) or software control |
Interface
| Host Port | 1 x USB 3.2 Gen 2 Type-C (10Gbps) |
| Supported Hosts | QNAP NAS (QTS 4.3.6 or later), Windows, macOS, Ubuntu / Linux |
Power & Physical
| Power Adapter | 36 W |
| Power Consumption | 10.15 W (operating), 2.98 W (sleep) |
| Fan | 1 x 70 mm |
| Operating Temperature | 0–40 °C |
| Dimensions (H x W x D) | 168.5 x 102 x 219 mm |
| Net Weight | 1.37 kg |
Compatibility & Applications
Typical Use
External RAID storage for creative workstations and laptops, or extra capacity and backup target for a QNAP NAS.
Notes
On a QNAP NAS the TR-002 forms its own storage pool or volume. Not supported on TS-128, TS-228, TS-131, TS-231, TS-431, TS-431U or NAS that cannot run QTS 4.3.6 or later.
Selection Tip
Need four bays and RAID 5/10? Choose the TR-004.
Package Contents & QNAP Ordering Information
In the Box

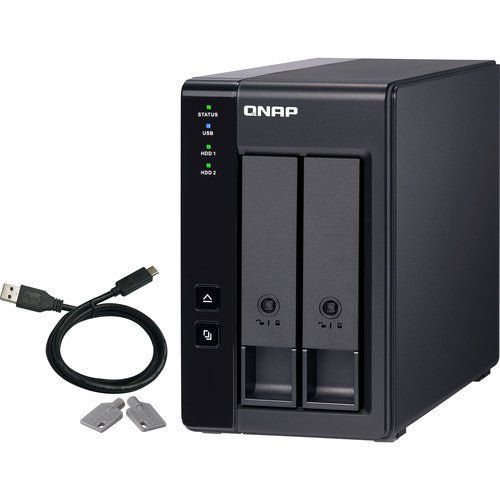

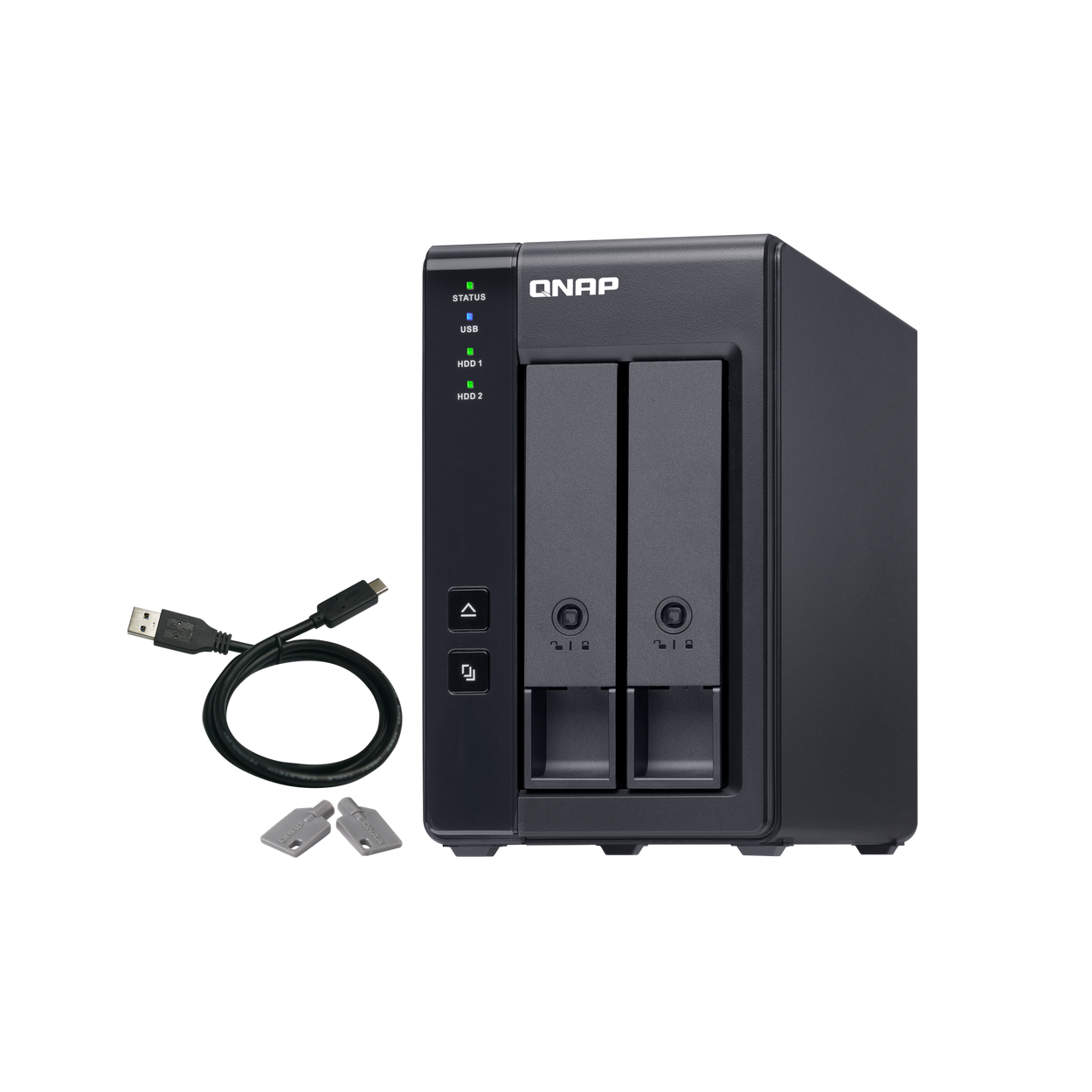

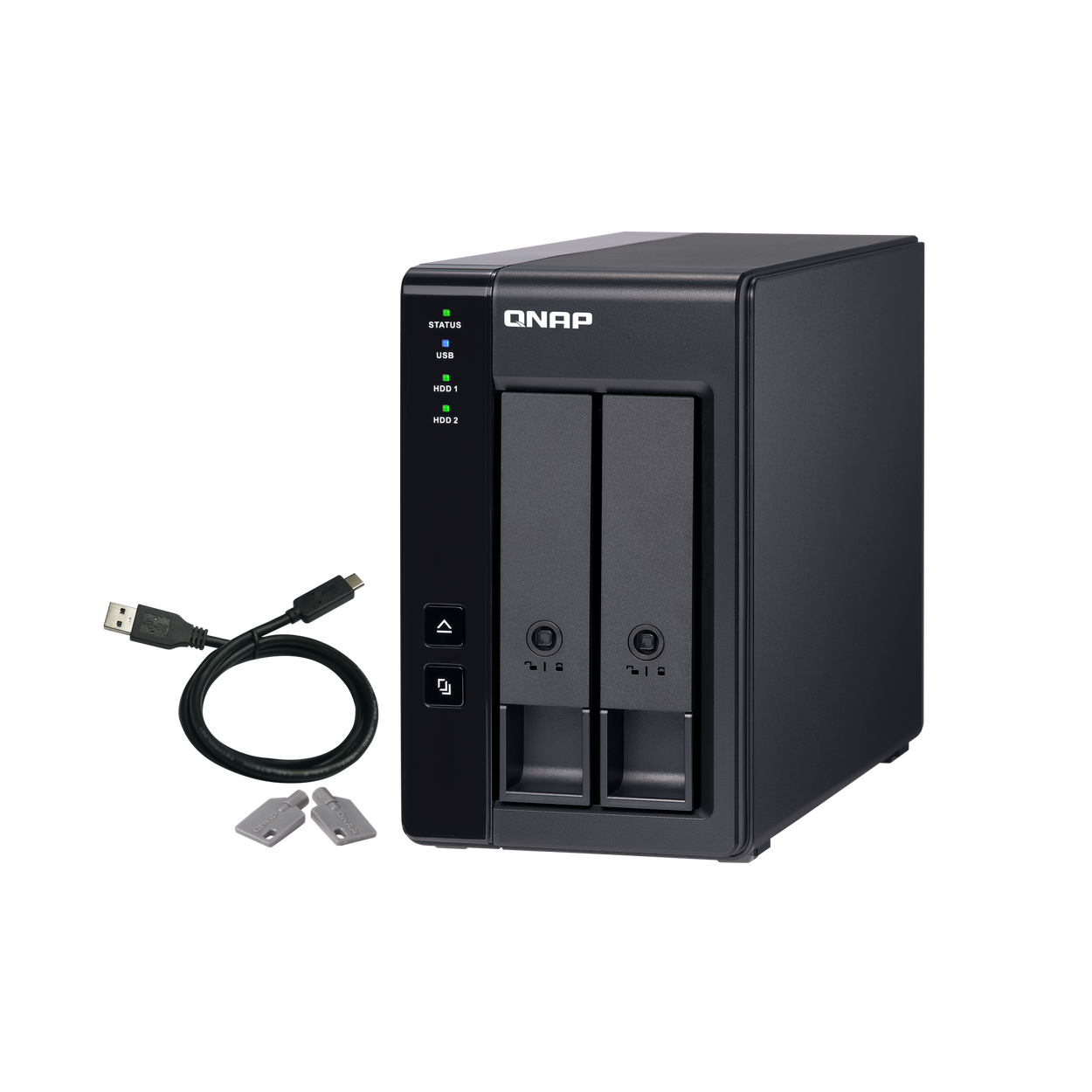

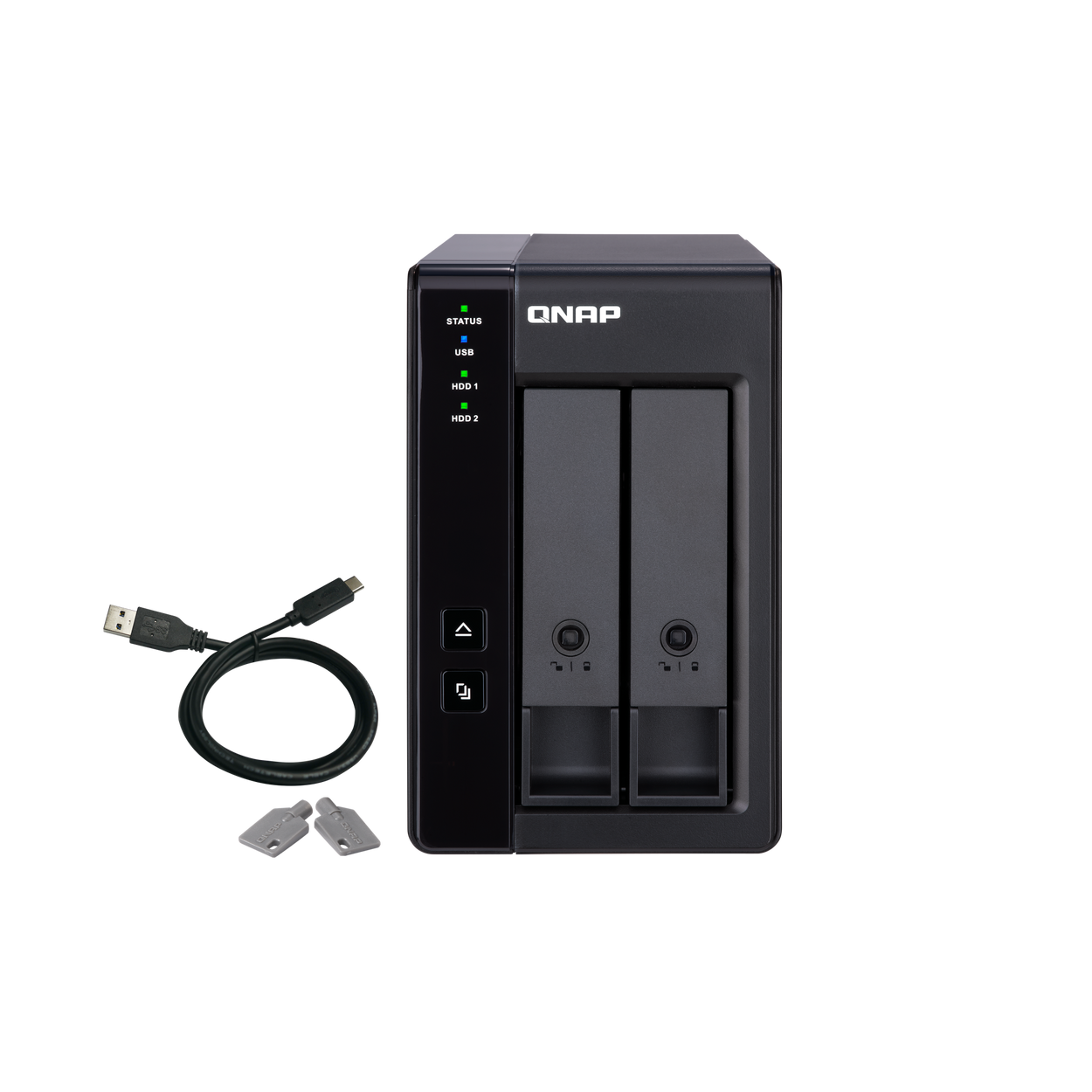

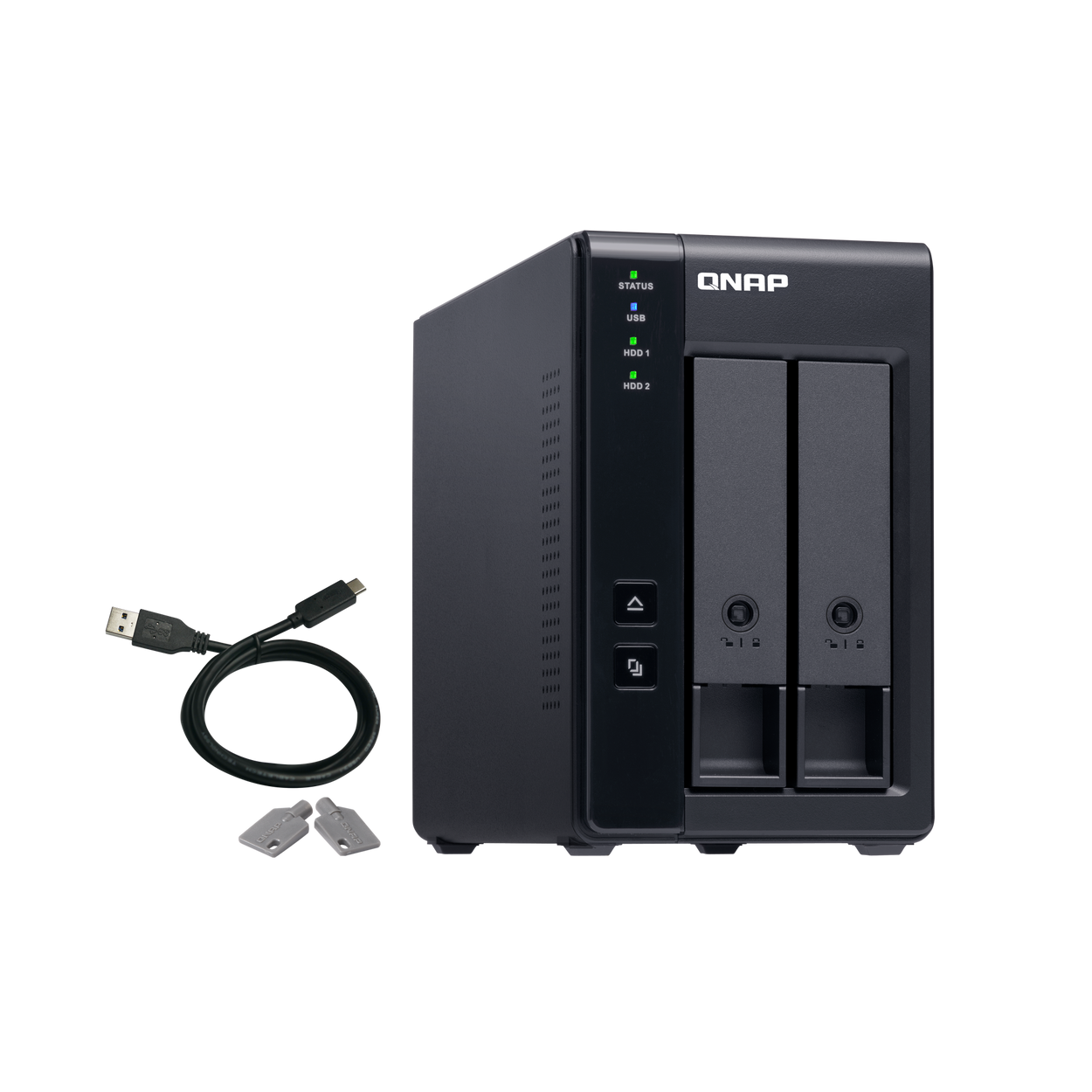

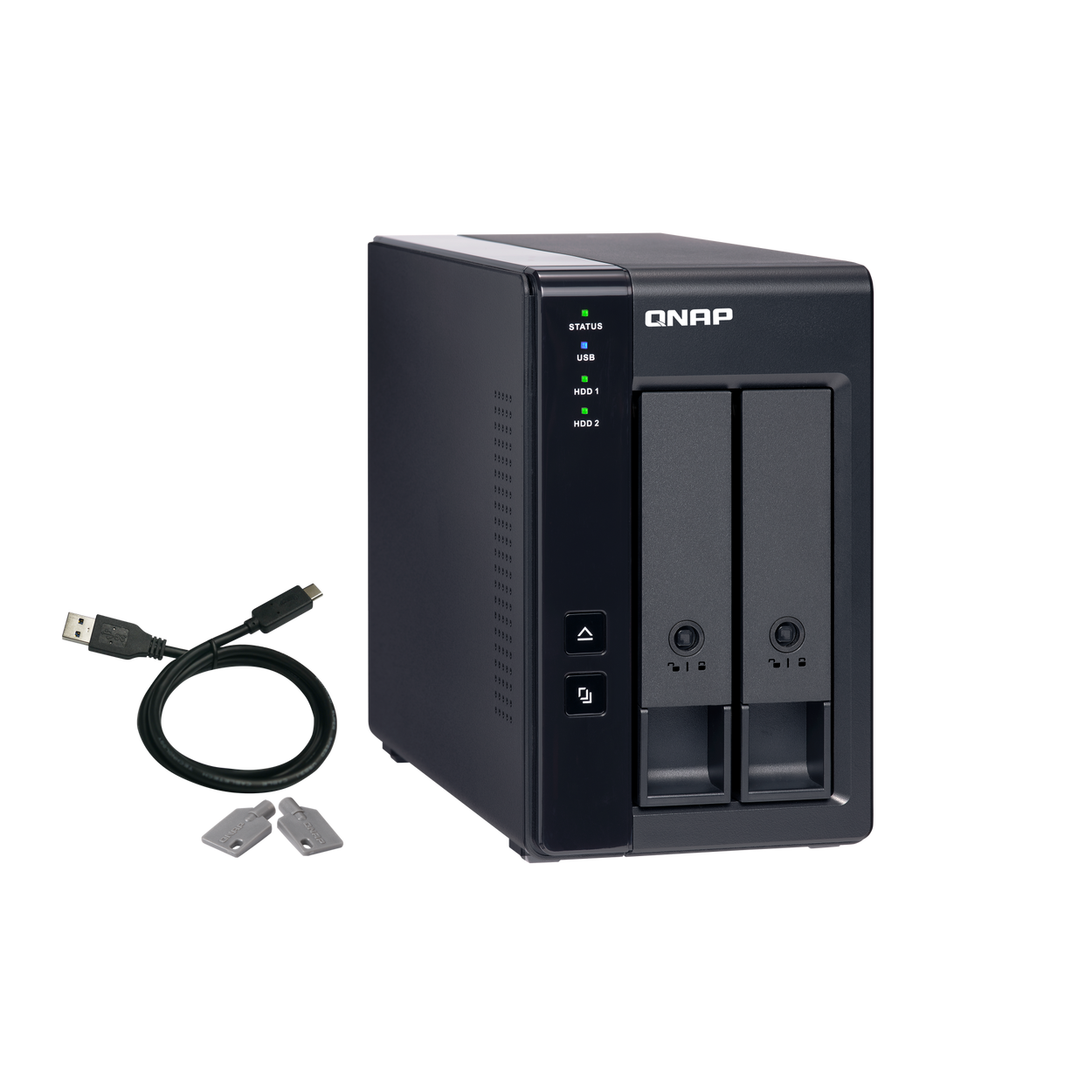

1 x QNAP TR-002 unit with power supply / cord and accessory kit (see QNAP's hardware specifications for the full package list). Drives not included.
QNAP Models at SourceIT
| Model | Key feature |
| TS-233 | 2-bay, ARM Cortex-A55 4-core 2.0 GHz with NPU, 2 GB, 1GbE |
| TS-216G | 2-bay, ARM Cortex-A55 4-core 2.0 GHz with NPU, 4 GB, 2.5GbE + 1GbE |
| TS-264-8G | 2-bay, Intel Celeron N5095, 8 GB (max 16 GB), 2 x 2.5GbE, 2 x M.2, PCIe, HDMI |
| TS-464-8G | 4-bay, Intel Celeron N5095, 8 GB (max 16 GB), 2 x 2.5GbE, 2 x M.2, PCIe, HDMI |
| TS-473A-8G | 4-bay, AMD Ryzen V1500B, 8 GB (max 64 GB, ECC), 2 x 2.5GbE, 2 x M.2, 2 x PCIe |
| TS-673A-8G | 6-bay, AMD Ryzen V1500B, 8 GB (max 64 GB, ECC), 2 x 2.5GbE, 2 x M.2, 2 x PCIe |
| TS-873A-8G | 8-bay, AMD Ryzen V1500B, 8 GB (max 64 GB, ECC), 2 x 2.5GbE, 2 x M.2, 2 x PCIe |
| TR-002 (this listing) | 2-bay USB 3.2 Gen 2 Type-C hardware RAID enclosure (DAS / NAS expansion) |
| TR-004 | 4-bay USB 3.2 Gen 1 Type-C hardware RAID enclosure (DAS / NAS expansion) |
Official QNAP Videos
TR-Series Direct-Attached Storage Configuration (official QNAP College channel)
How Do TR-002 and TR-004 RAID Enclosures Enter Standby Mode? (official QNAP channel)
Datasheet & Downloads
| Datasheet | TR-002 Datasheet (PDF) |
| Hardware specifications | TR-002 specifications on qnap.com |
| Product page | TR-002 on qnap.com |
Frequently Asked Questions — QNAP TR-002
Can I use it without a NAS?
Yes. It works as direct-attached storage for Windows, macOS and Linux computers.
Which RAID levels are supported?
RAID 0, RAID 1, JBOD, Individual and Single Disk.
Can it join my NAS's existing storage pool?
No. It is set up as its own storage pool or volume on the NAS.
What warranty do I get?
2 years QNAP warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
