High-Performance 9-Bay NAS for Hybrid Storage Workloads
The QNAP TS-h973AX-8G 9-bay Desktop NAS (QN-TS-h973AX-8G) is built for businesses, creative teams, and professional users who need flexible shared storage with strong performance in a compact desktop form factor. Powered by an AMD Ryzen Embedded V1500B 4-core 8-thread 2.2GHz processor and equipped with 8GB DDR4 memory, this NAS is designed to handle file sharing, backup, virtualisation, and multi-user collaboration with dependable speed and stability. It combines hybrid storage flexibility with enterprise-ready features for demanding environments.

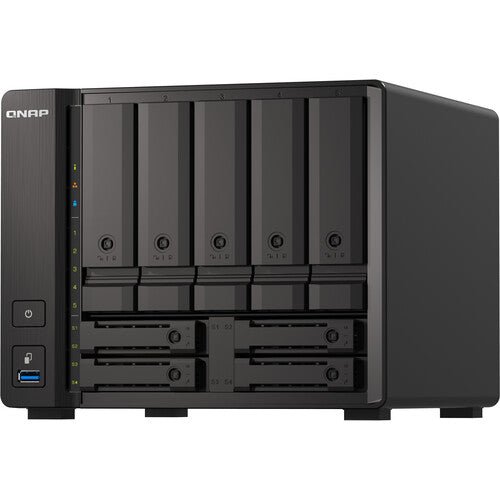

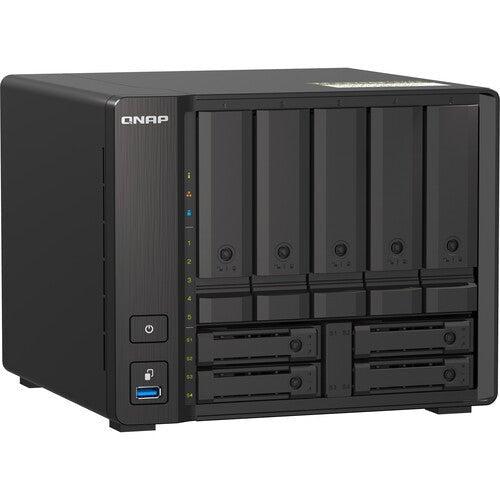

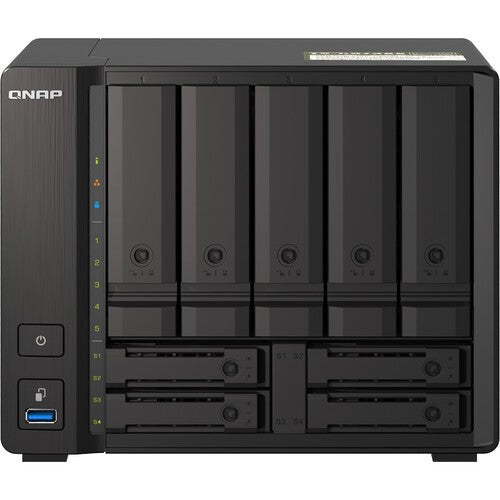

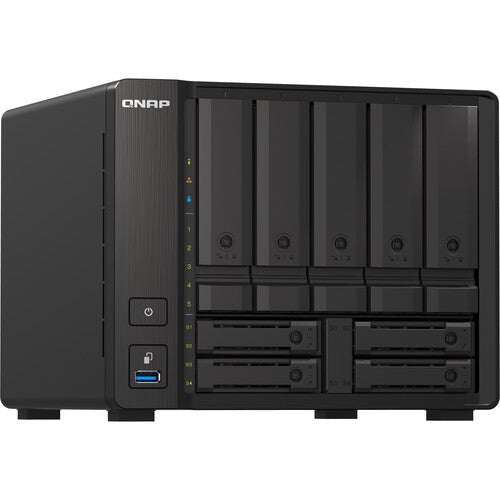

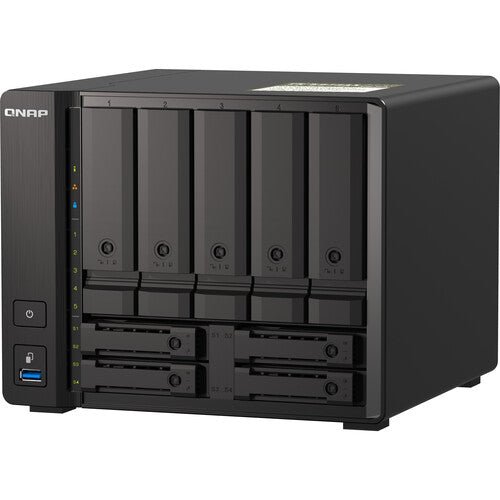

Hybrid 9-Bay Design for Flexible Storage Deployment
The TS-h973AX-8G features a unique 9-bay hybrid design that combines 5 x 3.5-inch SATA 6Gbps drive bays with 4 x 2.5-inch bays. This flexible bay configuration allows organisations to balance large-capacity hard drives with faster solid-state storage in a single desktop NAS. It is well suited for tiered storage, SSD caching, and performance-focused workflows that need both large storage capacity and fast data access.
Built for Faster Networking and Business Productivity
With built-in high-speed network connectivity, the QNAP TS-h973AX is designed to support faster file transfers, centralised storage access, and smoother collaboration across teams. This makes it suitable for creative projects, backup operations, and business environments where multiple users need fast and reliable access to shared files. The platform is a strong fit for studios, departments, and SMEs that want compact NAS storage without compromising on performance.
Expandability and Reliability for Growing Environments
The system supports memory expansion and is designed for organisations that may start with file storage and backup, then expand into more demanding uses such as virtual machines, collaborative workflows, and performance-sensitive applications. Its enterprise-oriented architecture helps improve reliability for professional use, making it suitable for users who need a long-term storage platform that can adapt to business growth.
Professional Desktop NAS for Backup, Collaboration, and Virtualisation
Whether deployed in a creative studio, office, or business IT environment, the QNAP TS-h973AX-8G offers a practical mix of performance, compact size, and hybrid storage architecture. It is suitable for centralised file sharing, backup consolidation, virtualisation, and collaborative work involving large files. For organisations that need a desktop NAS with flexible storage media options and dependable business performance, this model is a capable long-term solution.
Technical Specification
General
• Product Name: QNAP TS-h973AX-8G
• Model Number: QN-TS-h973AX-8G
• Product Type: 9-bay desktop NAS
• Form Factor: Tower desktop enclosure
• Operating System: QuTS hero
• Designed For: Business storage, backup, virtualization, collaborative file sharing and high-speed data management
Processor
• CPU: AMD Ryzen Embedded V1500B
• CPU Cores: 4 cores / 8 threads
• Clock Speed: 2.2 GHz
• CPU Architecture: 64-bit x86
• Encryption Engine: AES-NI hardware encryption supported
• Floating Point Unit: Yes
Memory
• Installed Memory: 8GB DDR4 ECC SODIMM
• Memory Configuration: 1 × 8GB
• Memory Slots: 2 × DDR4 SODIMM
• Maximum Memory: Up to 32GB
• ECC Memory Support: Yes
Storage Bays
• 5 × 3.5-inch / 2.5-inch SATA 6Gb/s drive bays
• 4 × 2.5-inch U.2 NVMe Gen 3 x4 / SATA 6Gb/s SSD bays
• Supports both HDD and SSD deployment for tiered storage
• Hot-swappable drive bay design supported

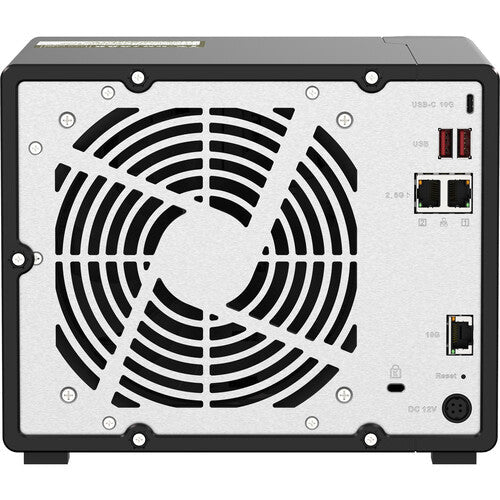

Networking & Connectivity
• 1 × 10GbE BASE-T RJ45 port
• 2 × 2.5GbE RJ45 ports
• Supports 10G / 5G / 2.5G / 1G / 100M speeds on 10GbE port
• Supports port trunking and failover
• Jumbo Frame supported
Ports & Interfaces
• 2 × USB 3.2 Gen 2 Type-A ports
• 2 × USB 3.2 Gen 1 Type-A ports
• 1 × HDMI output
• Audio output supported
• System status LEDs and control buttons
Expansion
• 2 × M.2 NVMe SSD slots
• 2 × PCIe expansion slots
• Supports optional QNAP network cards, QM2 cards and other expansion modules
System Features
• QuTS hero ZFS-based operating system
• Inline data deduplication, compression and self-healing
• Snapshot support for backup and recovery
• RAID support for data protection
• SSD cache acceleration and auto-tiering support
• Optimized for virtualization, container applications and business workloads
Graphics & Video
• No integrated GPU for media transcoding
• HDMI output available for local display or monitoring use
Physical & Power
• Desktop tower NAS chassis
• Internal power supply
• Quiet cooling system for office deployment
• Designed for continuous operation
Typical Use Cases
• Centralized business file server
• Backup and disaster recovery
• Virtualization and container storage
• High-speed collaborative storage for teams
• Hybrid HDD and SSD performance storage environments
Key Features
• AMD Ryzen Embedded quad-core processor for business NAS workloads
• 9-bay hybrid storage architecture with HDD and U.2 NVMe SSD support
• Built-in 10GbE and 2.5GbE connectivity
• QuTS hero with ZFS data integrity and snapshot protection
• ECC memory support for improved reliability
• Flexible expansion for growing storage and networking needs
