Efficient Intel Quad-Core Performance for Daily Operations

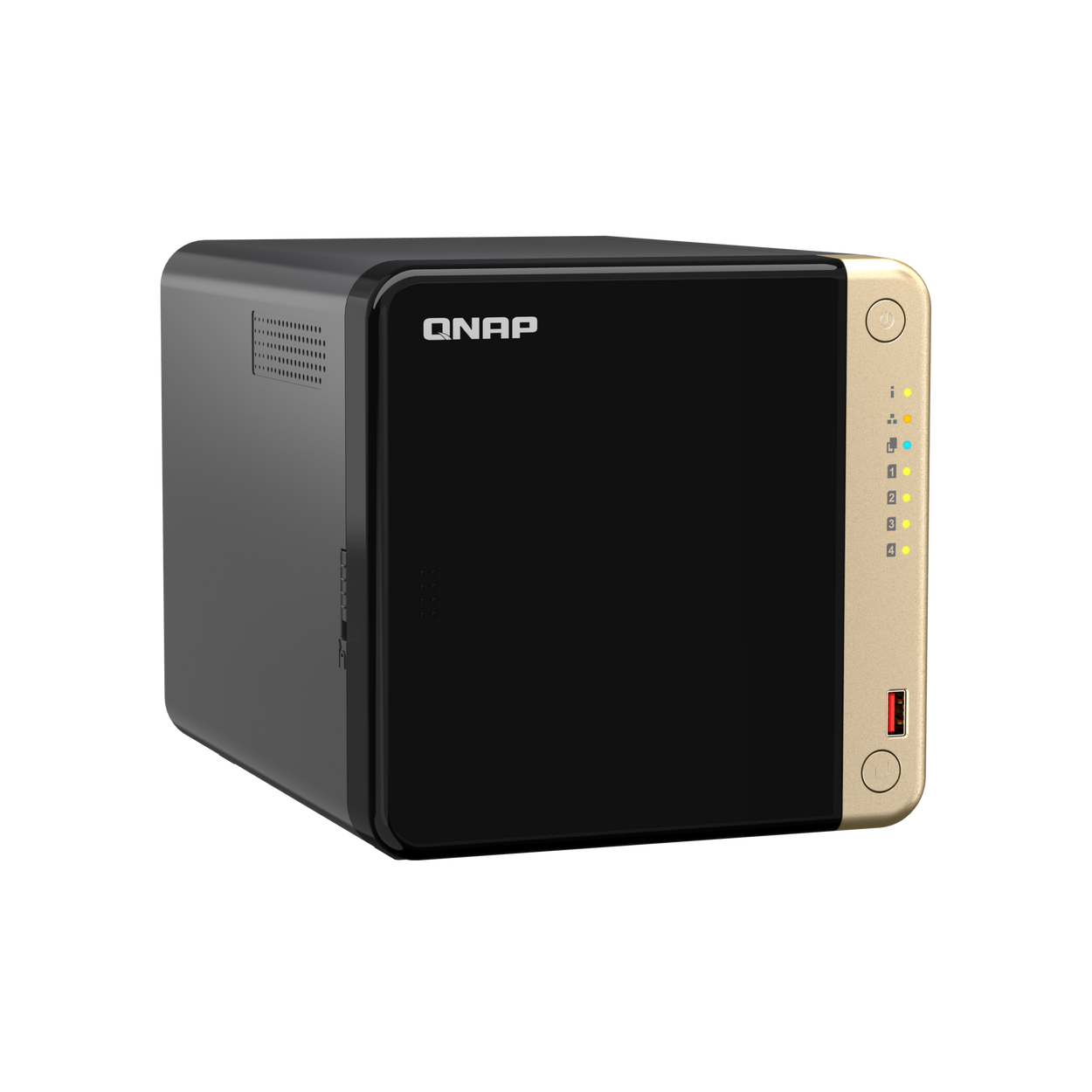

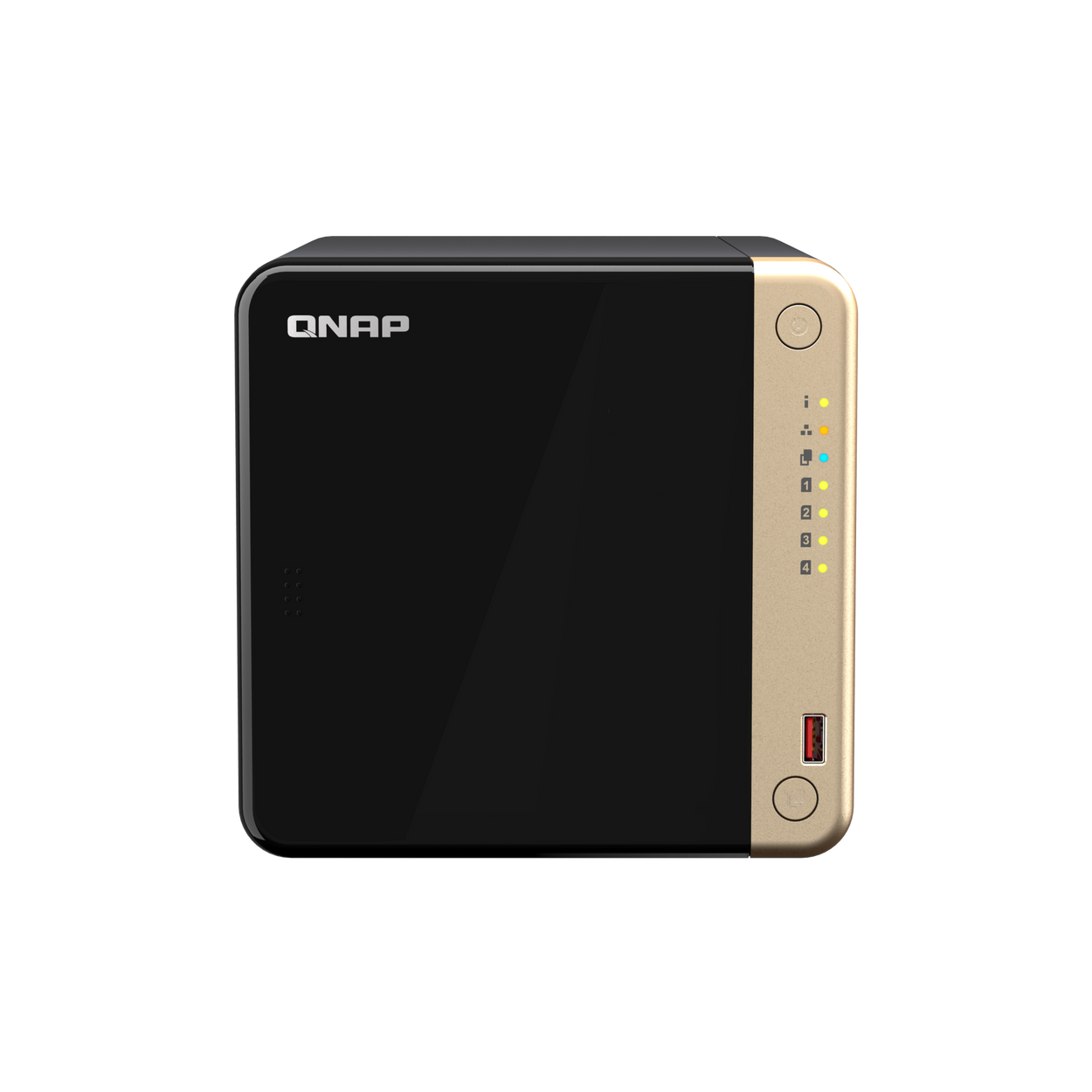

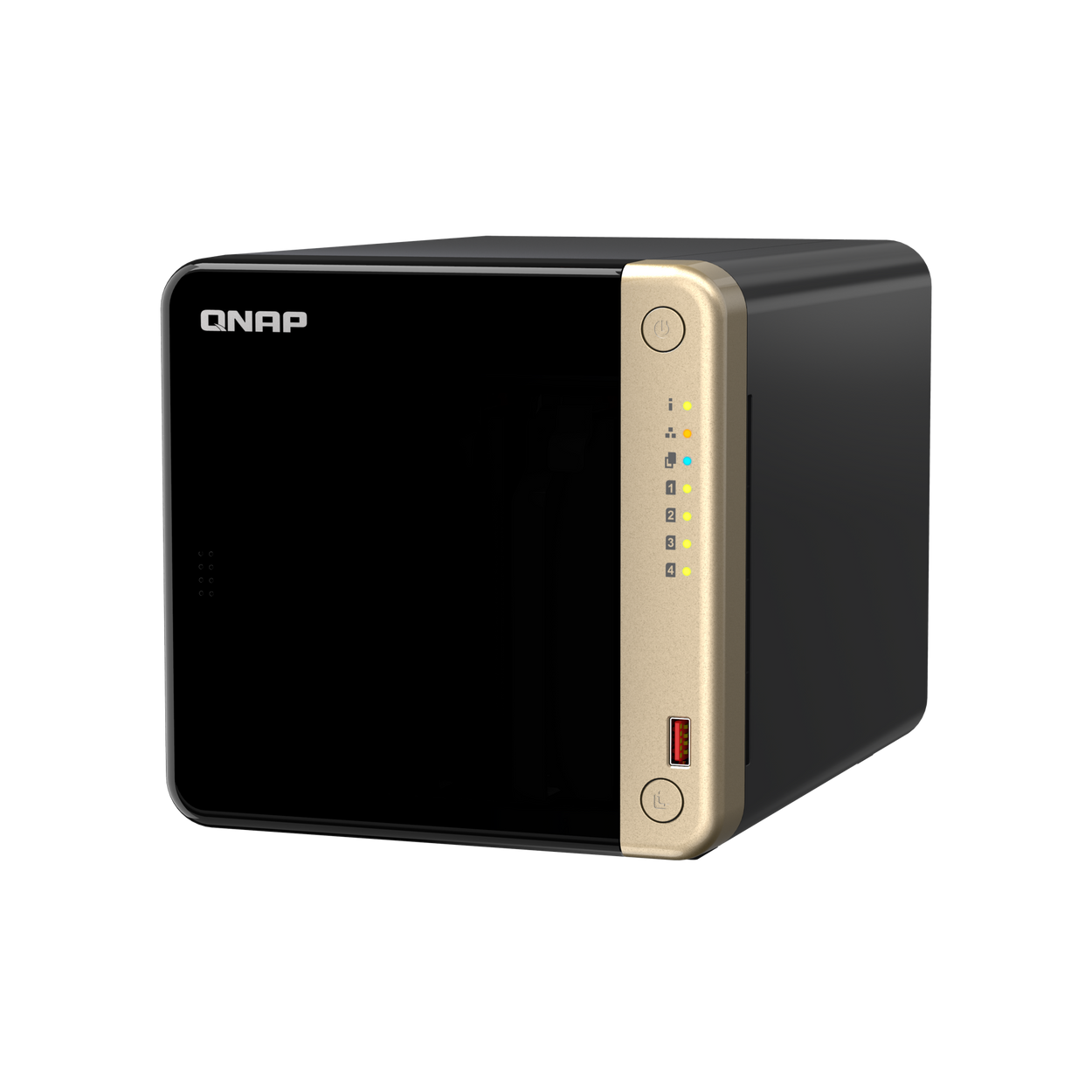

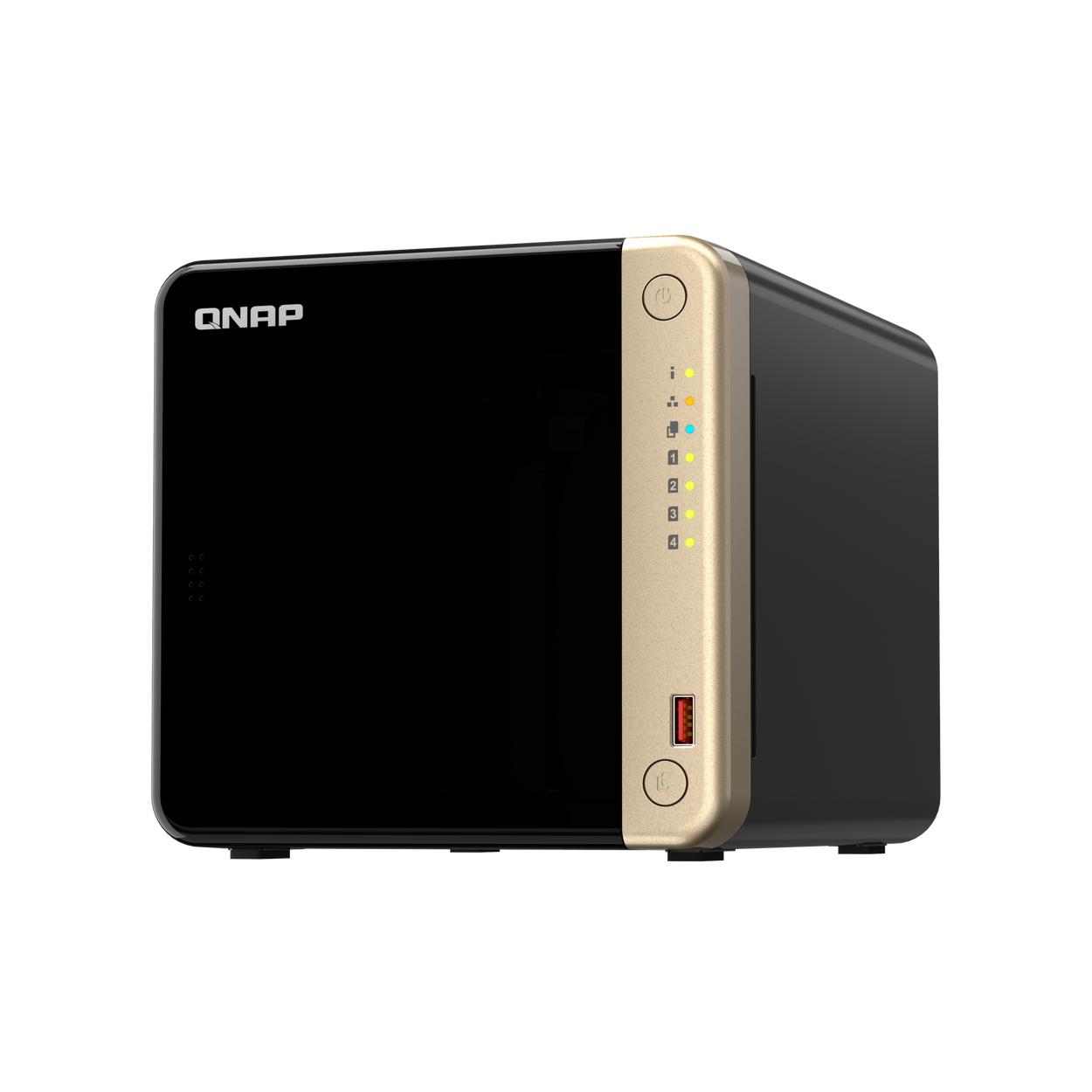

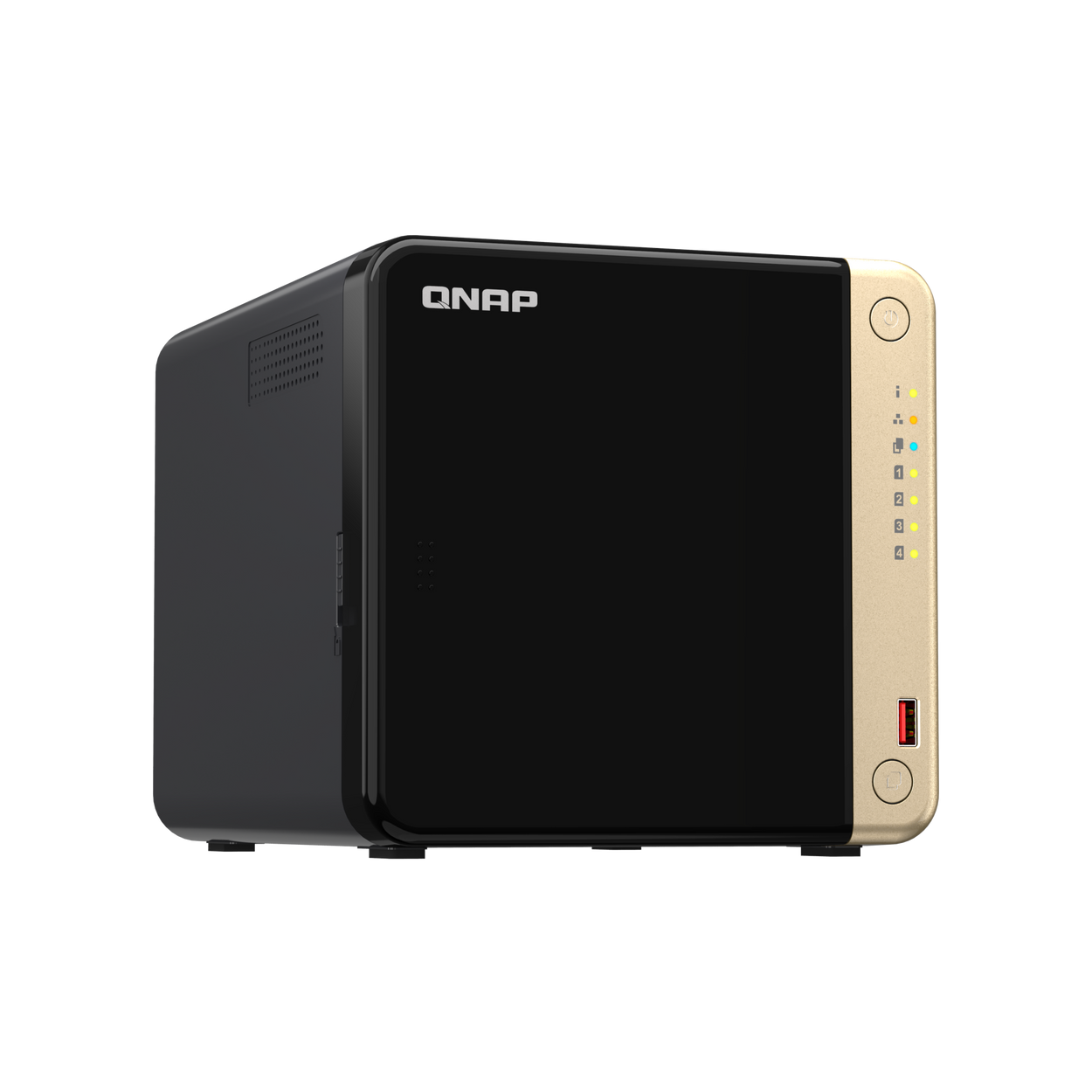

The QNAP TS-464-8G is a reliable 4-bay desktop NAS powered by the Intel Celeron N5105/N5095 quad-core processor. Designed for small businesses and professional workgroups, it delivers stable performance for centralized file storage, backup management, and shared access across multiple users. The fixed 8GB RAM configuration ensures consistent system responsiveness without the complexity of memory upgrades.
High-Speed 2.5GbE Connectivity for Growing Teams
Equipped with 2.5GbE networking, the QNAP TS-464-8G enables faster data transfers compared to traditional Gigabit NAS systems. This makes it ideal for environments handling large documents, multimedia files, and routine backups. Teams benefit from smoother collaboration, reduced waiting time, and improved overall productivity within office networks.
Optimized 4-Bay Storage for Flexible RAID Deployment
With four drive bays supporting 3.5” and 2.5” SATA HDDs or SSDs, this NAS offers scalable storage capacity to match business growth. It supports multiple RAID configurations to enhance data redundancy and availability. Organizations can balance performance and protection according to operational needs, ensuring business continuity even in the event of drive failure.
Smart Backup, Virtualization, and Multimedia Capabilities
The Intel Celeron architecture supports hardware-accelerated transcoding and lightweight virtualization applications. Businesses can centralize backups from PCs, servers, and cloud platforms while maintaining structured file management. The QTS operating system provides intuitive tools for user control, data snapshots, and hybrid cloud integration, making storage administration straightforward and secure.
Technical Specifications
General
• Model: QNAP TS-464-8G
• Type: 4-bay desktop NAS
• Use: Home / SOHO / SMB storage, backups, media, apps
Processor & Memory
• CPU: Intel® Celeron® N5105 / N5095 (quad-core, 64-bit)
• Clock: Base ~2.0 GHz, boost up to ~2.9 GHz
• System Memory: 8 GB DDR4 (fixed, non-expandable)
• Memory Type: DDR4
Storage

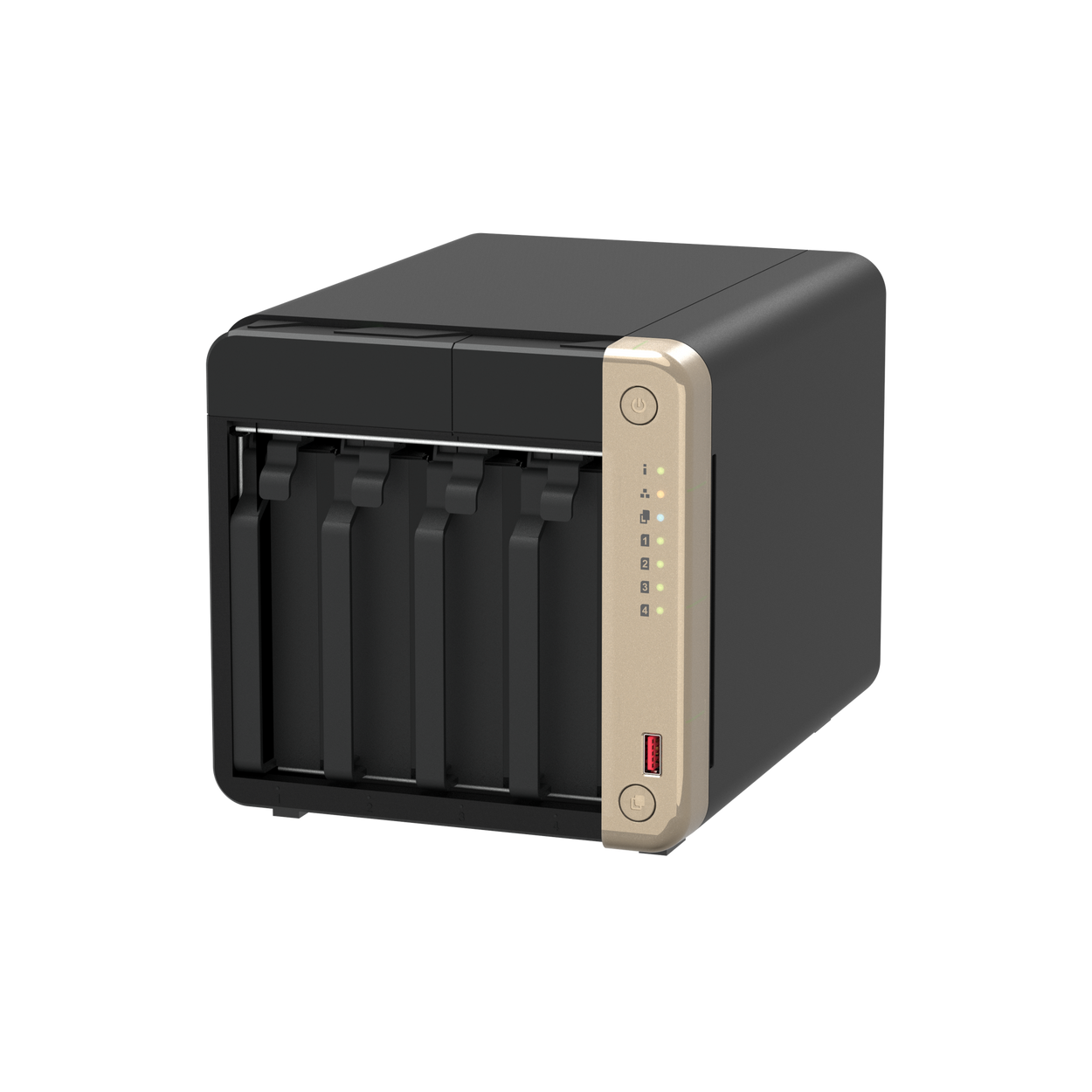

• Drive Bays: 4 × 3.5″ SATA HDD / 2.5″ SATA SSD
• Maximum Raw Capacity: Depends on installed drives
• RAID Support:
– RAID 0 (performance)
– RAID 1 (mirrored redundancy)
– RAID 5 (parity protection)
– RAID 6 (dual parity)
– RAID 10 (stripe of mirrors)
– JBOD / Single Disk

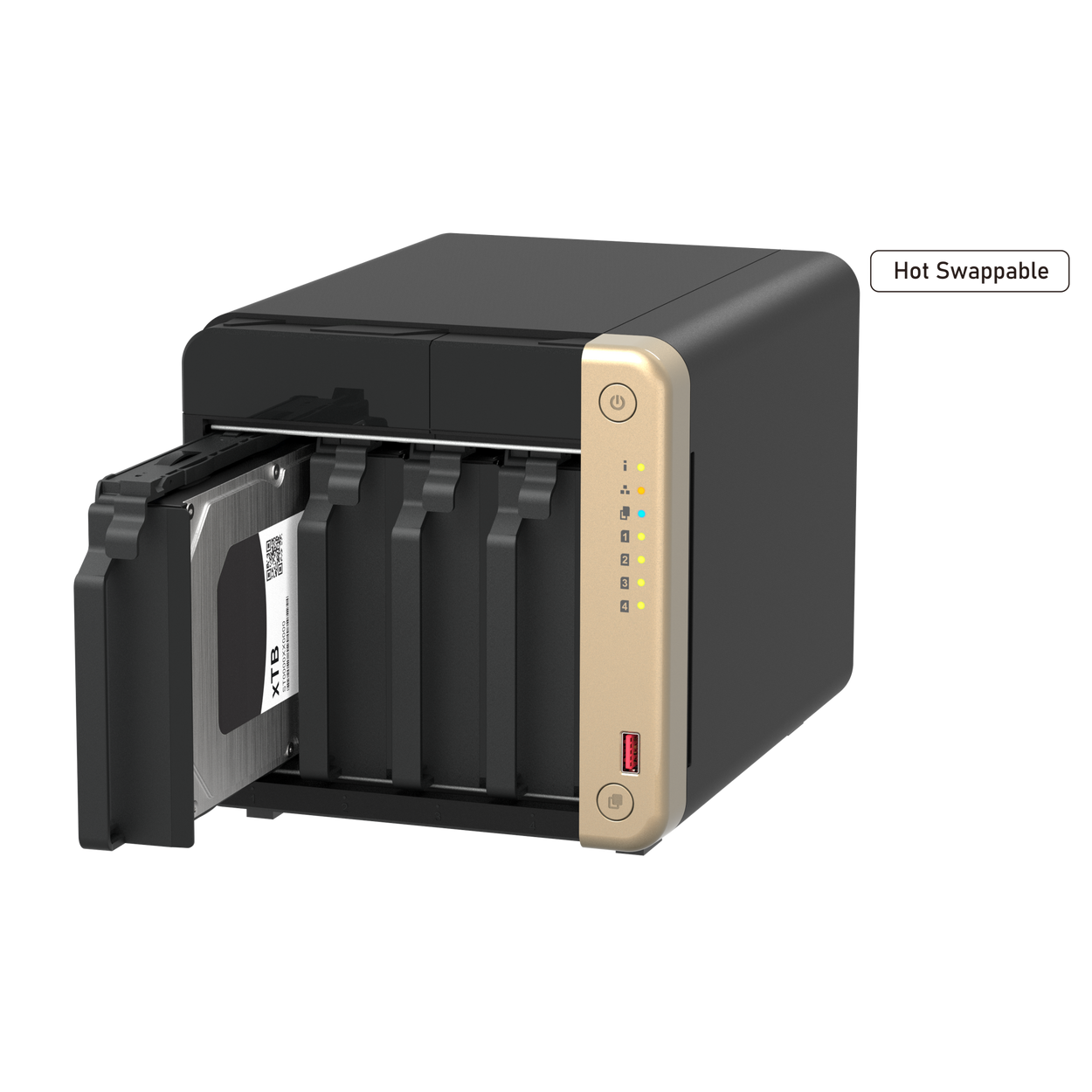

• Hot-swappable drives: ✔️
• SSD cache supported (using installed SSDs)

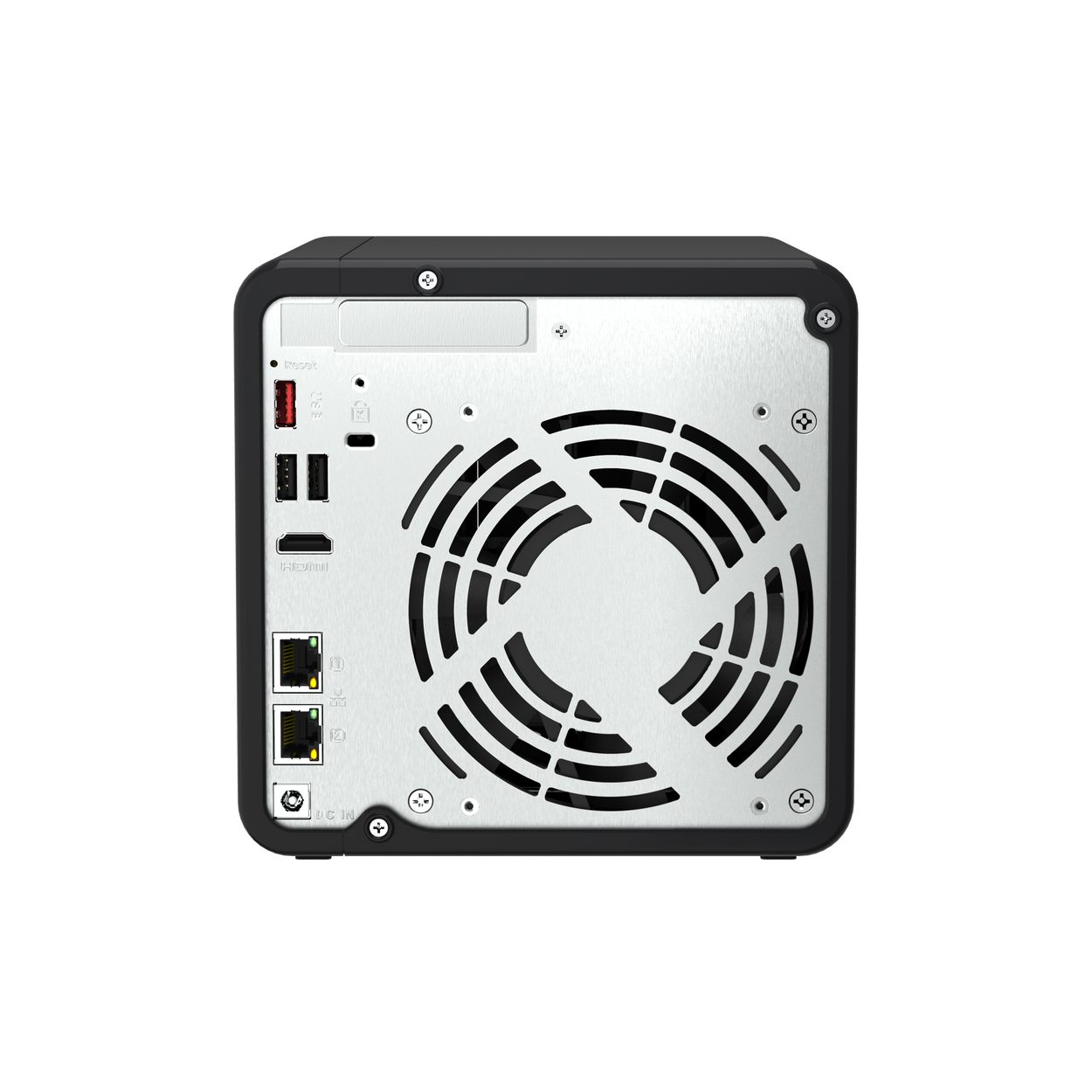

Networking
• Ethernet:
– 2 × 2.5 GbE RJ45 (supports Link Aggregation)
• Link Aggregation: Supported (with managed switch)
• Wake on LAN: Supported
• IPv4 / IPv6: Supported
USB & Expansion
• USB Ports:
– 2 × USB 3.2 Gen 1 (rear)
– 1 × USB 2.0 (front)
• USB Expansion: External storage, peripherals
Performance & Data Services
• File System: EXT4
• File Services: SMB/CIFS, AFP, NFS, FTP, WebDAV
• Snapshot Support: Yes (protect + restore)
• Backup Tools:
– Hybrid Backup Sync (local / remote / cloud)
– Time Machine support (macOS)
– Windows Server backup support
• Cloud Sync: Major cloud services
Multimedia & Applications
• DLNA media server
• Photo / music / video streaming
• QNAP App Center with tools for:
– Backup & sync
– Security
– Media servers
– Utilities & productivity
• Virtualization & container support (via apps)
Security
• AES-256 shared folder encryption
• IP access control
• Two-step verification
• Antivirus options via App Center
Management
• Operating System: QTS
• Web-based management UI
• Mobile apps: Qfile, Qmanager, Qsync
• Alerts: email / push notifications
Power & Physical
• Power Supply: External adapter
• Cooling: Built-in quiet fan
• Approx Dimensions: ~230 × 160 × 160 mm
• Approx Weight: ~3.0 kg (varies with drives)
Environmental
• Operating Temp: 0–40 °C
• Humidity: 5–95 % (non-condensing)
Use Cases
• Centralized multi-user storage
• RAID redundancy & data protection
• Fast multi-gigabit transfers
• Media streaming & library hosting
• Backups & cloud sync
• App ecosystem for productivity
