QNAP TS-264 2-Bay 2.5GbE NAS with M.2 and HDMI (8GB)
PRODUCT DESCRIPTION
QNAP TS-264 2-Bay 2.5GbE NAS TS-264-8G - 3 Years Warranty
Dual 2.5GbE as Standard
The TS-264 gives small offices and power users two 2.5GbE ports for faster file transfers and link aggregation.
M.2 NVMe and PCIe Upgrades
Two M.2 2280 PCIe Gen3 slots add SSD caching, and a PCIe Gen3 x2 slot takes a 10GbE card or QM2 expansion card.
Multimedia Ready
An Intel Celeron N5095 with UHD Graphics and HDMI 2.1 output (4K 60 Hz) supports Plex, video transcoding and HybridDesk Station.
QNAP TS-264-8G Datasheet — Technical Specifications
General
| Product Name | QNAP TS-264 |
| Model | TS-264-8G |
| Form Factor | 2-bay tower |
| UPC | 885022024681 |
| Warranty | 3 years (QNAP), extendable to 5 years |
Processor & Memory
| CPU | Intel Celeron N5095 4-core, burst up to 2.9 GHz |
| Graphics | Intel UHD Graphics |
| Memory | 8 GB DDR4 SODIMM |
| Memory Slots / Max | 2 x SODIMM, up to 16 GB (8 GB x 2) |
Storage
| Drive Bays | 2 x 3.5" SATA 6Gb/s (3.5" HDD / 2.5" SSD) |
| M.2 Slots | 2 x M.2 2280 PCIe Gen3 x1 NVMe |

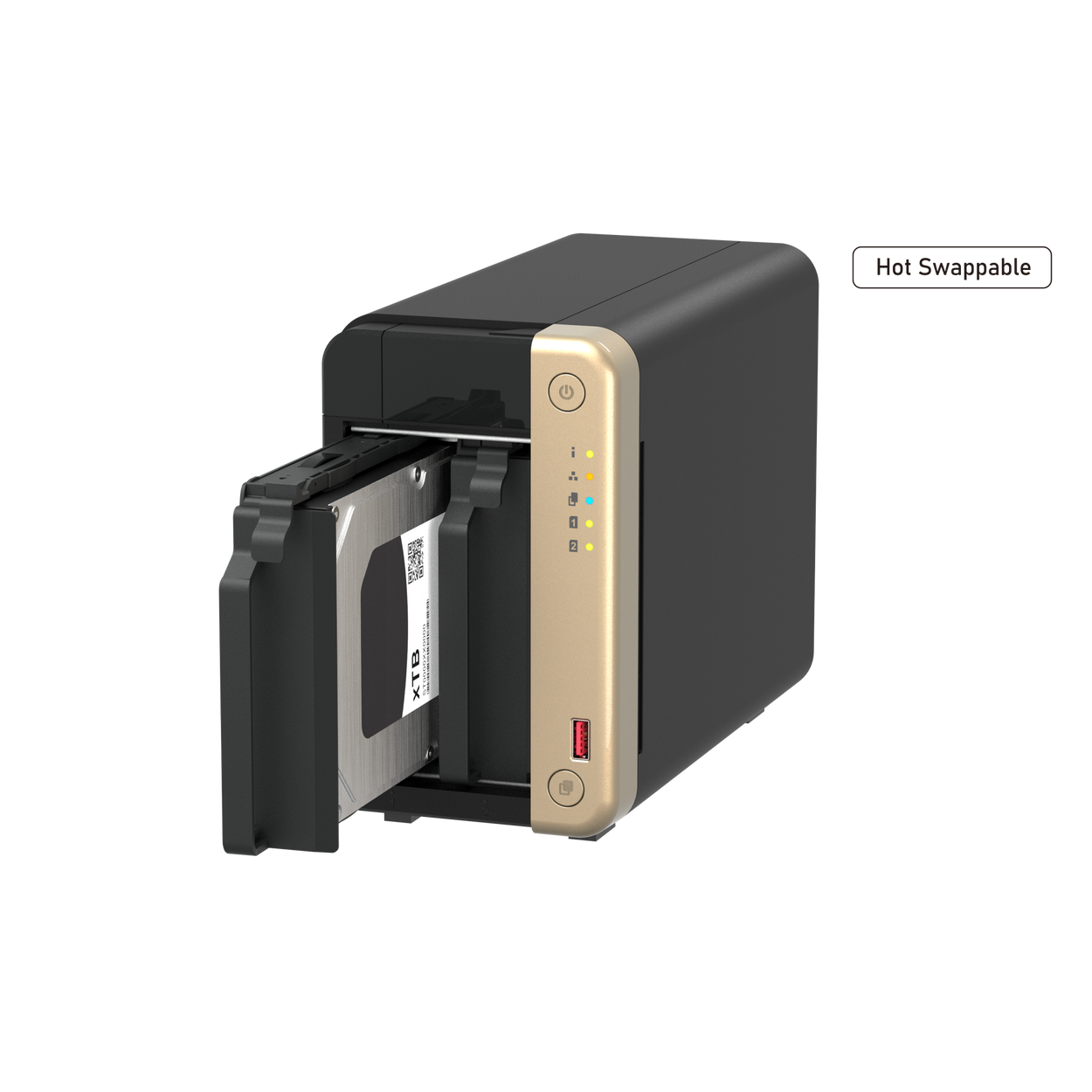

| Hot-Swap | Yes (SATA bays) |
Ports & Expansion
| LAN | 2 x 2.5GbE RJ-45 |
| USB | 2 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0 |
| PCIe | 1 x PCIe Gen3 x2 |
| HDMI | 1 x HDMI 2.1 (up to 4096 x 2160 @ 60 Hz) |
Power & Physical
| Power Adapter | 60 W adapter |
| Power Consumption | 29.09 W (operating), 18.29 W (disk standby) |
| Fan | 1 x 70 mm |
| Operating Temperature | 0–40 °C |
| Dimensions (H x W x D) | 165 x 105 x 226.5 mm |
| Net Weight | 1.55 kg |
Software
| Operating System | QTS 5 (QuTS hero supported from QTS 5.2.1) |
Compatibility & Applications
Typical Use
Small-office file server, PC and server backup with Hybrid Backup Sync, Plex media server, surveillance and virtual machines.
Expansion
Add storage with QNAP TR-series or TL-series expansion enclosures, and 10GbE or M.2 via the PCIe slot.
Selection Tip
Need four bays with the same platform? Choose the TS-464-8G.
Package Contents & QNAP Ordering Information
In the Box
1 x QNAP TS-264 unit with power supply / cord and accessory kit (see QNAP's hardware specifications for the full package list). Drives not included.
QNAP Models at SourceIT
| Model | Key feature |
| TS-233 | 2-bay, ARM Cortex-A55 4-core 2.0 GHz with NPU, 2 GB, 1GbE |
| TS-216G | 2-bay, ARM Cortex-A55 4-core 2.0 GHz with NPU, 4 GB, 2.5GbE + 1GbE |
| TS-264-8G (this listing) | 2-bay, Intel Celeron N5095, 8 GB (max 16 GB), 2 x 2.5GbE, 2 x M.2, PCIe, HDMI |
| TS-464-8G | 4-bay, Intel Celeron N5095, 8 GB (max 16 GB), 2 x 2.5GbE, 2 x M.2, PCIe, HDMI |
| TS-473A-8G | 4-bay, AMD Ryzen V1500B, 8 GB (max 64 GB, ECC), 2 x 2.5GbE, 2 x M.2, 2 x PCIe |
| TS-673A-8G | 6-bay, AMD Ryzen V1500B, 8 GB (max 64 GB, ECC), 2 x 2.5GbE, 2 x M.2, 2 x PCIe |
| TS-873A-8G | 8-bay, AMD Ryzen V1500B, 8 GB (max 64 GB, ECC), 2 x 2.5GbE, 2 x M.2, 2 x PCIe |
| TR-002 | 2-bay USB 3.2 Gen 2 Type-C hardware RAID enclosure (DAS / NAS expansion) |
| TR-004 | 4-bay USB 3.2 Gen 1 Type-C hardware RAID enclosure (DAS / NAS expansion) |
Official QNAP Videos
The 3 Best 2-Bay QNAP NAS (official QNAP UK channel)
Hybrid Backup Sync 3 — QNAP Backup Software (official QNAP UK channel)
Datasheet & Downloads
| Datasheet | TS-264-8G Datasheet (PDF) |
| Hardware specifications | TS-264 specifications on qnap.com |
| Product page | TS-264 on qnap.com |
| Compatibility list | QNAP compatibility list |
Frequently Asked Questions — QNAP TS-264-8G
Are hard drives included?
No. The TS-264-8G is diskless.
Can I add 10GbE?
Yes, with a 10GbE PCIe card in the PCIe Gen3 x2 slot.
How much memory can it take?
Up to 16 GB (2 x 8 GB).
What warranty do I get?
3 years QNAP warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
