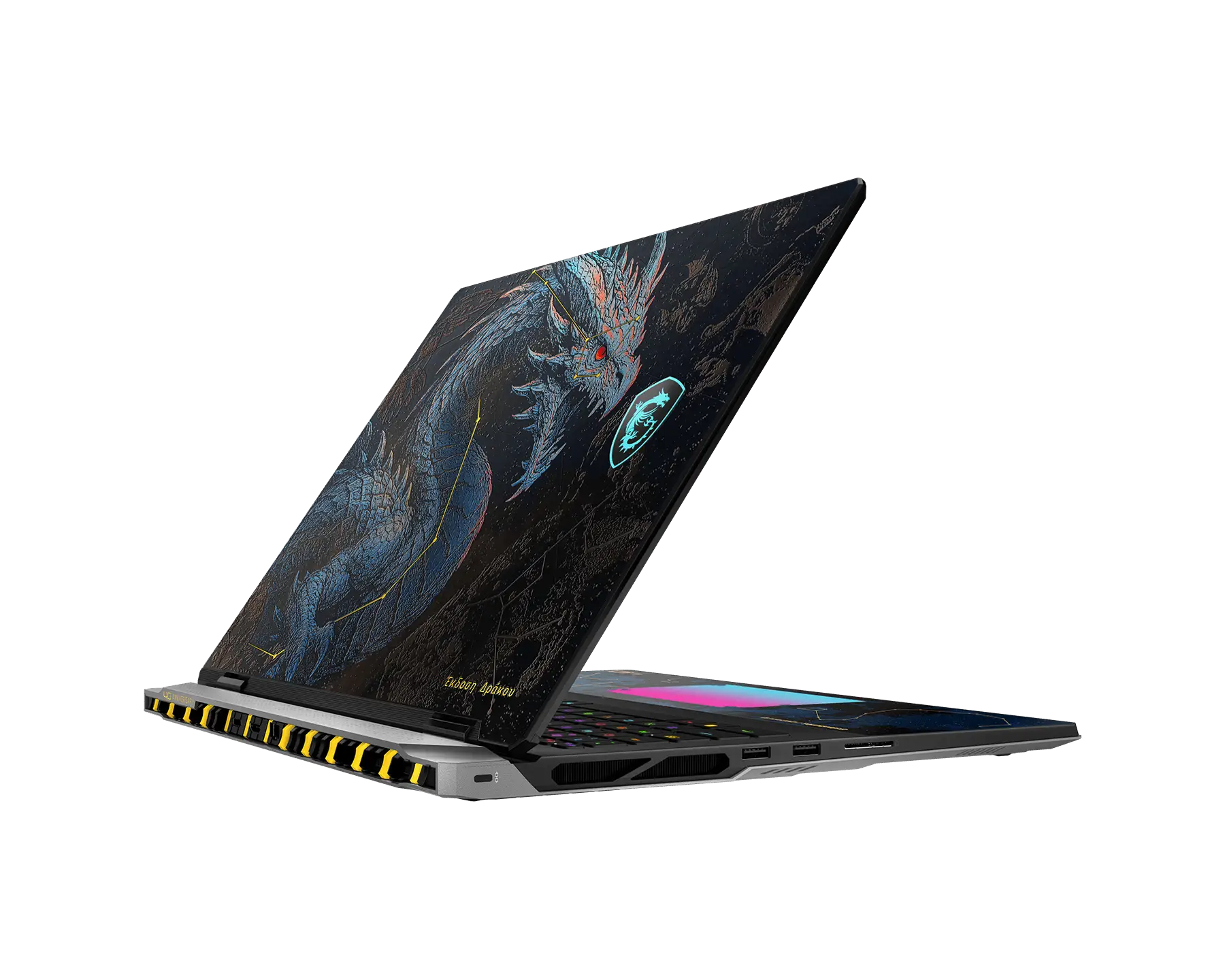

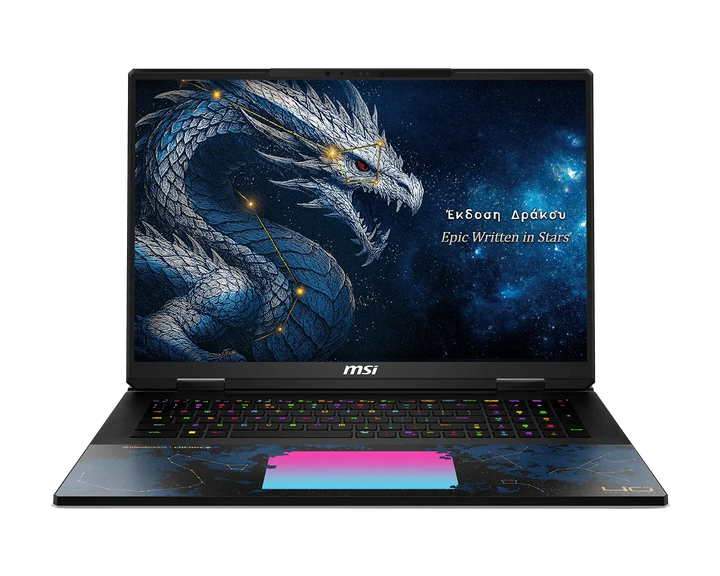

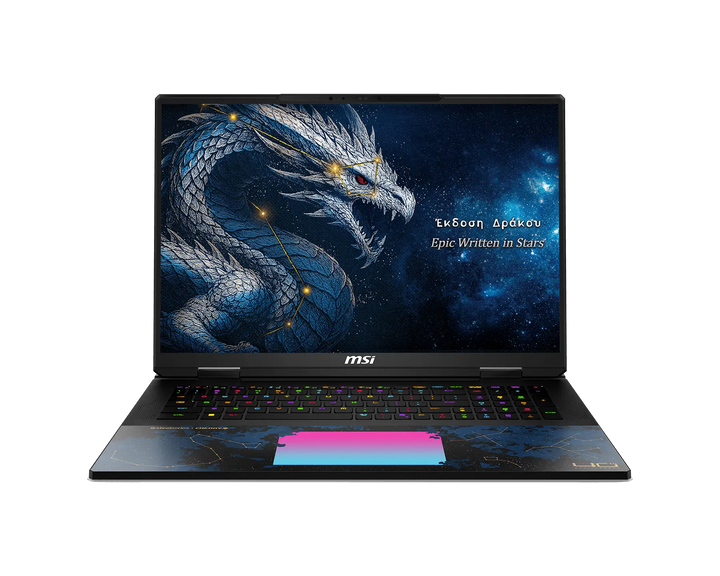

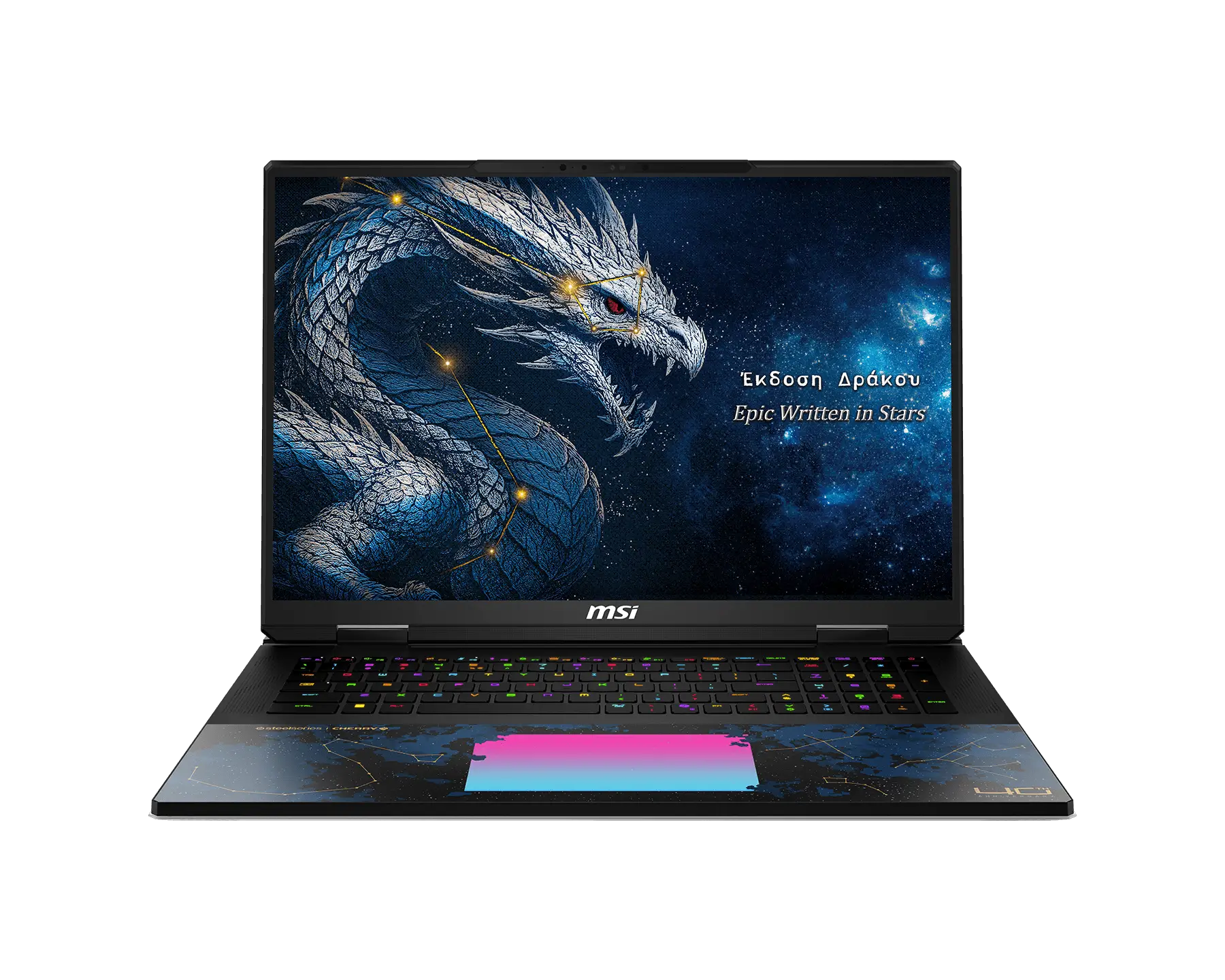

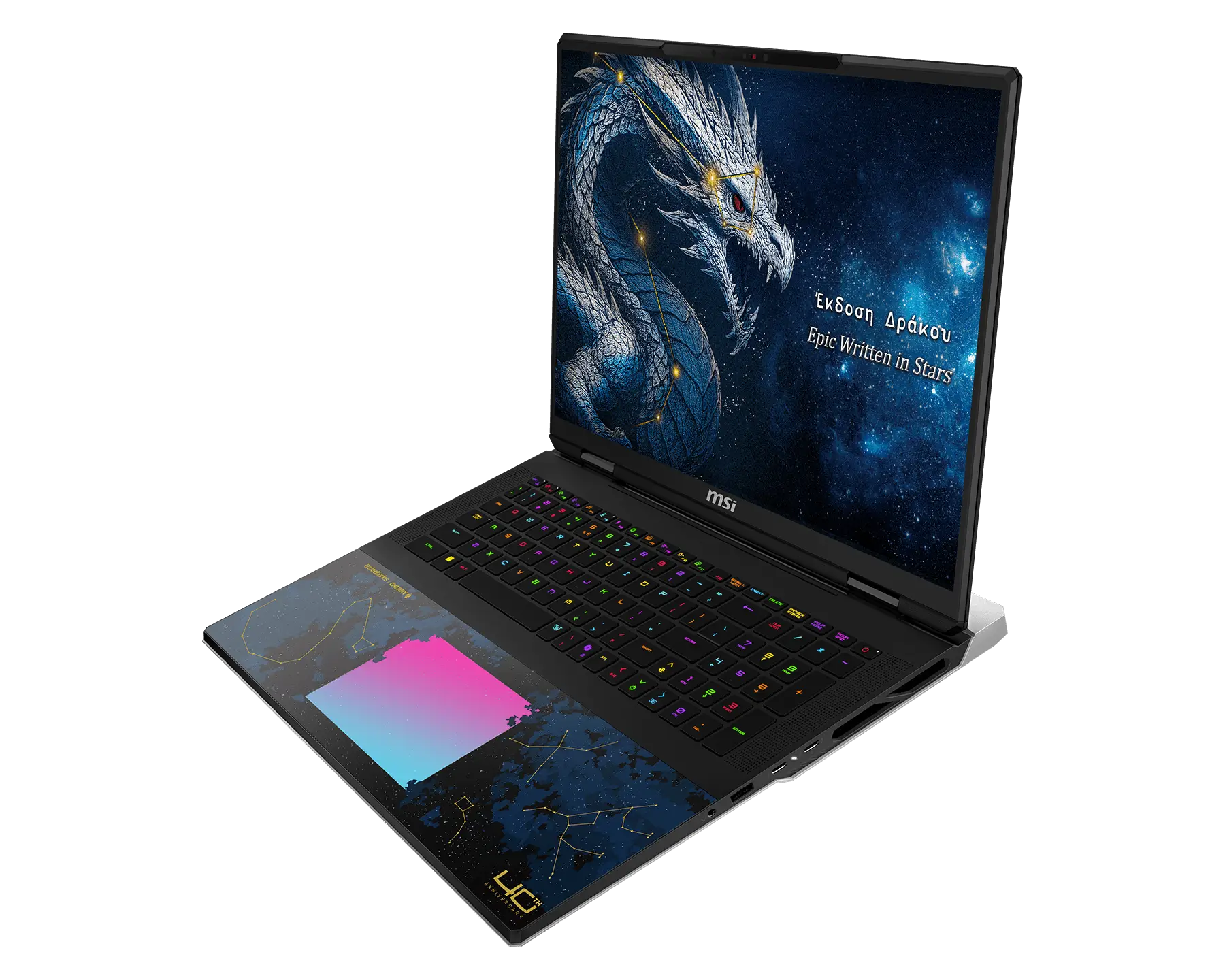

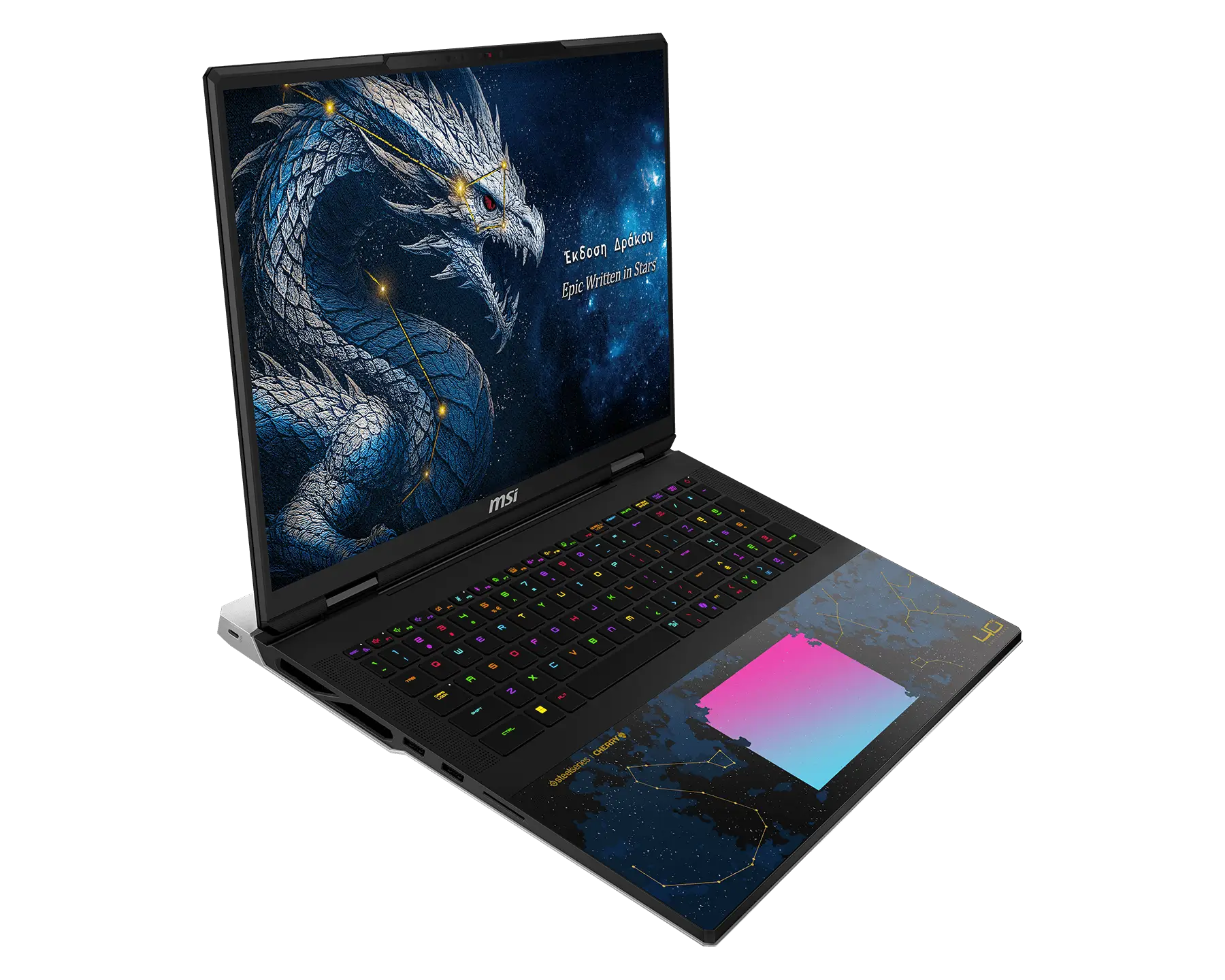

MSI Titan 18 HX Dragon Edition Draco Epic A2WJ-1247SG 18" UHD+ Mini LED 240Hz Core Ultra 9 290HX Plus RTX 5090 96GB 4TB Gaming Laptop
PRODUCT DESCRIPTION
MSI Titan 18 HX Dragon Edition Draco Epic A2WJ-1247SG 18" UHD+ Mini LED 240Hz Core Ultra 9 290HX Plus RTX 5090 96GB 4TB Gaming Laptop
Key specifications: 18" UHD+ Mini LED 240Hz · Core Ultra 9 290HX Plus · RTX 5090 · 96GB RAM · 4TB SSD · Killer Wi-Fi 7 · Windows 11 Pro · 3.6 kg
Collector-grade 40th anniversary flagship

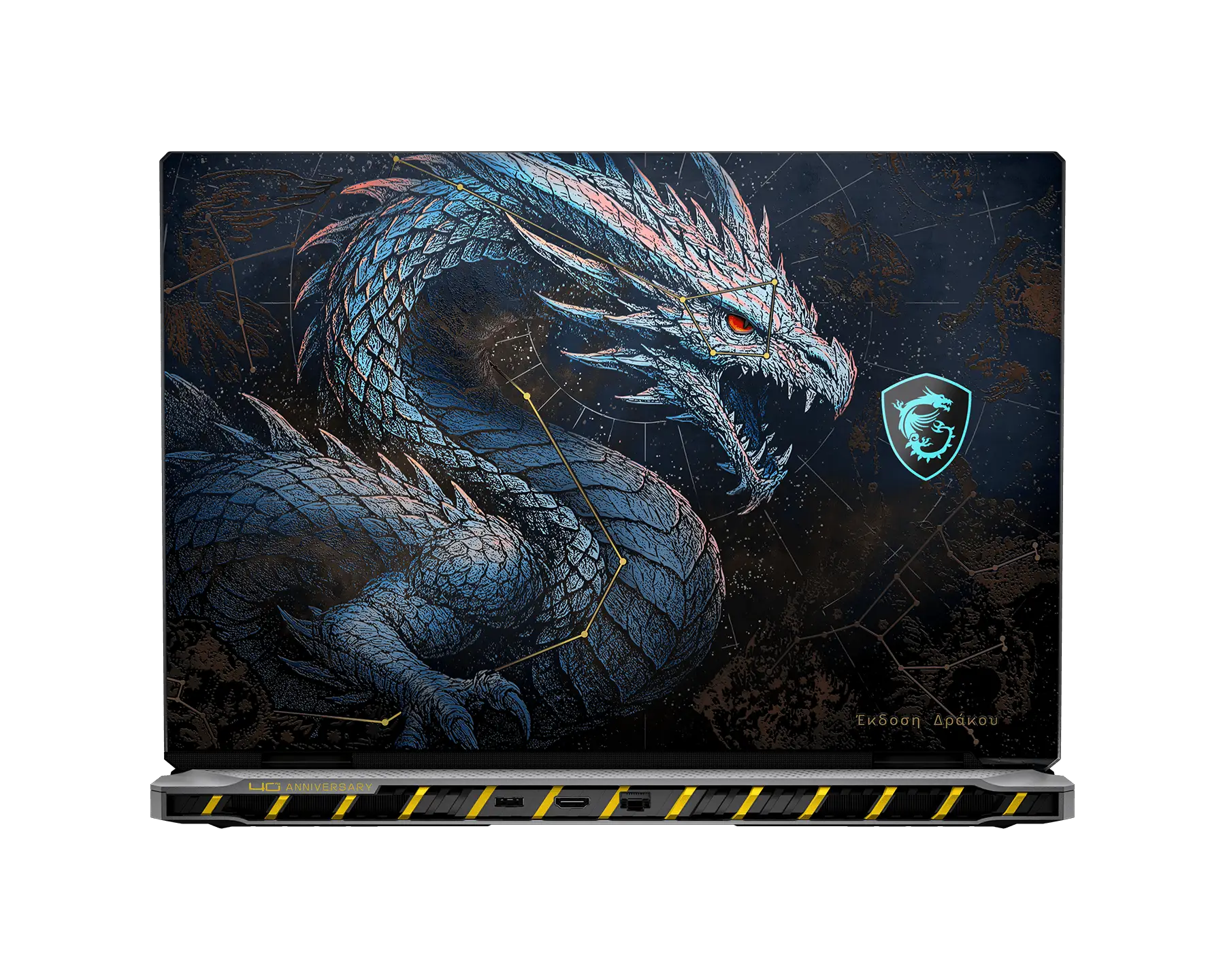

The Draco Epic edition wraps MSI's Titan 18 HX platform in a Dragon Edition design created for MSI's 40th anniversary.
Intel Core Ultra 9 290HX Plus + RTX 5090
Up to 270W combined CPU-GPU power with MSI OverBoost, with the GeForce RTX 5090 Laptop GPU running at up to 175W.
18" UHD+ Mini LED at 240Hz
A 3840 x 2400 Mini LED panel with VESA DisplayHDR 1000 and 100% DCI-P3 for gaming and colour-critical creative work.
Cherry mechanical keyboard by SteelSeries
Per-key RGB Cherry mechanical switches with a Copilot key.
Thunderbolt 5 and Wi-Fi 7
Two Thunderbolt 5 ports, SD Express, HDMI 2.1, 2.5GbE LAN and Killer Wi-Fi 7.
MSI Titan 18 HX Dragon Edition Draco Epic A2WJ-1247SG Datasheet — Technical Specifications
General
| Product Name | MSI Titan 18 HX Dragon Edition Draco Epic A2WJ-1247SG 18" UHD+ Mini LED 240Hz Core Ultra 9 290HX Plus RTX 5090 96GB 4TB Gaming Laptop |
| Model | Titan 18 HX Dragon Edition Draco Epic A2WJ-1247SG |
| Series | MSI Titan 18 HX Dragon Edition Draco Epic A2W |
| MSI Part Number | 9S7-1824D6-1247 |
| EAN / UPC | 4711377454797 |
| Colour | Dragon Edition Draco Epic |
| Warranty | 2-year on-site warranty (Singapore, MSI authorised distributor) |
Processor & Operating System
| Processor | Intel® Core Ultra 9 290HX Plus |
| Chipset | Intel® HM870 |
| Operating System | Windows® 11 Pro |
Display
| Display | 18" 16:10 UHD+ (3840x2400), MiniLED, 240Hz, 100% DCI-P3 (Typ.), IPS-Level panel; VESA DisplayHDR™ 1000 |
Graphics
| Graphics | NVIDIA® GeForce RTX™ 5090 Laptop GPU, GDDR7 24GB |
| GPU Power / Boost | 175W max graphics power with Dynamic Boost, up to 2160MHz boost clock, 1824 AI TOPS |
| CPU + GPU Power | Max. 270W CPU-GPU power with MSI OverBoost Technology |
Memory & Storage
| Installed Memory | 96GB DDR5-6400 (2x 48GB) |
| Memory Support | Up to DDR5-6400, max 128GB, 2 slots |
| Installed Storage | 4TB SSD (2TB NVMe PCIe Gen5x4 SSD + 2TB NVMe PCIe Gen4x4 SSD) |
| Storage Slots | 3x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) |
Connectivity
| Wireless | Intel® Killer™ Wi-Fi 7 + Bluetooth 5.4 |
| LAN | 2.5GbE LAN |
| I/O Ports | 1x RJ45 2x Thunderbolt™ 5 (DisplayPort™ / Power Delivery 3.1) 3x Type-A USB 3.2 Gen2 1x SD Express card reader 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) 1x mic-in/headphone-out combo jack |
| Webcam | IR FHD (30fps@1080p) with HDR, 3D Noise Reduction+ (3DNR+) |
| Audio | 4x 2W speakers + 2x 2W woofers, array microphone |
Keyboard, Security & Sensors
| Keyboard | Cherry mechanical per-key RGB gaming keyboard by SteelSeries with Copilot key |
| Security | Firmware TPM (fTPM) 2.0, Kensington Lock, Secured-core PC, webcam shutter |
Power
| Battery | 4-cell, 99.9Whr |
| AC Adapter | 400W |
Dimensions & Weight
| Dimensions (W x D x H) | 404 x 307.5 x 24 - 32.05 mm |
| Weight (with battery) | 3.6 kg |
Specifications are as published by MSI and the MSI Singapore distributor price list, and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Ports
1x RJ45 / 2x Thunderbolt™ 5 (DisplayPort™ / Power Delivery 3.1) / 3x Type-A USB 3.2 Gen2 / 1x SD Express card reader / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x mic-in/headphone-out combo jack
External Displays
Video out via 2x Thunderbolt™ 5 (DisplayPort™ / Power Delivery 3.1) and 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz).
Wireless
Intel® Killer™ Wi-Fi 7 + Bluetooth 5.4
Upgrades
Memory: Up to DDR5-6400, max 128GB, 2 slots. Storage: 3x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5).
Package Contents & MSI Titan Ordering Information
In the Box
MSI Titan 18 HX Dragon Edition Draco Epic A2WJ-1247SG notebook, 400W AC power adapter, quick start documentation
MSI Titan Notebooks at SourceIT
| Model | Key configuration |
| Titan 18 HX Dragon Edition Draco Epic A2WJ-1247SG (this listing) | 18" UHD+ Mini LED 240Hz / Core Ultra 9 290HX Plus / RTX 5090 / 96GB / 4TB |
Datasheet & Downloads
| MSI product page | Titan 18 HX Dragon Edition Draco Epic A2W on msi.com |
| Specifications | Titan 18 HX Dragon Edition Draco Epic A2W specifications |
| Drivers, manuals & BIOS | Titan 18 HX Dragon Edition Draco Epic A2W support |
Frequently Asked Questions — MSI Titan 18 HX Dragon Edition Draco Epic A2WJ-1247SG
What processor and graphics does the Titan 18 HX Dragon Edition Draco Epic A2WJ-1247SG have?
Intel® Core Ultra 9 290HX Plus with NVIDIA® GeForce RTX™ 5090 Laptop GPU, GDDR7 24GB.
How much memory and storage is installed?
96GB DDR5-6400 (2x 48GB) and 4TB SSD (2TB NVMe PCIe Gen5x4 SSD + 2TB NVMe PCIe Gen4x4 SSD). Platform support: Up to DDR5-6400, max 128GB, 2 slots; 3x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5).
What is the display?
18" 16:10 UHD+ (3840x2400), MiniLED, 240Hz, 100% DCI-P3 (Typ.), IPS-Level panel; VESA DisplayHDR™ 1000.
Can I connect external monitors?
Yes — via 2x Thunderbolt™ 5 (DisplayPort™ / Power Delivery 3.1) and 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz).
How heavy is it and how big is the battery?
3.6 kg, 4-cell, 99.9Whr battery, 400W adapter.
What operating system is installed?
Windows® 11 Pro.
What warranty do I get?
2-year on-site MSI warranty in Singapore through the authorised local distributor. Supplied by SourceIT with a GST invoice.
