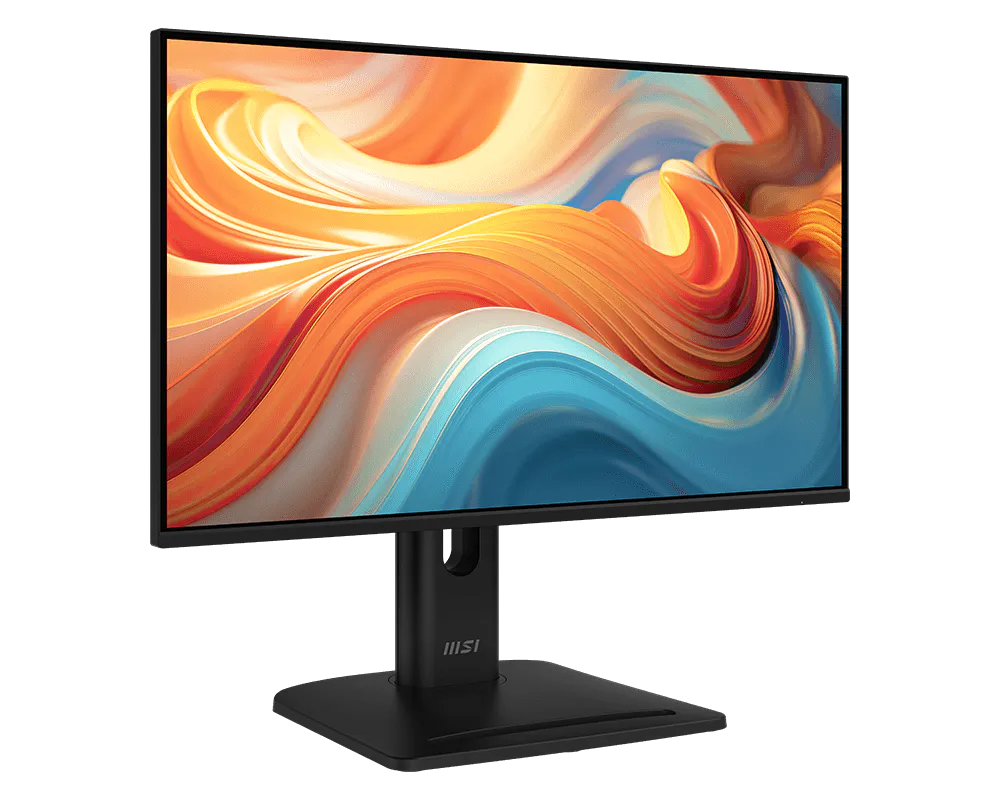

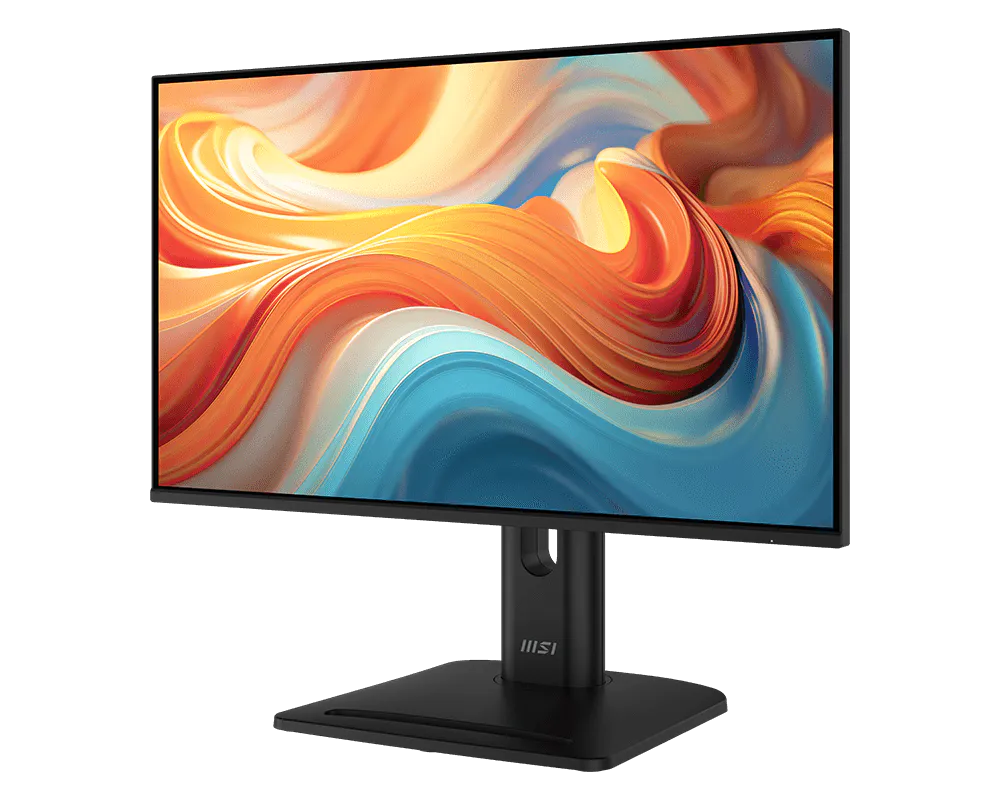

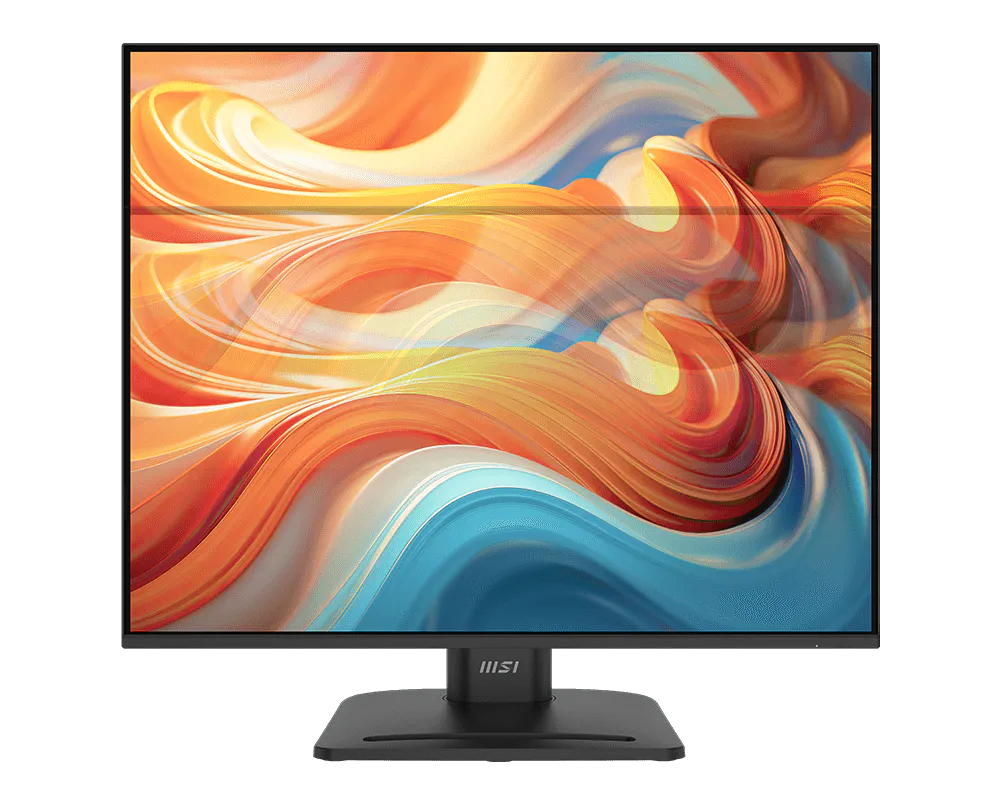

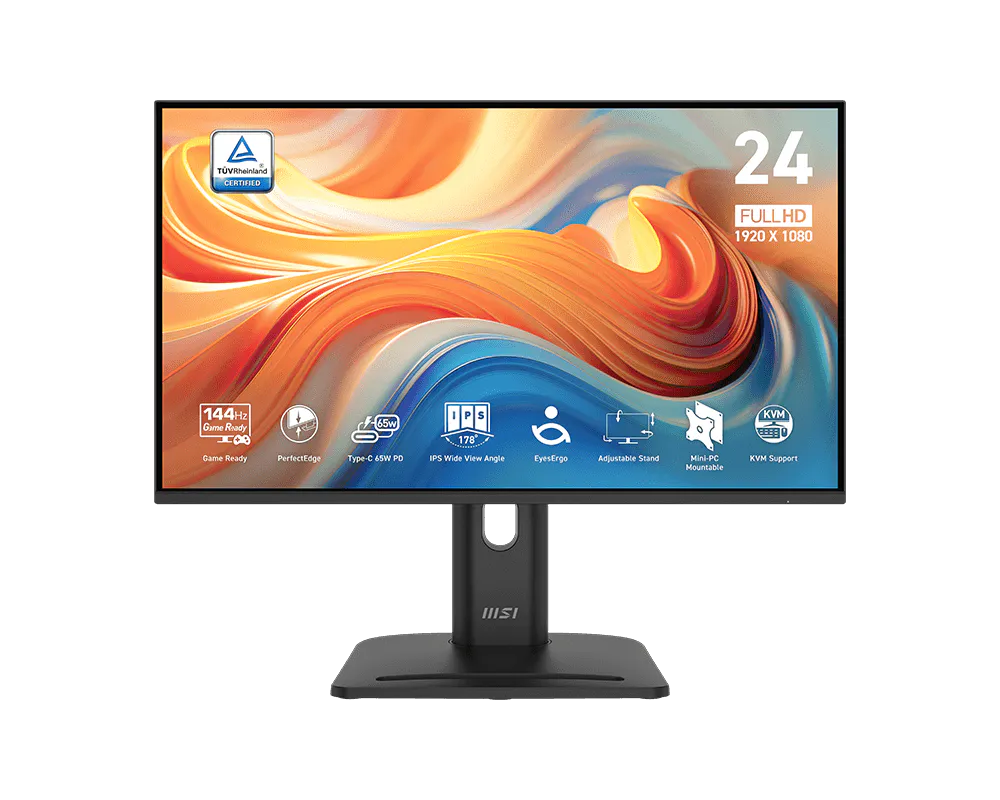

MSI PRO MP245PHG E14 23.8" Full HD 144Hz IPS Business Monitor
PRODUCT DESCRIPTION
MSI PRO MP245PHG E14 23.8" Full HD 144Hz IPS Business Monitor
Key specifications: 23.8" · FHD · IPS · 144Hz · 1ms(MPRT) · 4ms(GtG) · FreeSync · HDR Ready · Adjustable Stand · Pivot 90° · HDMI2.0 · DP1.2a · USB-C PD65W · Spk · USB Hub · KVM
Efficiency by Day, Dominance by Night
Combines a 144Hz refresh rate and Adaptive-Sync for smooth gaming and work, with 1ms MPRT response and AMD FreeSync™.
One-Cable Display & 65W Power Delivery
A single USB Type-C port handles display, data transfer and up to 65W power delivery.
Rapid Device Switching with KVM Function
The KVM function allows seamless device switching, offering an efficient solution for multi-device setups.
Sleek Integration with Mini PC Mountable
A 4-way adjustable stand with a standard Mini-PC mountable design allows the Cubi Series to be mounted on the stand; MSI Power Link lets the monitor power on the mini PC.
PerfectEdge Provides the Perfect View
The four-side slim bezel design maximizes screen space, minimizing distractions.
EyesErgo Tech, Your Health Protector
MSI Eye Care Technology with Anti-Flicker and Less Blue Light, plus built-in speakers and an accessory slot for small peripherals.
MSI PRO MP245PHG E14 Datasheet — Technical Specifications
General
| Product Name | MSI PRO MP245PHG E14 23.8" Full HD 144Hz IPS Business Monitor |
| Model | PRO MP245PHG E14 |
| MSI Part Number | 9S6-3PE69M-010 |
| EAN | 4711377318563 |
| Brand / Series | MSI Modern & PRO Business Monitors |
Display
| Screen Size | 23.8" (60.45cm) |
| Active Display Area (mm) | 527.04(H) x 296.46(V) |
| Curvature | Flat |
| Panel Type | IPS |
| Resolution | 1920x1080 (FHD) |
| Pixel pitch (mm) | 0.2745(H)x0.2745(V) |
| Aspect Ratio | 16:9 |
| Dynamic Refresh Rate technology | AMD FreeSync™ |
| Dynamic Refresh Rate Activated Range | 48~144Hz |
| HDR (High dynamic range) | HDR Ready |
| SDR Brightness (nits) | 300 |
| Contrast Ratio | 1500:1 |
| DCR (Dynamic Contrast Ratio) | 100000000:1 |
| Signal Frequency | 52.85~158.54 KHz(H) / 48~144 Hz(V) |
| Refresh Rate | 144HZ |
| Response Time (MPRT) | 1ms(MPRT) |
| Response Time (GTG) | 4ms |
| View Angles | 178°(H)/178°(V) |
| sRGB (CIE1976 area percentage/overlap) | 106%/93% |
| Adobe RGB (CIE1976 area percentage/overlap) | 90%/84% |
| DCI-P3 (CIE1976 area percentage/overlap) | 83%/82% |
| Surface Treatment | Anti-glare |
| Touch Screen | Non-touch |
| Display Colors | 16.7M |
| Color bit | 8 bits (6 bits + FRC) |
Connectivity & Features
| I/O ports | 2.3x HDMI HDCP version; 1x DisplayPort; 2.3x DisplayPort HDCP version; 1x Headphone-out; 2x USB 3.2 Gen 1 Type A; 1x USB 3.2 Gen 1 Type B; Speaker 2Wx 2; 1x HDMI (2.0); 1x DisplayPort (1.2a); 1x USB Type C (DisplayPort Alternate) |
| Note | KVM YES; Console Mode YES; HDMI CEC YES; Firmware Update YES; KVM Version KVM 1.0; DP 1920 x 1080 (Up to 144Hz); HDMI 1920 x 1080 (up to 144Hz); Type C DP Signal; Power Cord Type C13; PD Output YES; PD Output Power 65W |
Ergonomics & Mounting
| Lock type | Kensington Lock |
| Adjustment (Tilt) | -5° ~ 20° |
| Adjustment (Swivel) | -45° ~ 45° |
| Adjustment (Height) | 0 ~ 130 mm |

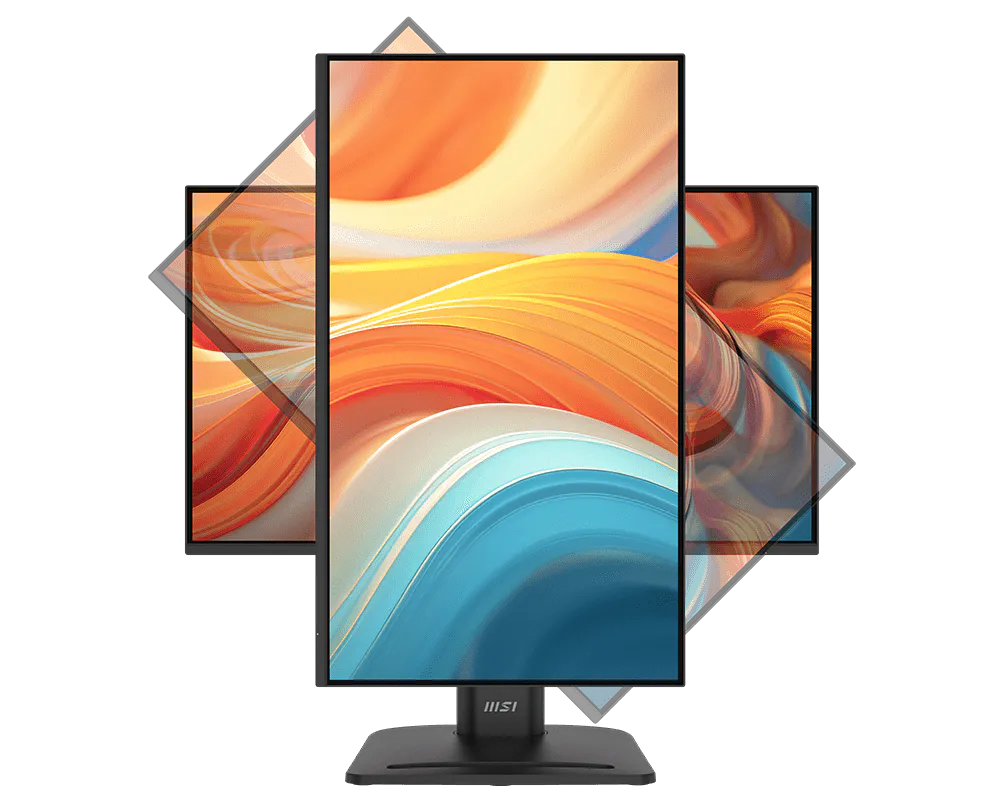

| Adjustment (Pivot) | -90° ~ 90° |
| VESA Mounting | 100x100mm |
| Stand with Integrated Mini PC Mount | v |
Power
| Power type | Internal Power Board |
| Power Input | 100~240V, 50/60Hz |
Dimensions & Weight
| Weight (Net kg) | 5.55 |
| Weight (Net lbs) | 12.24 |
| Weight (Gross kg) | 7.81 |
| Weight (Gross lbs) | 17.22 |
| Product Dimension without Stand (WxDxH) (mm) | 539.36 x 51.71 x 314.67 |
| Product Dimension without Stand (WxDxH) (inch) | 21.23 x 2.04 x 12.39 |
Certifications, Warranty & Accessories
| Accessories | 1x HDMI (1.4); 1x USB Type A to Type B Cable; 1x USB Type C to Type C Cable; 1x Power Cord; 1x Quick Guide |
Specifications are as published by MSI and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Video Inputs
2.3x HDMI HDCP version; 1x DisplayPort; 2.3x DisplayPort HDCP version; 1x Headphone-out; 2x USB 3.2 Gen 1 Type A; 1x USB 3.2 Gen 1 Type B; Speaker 2Wx 2; 1x HDMI (2.0); 1x DisplayPort (1.2a); 1x USB Type C (DisplayPort Alternate)
Supported Modes (MSI note)
KVM YES; Console Mode YES; HDMI CEC YES; Firmware Update YES; KVM Version KVM 1.0; DP 1920 x 1080 (Up to 144Hz); HDMI 1920 x 1080 (up to 144Hz); Type C DP Signal; Power Cord Type C13; PD Output YES; PD Output Power 65W
Mounting
VESA 100x100mm — fits standard VESA monitor arms; check the arm's weight rating against the monitor weight in the datasheet.
Package Contents & MSI Modern & PRO Business Monitors Ordering Information
In the Box
1x HDMI (1.4); 1x USB Type A to Type B Cable; 1x USB Type C to Type C Cable; 1x Power Cord; 1x Quick Guide
MSI Modern & PRO Business Monitors
| Model | Key feature |
| Modern MD342CQPW | 34" / UWQHD / Curved 1500R / VA / 120Hz |
| Modern MD342CQP | 34" / UWQHD / Curved 1500R / VA / 120Hz |
| Modern MD272UPHG | 27" / UHD / IPS / 60Hz / 4ms(GtG) |
| PRO MP273U | 27" / UHD / IPS / 60Hz / 4ms(GtG) |
| PRO MP275Q E14 | 27" / WQHD / IPS / 144Hz / 1ms(MPRT) |
| PRO MP273W E14A | 27" / FHD / IPS / 144Hz / 1ms(MPRT) |
| PRO MP275 E14L | 27" / FHD / IPS / 144Hz / 1ms(MPRT) |
| PRO MP251W E14A | 24.5" / FHD / IPS / 144Hz / 1ms(MPRT) |
| PRO MP251 E14A | 24.5" / FHD / IPS / 144Hz / 1ms(MPRT) |
| PRO MP245PHG E14 (this listing) | 23.8" / FHD / IPS / 144Hz / 1ms(MPRT) |
| PRO MP225 | 21.5" / FHD / IPS / 100Hz / 1ms(MPRT) |
| PRO MP165 E6 | 15.6" / FHD / Portable / IPS / 60Hz |
Datasheet & Downloads
| MSI product page | PRO MP245PHG E14 on msi.com |
| Specifications | PRO MP245PHG E14 specifications |
| Drivers, manuals & firmware | PRO MP245PHG E14 support |
Frequently Asked Questions — MSI PRO MP245PHG E14
What resolution and refresh rate does the PRO MP245PHG E14 support?
Resolution: 1920x1080 (FHD). Refresh rate: 144HZ (per MSI specification).
Can it charge a laptop over USB-C?
Yes, the USB-C port supplies up to 65W power delivery, so one cable can carry video, data and charging.
Is the stand height-adjustable?
Yes — height 0 ~ 130 mm, tilt -5° ~ 20°, swivel -45° ~ 45°, pivot -90° ~ 90°.
Does it have built-in speakers?
Yes.
Does it support KVM?
Yes, the built-in KVM lets you control two connected computers with one keyboard and mouse.
What warranty do I get?
Singapore local MSI warranty through the authorised distributor. Supplied by SourceIT with a GST invoice.
