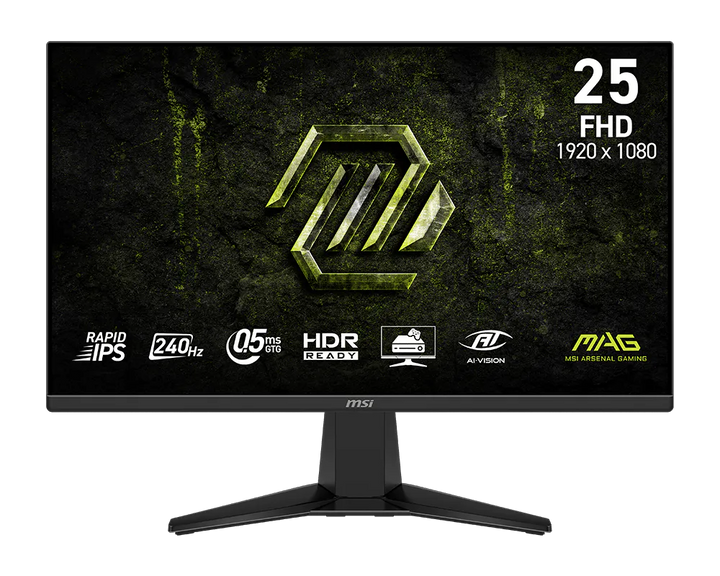

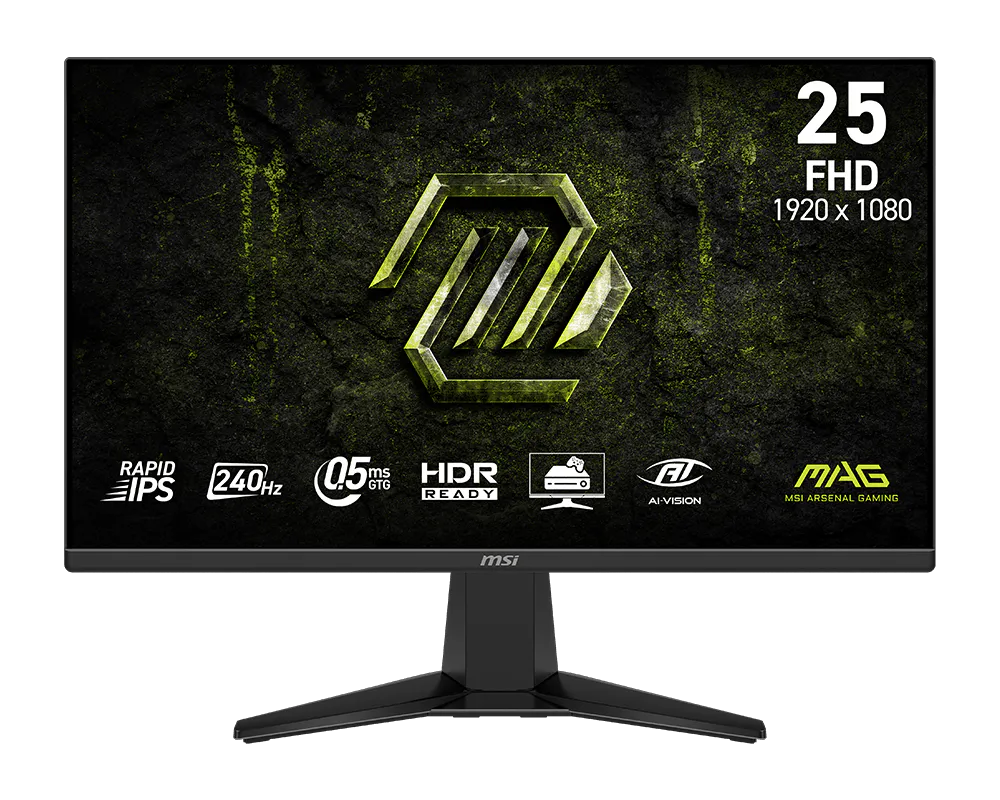

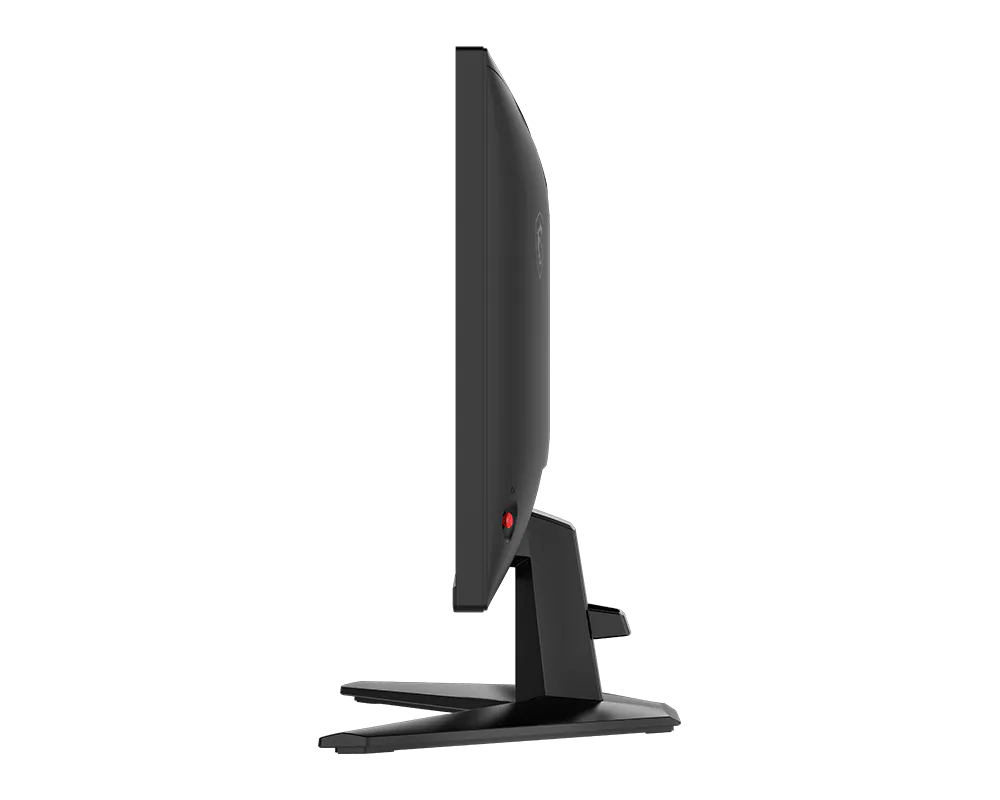

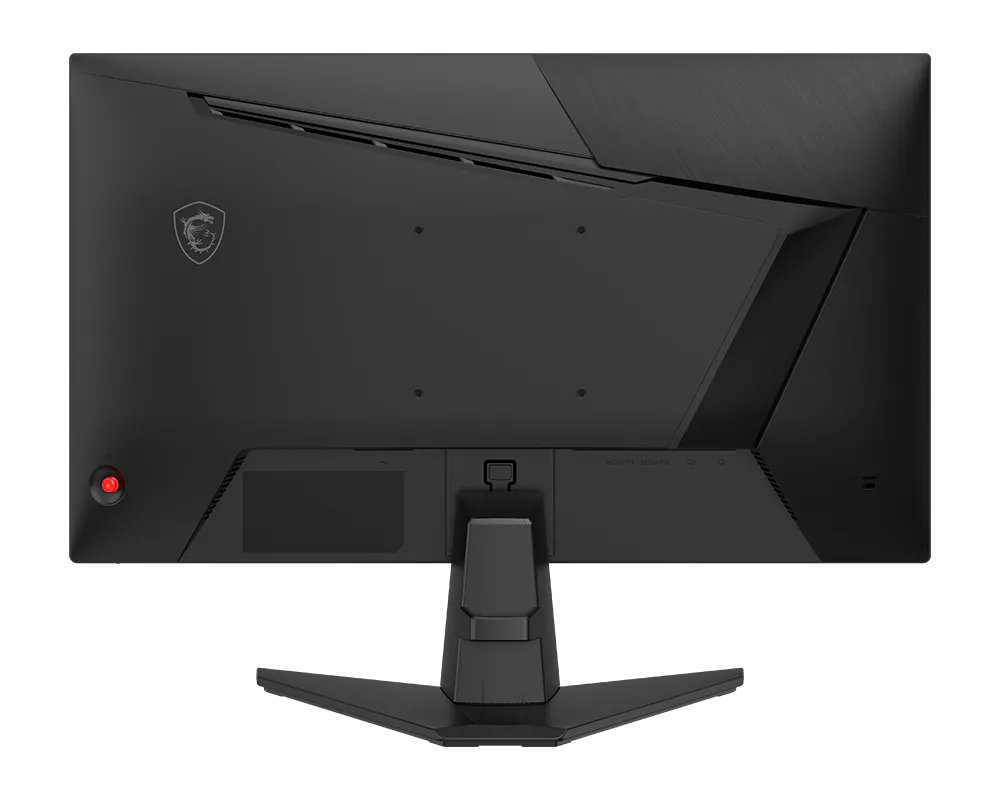

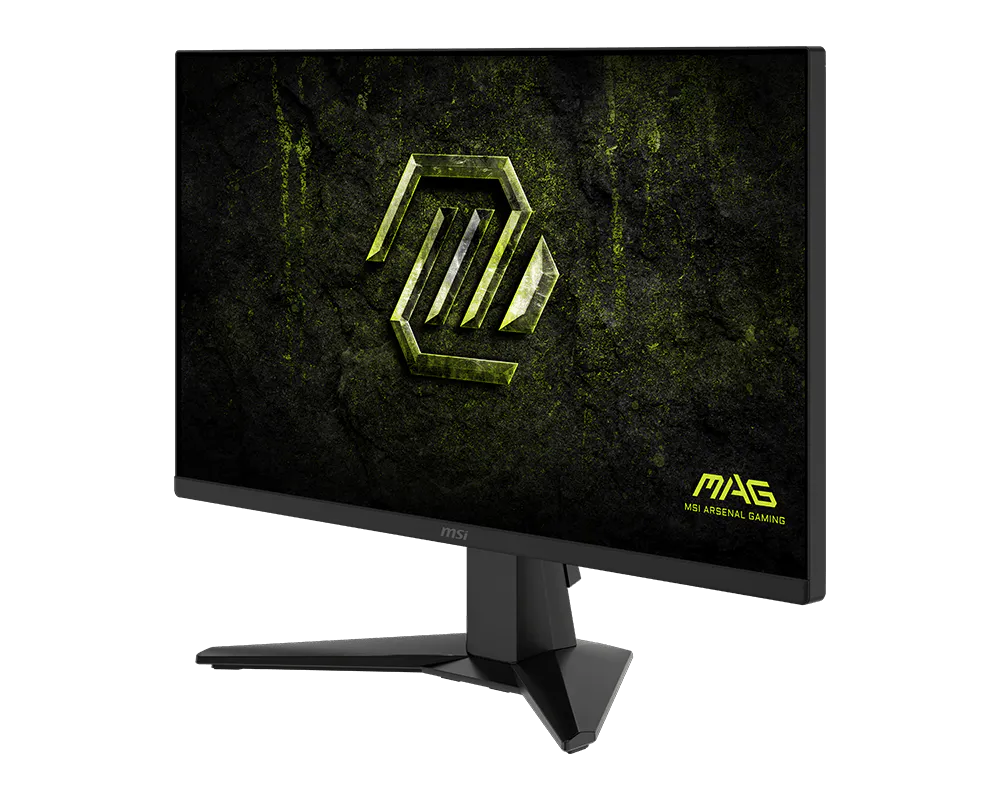

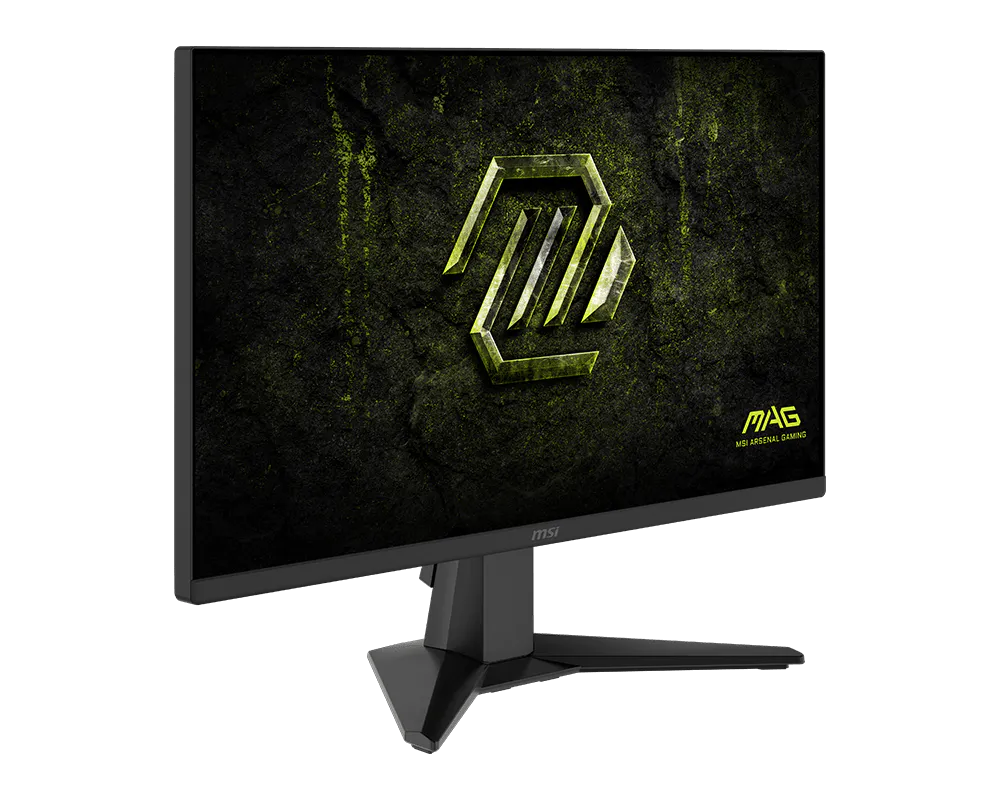

MSI MAG 255F X24 24.5" Full HD 240Hz Rapid IPS Gaming Monitor
PRODUCT DESCRIPTION
MSI MAG 255F X24 24.5" Full HD 240Hz Rapid IPS Gaming Monitor
Key specifications: 24.5" · FHD · Rapid IPS · 240Hz · 1ms(MPRT) · 0.5ms(GtG) · FreeSync Premium · HDR Ready · 2x HDMI2.0b · DP1.2a
Smooth Rapidity and Accuracy
Equipped with a 240Hz refresh rate and 0.5ms (GtG, Min.) response time, which has the benefit in fast moving game genres.
Tear-Free, Stutter-Free Gaming
AMD FreeSync™ Premium technology delivers fluid, tear-free performance.
Msi Console Mode
After the built-in HDMI™ CEC technology is connected to PlayStation or Switch controllers, the controllers can be used to wake up the monitor.
The most Vivid Display
Equipped with HDR Ready, the monitor produces images with more detail and a wider range of colors.
See Clearly, See Comfortably
Anti-Flicker and Less Blue Light technologies provide a very comfortable viewing experience by reducing the amount of flicker.
MSI MAG 255F X24 Datasheet — Technical Specifications
General
| Product Name | MSI MAG 255F X24 24.5" Full HD 240Hz Rapid IPS Gaming Monitor |
| Model | MAG 255F X24 |
| MSI Part Number | 9S6-3BC91M-018 |
| EAN | 4711377395052 |
| Brand / Series | MSI MAG / MPG Gaming Monitors |
Display
| Panel Size | 24.5" |
| Active Display Area (mm) | 543.744(H) x 302.616(V) |
| Curvature | Flat |
| Panel Type | Rapid IPS |
| Panel Resolution | 1920 x 1080 (FHD) |
| Pixel Pitch (H x V) | 0.2832(H) x 0.2802(V) |
| Aspect Ratio | 16:9 |
| Brightness (nits) | SDR: 300 cd/m² |
| Contrast Ratio | 1000:1 |
| DCR | 100000000:1 |
| Signal Frequency | 52.8~264 KHz(H) / 48~240 Hz(V) |
| Activated Range | 48~240Hz |
| Refresh Rate | 240Hz |
| Response time | 0.5ms (GtG, Min.) |
| Dynamic Refresh Rate Technology | AMD FreeSync™ Premium |
| HDR Support | HDR Ready |
| Viewing Angle | 178° (H) / 178° (V) |
| Adobe RGB / DCI-P3 / sRGB | 87% / 90% / 117% (CIE1976 Standard) |
| Surface Treatment | Anti-glare |
| Display Colors | 1.07B, 10 bits (8 bits + FRC) |
Connectivity & Features
| Video ports | 1x DisplayPort 1.2a; 2x HDMI™ 2.0b (FHD@240Hz) |
| Audio ports | 1x Headphone-out |
| Note | HDMI™: 1920 x 1080 (Up to 240Hz); DisplayPort: 1920 x 1080 (Up to 240Hz); Support: HDMI™ CEC; Non Support: KVM, PIP/PBP |
Ergonomics & Mounting
| Adjustment (Tilt) | -5°~20° |
| Kensington Lock | Yes |
| VESA Mounting | 100 x 100 mm |
Power
| Power Type | Internal Power Board |
| Power Input | 100~240V, 50/60Hz |
Dimensions & Weight
| Dimension with Stand (W x D x H) | 557.29 x 220.1 x 418.55mm (21.9 x 8.6 x 16.4 inch) |
| Dimension without Stand (W x D x H) | 557.29 x 65.52 x 326.85mm (21.9 x 2.5 x 12.8 inch) |
| Weight (NW / GW) | 3.24 kg (7.1 lbs) / 5.1 kg (11.2 lbs) |
| Carton Dimension (W X D X H) | 630 x 125 x 404 mm (24.8 x 4.9 x 15.9 inch) |
Certifications, Warranty & Accessories
| Accessories | 1x HDMI™ Cable (2.0); 1x Power Cord (C13); 1x Quick Guide |
Specifications are as published by MSI and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Video Inputs
1x DisplayPort 1.2a; 2x HDMI™ 2.0b (FHD@240Hz)
Audio
1x Headphone-out
Supported Modes (MSI note)
HDMI™: 1920 x 1080 (Up to 240Hz); DisplayPort: 1920 x 1080 (Up to 240Hz); Support: HDMI™ CEC; Non Support: KVM, PIP/PBP
Mounting
VESA 100 x 100 mm — fits standard VESA monitor arms; check the arm's weight rating against the monitor weight in the datasheet.
Package Contents & MSI MAG / MPG Gaming Monitors Ordering Information
In the Box
1x HDMI™ Cable (2.0); 1x Power Cord (C13); 1x Quick Guide
MSI MAG / MPG Gaming Monitors
| Model | Key feature |
| MAG401QR | 40" / UWQHD / IPS / 155Hz / 1ms(MPRT) |
| MAG 342CQRF E20 | 34" / UWQHD / Curved 1500R / Rapid VA / 200Hz |
| MAG 325QF E18V | 31.5" / WQHD / Rapid VA / 180Hz / 1ms(MPRT) |
| MAG 321CQF E18 | 31.5" / WQHD / Curved 1500R / Rapid VA / 180Hz |
| MAG 322URDF E16 | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 321CUPDF | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Curved 1500R / Rapid VA / 1ms(MPRT) |
| MAG 271KPD7 | 27" / Dual-Mode WQHD-300Hz & 5K UHD-75Hz / Rapid IPS / 0.5ms(MPRT) / 0.5ms(GtG) |
| MPG 274URDFW E16M | 27" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / Mini-LED / 1ms(MPRT) |
| MAG 274QPF X30MV | 27" / WQHD / Rapid VA / 300Hz / Mini-LED |
| MAG 275UPD E14 | 27" / Dual-Mode FHD-288Hz & UHD-144Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 274QRFW X32 | 27" / WQHD / Rapid IPS / 320Hz / 1ms(MPRT) |
| MAG 274QPF E20 | 27" / WQHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 274QF X24 | 27" / WQHD / Rapid IPS / 240Hz / 1ms(MPRT) |
| MAG 274F | 27" / FHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 255F X24 (this listing) | 24.5" / FHD / Rapid IPS / 240Hz / 1ms(MPRT) |
Datasheet & Downloads
| MSI product page | MAG 255F X24 on msi.com |
| Specifications | MAG 255F X24 specifications |
| Drivers, manuals & firmware | MAG 255F X24 support |
Frequently Asked Questions — MSI MAG 255F X24
What resolution and refresh rate does the MAG 255F X24 support?
Resolution: 1920 x 1080 (FHD). Refresh rate: 240Hz (per MSI specification).
Can it charge a laptop?
No, this model has no USB-C power delivery; use your laptop's own charger.
Is the stand height-adjustable?
No, the stand tilts only (-5°~20°). Use the VESA mount with a monitor arm for height adjustment.
Does it have built-in speakers?
No, connect headphones or external speakers.
What warranty do I get?
Singapore local MSI warranty through the authorised distributor. Supplied by SourceIT with a GST invoice.
