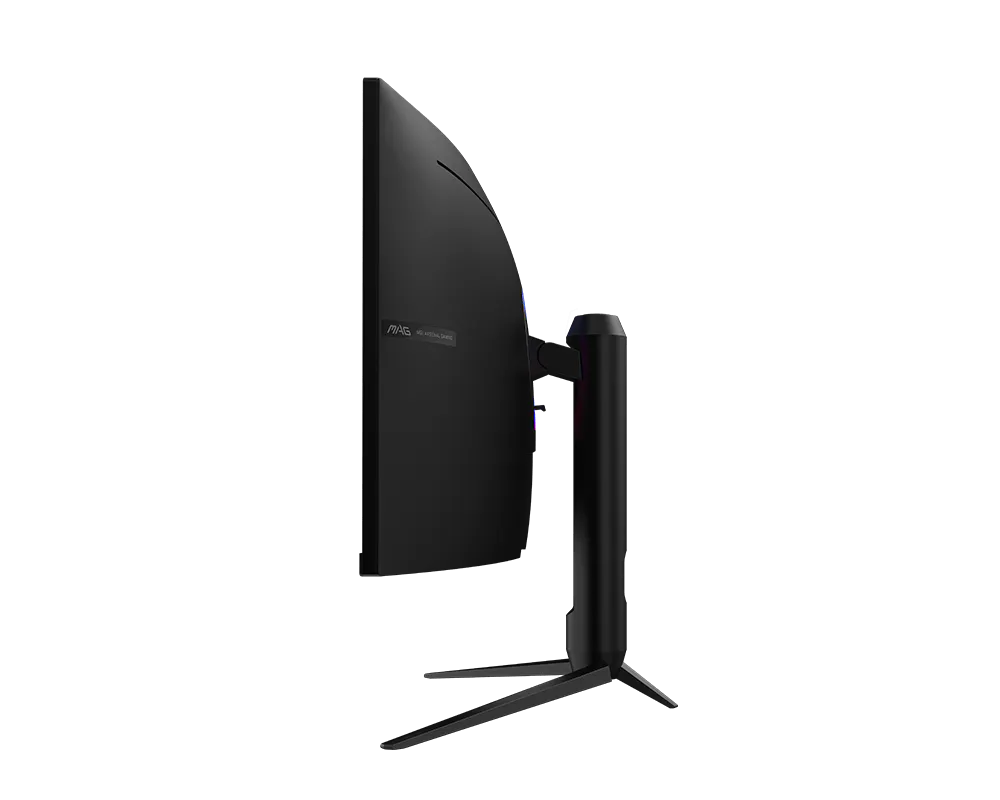

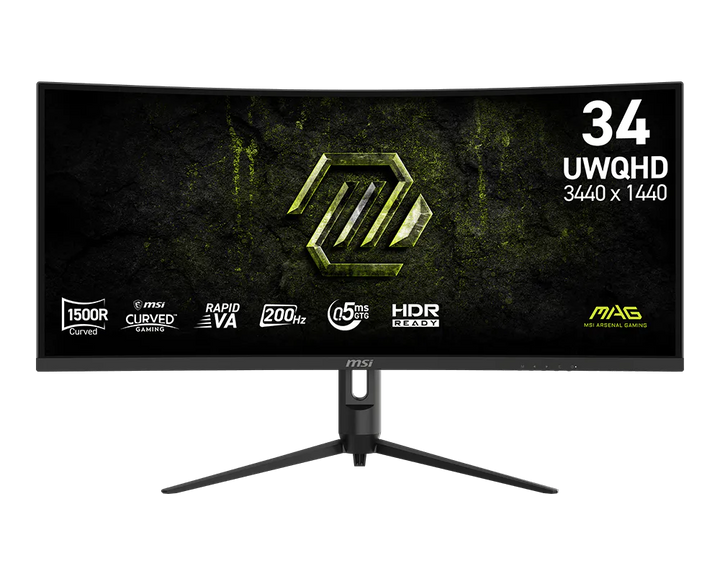

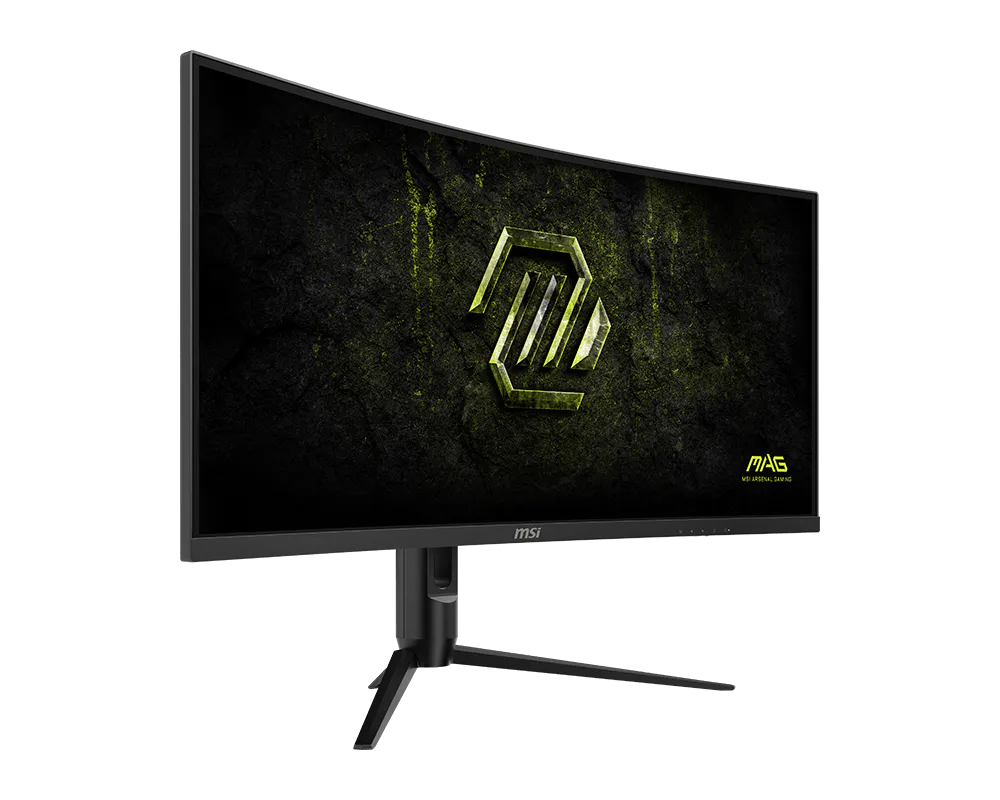

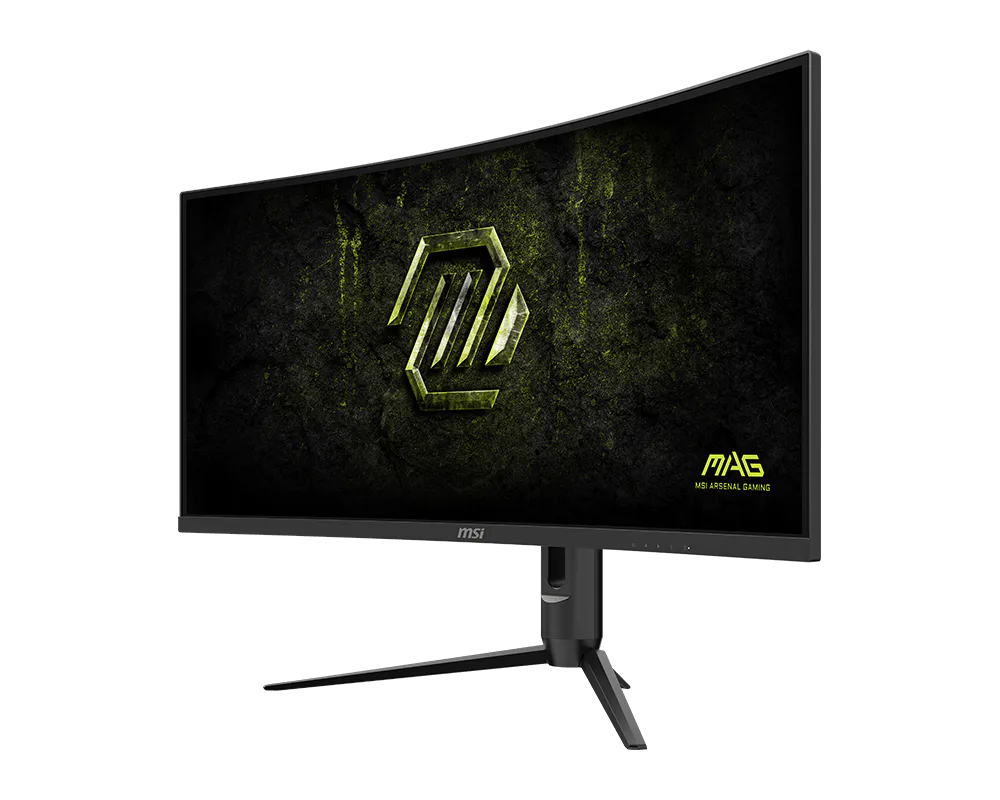

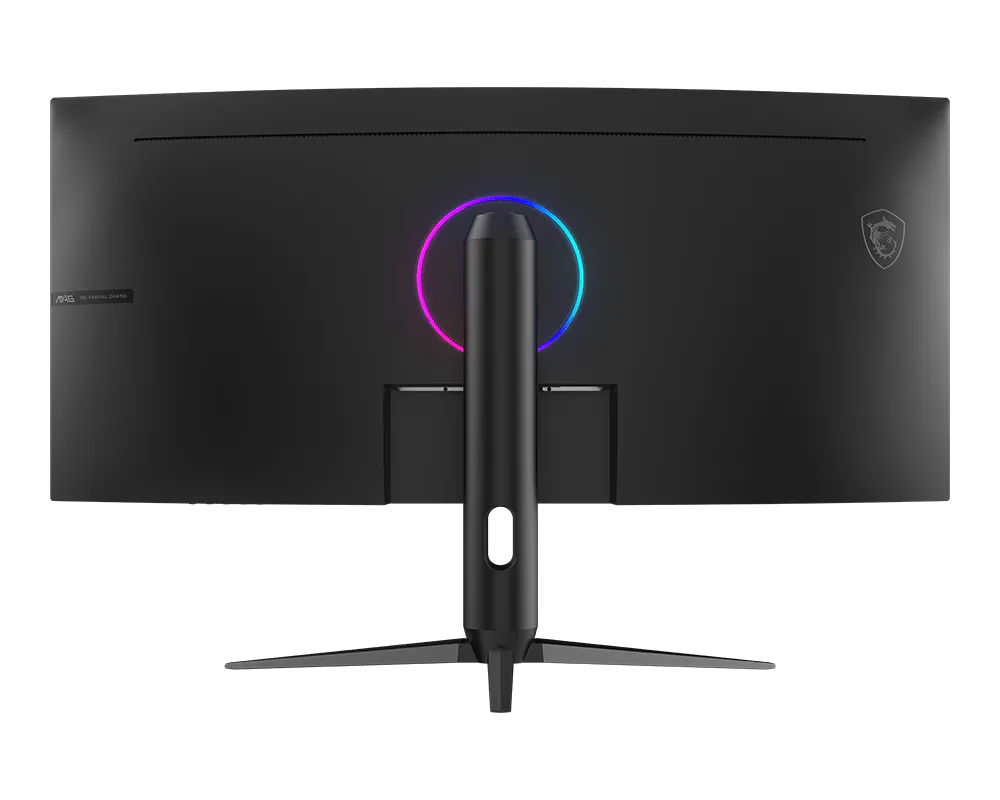

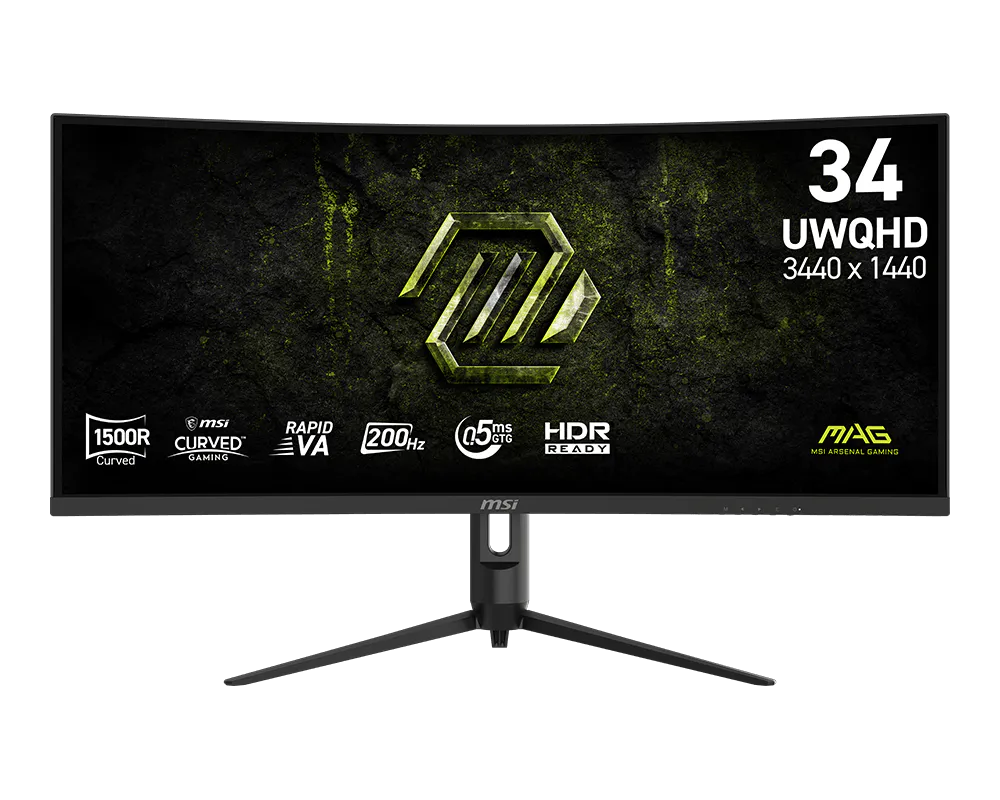

MSI MAG 342CQRF E20 34" UWQHD 200Hz Curved Rapid VA Gaming Monitor
PRODUCT DESCRIPTION
MSI MAG 342CQRF E20 34" UWQHD 200Hz Curved Rapid VA Gaming Monitor
Key specifications: 34" · UWQHD · Curved 1500R · Rapid VA · 200Hz · 1ms(MPRT) · 0.5ms(GtG) · AdaptiveSync · HDR Ready · Adjustable Stand · 2x HDMI2.0b · DP1.4a
Smooth Rapidity and Accuracy
A 200Hz refresh rate and 0.5ms (GtG, Min.) response time give an advantage in competitive gaming genres.
See Clearly, See Comfortably
Anti-flicker and reduced blue light technology help minimise eye fatigue during extended sessions.
Tear-Free, Stutter-Free Gaming
AMD FreeSync™ Premium eliminates screen tearing and stuttering.
MSI Console Mode
Built-in HDMI CEC lets a console controller wake the screen, with VRR support for PS5 and Xbox.
The Most Vivid Display
HDR Ready capability produces more detail and a wider range of colours than standard displays.
MSI MAG 342CQRF E20 Datasheet — Technical Specifications
General
| Product Name | MSI MAG 342CQRF E20 34" UWQHD 200Hz Curved Rapid VA Gaming Monitor |
| Model | MAG 342CQRF E20 |
| MSI Part Number | 9S6-3DB64H-089 |
| EAN | 4711377392426 |
| Brand / Series | MSI MAG / MPG Gaming Monitors |
Display
| Panel Size | 34" |
| Active Display Area (mm) | 797.22 (H) x 333.72 (V) |
| Curvature | Curve 1500R |
| Panel Type | Rapid VA |
| Panel Resolution | 3440 X1440 (UWQHD) |
| Pixel Pitch (H x V) | 0.23175(H) x 0.23175(V) |
| Aspect Ratio | 21:9 |
| Brightness (nits) | SDR: 300 cd/m² |
| Contrast Ratio | 3500:1 |
| DCR | 100000000:1 |
| Signal Frequency | 71.51~285.31KHz(H) / 48~200 Hz(V) |
| Activated Range | 48~200Hz |
| Refresh Rate | 200Hz |
| Response time | 0.5ms (GtG, Min.) |
| Dynamic Refresh Rate Technology | AMD FreeSync™ Premium |
| HDR Support | HDR Ready |
| Viewing Angle | 178° (H) / 178° (V) |
| Adobe RGB / DCI-P3 / sRGB | 88% / 90% / 110% (CIE1976 Standard) |
| Surface Treatment | Anti-glare |
| Display Colors | 1.07B, 10 bits (8 bits + FRC) |
Connectivity & Features
| Video ports | 1x DisplayPort 1.4a(HBR3); 2x HDMI™ 2.0b (UWQHD@100Hz) |
| Audio ports | 1x Headphone-out |
| Console Mode | 1080p: 60Hz and 120Hz; HDMI™ CEC: Supported; VRR: PS5 and Xbox Supported |
Ergonomics & Mounting
| Adjustment (Tilt) | -5°~20° |
| Adjustment (Swivel) | -30° ~ 30° |
| Adjustment (Pivot) | -5° ~ 5° |
| Adjustment (Height) | 0 ~ 90 mm |
| Kensington Lock | Yes |
| VESA Mounting | 75 x 75 mm |
Power
| Power Type | External Adaptor 19V 3.42A |
| Power Input | 100~240V, 50/60Hz |
Dimensions & Weight
| Dimension with Stand (W x D x H) | 808.60 x 269.97 x 423.97 mm (31.8 x 10.6 x 16.6 inch) |
| Dimension without Stand (W x D x H) | 808.60 x 119.67 x 363.95 mm (31.8 x 4.7 x 14.3 inch) |
| Weight (NW / GW) | 6.95 kg (15.3 lbs) / 10.75 kg (23.7 lbs) |
| Carton Dimension (W X D X H) | 918 x 214 x 489 mm (36.1 x 8.4 x 19.2 inch) |
Certifications, Warranty & Accessories
| Accessories | 1x DisplayPort Cable (1.4a); 1x Power Cord (C13); 1x AC Adaptor; 1x Quick Guide; 4x VESA Screw |
Specifications are as published by MSI and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Video Inputs
1x DisplayPort 1.4a(HBR3); 2x HDMI™ 2.0b (UWQHD@100Hz)
Audio
1x Headphone-out
Console Mode
1080p: 60Hz and 120Hz; HDMI™ CEC: Supported; VRR: PS5 and Xbox Supported
Mounting
VESA 75 x 75 mm — fits standard VESA monitor arms; check the arm's weight rating against the monitor weight in the datasheet.
Package Contents & MSI MAG / MPG Gaming Monitors Ordering Information
In the Box
1x DisplayPort Cable (1.4a), 1x Power Cord (C13), 1x AC Adaptor, 1x Quick Guide, 4x VESA Screw
MSI MAG / MPG Gaming Monitors
| Model | Key feature |
| MAG401QR | 40" / UWQHD / IPS / 155Hz / 1ms(MPRT) |
| MAG 342CQRF E20 (this listing) | 34" / UWQHD / Curved 1500R / Rapid VA / 200Hz |
| MAG 325QF E18V | 31.5" / WQHD / Rapid VA / 180Hz / 1ms(MPRT) |
| MAG 321CQF E18 | 31.5" / WQHD / Curved 1500R / Rapid VA / 180Hz |
| MAG 322URDF E16 | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 321CUPDF | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Curved 1500R / Rapid VA / 1ms(MPRT) |
| MAG 271KPD7 | 27" / Dual-Mode WQHD-300Hz & 5K UHD-75Hz / Rapid IPS / 0.5ms(MPRT) / 0.5ms(GtG) |
| MPG 274URDFW E16M | 27" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / Mini-LED / 1ms(MPRT) |
| MAG 274QPF X30MV | 27" / WQHD / Rapid VA / 300Hz / Mini-LED |
| MAG 275UPD E14 | 27" / Dual-Mode FHD-288Hz & UHD-144Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 274QRFW X32 | 27" / WQHD / Rapid IPS / 320Hz / 1ms(MPRT) |
| MAG 274QPF E20 | 27" / WQHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 274QF X24 | 27" / WQHD / Rapid IPS / 240Hz / 1ms(MPRT) |
| MAG 274F | 27" / FHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 255F X24 | 24.5" / FHD / Rapid IPS / 240Hz / 1ms(MPRT) |
Datasheet & Downloads
| MSI product page | MAG 342CQRF E20 on msi.com |
| Specifications | MAG 342CQRF E20 specifications |
| Drivers, manuals & firmware | MAG 342CQRF E20 support |
Frequently Asked Questions — MSI MAG 342CQRF E20
What resolution and refresh rate does the MAG 342CQRF E20 support?
Resolution: 3440 X1440 (UWQHD). Refresh rate: 200Hz (per MSI specification).
Can it charge a laptop?
No, this model has no USB-C power delivery; use your laptop's own charger.
Is the stand height-adjustable?
Yes — height 0 ~ 90 mm, tilt -5°~20°, swivel -30° ~ 30°, pivot -5° ~ 5°.
Does it have built-in speakers?
No, connect headphones or external speakers.
What warranty do I get?
Singapore local MSI warranty through the authorised distributor. Supplied by SourceIT with a GST invoice.
