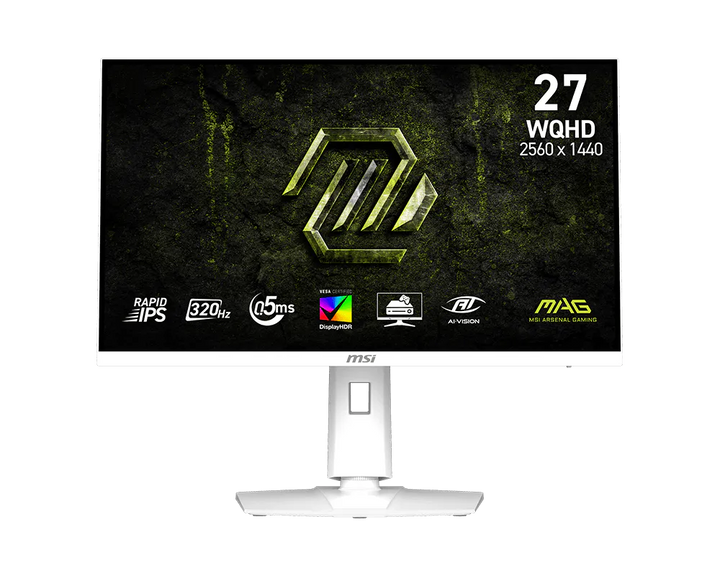

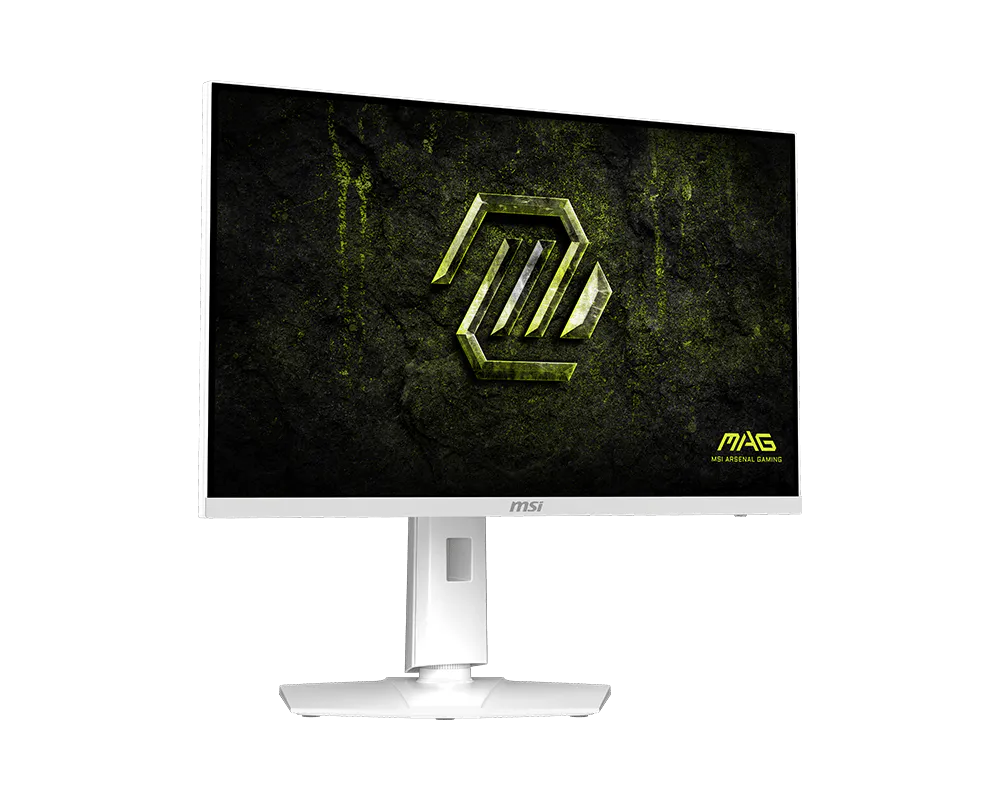

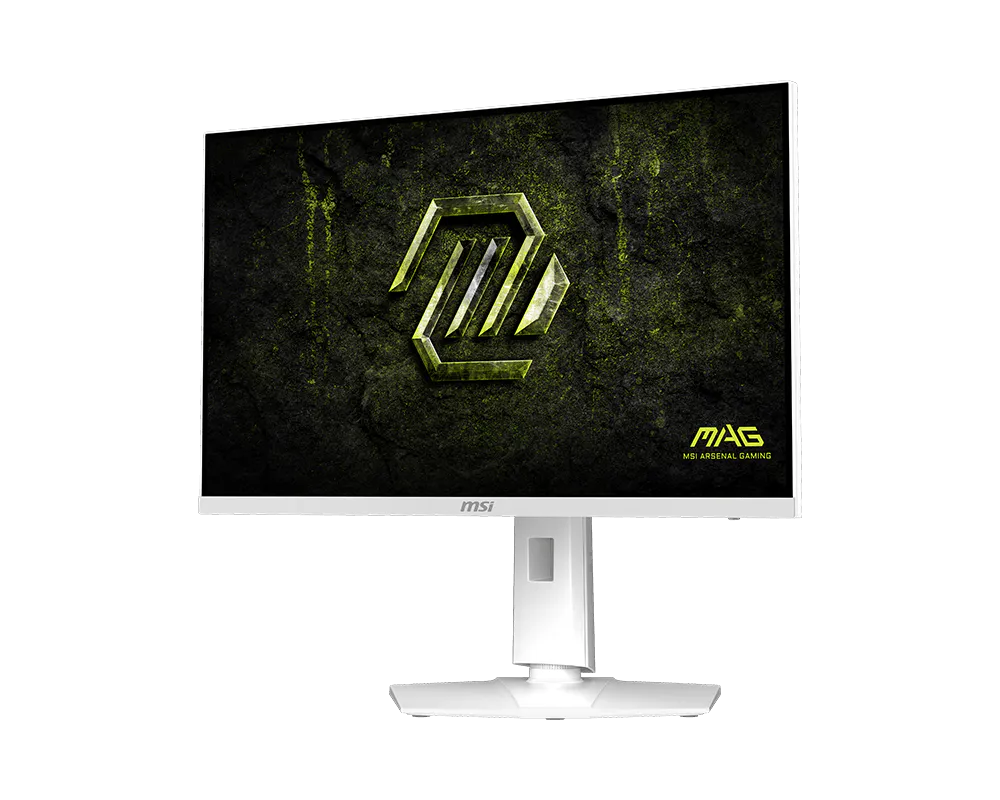

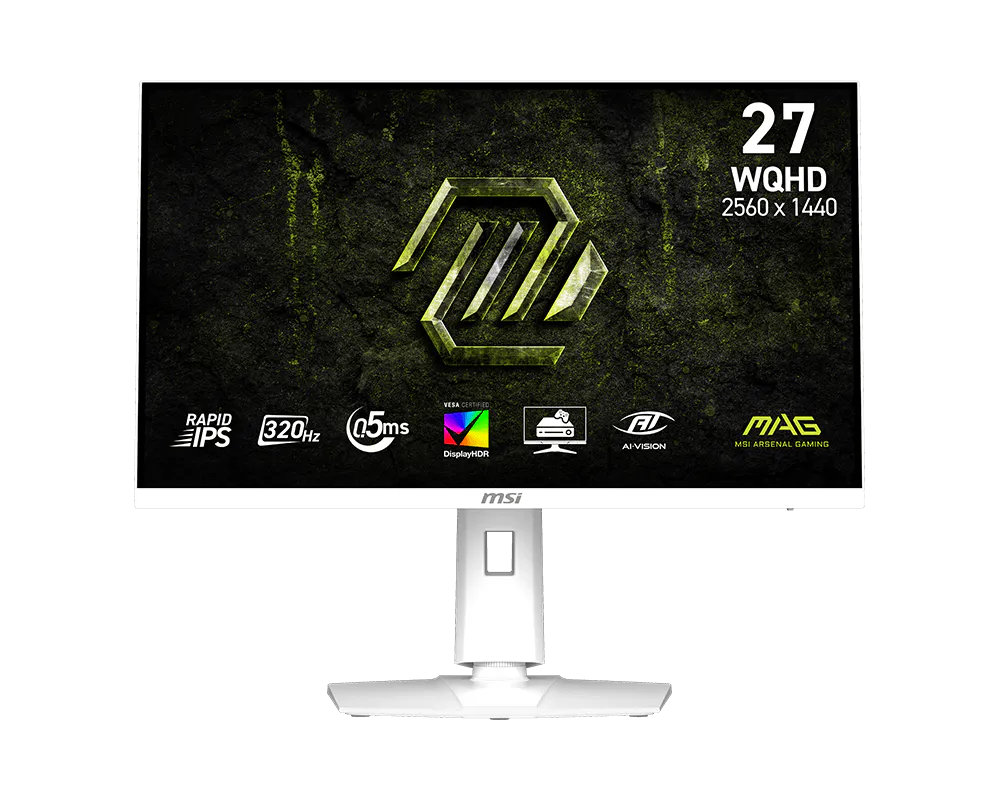

MSI MAG 274QRFW X32 27" WQHD 320Hz Rapid IPS Gaming Monitor (White)
PRODUCT DESCRIPTION
MSI MAG 274QRFW X32 27" WQHD 320Hz Rapid IPS Gaming Monitor (White)
Key specifications: 27" · WQHD · Rapid IPS · 320Hz · 1ms(MPRT) · 0.5ms(GtG) · AdaptiveSync · HDR400 · Adjustable Stand · Pivot 90° · 2x HDMI2.1 · DP1.4a · White
G-Sync Compatible
G-SYNC Compatible support syncs the refresh rate with the GPU for smoother, tear-free gaming.
Smooth Rapidity and Accuracy
A 320Hz refresh rate and 0.5ms response time benefit fast-moving game genres.
See Clearly, See Comfortably
Anti-Flicker and Less Blue Light technologies reduce flicker and blue light for extended gaming comfort.
Console Mode
Console Mode supports VRR at up to 120Hz, with built-in HDMI CEC.
Optix Scope
A built-in aim magnifier provides multi-stage zoom, switchable with shortcut keys.
MSI MAG 274QRFW X32 Datasheet — Technical Specifications
General
| Product Name | MSI MAG 274QRFW X32 27" WQHD 320Hz Rapid IPS Gaming Monitor (White) |
| Model | MAG 274QRFW X32 |
| MSI Part Number | 9S6-3CE49H-028 |
| EAN | 4711377312011 |
| Brand / Series | MSI MAG / MPG Gaming Monitors |
Display
| Panel Size | 27" |
| Active Display Area (mm) | 596.736 (H) x 335.664 (V) |
| Curvature | Flat |
| Panel Type | Rapid IPS |
| Panel Resolution | 2560 x 1440 (WQHD) |
| Pixel Pitch (H x V) | 0.2331 (H) x 0.2331 (V) |
| Aspect Ratio | 16:9 |
| Brightness (nits) | SDR: 300 cd/m² / HDR: 400 cd/m² (Peak) |
| Contrast Ratio | 1000:1 |
| DCR | 100000000:1 |
| Signal Frequency | 70.5~460KHz (H) / 48~320Hz (V) |
| Activated Range | 48~320Hz |
| Refresh Rate | 320Hz |
| Response time | 0.5ms (GtG, Min.) |
| Dynamic Refresh Rate Technology | NVIDIA G-SYNC Compatible / AMD FreeSync™ Premium |
| HDR Support | VESA DisplayHDR 400 |
| Viewing Angle | 178° (H) / 178° (V) |
| Adobe RGB / DCI-P3 / sRGB | 95% / 97% / 129% (CIE1976 Standard) |
| Surface Treatment | Anti-glare |
| Display Colors | 1.07B, 10 bits (8 bits + FRC) |
Connectivity & Features
| Video ports | 1x DisplayPort 1.4a (HBR3) / 2x HDMI™ 2.1 (WQHD@320Hz) |
| Audio ports | 1x Headphone-out |
| Note | HDMI™: 2560 x 1440 (Up to 320Hz) / DisplayPort: 2560 x 1440 (Up to 320Hz) / Support: HDMI™ CEC, PIP/PBP; Non Support: KVM |

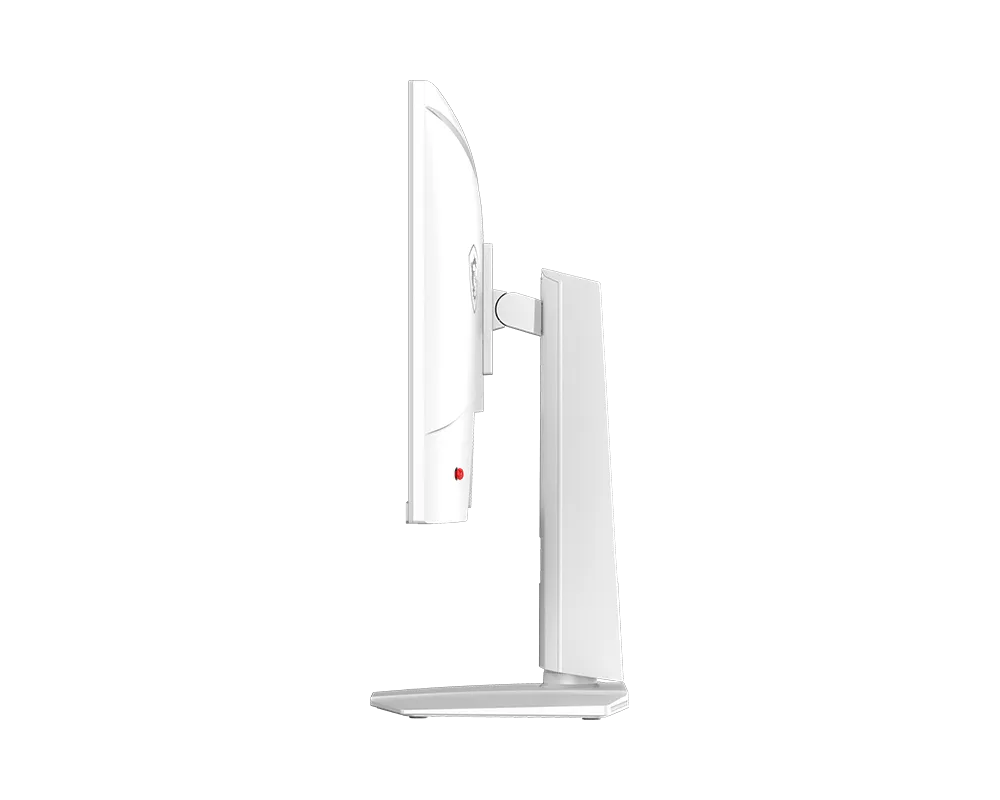

Ergonomics & Mounting
| Adjustment (Tilt) | -5° ~ 20° |
| Adjustment (Swivel) | -30° ~ 30° |
| Adjustment (Pivot) | -90° ~ 90° |
| Adjustment (Height) | 0~130 mm |
| Kensington Lock | Yes |
| VESA Mounting | 100 x 100 mm |
Power
| Power Type | Internal Power Board |
| Power Input | 100~240V, 50/60Hz |
Dimensions & Weight
| Dimension with Stand (W x D x H) | 613.5 x 227.9 x 405 mm (24.1 x 8.9 x 15 inch) |
| Dimension without Stand (W x D x H) | 613.5 x 62 x 362.5 mm (24.1 x 2.4 x 14.2 inch) |
| Weight (NW / GW) | 6.7 kg (14.7 lbs) / 9.3 kg (20.5 lbs) |
| Carton Dimension (W X D X H) | 820 x 148 x 460 mm (32.2 x 5.8 x 18.1 inch) |
Certifications, Warranty & Accessories
| Accessories | 1x DisplayPort Cable (1.4a), 1x Power Cord (C13), 1x Quick Guide, 4x Stand Screw |
Specifications are as published by MSI and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Video Inputs
1x DisplayPort 1.4a (HBR3) / 2x HDMI™ 2.1 (WQHD@320Hz)
Audio
1x Headphone-out
Supported Modes (MSI note)
HDMI™: 2560 x 1440 (Up to 320Hz) / DisplayPort: 2560 x 1440 (Up to 320Hz) / Support: HDMI™ CEC, PIP/PBP; Non Support: KVM

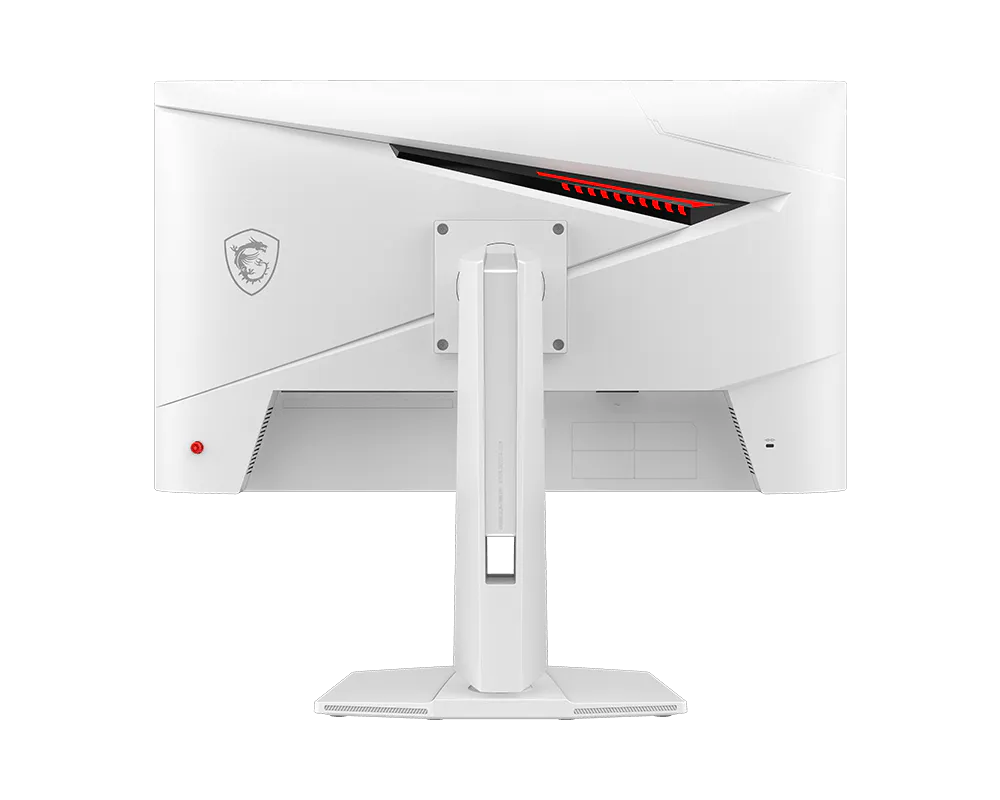

Mounting
VESA 100 x 100 mm — fits standard VESA monitor arms; check the arm's weight rating against the monitor weight in the datasheet.
Package Contents & MSI MAG / MPG Gaming Monitors Ordering Information
In the Box
1x DisplayPort Cable (1.4a), 1x Power Cord (C13), 1x Quick Guide, 4x Stand Screw
MSI MAG / MPG Gaming Monitors
| Model | Key feature |
| MAG401QR | 40" / UWQHD / IPS / 155Hz / 1ms(MPRT) |
| MAG 342CQRF E20 | 34" / UWQHD / Curved 1500R / Rapid VA / 200Hz |
| MAG 325QF E18V | 31.5" / WQHD / Rapid VA / 180Hz / 1ms(MPRT) |
| MAG 321CQF E18 | 31.5" / WQHD / Curved 1500R / Rapid VA / 180Hz |
| MAG 322URDF E16 | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 321CUPDF | 31.5" / Dual-Mode FHD-320Hz & UHD-160Hz / Curved 1500R / Rapid VA / 1ms(MPRT) |
| MAG 271KPD7 | 27" / Dual-Mode WQHD-300Hz & 5K UHD-75Hz / Rapid IPS / 0.5ms(MPRT) / 0.5ms(GtG) |
| MPG 274URDFW E16M | 27" / Dual-Mode FHD-320Hz & UHD-160Hz / Rapid IPS / Mini-LED / 1ms(MPRT) |
| MAG 274QPF X30MV | 27" / WQHD / Rapid VA / 300Hz / Mini-LED |
| MAG 275UPD E14 | 27" / Dual-Mode FHD-288Hz & UHD-144Hz / Rapid IPS / 1ms(MPRT) / 0.5ms(GtG) |
| MAG 274QRFW X32 (this listing) | 27" / WQHD / Rapid IPS / 320Hz / 1ms(MPRT) |
| MAG 274QPF E20 | 27" / WQHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 274QF X24 | 27" / WQHD / Rapid IPS / 240Hz / 1ms(MPRT) |
| MAG 274F | 27" / FHD / Rapid IPS / 200Hz / 1ms(MPRT) |
| MAG 255F X24 | 24.5" / FHD / Rapid IPS / 240Hz / 1ms(MPRT) |
Datasheet & Downloads
| MSI product page | MAG 274QRFW X32 on msi.com |
| Specifications | MAG 274QRFW X32 specifications |
| Drivers, manuals & firmware | MAG 274QRFW X32 support |
Frequently Asked Questions — MSI MAG 274QRFW X32
What resolution and refresh rate does the MAG 274QRFW X32 support?
Resolution: 2560 x 1440 (WQHD). Refresh rate: 320Hz (per MSI specification).
Can it charge a laptop?
No, this model has no USB-C power delivery; use your laptop's own charger.
Is the stand height-adjustable?
Yes — height 0~130 mm, tilt -5° ~ 20°, swivel -30° ~ 30°, pivot -90° ~ 90°.
Does it have built-in speakers?
No, connect headphones or external speakers.
What warranty do I get?
Singapore local MSI warranty through the authorised distributor. Supplied by SourceIT with a GST invoice.
