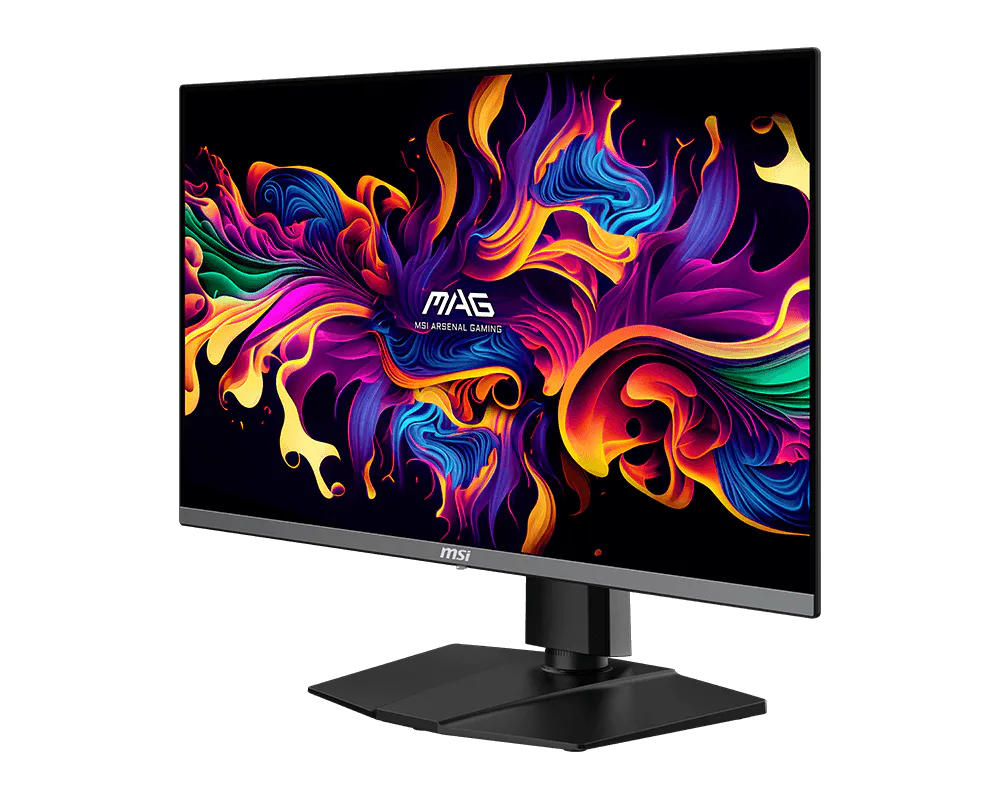

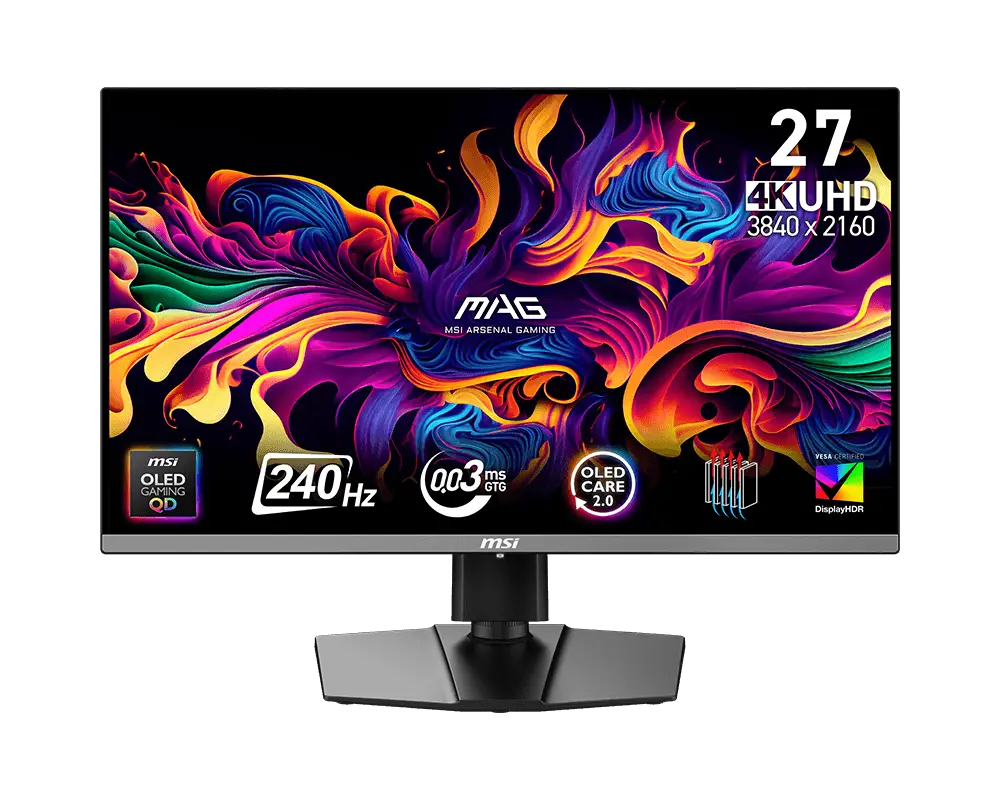

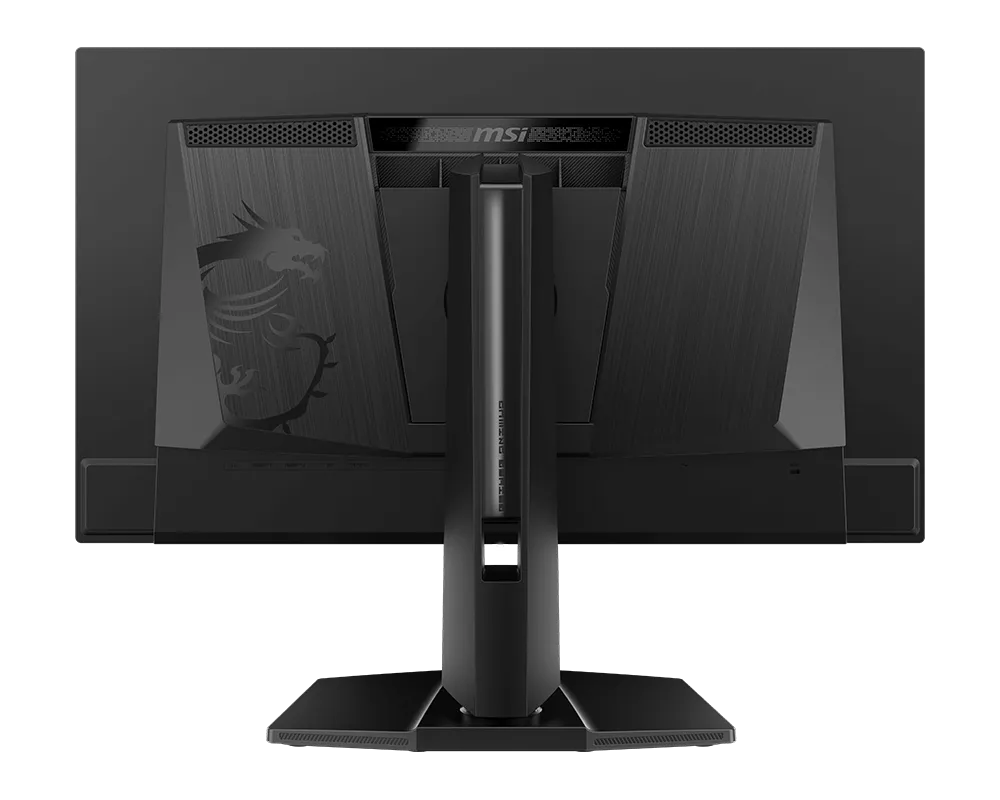

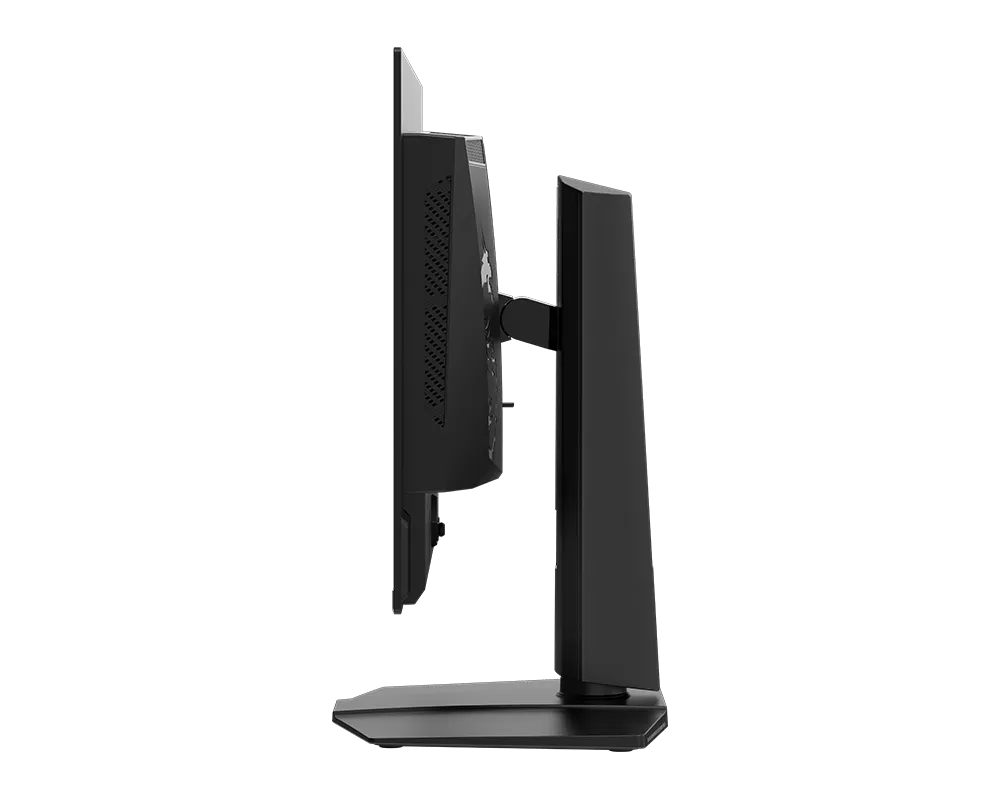

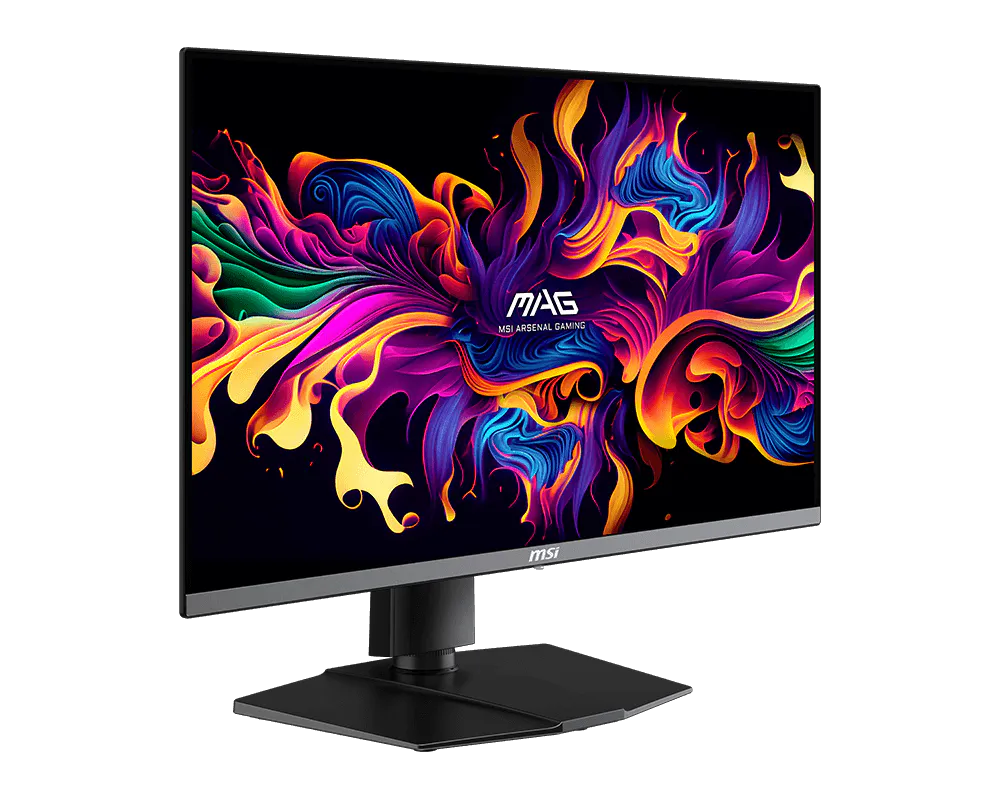

MSI MAG 272UP QD-OLED X24 26.5" 4K UHD 240Hz Gaming Monitor
PRODUCT DESCRIPTION
MSI MAG 272UP QD-OLED X24 26.5" 4K UHD 240Hz Gaming Monitor
Key specifications: 26.5" · UHD · QD-OLED · 240Hz · ClearMR 13000 · 0.03ms(GtG) · G-SYNC Compatible · FreeSync Premium Pro · HDR400 · Adjustable Stand · Pivot 90° · 2x HDMI2.1 · DP1.4a · USB-C PD15W
4th Gen QD-OLED
The latest generation QD-OLED panel delivers sharper images through an improved sub-pixel arrangement, offering finer details and clearer text.
0.03ms GtG Response Time
A 0.03ms (GtG) response time is paired with a 240Hz refresh rate for competitive gaming.
OLED Care 2.0
OLED Care 2.0 includes protective functions such as pixel shifting and automatic brightness reduction to help prevent static image retention.
Console Mode + HDMI 2.1
HDMI 2.1 supports 48Gbps bandwidth with VRR and ALLM for low-latency 120Hz console gaming.
Type-C Display
The Type-C port supports DisplayPort Alt mode and can power a connected device at up to 15W.
MSI MAG 272UP QD-OLED X24 Datasheet — Technical Specifications
General
| Product Name | MSI MAG 272UP QD-OLED X24 26.5" 4K UHD 240Hz Gaming Monitor |
| Model | MAG 272UP QD-OLED X24 |
| MSI Part Number | 9S6-3CD79A-024 |
| EAN | 4711377304450 |
| Brand / Series | MSI QD-OLED Gaming Monitors |
| OLED Panel Warranty | MSI offers a 3-year OLED panel warranty that covers burn-in |
Display
| Panel Size | 26.5" |
| Active Display Area (mm) | 589.97 (H) x 332.93 (V) |
| Curvature | Flat |
| Panel Type | QD-OLED |
| Panel Resolution | 3840 x 2160 (UHD) |
| Pixel Pitch (H x V) | 0.153(H) x 0.153(V) |
| Aspect Ratio | 16:9 |
| Brightness (nits) | SDR: 250; HDR: 450 (Typ.) (True Black 400 with 10% APL); 1000 (Typ.) (Peak 1000 with 3% APL) |
| Contrast Ratio | 1500000:1 (Typ.) |
| Signal Frequency | 31.2~565.42 KHz(H) / 48 ~ 240 Hz(V) |
| Activated Range | 48 ~ 240Hz |
| Refresh Rate | 240Hz |
| Response time | 0.03ms (GtG) |
| Dynamic Refresh Rate Technology | G-SYNC™ Compatible; AMD FreeSync™ Premium Pro |
| HDR Support | VESA DisplayHDR True Black 400 |
| Viewing Angle | 178°(H) / 178°(V) |
| Adobe RGB / DCI-P3 / sRGB | 98% / 99% / 138% (CIE1976 Standard) |
| Surface Treatment | Anti-Reflection |
| Display Colors | 1.07B, 10 bits |
Connectivity & Features
| Video ports | 2x HDMI™ 2.1 (UHD@240Hz); 1x DisplayPort 1.4a (HBR3); 1x Type-C (DP alt.) w/ 15W PD |
| Audio ports | 1x Headphone-out |
| Console Mode | Supported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz; 1440p: 60Hz and 120Hz; 2160p: 60Hz and 120Hz; HDMI™ CEC: Supported; VRR: PS5 and Xbox Supported |
| Note | HDMI™: 3840 x 2160 (Up to 240Hz); DisplayPort: 3840 x 2160 (Up to 240Hz); Support: HDMI™ CEC, PIP/PBP; Non Support: KVM |
Ergonomics & Mounting
| Adjustment (Tilt) | -5° ~ 20° |
| Adjustment (Swivel) | -30° ~ 30° |
| Adjustment (Pivot) | -90° ~ 90° |
| Adjustment (Height) | 0 ~ 110 mm |
| Kensington Lock | Yes |
| VESA Mounting | 100 x 100 mm |
Power
| Power Type | Internal Power Board |
| Power Input | 100~240V, 50/60Hz |
Dimensions & Weight
| Dimension with Stand (W x D x H) | 610.31 x 241.9 x 532.03 mm (24 x 9.5 x 20.9inch) |
| Dimension without Stand (W x D x H) | 610.31 x 69.15 x 356.4 mm (24 x 2.7 x 14inch) |
| Weight (NW / GW) | 8kg (17lbs) / 11.1kg (24.4lbs) |
| Carton Dimension (W X D X H) | 820 x 169 x 513mm (32.2 x 6.6 x 20.1inch) |
Certifications, Warranty & Accessories
| Accessories | 1x DisplayPort Cable (1.4a); 1x HDMI™ (2.1); 1x Power Cord (C13); 1x Quick Guide; 4x VESA Wall Mount Screw; 1x Fiber Cloth |
| Warranty | 3 years (including panel burn-in) |
Specifications are as published by MSI and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Video Inputs
2x HDMI™ 2.1 (UHD@240Hz); 1x DisplayPort 1.4a (HBR3); 1x Type-C (DP alt.) w/ 15W PD
Audio
1x Headphone-out
Supported Modes (MSI note)
HDMI™: 3840 x 2160 (Up to 240Hz); DisplayPort: 3840 x 2160 (Up to 240Hz); Support: HDMI™ CEC, PIP/PBP; Non Support: KVM
Console Mode
Supported Resolution & Refresh Rate: 1080p: 60Hz and 120Hz; 1440p: 60Hz and 120Hz; 2160p: 60Hz and 120Hz; HDMI™ CEC: Supported; VRR: PS5 and Xbox Supported
Mounting
VESA 100 x 100 mm — fits standard VESA monitor arms; check the arm's weight rating against the monitor weight in the datasheet.
Package Contents & MSI QD-OLED Gaming Monitors Ordering Information
In the Box
1x DisplayPort Cable (1.4a), 1x HDMI™ (2.1), 1x Power Cord (C13), 1x Quick Guide, 4x VESA Wall Mount Screw, 1x Fiber Cloth
MSI QD-OLED Gaming Monitors
| Model | Key feature |
| MPG 491CQPX QD-OLED | 49" / DQHD / Curved 1800R / QD-OLED / 240Hz |
| MPG 341CQR QD-OLED X36 | 34" / UWQHD / Curved 1800R / Tandem QD-OLED / 360Hz |
| MPG 341CQPX QD-OLED | 34" / UWQHD / Curved 1800R / QD-OLED / 240Hz |
| MPG 322URX QD-OLED | 31.5" / UHD / QD-OLED / 240Hz / ClearMR 13000 |
| MPG 321URXW QD-OLED | 31.5" / UHD / QD-OLED / 240Hz / ClearMR 13000 |
| MPG 321URX QD-OLED | 31.5" / UHD / QD-OLED / 240Hz / ClearMR 13000 |
| MAG 272UP QD-OLED X24 (this listing) | 26.5" / UHD / QD-OLED / 240Hz / ClearMR 13000 |
| MPG 271QR QD-OLED X50 | 26.5" / WQHD / QD-OLED / 500Hz / ClearMR 21000 |
| MAG 272QPW QD-OLED X28 | 26.5" / WQHD / QD-OLED / 280Hz / ClearMR 15000 |
| MAG 272QP QD-OLED X24 | 26.5" / WQHD / QD-OLED / 240Hz / ClearMR 13000 |
Datasheet & Downloads
| MSI product page | MAG 272UP QD-OLED X24 on msi.com |
| Specifications | MAG 272UP QD-OLED X24 specifications |
| Drivers, manuals & firmware | MAG 272UP QD-OLED X24 support |
Frequently Asked Questions — MSI MAG 272UP QD-OLED X24
What resolution and refresh rate does the MAG 272UP QD-OLED X24 support?
Resolution: 3840 x 2160 (UHD). Refresh rate: 240Hz (per MSI specification).
Can it charge a laptop over USB-C?
The USB-C port supplies up to 15W, enough for phones and accessories but not to charge most laptops; keep using your laptop charger.
Is the stand height-adjustable?
Yes — height 0 ~ 110 mm, tilt -5° ~ 20°, swivel -30° ~ 30°, pivot -90° ~ 90°.
Does it have built-in speakers?
No, connect headphones or external speakers.
What about OLED burn-in?
MSI OLED Care adds burn-in protection features, and MSI offers a 3-year OLED panel warranty that includes burn-in.
What warranty do I get?
3 years (including panel burn-in) (MSI). Singapore local MSI warranty through the authorised distributor. Supplied by SourceIT with a GST invoice.
