MSI Katana 15 HX B14WFK-1066SG 15.6" QHD 165Hz Core i7-14650HX RTX 5060 16GB 1TB Gaming Laptop
PRODUCT DESCRIPTION
MSI Katana 15 HX B14WFK-1066SG 15.6" QHD 165Hz Core i7-14650HX RTX 5060 16GB 1TB Gaming Laptop
Key specifications: 15.6" QHD 165Hz · Core i7-14650HX · RTX 5060 · 16GB RAM · 1TB SSD · Wi-Fi 6E · Windows 11 Home · 2.4 kg
14th Gen Intel Core HX
Desktop-class Intel Core HX processor with an RTX 50 Series GPU at up to 115W.
15.6" QHD 165Hz
2560 x 1440 IPS-level display at 165Hz with 100% DCI-P3 (typical).
Room to grow
Two DDR5 slots supporting up to 96GB.
Everyday connectivity
USB-C with DisplayPort and PD, three USB-A Gen2 ports, HDMI 2.1 and Gigabit LAN.

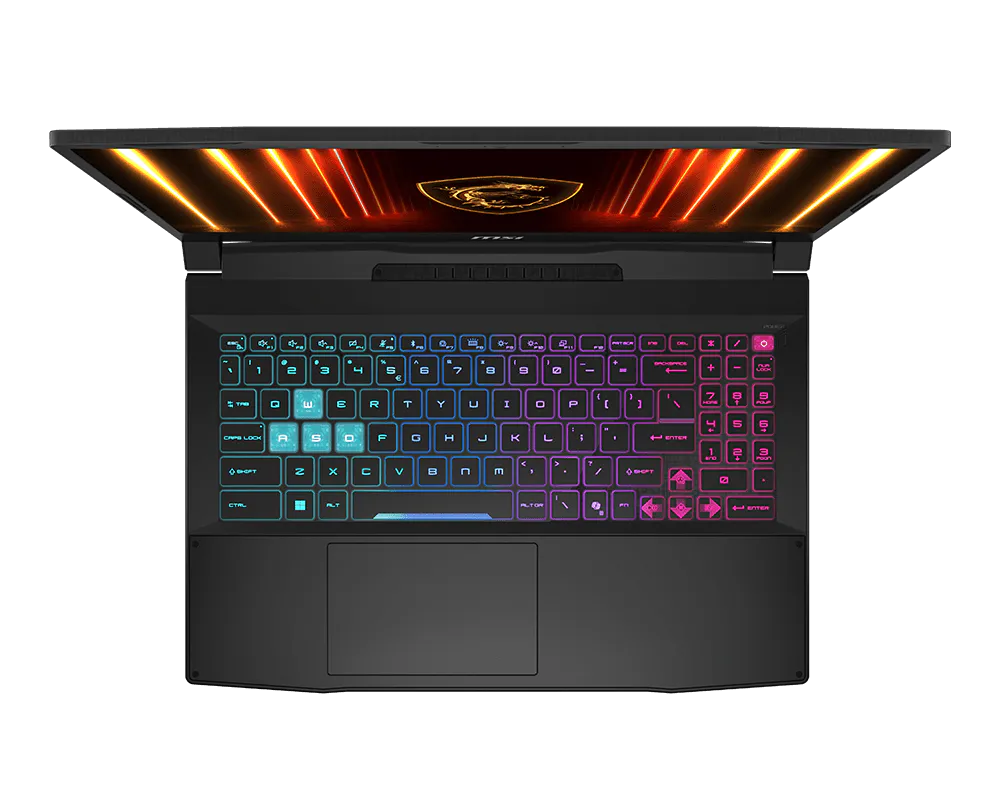

4-zone RGB keyboard
Katana-styled 4-zone RGB keyboard with a Copilot key.
MSI Katana 15 HX B14WFK-1066SG Datasheet — Technical Specifications
General
| Product Name | MSI Katana 15 HX B14WFK-1066SG 15.6" QHD 165Hz Core i7-14650HX RTX 5060 16GB 1TB Gaming Laptop |
| Model | Katana 15 HX B14WFK-1066SG |
| Series | MSI Katana 15 HX B14W |
| MSI Part Number | 9S7-1587C1-1066 |
| EAN / UPC | 4711377458511 |
| Colour | Black |
| Warranty | 2-year on-site warranty (Singapore, MSI authorised distributor) |
Processor & Operating System
| Processor | Intel® Core™ i7-14650HX |
| Chipset | Intel® HM770 |
| Operating System | Windows® 11 Home |
Display
| Display | 15.6" QHD (2560 x 1440), 165Hz DCI-P3 100% typical |
Graphics
| Graphics | NVIDIA® GeForce RTX™ 5060 Laptop GPU, GDDR7 8GB |
| GPU Power / Boost | 115W max graphics power with Dynamic Boost, up to 2497MHz boost clock, 572 AI TOPS |
Memory & Storage
| Installed Memory | 16GB DDR5 (1x 16GB) |
| Memory Support | Up to DDR5-5600, max 96GB, 2 slots |
| Installed Storage | 1TB NVMe PCIe SSD |
| Storage Slots | 1x M.2 SSD slot (NVMe PCIe Gen4) |
Connectivity
| Wireless | Intel® Wi-Fi 6E + Bluetooth 5.3 |
| LAN | Gigabit LAN |
| I/O Ports | 1x RJ45 1x Type-C (USB 3.2 Gen2 / DisplayPort™ / Power Delivery 3.0) 3x Type-A USB 3.2 Gen2 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) 1x mic-in/headphone-out combo jack |
| Webcam | HD (30fps@720p) |
| Audio | 2x 2W speakers |
Keyboard, Security & Sensors
| Keyboard | 4-zone RGB gaming keyboard with Copilot key |
| Security | fTPM 2.0 |
Power
| Battery | 4-cell, 75Whr |
| AC Adapter | 240W |
Dimensions & Weight
| Dimensions (W x D x H) | 359 x 262 x 25.5 mm |
| Weight (with battery) | 2.4 kg |
Specifications are as published by MSI and the MSI Singapore distributor price list, and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Ports
1x RJ45 / 1x Type-C (USB 3.2 Gen2 / DisplayPort™ / Power Delivery 3.0) / 3x Type-A USB 3.2 Gen2 / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x mic-in/headphone-out combo jack
External Displays
Video out via 1x Type-C (USB 3.2 Gen2 / DisplayPort™ / Power Delivery 3.0) and 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz).
Wireless
Intel® Wi-Fi 6E + Bluetooth 5.3
Upgrades
Memory: Up to DDR5-5600, max 96GB, 2 slots. Storage: 1x M.2 SSD slot (NVMe PCIe Gen4).
Package Contents & MSI Katana Ordering Information
In the Box
MSI Katana 15 HX B14WFK-1066SG notebook, 240W AC power adapter, quick start documentation
MSI Katana Notebooks at SourceIT
| Model | Key configuration |
| Katana 15 HX B14WFK-1066SG (this listing) | 15.6" QHD 165Hz / Core i7-14650HX / RTX 5060 / 16GB / 1TB |
| Katana 15 HX B14WEK-1052SG | 15.6" QHD 165Hz / Core i9-14900HX / RTX 5050 / 16GB / 1TB |
| Katana 15 B13VEK-2443SG | 15.6" FHD 144Hz / Core i7-13620H / RTX 4050 / 16GB / 1TB |
Datasheet & Downloads
| MSI product page | Katana 15 HX B14W on msi.com |
| Specifications | Katana 15 HX B14W specifications |
| Drivers, manuals & BIOS | Katana 15 HX B14W support |
Frequently Asked Questions — MSI Katana 15 HX B14WFK-1066SG
What processor and graphics does the Katana 15 HX B14WFK-1066SG have?
Intel® Core™ i7-14650HX with NVIDIA® GeForce RTX™ 5060 Laptop GPU, GDDR7 8GB.
How much memory and storage is installed?
16GB DDR5 (1x 16GB) and 1TB NVMe PCIe SSD. Platform support: Up to DDR5-5600, max 96GB, 2 slots; 1x M.2 SSD slot (NVMe PCIe Gen4).
What is the display?
15.6" QHD (2560 x 1440), 165Hz DCI-P3 100% typical.
Can I connect external monitors?
Yes — via 1x Type-C (USB 3.2 Gen2 / DisplayPort™ / Power Delivery 3.0) and 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz).
How heavy is it and how big is the battery?
2.4 kg, 4-cell, 75Whr battery, 240W adapter.
What operating system is installed?
Windows® 11 Home.
What warranty do I get?
2-year on-site MSI warranty in Singapore through the authorised local distributor. Supplied by SourceIT with a GST invoice.
