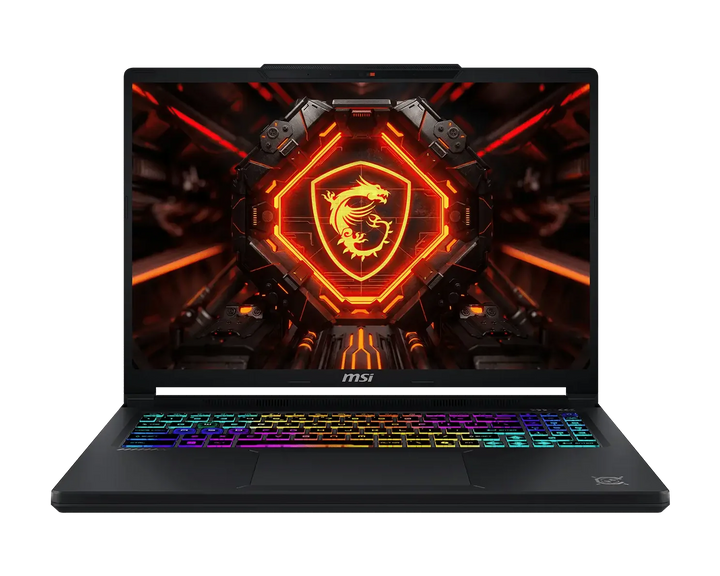

MSI Crosshair 16 Max HX E2WGK-037SG 16" QHD+ OLED 165Hz Core Ultra 9 290HX Plus RTX 5070 16GB 1TB Gaming Laptop
PRODUCT DESCRIPTION
MSI Crosshair 16 Max HX E2WGK-037SG 16" QHD+ OLED 165Hz Core Ultra 9 290HX Plus RTX 5070 16GB 1TB Gaming Laptop
Key specifications: 16" QHD+ OLED 165Hz · Core Ultra 9 290HX Plus · RTX 5070 · 16GB RAM · 1TB SSD · Wi-Fi 6E · Windows 11 Home · 2.2 kg
Intel Core Ultra 9 290HX Plus
Up to 200W combined CPU-GPU power with MSI OverBoost Technology.
16" QHD+ OLED
2560 x 1600 OLED at 165Hz with 100% DCI-P3 and VESA DisplayHDR True Black 1000.
Thunderbolt 4 + USB-C
One Thunderbolt 4 port with PD 3.1, one USB-C with DisplayPort and three USB-A Gen2 ports.
Upgrade headroom
Up to 128GB DDR5-6400 across two slots, plus PCIe Gen5 and Gen4 M.2 slots.
2.5GbE + Wi-Fi 6E
Low-latency wired and wireless networking for online play.
MSI Crosshair 16 Max HX E2WGK-037SG Datasheet — Technical Specifications
General
| Product Name | MSI Crosshair 16 Max HX E2WGK-037SG 16" QHD+ OLED 165Hz Core Ultra 9 290HX Plus RTX 5070 16GB 1TB Gaming Laptop |
| Model | Crosshair 16 Max HX E2WGK-037SG |
| Series | MSI Crosshair 16 Max HX E2W |
| MSI Part Number | 9S7-265232-037 |
| EAN / UPC | 4711377455718 |
| Colour | Core Black |
| Warranty | 2-year on-site warranty (Singapore, MSI authorised distributor) |
Processor & Operating System
| Processor | Intel® Core Ultra 9 290HX Plus |
| Chipset | Intel® HM870 |
| Operating System | Windows® 11 Home |
Display
| Display | 16" 16:10 QHD+ (2560 x 1600) OLED, 165Hz, 100% DCI-P3 (Typ.); VESA DisplayHDR™ True Black 1000, SGS Eye Care Display |
Graphics
| Graphics | NVIDIA® GeForce RTX™ 5070 Laptop GPU, GDDR7 8GB |
| GPU Power / Boost | 115W max graphics power with Dynamic Boost, up to 2347MHz boost clock, 798 AI TOPS |
| CPU + GPU Power | Max. 200W CPU-GPU power with MSI OverBoost Technology |
Memory & Storage
| Installed Memory | 16GB DDR5 (1x 16GB) |
| Memory Support | Up to DDR5-6400, max 128GB, 2 slots |
| Installed Storage | 1TB NVMe PCIe SSD |
| Storage Slots | 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5) |
Connectivity
| Wireless | Intel® Wi-Fi 6E + Bluetooth 5.4 |
| LAN | 2.5GbE LAN |
| I/O Ports | 1x RJ45 1x Thunderbolt™ 4 (DisplayPort™ / Power Delivery 3.1) 1x Type-C (USB 3.2 Gen2 / DisplayPort™ / Power Delivery 3.0) 3x Type-A USB 3.2 Gen2 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) 1x mic-in/headphone-out combo jack |
| Webcam | HD (30fps@720p), 3D Noise Reduction (3DNR) |
| Audio | 2x 2W speakers, array microphone |
Keyboard, Security & Sensors

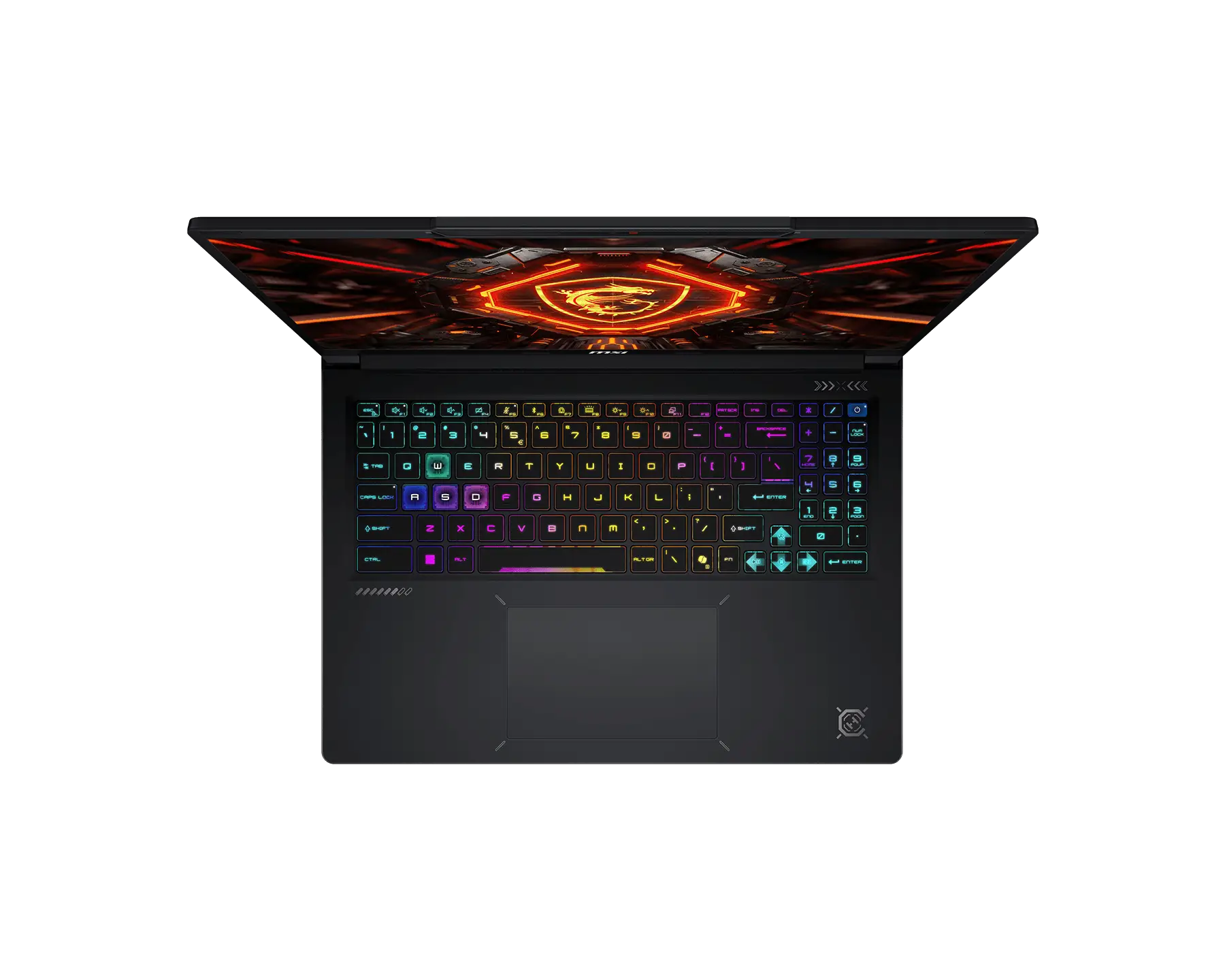

| Keyboard | 24-zone RGB gaming keyboard with Copilot key |
| Security | fTPM 2.0, Kensington Lock, webcam shutter |
Power
| Battery | 4-cell, 80Whr |
| AC Adapter | 240W |
Dimensions & Weight
| Dimensions (W x D x H) | 363 x 269.7 x 21.95 - 23.85 mm |
| Weight (with battery) | 2.2 kg (OLED model) |
Specifications are as published by MSI and the MSI Singapore distributor price list, and may change without notice — see the MSI product page for the latest details.
Compatibility & Connectivity
Ports
1x RJ45 / 1x Thunderbolt™ 4 (DisplayPort™ / Power Delivery 3.1) / 1x Type-C (USB 3.2 Gen2 / DisplayPort™ / Power Delivery 3.0) / 3x Type-A USB 3.2 Gen2 / 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz) / 1x mic-in/headphone-out combo jack
External Displays
Video out via 1x Thunderbolt™ 4 (DisplayPort™ / Power Delivery 3.1) and 1x Type-C (USB 3.2 Gen2 / DisplayPort™ / Power Delivery 3.0) and 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz).
Wireless
Intel® Wi-Fi 6E + Bluetooth 5.4
Upgrades
Memory: Up to DDR5-6400, max 128GB, 2 slots. Storage: 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5).
Package Contents & MSI Crosshair Ordering Information
In the Box
MSI Crosshair 16 Max HX E2WGK-037SG notebook, 240W AC power adapter, quick start documentation
MSI Crosshair Notebooks at SourceIT
| Model | Key configuration |
| Crosshair 16 Max HX E2WGK-037SG (this listing) | 16" QHD+ OLED 165Hz / Core Ultra 9 290HX Plus / RTX 5070 / 16GB / 1TB |
| Crosshair A16 HX E8WGK-025SG | 16" QHD+ 240Hz / Ryzen 9 8940HX / RTX 5070 / 16GB / 1TB |
| Crosshair A16 HX E8WFK-026SG | 16" QHD+ 240Hz / Ryzen 9 8940HX / RTX 5060 / 16GB / 1TB |
Datasheet & Downloads
| MSI product page | Crosshair 16 Max HX E2W on msi.com |
| Specifications | Crosshair 16 Max HX E2W specifications |
| Drivers, manuals & BIOS | Crosshair 16 Max HX E2W support |
Frequently Asked Questions — MSI Crosshair 16 Max HX E2WGK-037SG
What processor and graphics does the Crosshair 16 Max HX E2WGK-037SG have?
Intel® Core Ultra 9 290HX Plus with NVIDIA® GeForce RTX™ 5070 Laptop GPU, GDDR7 8GB.
How much memory and storage is installed?
16GB DDR5 (1x 16GB) and 1TB NVMe PCIe SSD. Platform support: Up to DDR5-6400, max 128GB, 2 slots; 1x M.2 SSD slot (NVMe PCIe Gen4), 1x M.2 SSD slot (NVMe PCIe Gen5).
What is the display?
16" 16:10 QHD+ (2560 x 1600) OLED, 165Hz, 100% DCI-P3 (Typ.); VESA DisplayHDR™ True Black 1000, SGS Eye Care Display.
Can I connect external monitors?
Yes — via 1x Thunderbolt™ 4 (DisplayPort™ / Power Delivery 3.1) and 1x Type-C (USB 3.2 Gen2 / DisplayPort™ / Power Delivery 3.0) and 1x HDMI™ 2.1 (8K @ 60Hz / 4K @ 120Hz).
How heavy is it and how big is the battery?
2.2 kg (OLED model), 4-cell, 80Whr battery, 240W adapter.
What operating system is installed?
Windows® 11 Home.
What warranty do I get?
2-year on-site MSI warranty in Singapore through the authorised local distributor. Supplied by SourceIT with a GST invoice.
