MAXHUB XBoard V7 V5550 55" 4K All-in-One Interactive Display + i5 PC
PRODUCT DESCRIPTION
MAXHUB XBoard V7 Series V5550 55" 4K All-in-One Conference Interactive Touch Display with MT71E Intel Core i5 PC Module (V5550 + i5) - 3 Years Local Warranty

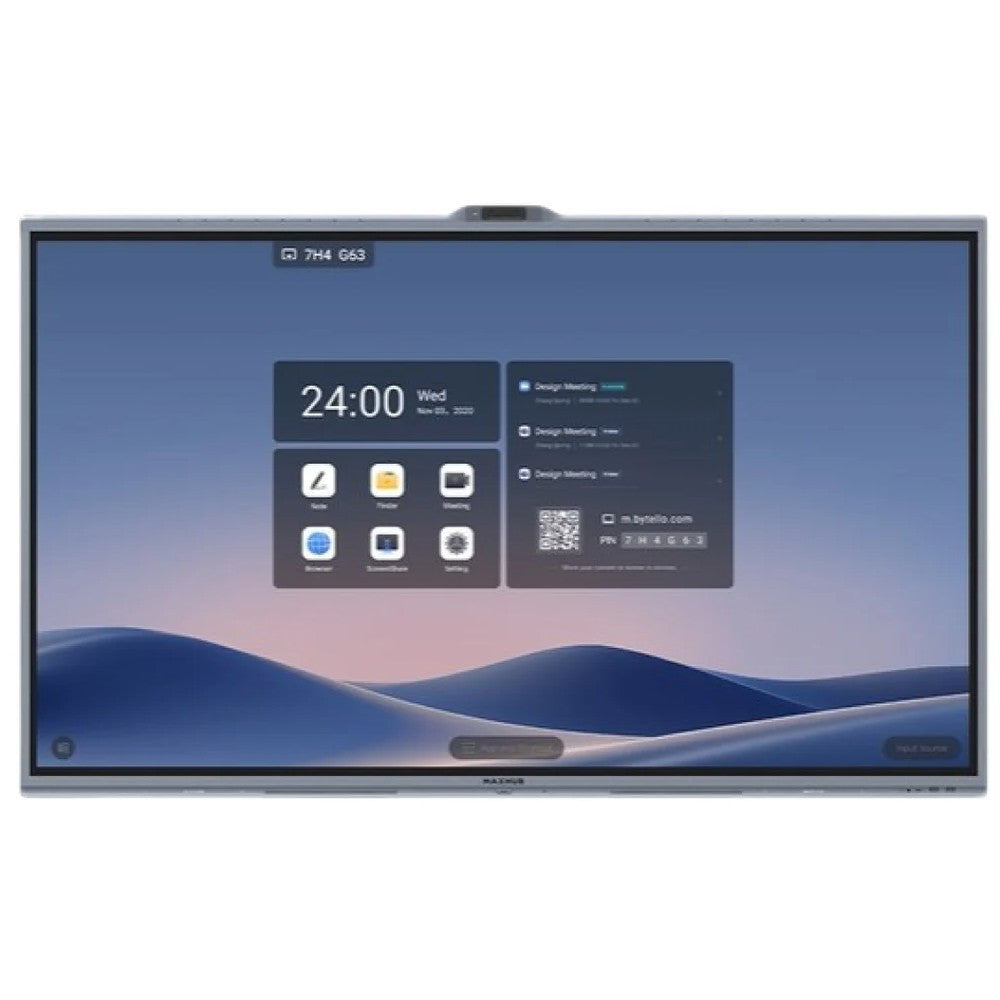

55-inch All-in-One Meeting Room Display
The MAXHUB XBoard V7 V5550 combines a 55" 4K (3840 x 2160) interactive touch display, a 50MP triple-lens camera, a 16-microphone array and a 2.1 speaker system in one wall- or stand-mounted unit. This bundle adds the MAXHUB MT71E pluggable PC module (12th Gen Intel Core i5-12450H, 16GB DDR4, 256GB storage, Windows 11 Pro), so the room is ready for Microsoft Teams, Zoom and other Windows conferencing apps without a separate computer.
Trident 50MP Camera with Speaker Tracking
MAXHUB's trident camera system pairs a 50MP wide lens (99° diagonal field of view) with two 50MP telephoto lenses for 5x hybrid zoom. Auto framing, speaker tracking, multiple-speaker tracking and intelligent focus keep remote participants looking at the right person, and a privacy shutter covers the lens when the camera is not in use.
16-Mic Array with a 15 m Pick-up Range
The 16-microphone array picks up voices across 180° at up to 15 metres, with MAXHUB's intelligent audio fence, AEC, ANC and AGC reducing echo and background noise. Two 10 W speakers plus a 20 W subwoofer (2.1 channels) deliver clear far-end audio for small and medium meeting rooms.
50-Point Infrared Touch and Windows Ink
The 9H tempered, zero-parallax glass surface uses infrared touch with 50 touch points, ±0.5 mm accuracy and ≤2.5 ms response, supporting Windows Ink, direct annotation, palm rejection and handwriting recognition. Wireless screen sharing is built in via MAXHUB Share, Miracast, AirPlay and Chromecast, and fleets can be managed remotely with MAXHUB Pivot.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB V5550 + i5 Datasheet — Technical Specifications
General
| Product Name | MAXHUB XBoard V7 Series V5550 All-in-One Conference Interactive Touch Display with MT71E PC Module |
| Part Number | V5550 + i5 (V5550 display + MT71E i5 PC module) |
| Series | MAXHUB XBoard V7 Series |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 55" |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Panel Type | ADS |
| Backlight | DLED |
| Brightness | 350 nits (typical) |
| Contrast Ratio | 1200:1 |
| Refresh Rate | 60 Hz |
| Colour Gamut | 90% NTSC |
| Colour Accuracy | ΔE ≤ 1.5 |
| Viewing Angle | 178° (H) / 178° (V) |
| Glass | 3 mm 9H tempered glass, zero parallax |
| Lifespan | > 50,000 hours |
Touch
| Technology | Infrared |
| Touch Points | 50 |
| Response Time | ≤ 2.5 ms |
| Accuracy | ±0.5 mm |
| Minimum Recognition | ≥ 1.5 mm |
| Writing Height | ≤ 1 mm |
| Features | Windows Ink, direct annotation, palm rejection, handwriting recognition |
Camera
| Camera System | Trident: 1 x 50MP wide + 2 x 50MP telephoto |
| Wide Lens FOV | 99° DFOV / 86° HFOV |
| Zoom | 5x hybrid |
| AI Features | Auto framing, speaker tracking, multiple-speaker tracking, intelligent focus, presets |
| Privacy Shutter | Yes |
Audio
| Microphones | 16-mic array |
| Pick-up Range / Angle | Up to 15 m / 180° |
| Speakers | 2.1 channel: 2 x 10 W + 20 W subwoofer |
| Audio Processing | Intelligent audio fence, AI spatial sound, AEC, ANC, AGC |
Display Ports
| HDMI In | 2 (up to 4K@60Hz, HDCP 2.2, CEC) |
| USB Type-C In | 1 (DP 1.2, BYOD) |
| USB | 2 x USB 3.0, 1 x USB 2.0 |
| Touch USB | 1 |
| Audio | 1 x 3.5 mm in, 1 x 3.5 mm out |
| Control | RS232, RJ45 |
MT71E PC Module (included)
| Processor | 12th Gen Intel Core i5-12450H |
| Graphics | Intel UHD Graphics |
| Memory | 16GB DDR4 |
| Storage | 256GB |
| Operating System | Windows 11 Pro |
| Security | TPM 2.0 |
| PC Ports | 3 x USB 3.0, 3 x USB 2.0, 1 x HDMI out, 1 x RJ45 (1000M), 1 x mic in |
Power & Physical
| Power Supply | 100–240 V~, 50/60 Hz |
| Power Consumption | 101 W typical, 320 W max, ≤ 0.5 W standby (display) |
| Dimensions (W x H x D) | 1269.5 x 792.9 x 102.7 mm |
| Net / Gross Weight | 26.85 kg / 32.25 kg |
| VESA | 400 x 200 mm |
| Operating Temperature | 0–40 °C |
Certifications
| Safety | IEC 62368-1 |
| EMC | Class B |
| Energy | Energy Star |
Compatibility & Software Support
Conferencing Platforms
With the MT71E Windows 11 Pro module installed, the XBoard V7 runs Windows conferencing applications such as Microsoft Teams and Zoom. For a certified Microsoft Teams Rooms deployment, see the XBoard V7 T series (V555T–V925T).
Screen Sharing & BYOD
MAXHUB Share, Miracast, AirPlay and Chromecast wireless casting; USB-C in (DP 1.2) for laptop connection; optional MAXHUB wireless dongle.
Management & Control
MAXHUB Pivot device management and Microsoft Intune support; RS232 / IP control with integration for Crestron, Extron and Q-SYS control systems.
Package Contents & XBoard V7 Series Ordering Information
In the Box (display)
Power cord, 1.5 m HDMI cable, 3 m HDMI cable and 2 styluses, per MAXHUB's V5550 datasheet. The MT71E PC module is supplied with this bundle. Wall mount and mobile stand are sold separately — see the ST33M mobile trolley and EST09 motorised stand.
XBoard V7 Series Models
| Model | Size | i5 bundle | i7 bundle |
| V5550 (this listing) | 55" | V5550 + i5 | V5550 + i7 |
| V6550 | 65" | V6550 + i5 | V6550 + i7 |
| V7550 | 75" | V7550 + i5 | V7550 + i7 |
| V8650 | 86" | V8650 + i5 | V8650 + i7 |
| C9850 | 98" | C9850 + i5 | C9850 + i7 |
PC modules on their own: MT71E (i5) and MT71F (i7).
Datasheet & Downloads
| MAXHUB V5550 datasheet | XBoard V7 V5550 Datasheet V1.6 (PDF) |
| MAXHUB MT71E datasheet | PC Module MT71E Datasheet (PDF) |
| Series brochure | XBoard V7 Series Leaflet (PDF) |
| Quick start guide | V7 Series Vxx50 Quick Start Guide (PDF) |
| MAXHUB product page | XBoard V7 Series on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting V5550 + i5.
Frequently Asked Questions — MAXHUB V5550 + i5
Is a PC included?
Yes. This bundle includes the MAXHUB MT71E PC module: Intel Core i5-12450H, 16GB DDR4, 256GB storage and Windows 11 Pro, which slots into the display.
Does it have a built-in camera and microphones?
Yes — a 50MP triple-lens camera with 5x hybrid zoom and speaker tracking, and a 16-microphone array with up to 15 m pick-up, so no separate video bar is needed.
Is this the Microsoft Teams Rooms version?
This listing is the Windows all-in-one Vxx50 model. For a Microsoft Teams Rooms deployment, MAXHUB offers the XBoard V7 T series (V555T, V655T, V755T, V865T, V925T).
Can I connect my laptop?
Yes, via 2 x HDMI in, USB-C in (DP 1.2), or wirelessly with MAXHUB Share, Miracast, AirPlay or Chromecast.
Does it include a wall mount or stand?
MAXHUB's datasheet lists a power cord, two HDMI cables and two styluses in the box. Mounting is sold separately; we also offer delivery and installation — ask us for a quote.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
