Logitech Wall Mount for Video Bars
PRODUCT DESCRIPTION
Logitech Wall Mount for Video Bars (952-000044) - 2 Years Local Warranty
Logitech Wall Mount for Video Bars — A Finished Wall Installation for Rally Bar and Rally Bar Mini

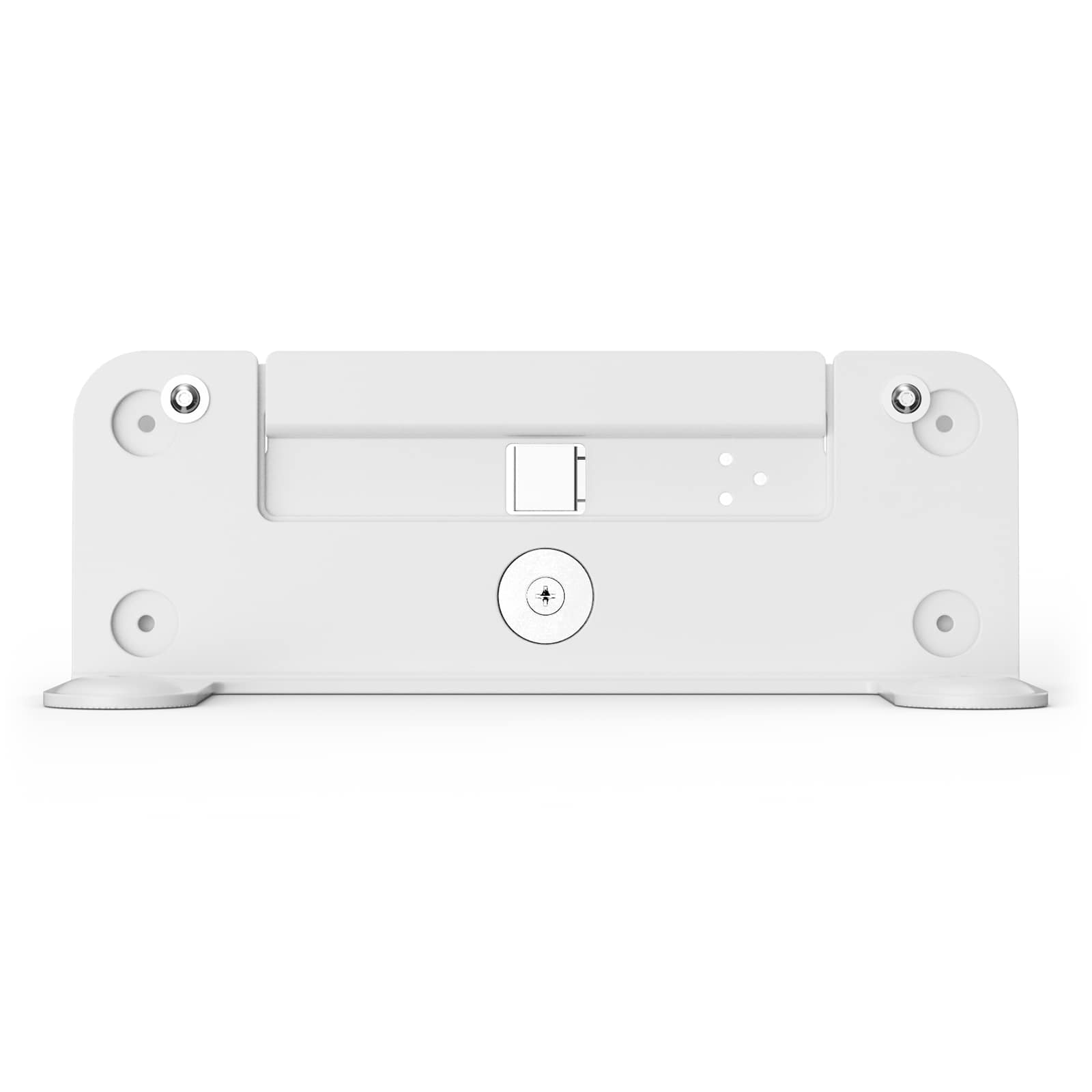

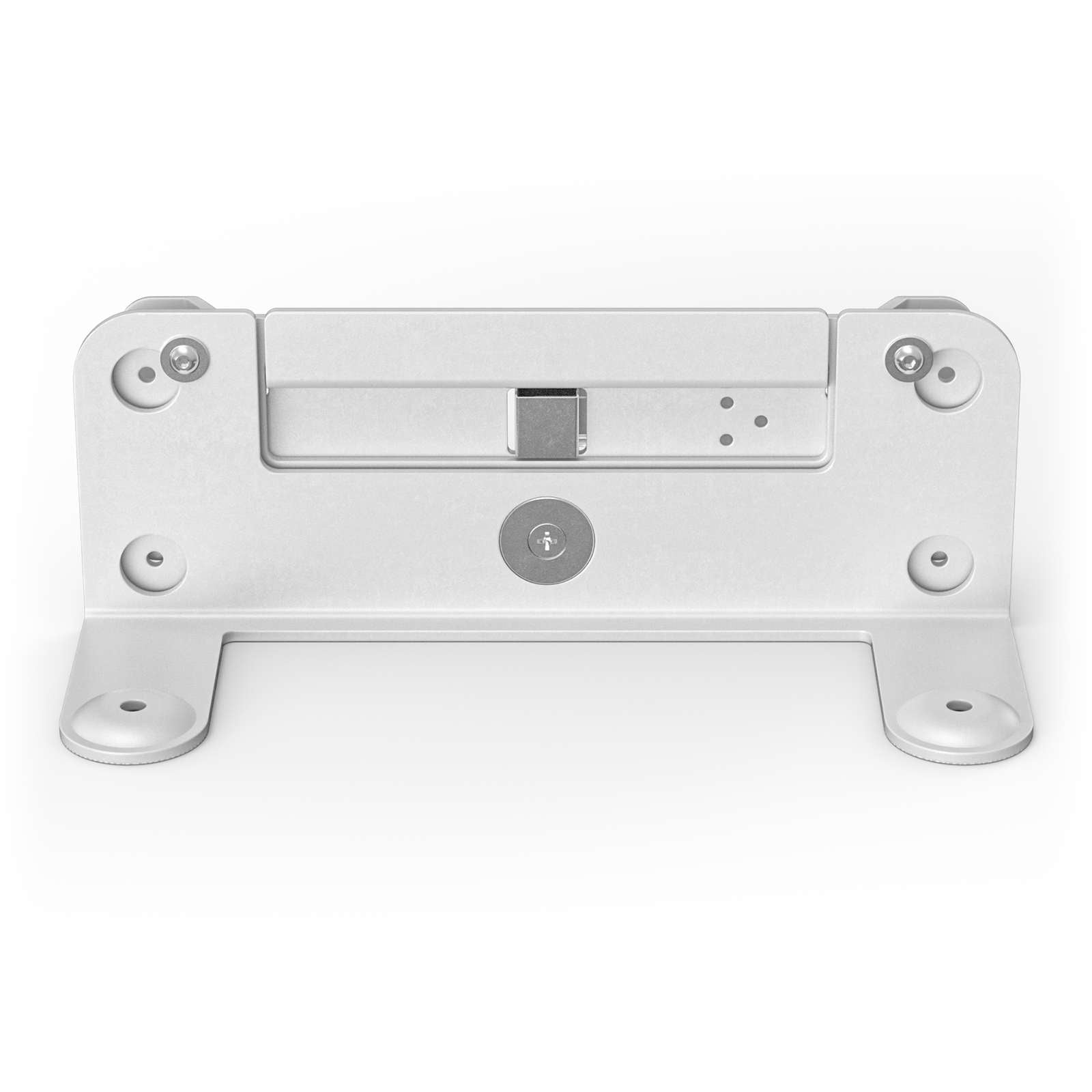

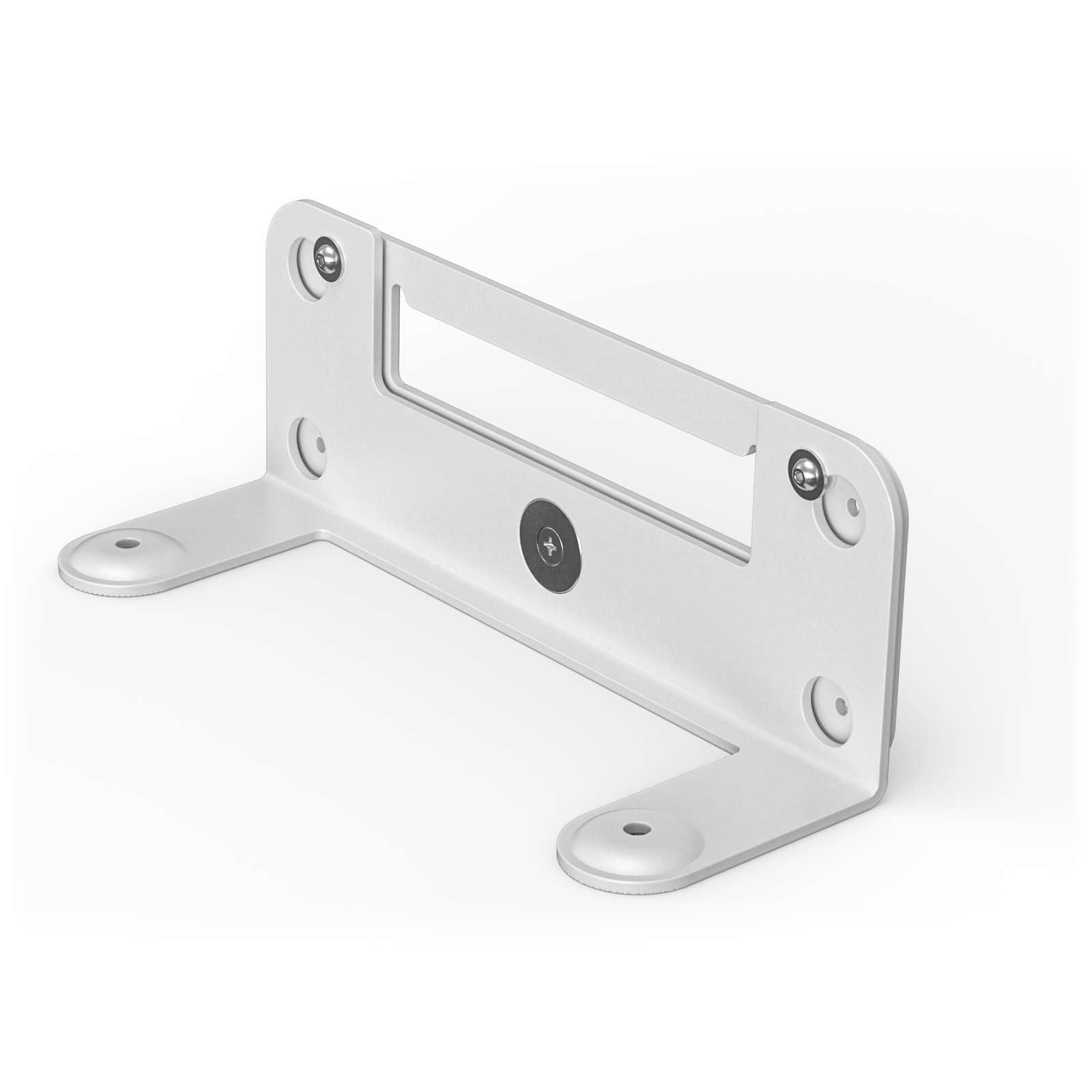

The Logitech Wall Mount for Video Bars (952-000044) is a VESA-compatible mounting kit that fixes Rally Bar or Rally Bar Mini to the wall for a finished appearance and minimal footprint. Positioning the video bar just below the display puts the camera close to on-screen faces for more natural eye contact during video meetings.
10° Tilt-Down Adapter and Precise Levelling
For elevated placement, the included 10° tilt-down adapter delivers a room-wide view at the right angle for video meetings. Built-in angle adjustment lets installers precisely align the level of the video bar with the display.
Secure Cabling and Cart-Ready VESA Pattern
The mount works with the video bar's built-in cable retention cover for a secure connection. Its industry-standard 200 x 50 mm VESA mounting pattern is also compatible with mobile carts, so the same mount can be used in fixed rooms and on mobile setups.
Logitech Wall Mount for Video Bars Datasheet — Technical Specifications
General
| Part Number | 952-000044 |
| Product series | Logitech Rally accessories — video bar mounting |
| Compatibility | Rally Bar, Rally Bar Mini |
| Warranty | 2 Years Local Warranty (Singapore) |
Mounting & Dimensions
| VESA pattern | 200 x 50 mm (also compatible with mobile carts) |
| Tilt | 10° tilt-down adapter for elevated placement |
| Levelling | Built-in angle adjustment |
| Cable management | Works with the video bar's built-in cable retention cover |
| Dimensions (H x W x D) | 100 x 236 x 84 mm |
Compatibility & Installation Notes
The Wall Mount for Video Bars is designed for Rally Bar and Rally Bar Mini in either colour. To attach a video bar to the display itself rather than to the wall, choose the Logitech TV Mount for Video Bars (952-000041), which also supports Rally Bar Huddle and Rally Camera. Rally Bar Huddle ships with its own Multi Mount for table, wall or above-display placement.
Package Contents & Rally Mounting Ordering Information

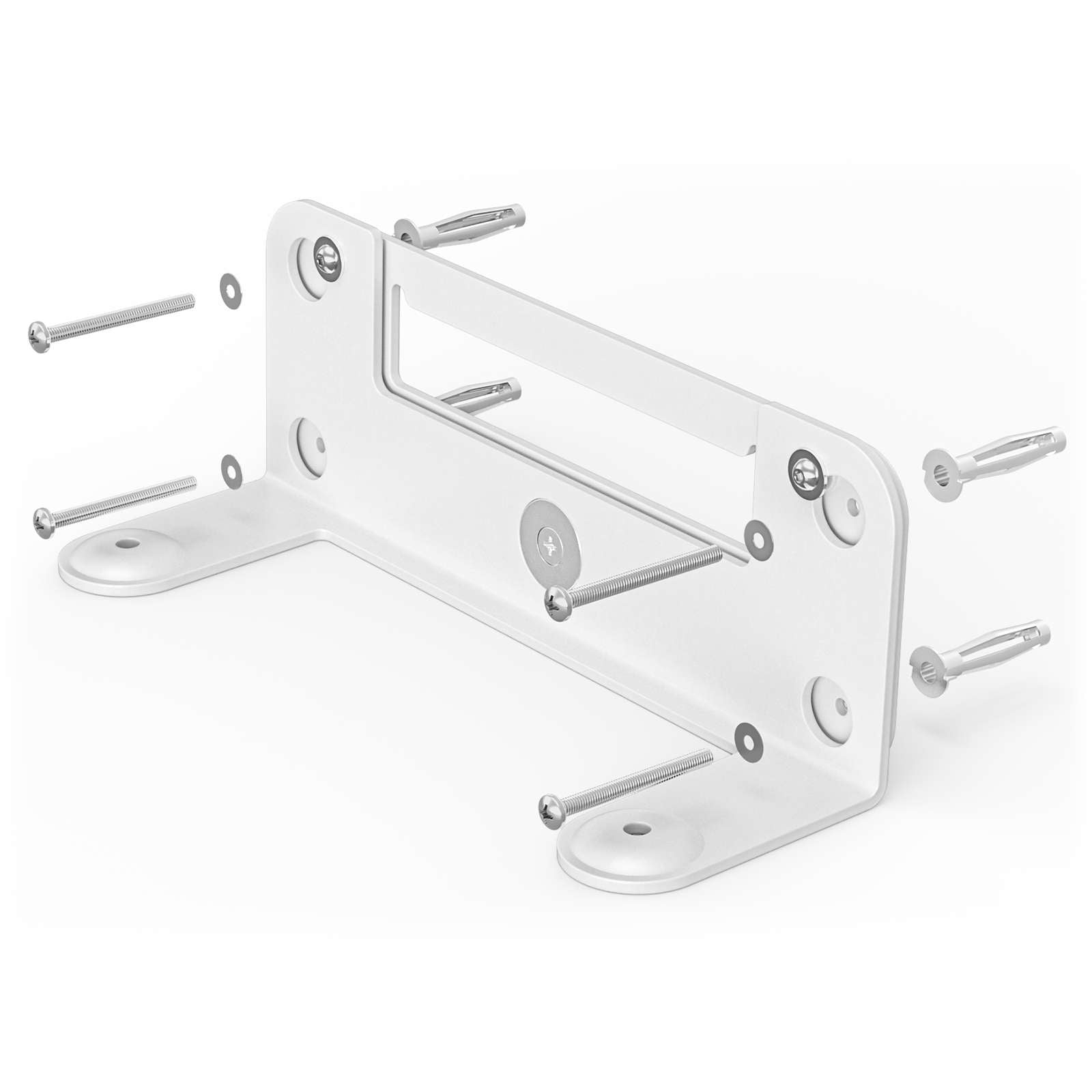

In the box: Wall Mount, tilt-down adapter, screws and documentation.
Logitech Rally mounting accessories and video bars at SourceIT:
| Model | Part Number |
| Logitech Wall Mount for Video Bars (this listing) | 952-000044 |
| Logitech TV Mount for Video Bars | 952-000041 |
| Logitech Rally Bar Graphite | 960-001312 |
| Logitech Rally Bar White | 960-001324 |
| Logitech Rally Bar Mini Graphite | 960-001340 |
| Logitech Rally Bar Mini White | 960-001352 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Wall Mount for Video Bars
Which video bars does this wall mount fit?
Rally Bar and Rally Bar Mini. For Rally Bar Huddle, use the Multi Mount supplied with the bar, or the TV Mount for Video Bars.
Can the video bar be mounted above the display?
Yes. Use the included 10° tilt-down adapter so the camera angles down towards the table when mounted above head height.
Can it be used on a mobile cart?
Yes. The mount uses an industry-standard 200 x 50 mm VESA pattern that is compatible with mobile carts.
What is the difference between the Wall Mount and the TV Mount?
The Wall Mount fixes the video bar to the wall; the TV Mount for Video Bars attaches the video bar to the display's VESA points with a swing arm, for wall- or cart-mounted displays up to 98 inches.
Does it come with a local warranty?
Yes. Every Logitech Wall Mount for Video Bars sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
